auray PBL-24 User manual

Owner’s ManualOwner’s Manual

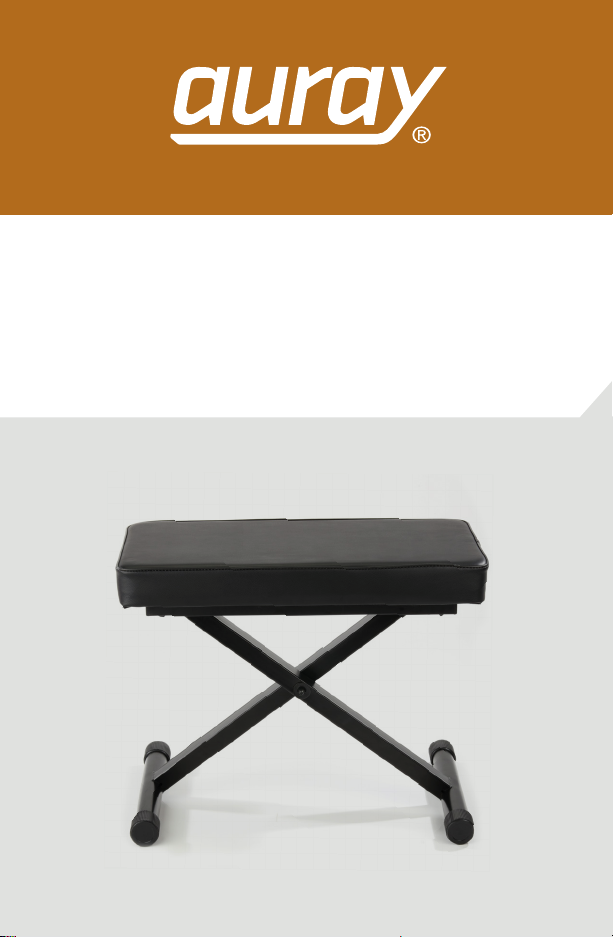

X-Style Piano Bench
PBL-24
Owner’s Manual
GG1
65 PBL-24PBL-24
Specifications
This AURAY product is warranted to the original purchaser to be
free from defects in materials and workmanship under normal
consumer use for a period of one (1) year from the original purchase
date or thirty (30) days after replacement, whichever occurs later.
The warranty provider’s responsibility with respect to this limited
warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of
this product in its intended manner and in its intended environment.
Inoperability of the product or part(s) shall be determined by
the warranty provider. If the product has been discontinued, the
warranty provider reserves the right to replace it with a model of
equivalent quality and function.
This warranty does not cover damage or defect caused by misuse,
neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR
ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty provides you with
specific legal rights, and you may also have additional rights that
vary from state to state.
To obtain warranty coverage, contact the Auray Customer Service
Department to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to Auray along with the
RMA number and proof of purchase. Shipment of the defective
product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.aurayaudio
.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
AURAY is a registered trademark of the Gradus Group.
© 2019 Gradus Group LLC. All Rights Reserved.
One-Year Limited Warranty
Height: 18.8 to 23.8 in. (47.7 to 60.4 cm)
Seat width: 12 in. (30.5 cm)
Seat length: 23.3 in. (59.2 cm)
Weight: 13.2 lb. (5.9 kg)
Cushion depth: 2.6 in. (6.6 cm)
Weight capacity: 300 lb. (137 kg)

This product has been tilt-stability tested. Auray is not
responsible for injury due to improper use. The Bench must be on
a level surface with all feet touching the surface at the same time.
• Please read and follow these instructions, and keep this
manual in a safe place.
• Make sure that this product is intact and that there are
no missing parts.
• Make sure all parts are secure before using.
• All photos are for illustrative purposes only.
Owner’s ManualOwner’s ManualOwner’s Manual
Introduction
The Auray PBL-24 X-style, foldable piano bench is a sturdy and
durable solution for keyboard players at home, in the studio, or on
the go. It adjusts to four height positions in one-inch increments,
and the 2.8-inch leather seat provides comfort through many
hours at the keyboard. The X-style construction allows the PBL-24
to fold flat for easy storage or travel, and the double spring-loaded
lock system assures fast and eortless setup.
Instructions
3 42 PBL-24 PBL-24PBL-24
Setup
1. Place the piano bench upside down on a stable surface.
2. For each leg, pull the
locking knobs toward
the center of the leg to
retract the bolts from
the locked position.
3. Align the bolts with
the desired holes in
the height adjustment
rail. When aligned,
release the locking
knobs, and the bolts
will snap into place.
4. Once both legs have been attached, tighten the locking
knobs.
5. Stand the bench upright and place it on a flat surface.
Adjusting the height
1. Turn the bench upside down, and loosen the locking
knobs on all the spring-loaded locks.
2. For each leg, pull in on the spring-loaded locks to unlock
the leg, and slide it to the desired holes on the height
adjustment rail.
3. Tighten the locking knobs.
Note: Make sure the selected holes on both height adjustment
rails correspond, or the bench will not be level.
Locking knobs 1
Double spring-loaded lock system 2
Height adjustment rails 3
Overview
1
3
2
!
Warnings

This product has been tilt-stability tested. Auray is not
responsible for injury due to improper use. The Bench must be on
a level surface with all feet touching the surface at the same time.
• Please read and follow these instructions, and keep this
manual in a safe place.
• Make sure that this product is intact and that there are
no missing parts.
• Make sure all parts are secure before using.
• All photos are for illustrative purposes only.
Owner’s ManualOwner’s ManualOwner’s Manual
Introduction
The Auray PBL-24 X-style, foldable piano bench is a sturdy and
durable solution for keyboard players at home, in the studio, or on
the go. It adjusts to four height positions in one-inch increments,
and the 2.8-inch leather seat provides comfort through many
hours at the keyboard. The X-style construction allows the PBL-24
to fold flat for easy storage or travel, and the double spring-loaded
lock system assures fast and eortless setup.
Instructions
3 42 PBL-24 PBL-24PBL-24
Setup
1. Place the piano bench upside down on a stable surface.
2. For each leg, pull the
locking knobs toward
the center of the leg to
retract the bolts from
the locked position.
3. Align the bolts with
the desired holes in
the height adjustment
rail. When aligned,
release the locking
knobs, and the bolts
will snap into place.
4. Once both legs have been attached, tighten the locking
knobs.
5. Stand the bench upright and place it on a flat surface.
Adjusting the height
1. Turn the bench upside down, and loosen the locking
knobs on all the spring-loaded locks.
2. For each leg, pull in on the spring-loaded locks to unlock
the leg, and slide it to the desired holes on the height
adjustment rail.
3. Tighten the locking knobs.
Note: Make sure the selected holes on both height adjustment
rails correspond, or the bench will not be level.
Locking knobs 1
Double spring-loaded lock system 2
Height adjustment rails 3
Overview
1
3
2
!
Warnings

This product has been tilt-stability tested. Auray is not
responsible for injury due to improper use. The Bench must be on
a level surface with all feet touching the surface at the same time.
• Please read and follow these instructions, and keep this
manual in a safe place.
• Make sure that this product is intact and that there are
no missing parts.
• Make sure all parts are secure before using.
• All photos are for illustrative purposes only.
Owner’s ManualOwner’s ManualOwner’s Manual
Introduction
The Auray PBL-24 X-style, foldable piano bench is a sturdy and
durable solution for keyboard players at home, in the studio, or on
the go. It adjusts to four height positions in one-inch increments,
and the 2.8-inch leather seat provides comfort through many
hours at the keyboard. The X-style construction allows the PBL-24
to fold flat for easy storage or travel, and the double spring-loaded
lock system assures fast and eortless setup.
Instructions
3 42 PBL-24 PBL-24PBL-24
Setup
1. Place the piano bench upside down on a stable surface.
2. For each leg, pull the
locking knobs toward
the center of the leg to
retract the bolts from
the locked position.
3. Align the bolts with
the desired holes in
the height adjustment
rail. When aligned,
release the locking
knobs, and the bolts
will snap into place.
4. Once both legs have been attached, tighten the locking
knobs.
5. Stand the bench upright and place it on a flat surface.
Adjusting the height
1. Turn the bench upside down, and loosen the locking
knobs on all the spring-loaded locks.
2. For each leg, pull in on the spring-loaded locks to unlock
the leg, and slide it to the desired holes on the height
adjustment rail.
3. Tighten the locking knobs.
Note: Make sure the selected holes on both height adjustment
rails correspond, or the bench will not be level.
Locking knobs 1
Double spring-loaded lock system 2
Height adjustment rails 3
Overview
1
3
2
!
Warnings
