AUSRANVIK APR-50B Installation instructions


1
Features 2
Safety instructions 2
3-4
Trouble Shooting 5
Food storage 5
Defrosting 6
Care and cleaning 6
Technical Specification 7
Disposal 7

2
1. Features:
High efficiency DC inverter compressor and conversion module with high reliability
and long life.
Fluoride-free insulation with good insulation and low energy consumption.
12/24VDC and 110~240VAC power supply, usable in the car or at home.
Compressor delay protection.
Quick cooling to -4°F (based on 78°F ambient temperature).
Intelligent car battery protection system.
Dual door opening direction.
Wide range electronic temperature control.
2. Safety instructions
Do not allow children to play with the refrigerator. Climbing in or standing on
top of the refrigerator is strictly prohibited.
It is strongly recommended to clean the unit the first time you use it even though
it was thoroghly cleaned before packing in the factory. Use soft cloth dampened with warm
water mixing a little neutral degergent to clean it, and wipe it with dry soft cloth.
Electrical parts can be wiped by dry cloth only. Do not attempt or continue to
operate your unit if it is wet.
The Installation of the DC power source in the boat should be handled by a the
qualified personnel.
Make sure the voltage is within the correct range for socket and cable being used. Refer to
the rating label on the side of the refrigerator for the technical specification.
Don’t place any other electrical device or apparatus into the refrigerator.
During transportation, slope less than 45 degree and handle it carefully.
Pleas place the refrigerator level up, leave at least 8'' at the back and 4'' at each side for
ventilation.
Don't place the refrigerator nearby a hear source such as a stove, flue etc. Don't leave it
under direct sun-shine.
Don't make it slope more than 30 degree from the level during its working.
Don't pour water out by turning it up side down, always use dry cloth or sponge to absorb
the water when necessary.
With the refrigerator in the car, please remember to place it in the trunk if there is any
alcoholic beverage or drink is stored in the unit.

3
3. Operation
3.1 Power supply: 12/24V DC or 110~240V AC (enclose adapter).
3.2 Power cable connection:
3.3 Control Panel Operation
3.3.1 Connect to the power supply, the compressor protection program will delay the
compressor from working in the first three minutes, during this three minutes, the indicator is
RED, and the display is on and you can set the temperature, or working mode, or car battery
protection level according to your desire. You can also long press ON/OFF button to turn off
the refrigerator, it will not start working until you long press the ON/OFF button again (and still
you need to wait three minutes for the compressor to kick in).
3.3.2 The compressor starts to work three minutes after connecting to the power supply, and
the refrigerator interior starts to cool down.
3.3.3 Factory default working mode is MAX (fast cooling), indicator in RED color, default
battery protection level is “High”.
3.3.4 Press UP or DOWN button lightly to set your desire temperature. When setting
temperature, the digit number keeps flashing; three seconds without any operation, the digit
number stops flashing and resume to read the real temperature interior.
3.3.5 Press SET button lightly to switch the default MAX mode to ECO mode. Every time you
press SET button lightly you will switch between MAX and ECO mode. MAX mode means
Fast Cooling, and it will consume a lot of energy from battery; ECO mode means energy
saving, it will not consume a lot of energy but it can not reach your desire temperature fast. In
Max mode, the indicator light is RED color, in ECO mode, the indicator light is GREEN light.
3.3.6 Press SET button and UP (or Down) button at the same time, you will switch the
battery protection level between H, M and L.

4
3.3.7 Long press SET button for 6 seconds, the display will start flashing E1 code, when E1
keeps flashing you press SET button again the code will switch from E1, E2, E3, E4, E5, F1,
F2, F3 and F4. When staying in a specific code you can press UP or DOWN button to
change the parameter according to your need. Every codes represents something you can
calibrate by yourself, and here below is what it means by each code:
(Note: F4 is after F3 code, but it will not display F4 wording, instead the digit number keeps
flashing).
3.3.8 How to resume to factory default setting: In E1 code (see 3.3.7), press UP and DOWN
button at the same time for 6 seconds, the digit number will read 888, 6 seconds later it will
resume to the factory default setting.
Code
Setting
Default
Value
Range
Details
E1
To calibrate the
temperature
lower range
-20°C
-40°C
The default lowest temperature you can set is -20°C,
maximum you can set it to be -40°C, which means after
you reset this value, you can select your desire
temperature lower than -20°C (lowest -40°C), the
compressor will not stop running until the interior
temperature goes to -40°C.
E2
To calibrate the
temperature
upper range
10°C
40°C
Same principle as E1
E3
Compressor OFF
Temperature
1°C
1~10°C
In default value 1°C, assuming you set the temperature to
be 5°C, when the temperature gets to 4°C (1°C lower
than 5°C), the compressor will shut off automatically; if
you change the value to be 2°C, the compressor will shut
off when temperature gets to 3°C (2°C lower than 5°C)
E4
Compressor
KICKS IN
temperature
1°C
1~10°C
In default value 1°C, assuming you set the temperature to
be 5°C, when the interior temperature rise up to 6°C (1°C
higher than 5°C), the compressor will resume to run; if
you change the value to be 2°C, the compressor will
resume to work when the interior temperature rise up to
7°C (2°C higher than 5°C).
E5
Compressor
retardation time
3 minutes
1~10
minutes
In default value, if you plug the refrigerator to the electric
power source, the compressor will wait 3 minutes before
running. You can change the time from 1 to 10 minutes
according to your need.
F1
Temperature
Display Calibrate
(for 0 ~ -6°C)
0°
-5 ~ 5°C
If you find the displaying temperature does not match the
real temperature, you can calibrate the temperature
display within the range. For example if the real
temperature is 2°C but it displays 0°C, you can change
the parameter to be 2°C, then the display will read 2°C
instead of 0°C.
F2
Temperature
Display Calibrate
(for -6 ~ -12°C)
0°
-5 ~ 5°C
Same as F1. Between -6 ~ -12°C, for example, the real
temperature is -6°C but it displays -8°C, you can change
the parameter to be 2°C, then the display will read -6°C
instead of -8°C.
F3
Temperature
display Calibrate
(for below -12°C)
0°
-5 ~ 5°C
Same as F1. For temperature below -12°C, for example if
the real temperature is -14°C but it displays -16°C, you
can change the parameter to be 2°C, then the display will
read -14°C instead of -16°C.
F4
Celsius to
Fahrenheit
°C
Switch between °C and °F.

5

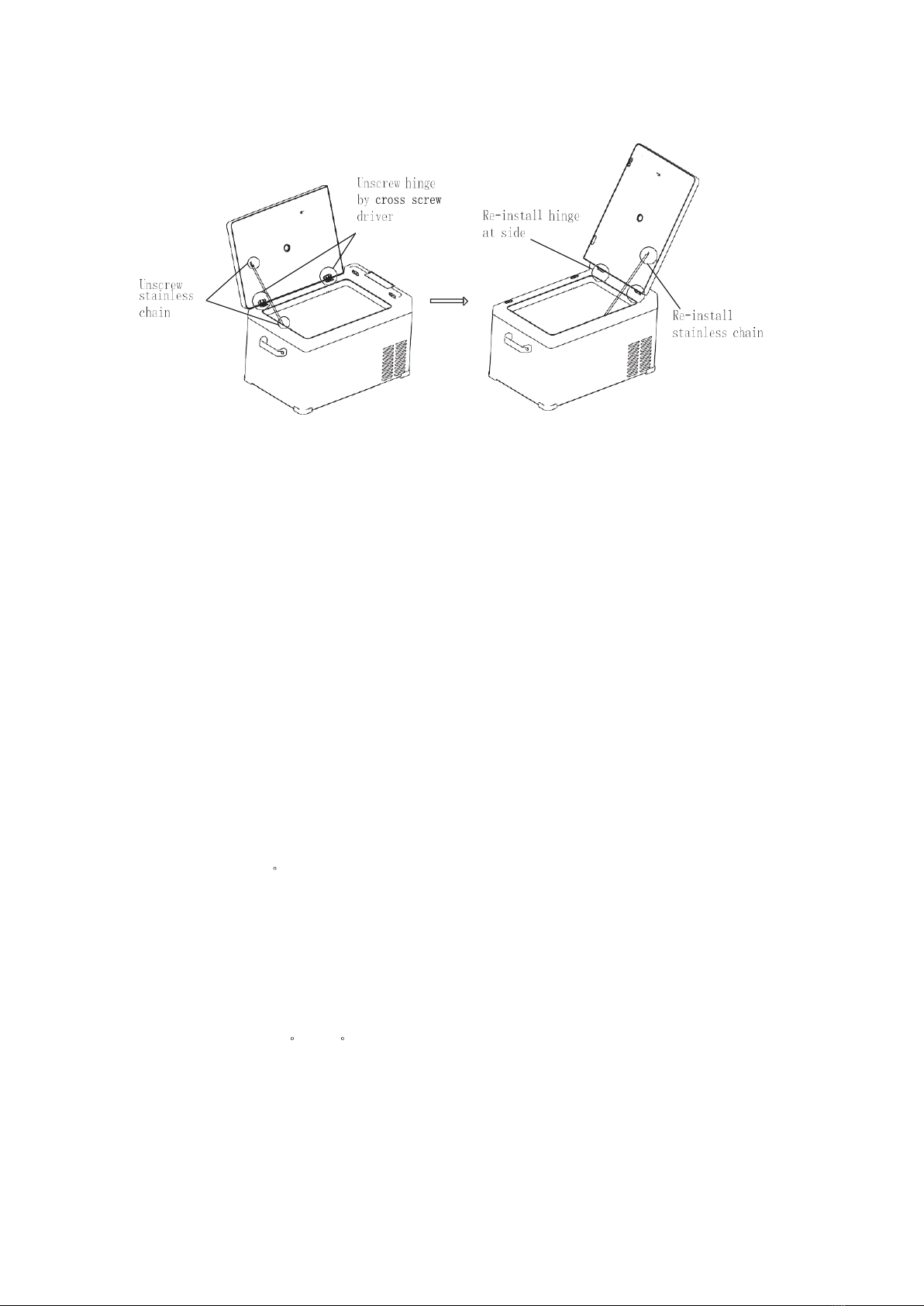

3. 4 Adjust the door opening:
a. Take down the stainless chain by a screwdriver
b. Take down the two hinges
c. Install the two hinges on the other side between the door and the tank.
d. Install the stainless chain on the other size between the door and the tank.
4. Trouble Shooting
The appliance is out of working:
——Check the power supply connection
——Check whether the plug and the socket have a good connection.
——Check whether the fuse has been burned out.
——Check whether the appliance is turned on (press the On/Off button for 3 seconds)
——Whether the compressor is in delay start protection when the appliance is starting
up.
The food inside is frozen:
——The setting temperature is too low.
There is sound of water flow coming from the refrigerator
——It is normal, the sound is caused by the refrigerant circulation.
5. Food storage
Freezer ( - 4 F )
——Meat should be cut and wrapped tightly, and then evenly placed in the freezer.
——After buying frozen food, put it in the freezer as soon as it is still in frozen condition.
——Do not put the fresh food and frozen food together.
——Do not put the fruit and vegetable in the freezer to avoid freeze-drying.
——Do not put the glass container or other container with sealed liquid in freezer. Or
there is a possibility of explosion.
Refrigerator ( 32 F ~ 50 F)
——Eggs,butter,milk and bottled drinkse should be put in refrigerator.
——Fruit and vegetable should be put in the crisper for moisture retaining.
——Hot food should be cooled down before it’s placed in, which could help to save power.
——Food must be packed into freezer bags. Leave space between packaged foods to
keep the circulation of cool air.

6
6. Defrosting
■ After the refrigerator working for a period, frost could be seen on surfaces in the freezer,
which reduces cooling performanceand increases power consumption. In this case, you
need to defrost it.
■ Unplug the refrigerator and open the doors, take the food in the refrigerator to cool place.
Use defrosting shovel to remove ice and frost (also can just let the door open, then ice and
frost will be thawed by the raising temperature). Then use dishtowel to wipe off the ice
water. After that, place the food back to the refrigerator and plug in.
Note: Do not use sharp metal tools to defrost, you will possibly break the coil by doing
so.
7. Care and cleaning
Unplug the refrigerator before cleaning!
■Use soft cloth dampened with warm water to wipe the inner surfaces and external
appearance of the refrigerator.
■Use neutral detergent to clean the heavy stains, and dry with clean soft cloth.
■For long vacation or absences, remove food and unplug the refrigerator. Clean the
refrigerator and leave the doors open a little. Then place the refrigerator in ventilated
place.
NOTE: Do not sprinkle water on the refrigerator during cleaning because that would
reduce the insulating property of electrical components and erode the metal parts.
■Do not use cleansers containing corrosive and deliquescent material ( such as
scouring powder, bleach, soap powder, alkaline cleansers, benzene, gasoline, acid,
hot water and etc.) to clean the appearance panels, door gaskets and plastic
parts.Following situations are normal
■The flow of refrigerant through the evaporator may create a boiling or gurgling sound.
■In the raining and high humidity weather, moisture may form on the outside of
refrigerator or door gaskets. You can wipe damp surfaces with dry cloth.
■The temperature on the back panel may be high (particularly in summer) due to heat
emission of the condenser.
■The temperature on external surface of the compressor may be high when compressor
is working.
■The compressor may cause a high hum or pulsating sound when it is at starting or
stopping step.
■It's normal to hear metal hit noise from compressor when refrigerator is bumped.

7
8. Technical Specification
MODEL
APR-50B
CLIMATIC CATEGORY
T/ST/N/SN
PROTECTIVE CLASSIFICATION OF ELECTRIC
SHOCK RESISTANCE
Ⅲ
RATED VOLTAGE DC (V)
12/24V
DC FUSE (A)
15A
TOTAL INPUT POWER (W)
45W
RATED CURRENT FOR DC(A)
3.7/1.8A
REFRIGERANT (oz)
1.2 oz
N.W (lbs)
35.2 lbs
9. Guidelines for protection of the environment
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
Meaning of crossed-out wheeled dustbin: Do not dispose of electrical
appliances as unsorted municipal waste. Use separate collection
facilities.
Contact your local government for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the
food chain, damaging your health and well-being.
For customer service or any questions
relating to the product, please call our toll
free number 1-888-732-2220 or send an
email to service@ausranvik.com.
Table of contents
Other AUSRANVIK Refrigerator manuals
Popular Refrigerator manuals by other brands

Danby
Danby DAR452 owner's manual

Frigidaire
Frigidaire FFHT2117LB Product specifications

Indel B
Indel B TB 20 BT Instructions for use

Samsung
Samsung RS20V Series User manual and installation instructions

Hisense
Hisense BCD-440 User's operation manual

Samsung
Samsung RS2533SW Owner's manual and installation
