Aussie Vantage 6703T8DV31 Mounting instructions

For Outdoor Household Use Only. Not for Commercial Use.
Need Help? Need to Register Your Grill? Looking for Aussie Parts & Accessories?
Visit us online at www.AussieGrills.com Or call Aussie Customer Service at 1-800-251-7558
• Failure to follow these instructions could result in
fire or explosion which could cause death, serious
personal injury, or property damage.
• Read and follow instructions carefully before
assembly or use.
• Do not use this product for any other purpose than
which it is intended.
• These instructions must be kept with the user.
SAVE THESE INSTRUCTIONS.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appli-
ance and immediately call your gas supplier or
your fire department.
WARNING DANGER
!!
LP Gas Grill Assembly and Use Manual
6703T8DV31
6703T80K81
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
!
6704T99K91
With the NEW Aussie
FLAVOR ACTIVATOR SYSTEM
(Patent Pending)
Provides:
- More even heat on the cooking surface
- Hotter temperature with the same fuel usage
- Longer cooking for the same amount of fuel

2
NOTICE
Meco Corporation strives to be a quality supplier of consumer products. If we omitted
any parts needed for assembly, or you need troubleshooting information, please
contact us using our toll free number or visit our web site.
It is important to register your grill and retain your receipt.
1-800-251-7558
8 am - 5 pm E.S.T. Monday - Friday
1-423-639-1171 (Telephone)
1-423-639-2570 (Fax)
Consumer Service Department
MECO CORPORATION
1500 Industrial Road
Greeneville, TN 37745 USA
www.aussiegrills.com
Phillips Screwdriver
Tools Required for Assembly (Supplied with Grill):
DANGER
!
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor. Using it in an enclosed space can kill
you. Never use this appliance in an enclosed space,
such as a camper, tent, car, or home.
To reduce the risk of serious bodily injury or death from fire or explosion:
• Never use alcohol, prescription or non-prescription drugs while assembling or safely operating this appliance.
• Do not connect LP Gas Cylinder until assembly is complete except as noted for “first time use” leak test as de-
tailed on pages 16-17.
WARNING
!
To reduce the risk of a laceration hazard, wear protective gloves when handling parts that have sharp edges.
To reduce the risk of bodily injury from lifting, assembly will require two people.
CAUTION
!

3

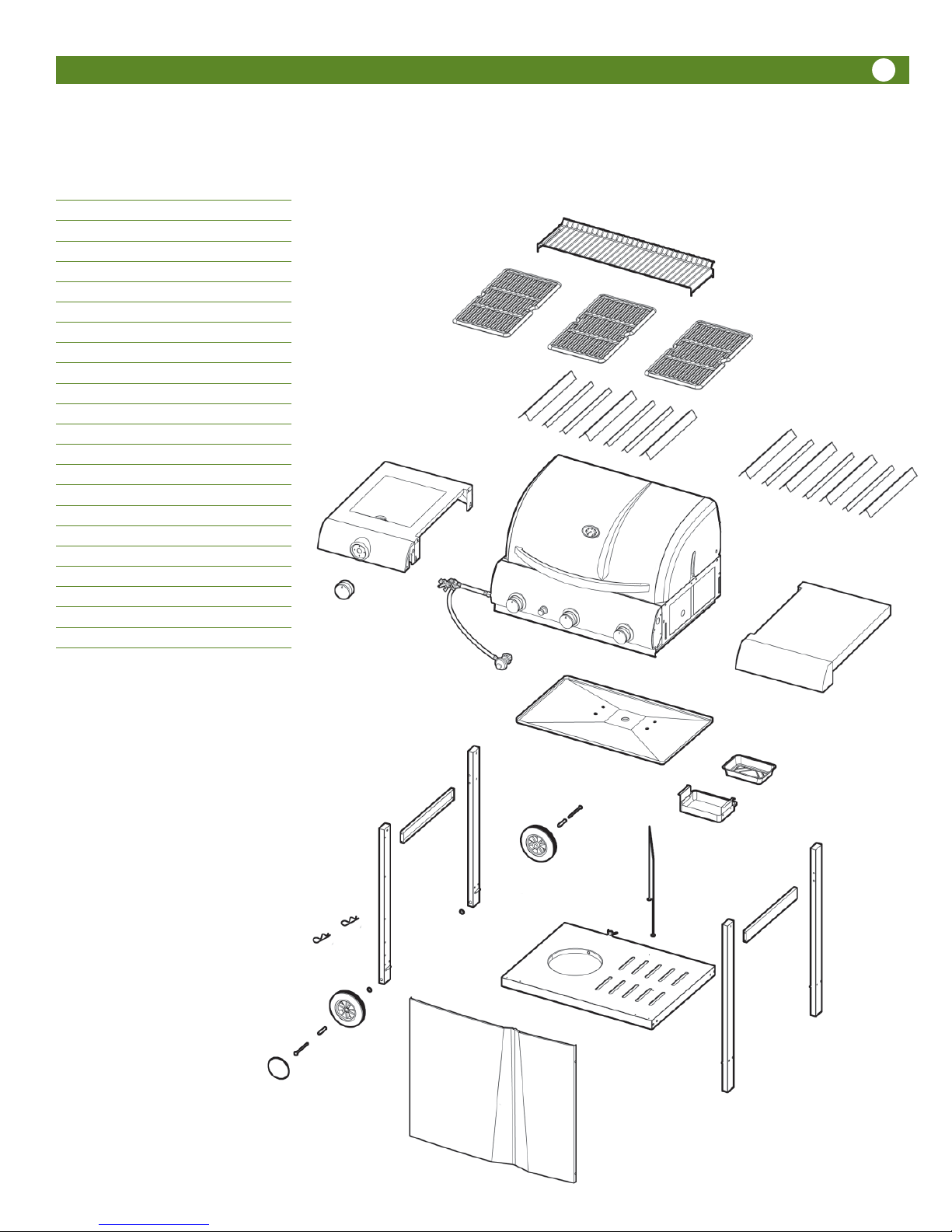

Packing List
6704 Flavor Activators
4 Large - 3 small
6703 Flavor Activators
3 Large - 4 small
When ordering parts, it is VERY important to have
the complete Model Number to be assured of
receiving the correct replacement parts for your grill.
Description
Warming Rack
Cooking Grid, 3 pcs.
Large Flavor Activator, see note.
Small Flavor Activator, see note
Left Side Shelf with Side Burner
Side Burner Control Knob
Hood/Body - 6703 (3-burner) OR
Hood/Body - 6704 (4-burner)
Right Side Shelf
Bottom Body Panel
Grease Pan
Foil Pan
Back Leg- Left
Side Braces, 2 pcs.
Front Leg- Left
Cart Bottom Panel
Cylinder Blocking Wire
Back Leg- Right
Front Leg- Right
Wheels, 2 pcs.
Wheel covers, 2 pcs.
Steel Privacy Panel
Hardware Package
Detailed Parts List and Illustrations may
be found on pages 34 & 35.
NOTE: Appearance of parts may vary
slightly from illustration for different
Models.

4
Contents
Packing Lists ................................................................3
Preparation for Assembly ..........................................4
Assembly Instructions
Step 1 Left Leg Frame Assembly ...............................5
Step 2 Left Leg Frame Assembly ...............................5
Step 3 Cart Frame Assembly.....................................6
Step 4 Wheel Assembly ............................................6
Step 5 Fabric Privacy Panel Assembly .......................7
Step 6 Cylinder Blocking Wire Assembly ................... 7
Step 7 Hood/Body To Cart Assembly ........................ 8
Step 8 Side Table Assembly ......................................9
Step 9 Side Burner Valve Assembly......................... 10
Step 10 Side Burner Igniter Wire Connection............ 10
Step 11A Side Burner Control Knob Assembly ............ 11
Step 11B Side Burner Grid Assembly .......................... 11
Step 12A Bottom Body Panel Assembly ....................... 11
Step 12B Foil Pan/Grease Pan Assembly..................... 11
Step 13A Warming Rack Assembly.............................. 12
Step 13B Flavor Activator Assembly ............................ 12
Step 13C Cooking Grid Assembly ............................... 12
Step 14 Battery in Igniter Installation........................ 12
Connecting/Disconnecting the Gas
Using Gas .................................................................. 13
LP Gas Cylinder .......................................................... 13
LP Hose & Regulator ................................................... 14
Connecting LP Gas Cylinder ....................................... 14
Disconnecting LP Gas Cylinder ................................... 14
Before Using Your Grill
Installation Codes....................................................... 15
Selecting a Location ................................................... 15
How to Perform a Leak Test........................................ 16
Lighting Grill Using the Pulse-Spark Ignitor ................ 18
Manually Lighting the Grill .........................................20
Lighting the Side Burner ............................................. 21
Check the Flame ........................................................ 21
Manually Lighting the Side Burner ..............................22
Cooking on the Gas Grill
Grill Cooking (Direct Method)..................................... 23
Roasting (Indirect Method).......................................... 24
Warming Rack ............................................................25
End of Cooking Session ..............................................25
Care and Maintenance
Cleaning the Grill ....................................................... 26
How to Clean the Burners ..........................................27
Storage .................................................................... 29
Emergencies ............................................................30
Troubleshooting.......................................................30
Important Notice- LP Cylinder with OPD ...............32
Replacement Parts
Parts Illustrations ........................................................34
Parts List ...........................................................................35
Limited Warranty.......................................................36
Register your grill and retain your receipt.

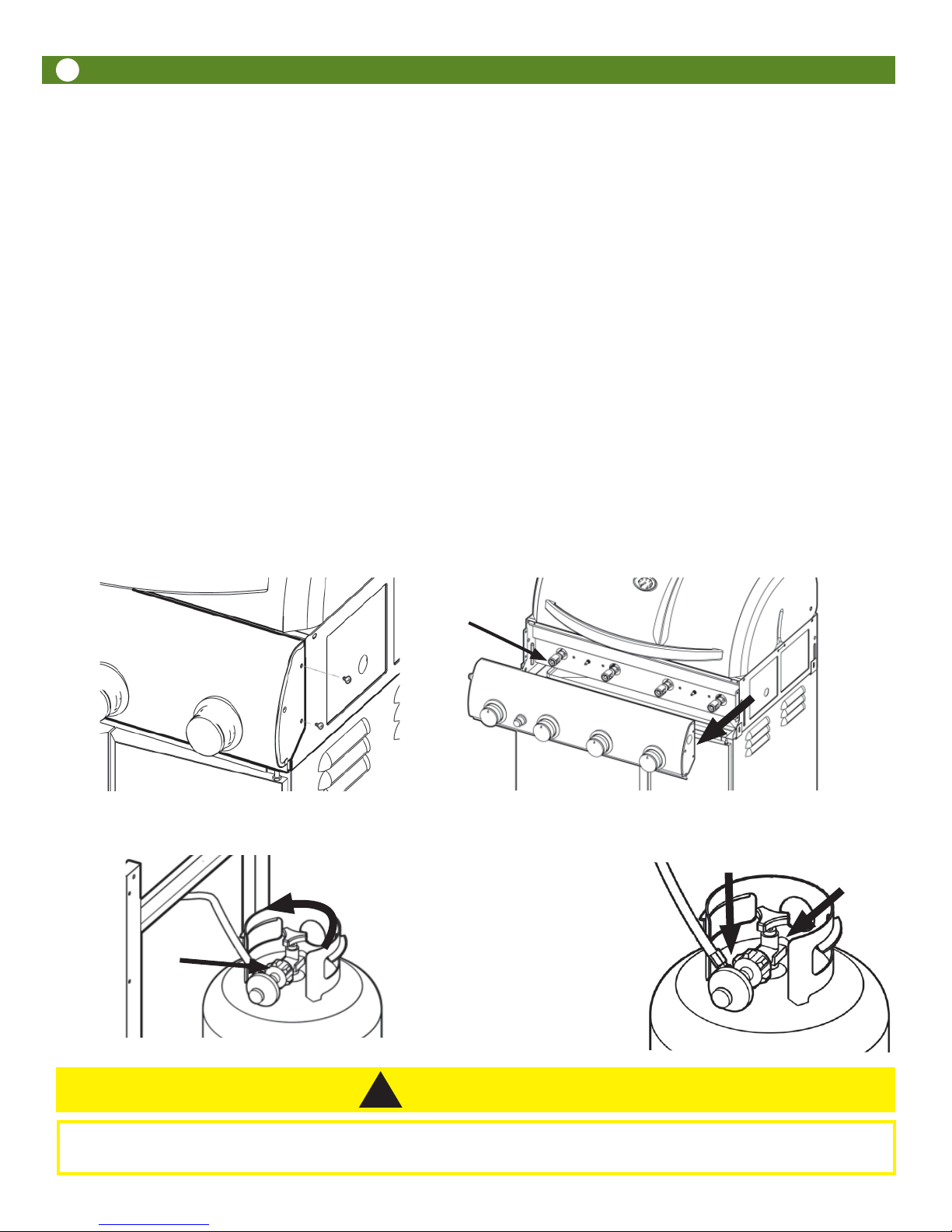

Preparation for Assembly
Remove grill and all the packaging from carton and place on floor. Make sure there are no loose parts.
NOTE: Before using your grill, read the instructions and your manual.
For easier set-up and assembly, follow instructions of each step in the order they are written as you look at the dia-
grams. If accessories mentioned in certain assembly steps do not come with your model, skip that step and proceed to
the next step that applies to your model.
If you have any questions or need help, contact Customer Service at 1-800-251-7558 or go to www.aussiegrills.
com. Be sure to have the grill model number and serial number printed on the black label located on the back edge of
the bottom shelf of the cart. If you need replacement parts, look in the Parts List Section to find the exact parts you
need. If you need a replacement part under warranty, a proof of purchase will be necessary. You will be
asked to forward your proof of purchase via e-mail or to fax your proof of purchase to 423-639-1055 and reference
your model and serial number. It is important to register your grill and retain your receipt.

5
Assembly Instructions
Step 1
Left Leg Frame Assembly
Identify Legs by hole placement and lay on floor as shown. Attach Brace between legs with four 5/32 x .31” Bolts, open
side of brace facing up. Closed, flat side of brace will be flush with outside of legs.
Step 2
Right Leg Frame Assembly
Repeat Step 1 for Right Leg pair. Right legs are longer and have no axle hole at bottom.
Left Front leg-
Note hole locations
5/32 x .31” Bolt set
4 pc
5/32 x .31” Bolt set
4 pc Right Front leg-
Note hole locations

6 7
Step 3
Cart Frame Assembly
Attach Left Leg Frame and Right Leg Frame to Cart Bottom Panel with eight 1/4-20 x 1.50” Bolts. Fit one Frame onto
Bottom Panel at a time and insert the 1.50” bolts through the Legs into the sides of the Bottom Panel. Tighten all
securely.
1/4-20 x 1.50” Bolt set
8 pc
Step 4
Wheel Assembly
Attach the Wheel by first inserting the Axle through the Wheel then the Axle through the Leg. Place the Washer on the
end of the Axle extending out of the opposite side of the Leg. Secure all in place by inserting the Cotter pin through the
hole in the end of the Axle. Snap the Wheel Cover onto the Wheel.
Wheel Cover
Axle
Wheel
Axle Pin
Washer

7
Step 6
Cylinder Blocking Wire Assembly
Attach Cylinder Blocking Wire Cabinet Bottom with two 5/32 x .47” Bolts.
Step 5
Steel Privacy Panel Assembly
Attach the Steel Privacy Panel between the Front Legs with four 5/32” x .31” bolts through the flanges of the Panel
into the threaded holes on the inside of the Legs. The bottom center of the Panel attaches to the Bottom Panel with
one 5/32” x .31” bolt
5/32 x .47” Bolt
2 pc
To reduce the risk of serious bodily injury or death from fire or explosion:
Never remove guards or devices to prevent storage of spare or oversize LP Gas Cylinders not recommended for this grill.
WARNING
!
5/32 x .31” Bolt set
5 pc

8
To reduce the risk of bodily injury from lifting, the following assembly steps #s 7 and 8 will require two people.
CAUTION
!
Step 7
Hood/Body To Cart Assembly
Lift the Hood/Body Assembly over the cart assembly and set it down until it rests on the top of the cart legs.
Align the holes in the side of the Body with the holes in the legs. Insert two 1/4-20 x .50 Bolts through the holes in the
firebox flanges (Back Left Side View) and into threaded inserts in the inside face of the back legs. Insert two 1/4-20
x 1.50 Bolts through the holes in the front legs (Right Side View) and into threaded inserts in firebox flanges. Tighten
after all are installed.
Right Side View
1/4-20 x .50” Bolt set
2 pc
Back
Left Side View
1/4-20 x 1.50” Bolt set
2 pc

9
Step 8
Side Table Assembly
A. Screw two 1/4-20 x .50” Bolts into the two bottom threaded inserts on the outside of the Bowl. Do not screw Bolts
all the way. Leave 1/8” of each Bolt exposed.
Align the bottom two holes (“keyhole slots” in detail) on the inner side of the LEFT Side Table with the two bolts thread-
ed partly into the inserts in the Side of the Bowl then slide the Side Burner Table over the Bolts.
B. Holding the Side Burner Table in place, install two 1/4-20 x .50” Bolts from the inside of the Bowl into the two top
threaded holes in the Side Table.
C. From under the Side Table, install one 5/32 x .31” bolt through the Side Table end into the side of the Bowl.
Repeat this assembly for the RIGHT Side Table. Tighten all bolts.
1/4-20 x .50” Bolt set
8 pc
Prior to performing any further assembly, PERFORM “FIRST TIME USE” LEAK TEST
as detailed on pages 16-17.
If the grill is fully assembled before performing the First Time Use leak test, the side tables will need to be removed in order to perform the
leak test on the main burner valves inside the control panel, behind the knobs, .
CAUTION
!
5/32 x .31” Bolt set
2 pc
5/32 x .31” Bolt
A
Keyhole Slots
B
C

10

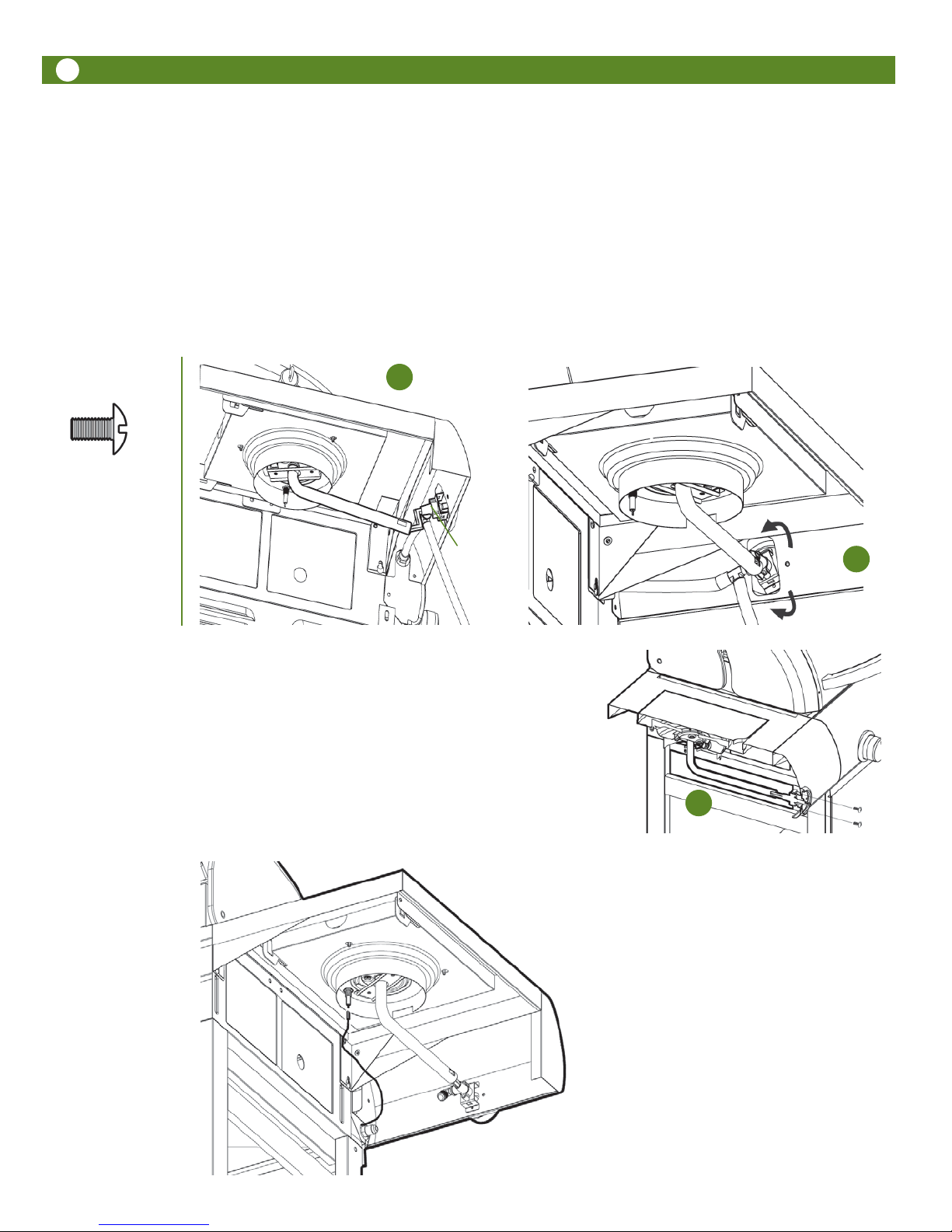

Step 9
Side Burner Valve Assembly
NOTE: Side Burner Valve is already attached to the regulator hose. Hose is not shown in illustration for clarity.
A. Install the Side Burner Valve from underneath the LEFT Side Table. First insert the valve stem out through the hole in
the bezel and fascia on the front of the side table. Next, flex the tube of the burner down and insert the nozzle into the
opening in the burner tube.
B. Install two 5/32” x .31” Bolts through the Control Knob Bezel and front of Side Table and into the threaded Valve
bracket holes. Install the top bolt first by twisting the valve/bracket to align only the top holes. Do not tighten completely.
Next, twist the valve/bracket to align the bottom holes and install the second bolt. Tighten both bracket holes.
B
Step 10
Side Burner Igniter Wire Connection
The Side Burner Igniter Wire is pre-installed and connected to the Igni-
tion Box. Attach the wire to the Side Burner electrode by sliding the wire
connector onto the electrode terminal.
Underside view of
Side Table/Side Burner
Note:
Shown without Regulator
Hose for clarity.
Valve
A
5/32 x .31” Bolt
2 pc
B
Top First
Bottom Second

11
Step 11
A. Side Burner Control Knob Assembly
Align the flat keyed hole in the Control Knob with the keyed stem of the Side Burner Valve. Push the Control Knob onto
the Side Burner Valve stem.
B. Side Burner Grid Assembly
Place the Side Burner Grid onto Side Burner Table, allowing the three protruded ends to fall into the three holes around
the Side Burner.
BA
Step 12
A. Bottom Body Panel Assembly
Slide the Bottom Body Panel into the guides of the Body assembly. Secure Bottom Body Panel to Body assembly with
one 5/32 x .47” Bolt and nut on each side.
B. Foil Pan/Grease Pan Assembly
Insert the Foil Pan into the Grease Pan. Slide the Grease Pan into the guides
under the Bottom Body Panel.
5/32 x .47” Bolt
and Nut
2 pc
B
A

12
To reduce the risk of a laceration hazard:
• Wear protective gloves when installing warming rack. Hood and Bowl edges could be sharp.
CAUTION
!
Step 13
Warming Rack / Flavor Activator / Cooking Grid Assembly
A. Insert Warming Rack leg ends into holes on top edge of firebox. Seat securely.
B.6703 Lay a large Flavor Activator over each Burner on the lower body ridges. Lay two small Flavor Activators be-
tween each large Flavor Activator. Each Flavor Activator has individual guides on the body ridges to keep in place.
B.6704 Lay a large Flavor Activator over each Burner on the lower body ridges. Lay a small Flavor Activator between
each large Flavor Activator. Each Flavor Activator has individual guides on the body ridges to keep in place.
C. Place the Cooking Grids over the Flavor Activators on the upper Body ridges.
cooking grid
C
Step 14
Battery in Igniter Installation
Unscrew Igniter Cover and insert AA Bat-
tery with the negative “-“ end going in first.
Replace the cover and tighten securely.
This Completes the Grill Assembly.
+
-
A
B6704
B6703

13
Connecting/Disconnecting the Gas
Using Gas
Carbon Monoxide Hazard
• This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you.
• Never use this appliance indoors, on recreational vehicles, or boats.
DANGER
!
To reduce the risk of serious bodily injury or death from fire or explosion:
• Use only propane gas with this LP gas grill.
• Do not attempt to convert an LP unit to natural gas.
• Always use a gas appliance outdoors in an open area with good ventilation to avoid breathing toxic fumes from
leaking gas, explosion, or fire. As with all conventional fuels, the burning process consumes oxygen and produces
toxic gases, including carbon monoxide. In addition, the combustion products of such fuels, including liquefied pe-
troleum (LP), contain chemicals known to the state of California and other authorities to cause cancer, birth defects,
and other reproductive harm.
WARNING
!
To reduce the risk of serious bodily injury from fire or
explosion:
• Read and follow all warnings on LP Gas Cylinder.
• Do not operate the LP gas grill without the LP Gas Cylin-
der secured to the cart and oriented as shown in Assem-
bly Instructions for Connecting the LP Gas Cylinder.
• Never connect or disconnect LP Gas Cylinder or fittings
while grill is in use or is hot.
• When the LP Gas Cylinder is connected, keep the grill
outside in a well-ventilated space.
• Do not use an LP Gas Cylinder if it shows signs of dents,
gouges, bulges, fire damage, corrosion, leakage, exces-
sive rust, or other forms of visual external damage; it
may be hazardous and should be checked by a liquid
propane supplier. Do not use an LP Gas Cylinder with a
damaged valve.
• Do not store a spare LP Gas Cylinder under or near the
LP gas grill.
• When grill is not in use, turn off all grill Control Knobs, LP
Gas Cylinder valve and disconnect LP Gas Cylinder.
• Never fill the LP Gas Cylinder more than 80% of cylinder
volume. (20 lb. maximum) Do not ask the propane
supplier to over-fill the Cylinder.
• If you obtain LP gas through a cylinder exchange dealer,
make sure you get a safe and adequate cylinder. Use only
a licensed LP Gas Cylinder dealer.
WARNING
!
The LP Gas Cylinder, for use with this LP gas grill,
must meet the following requirements:
1. 12” diameter x 18” tall, 20 lb. maximum capacity
2. Overfill Prevention Device (OPD) safety feature
(should be noted on cylinder)
3. Must be constructed and marked in accordance with
Specifications for LP Gas Cylinders of the U.S. De-
partment of Transportation (DOT) or the National
Standard of Canada, CAN\CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable (See collar
for marking)
4. Must have collar to protect LP Gas Cylinder valve.
5. Must be marked “PROPANE.”
6. Must be provided with a cylinder connection device
that is compatible with the grill’s connection.
Any use or alteration of this unit not intended could be unsafe and will void your warranty.
• If you see, smell, or hear the hiss of LP gas escap-
ing from the cylinder:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
LP Gas Cylinder
DANGER
!

14
LP Hose and Regulator
To reduce the risk of serious bodily injury or death
from fire or explosion:
• Clean and inspect the gas hose/regulator before
each use of the outdoor cooking gas appliance.
The gas hose/regulator must be replaced prior to
being used, if there is evidence of excessive abra-
sion or wear, or if the hose is cut or leaks.
• Use only the gas hose/regulator assembly that
has been supplied with this gas grill. Do not
use hose/regulator from another manufacturer.
Replacement gas hose/regulator assembly must be
specified by this grill’s manufacturer before using.
• Always check for gas leaks when you connect
and disconnect the hose/regulator to the LP Gas
Cylinder, especially after a period of storage (for
example, over winter).
• Make sure there are no sharp bends in the hose.
• Make sure the hose/regulator does not contact any
heated surfaces.
WARNING
!NOTE:
If the hose/regulator assembly is not working properly
and you need a replacement, contact Customer Service
at 1-800-251-7558 or go to www.aussiegrills.com.
Be sure to have the grill model number and serial
number printed on the black label, located inside the
left door of the cabinet. If you need a replacement
part under warranty, a proof of purchase will be
necessary. You will be asked to forward your proof of
purchase via e-mail or to fax your proof of purchase
to 423-639-1055 and reference your model and serial
number. It is important to register your grill and
retain your receipt.
Connecting LP Gas Cylinder
1. Fill empty OPD LP Gas Cylinder at your local gas supplier.
2. Place the LP Gas Cylinder in the large hole in the Bottom Panel inside the cabinet. Lock the LP Cylinder in place by
tightening wing bolt on the outside rear of the cart base so that it seats against the ring base of the LP Cylinder.
3. Remove the protective cap from the LP Gas Cylinder valve. (Save cap for re-capping.)
Route the regulator hose UNDER the Leg Brace. Hold Regulator in a straight line with LP Gas Cylinder valve
so the connection does not cross thread. Insert Regulator Nipple into the LP Gas Cylinder valve. Hand tighten
coupling nut in clockwise direction. DO NOT USE TOOLS.
Disconnecting LP Gas Cylinder
1. Turn all Control Knobs to the “Off” position and turn the handle on the
LP Gas Cylinder clockwise until it stops.
2. Turn coupling nut on regulator counterclockwise until regulator is
released from the threaded LP Gas Cylinder nozzle.
3. Place the protective cap over LP Gas Cylinder nozzle.
Cylinder nozzle
faces out toward
front of grill
Wing Bolt on outside
rear of cart base Hand-tighten
coupling nut in
clockwise direction
Route regulator hose UNDER Leg Brace
To reduce the risk of serious bodily injury or death
from fire or explosion:
• Be sure to route the regulator hose, from the side
burner valve to the tank, UNDER THE LEG BRACE,
as shown below.
WARNING
!

15
Before Using Your LP Gas Grill
Installation Codes
To reduce the risk of serious bodily injury or death from fire or explosion:
• This installation must conform with local codes or, in the absence of local codes, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage
and Handling Code, B149.2 or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192 and CSA Z240
RV Series, recreational Vehicle Code, as applicable.
• If an external electrical source is utilized, the outdoor cooking appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Codes,
ANSI/NFPA 70, or the Canadian Electrical Code CSA C22.1.
• Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
WARNING
!
Selecting a Location
To reduce the risk of serious bodily injury or death from fire or explosion:
• This outdoor cooking appliance must be used only outdoors and shall not be used in a building, garage,
breezeway, carport, porch or in any enclosed area. Locate outdoor cooking appliance in an area with good
ventilation on a level stable surface clear of combustible and flammable material.
• Locate your LP gas grill at least 10 feet away from your house or any building.
• Maintain minimum clearances of 36” from back and sides of grill to any combustible construction.
• Do not locate this appliance under overhead, unprotected combustible construction.
• This outdoor cooking appliance is not intended to be used in or on boats or installed in or on recreational ve-
hicles.
• Never use gas grill as a space heater.
WARNING
!
Performing A Leak Test
To reduce the risk of serious bodily injury or death from fire or explosion:
• Perform a leak test before lighting your grill for the first time.
• Perform a leak test if any gas component is changed.
• Perform a leak test a minimum of once a season.
• Perform a leak test after a prolonged period of storage or non-use.
• Perform a leak test if the regulator flow-limiting device has been activated.
• Perform a leak test on the propane cylinder and exposed connections every time the propane cylinder is refilled
or exchanged.
• Perform leak tests in a well ventilated area.
• Never use an open flame to test for gas leaks.
• Never smoke near the grill during a leak test.
• Do not perform a leak test on a grill while it is hot or in use.
• Do not use the gas grill if you detect a gas leak that cannot be corrected by using the leak test procedures.
WARNING
!
Before using your gas grill, perform a leak test on the
Control Valves, Hose/Regulator Connections, Fittings and LP Gas Cylinder.

16
How to Perform A Leak Test “FIRST TIME USE” and as required
Supplies Needed for a Leak Test:
• Clean paint brush
• Water
• Dish washing liquid
1. Use an LP Gas Cylinder equipped with an OPD (Overfill Prevention Device) and have it filled at an authorized LP
gas dealer by a qualified attendant.
2. Make sure all grill Control Panel Knobs are turned to the “Off” position and verify that the LP Gas Cylinder valve is
closed by turning the knob on the LP Gas Cylinder clockwise until it stops.
3. Mix one part of water with one part of dish washing liquid.
4. Figures 1, 2, 4 and 4a show the grill at assembly step 7, prior to attaching the Side Tables, and illustrate the initial
steps in the “FIRST TIME USE LEAK TEST”.
Detach the Control Panel from the Grill Body/Firebox by removing the two 5/32” Bolts from each end. (Fig. 1) Gently
pull the Control Panel away from the Body until Valves disengage from the Tubular burner ends. (Fig. 2) Support
the Control Panel to keep tension off of the igniter wire leads or detach the wire leads from the Starter Button
module.
To reduce the risk of a laceration hazard:
• Wear protective gloves when removing or replacing Control panel, which could have sharp edges.
CAUTION
!
5. With the regulator hose connected to the LP Gas Cylinder, turn the knob on the Cylinder counterclockwise. (Fig. 3).
Fig. 3
Fig. 1 Fig. 2
Tubular Burner
Ends
Coupling
Nut
Check for leaks at
Cylinder Valve and
Regulator Connection
and Fittings
Fig. 4

17
7. If “growing” bubbles appear on any of the connection points, you have detected a gas leak. Immediately close the
LP Gas Cylinder valve by turning handle clockwise
a. If leak appears at either end of hose and regulator assembly, retighten the connection at the leak, but do not
over-tighten. (NOTE: Only hand tighten at coupling nut in Fig. 3 shown on previous page) Repeat Leak Test.
b. If the leak is coming from the Gas Cylinder, from the valves at the Control Knobs, or if the leak cannot be
stopped, do not use the grill. Call Customer Service at 1-800-251-7558. Be sure to have the grill model
number and serial number printed on the black label, located on the back edge of the bottom shelf of the
cart. . If you need a replacement part under warranty, a proof of purchase will be necessary.
8. Upon completion of leak test, turn all Control Knobs to the “Off” position. Turn the handle on the LP Gas Cylinder
clockwise until it stops. Disconnect LP Gas Cylinder by turning coupling nut on regulator in a counterclockwise
direction until regulator is released from threaded LP Gas Cylinder nozzle.
9. Place the protective cap over LP Gas Cylinder nozzle.
10. Re-attach the wire leads to the Igniter Button. Replace Control Panel around flanges at Bowl ends and align bolt
holes on each side. Replace and retighten all bolts. (Fig. 1)
Fig. 6
6. Check for leaks by brushing the soap solution on all gas valves, hose connections and fittings. (Shown by the heavy
arrows in Fig. 4, 5, and 6) Make sure you generously brush the locations with the soap solution, completely sur-
rounding the connections and fittings.
NOTE: After checking the connections and fittings in Figure 5, replace the control panel in the same manner as it was
removed. Take special care to be sure the valve ends are inserted into the openings in the burner ends as shown
in Figure 5a. If all valve ends do not immediately align with the burner end openings, starting at one end, grasp
the tube burner inside the firebox and gently move it until the valve seats in the open end. Also note that the end
caps of the control panel skin fit to the outside of the flanges on the firebox as shown in Figure 5a.
Fig. 5a
Fig. 5

18
Should you notice that your Burner(s) are getting hard to light or the flame is not as hot as it once was, refer to the
“How to Clean your Burners” section on page 27, to remove any possible obstructions.
Lighting the Grill Using the Pulse-Spark Ignitor
To reduce the risk of serious bodily injury or death from fire or explosion:
• Open Hood before lighting the grill to prevent an explosion from gas build-up.
• During failed lighting attempts, or if the Burners go out during operation, turn Control Knobs “Off” to dissipate
any accumulation of gas. Wait five minutes before repeating lighting procedure.
• Light each burner from the left before lighting the next burning to prevent gas from accumulating.
WARNING
!
1. Open the Hood.
2. IMPORTANT: Make sure Control Knobs are turned “Off.” (Fig. 7)
3. Turn the LP Gas Cylinder valve open counterclockwise until it stops. (Fig. 8)
Fig. 7
Control Knob in
Off position
Control Knob in High
position (large flame
symbol)
Right Main Burner Control Knob
Igniter Button
Left Main Burner
Control Knob
Fig. 9
To reduce the risk of death or serious injury from an explosion or a fire beneath the grill:
• Inspect and clean Burner/Venturi Tubes for insects or insect nests. Spiders or small insects can build nests, webs, and
lay eggs in the grill’s Venturi Tubes, (Fig 15, page 27) obstructing the flow of gas to the Burner. The backed-up gas can
ignite behind the Control Panel and cause a fire beneath the grill, posing the risk of death or serious bodily injury. This
is known as a “flashback.”
• Be sure Burners are re-installed properly before using grill.
WARNING
!
Fig. 8
Turn LP Gas
Cylinder valve
counterclockwise
4. Push far left Main Burner Control Knob in on Control Panel and turn counterclockwise to the High position.
(Figs. 7 and 9)

19
5. Push the Igniter Button in until the Burner is lit. Listen for the spark ignition, and look to make sure the Burner is lit.
If no spark, see Troubleshooting Section on page 30.
6. From the “Off” position, light all other Burners from left to right, making sure each Burner is lit before lighting
the next. Your grill has a Crossover Ignition System that allows the Burners to light successively off one another.
Confirm each Burner is lit before lighting another Burner.
7. If the Burner fails to light, repeat Step 5. If it still does not light, try the next Burner from left to right.
If a Burner goes out during operation, turn all Control Knobs to the “Off” position and close the LP Gas Cylinder valve to
dissipate any accumulated gas. Open Hood and wait five minutes before attempting to relight the grill.
If any or all Burners fail to light after three to four attempts following Steps 4-7, turn all Control Knobs to the “Off” posi-
tion and close the LP Gas Cylinder valve to dissipate any accumulated gas. Wait five minutes; then repeat the lighting
procedures.
NOTE: If the Burners still fail to light, refer to the Troubleshooting Section on page 30. The Burner can also be lit
manually, see
Manual Lighting of the Grill on page 20.
3/16” gap
Gas Collector Box - If no spark,
pinch together or open Gas
Collector Box to adjust 3/16” gap
between electrode tip and V-notch.
Fig. 10

20
Manually Lighting the Grill
To reduce the risk of serious bodily injury or death from fire or explosion:
• Open Hood before lighting the grill to prevent an explosion from gas build-up.
WARNING
!
1. Open the Hood.
2. IMPORTANT: Make sure Control Knobs are turned “Off.” (Fig. 7 - P.18)
3. Turn the LP Gas Cylinder valve open counterclockwise until it stops. (Fig. 8- P.18)
4. Locate either the left or right match-lighting hole you intend to use underneath the Grill Bowl. Push in and turn
either the far left or far right Main Burner Control Knob, near the match-lighting hole, counterclockwise to the
“High” position.
5. Insert a lit match through the match-lighting hole using the match holder (Fig. 11 and 11a) OR through the cooking
grates. (Fig. 12)
6. From the “Off” position, light all other Burners from left or right, making sure each Burner is lit before lighting
the next. Your grill has a Crossover Ignition System that allows the Burners to light successively off one another.
Confirm each Burner is lit before lighting another Burner.
If any or all Burners fail to light after three or four attempts following Steps 3-5, turn all Control Knobs to the “Off” po-
sition and close the LP Gas Cylinder valve to dissipate any accumulated gas. Wait five minutes; then repeat the lighting
procedures.
NOTE: If the Burner still fails to light, refer to the Troubleshooting Section.
7. After ignition, turn the Control Knobs to “High” for 3-5 minutes and close the Hood to preheat the grill. Preheat the
grill before every cooking session.
If a Burner goes out during operation, turn all Control Knobs to the “Off” position and close the LP Gas Cylinder valve
to dissipate any accumulated gas. Open Hood and wait five minutes before attempting to relight the grill.
View from underneath.
Insert lit match
through match lighting
hole under the left side
burner table using the
match light holder
View of match through hole
from top side of burner.
Shown without Flavor
Activators and
cooking grids.
Fig. 11
Fig. 11a
View of inserting lit match through the cooking grids.
Each burner may be lit in succession in this method if
necessary.
Fig. 12
