AUSTAR FHW120-W User manual

1
User Guide
Dear customer:
Thank you very much for choosing this brand hearing aid!
The hearing aid produced by our company is a precision electronic device, which is
equipped with experience to compensate the hearing of patients with conductive hearing loss.
Our company has been committed to developing and producing products satisfactory to
customers.
This manual is applicable to FHW120-W, FHW110-W, FHW100-W, FHW90-W, FHW80-W,
FHW70-W, FHW60-W, FHW50-W, FHW40-W FHW30-W, FHW12-W, FHW11-W, FHW10-W,
FHW09-W, FHW08-W, FHW07-W, FHW06-W, FHW05-W, FHW04-W, FHW03-W。
Please read the manual carefully before using this product, and be sure to use and maintain it
according to the requirements of the manual, so as to prolong the service life of your hearing aid.
Hearing aid is fitted according to personal listening conditions and listening habits, so they
are not suitable for others.
If you have any questions, please consult the fitting center where you purchased the hearing
aid, or call our customer service center.
Content

2
1. Summary ................................................................................................
2. Product performance, structure and composition .............................
2.1 Structure ..................................................................................................................................................
2.2 Technology data ................................................................................................
................................
3. Scope of application and object of use.................................................
4. Contraindication ...................................................................................
5. Attention.................................................................................................
6. Wearing steps and use of hearing aids ................................................
6.1 Hearing aid charging ..............................................................................................................................
6.2 Power ON/OFF ......................................................................................................................................
6.3 Removing and installing ear domes ......................................................................
6.4 Wear hearing aids ....................................................................................................................................
6.5 Volume control ........................................................................................................................................
6.6 Program switch................................................................................................................................
10

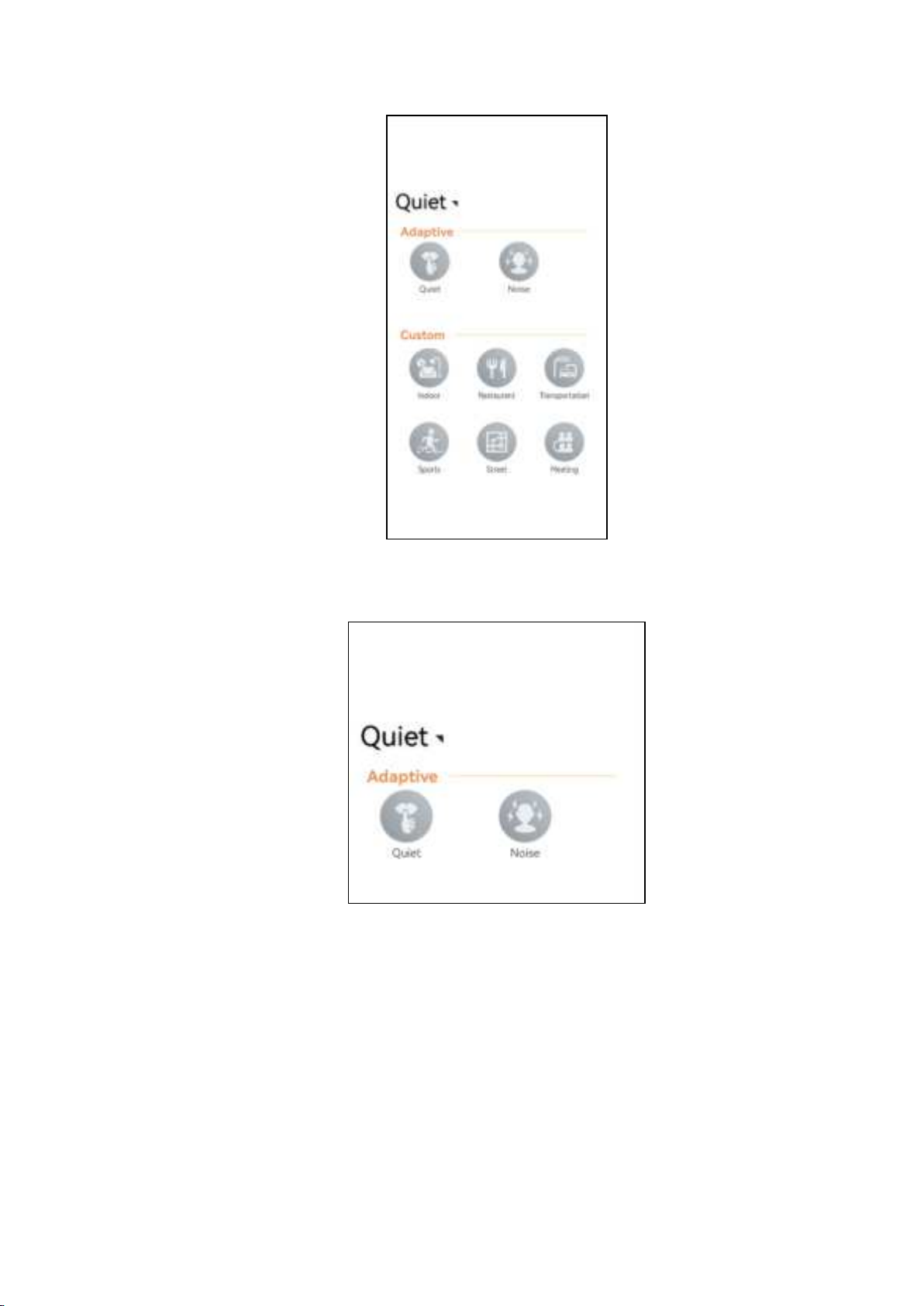

6.7 APP introduction ...................................................................................................................................
7. Simple fault analysis and troubleshooting ................................ ..........
8. Maintenance of hearing aids ................................................................
8.1 Cleaning ear domes ...............................................................................................................................19
8.2 Cleaning hearing aid..............................................................................................................................19
8.3 Moisture proof of hearing aid................................................................................................................20
9. Electrical safety instructions ................................................................
10. Technical description ...........................................................................
11.Accessories list .......................................................................................
12. Unpacking and inspection ...................................................................
13. Hearing aid warranty ..........................................................................
14. Production date and service life.........................................................
15. Transportation and storage restrictions.............................................
16. Interpretation of graphics, symbols, abbreviations and other contents used in medical
device labels .................................................................................................
................................ 4
.............................
.............................
5
5
6
.................
................. 7
8
......................................
................
................................ 8
................................ 9
9
................................ 11
12
13
........ 13
13
.......... .......... .......... 18
................................18
................................................................ 20
........................................... 20
................................ 21
................................ 21
................................21
................................21
................................ 22
................................ 22

3
1. Summary
1.1 Product Name: ITE hearing aid
1.2 Features
ITE hearing aid is a digital hearing aid with program file and volume memory function.
Hearing aid is not only suitable for listening in quiet environment, but also suitable for noisy
environment. The shape of the hearing aid conforms to the structure of the human ear canal and
is comfortable to wear.
1.3 Software version
Software name: embedded sound processing software based on ultra-low power DSP.
Version: V1.0
1.4 Model Number:
FHW120-W,FHW110-W,FHW100-W,FHW90-W,FHW80-W,FHW70-W,FHW60-W,
FHW50-W,FHW40-W FHW30-W,FHW12-W,FHW11-W,FHW10-W,FHW09-W,FHW08-W,
FHW07-W,FHW06-W,FHW05-W,FHW04-W,FHW03-W
1.5 Procedure file information (filled in by Audiologist)
Program Number Program Setting
1（P1）
2（P2）
3（P3）
The above shall be filled in by Audiologist according to the program file setting
of the hearing aid
1.6 Working environment and conditions
Temperature: 0℃～+40℃
Relative humidity: ≤80﹪
Voltage: DC 3.7V
Atmospheric pressure: 86KPa～106 KPa
1.7 Impact on Environment
The hearing aid contains rechargeable lithium-ion batteries. Please do not throw away the used hearing
aid at will. The disposal of waste batteries must comply with local regulations.
1.8 Safety

4
Danger: do not put the hearing aid into the fire, microwave oven, etc. to avoid explosion.
Danger: in order to prevent children from swallowing by mistake, keep the hearing aid away
from children.
Hearing aid can only be used by people with hearing loss, and the rest are not applicable.
Those who have undergone ear canal surgery are not recommended to buy this product
directly. They should buy them after consulting the fitting center and the Audiologist.
A hearing aid should not be applied to both ears at the same time. Because the hearing loss
of the right and left ears is different.
In case of battery leakage, please stop using the hearing aid and contact the customer service
center.
Special users：
（1）Children need to wear hearing aids with the help of adults.
(2) Please consult your doctor before using hearing aids.
2. Product performance, structure and composition
2.1 Structural composition
The product is mainly composed of microphone, signal amplification and processing circuit,
receiver, volume control circuit, lithium battery, shell, earplug and mobile phone app (APP
version No.: v1.0).

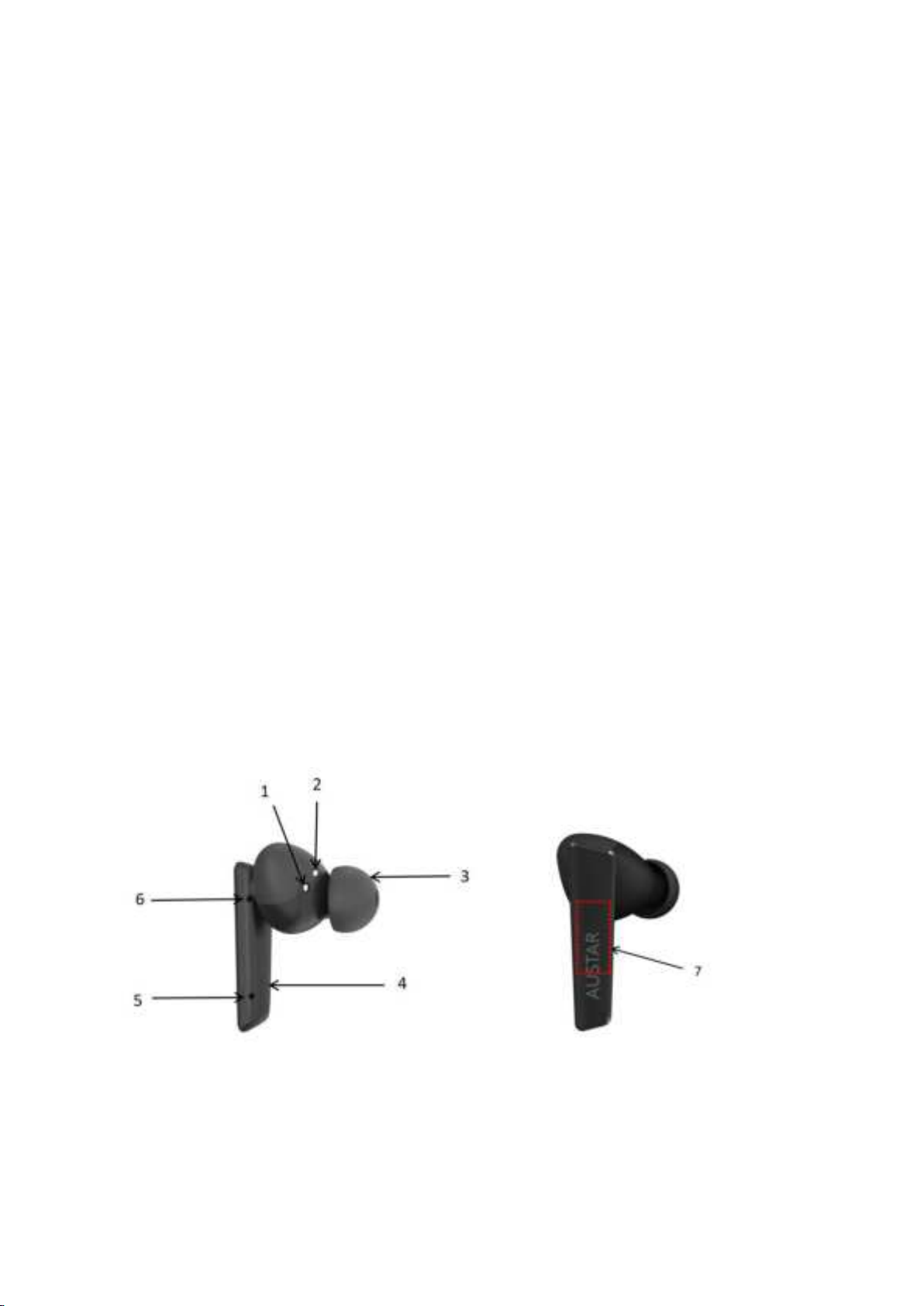

1、Battery contact”+”2,Battery contact “-”3,Ear dome 4,Hearing aid body 5,Back
microphone 6,Front microphone 7,Touchpad area
According to customer requirements, the shell can be configured with white, blue, black
three colors.

5
2.2 Technology data
IEC 60118-7 (2CC Coupler)
3. Scope of application and object of use
3.1 Scope of application
It is used to compensate the hearing of patients with conductive hearing loss.
3.2 Object of use
It is suitable for patients with air conduction hearing loss, but children under the age of 12
should be used under the supervision of adults.
4. Contraindications
Product
Model
Number
Max
OSPL9
0
（dB）
OSPL9
0
（dB）
Peak
Gain
（dB）
FOGA
（dB）
THD Frequency
Range(Hz)
Eq.Input
Noise
Level
(dB)
Battery
Current
Drain
（mA）
Attack
Time
(ms)
Release
Time
(ms)
500Hz 800Hz 1600Hz
FHW120-W 117 107 40 35 5% 5% 5% 200--6000 26dB 5 6 85
FHW110-W 117 107 40 35 5% 5% 5% 200--6000 26dB 5 6 85
FHW100-W 117 107 40 35 5% 5% 5% 200--6000 26dB 5 6 85
FHW90-W 117 107 40 35 5% 5% 5% 200--6000 26dB 5 6 85
FHW80-W 117 107 40 35 5% 5% 5% 200--6000 26dB 5 6 85
FHW70-W 117 107 38 33 5% 5% 5% 200--6000 26dB 5 6 85
FHW60-W 117 107 38 33 5% 5% 5% 200--6000 26dB 5 6 85
FHW50-W 117 107 38 33 5% 5% 5% 200--6000 26dB 5 6 85
FHW40-W 117 107 38 33 5% 5% 5% 200--6000 26dB 5 6 85
FHW30-W 117 107 38 33 5% 5% 5% 200--6000 26dB 5 6 85
FHW12-W 115 105 35 30 5% 5% 5% 200--6000 26dB 5 6 85
FHW11-W 115 105 35 30 5% 5% 5% 200--6000 26dB 5 6 85
FHW10-W 115 105 35 30 5% 5% 5% 200--6000 26dB 5 6 85
FHW09-W 115 105 35 30 5% 5% 5% 200--6000 26dB 5 6 85
FHW08-W 115 105 35 30 5% 5% 5% 200--6000 26dB 5 6 85
FHW07-W 115 105 33 28 5% 5% 5% 200--6000 26dB 5 6 85
FHW06-W 115 105 33 28 5% 5% 5% 200--6000 26dB 5 6 85
FHW05-W 115 105 33 28 5% 5% 5% 200--6000 26dB 5 6 85
FHW04-W 115 105 33 28 5% 5% 5% 200--6000 26dB 5 6 85
FHW03-W 115 105 33 28 5% 5% 5% 200--6000 26dB 5 6 85

6
Acute otitis externa, tympanitis, chronic suppurative otitis media (in the period of purulent
infection) and acute suppurative otitis media are not suitable for wearing hearing aids. Patients
who are allergic to this material.
5. Precautions
The optional hearing aids shall be subject to professional hearing test and fitting, and shall be
used under the professional guidance of doctors or hearing aid fitters.
5.1 Moisture-proof
Any form of moisture has an impact on the hearing aid. Moisture resistance helps to
prolong the service life of the hearing aid, avoid use or storage in a humid environment, and dry
the hearing aid regularly.
5.2 Waterproof
Do not immerse the hearing aid in any liquid. Remove the hearing aid in advance and keep
it properly when swimming, bathing, washing hair, washing face, etc. After swimming or
washing, wait until the ear canal is dry before wearing a hearing aid. In case the hearing aid falls
into the water accidentally, do not dry it in the microwave oven or any dryer. You can dry it with
soft and clean cotton cloth and dry it naturally in a ventilated environment. If there is any fault,
please contact the fitting center where you purchased the hearing aid or directly contact the
customer service center of our company.
5.3 High temperature protection
Hearing aid should be protected from high temperature or prolonged sunlight.
5.4 Fall prevention
Hearing aid is precision electronic devices, which should avoid falling to the ground or

7
violent vibration and impact.
5.5 Other precautions
Do not wear hearing aids when receiving short wave hyperthermia, X-ray, MR scan, CT
scan or similar radiotherapy.
Keep the outer surface of the hearing aid clean and clean the earwax in the earplugs
frequently.
Handle with care, use touchpad area correctly, and avoid excessive force or force.
Hearing aid shall be regularly sent to the fitting center for maintenance and inspection to
ensure that the hearing aid is in good condition.
6. Wearing steps and use of hearing aids
6.1 Hearing aid charging
Open the charging box, put the hearing aid into the charging box, and then start
charging(The charging box has anti-freeze design, one-to-one correspondence between left and
right)。

The indicator light of the charging box shows: when the charging box is connected to the
external power source for charging, the green light blinks during charging, and the green light is
steady on when the charging box is full.
When the charging box is not connected to the external power supply, long press the
charging box button to display the LED indicator status:
LED indicator shows the status electric quantity
The green flash blinks 3 times within 1 second, and the
indicator goes off at an interval of 2 seconds for 20
0% - 32%

8
seconds
The green flash blinks 2 times within 1 second, and the
indicator goes off at an interval of 2 seconds for 20
seconds
33% - 65%
The green flash blinks 1 times within 1 second, and the
indicator goes off at an interval of 2 seconds for 20
seconds
66% -100%
6.2 Power ON/OFF
Power on: take the hearing aid out of the charging box to power on.
Power off: put the hearing aid into the charging box to power off.
Both ends of the charging line are connected with a power adapter and a charging box.
6.3 Removing and installing ear domes

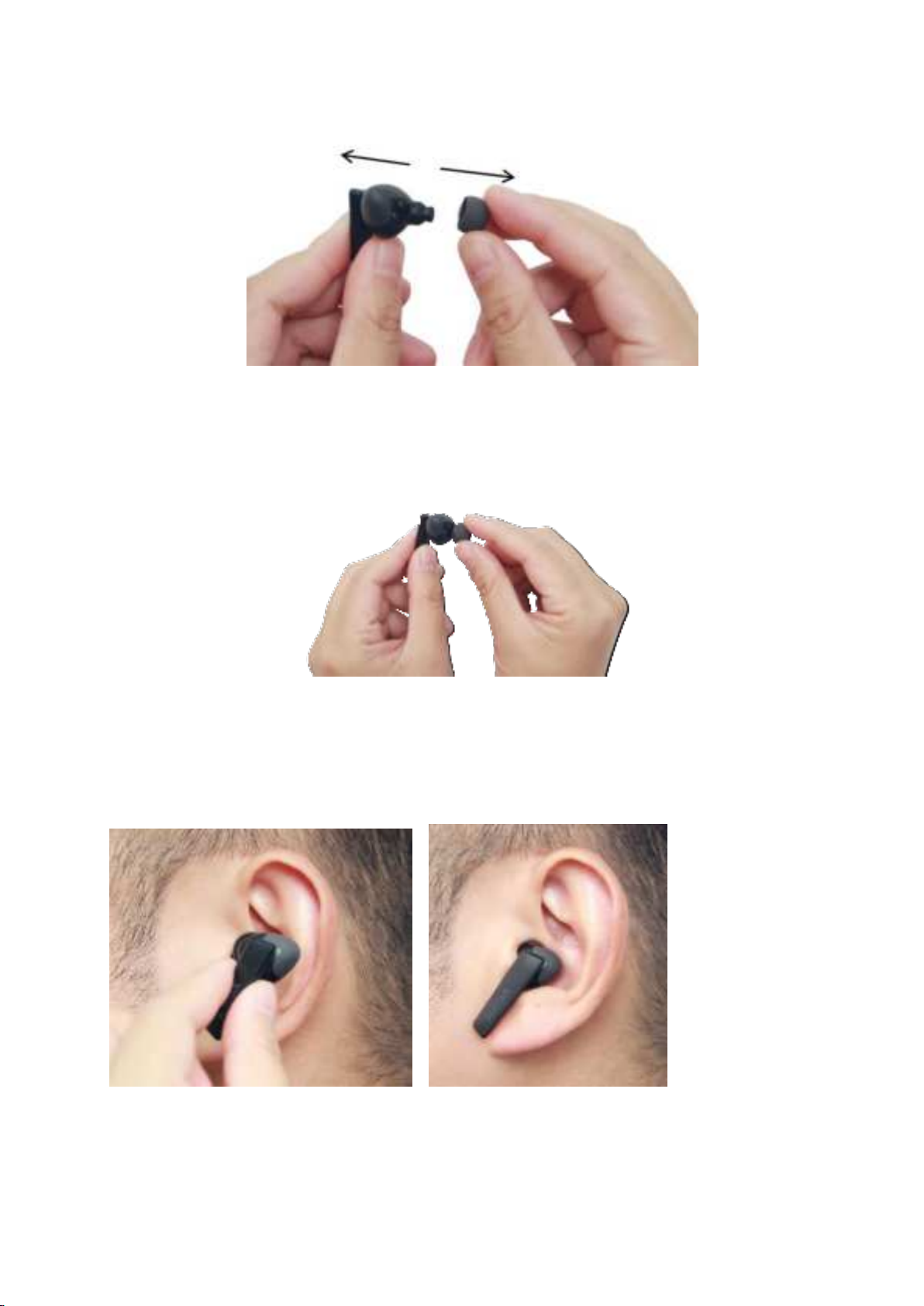

Remove ear domes: pinch the ear domes with your thumb, index finger and middle finger to
separate the ear domes from the connector.

9
Install ear domes: select appropriate ear domes according to the size of the ear canal, hold
the ear domes and install them into the connector of the hearing aid, which shall be installed in
place.
6.4 Wear hearing aid
Hold the hearing aid with your thumb and index finger and gently push it into the ear canal
until it feels comfortable in the ear canal. Open and close your mouth several times and check
whether the hearing aid is well worn.
6.5 Volume Control
Slide the hearing aid touch pad: the volume of up stroke increases and the volume of down

10
stroke decreases.
There are 10 volume levels in total, and each volume level changes by 1dB.
Slide up the volume to increase the volume level by one level. When the volume reaches the
maximum, the volume will not change again.
Decrease the volume by one level. When the volume reaches the minimum, the volume will
remain the same again.
6.6 Program switching
Short press the touch pad (0.5s), and the hearing aid will switch from Bluetooth mode to
hearing aid mode.
Long press the touch panel (3S) to cycle the set listening program, and long press to
switch one program at a time.
6.7 APP usage
Use the mobile APP for volume control and program control, which will be more
convenient for adjustment. For the download and use of mobile app, please contact the matching
engineer.
①Open the phone APP, search for hearing AIDS, and see available hearing aid devices.
The user clicks to confirm the connection.
②Program switching: different programs for different models of products.
FHW120-W,FHW100-W,FHW80-W,FHW60-W,FHW40-W,FHW12-W,FHW10-W,FHW
08-W,FHW06-W,FHW04-W. 3 models: Quiet, Noise, Custom

11
FHW110-W,FHW90-W,FHW70-W,FHW50-W,FHW30-W,FHW11-W,FHW09-W,FHW0
7-W,FHW05-W,FHW03-W：2 models: Quiet and Noise
③Volume adjustment: slide left to decrease the volume and right to increase the volume.

12
④Sound quality adjustment: click sound adjustment on the main interface to adjust sound
quality, channel, spatial sound source positioning and noise reduction.
⑤Earphone setting: you can set the on and off of in ear detection, earphone debugging, volume on
and off, and feedback path calibration test.

13
⑥Language setting: set app language, traditional Chinese, simplified Chinese and
English.
⑦Demonstration mode: experience how to use the APP without connecting to the
product.

14
7. Simple fault analysis and troubleshooting
Fault Reason Solution
Whistle
Hearing aid without wearing correctly
Many ear wax
Ear dome is not suitable
Please wear hearing aid correctly
Clean ear canal
Please use ear dome with suitable size
No sound
Low battery or power off
Sound tube is blocked
Ear dome is blocked
Please recharge hearing aid
Please clean hearing aid’s sound tube
Please clean ear dome
Lower sound
Volume low
Battery power low
助Hearing aid damp
Sound tube is blocked
Ear dome is blocked
Please up volume
Please recharge hearing aid
Please dry hearing aid
Please clean hearing aid’s sound tube
Please clean ear dome
Power
consumption
high
Hearing aid keep working
Hearing aid damp
Please put hearing aid into dry box
without using
Please dry hearing aid with dryer
Intermittent
sound
Battery power low
Sound tube is blocked
Ear wax is blocked
Recharging
Please clean sound tube
Please clean or change ear wax

15
If the above methods still can not eliminate the fault, please contact the fitting center where
you purchased the hearing aid, or directly contact the customer service center of our company.
8. Maintenance of hearing aids
During the use of hearing aids, earwax (cerumen) produced by the ear will accumulate in
the ear canal and the sound hole of the hearing aid. A large amount of accumulated earwax will
affect the use effect of the hearing aid, so please clean your ear canal and maintain the hearing
aid every one month.
8.1 Clean ear dome
1. Please remove the ear domes from the hearing aid
2. Please clean the earwax with a cleaning cloth or flush the ear domes with clean water
3. Dry the ear domes and make sure there are no water drops left. If there is a balloon blowing
tool, you can use the balloon to dry the water droplets.
8.2 Clean hearing aid
Use the small brush delivered in the packing box to clean the earwax at the sound outlet
of the hearing aid.

16
Clean the hearing aid with a dry and soft cloth.
Wipe or clean the hearing aid on a soft desktop (e.g. a soft towel can be padded on the
desktop) to avoid damage caused by accidental falling of the hearing aid.
Remember: do not use any liquid to clean the hearing aid.
8.3 Shock resistance of hearing aid
When you go out and do not need to use the hearing aid, please put the hearing aid into the
charging box.
9. Electrical safety instructions
Classification by anti electric shock type: internal power supply equipment
Classification according to the degree of protection against electric shock: type B application
part
Classified according to the safety degree when using flammable anesthetic gas mixed with
air or flammable anesthetic gas mixed with oxygen or nitrous oxide: equipment that cannot
be used when there is flammable anesthetic gas mixed with air or flammable anesthetic gas
mixed with oxygen or nitrous oxide.
Classification by operation mode: continuous operation equipment
10. Technical description
The supplier may provide circuit diagrams, component lists, drawing notes, correction rules,
or other data necessary for qualified technicians to help the user repair the repairable equipment
parts designated by the manufacturer.
11. Accessories list
Item Quantity Unit
Ear dome 1 PC
User guide 1 PC
Charging Box 1 PC
Cable 1 PC

17
Brush 1 PC
12. Unpacking and inspection
After unpacking, please check whether the actual parts are consistent according to the parts
list.
Check whether the product model marked on the warranty card is consistent with that of the
hearing aid.
Check whether the body number marked on the warranty card is consistent with the body
number of the hearing aid.
Warranty
13.1 Free warranty coverage
All hearing aids produced by our company enjoy free warranty for faults caused by
non-human factors from the date of purchase.
13.2 Warranty period.
2 years
13.3 Any of the following situations is not covered by the free warranty.
Damage caused by incorrect use or improper operation according to the instructions.
Damage caused by self disassembly and assembly of hearing aids.
Damage caused by force majeure (flood, fire, earthquake, etc.).
13. Production date and service life
That is, the normal working time of the product. The product needs to be stored and used as
required. After exceeding the specified service time, its expected function will be affected. (e.g.
unable to meet the requirements of product performance indicators, etc.). The service life of
hearing aid products is 5 years. See the label for the production date.
14. Transportation and storage restrictions
Temperature: - 20 ℃~ + 50 ℃
Relative humidity: ≤93%
Atmospheric pressure: 86kpa ～106 kPa
Storage conditions: room temperature, clean, dark, no corrosive gas and well ventilated
room.
Transportation conditions: the packaged hearing aids can be transported by general cargo
transportation method, and shall be protected from rain, exposure and collision during

18
transportation.
15. Interpretation of graphics, symbols, abbreviations and other contents used in
medical device labels.
Symbol for “User Guide
must be read”
Symbol for “Consult
instructions for use”
Symbol for “Manufacturer” Symbol for “Fragile, handle
with care”
Symbol for “Keep dry” Symbol for “Caution”
Symbol for “Date of
manufacture”
Symbol for “Serial number”
Symbol for “Use-by date”
Type B Applied Part
This marking shown on the
product or its literature,
indicates that it should not
be disposed of, with other
household wastes at the
end of its working life. To
prevent possible harm to
the environment or human
health from uncontrolled
waste disposal, please
separate this from other
types of wastes and
recycle it responsibly to
promote the sustainable
reuse of material
resources.
IP22 IP22: The first number 2:
Protected against solid foreign
objects of 12,5 mm Ф and
greater. The second number:
Protected against vertically
falling water drops when
enclosure titled up to 15º.
The harmful substances in
the product meet the
limited requirements.
Manufacture: Austar Hearing Science & Technology(Xiamen) Co., Ltd.
Address: B8, Biomedical Industrial Park, NO.2064 Wengjiao West Road, Haicang District,
Xiamen, Fujian, China
Post code: 361028
Preparation date: 2022.01

19
FCC Statement:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
