Austin Hughes CyberView CV-K101 User manual

UM-CV-K101-Q421V1 www.austin-hughes.com
User Manual
CV-K101
4K HDMI KVM Extender
dedicated KVM switch and rackmount screen technology
Designed and manufactured by Austin Hughes

UM-CV-K101-Q421V1 www.austin-hughes.com
Legal Information
First English printing, October 2021
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing dam
age to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being dam
aged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invali
date its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-
lation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment offand on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-K101-Q421V1 www.austin-hughes.com
Contents
< Part. 1 > CV-K101
1.1 Package Content P.1
1.2 Transmitter P.2
1.3 Receiver P.4
< Part. 2 > Installation
2.1 Connection Diagram P.6
2.2 Connection Instruction P.6
< Part. 3 > FAQ P. 7

UM-CV-K101-Q421V1 www.austin-hughes.com
Intentionally
Left
Blank

UM-CV-K101-Q421V1 www.austin-hughes.comP. 1
CV-K101
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
< 1.1 > Package Content
Receiver x 1
CV-K101
< Part 1 >
Transmitter x 1
- Transmitter CV-K101T x 1
- Receiver CV-K101R x 1
- Power adapter x 2
- USB cable x 1
- Pack of mounting brackets & screws x 1
Model Packing Dimension
(W x D x H) Gross Weight
CV-K101 362 x 154 x 86 mm
14.25 x 6.06 x 3.39 inch
1.09 kg
2.40 lb
Tr
an
sm
it
te
r
x
1
-
T
ran
s
- Rec
e
- Pow
e
-
US
B
- Pac
k

UM-CV-K101-Q421V1 www.austin-hughes.comP. 2
CV-K101
< 1.2 > Transmitter ( CV-K101T )
KVM LED a). When the host computer is not connected, the indicator light is off.
b). When connect to the host computer, the indicator light is on.
c). When there is signal transmission, the indicator light flashes.
Reset Press the button to restart the device.
Cat6/ 7 Output Connect with network cable
Power LED a). When power is on but no HDMI signal, the indicator flashes.
b). When power is on and there is HDMI signal, the indicator is always on.
12V DC Power Input Connect to the 12V DC power adapter.
HDMI Output Connect to a local HDMI display device.
HDMI Input Connect to a HDMI source device.
USB-A to Server/ PC Connect to the computer/ server.
Front
Rear
1 3
1
2
3
5
6
7 8
7
8
4
4
65
2
Product Specification
Technical Transmitter
HDMI compliance HDMI2.0, compatible to HDMI1.4
HDCP compliance HDCP2.2
Transmission medium Cat6/ 7
Transmission distance ≤70 meters
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH
HDR10 (YUV4:4:4) support
HDMI Loop-out support
S/PDIF out support
EDID through support
KVM function support
Input TMDS signal 0.7~1.2Vp-p (TMDS)
Input DDC signal 5Vp-p (TTL)
HDMI connector Type A 19 Pins,Female
Network cable standard Cat6/ 7, follow IEEE-5688 standard

UM-CV-K101-Q421V1 www.austin-hughes.comP. 3
CV-K101
< 1.2 > Transmitter ( CV-K101T )
Physical Transmitter
Product (W x D x H) 150 x 107 x 26 mm
5.91 x 4.21 x 1.03 Inch
Net Weight 290 g
0.64 lb
Chassis color Black
Chassis materials Aluminium alloy
TV Video Supported PC Video Supported
16:9 16:10 4:3
24 /25 / 30 Hz 60Hz
4K ( 4096 x 2160 ) 3840 x 2160 1680 x 1050 1280 x 960
4K ( 3840 x 2160 ) 1920 x 1080 1280 x 800 1024 x 768
1080p, 720p 1600 x 900 / 800 x 600
576p, 480p 1280 x 720 / /
576i, 480i 1366 x 768 / /
Power Transmitter
Power supply 12V
Power consumption 4W
Electrostatic protection
Implementation of the standard:
IEC61000-4-2
1a Contract discharge level 4 (8KV)
1b Air discharge level 4 (15KV)
Environmental
Operation temperaure -20 ~ 60°C
Storage temperature -30 ~ 70°C
Relative humidity 0 ~ 90% (no condensation)
Compliance
Safety FCC / CE
Environment RoHS3 / REACH

UM-CV-K101-Q421V1 www.austin-hughes.comP. 4
CV-K101

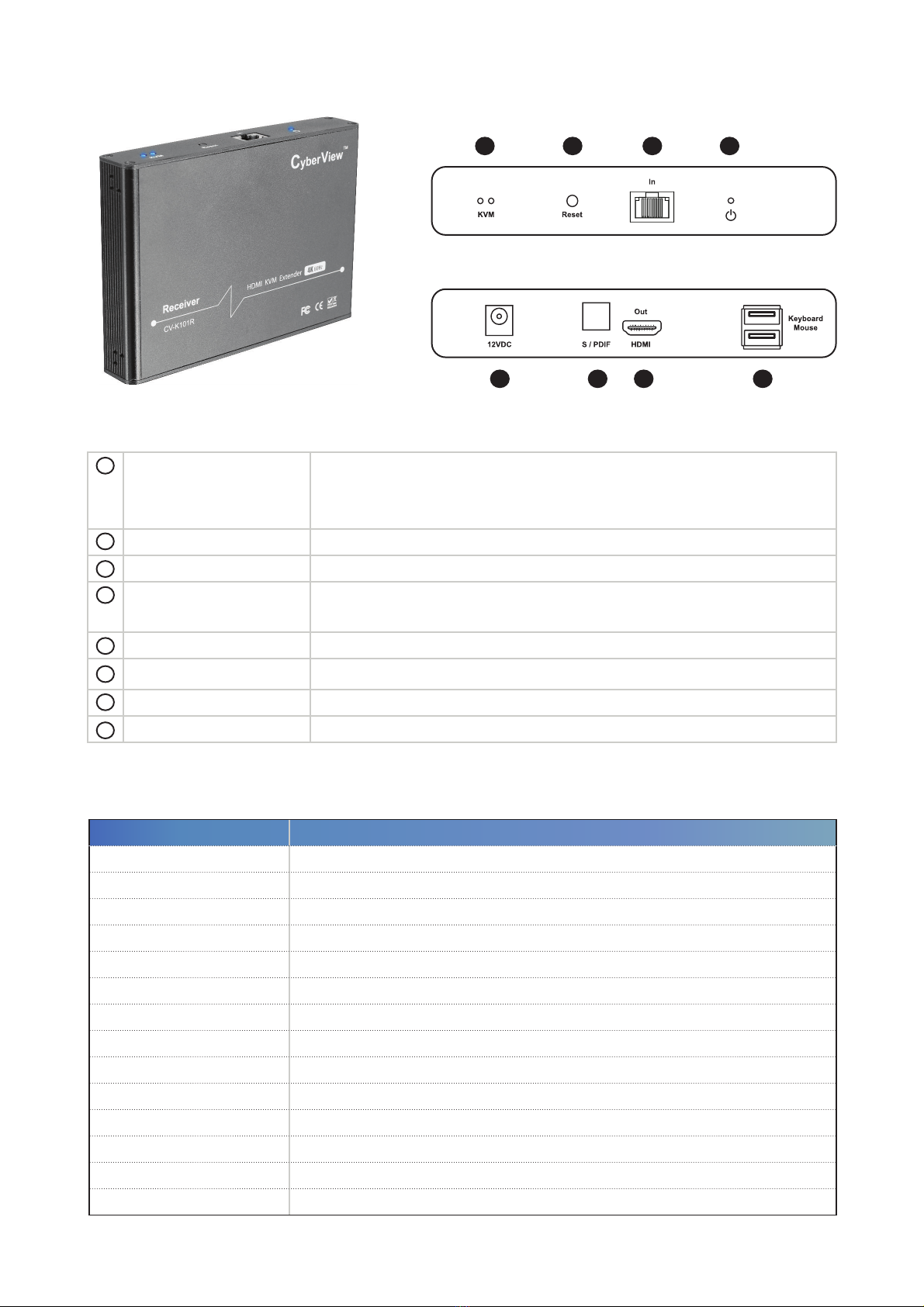

< 1.3 > Receiver (CV-K101R)
KVM LED a). When the host computer is not connected, the indicator light is off.
b). When connect to the host computer, the indicator light is on.
c). When there is signal transmission, the indicator light flashes.
Reset Press the button to restart the device.
Cat6/ 7 Output Connect with network cable.
Power LED a). When power is on but no HDMI signal, the indicator flashes.
b). When power is on and there is HDMI signal, the indicator is always on.
12V DC Power Input Connect to the 12V DC power adapter.
HDMI Output Connect to a local HDMI display device.
HDMI Input Connect to a HDMI source device.
USB-A to Server/ PC Connect to the computer/ server.
1
2
3
5
6
7
8
4
Product Specification
Front
Rear
1 3
7 8
4
65
2
Technical Receiver
HDMI compliance HDMI2.0, compatible to HDMI1.4
HDCP compliance HDCP2.2
Transmission medium Cat6/ 7
Transmission distance ≤70 meters
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH
HDR10 (YUV4:4:4) support
HDMI Loop-out support
S/PDIF out support
EDID through support
KVM function support
Input TMDS signal 0.7~1.2Vp-p (TMDS)
Input DDC signal 5Vp-p (TTL)
HDMI connector Type A 19 Pins,Female
Network cable standard Cat6/ 7, follow IEEE-5688 standard

UM-CV-K101-Q421V1 www.austin-hughes.comP. 5
CV-K101
< 1.3 > Receiver (CV-K101R)
TV Video Supported PC Video Supported
16:9 16:10 4:3
24 /25 / 30 Hz 60Hz
4K ( 4096 x 2160 ) 3840 x 2160 1680 x 1050 1280 x 960
4K ( 3840 x 2160 ) 1920 x 1080 1280 x 800 1024 x 768
1080p, 720p 1600 x 900 / 800 x 600
576p, 480p 1280 x 720 / /
576i, 480i 1366 x 768 / /
Physical Receiver
Product (W x D x H) 150 x 107 x 26 mm
5.91 x 4.21 x 1.03 Inch
Net Weight 292 g
0.64 lb
Chassis color Black
Chassis materials Aluminium alloy
Power Receiver
Power supply 12V
Power consumption 4W
Electrostatic protection
Implementation of the standard:
IEC61000-4-2
1a Contract discharge level 4 (8KV)
1b Air discharge level 4 (15KV)
Environmental
Operation temperaure -20 ~ 60°C
Storage temperature -30 ~ 70°C
Relative humidity 0 ~ 90% (no condensation)
Compliance
Safety FCC / CE
Environment RoHS3 / REACH

UM-CV-K101-Q421V1 www.austin-hughes.comP. 6
CV-K101
< 2.1 > Connection Diagram
< 2.2 > Connection Instruction
< Part 2 > Installation
• Connect the source devices to the Transmitter HDMI-In port with a HDMI cable, and connect the Receiver
HDMI-Out port with another HDMI cable.
• Connect the Transmitter RJ-45 Out port to the Receiver RJ-45 In port via a network cable ( Cat6/ 7 ).
• If using HDMI loop out, connect the display device to the Transmitter HDMI-Out port.
• It is recommended to use a length range within 2 ~ 70M network cable.If the cable is too short, it may cause
no display output because of too strong signal. If the cable is too long, it may cause poor output quality.

UM-CV-K101-Q421V1 www.austin-hughes.comP. 7
CV-K101
1). No output on screen even when all connections are correct.
- Please make sure that the HDMI cables support the resolution of the output signal from the
source device.
- Please double check again and make sure the network cable is well-inserted to the RJ-45
ports of transmitter and receiver.
- Restart the transmitter or receiver by pressing the reset button.
2). Black screen happened on the display/ monitor.
- Double check the length of the cable and make sure it is within the specified range.
- Reset the transmitter to re-built the connection.
3). The display shows unusual color or no sound.
- Reset the transmitter or receiver to re-build the connection.
- Double check if the HDMI cables are connection well.
- Reconnect the network cable.
< Part 3 > FAQ

UM-CV-K101-Q421V1 www.austin-hughes.com
The company reserves the right to modify product specifications without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved.
