AUSTRALIAN MONITOR TX8201 - MANUEL 2 User manual

TX8201
8 Channel Stereo Mixer
with Direct Outputs
Operating Manual
PAN PAN PAN PAN PAN PAN PAN PAN
LLLLLLLLRRRRRRRR
BASS BASS BASS BASS BASS BA SS BASS BASSTREBLE TREBLE TREBLE TREBLE TREBLE TREBLE TREBLE TREBLE
ON ON21 2115 1599663300+3dB +3dB
MIC. LINE 1 MIC. LINE 2 MIC. LINE 3 MIC. LINE 4 MIC. LINE 5 MIC. LINE 6 STEREO LINE 7 STEREO LINE 8 MASTER LEFT MAST ER RIGHT HEADPHONE
TX 8201
2222222222
1111111111
0000000000
8888888888
10 10 10 10 10 10 10 10 10 10
7777777777
6666666666
9999999999
5555555555
4444444444
3333333333

Product Description
The TX8201 is a single rack height, 8 channel stereo mixer with direct outputs suitable for desk or 19” rack mounting.
The TX8201 has 6 balanced mic or line inputs and 2 stereo auxiliary inputs. Each input channel has individual bass,
treble and pan controls. The first 6 channels also feature a line level direct output which can be used to feed additional
amplifiers, mixers or recording devices. An internal dip switch allows the first 6 inputs to be routed to either the direct
output, the master outputs or both. The TX8201 also features in-built VOX muting and a 4 tone generator with Alert,
Evacuate, Pre-Announce and Bell tones.
TX8201, 8 Channel Stereo Mixer
Front Panel Features
Input Level Controls
Mic/Line Gain: The first 6 inputs are labeled Mic/Line 1 to Mic/Line 6 and should be adjusted to provide the required
mix level for each individual channel. Start with the controls set to Level 0 and turn the controls clockwise until the
desired mix level for each channel is reached. Each of the 6 inputs is equipped with an mic/line dip switch which is
located inside the unit (see Internal Adjustments). Please ensure that this switch is in the correct position for the type of
input (mic or line) that you are connecting to each channel. The input sensitivity when in the mic level position is 1mV
(for 1 Volt output). The input sensitivity when in the line level position is 330mV (for a 1 Volt output)
StereoLine Gain: The 2 auxiliary input channels are labeled Stereo Line 7 and Stereo Line 8. These controls should be
adjusted to provide the required mix level for each individual auxiliary channel. Start with the controls set to Level 0 and
turn the controls clockwise until the desired mix level for each channel is reached. The sensitivity of auxiliary inputs 7
and 8 is 180 mV (for a 1 volt output).
Master Left and Right Output
The master Left and Right controls should be adjusted to set the overall mixer level for each output channel based on the
individual levels already set via the input channel gain controls. Start with the output controls set at approximately the
Level 5 position and adjust clockwise for more output level or counter-clockwise for less output level.
Pan Control
Each input channel has a recessed (screwdriver adjustable) pan control. The pan control determines what proportion of
each input channel will be sent to either of the Left or Right output channels. Setting the pan control in the centre
position will send equal signal levels to both the Left and Right master outputs. Turning the pan control in a clockwise
direction will send progressively more signal to the Right output channel and less to the Left output channel. Turning the
pan control in a counter-clockwise direction will send progressively more signal to the Left output channel and less to
the Right output channel. The pan control also allows the TX8201 to be used in dual zone applications.
Bass Control
Each input channel has a recessed (screwdriver adjustable) bass tonal adjustment control labeled “Bass”. Setting this
control in the centre position will give a flat bass response. Adjusting the bass control in a clockwise direction will
provide up to 12 dB of bass boost @ 100 Hz. Adjusting the bass control in a counter-clockwise direction will provide up
to 12 dB of bass cut @ 100 Hz.
Treble Control
Each input channel has a recessed (screwdriver adjustable) treble tonal adjustment control labeled “Treble”. Setting this
control in the centre position will give a flat treble response. Adjusting the treble control in a clockwise direction will
provide up to 10 dB of treble boost @ 10KHz. Adjusting the treble control in a counter-clockwise direction will provide
up to 10 dB of treble cut @ 10KHz.
PAN PAN PAN PAN PAN PAN PAN PAN
LLLLLLLLRRRRRRRR
BASS BASS BASS BASS BASS BA SS BASS BASSTREBLE TREBLE TREBLE TREBLE TREBLE TREBLE TREBLE TREBLE
ON ON21 2115 1599663300+3dB +3dB
MIC. LINE 1 MIC. LINE 2 MIC. LINE 3 MIC. LINE 4 MIC. LINE 5 MIC. LINE 6 STEREO LINE 7 STEREO LINE 8 MASTER LEFT MAST ER RIGHT HEADPHONE
TX 8201
2222222222
1111111111
0000000000
8888888888
10 10 10 10 10 10 10 10 10 10
7777777777
6666666666
9999999999
5555555555
4444444444
3333333333

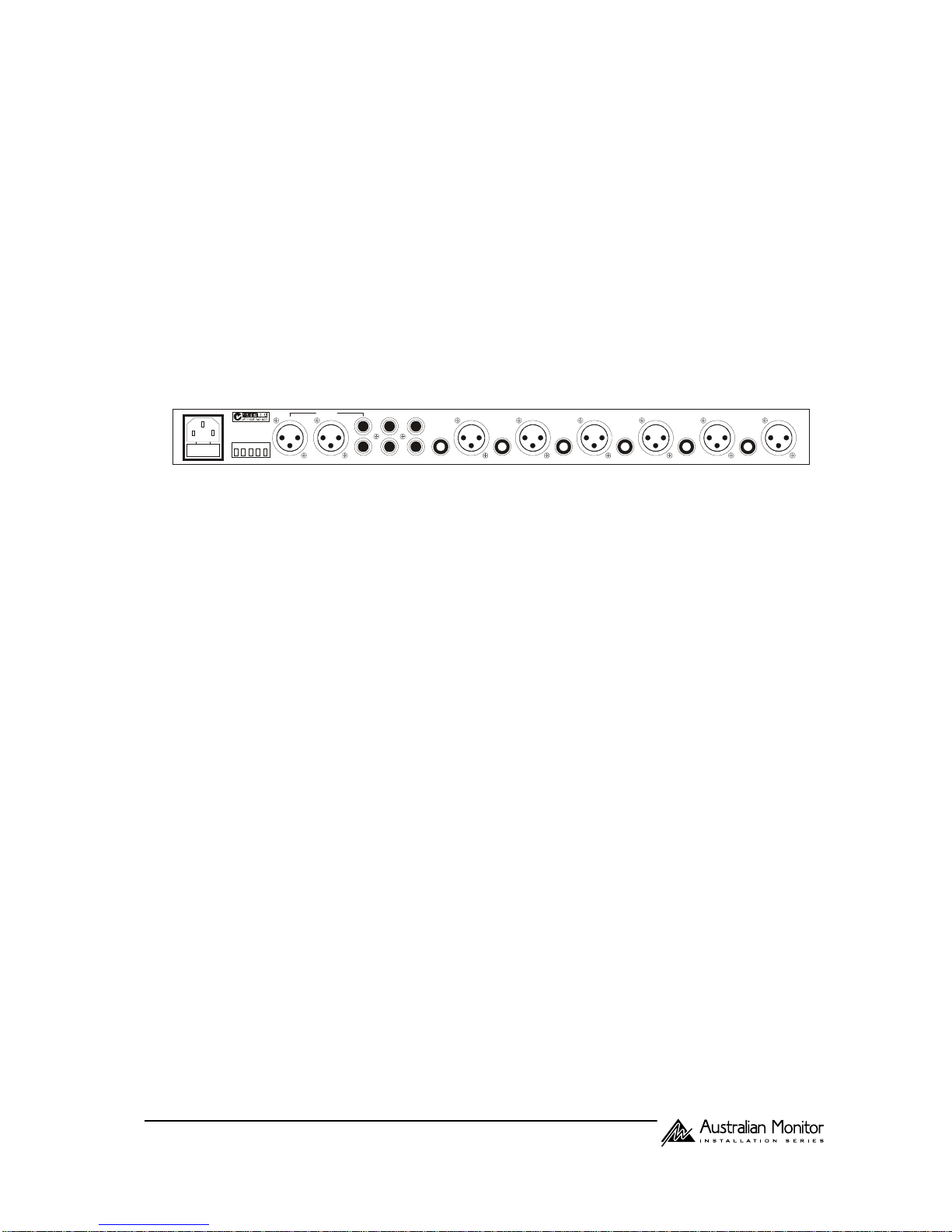

Rear Panel Features
AC Power Inlet
The 3 pin IEC power inlet is located on the left side of the rear panel and accepts a standard mains power lead fitted with
an IEC connector. The operating voltage is 240 VAC @ 50 Hz (115 VAC @ 60 Hz with factory modification). The AC
power voltage is not externally user adjustable but is factory preset. The inlet is equipped with an inbuilt AC fuse holder
fitted with a 1 amp slow blow fuse plus one spare. Power consumption is 15 VA.
!Please ensure that the mains power cord is disconnected before attempting to check or replace this fuse.
Tone Generator Terminal Strip
The TX8201 includes a four tone generator module. The tones available include Alert, Evacuate, Pre-Announce and
Bell. The four tones may be activated via a simple contact closure. To activate a tone, just short out the common
terminal with the terminal labeled with the tone that you want to use. When activated, any of the four tones will mute all
inputs except for channels 1 and 2. While the tone generator function is (as default) set up to be present on both the
master outputs and the direct outputs (of channels 1-6), it can be disabled for all or any of the direct outputs via an
internal dip switch (see the ‘Internal Adjustments’ section of this manual for more details). A trim pot (R104), which is
located on the pcb behind the left channel master output, may be adjusted to vary the level of tone generator output.
Left Channel and Right Output Connectors
The rear panel of the TX8201 includes two male XLR output connectors. The output is an active balanced isolated
output for connection to a power amplifier. The maximum output is 1.5V RMS. Pin connections are Pin 1 = Earth. Pin
2 = Active Positive (+). Pin 3 = Active Negative (-). Note: If an unbalanced output is required, use a 600 Ohm
matching transformer or use only Pin 2 and Earth. Do not short any of the active outputs to earth.
Tape Output
Two RCA output connectors are included on the rear panel. These provide a line level record output from the mixer.
The tape output provides a maximum of 500mV into 10K ohms making it ideal for connection to most standard tape
recorders. This output is sourced before the master gain control and as such the tape output level is not influenced by the
operation of the master gain control.
Dual RCA Stereo Line Inputs (Ch 7 & 8)
The top connectors are for the Left channel auxiliary inputs while the bottom connectors are for the Right channel
auxiliary inputs. Reading from Left to Right across the rear panel, the connections are for auxiliary inputs 8 and 7.
LED Display VU Meter
An 8 segment LED VU meter is provided for each of the master Left and Right outputs. The VU meters indicate output
signal level from -21 to +3 dB. For normal operation the LED’s should rarely oscillate in the red zone. If the LED’s in the
red zone are lit continually, then the output level controls should be turned counter-clockwise to reduce the output level.
Too much output level can cause signal distortion and a mismatch with the device that the mixer is driving. The far left
blue LED on each the VU meters is for indication that AC power is switched ON to the unit only.
Headphone Output Socket
A 1/4” TRS stereo socket is provided for the connection of monitor headphones. The output level to the headphones is
a nominal 3 volts @ 600 ohms and is connected before the master output level controls. Adjusting the master output
level controls will not effect the headphone output level.
Power Switch & “On” LED
The black rocker switch on the right hand side of the front panel is used to switch the mixer on and off. The ‘up’ position
is on. When the amplifier is connected to an appropriate AC power source and is switched on, the blue on LED’s
(located on the left side of both LED displays) will illuminate.
MIC. LINE 1MIC. LINE 2MIC. LINE 3MIC. LINE 4MIC. LINE 5MIC. LINE 6 CH 1CH 2CH 3CH 4CH 5CH 6ST.LINE 7ST.LINE 8
LLL
OUTPUT
RIGHT
BELL
EVAC
CHIME
ALERT
COM
LEFT TAPE
RRR
OUTOUTOUTOUTOUTOUT
ENGINEEREDBY
AUDIO TE LEX COMM UNICATIONS PTY LTD S YDNEY AUS TRALIA

XLR Microphone/Line Inputs
Each XLR input is switchable to be either balanced mic or line (via an internal dip switch, the location and setting of
which is explained in the ‘Internal Adjustments’ section of this manual). When set to mic level, the mic input sensitivity
is 1mV ( for a 1 Volt output). When set to line level, the input sensitivity is 330 mV (for a 1 Volt output). Pin connections
are: pin #1-earth; pin #2-active (high, +); pin #3-active (low, -). Phantom power of +15 volts is available on all 6 XLR
inputs. An internal phantom power ON-OFF switch is provided for each channel. The default setting is ON (See the
‘Internal Adjustments’ section of this manual for more details).
Direct Outputs
A unique feature of the TX8201 is the individual direct output available for each of the first 6 channels. The direct
outputs are accessed via balanced TRS 1/4” sockets for each channel. The level of each output is 1 Volt (nominal).
Internal jumpers (JP1) allow signal from any of the first six channels to be disconnected from the main left/right outputs
(See the ‘Internal Adjustments’ section of this manual for more information). The direct outputs are post the channel
level control.
Vox Muting
Priority muting is provided for channels 1 and 2. Both channels have equal priority and will mute channels 3-8 when
signal is present. The muting function may be disabled by moving the jumper labeled JP2 (located on the pcb behind the
channel 8 volume control). ON and OFF positions are clearly indicated on the pcb beside the jumper. The unit ships from
the factory with muting enabled (JP2 -OFF) – that’s right, OFF; it is a muting disable function, not a muting enable
function. When channels 1 and 2 are disconnected from the main left/right outputs, the muting function is automatically
disabled.
Tone Generator
A four tone generator is built into the TX8201. The tones available are Alert, Evacuate, Pre-Announce and Bell. All four
tones can be activated individually via rear panel contact closures. All tones mute channels 3-8. Tones can be disabled
from the direct outputs via an internal dip switch (See the ‘Internal Adjustments’ section of this manual for more
information). A trim pot (R104) which is located on the board behind the left channel master output may be adjusted to
vary the level of tone generator output.
Internal Adjustments
Note:The following adjustments involve access to the inside of the TX8201 and should only be attempted by a qualified
technician. Always turn off the AC power and remove the AC power cord before accessing the inside of the TX8201.
Master Left/Right Direct Out Assignment: A jumper labeled JP1 is provided for each of the first 6 channels. The
jumpers are located near the front of the unit. When in the ON position, signal from that channel is fed to both the master
outputs and the direct outputs. When the switch is in the OFF position, signal from that channel is fed to the direct line
level output only.
Mic/Line Switch for Channels 1-6: A four position dip switch is located on the main board behind each input. To set
a channel for microphone level, set switches 1 and 2 (MIC) to the ON position. To set a channel for line level, set
switches 1 and 2 to the OFF position. The unit ships from the factory set to mic level.
Tone Generator to Direct Output Defeat Switch: Signal from the tone generator can be removed from each direct
output via switch # 4 (TG) on the internal dip switch per channel. When in the ON position, the tones (when activated)
are fed to the corresponding direct output as well as the master Left/Right outputs. When the switch #4 is set to the OFF
position, the tones are only present at the Master Left/Right outputs. A trim pot (R104) which is located on the board
behind the left channel master output may be adjusted to vary the level of tone generator output.
Phantom Power Defeat: Each of the XLR inputs has access to +15v DC phantom power. Phantom power is selected
via switch # 3 (PP) on the internal dip switches mentioned above. When switch # 3 is in the ON position, +15v phantom
power is available on the XLR input. Care should be taken to disable phantom power before connecting any unbalanced
or line source. The factory default position is with phantom power set to the ON position.
Vox Muting Defeat: The muting function can be disabled by moving the jumper labeled JP2 (located behind channel 8
volume control). In the ON position muting is disabled, in the OFF position muting is enabled (go figure!).Theunit ships
from the factory with muting enabled, ie the jumper is set to the OFF position. When channels 1 and 2 are removed from
the main left/right output, the muting function is automatically disabled.

1.Savethecartonandpackingmaterialeveniftheequip-
ment has arrived in good condition. Should you ever
need to ship the unit, use only the original factory pack-
ing.
2.Readalldocumentationbeforeoperatingyourequip-
ment.Retain all documentation for future reference.
3. Follow all instructions printed on unit chassis for
proper operation.
4.Donotspill waterorotherliquidsinto orontheunit,
or operate the unit while standing in liquid.
5. Makesure power outlets conform tothe power re-
quirements listed on the back of the unit.
6. Do not use the unit if the electrical power cord is
frayed or broken. The power supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords and plugs, convenience re-
ceptacles, and the point where they exit from the
appliance.
7. Always operate the unit with the AC ground wire
connected to the electrical system ground. Precautions
should be taken so that the means of grounding of a
piece of equipment is not defeated.
8.Mains voltagemust becorrect and thesame asthat
printed on the rear of the unit. Damage caused by
connection to improper AC voltage is not covered by
any warranty.
9.Havegaincontrolsonamplifiersturneddownduring
power-up to prevent speaker damage if there are high
signal levels at the inputs.
10.Powerdown&disconnectunitsfrommainsvoltage
beforemakingconnections.
11.Neverholdapowerswitchinthe“ON”positionifit
won’tstaythereitself!
12.Do not usethe unit near stoves,heatregisters, ra-
diators,orotherheat producingdevices.
13. Donot blockfan intake orexhaust ports.Do not
operate equipment on a surface or in an environment
which may impede the normal flow of air around the
unit, such as a bed, rug, weathersheet, carpet, or com-
pletelyenclosed rack. Ifthe unit is used inan extremely
dusty or smoky environment, the unit should be peri-
odically “blown free” of foreign matter.
14. Donotremovethecover.Removingthe cover will
expose you to potentially dangerous voltages. There
are no user serviceable parts inside.
15.Donotdrivethe inputswithasignal levelgreater
thanthatrequiredtodriveequipmenttofulloutput.
16. Donot connectthe inputs/ outputsof amplifiers
or consoles to any other voltage source, such as a
battery, mains source, or power supply, regardless of
whether the amplifier or console is turned on or off.
17. Donotrun the output of any amplifier channel
backintoanotherchannel’sinput.Donotparallel-or
series-connect an amplifier output with any other
amplifieroutput.
Audio Telex Communications Pty Ltd is not respon-
sible for damage to loudspeakers for any reason.
18. Donot ground any red (“hot”) terminal.Never
connecta“hot”(red) outputtogroundor toanother
“hot”(red)output!
19. Non-use periods. The power cord of equipment
should be unplugged from the outlet when left un-
used for a long period of time.
20.ServiceInformationEquipmentshouldbeserviced
by qualified service personnel when:
A. The power supply cord or the plug has been
damaged.
B. Objects have fallen, or liquid has been spilled into
the equipment
C. The equipment has been exposed to rain
D.The equipmentdoes notappear to operate normally,
or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure
damaged.
Important Safety Information

Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia
A.B.N. 78 001 345 482 Inc in NSW
Sydney (NSW & ACT Sales)
Private Bag 149, Silverwater NSW 1811
149 Beaconsfield Street, Silverwater NSW 2128
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
Melbourne (Vic & Tas Sales)
P.O. Box 131, Blackburn South VIC 3130
22/277 Middleborough Road, Box Hill VIC 3128
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
Brisbane(QldSales)
P.O. Box 871, Fortitude Valley QLD 4006
42 Commerical Road, Fortitude Valley QLD 4006
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
Adelaide (SA & NT Sales)
P.O. Box 157, Hindmarsh SA 5001
31 Walsh Street, Thebarton SA 5031
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
Perth(WASales)
P.O. Box 404, North Perth WA 6906
299 Fitzgerald Street, West Perth WA 6005
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
Auckland(NZ Sales)
P.O. Box 512, Albany 1331
Unit B, 11 Piermark Drive, Albany 1331
Ph: [phone]
Fax: [phone]
E-mail: [email protected]
ExportSales&CorporateHeadOffice
Private Bag 149, Silverwater NSW 1811
149 Beaconsfield Street, Silverwater NSW 2128
Australia
Ph: 61-2- 9647 1411
Fax: [phone]
E-mail: [email protected]
www.audiotelex.com.au
