Autoenterprise Single User manual
«Single»
Instruction manual
INSTRUCTION MANUAL «SINGLE»
2
© Copyright
This documentation with all illustrations is the intellectual property of Autoenterprise. All
documentation is provided to the user for personal use only. This documentation may not
be reproduced or provided to others without our written permission. Any violation of the
law will be prosecuted.
Autoenterprise cannot be held liable for any direct or indirect damages
resulting from the use or operation of the electrical circuits of the
equipment or software described herein. The appliance should only be
before using the product. In addition, Autoenterprise reserves the right to
change any product described here without prior notice.
INSTRUCTION MANUAL «SINGLE»
3
TABLE OF CONTENTS
1. Introduction..........................................................................................4
2. Key information.......................................................................................4
2.1 Information about the manual..........................................................................4
2.2 Warning signs.................................................................................................4
2.3 Liability and warranty......................................................................................5
2.4 Disposal information .......................................................................................6
2.5 Manufacturer’s label........................................................................................6
3. Application area, station specications ..........................................................6
3.1 Application area..............................................................................................7
3.4 General electrical safety information................................................................9
4. Dimensions,connectivity..........................................................................10
4.1 Charger’s dimensions and parameters...............................................................10
4.2 Transportation...............................................................................................12
4.3 Installation....................................................................................................13
4.4 Storage.........................................................................................................14
5. Maintenance..........................................................................................15
INSTRUCTION MANUAL «SINGLE»
4
1. INTRODUCTION
SINGLE – is a high quality charging station (hereinafter referred to as «the complex»), which
the modern components combined with the microcontroller signal processing technology,
This, together with the software and accessible interfaces, provides a exible and productive
solution for electric vehicle charging that meets the highest quality standards.
The product is designed to control and convert the energy consumed from a three-phase
battery.
The product is equipped with an intelligent microcontroller control system and
communication devices that allow for the exchange of information with the electric vehicle
and set the value of the charge current and voltage, according to the needs of the electric
vehicle in real time.
2. KEY INFORMATION
2.1 INFORMATION ABOUT THE MANUAL
This manual describes how to operate the charger properly and safely. Be sure to follow
the safety instructions given here, as well as any local safety regulations and general safety
instructions.
Before you put the charger into use, make sure that the instructions, the «Safety» paragraph
in particular, have been read through and understood completely. This manual is an integral
part of the station and and should therefore be kept in its immediate vicinity.
2.2 WARNING SYMBOLS
Important safety instructions in this manual are marked with symbols. These safety
instructions must be strictly adhered to. Always pay attention to them and follow the safety
instructions to avoid accidents, personal injury or material damage.
WARNING!
This symbol indicates instructions that must be followed to avoid injury,
trauma or death.
INSTRUCTION MANUAL «SINGLE»
5
WARNING!
This symbol indicates instructions which, if not followed, may result in
material damage, functional faults and/or machine breakdowns.
WARNING!
Danger - electrical current
This symbol alerts you to potentially dangerous situations involving
electric current. Failure to follow the safety instructions increases the risk
of serious injury or death. Caution should be exercised, especially during
maintenance and repairs.
ATTENTION!
This symbol indicates tips and information that should be adhered to in
2.3 LIABILITY AND WARRANTY
operating instructions have been carefully compiled to the current state of the art at the
time of publication. We are not liable for errors, missing information or any subsequent
damages or consequential damages.
Strict adherence to the safety procedures described in these operating instructions and
special care when using the equipment are essential to prevent and reduce the likelihood of
injury or damage to the equipment. The manufacturer is not responsible for damage and/or
malfunctions caused by non-compliance with the instructions in this manual.
Additionally, the manufacturer will not be liable for any personal injury or material damage,
or loss of business information resulting from the use of the equipment described in this
manual.
Any software included in this equipment must only be used for the purposes for which it has
been provided to the User by the Autoenterprise for which it is strictly prohibited to make
any changes, conversions or copies (except for any necessary backups).
AutoEnterprise reserves the right to update any information, illustrations, sheets,
prior notice.
INSTRUCTION MANUAL «SINGLE»
6
2.4 DISPOSAL INFORMATION
Do not dispose of the charging complex together with household
waste!
Electronic devices must be disposed of in accordance with the local
directives for the disposal of electronic and electrical waste. If you have
any further questions, please contact your supplier.
Use suitable tools if you need to disassemble the system. All individual parts must be sorted
by different types of material and disposed of in accordance with the regional guidelines for
the disposal of electronic and electrical waste.
2.5 MANUFACTURER’S LABEL
The marking on the charging complex is located on the GSM modem inside the complex on
the side of the control panel (side 1) and consists of alphabetic and digital symbols (example:
M123456).
This information is important for setting up, troubleshooting and ordering
spare parts for the station.
INSTRUCTION MANUAL «SINGLE»
7
3. APPLICATION AREA, STATION SPECIFICATIONS
3.1 APPLICATION AREA
The charger is designed exclusively for charging electric vehicles.
For information about the materials, please contact Autoenterprise sales
representative or contact the Autoenterprise technical support team
The following sections should also be followed as part of the intended use:
•Only charge compatible electric vehicles.
•Failure to follow the instructions for use, maintenance and repair described in these
operating instructions excludes any liability on the part of the manufacturer in the event of a
defect.
•The system must only be operated, maintained and repaired by personnel familiar with the
intended use and hazards!
•Carry out maintenance and repairs in accordance with the specifications in these operating
instructions.
•The unit may only be operated with equipment and spare parts supplied or listed in the
spare parts and consumables lists.
•Using of the system in other areas is contrary to its intended purpose. The manufacturer is
not responsible for any damage to the equipment resulting from such use. The user is solely
responsible for any damage resulting from improper use of the system.
INSTRUCTION MANUAL «SINGLE»
8
Type of installation Wall mount / Pedestal mount (optional)
Online device monitoring Yes
Current adjustment Yes
Possibility to manage rates of the station Yes
Single body version Yes
Digital display to indicate the amount of
electricity consumed Yes
User interface management Menu functions are managed via the mobile
app
Enclosure material Steel with anticorrosive coating
Mechanical protection IK10
Case protection class IP65
Power cable entry from below Yes
Weight, kg 12
Ambient temperature -50°C to +50°C
3.2 CHARGING STATION FEATURES
The gear control system is powered from the mains via an additional circuit breaker.
The time of initial readiness of the charging station after switching on the voltage is not
more than 1 minute.
The charging station is designed for continuous operation.
Switching the operation modes of the charger is carried out under the control of a
communication microcontroller providing communication with the car.
3.3 EQUIPMENT MODIFICATIONS
It is strictly forbidden to change, modify or alter the machine in any way without the explicit
consent of the manufacturer.
All signs, stickers and pictograms attached to the machine must be visible, legible and cannot
be removed. Signs, labels or pictograms that have become damaged or illegible must be
replaced immediately. Please contact AutoEnterprise to coordinate such questions.
INSTRUCTION MANUAL «SINGLE»
9
3.4 GENERAL ELECTRICAL SAFETY INFORMATION
Follow the safety instructions to avoid injury and material damage when working with the
device.
Failure to follow these instructions can result in injury and damage to or
destruction of the product.
Ignoring the safety recommendations and instructions in this manual will relieve
the manufacturer and his authorized representatives of all liability and claims.
the input circuits with external disconnecting devices and unplugging the charger from the
electric vehicle. Please note that if there is any voltage is present at the mains input or at the
other terminals of the product, life-threatening voltages may also be present due to internal
connections.
INSTRUCTION MANUAL «SINGLE»
10
4. DIMENSIONS, CONNECTIVITY
4.1 CHARGER’S DIMENSIONS AND PARAMETERS
The charging station is structurally designed for wall mounting and has the following
control and management bodies:
• The charging station in the casing
• The «Type 1» connector or «Type 2» connector - 1 pc.
• Information display - 1 pc
INSTRUCTION MANUAL «SINGLE»
11

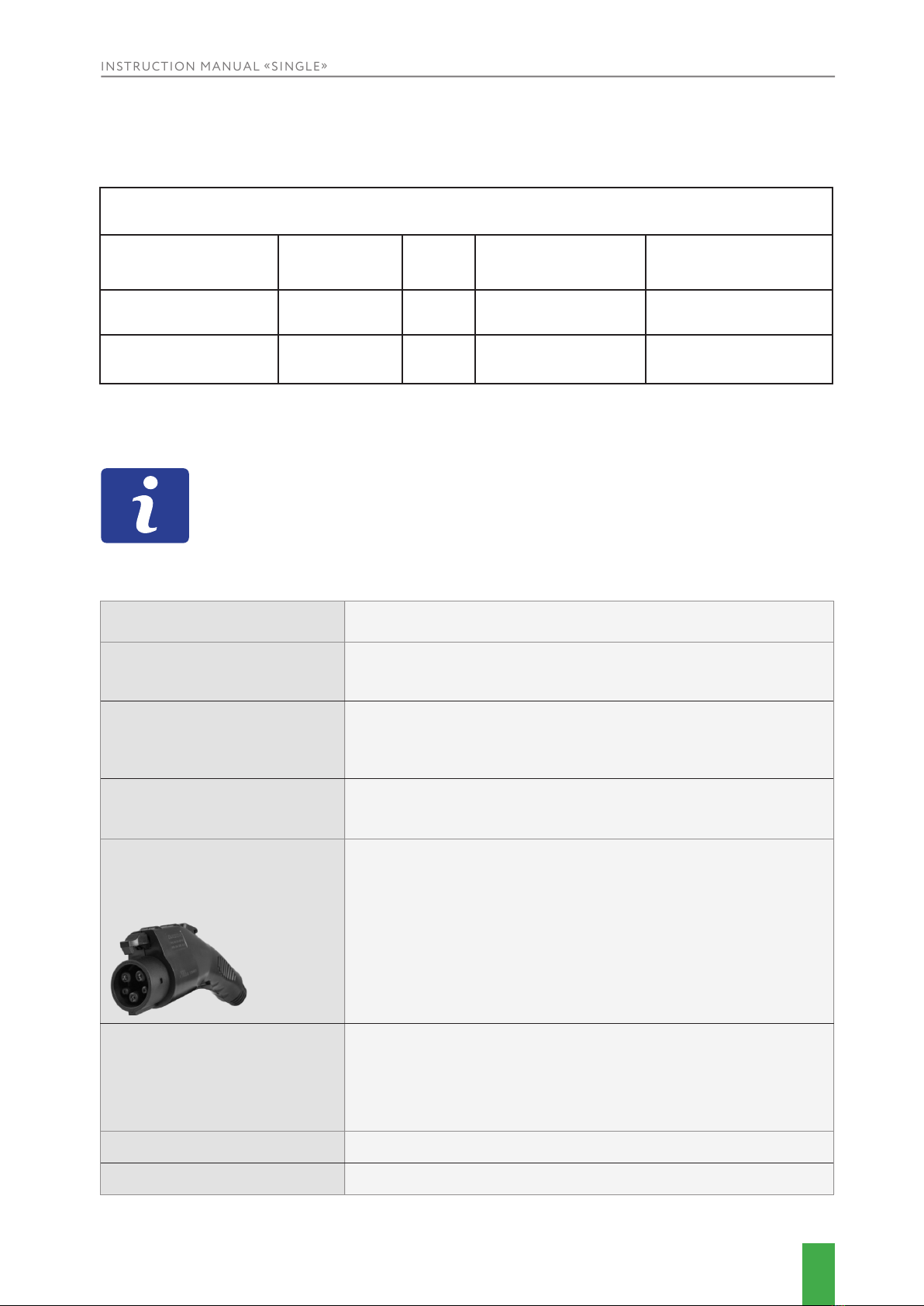

Charging Station «AE-STATION»
Socket type Quantity Current,
Max power, kWh
Type 1 (SAE J1772) 1 19 240
Type 2 (Mennekes) 1 63 45
CHARGING STATION SPECIFICATIONS
CHARGING STATION MODIFICATIONS
()
Socket and cable type for connecting the station to the electric vehicle:
Type 1
Input voltage deviation
+-10
50 Hz
Main ports and charging
station capacity: Type 1
(SAE-J1772)
1 p.
Output power of the port 19 kWh
Access types Stand-alone operation
Smartphone app
Chip-tag (extra option)
Delivery contents Charging station, user manual
Charging station dimensions
INSTRUCTION MANUAL «SINGLE»
12
4.2 TRANSPORTATION
WARNING
There is a risk of injury from falling parts during transportation, loading or
unloading of the station.
ATTENTION
The charger may be damaged or destroyed if it is mishandled during
transportation.
FOR THIS REASON, THE FOLLOWING SAFETY INSTRUCTIONS MUST BE STRICTLY
ADHERED TO:
• Transport the charging station with the utmost care.
• Transport the charger as carefully as possible to avoid damaging it.
• Protect the charger from damage during transportation by using belts and inserts and leave
Type 2
Input voltage deviation
+-10
50 Hz
Main ports and charging
station capacity: Type 2
(Mennekes)
1 pc.
Output power of the port - 45 kWh
Current - 63 A
()
Access types
Stand-alone operation
Smartphone app
Chip-tag (extra option)
Delivery contents Charging station, user manual
Charging station dimensions
INSTRUCTION MANUAL «SINGLE»
13
4.3 INSTALLATION
Ensure that all internal components are properly secured after transportation.
Check the connections of wires, loops, connectors. Check the tightening of terminals, bolts,
screws, and switchgear.
The charger does not require any special setup or adjustment before it is switched on.
Before connecting the charging station to the grid, make sure that:
• The power supply (input) cable on the mains side is de-energized by external disconnecting
devices.
ground conductors (PE).
• If you connect a 4-wire cable, make the protective earth connection with a separate
conductor.
Next, connect the input power cable to the AC mains:
2
PE - yellow-green);
or
2to the corresponding input terminals (L1 - colour, L2
It is strictly forbidden to supply voltage to the mains input of the charging
station when grounding is not connected.
If the connection is made with a 4-wire cable, perform the external
grounding with a cross section of at least 6 mm2 marked «PE» in the terminal
compartment.
INSTRUCTION MANUAL «SINGLE»
14
In the charging mode, it displays information about the charging power in kW*h and the
percentage of the car battery charge.
The modes and operation of the charging station on the LCD display depend on the
software version and may vary from version to version.
THE FIRST CONNECTION TO BE MADE IS THE GROUND WIRE TO THE GROUND
BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A
CONNECTED GROUNDING!
electric shock damage to the service personnel and consumers, as well as in a failure of the
charger.
To switch on the externally controlled charging station, a mobile network operator SIM card
must be installed in the GSM modem.
The charging station operation modes are presented on the LCD display, which, among other
things, displays the following information: operation modes (ready for charging, car battery
network status), vehicle authorization process.
AutoEnterprise #1 : Charging
V:2.02.1669 0.5 kW*h
M006335 24%
4.4 STORAGE
Store the charger in a sealed container until it is assembled and installed.
Charging station storage conditions:
• The storage area should be dry, free of dust, caustic materials, vapours and combustible materials.
• Store in a storage room with appropriate weather protection.
• Do not expose the charger to impacts.
Storage conditions:
• Storage Temperature: 0 to +40 ° C (32 to 104 ° F)
• If stored for a long time, check the general condition of all parts and packaging regularly
INSTRUCTION MANUAL «SINGLE»
15
ATTENTION
• Improper maintenance can result in serious injury or damage. For this
reason, maintenance may only be carried out by authorised, trained
personnel who are familiar with the product operation and strictly adhere
to all safety instructions.
ATTENTION
Before performing any kind of maintenance, make sure that the charger is
disconnected from the grid.
INFORMATION
To ensure maximum availability and service life of the system, we
recommend that you that you clean the charger on the inside on a regular
basis.
ATTENTION
Improper troubleshooting may result in serious injury or damage.
For this reason, it may only be carried out by authorized, trained
personnel who are familiar with the system operation and strictly
adhere to all safety instructions.
In the course of operation the following maintenance are carried out:
In case of increased dust in the room where the charging complex is located, it is
recommended to clean out the dust from the internal elements of the complex from
dust at least once in 6 months. This work should be performed by a representative of the
Attempting to carry out maintenance independently may cause electric shock and lead to
warranty cancellation.
Internal capacitors retain their charge after the power supply is switched off.
Authorized service personnel must disconnect all AC power sources from the charger to
reduce the risk of electric shock before starting any maintenance or cleaning on the charger
or on any circuits connected to the charger.
5. MAINTENANCE
OF THE STATION
INSTRUCTION MANUAL «SINGLE»
16
TECH SUPPORT
Contacts:
1. You can write an email to tech support using the contact page on our web-site.
2. You can call on numbers listed on the web-site.
AUTOENTERPRISE.UA
external manifestation and
additional signs
Probable cause Possible remedy
Loss of communication with
the complex
Modem failure
checking the status of the
SIM card
Bad location of the antenna
that receives GSM signal
Changing the location of
the antenna for the best
reception of the GSM signal
or the replacement of the
antenna (for a more powerful
with a stifter)
Damage to the charging
cables
Physical wear and tear,
careless handling of
equipment
Disconnect the device. If the
cable cannot be recovered
-replace it
Connector malfunction
yourself, send it for repairs
LCD charging indicator does
not work (no power supply)
Contact the owner of the
facility where the device is
reason for the lack of voltage
charging system triggered
charging complex
Other malfunctions The charging complex does
not provide the set electric
battery charge
Contact the
«Autoenterprise» technical
support team
Other manuals for Single
1
Table of contents
Other Autoenterprise Automobile Accessories manuals
