AUTOMOBILI LAMBORGHINI E-MOBILITY AL1 User manual

ELECTRIC SCOOTER
APP Control
USER MANUAL

USER MANUAL
ELECTRIC SCOOTER
ENGLISH

1. Package contents
2. Product overview
3. Assembly and configuration
4. Charging
5. AL e-Mobility app configuration
6. How to ride the electric scooter
7. Brakes
8. Range
9. Storage and cleaning
10. Safety instructions
11. Battery
12. Responsibilities
13. Folding, transport and opening
14. Daily maintenance and care
15. Technical specifications
16. Troubleshooting
17. Error code table
CONTENTS
01

The handlebar must be fitted to the assembled electric scooter using the special screws provided.
The screws must be inserted first without tools, then tightened using the tool provided.
(6)
(4)
(1)
1. PACKAGE CONTENTS
03

Bell
Control panel and power button
Brake lever
Locking latch
Rod
Quick release lever
Front fork
Drive wheel
Front light
Accelerator
LED/RGB ambient light
Rear mudguard / brake
Latching point
Locking mechanism
Brake light
Battery
KickstandCharging port
(opposite side)
2. PRODUCT OVERVIEW
04

1. Speedometer: displays the current speed of the electric scooter.
2. Modes: there are three driving modes available. "S Black" indicates Energy Saving mode
(maximum speed 6 km/h, ideal for beginners), "S White" indicates Standard mode (maximum
speed 15 km/h), and "S Red" indicates Sports mode (maximum speed 25 km/h, powerful, only
recommended for experienced riders).
3. Bluetooth: the icon indicates that the scooter is connected with the mobile device.
4. Error: the spanner-shaped icon indicates that the scooter has detected an error.
5. Battery level: the battery level is indicated by five bars, each representing approximately
20% of the battery.
6. Power button: press the button to turn the electric scooter on; to turn it off, press and hold
the button for three seconds. After switching on, press the button twice consecutively to turn the
headlights on/off and press once to switch from one mode to another.
1
3
2
CONTROL INFORMATION / CONTROL PANEL
5
6
4
05

After assembly, press the power button to check that the electric scooter is working properly.
Release the rod by
applying pressure
to the mudguard
Put the handlebar
rod upright
Fix it as shown
in the picture
3. ASSEMBLY AND CONFIGURATION
06

Lift the rubber cap
Insert the power
supply into the
charging port
When charging is
complete, replace
the rubber cap
What can you do with the AL E-MOBILITY APP?
• Start a self-diagnosis
• Set the driving modes
• Set the speed unit of measurement (km/mph)
• Set the start mode
• Set the Cruise Control function
• Set the LED ambient light colour (RGB)
• View the partial and total kilometres travelled
• View the remaining battery level
• Display cruising speed
• Display speed modes
• Display the temperature of the driving wheel
5. APP CONFIGURATION
4. CHARGING
07

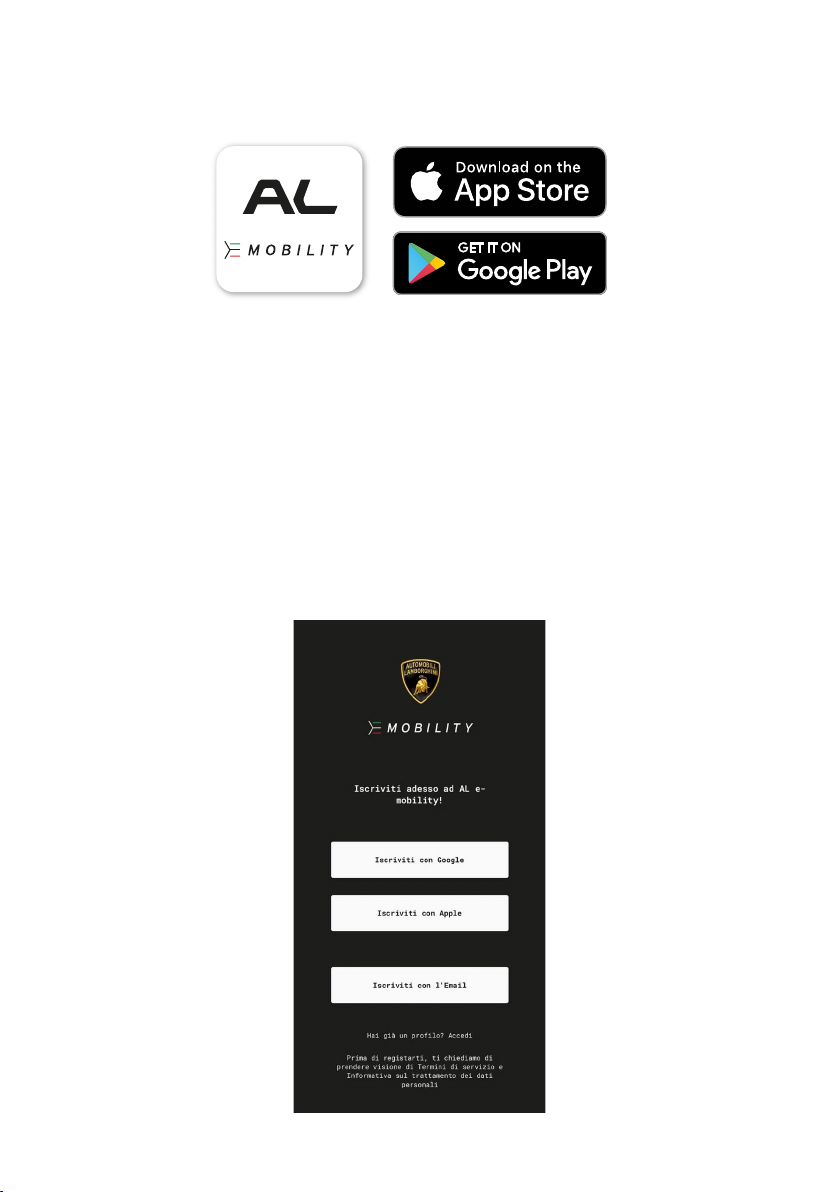

Access the preferred app store to download and install the AL E-MOBILITY APP
1. Download the app on the smartphone;
2. Turn on the e-scooter and activate the Bluetooth function on the smartphone;
3. Start the app and log in*, connect your smartphone to the electric scooter via Bluetooth within
1-2 metres;
*If this is your first time using this app, fill in the "e-mail" field to register and authenticate by
using the verification code.
The app's interface appears as follows:
08

The app's interface with associated electric scooter appears as follows:
Main interface
Electric scooter
battery percentage
Associated electric
scooter
Usage time
Riding modes
Settings
Map
Speed in real time
Distance travelled (ODO)
Route distance (TRIP)
Enable / Disable application
Route record
09

ON/OFF Modalità
Zero Start
ON/OFF Cruise Control
Speed units
Name of the
electric scooter
App language
User profile
User profile logout
Support request
Information
ON/OFF motor lock
Choice of static
side lights’ colour
Choice of color effects
of the side lights
The app's interface with associated electric scooter appears as follows:
Information on "Cruise Control":
Activate the "Cruise Control" function in the app, keep the electric scooter at a constant speed (>
8 km/h) and hold down the accelerator lever (right) for five seconds. An acoustic signal will indica-
te that "Cruise Control" is active, meaning it will not be necessary to keep the accelerator lever
(right) held down. Press the accelerator lever or brake lever again to deactivate the function.
Information on the "Zero Start" mode:
The Zero Start mode, if activated, allows you to start the electric scooter by operating the accele-
rator without having to push off with the feet.
10

Follow the safety instructions before riding the
electric scooter.
Use approved equipment such as helmets and
knee pads.
Do not use the electric scooter in the rain.
The electric scooter cannot be used by more
than one person at a time.
Children under the age of 16 and pregnant
women should not use this electric scooter.
6. HOW TO RIDE THE ELECTRIC SCOOTER
11

Minimum weight allowed on the electric scooter:
20 kg.
Maximum weight allowed on the electric
scooter: 100 kg.
Do not ride the electric scooter if you have been
drinking alcohol and/or taking medicines.
Do not use your phone or listen to music while
riding the electric scooter.
Pay particular attention if you are riding where
there are road bumps, sand, puddles, frost, snow
or steps, or in dark places and at night or in wet
conditions.
12

Do not use the electric scooter in dangerous
areas, in the presence of flammable and/or
explosive substances, liquids and/or dirt.
This electric scooter is not designed to be
ridden on roads and motorways. To find out
where the electric scooter can be ridden,
consult the legislative decree in force in the
country concerned.
Do not place heavy objects on the handlebar.
Avoid going up or down steps with the electric
scooter.
13

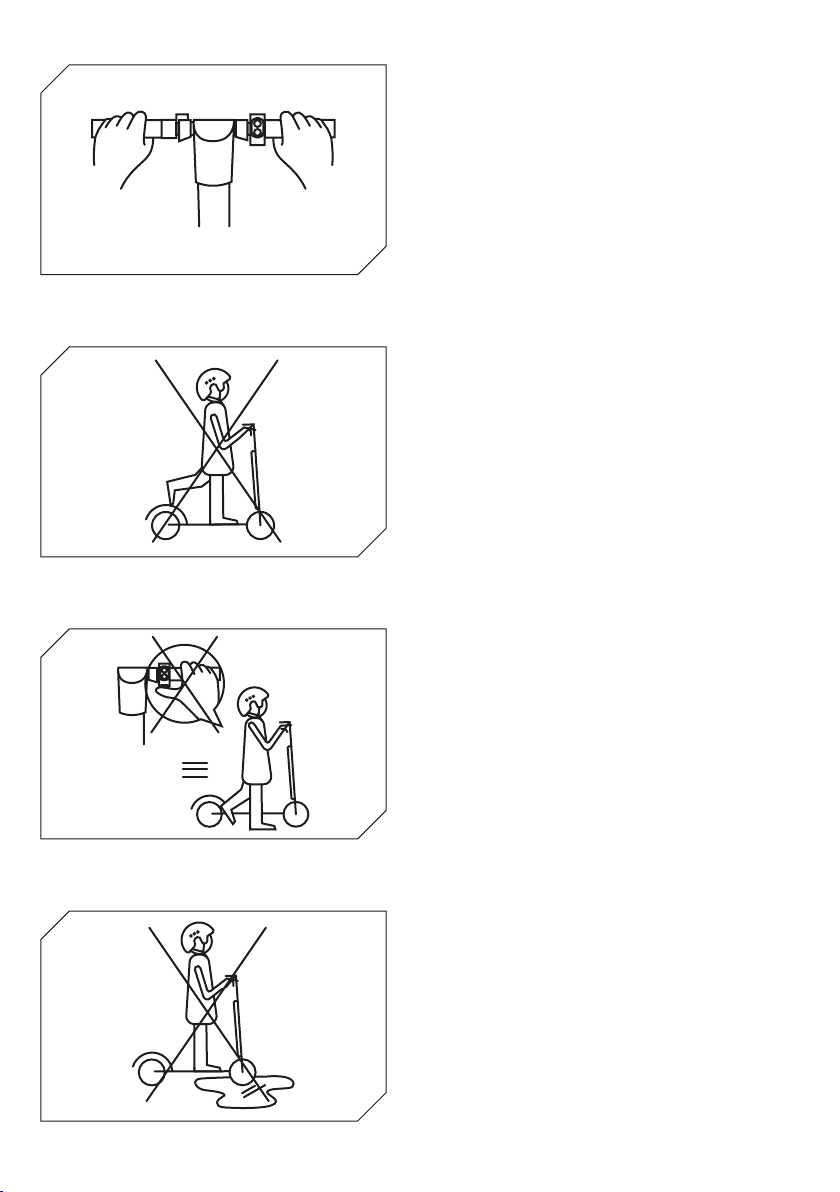

Always ride with both hands on the handlebar.
Do not ride on the electric scooter standing on
just one foot.
Do not press the accelerator when walking with
the electric scooter.
Do not ride the e-scooter in puddles or on wet
surfaces.
14

Pay attention to your head when passing under
canopies, doors and the like.
When riding at the highest permitted speed, do
not turn the handlebar abruptly.
Start braking sufficiently far away to avoid
obstacles, bends and areas with uneven surfa-
ces. Remember to release the accelerator
before braking.
Do not travel at the highest speed allowed, on
obstacles such as steps, borders or bumps.
15

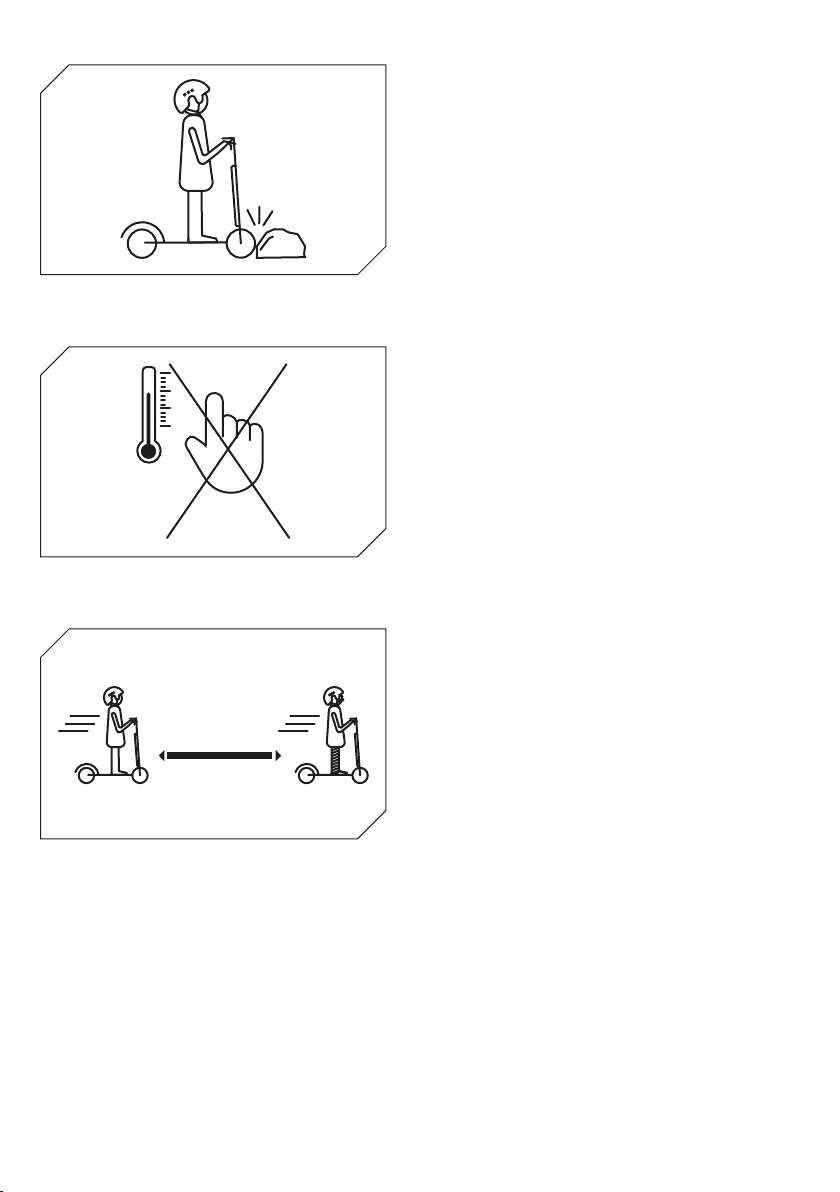

Do not hit obstacles with the wheels.
Do not touch the motor immediately after riding,
it could be extremely hot.
Maintain a minimum safety distance of 5 m from
other vehicles.
5m
16

For your own safety, wear a helmet and knee pads to protect yourself from any falls and
injuries.
The rider assumes all risks for not wearing a helmet or other protective gear.
• When you use it for the first time, charge the e-scooter to 100%. Check the battery indicator;
if the battery is low, recharge it before use. The e-scooter is a device that requires periodic
recharging in order to function.
• Place the electric scooter on a flat surface.
• Put your hands on the handlebar. Step onto the footboard with one foot and use the other to
give yourself a gentle push off.
For safety reasons, the electric scooter is initially set up to avoid a standing start.
• When the electric scooter begins to move, place both feet on the footboard and press the
accelerator. Note: the accelerator is activated once the forward speed exceeds 3 km/h.
• To ride the electric scooter, tilt your body in the direction of travel when turning and slowly
turn the handlebar.
• To stop the electric scooter, release the accelerator, press the electronic brake on the left
hand side of the handlebar and if necessary press the rear mudguard with your foot.
• Before getting off, bring the electric scooter to a complete stop. Trying to get off the electric
scooter while it is in motion can cause injury.
• When changing mode, single click the power button to change the speed mode.
• When driving at night or in dark places, double click the power button to turn on the lights,
and wear a reflective vest.
17

The electric brake lever is located on the left-hand side of the handlebar. The electric scooter is
also equipped with a foot brake on the rear mudguard. When driving on a slippery road and/or
while turning, it is recommended to use the brake with caution, otherwise you may lose control
of the electric scooter and fall off. As with other vehicles, higher speeds require longer braking
distances. Sudden braking on low-grip surfaces could cause an accident.
Be careful and always keep the necessary safety distance from other people and/or vehicles
while riding.
Charge the scooter 50% - 60% before storing it out of season or for extended periods.
Recharge it to 50% - 60% every 30 days. If not used daily, it is advisable to store the electric
scooter at 15-25°C. Do not expose the electric scooter to low (below 0°C) or high (over 45°C)
temperatures. Avoid leaving it out of doors, as it is not water-resistant.
When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure the
electric scooter is turned off and cover the charging port to prevent damage to the electronic
components. Do not use alcohol, petrol, kerosene or other corrosive and volatile chemical
solvents. This can damage both the appearance and the internal structure of the electric
scooter. Do not use pressurised water jets or running water for cleaning. The electric scooter
is not waterproof.
Do not expose it to rain or water, or immerse it in water to wash it.
Maximum range depends on several variables:
Terrain: the range is greater when riding on a smooth surface than when driving on bumpy roads
and slopes.
User weight: the heavier the user, the shorter the range.
Temperature: riding the electric scooter in a very cold or very hot environment affects and
reduces the range.
Speed and riding style: riding smoothly and at a constant speed extends the range. Acceleration
and manoeuvring significantly reduce the range. A lower speed extends the range.
Maintenance: timely recharging and correct maintenance increase the range.
7. BRAKES
8. RANGE
9. STORAGE AND CLEANING
18

• This electric scooter is a motor vehicle. Mastering riding it requires practice.
• This product is an electric scooter for adults. Use is limited to just one person at a time.
Do not carry other people at the same time. Children under 18 should use it only under
adult supervision. Riding is not permitted for children under 16.
• When riding the electric scooter, wear a safety helmet and other protective equipment.
• Do not ride the electric scooter in unsafe places or in breach of the regulations of the
respective government.
• Do not make dangerous movements or ride with one hand; keep your feet on the footboard.
Do not turn off the power while the electric scooter is running.
• Before riding, check if fasteners are loose and/or any components are damaged. In this
case, it is advisable not to use the product. If this electric scooter emits abnormal sounds
or alarms, stop riding immediately and contact your local service centre.
• Do not attempt to climb steps with a gap greater than 3 cm, as this could cause the
electric scooter to overturn, resulting in injury to the rider or damage to the vehicle.
Avoid steps under 3 centimetres as much as possible.
• In the event of rough or bumpy road conditions, slow down or get off. Do not ride the
electric scooter on slippery surfaces, such as in the presence of oil or ice.
• Do not use this product in an environment with a temperature below 0°C.
• Do not immerse the product deeper than 3 cm to avoid damage to the electrical part of
the vehicle.
• Avoid driving in bad weather, such as rain, snow, strong winds, etc., so as not to cause
damage from environmental factors.
• Only MT Distribution approved parts and accessories may be used. Do not modify the
electric scooter. Modifying your electric scooter can affect its operation, causing serious
injury and/or damage and compromising your warranty. Contact the service centre at
www.alemobility.com if you need any spare parts.
10. SAFETY INSTRUCTIONS
