AUVIO 15-318 User manual

THE PERFORMANCE YOU NEED
TM
4-In/1-Out HDMI
Selector Switch
with Remote Control
User’s Guide 15-318
Please read this user’s guide before using
your new HDMI Selector Switch.
2/3

2
2
Package contents
HDMI Selector Switch
AC Adapter
Remote Control
Velcro Strips (2 pairs)
User’s Guide
Quick Start
Features
Supports full HD 1080p resolution
for the best possible picture and
digital sound.
Connect four high-definition devices
to output to a single HDMI jack, and
switch between them remotely.
Simplay HD™ tested and ready.
Gold-plated connectors improve
signal and reduce interference.

3
3
STB
STB

4
4
DC 5V

5
5

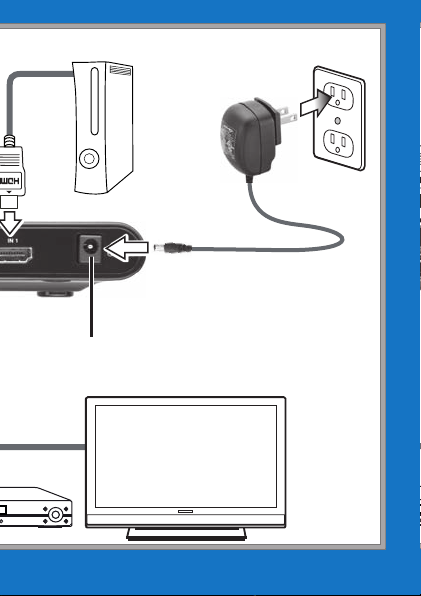

Setup
1. Connect your HD audio/video
device to the selector switch’s IN1,
IN2, IN3 or IN4 port using an HDMI
cable (not included).
2. Connect your HDTV to the selector
switch’s OUT port using an HDMI
cable (not included).
3. Connect the provided AC Adapter
to the selector switch’s DC 5V jack,
and then plug it in to a standard
household outlet.
4. Use the supplied
Velcro strips (optional)
to secure the selector
switch to the wall or
other flat surface.
5. Press G/SELECT on
the selector switch to
turn it on.
6. Pull the plastic tab from the battery
compartment before using the
remote control.

6
6

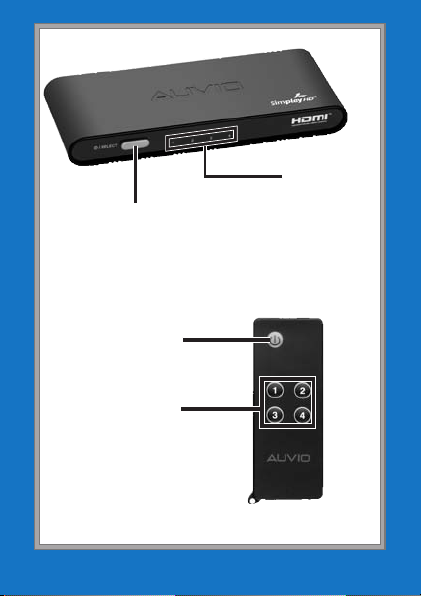

Power
Choose the
connected audio/
video device.
G/SELECT
Power
Select device
Lights when
device is
selected.

7
7
Use Your Devices
1. To switch between devices, press
button 1, 2, 3, or 4 on the remote
control or G/SELECT on the
selector switch.
2. To power off the selector switch,
press Gon the remote control or
press and hold G/SELECT for three
seconds on the selector switch.

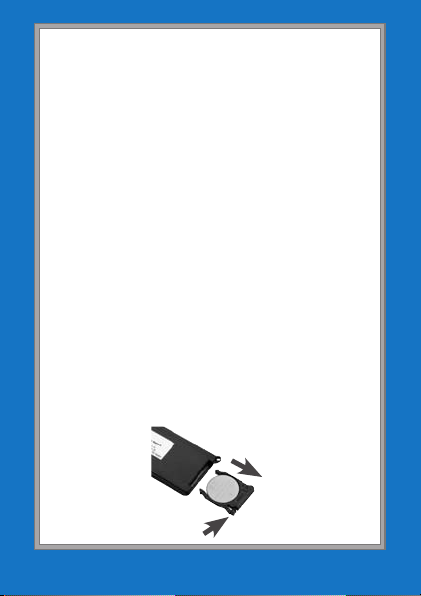

Replacing the Battery
1. Press the tab on the battery
compartment tray and slide the tray
out.
2. Insert a new 3V, CR2025 battery,
positive (+) side up.
3. Slide the tray back into the battery
compartment until it clicks.

8
8
bBattery Notes:
Keep button-cell batteries away
from children. Swallowing a button-
cell battery can be fatal.
Dispose of batteries promptly and
properly. Do not burn or bury them.
Use only a fresh battery of the
required size and type.

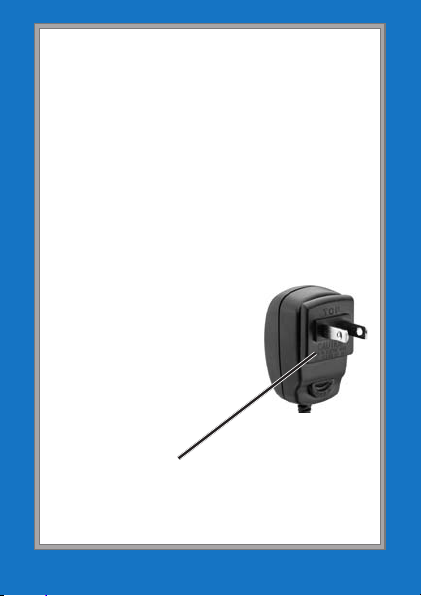

Storing the AC adapter
The blade plate on the
included AC adapter
is detachable for easy
storage. Carefully press
OPEN to unlock and
remove the blade plate.
wCaution: Only use the supplied
blade plate for this adapter.

9
9
Troubleshooting
Problem Possible Solutions
LED
doesn’t
light
Make sure the power
adapter is plugged in.
Check that the A/V
device’s power cord is
plugged in properly.
No video
or audio
Try another device in
case the first one isn’t
working.
Make sure the HDMI
cable is not damaged.
Make sure all devices
in the signal-chain are
HDCP compliant.
Turn off the TV, then turn
it back on.
Unable
to switch
input
using the
G/SELECT
button
Make sure nothing is
preventing the button
from being pressed.
Switch off, unplug, and
replug power cord, then
switch on again.

10
10
Has video,
but no
audio
Make sure your TV’s
input is set to HDMI
Make sure your HDMI
cable is version 1.1 or
higher.
Press G/SELECT or 1-4
on the remote again
to reselect your input
source.
If the TV can only
support 2-channel audio,
change the source
device’s audio settings
to “2-channel (PCM)”
output.
Turn off the TV, then turn
it back on.
Remote
control
does not
work
Change the battery.
Make sure there are no
obstructions between
the remote and switch.
LED is
flashing
LED will flash when the
selected input port is
empty.

11
11
Specifications
Video Amplifier Bandwidth ...........................
.......................................225MHz/6.75 Gbps
Single Link Range..... Max. 1080p from source
Vertical Frequency Range .............. 50/60 Hz
HDMI Input Connector ........Type A 19-Pin x 4
HDMI Output Connector .....Type A 19-Pin x 1
Switch Source Indicator.................... 4 LEDs
Power Consumption ..................... Max. 3 W
Power Supply......................................5V, 1A
Dimensions....... 7×3×1.1 in (108×73×28.5mm)
