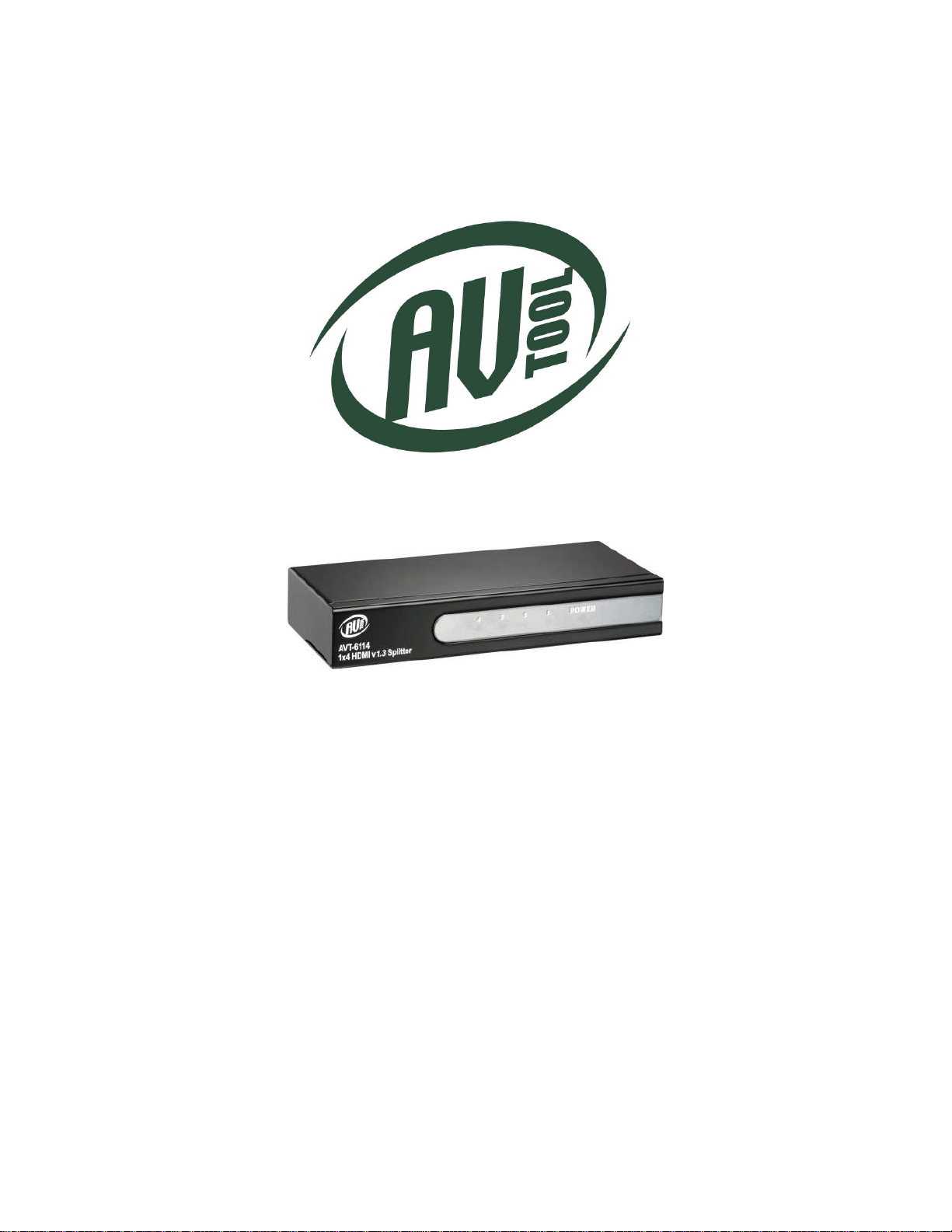

AV TOOL AVT-6114 User manual

AVT-6114
1x4 HDMI v1.3 Splitter
Instruction Manual

Table of Contents
1.0 Introduction 2
2.0 Specifications 4
3.0 Checking Package Contents 4
4.0 Connecting the Hardware 4
5.0 Operating The Unit 5
6.0 Troubleshooting 5
7.0 Limited Warranty 6
8.0 Regulatory Compliance 7
9.0 Contact Information 7

2
1.0 INTRODUCTION
Thanks for purchasing this product from the AV Toolbox Division of TV One. The
AVT-6114 1x4 HDMI v1.3 Splitter allows distribution of an HDMI signal to 4
displays or other HDMI compliant devices. This version v1.3 HDMI device
supports all standard High Definition Television formats, PC formats from XGA
through UXGA as well as providing transport of embedded HD-Audio, including
Dolby® TrueHD and DTS-HD. This is but one of our complete range of video and
audio products.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One
cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The TV One logo, AV
Toolbox logo, TV One-task and CORIO are the registered Trademarks of TV
One. All other trademarks are the property of their respective holders.
1.2 Features
Conforms to HDMI v1.3 and HDCP v1.1 Specifications.
Allows distribution of HDMI or PC signals to 4 different devices.
Supports combined I/O cable runs to 20 meters (65 Feet).
Supports SDTV and HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supports High Resolution PC Video Inputs (XGA through UXGA).
Supports distribution of embedded Audio.
Simple installation and operation.

3
1.3 Getting the Best Results
There are many factors affecting the quality of results when distributing HDMI
type signals. Some basic precautions will ensure the best possible performance
from your AVT-6114 1x4 HDMI v1.3 Splitter.
Output display device – The quality of the output signal will depend
largely upon the type and quality of the HDMI display device used.
For instance, some video projectors just look better than others.
Distance between the switcher, the sources and the display – This
plays a major role in the final result. Long distances are possible, but
special measures should be taken in order to avoid cable losses.
These include using high quality cables. Line amplifiers may also be
necessary for the longest runs.
Input/Output connection cables – Low quality cables are susceptible
to interference. They degrade signal quality due to poor matching and
can cause elevated noise levels. Cables should be of the best quality.
Interference from nearby electrical devices – These can have an
adverse effect on signal quality. For example, an older computer
monitor often emits very high electromagnetic fields that can interfere
with the performance of video equipment in its proximity.

4
2.0 SPECIFICATIONS
Input Format HDMI Version 1.3, HDCP Version 1.1
Input Signal Types HDMI HDTV (and PC Video with optional adapter)
Freq. Bandwidth 2.25Gbps (Single Link)
Cable Run Length 20 Meters (65 Ft) total combined Input/Output cable length
Output Format HDMI v1.3, HDCP v1.1
Output Signal Types HDMI v1.3; HDTV to 1080p, PC to UXGA
Input Connector 1x Type A HDMI Female
Output Connectors 4x Type A HDMI Female
Device Control Plug and Play
Weight 0.48lbs (220g)
Dimensions–HxWxD 1”x5.6”x2.6” (25x142x66mm)
Power Source 100~240VAC to 5VDC/2.6A Adapter
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
1x AVT-6114 1x4 HDMI v1.3 Splitter
1x 100~240VAC to 5VDC Power Adapter
1x User Manual
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE
Connect the HDMI Video Source to the input of the AVT-6114 Splitter, connect
its outputs to HDMI Compliant monitors –– or other HDMI compliant devices ––
and then connect the AC to DC Power Adapter. The drawings below show the
location of the status LEDs, input, outputs and power connector.

5
4.1 Connecting the Input to the AVT-6114
You can connect any HDMI device’s output to the AVT-6114’s input. Make
certain that the HDMI cable is securely plugged into the source device as well as
the AVT-6114. Always use a high quality cable, as short a length as possible, for
best results.
4.2 Connecting the AVT-6114 to Displays
Using high quality HDMI cables connect the outputs of the AVT-6114 to a total of
four (4) HDMI compliant display devices. Use the shortest cable run possible.
4.3 Connecting Power to the AVT-6114
The AVT-6114 is shipped with a Power Adapter to convert 100~240VAC@50-
60Hz to 5VDC. Connect the DC Output Cable from the Power Adapter to the
back of the unit and then plug the Power Adapter into an AC Receptacle. (The
Power Adapter DC plug has a TV One/AV Toolbox exclusive locking feature that
prevents it from inadvertently coming loose. Insert the DC plug from the AC
Adapter into the AVT-6114’s DC connector and turn it 90 degrees to lock it in
position. If removal is ever required, reverse the process by first turning the plug
90 degrees and then removing it from the AVT-6114.) The AVT-6114 will begin to
function as soon as AC power is supplied to the AC adapter.
5.0 OPERATING THE AVT-6114
The AVT-6114 1x4 HDMI Splitter requires no operator intervention. If both the
input and the outputs are HDMI compliant, the Splitter will function as soon as
power is supplied. LED displays indicate which output is active and a Power LED
indicates when the unit is receiving power.
6.0 TROUBLESHOOTING
In the event of problems, first make certain that the input and output cables are
no more than 65 feet long (combined length, input and output cables) and are of
the highest possible quality. Next, make certain that the Splitter is receiving
power.
If all is well in these areas, remember that HDMI devices communicate with one
another so the source device and destination devices must be fully HDMI
capable. In addition, HDCP encryption requires additional processing which also
is dependent on the equipment you have connected to the source and
destination devices. If you experience problems using the AVT-6114 HDMI
Splitter, you should attempt to determine what is wrong by attaching the source
device directly to each destination device using the same cables you are using
with the expanded system. This is a way of determining if the problem is due to

6
bad cables or a problem with the other devices. If you are unable to obtain a
signal using this simplified path, suspect the cables, the source device or the
destination device(s).
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions before contacting TV One. Should the dealer’s
technical personnel be unable to assist you, contact TV One via our support
website: http://tvone.crmdesk.com. Create a technical support request on the
site and our support team will respond within a short period of time.
7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph, AV
Toolbox warrants the original purchaser that the equipment it manufactures or
sells will be free from defects in materials and workmanship for a period of one
year from the date of purchase. Should this product, in AV Toolbox’s opinion,
prove defective within this warranty period, AV Toolbox, at its option, will repair or
replace this product without charge. Any defective parts replaced become the
property of AV Toolbox. This warranty does not apply to those products which
have been damaged due to accident, unauthorized alterations, improper repair,
modifications, inadequate maintenance and care, or use in any manner for which
the product was not originally intended.
Items integrated into AV Toolbox products that are made by other manufacturers,
notably computer hard drives and liquid crystal display panels, are limited to the
term of the warranty offered by the respective manufacturers. Such specific
warranties are available upon request to AV Toolbox. If repairs are necessary
under this warranty policy, the original purchaser must obtain a Return
Authorization Number from AV Toolbox and return the product to a location
designated by AV Toolbox, freight prepaid. After repairs are complete, the
product will be returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is
in lieu of all other warranties for this product, expressed or implied, and is strictly
limited to one year from the date of purchase. AV Toolbox assumes no liability to
distributors, resellers or end-users or any third parties for any loss of use,
revenue or profit.
AV Toolbox makes no other representation of warranty as to fitness for the
purpose or merchantability or otherwise in respect of any of the products sold.
The liability of AV Toolbox with respect to any defective products will be limited to
the repair or replacement of such products. In no event shall AV Toolbox be
responsible or liable for any damage arising from the use of such defective
products whether such damages be direct, indirect, consequential or otherwise,
and whether such damages are incurred by the reseller, end-user or any third
party.

7
8.0 REGULATORY COMPLIANCE
The AVT-6114 has been tested for compliance with appropriate FCC and CE
rules and regulations. The Power Adaptor/Supplies have been tested for
compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or
Guidelines. These Products and Power Adapters are RoHS Compliant.
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not
covered by this manual, please contact TV One at the appropriate location.
AV Toolbox USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Tel [phone]
Fax [phone]
[email protected]
www.avtoolbox.com
AV Toolbox Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.avtoolbox.com
AV Toolbox Latin America
6991 NW 82nd Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[e-mail]
www.tvonela.com
AV Toolbox Mercosur
Av. Diaz Velez 3965 #PB
(1200) Capital Federal
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
AV Toolbox Asia
16F-4, No.75, Sec.1
Hsin Tai Wu Rd., Hsichih
Taipei Hsien 22101
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
AV Toolbox China
Room 1007, Golden Peach Building
No. 1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
End of Manual
