1 SAFETY INSTRUCTIONS.........................................................................................
2 WARRANTY.............................................................................................................
2.1 Warranty Policy........................................................................................
2.2 Warranty Return Procedures.....................................................................
2.3 Transport Liabilities..................................................................................
3 INITIAL SETUP........................................................................................................
3.1 On-site Installation Requirements ............................................................
3.1.1 Clearances ....................................................................................
3.2 Unpacking..................................................................................................
3.3 Leveling the Equipment.............................................................................
3.4 Hot Water Tank Preparation.......................................................................
3.4.1 Tank Lid Preparation.....................................................................
3.4.2 Adjusting the Tank Overflow Float.................................................
3.5 Bean Canister Installation..........................................................................
3.6 Water Line Connection..............................................................................
3.7 Electrical Connection.................................................................................
3.8 Water Temperature....................................................................................
3.9 Drip Tray and Overflow...............................................................................
3.9.1 Drip Tray Installation.......................................................................
3.9.2 Overflow Tray Installation...............................................................
3.10 Loading Products......................................................................................
3.11 Chute System Installation..........................................................................
3.12 Brewer and whipping chamber..................................................................
3.13 Filter Paper Installation.............................................................................
3.14 Testing Installation ...................................................................................
3.15 Warranty Card...........................................................................................
3.16 Main Board................................................................................................
3.16.1 Main Board (PCB) Description....................................................
3.17 Programming Tips....................................................................................
3.18 Service Overlay........................................................................................
4 SERVICE SOFTWARE..............................................................................................
4.1 Product Values............................................................................................
4.1.1 Solubles Values..............................................................................
4.1.2 Cycle...............................................................................................
4.2 Touch Key free............................................................................................
TABLE OF CONTENTS
3
Table of Contents
05
06
06
07
07
08
08
08
09
10
10
10
11
12
13
14
15
16
16
17
18
19
20
22
23
23
24
25
26
27
28
28
29
29
30

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
Table of Contents
5 CLEANING & SANITIZING........................................................................................
5.1 Automatic rinse fonction...........................................................................
5.2 Cleaning and Sanitizing Instructions.........................................................
5.3 Recommended Cleaning Tools..................................................................
5.4 Cleaning and Sanitizing Schedule............................................................
5.5 Overall Cleaning........................................................................................
5.6 Exterior Cleaning.......................................................................................
5.6.1 Cleaning the Drip Tray...................................................................
5.6.2 Emptying the Waste Bin................................................................
5.7 Interior Parts Cleaning & Sanitizing..........................................................
5.7.1 Coffee Canisters............................................................................
5.7.2 Soluble Canisters..........................................................................
5.7.3 Whipper........................................................................................
5.7.4 Coffee Brewer...............................................................................
5.7.5 Fan...............................................................................................
5.7.6 Stainless Coffee Chute..................................................................
5.7.7 Plastic Chute of the 3 Bean Canister.............................................
6 PREVENTIVE MAINTENANCE...................................................................................
6.1 Preventive Maintenance Schedule...........................................................
6.2 Brewer Assembly......................................................................................
6.3 Water Outlet Valves..................................................................................
6.4 Hot Water Tank.........................................................................................
7 SERVICING PARTS..................................................................................................
7.1 Draining the Hot Water Tank.......................................................................
7.2 Shutdown / Storage....................................................................................
7.2.1 Storing the Brewer........................................................................
TABLE OF CONTENTS
4
30
30
31
31
32
33
33
33
34
35
35
36
36
37
38
39
40
41
41
42
43
44
45
45
46
46

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
Food-Contact Parts
· We recommend that you clean and sanitize all food-contact parts prior to installation and use.
See the cleaning and sanitizing section for more details in the service manual.
Warnings
· To minimize the risks of fire or electrical shock, do not expose this equipment to rain or moisture.
· Do not immerse this equipment in water; it could lead to electric shock or other malfunctions.
· Do not use this equipment other than for its intended use.
· This equipment contains hot water; extreme caution must be used when moving it.
· This brewing equipment is intended for indoor installation only.
Power supply
· Always use a grounded 120V AC 60Hz socket outlet rated for 15Amps service.
· Each brewing equipment must have its own electrical outlet, on a dedicated circuit.
· Extension cords must not be used.
· This equipment is equipped with a polarized alternating current line plug (one blade wider than the
other). Only use this plug with an outlet in which the prongs can be fully inserted.
Disconnect the equipment if:
· Damage is done to the power cord;
· The equipment doesn’t work properly;
· The temperature of the power cord or plug increases dramatically during use;
· Unusual conditions occur.
1 SAFETY INSTRUCTIONS
Basic safety precautions should always be taken when using electrical appliances. Read all
instructions before using this brewing equipment.
FAILURE TO COMPLY CAN CAUSE EQUIPMENT DAMAGE, FIRE OR SEVERE
BODILY INJURY.
5
Safety Instructions

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
6
Warranty
2 WARRANTY
We hereby certify that the products manufactured by Cafection are, to the best of our knowledge, free
from all defects and faulty workmanship. The following warranties and conditions are applicable:
All parts in contact with water (outlet valves, heating element, probe, inlet valve and tank float)
are warranted against material and workmanship defects for a period of 90 days from the date of shipment.
All remaining parts of the brewer are warranted against material and workmanship defects for one year
from date of shipment.
All warranty service and returns must have prior authorization from Cafection. Please contact Cafection
customer service at 1-800-561-6162.
Conditions
Cafection assumes no responsibility for substitute replacement parts installed on the Avalon
brewer that have not been purchased from Cafection.
The following circumstances will void the warranty policy:
- Improper installation or operation of the equipment.
- Abuse or neglect, including but not limited to, failure to follow the preventive maintenance
schedule.
- Variation in equipment performance due to excessive mineral deposit or local water conditions.
- Equipment altered in any way and/or dates, codes or serial numbers removed or modified.
- Equipment damaged in shipping from the customer to Cafection due to improper packaging.
Please note that labor is not covered by the warranty and that the repair protocol is limited to replacing
the defective part. Should any additional repairs need to be done, they will be charged to the customer.
Equipment or parts will not be accepted without a prior notification to Cafection.
Please return your warranty card to Cafection via mail or fax to validate your warranty and to register your
unit for part upgrades.
Cafection Entreprises Inc. Tél.: [phone]
2355, Dalton Fax: [phone]
Sainte-Foy, (Québec) G1P 3S3 E-Mail: [email protected]
Canada www.cafection.com
2.1 Warranty Policy

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
2.2 Warranty Return Procedure
In order to always offer you better, faster service, we request your cooperation for the return of parts under
warranty. We thank you in advance for taking the time to follow this procedure:
1. Please contact the Customer Service department to obtain an authorization.
2. It is important to fax a copy of the original invoice to Cafection at 1-800-463-2739 for approval.
3. Do not destroy any parts before receiving a written confirmation that this part will or will not be
credited or exchanged.
4. Keep a copy of the original invoice for your records.
5. A copy of the original invoice must be included with your parts returned.
PLEASE MAKE SURE THE MERCHANDISE IS WELL PACKED!
Please use original packaging!
6. Once the merchandise is received, Cafection will check the parts and apply a credit to your
account or exchange the merchandise if the warranty is applicable. Only guaranteed parts are
authorized for return.
7. We suggest you keep replacement parts on hand.
8. The warranty covers regular shipping only. Overnight shipping charges will be applied to your
order. Orders must be received before 12:00 pm Eastern Standard Time to be shipped the same day*.
* Some conditions may apply.
FOR MORE INFORMATION, PLEASE CALL CUSTOMER SERVICE AT 1-800-561-6162
2.3 Transport Liabilities
YOU ARE RESPONSIBLE, SHIPMENT MUST BE INSPECTED!
You can refuse delivery if a shipment is damaged. Do not sign off the shipment without proper inspection.
Should you choose to accept the delivery, it is mandatory that you record the following information on the
delivery slip. Remember that you take responsibility of the merchandise once you have signed the
delivery receipt.
You have 48 hours to report and file a claim for concealed damages to the transportation company.
*** Failure to comply to this procedure could lead to claim refusal by the carrier.
7
Warranty

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
3.1 On-site installation requirements
Other tools may be required depending on the type of water supply tubing and location.
Operating environment
For indoor use only
Power Supply
Make sure each unit has its own electrical circuit and is located within 6 feet of the dedicated electrical outlet.
Use only a polarized grounded receptacle.
Domestic 115 VAC / 60 Hz - 15 Amp Circuit
Water Supply
Should be a plastic 1/4” or 3/8’’ O.D. dedicated line branched off a larger line. An easily accessible shut off
valve up stream of the unit is highly recommended for ease of installation.
Water pressure should be at least 20 PSI and no more than 80 PSI
Tools Required
#2 Phillips screwdriver
Regular medium pliers
Adjustable wrench
Level indicator
Unit Clearances
Height: 44” 50”
Width : 18,5” 26”
Depth : 25” 26”
3.1.1 Clearances
Allowance for:
Opening the top of the machine.
Per side. Key access on one side and door swing on the other.
In front when the door is open.
Clearance of water hookup, hoses, water filtration system and
adequate air circulation.
6”
Initial Setup
8
3 INITIAL SETUP
Before you install the brewer on location, we strongly suggest that it be unpacked,inspected and bench tested
before it leaves your warehouse.

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A 9
3.2 Unpacking
For each brewing equipment kit you should have the following boxes: the brewer and the accessories.
1 box for the brewer + 1 box for the canister and accessories
To remove the unit from the box, carefully cut the straps holding the box in place on the skid and then lift the
box up. Inspect the unit to see if any damage has occurred in shipment.
NOTE: See transport liabilities in section 2.3 on page 6.

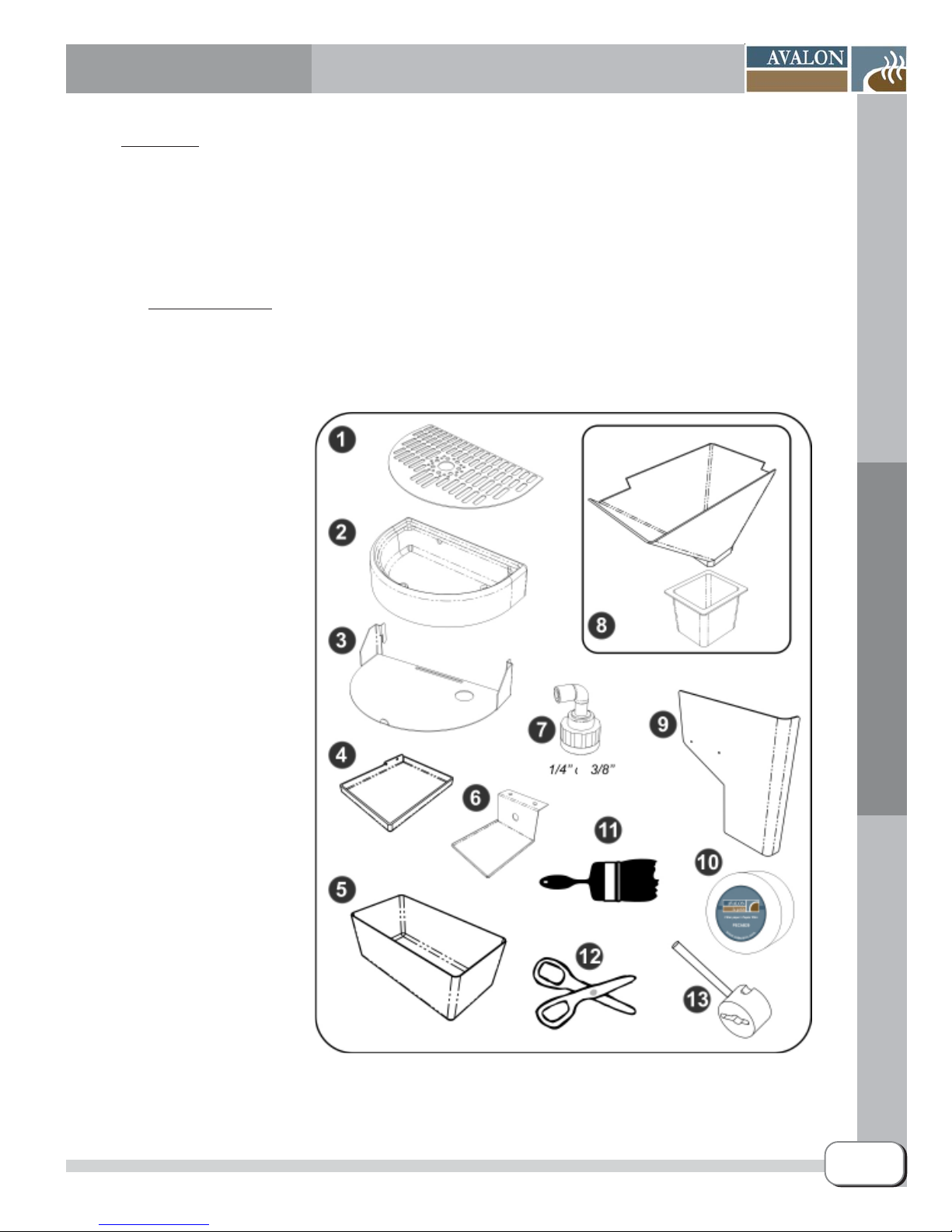

The parts and accessories that are shipped separately need to be installed on your equipment. In each box,
you should find the following items:
Initial Setup
1. Drip Tray Grill
2. Plastic Drip Tray
3. Plastic Drip Tray
Support
4. Overflow Drip Tray
5. Waste Basket
6. Overflow Drip Tray
Support
7. 1/4’’ or 3/8’’ Inlet Kit
Fitting Part
8. Optional Plastic Chute
Kit
9. Front Panel
10. Filter Paper
11. Brush
12. Scissors
13. Brewer Motor Tool
* The 3 bean canister is individually packaged
*The keys for the unit are attached to the power cord located in the back of the unit.
Optionnal
or

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
10
Initial Setup
1. Locate the water tank and remove the access panel securing the float of the water tank;
2. Remove the silicone tubing from the heating element;
3. Connect the white wire to the prong on the heating element;
4. Replace the access panel.
3.3 Levelling the Equipment
3.4.1 Tank Lid Preparation
Make sure equipment is unplugged!
For optimal performance of the equipment, it is important to ensure that it is leveled. Avoiding to do so
can create variations in product delivery.
1. Place a level on the top of the equipment;
2. Adjust the 4 threaded level glides or legs of the equipment to reach a leveled position.
3.4 Hot Water Tank Preparation
Heater safety
switch
Water safety switch
(float)
Heating element
wire
Heater safety switch
Left side view
Water safety switch
(float)
Right side view

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
Cup
Hole in the
exit of the
tube
11
Initial Setup

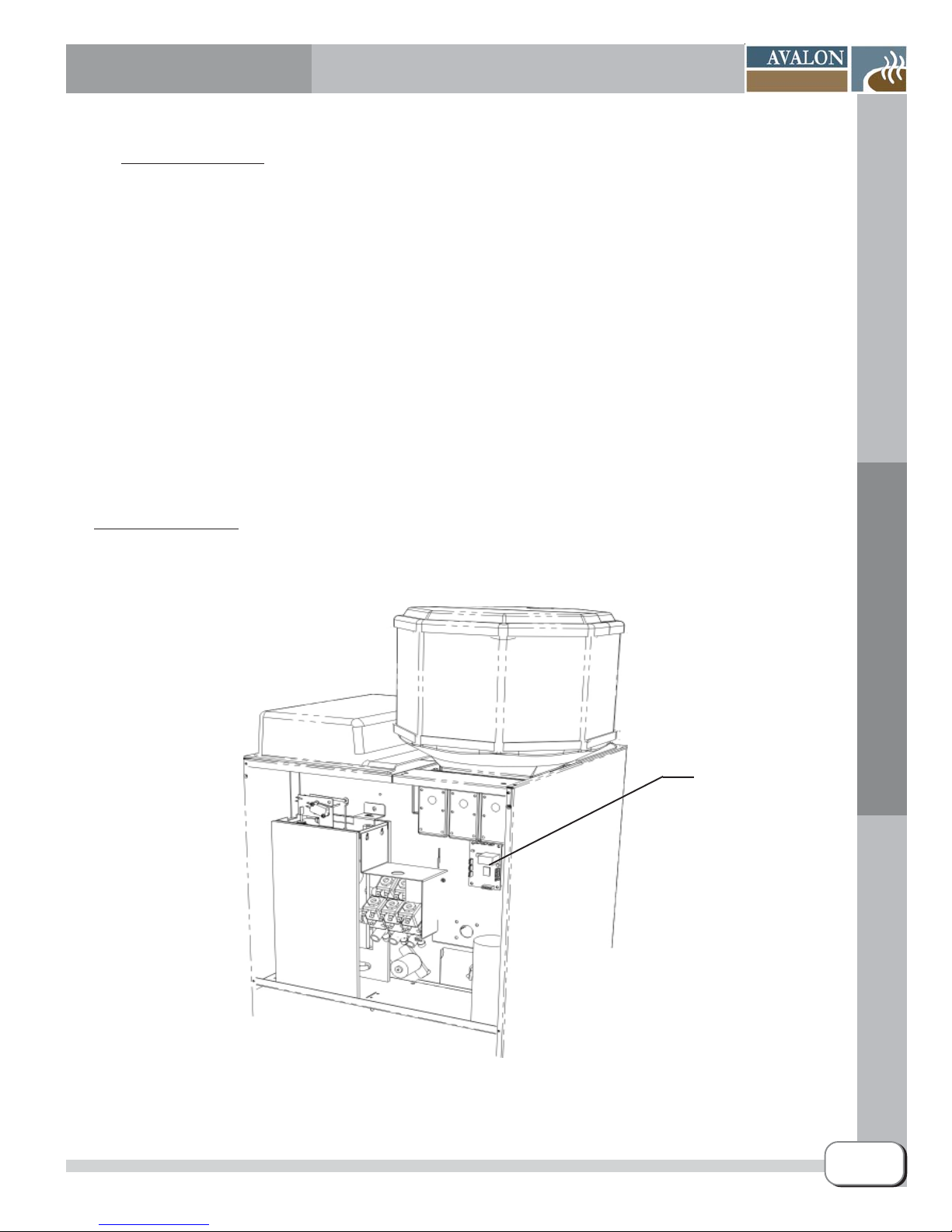

3.4.2 Adjusting the Tank Overflow Float
It is important to verify that the float is positioned properly in the overflow
cup because it can move around in transportation. If this float is not
properly in place the switch will not be activated and the unit will
automatically shut down sensing an overflow situation.
It is important to verify that the Overflow cup is in place with the highest
side in front and secured well with the red tape. If you need to remove this
cup, please make sure that you replace it with the highest section facing
the front and the overflow tube in the cup. Fasten it in place with tape. This
will ensure that the float will “float” and will activate the overflow switch if a
problem accurs.
Location in the brewer

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
Initial Setup
12
3.5.2 Lock the cover of the grinder
protector
Close the cover of the grinder protector
and lock using the latch.
Cover of the grinder
protector

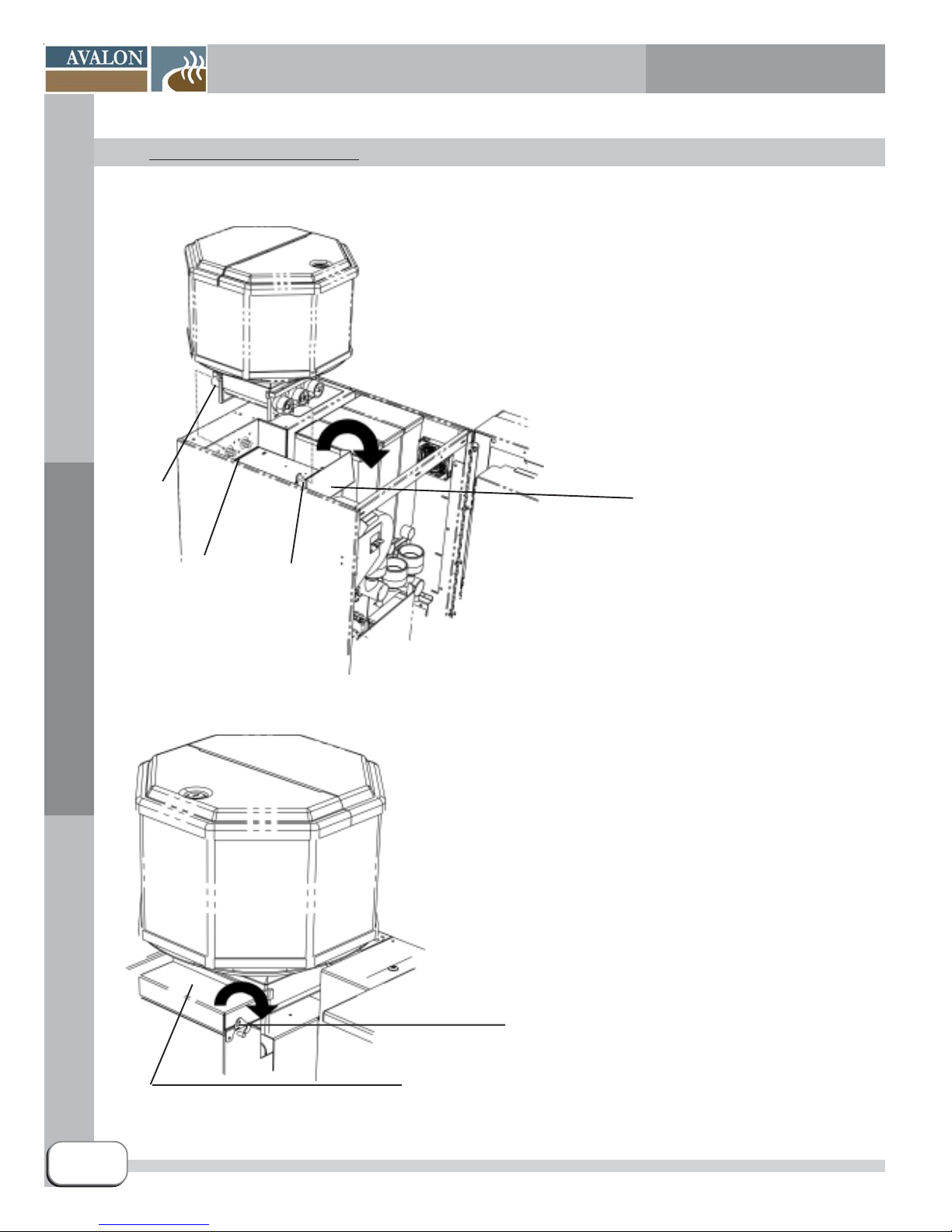

3.5 3 Beans Canister Installation
3.5.1 Install the 3 Beans Canister
Unpack the 3 beans canister.
Open the cover of the grinder protector.
Install the canister on the shelf by aligning
the 3 transmissions of the canister with the
3 motors already fixed on the shelf and the
2 pins on the other side of the shelf. Push
backward to fix in place.
Cover of the grinder
protector
Transmission
Motor Pin of the shelf
Latch

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
Initial Setup
13
3.6 Water Line Connection
Make sure that the equipment is unplugged before proceeding with the water supply
installation. Also verify that the incoming water pressure is greater than 20 psi and no more
than 80 psi.
1. Prior to installing the equipment, flush out the water line by running approximately 1 gal. of water into a pail.
This will ensure no sediment from a new installation can get in the equipment;
2. The incoming water supply should have a shut-off valve connected in-line. Water supply should be
a plastic 1/4” or 3/8” O.D. dedicated line branched off a larger supply line;
3. Make sure your water source is turned off. Secure the inlet fitting firmly onto the inlet valve. Do not
overtighten;
4. Make sure the equipment is unplugged. Connect the water line to the quick connect inlet fitting;
5. Turn the water valve on, sending water to the brewer. If there are any leaks, tighten connections to stop
leakage.
This procedure does not take into consideration the installation of a water filtration system.
Please refer to the water filter manufacturer installation instructions and incorporate them into
the above procedures.
This equipment must be installed in compliance with applicable Federal, State, Provincial
and/or Municipal plumbing codes having jurisdiction.
Adaptation
fitting

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
Initial Setup
14

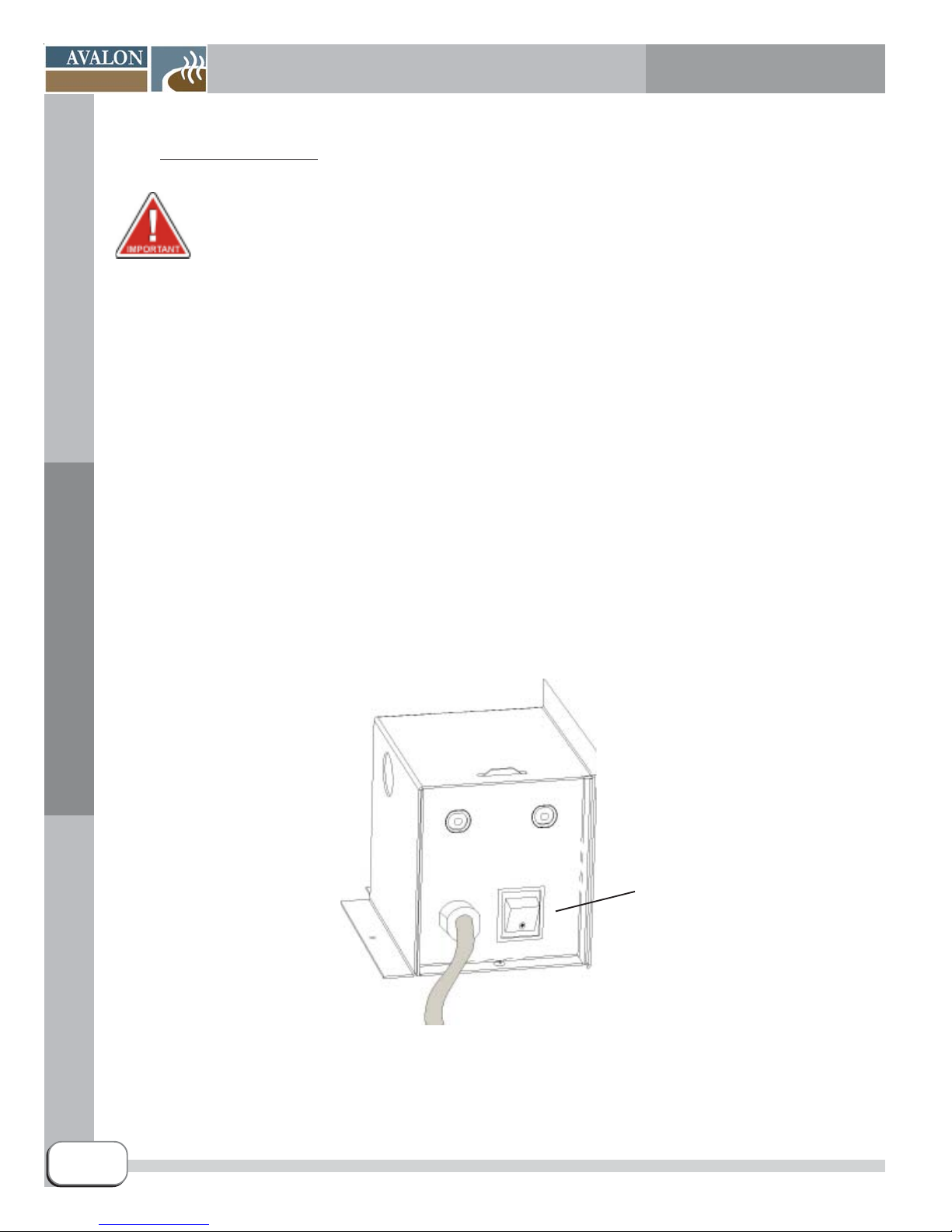

3.7 Electrical Connection
This equipment must be installed in compliance with applicable Federal, State, Provincial
and/or Local electrical codes having jurisdiction.
Make sure: - The equipment is OFF before plugging it in,
- The equipment has its own electrical outlet and
- NO extension cord is used.
1. Make sure that the power switch in the back of the unit is in the OFF position before plugging in
the unit;
2. Locate the unit’s 6 feet power cord and plug it into its own grounded electrical outlet;
3. Reach to the back of the brewer and toggle the power switch to the ON position. The front lights
will turn on and water will automatically enter the brewer. The tank will fill for up to 2-3 minutes max.
4. Once the tank is full, it will take 10-15 minutes to heat the water to brewing temperature;
5. Once the brewing equipment is ready, the LCD will indicate “Hi! Make Your Choice”.
The main power switch turns the equipment ON and OFF. This switch should be turned OFF when
servicing any (AC line voltage) electrical components on the equipment.
OFF Position!

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
Initial Setup
15
This equipment has a coffee brewing setpoint of 202 F* water temperature to offer a consistent beverage quality
to the users. There is a +/- 2 degree F tolerance.
.
3.8 Water Temperature
This is an average and is not what you would get from a manual temperature measure. The actual
water temperature fluctuates because cold water is added to the tank after every beverage delivery and
time is needed to heat the new incoming water up to setpoint.
You can also take the water’s brewing temperature manually by ordering a cup of hot water and
measuring its temperature with a thermometer. There may be a slight difference from the tank reading.
This is normal.
If you are experiencing large temperature differences, verify that your tank is clean and not obstructed
by mineral deposits and scale.
Unit safety measures
In the event of a temperature probe failure, the tank may start to boil. This will cause it to overflow into
the “Overflow Cup” and will automatically shut it off.
* Temperature can be set by user by accessing in the setup main menu.
Electronic
thermostat

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
Initial Setup
16

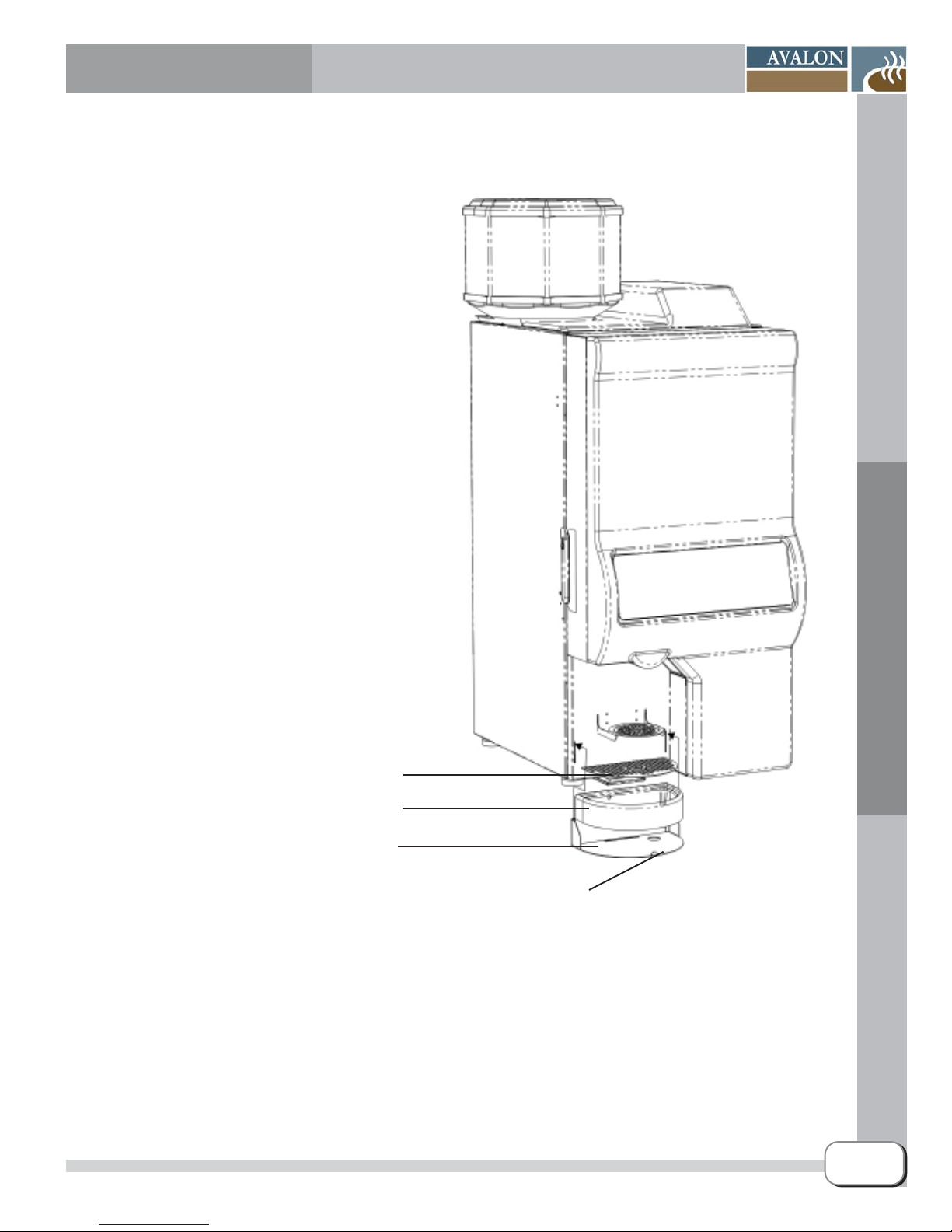

3.9 Drip Tray and Overflow Installation
1. Screw the overflow drip tray support
(05CAB11) under the base of the
brewer using the 2 screws included.
2. Take out the 2 wires with connectors
found inside the brewer using the chute
hole and connect them to the 2 connectors
of the overflow drip tray (05ASS30).
3. Put the connected overflow drip tray
(05ASS30) on its support (05CAB11).
05ASS30
05CAB11
Install the overflow drip
tray from inside the
equipment
3.9.1 Drip Tray Installation

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A
Initial Setup
17
3.9.2 Drip Tray Installation
1. Insert the drip tray support (05DOR02) in
the door.
2. Set the drip tray (05CAB17) on the
support (05DOR02) inside the restraint.
3. Install the metal grill (05CAB10) on the drip
tray (05CAB17).
06CAB10
05CAB17
05DOR02
restraint

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
Initial Setup
18

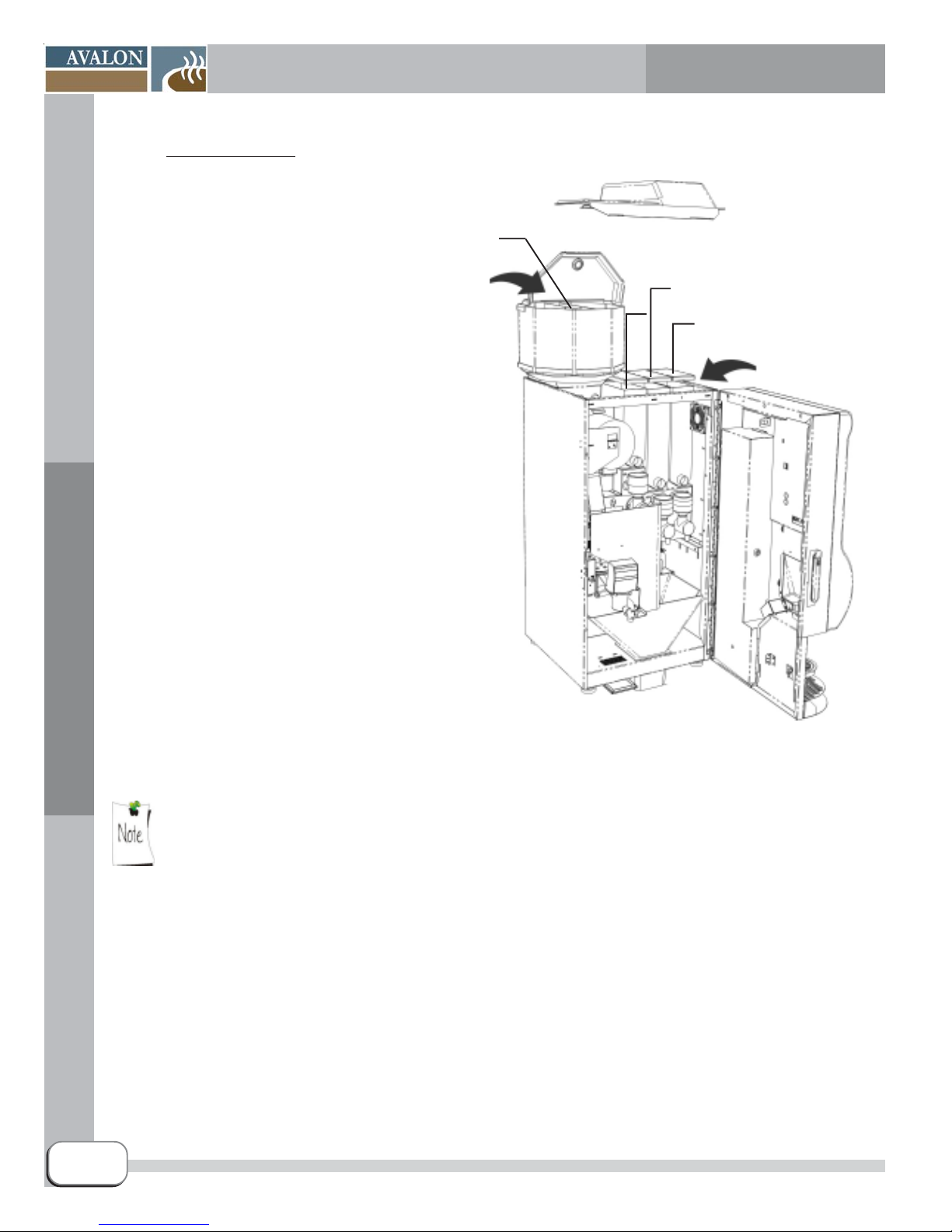

3.10 Loading Products
1. Unlock the main door
2. Remove the plastic top cap
3. Remove the canister lid of which you wish
to fill
4. Do not overfill the canisters
For the 3 beans canister:
Unlock the cover of the canister and
open the plastic top cap.
Do not overfill the canister.
By only removing 1 lid at a time, you will reduce
the risk of cross contamination of products.
Using a step stool will help you see the hoppers
that you are filling.
A - 3 Whole Bean Coffees
- Coffee 1
- Coffee 2
- Coffee 3
B - Soluble (Milk Powder)
C - Soluble (Hot Chocolate)
D - Soluble (French Vanilla)
A
C
D
B

AVALON
www.avalonbrewer.com [phone]
INSTALLATION MANUAL
AVALON GourmetGourmet
GourmetGourmet
Gourmet
AVALON Gourmet Révision A 19
Initial Setup
3.11 Chute System Installation
1. Open the door of the equipment;
2. Insert the chute base inside the chute hole of the cabinet;
3. Insert the large waste chute into the chute base;
4. Install the front panel by aligning the metal bracket behind the front panel with the metal bracket fixed on
the brewer assembly.
Internal waste bin maximum coffee capacity: 100 cups
Metal bracket
of the front panel
Metal bracket of the
brewer assembly
Front panel
Waste chute
Chute base

AVALON
www.avalonbrewer.com [phone]
AVALON Gourmet Révision A
AVALON GourmetGourmet
GourmetGourmet
Gourmet
INSTALLATION MANUAL
3.12 Brewer and whipping system
Initial Setup
20

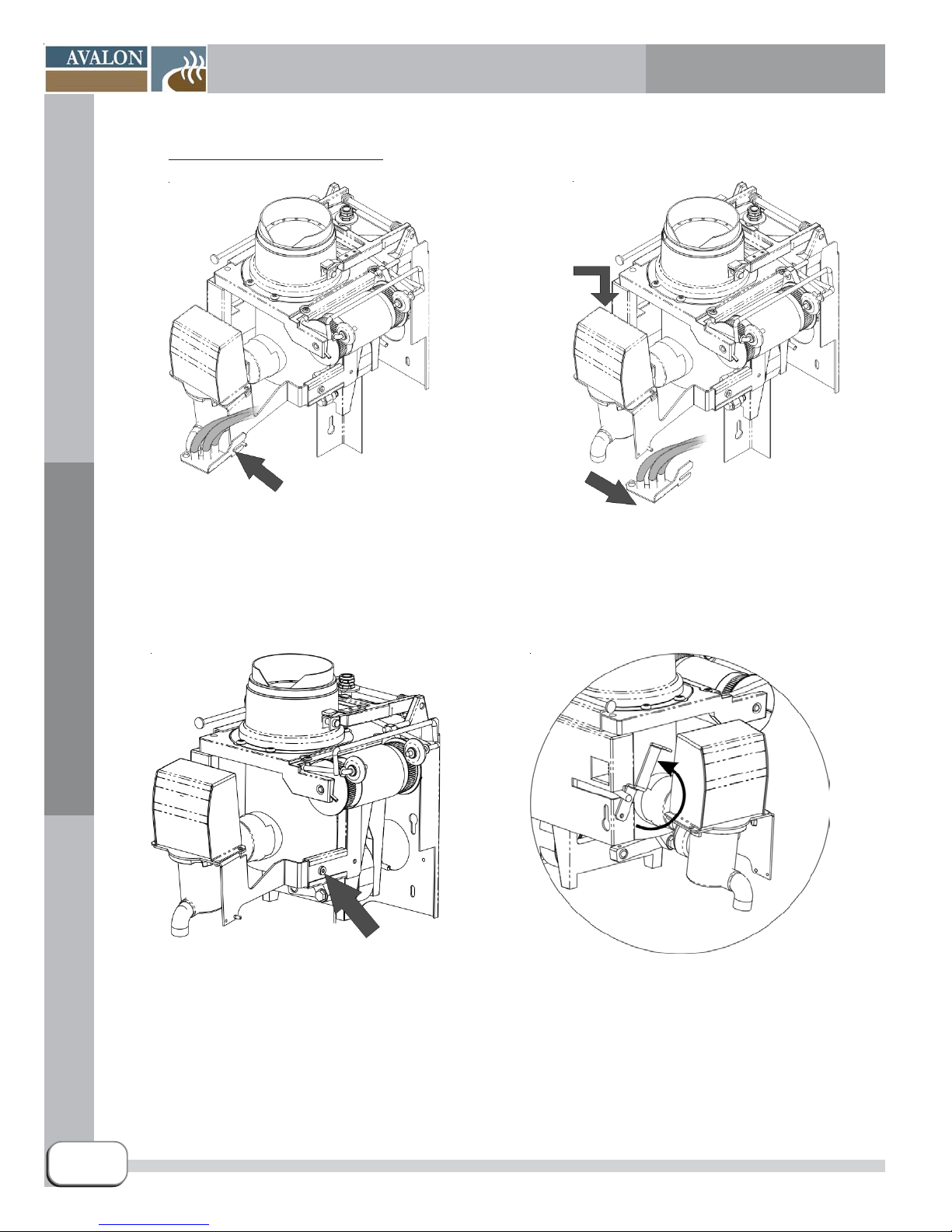

1. Untight the screw that holds
the hoses support.
1
2. Remove the hoses support, (they
will remain constent by the pipes).
Disconnect the coffee whipper wire (in the
back of the whipper protector).
2
3. Untight the whipper support screw.
34
4. Lift the spout latch.
.
