Avantco A442927 User manual

Leaf blower
2021 1
Operator's Manual for Attachment
Leaf blower
Product number:
A442927
English
A449897 2021 1 EN 2020-
www.avanttecno.com

Leaf blower 2021 1

Leaf blower 2021 1
CONTENTS
1. FOREWORD ............................................................................................................................................4
Warning symbols used in this manual ............................................................................................................................... 5
2. DESIGNED PURPOSE OF USE.............................................................................................................6
3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT........................................................7
3.1 Personal protective equipment........................................................................................................................... 9
3.2 Safe shutdown procedure.................................................................................................................................... 9
4. TECHNICAL SPECIFICATIONS ..........................................................................................................10
4.1 Safety labels and main components of the attachment.................................................................................. 10
5. ASSEMBLING THE ATTACHMENT....................................................................................................12
5.1 Connecting and disconnecting hydraulic hoses............................................................................................... 13
5.2 Electric connection................................................................................................................................................ 15
5.2.1 To connect the electric harness of the attachment to the loader ..................................................... 15
6. OPERATING THE ATTACHMENT .....................................................................................................17
6.1 Safety distance........................................................................................................................................................ 18
6.2 Checks before use................................................................................................................................................. 18
6.3 Operator qualification .......................................................................................................................................... 19
6.4 Using the Leaf blower........................................................................................................................................... 20
6.4.1 Blowing height adjustment .......................................................................................................................... 20
6.5 Using the electric functions of the Leaf blower.............................................................................................. 21
6.5.1 Blower chute rotation.................................................................................................................................. 21
6.5.2 Electric throwing height adjustment (Optional extra) .......................................................................... 22
6.6 Transport position ................................................................................................................................................ 22
6.7 Storing the attachment......................................................................................................................................... 23
7. MAINTENANCE AND SERVICE ..........................................................................................................24
7.1 Inspection of hydraulic components.................................................................................................................. 24
7.2 Cleaning the attachment ...................................................................................................................................... 25
7.3 Inspection of metal structures............................................................................................................................ 25
7.4 Lubrication .............................................................................................................................................................. 25
7.4.1 Leaf blower chute rotation ......................................................................................................................... 25
7.5 End of life disposal................................................................................................................................................. 25
8. WARRANTY TERMS..............................................................................................................................26

4 (28)
1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured based on years of experience on product development and manufacturing.
By familiarizing yourself with this manual and following the instructions, you ascertain your safety and ensure
the reliable operation and long service life of the equipment. Read the instructions carefully before starting to
use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this manual, you must observe all occupational safety
regulations, local laws, and other regulations concerning the use of the equipment. Particularly the regulations
concerning the use of the equipment on public road areas must be observed. Contact your Avant dealer for
more information about local requirements before you operate the loader on road areas.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2021 Avant Tecno Oy. All rights reserved.

5 (28)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER
This signal word indicates a hazardous situation which, if not avoided, will cause
death or serious injury.
WARNING
This signal word indicates a potentially hazardous situation which, if not avoided,
could cause serious injury or death.
CAUTION
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompany
ing the symbol can lead to equipment
breakdown or other property damage.

6 (28)
2. Designed purpose of use
The AVANT Leaf blower is an attachment that is suitable for use with AVANT multi purpose loaders that are
shown in Table 1. The Leaf blower propels air through a controllable blower chute to move leaves and grass
cuttings from pathways, yard areas, and other paved surfaces. The Leaf blower is suitable also for
professional use.
The Leaf blower is equipped with a powerful hydraulic motor for efficient operation even when handling damp
leaves. As standard, the leaf blower chute can be turned electrically by 235 degrees directly from the driver’s
seat, 90 degrees to the left and 145 degrees to the right from the straight forward pointing direction. The
electrical turning can be controlled with a switch delivered with the attachment, or with the Opticontrol®
attachment control system, which is optional equipment for loaders. In frequent use the Opticontrol®system is
recommended.
As standard, the Leaf blower is equipped with manual throwing height adjustment. The optional electric
throwing height adjustment can be operated only with the optional Opticontrol®system, or with the attachment
control switch pack. The Leaf blower is not designed for any other use than what is specified in this manual
and must not be used for any other purposes than what is intended for. The leaf blower is intended for blowing
of air only. It must not be used as any kind of vacuum unit, or as a spreader.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional technicians. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you
require spare parts or maintenance services.
Table 1 - Leaf blower - Compatibility with Avant loaders
Model
220
225
225LPG
313S
320S
420
423
520
523
525LPG
528
530
R20
R28
630
R35
635
640
735
745
750
755i
760i
850
860i
e5
e6
A442927 •- ••••••

7 (28)
3. Safety instructions for using the attachment
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
DANGER
Misuse, careless use, or using an attachment that is in poor condition may
cause risk of serious injuries.
Familiarise yourself with the controls of the loader,
correct coupling procedure, and the correct way to operate the attachment at a safe
area. Stud
y especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment
WARNING

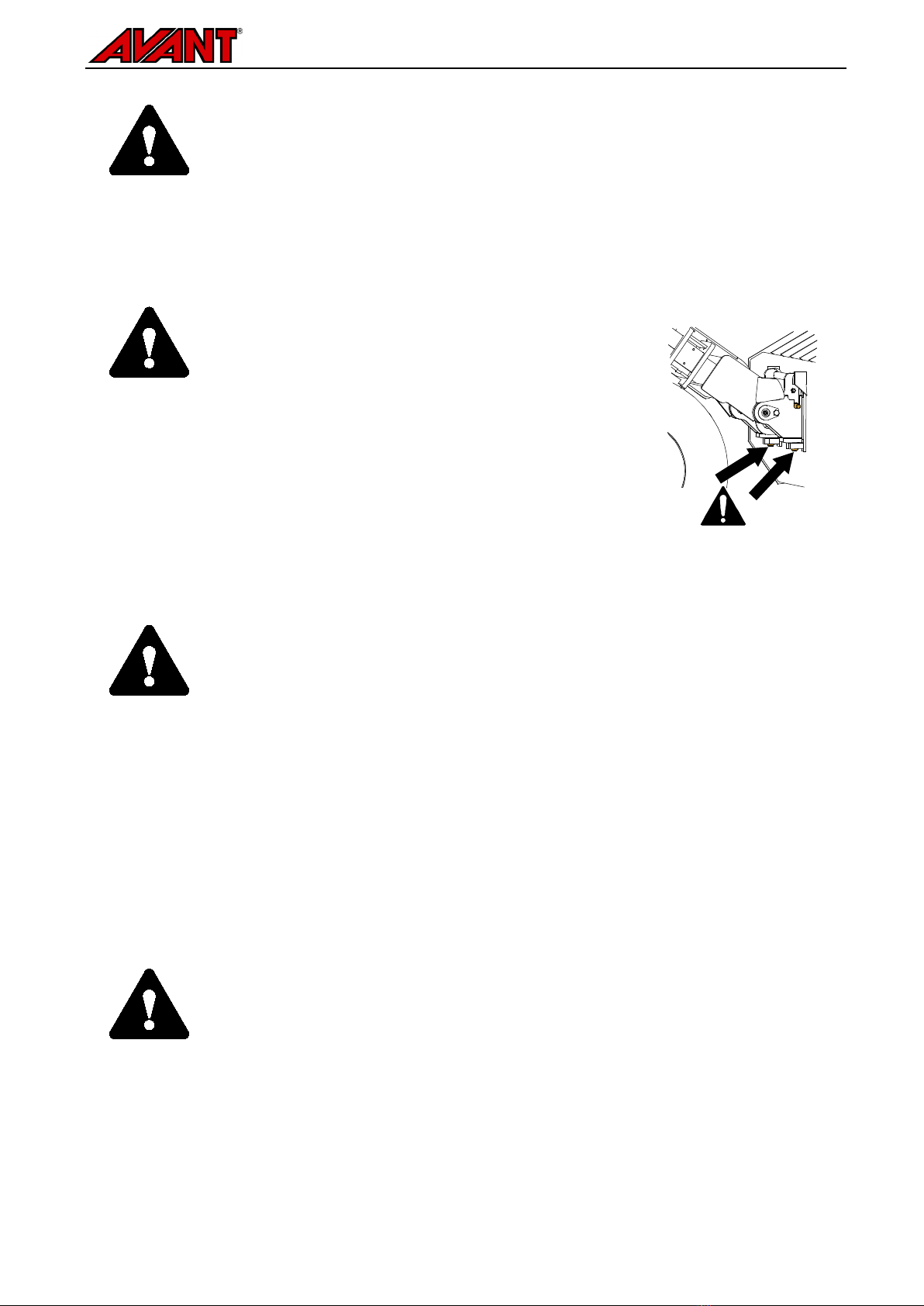

When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.

This attachment is designed to be used by one operator at a time. Do not let others
near the danger area of the equipment when it is in use.

Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
Risk of thrown objects - Keep the discharge chute directed away from other
persons or fragile objects.
Make sure that the rotation of discharge chute works
smoothly, and that the discharge chute protector and throwing height deflectors are
securely fastened. Lock the manual throwing height adjustment securely.

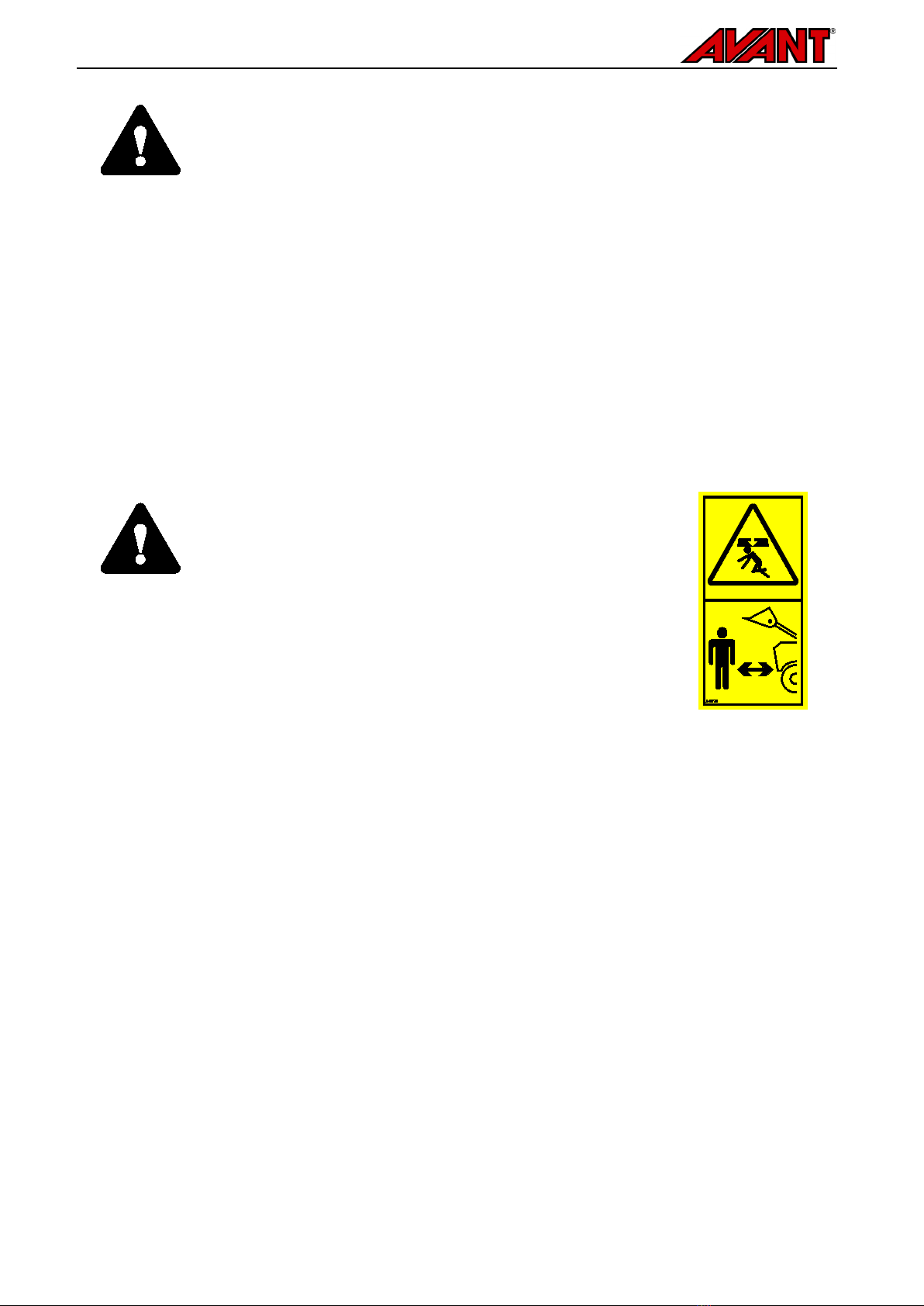

Impact hazard - Thrown objects. Do not let bystanders stay near the machine.
Stop the attachment if others get closer than 5 metres from the attachment. Use
only if all covers in place.
Risk of entanglement and severing near the Leaf blower - Follow safe stopping
procedure before leaving the driver's seat.
Never leave the driver’s seat when the
attachment is running or when the auxiliary hydraulics control lever of the loader is
locked on. Always keep hands and feet away from moving parts.
The attachment is to be used by one operator at a time. Do not approach or allow
others to approach the operating area when another person is operating the
controls of the loader.
Pay attention to the surroundings and any other persons and machines moving in the
vicinity.
Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Make sure to use only an attachment that is in good condition. Perform daily
inspections
and read the instructions regarding service and maintenance. Never
operate the attachment if the hydraulic systems of both the attachment and the
loader are not completely intact. Check the condition of the Leaf blower rotor
regularly.

8 (28)
WARNING
Do not leave the driver’s seat when the loader boom is lifted. Going under a raised
attachment or loader boom is dangerous. Always remember that the boom may lower
due to loss of stability, mechanical fault, or if another person operates the controls of
the loader.
Make sure to use only an attachment that is in good condition. Do not modify the
attachment in any way that could affect its safety.
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.
Use the equipment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are i
n working condition. Seat belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
. ..
DANGER
Risk of crushing -
Going under the loader boom or an
attachment can cause serious injury or death.
Never go
under the loader boom and prevent others from getting near
lifted boom or attachment. Going under a raised attachment
or loader boom i
s dangerous, as the boom may lower due to
loss of stability, mechanical fault or when other person
operates the controls of the loader. Lower the attachment
firmly on the ground to a safe position before leaving the
driver’s seat.
Keep in mind that the loa
der boom can be lowered or tilted
even if the engine has been shut down (crushing hazard).
The loader is not intended to be left to keep a load elevated
for longer periods. Always lower the attachment to a safe
position before leaving the driver's seat.

9 (28)
3.1 Personal protective equipment
Remember to wear proper personal protective equipment:

The noise level at the driver's seat may exceed 85 dB(A) depending on loader
model and operating cycle. Extended exposure to loud noise can cause
hearing impairment. Wear hearing protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses e.g. when handling hydraulic components.
Wear respirator mask when operating in dusty conditions.
. ..
3.2 Safe shutdown procedure
Safe stopping of the attachment, before going near the attachment:
WARNING
Always stop the attachment following safe stopping procedure before leaving
the driver's seat. Safe stopping procedure prevents all u
nintentional movements of
the attachment. Note that the loader boom can move down even if the engine of the
loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.

Release residual pressure from the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

10 (28)
4. Technical specifications
Table 2 - Leaf blower - Specifications
Product number A442927
Working width: 1 - 5 m
Weight: 83 kg
Blower chute rotation: Electric as standard, total 235°, see page 21
Maximum rotation speed of blower: 4000 rpm
Recommended input of hydraulic
energy: 20 - 30 l/min
Maximum input of hydraulic energy: 40 l/min 22,5 MPa (225 Bar)

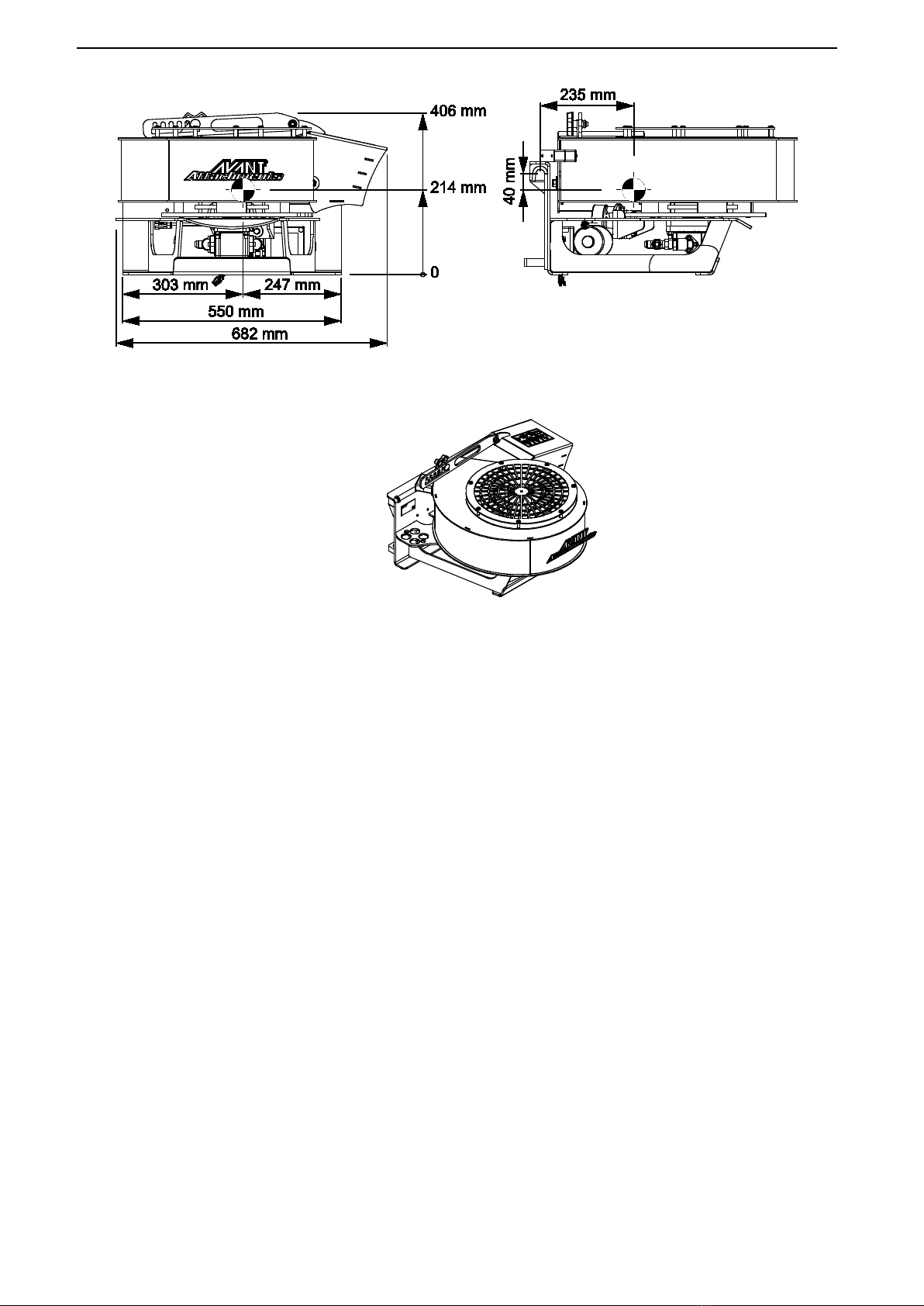

Other dimensions: See page 2
Compatible AVANT loader models: See table 1 on page 6
Options
Electric blowing height adjustment A430172
4.1 Safety labels and main components of the attachment
Listed below are the labels and markings on the attachment. They must be visible and readable on the
equipment. Replace any unclear or missing label. New labels are available via your retailer or contact
information provided on the cover.

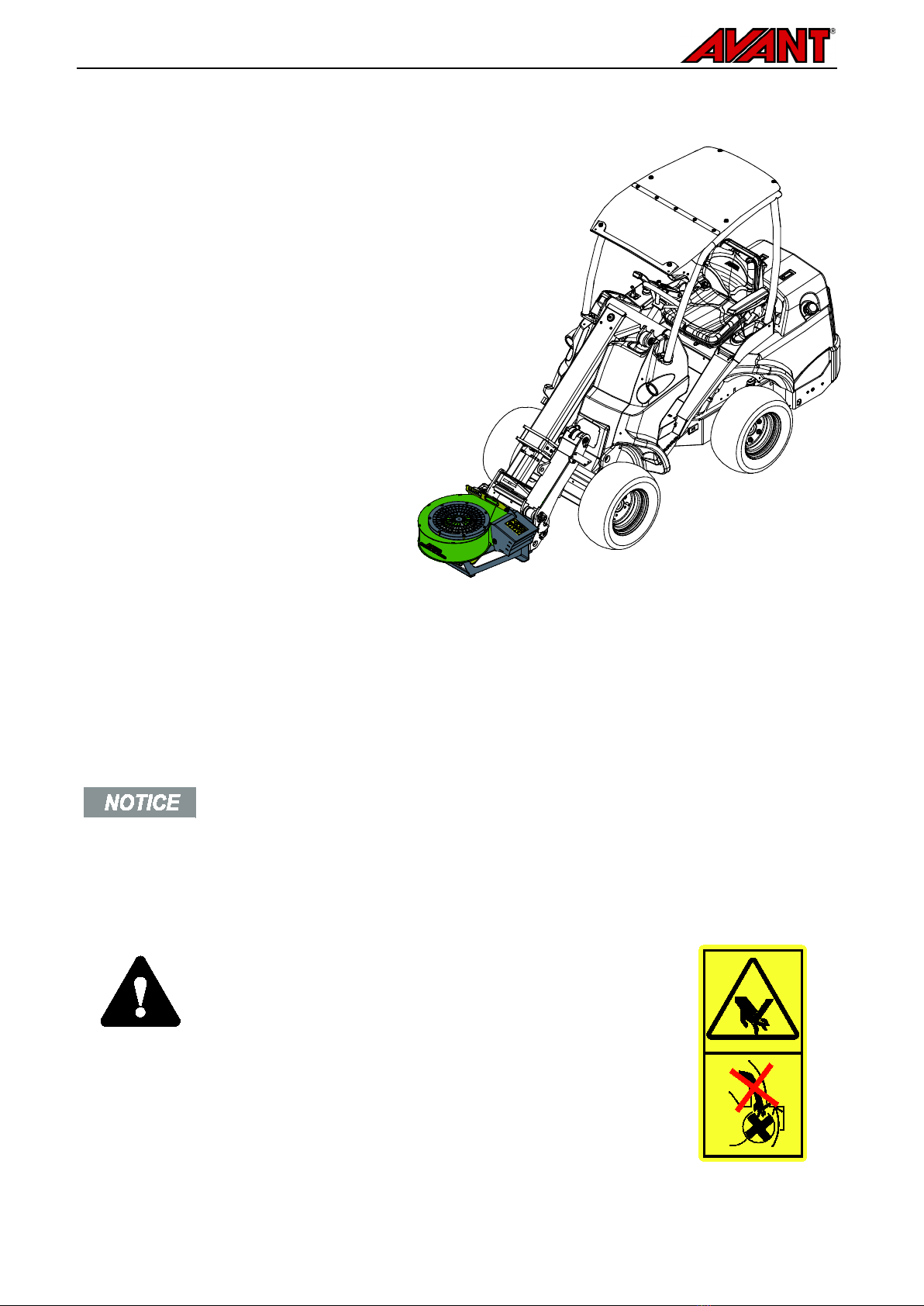

WARNING
Make sure all warning decals are readable.
The warning labels contain important
safety information and they help to identify and remember the hazards related to the
equipment. Replace damaged or missing warning labels with new ones.
Attachment identification plate A442988
A46771 A46772 A46799
To apply a new label: Clean the surface thoroughly to remove all grease. Allow it to dry completely. Peel off
the protective film of the label and press firmly to apply. Take care not to touch the glue of the label.

11 (28)
Table 3 - Decal locations and warning messages
Decal Warning message
1 A46771 Misuse hazard -
Read instructions before
use.
2 A46772 Crushing hazard - Do not go under
a
raised attachment; stay away from raised
equipment.
3
A46779
Beware of thrown objects; keep a safe
distance from the equipment (2 m
minimum, up to 30 m).
4
A442988
Attachment identification plate
Table 4 - Leaf blower - Main components
1 Frame with Avant quick coupling brackets
2 Air intake guard
3 Blower rotor
4 Blower nozzle and guard
5 Blowing height adjustment (manual version visible)
6 Blower housing
7 Motor for chute rotation
8 Gear rim for chute rotation
9 Blower motor
10 Multi connector
11 Multi connector holder

12 (28)
5. Assembling the attachment
Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is
mounted to the loader boom by using the quick coupling plate on the loader boom and the counterpart on the
attachment.
If the attachment is not locked to the loader, it may fall from the loader and cause a hazardous situation.
Never drive with the loader and never lift the loader boom if the attachment has not been fully locked. To
prevent hazardous situations, always follow the coupling procedure shown below. Also remember the safety
instructions shown in this manual.
WARNING
Crushing risk - Make sure that an unlocked attachment will not move or fall over.
Do not stay in
the area between the attachment and the loader. Mount the attachment
only on level surface.
Never move or lift an attachment that has not been locked.
Avant quick coupling system:
Step 1:
Lift the locking pins of the quick coupling plate of the load
er up, and turn them
backwards into the slot, so that they are locked in the upper position.

If your loader is equipped with a hydraulic attachment locking system, see
additional instructions about the use of the locking system from the operator's
manual of the loader.

Make sure that the hydraulic hoses and the electric cables are positioned so
that they will not get in between the coupling plate of the loader and the
attachment, and that they will not get squeezed or chafed against sharp edges.
Step 2:
Turn the quick coupling plate hydraulically to an obliquely forward position.

Drive the loader onto the attachment. If your loader is equipped with a
telescopic boom, you can use it to reach to the coupling brackets of the
attachment.
Align the upper pi
ns of the loader’s quick coupling plate so that they are under
the corresponding brackets of the attachment.
Step 3:
Lift the boom slightly –
pull the boom control lever backward to lift the
attachment just off the ground.
Turn the boom control lever
left to turn the bottom section of the quick coupling
plate of the loader onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of both locking pins.

13 (28)
WARNING
Risk of crushing - Avoid tipping over the attachment.
Excessive tilting or lifting of an
unlocked attachment increases the risk of tipping the attachment over. Do not use the
automatic locking of the locking pins when the attachment is lifted more than one meter
from the ground. If the locki
ng pins do not return to the normal position when tilting, do
not tilt or raise the attachment any more. Lower the attachment on the ground and
secure the locking manually.
WARNING
Risk of falling objects -
Prevent dropping of
attachment.
An attachment that has not been completely locked to the
loader may fall on the boom or towards the operator, or
fall under the loader during driving, causing loss of
control of the loader. Never move or lift an attachment
that has not been locked. Before moving or
lifting the
attachment, make sure that the locking pins are in the
lower position and come through the fasteners on the
attachment on both sides.
WARNING
Make sure the loader is compatible with the attachment.
Stability of the loader,
possible o
verload of the attachment, and compatibility of loader control systems must be
ensured in addition to mechanical compatibility of the attachment. If you use the
attachment with a loader that is not fit to be used with the attachment model you have,
risks i
nclude tipping over, damage to attachment due to overload, and risks related to
uncontrolled motion of attachment and its parts. If your loader is not listed in Table 1 on
page 6, ask your Avant dealer before using this attachment.
5.1 Connecting and disconnecting hydraulic hoses
On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older
model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi
connector system, contact your Avant dealer or service point for instructions or installation services.
WARNING
Risk of movement of the attachment and ejection of hydraulic oil -
Never connect
or disconnect quick couplings or other hydraulic c
omponents while the control
lever of the auxiliary hydraulics control lever is locked on or if the system is
pressurized.
Connecting or disconnecting the hydraulic couplings while the system is
pressurized may lead to unintended movements of the attachment, or ejection of high-
pressure fluid, which can cause serious injuries or burns. Follow safe stopping procedure
before disconnecting hydraulics.

14 (28)
Keep all fittings as clean as possible; use the protective caps on both the attachment and
the loader. D
irt, ice, etc. may make using the fittings significantly more difficult. Never
leave the hoses hanging on the ground; place the couplings onto the holder on the
attachment.

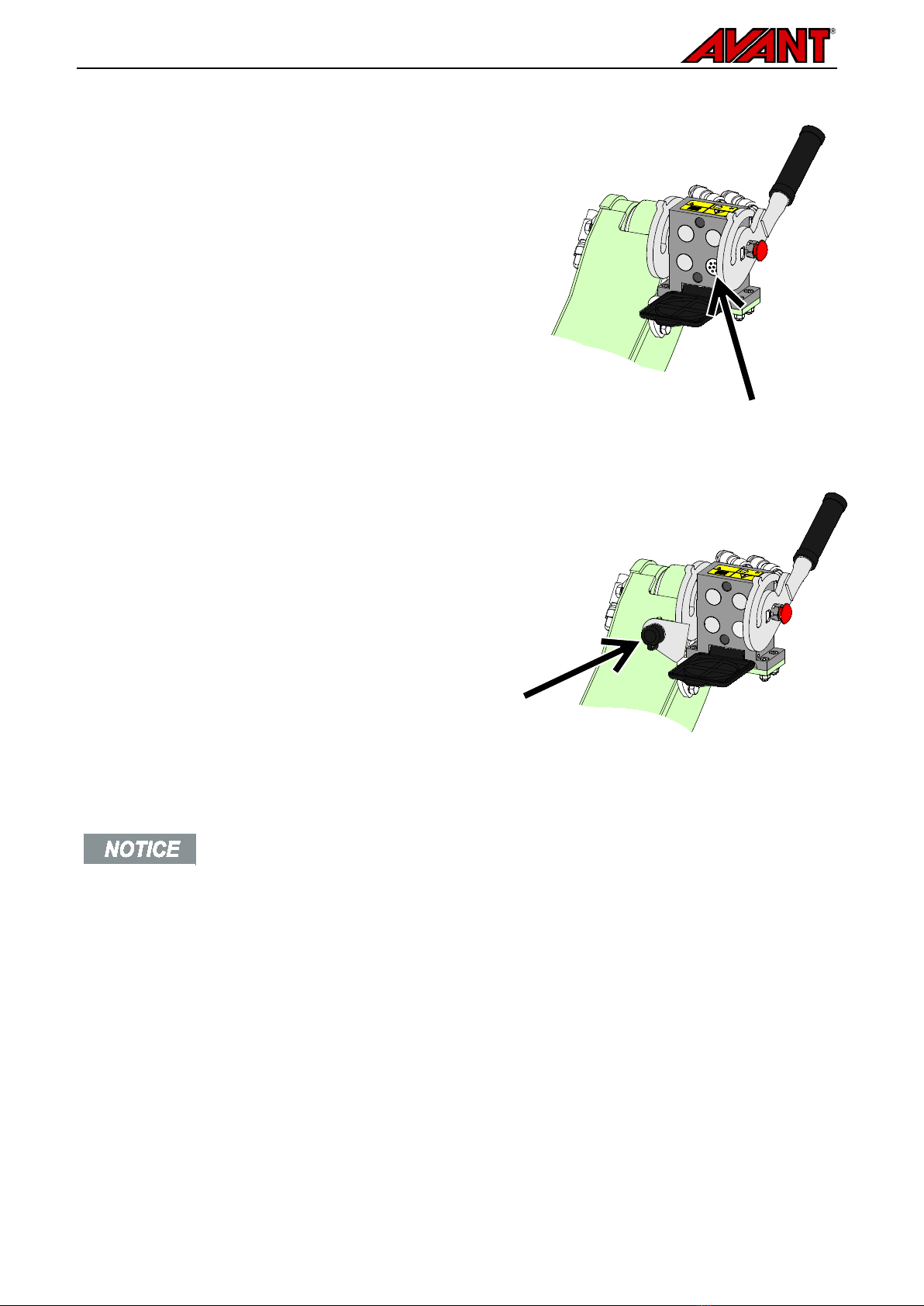

Connecting the multiconnector system:
1.
Align the pins of the attachment connector with corresponding
holes of the loader connector. The multiconnector will not connect
if the attachment connector is upside down.
2.
Connect and lock the multiconnector by turning the lever towards
the loader.
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure.
To disconnect the multiconnector system:
B
efore disconnecting put the attachment down on a solid and even
surface.
1. Switch off the auxiliary hydraulics of the loader.
2.
While pushing unlock button, turn the lever to disconnect the
connector.
3. After ending operation put the multiconnector on its holder
on the
attachment.
Disconnecting hydraulic hoses:
Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the
control lever of the auxiliary hydraulics to its neutral position.
When uncoupling the
attachment, always disconnect the hydraulic couplings before
unlocking the quick coupling plate, to prevent hose damage and any oil spills. Reinstall
the protective caps on the fittings to prevent impurities from entering the hydraulic
system.
Releasing residual hydraulic pressure:
In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the
hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the
residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the
engine is turned off. To make sure that there will not be residual pressure in the hydraulic system of the
attachment, shut down the loader engine and move the auxiliary hydraulics control lever of the loader back
and forth before disconnecting the couplings.

15 (28)
5.2 Electric connection
Electric functions of the attachment:
As standard, the Leaf blower is equipped with electrically controlled chute rotation. Electrically controlled
blowing height adjustment is available as an option.
A separate electric harness supplied with the Leaf blower can be used to control the blower chute rotation. If
the blower is equipped with the electrically controlled blowing height adjustment, the loader must be equipped
with the Opticontrol®system.
If the Leaf blower is equipped with electric blowing height adjustment, the Opticontrol®
attachment control system is also necessary (optional equipment for loaders).
. ..
5.2.1 To connect the electric harness of the attachment to the loader
There are three ways to connect the electric connector, depending on the equipment on the loader and the
attachment. These options are listed and explained below.
1. If your loader is not equipped with the Opticontrol® or the attachment control switch pack:

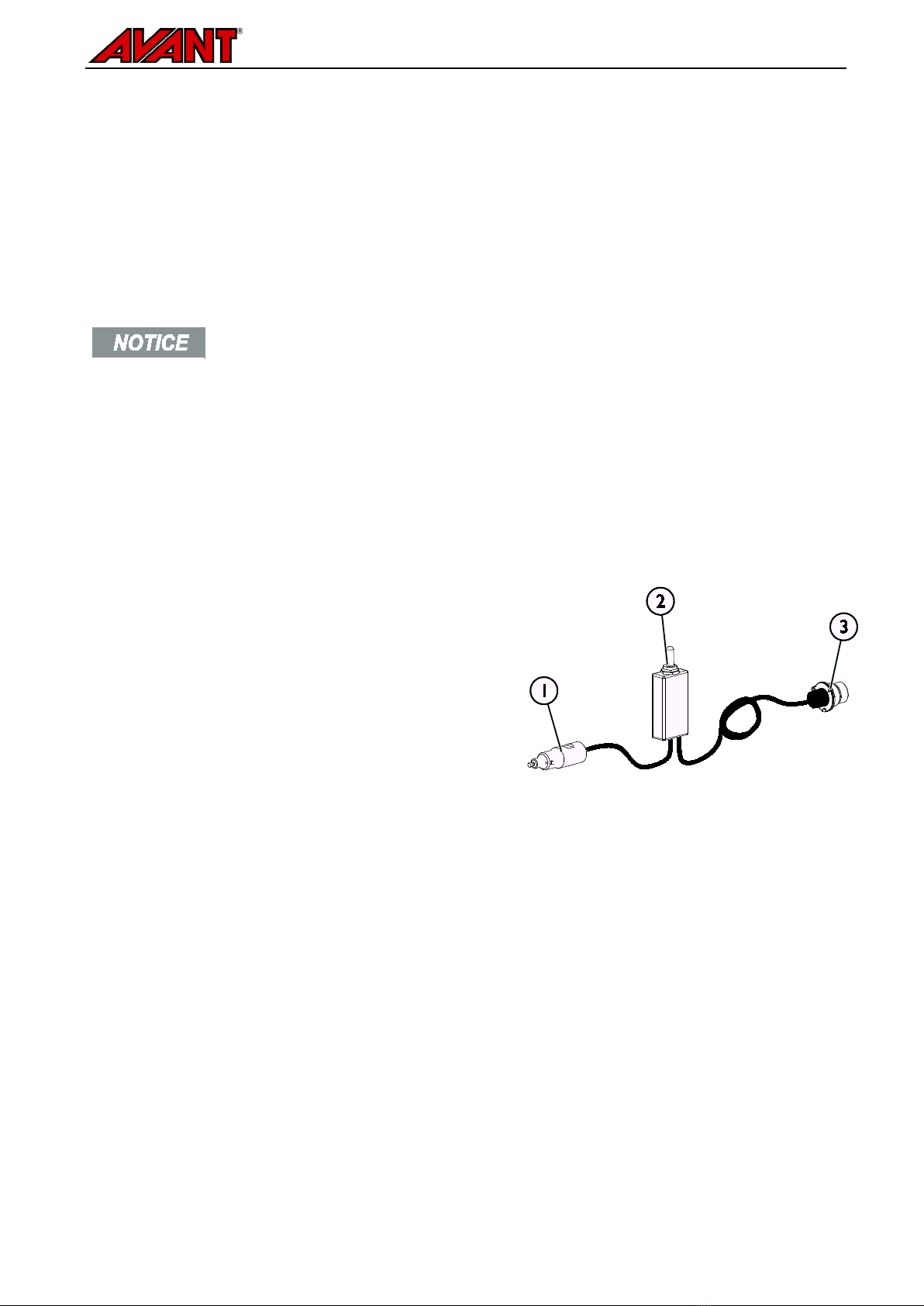

Use the separate cable kit with a switch that is
supplied with the attachment. Connect this cable to
the 12 V electric socket near the operator's seat of
the loader, and to the electri
c plug of the
attachment.
1.
Electric plug, connects to the 12 V electric
socket near the operator's seat of the loader.
More information about the power outlet of
the loader can be found in the operator’s
manual of the loader.
2. 2-way switch, returns to middle position
Select the location of the switch in the cab so
that it is easily accessible but will not be used
inadvertently.
This cable with a switch can be used only to
control the rotation of the chute.
3.
Connect to the electric plug of the
attachment.
If th
e attachment is equipped with an electric
plug that is integrated to the multiconnector
of the attachment, disconnect the electric
cable from the multiconnector.
Cable harness A34804

16 (28)
2. If your loader is
equipped with the Opticontrol®
or
the Attach
ment control switch pack, and the
loader is manufactured after 2016:
If the electric socket is integrated in the
multiconnector, the electric harness of the
attachment is connected when the multiconnector
is coupled.
Clean both multiconnectors before conne
cting the
multiconnector.
The separate cable harness A34804 is not needed
in this case.
Opticontrol®, or Attachment control switch pack,
loader manufactured in 2016 or later
3. If your loader is

equipped with the Attachment control switch
pack, and the loader is manufactured before
2016:
If there is an electric socket near the
multiconnector of the loader, disconnect the
electric plug from the multiconnector and connect it
to the electric plug of the loader.
The separate cable harness A34804 i
s not needed
in this case.
Attachment control switch pack, loader
manufactured in 2015 or before
. ..
Make sure that electric cables will not get stuck, squeezed, or stretched when the
equipment moves.
With the help of the attachment control sw
itch pack available for the loader, the
attachment control switches are easily accessible at the end of the boom control lever.
More information about the power outlet of the loader can be found in the operator’s
manual of the loader.

17 (28)
6. Operating the attachment
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
DANGER
Entanglement and cutting hazards -
Never put your
hands inside the blower chute.
Beware of cutting and
entanglement hazards near the Leaf blower, never leave the
driver’s seat if the attachment is switc
hed on, or if it can start
unexpectedly. Always stop the Leaf blower and the loader
following the safe stopping procedure before going near the
attachment.
WARNING
Thrown objects - Keep bystanders away.
Keep in mind
that regardless of the protecti
ve housing, the Leaf blower
may throw sand, gravel, stones, thrash, pieces of wood, ice,
or other material up to even 5 metres away. Stop the
attachment immediately if other persons are closer than 5
metres from the Leaf blower at any direction. Keep the chute
directed to safe direction away from people, vehicles,
buildings, and other fragile surfaces.
WARNING
Risk of crushing -
Never allow anyone to get under a
lifted attachment or loader boom.
Keep in mind that the
loader boom can be lowered or
tilted even if the engine has
been shut down (crushing hazard). The loader is not intended
to be left to keep a load elevated for longer periods. Always
lower the attachment to a safe position before leaving the
driver's seat.

18 (28)
6.1 Safety distance
The min
imum safety distance
of the attachment is 5 metres
from the machine. Do not let
bystanders get any closer
than 5 metres from the
attachment. Stop the
attachment if others get within
the safety distance.
6.2 Checks before use
Read all instructions before use. Make sure you have the Operator's manual of the loader available.
Check the general condition of the attachment and the loader, and check for possible hydraulic oil
leaks. The attachment must not be used, if there is a fault in the hydraulic system of the loader or the
attachment. Refer to Chapter 7 for maintenance instructions.
Check that the blower rotor can rotate freely. Check that there is no string or other foreign material
coiled around the rotor.
Check that the blower chute rotation works smoothly as intended, and that the rotation is not blocked.
Set the throwing height to correct setting and direct the chute to safe direction.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
Operate the attachment and the controls of the loader only when seated on the driver’s seat. Ensure
that the loader and the attachment are used in a safe manner and as intended. Do not allow children
to operate the equipment.
Remember correct working methods and avoid leaving the driver's seat unnecessarily. Practise the
use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the
particular loader model, it is recommended to practise its use without any attachments.

19 (28)
6.3 Operator qualification
Anyone who intends to use the attachment must:
Know the intended use of the attachment.
Know how to use the loader safely in different operating conditions.
Read and always follow the instructions concerning the use of the attachment in this operator's
manual.
Have this manual and the operator's manual of the loader available.
Ensure that the loader and the attachment are used in a safe manner and as intended.
Never allow children to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Complete any possible mandatory training required by the employer before use.
. ..
O
verheating of hydraulic oil decreases power and affects the service life of the hydraulic
components of both the attachment and the loader. Clean the loader oil cooler core
regularly; refer to the loader manual for more instructions. Poorly performing cool
er may
cause the hydraulic oil to overheat also in winter conditions.
. ..

20 (28)
6.4 Using the Leaf blower
1.
Set the attachment to working position.
The Leaf blower works in the most
efficient way, when it is slightly lifted off
the ground, as shown in the adjacent
figure.
Do not press the Leaf blower against the
ground. Keep the attachment slightly
lifted off the ground during operation.
2.
Turn the blower nozzle so that it is
directed away from people or any surface
that might get damaged from flying
debris. See page 21 for information about
the chute control.
3.
Set the loader engine rpm to low or
moderate level. See the Operator's
manual of the loader for information
about which rpm to use so that the
hydraulic oil flow is correct for this
attachment. Typically, the 1-
pump setting
of auxiliary hydraulics should be used on
loaders that are equipped with 2 auxiliary
hydraulic pumps.
4.
Start the Leaf blower by turning the
auxiliary hydraulics control lever to its
locking position, or by using the buttons
of the joystick.
5.
Drive slowly according to operating
conditions.
Operate the attachment keeping the hydraulic flow within recommended range. Never
exceed maximum allowed input of hydraulic energy.
6.4.1 Blowing height adjustment
The height adjustment of the chute tip may be manual or electric. Tighten the manual adjustment securely.
See page 21 for instructions about how to use the electric blowing height adjustment.
DANGER
Entanglement and cutting hazards - Never p
ut your
hands inside the blower chute.
Beware of cutting and
entanglement hazards near the Leaf blower, never leave the
driver’s seat if the attachment is switched on, or if it can start
unexpectedly. Always stop the Leaf blower and the loader
following th
e safe stopping procedure before going near the
attachment.
