Avantco 178CPW47HC User manual

Ice Cream Dipping Cabinets
- 1 -
User Manual
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance.
178CPW47HC, 178CPSS47HC,
178CPW68HC, 178CPSS68HC
09/2018

- 2 -
User Manual
Warning
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE
EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE
PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.

- 3 -
User Manual
Installation
Important!!! Please Read Before Installation
• If the unit has recently been transported on its side, please let unit stand still for a minimum of 24
hours before plugging it in.
• Make sure that the unit drops down to desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e.. Shelves, shelf clips, casters) before plugging the unit in.
• Please read through the manual in its entirety.
Cabinet Location Guidelines
• Install the unit on strong and leveled surfaces
- Unit may be noisy if surface is uneven.
- Unit may malfunction if surface is uneven.
• Install the unit in an indoor, well-ventilated area
- Unit performs more efficiently in a well-ventilated area.
- For best performance, please maintain clearance of 4” on the back of the unit. Front of the unit should
remain unobstructed.
- Outdoor use may cause decreased efficiency and damage to the unit.
• Avoid installation in a high humidity and/or dusty area
- Humidity could cause unit to rust and decrease efficiency of the unit.
- Dust collected on condenser coil will cause unit to malfunction.
- Malfunction due to dirty condenser will void warranty.
• Select a location away from heat and moisture-generating equipment
- High ambient temperatures will cause the compressor to overwork, leading to higher energy bills and gradual
breakdown of the unit. With the lid open, the unit should not be used in areas of 80 degrees. The unit should not be
used in areas over 90 degrees.
- Malfunction due to high ambient temperature will void warranty.
Electrical
• Please ensure that the required voltage of the compressor is being supplied at all times. Low or
high voltage can detrimentally affect the refrigeration unit.
• All units should be plugged into a grounded and properly-sized electrical outlet with appropriate
overcurrent protection. Please refer to the electrical requirements on the nameplate.
• Please make sure that your unit has its own dedicated outlet.
• Do not use an extension cord.

- 4 -
User Manual
Temperature Controls

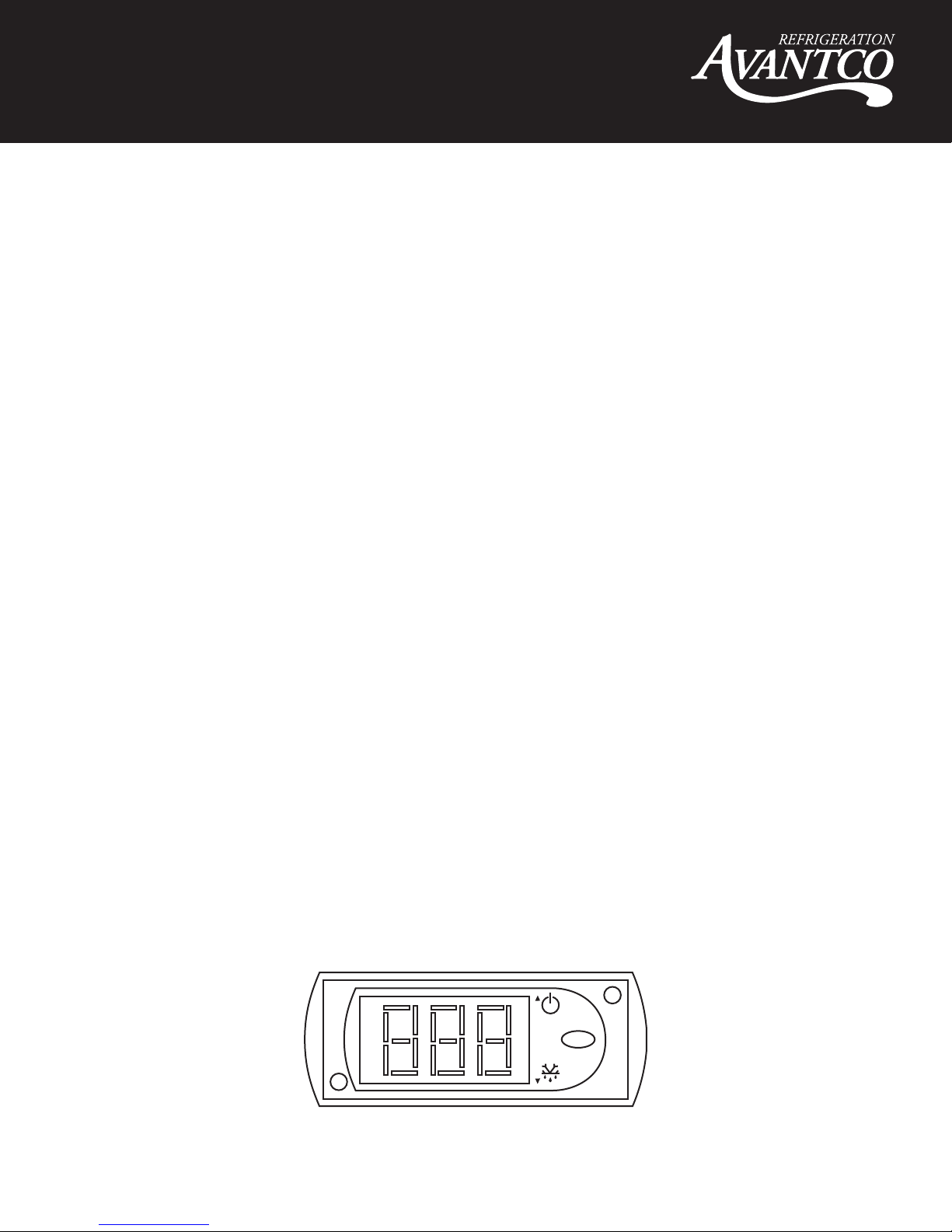

• Refrigerant LED - Compressor is on
• Fan LED - Fan is on
• Defrost LED - Defrost cycle is running
Functions
Adjusting the Temperature
Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food
safety and should require no adjustments.
Freezers are set to cycle between a minimum temperature of -15°F and a maximum temperature
of -8°F.
Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not
run constantly at this setting. To change it, follow these instructions:
Digital Control Units
• Hold “SET” for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press “SET” again to save your settings.
Always remember to calculate the differential if you change the minimum temperature setting. The
cabinet temperature will fluctuate up to +7 degrees over your set minimum temperature as the
compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum
temperatures and possible health code violations.
set
mute
Control

- 5 -
User Manual
Defrost System
To ensure optimal performance, unit should be placed into a defrost when the thickness of the ice on
the cabinet wall reaches 1/4”. To defrost, the unit must be free of product and left unplugged or put
in a manual defrost cycle until the ice build up melts. Do not use sharp tools or scrape the ice, this
could damage the interior of the cabinet. After defrosting, clean the wall with a dry cloth and then
turn the power back on.
To run a manual defrost, press the defrost button (snoflakes symbol and down arrow) for
approximately 3 seconds. Repeat to stop the defrost cycle.
Please Note:
• The sound of water flowing during operation is normal; this is the refrigerant.
• When the humidity is high, condensation may form on the surface of the freezer.
• When the freezer is running, the condenser and compressor will be hot.
• For best performance, install where the temperature is below 75°F and 55% humidity.

- 6 -
User Manual
Safety / Warning
Please pay close attention to the safety notices in this section. Disregarding these notices may lead
to serious injury and/or damage to the unit.
Attention
• To minimize shock and fire hazards, be sure not to overload outlet. Please designate one outlet for
your unit.
• Do not use extension cords.
• Do not put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
Unplug Cord
• To minimize shock and fire hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.
Proper Grounding Required
• To minimize shock and fire hazards, make sure that the unit is properly grounded.
Warning
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the drawers.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.

- 7 -
User Manual
Regular Maintenance
WARNING: DISCONNECT POWER CORD BEFORE
CLEANING ANY PARTS OF THE UNIT.
Cleaning The Condenser Coil
• For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint.
• We recommend cleaning the condenser coil and fins at least once per month.
• Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer.
Brush the condenser fins from top to bottom, not side to side.
• After cleaning, straighten any bent condenser fins with a fin comb.
Cleaning The Fan Blades and Motor
If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan
blades, cover the fan motor to prevent moisture damage.
Cleaning The Interior of Unit
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless
steel surface.

- 8 -
User Manual
Troubleshooting
Compressor Not Running
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to finish.
Condensing Units Run For Long Periods of Time.
Excessive amount of warm product placed in cabinet. Allow adequate time for product to cool down.
Prolonged drawer opening or drawer ajar. Ensure drawers are closed when not in use. Avoid
opening drawers for long periods of time.
Dirty condenser coil. Clean the condenser coil.
Cabinet Temperature is too Warm.
Thermostat set too warm. Set thermostat to lower temperature.
Excessive amount of warm product placed in cabinet. Allow adequate time for product to cool down.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Dirty condenser coil. Clean the condenser coil.
Cabinet has Excessive Condensation.
Relative humidity is too high. Relocate cabinet away from doors and windows to an
air conditioned area.
Night covers have condensation. Some condensation is normal.

- 9 -
User Manual
Warranty Information
Limited Service Warranty - Valid only in the United States
1 Year Parts and Labor Warranty
Unless otherwise stated, Avantco Refrigeration warrants to the original purchaser of new Avantco
Refrigeration units (and all parts thereof), that such equipment will be free from defects in material and
workmanship for a period of 1 year from the date of delivery.
5 Year Compressor Warranty
In addition to the 1 year parts and labor warranty above, Avantco Refrigeration warrants the compressor on
select units to be free of defects in material and workmanship for a period of 5 years from the date of delivery.
This additional warranty applies to the following product series:
UBB, UDD, PICL, SCL, MC, JBC, GDC, CFD, CBE, SSPT, APT, APPT, SS, HBB, GF, A-Series,
VAC, CP, BC, MC, SSUC, SSWT, GF, DLC
On products without the 5 year compressor warranty, the compressor is covered for 1 year under the
standard parts and labor warranty.
What This Warranty Does Not Cover:
Avantco Refrigeration will not warrant coverage for component failure or other damages that arise under the
following conditions:
• Failure to install and/or use the unit within proper operating conditions specified by Avantco
Refrigeration.
• Failure to properly maintain the unit. This includes, but is not limited to, basic preventative
maintenance like cleaning the condenser coil.
• Installation in non-commercial or residential applications.
• Products sold or used outside of the United States.
• Any damage that occurs as a result of negligence or improper handling.
• Overloading or improper loading of the unit in a manner that prevents proper airflow.
Additionally, no claims can be made against this warranty for spoilage of products, loss of sales or profits, or
any other consequential damages.
Normal wear type parts, such as light bulbs and gaskets, are not included in warranty coverage.
For Warranty Inquiries or Service:
This warranty is only valid on equipment purchased from an authorized dealer. A list of authorized dealers for
your state can be found by going to avantcorefrigeration.com.
• Locate the model number (located on the front of the unit, or inside the door jamb).
• Locate the bold number on the service plate (located on the front of the unit).
Next, call 1-800-678-5517. You must have the model number and service plate number when contacting
service technicians.
Failure to contact Avantco Refrigeration prior to obtaining equipment service may void your warranty.
