1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured on the basis of years of experience on product development and
manufacturing. By familiarising yourself with this manual and following the instructions, you ascertain your
safety and ensure the reliable operation and long service life of the equipment. Read the instructions carefully
before starting to use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
The following warning symbols are used throughout this manual to indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING:
This safety symbol refers to important safety information in this manual.
It warns of an immediate hazard that could cause serious personal
injury.
Read the warning text accompanying the symbol carefully and ensure
that other operators are also familiar with the warnings, since personal
safety is at stake.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompanying the symbol can lead to equipment
breakdown or other property damage.
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer. Due to continuous product development some of the details shown in this
manual may differ from your equipment. This manual contains the original instructions in English.
In addition to the safety instructions included in this manual, you must observe all occupational safety
regulations, local laws, and other regulations concerning the use of the equipment. Particularly the regulations
concerning the use of the equipment on public road areas must be observed. We reserve the right to change
the contents of the manual without notification.

5 (22)
2. Designed purpose of use
The AVANT Edge Trimmer is an attachment suitable for use with AVANT multi purpose loaders shown in
Table 1. Avant edge trimmer is the perfect attachment for trimming the edges of lawns, hedges, flower beds
etc. It consists of a hydraulically operated trimmer mounted next to a cutting disc. Cutting disc cuts lawn
precisely where you want and hydraulic trimmer breaks up any soil or lawn that is left to the side of the cutting
disc. Edge trimmer leaves a good looking finish to any garden thanks to its adjustable cutting depth and
precise control.

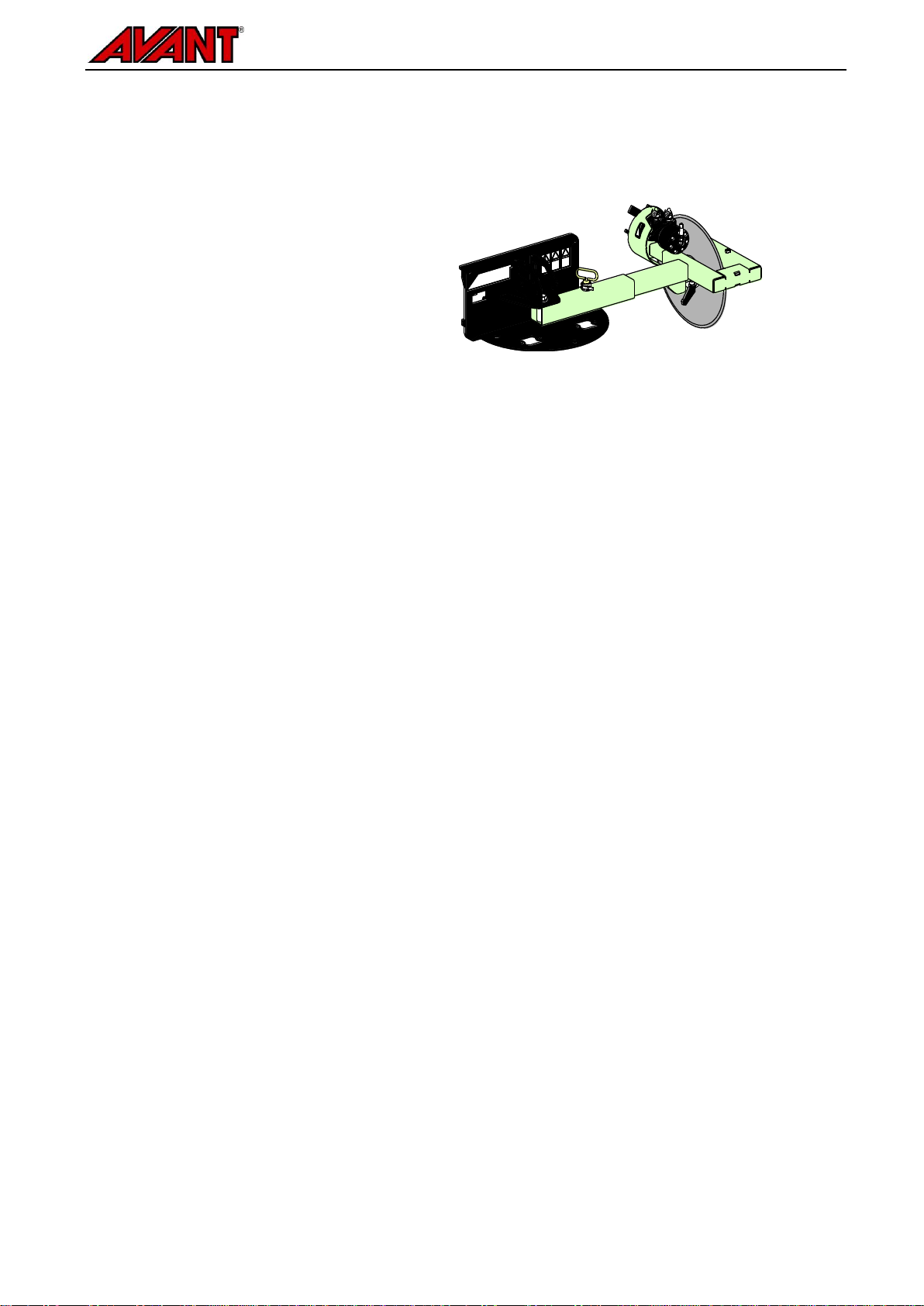

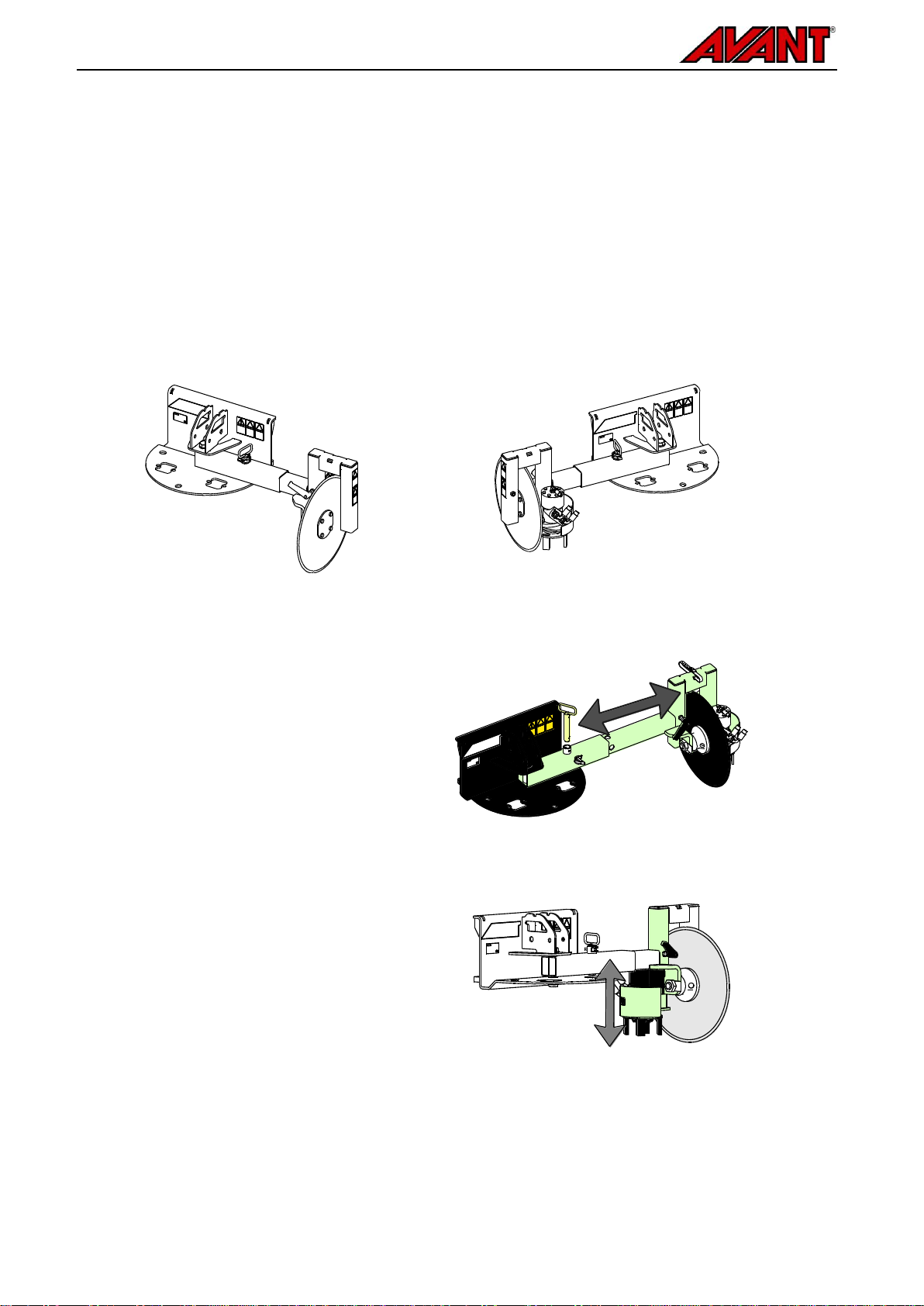

The renewed edge trimmer is equipped with manually extendable arm and can be turned in three different
positions: to the right side or to the left side, or to the front, which is also the transport position. Support wheel
is available as an option.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional maintenance. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalog may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if
you require spare parts or maintenance services.
Table 1 - Edge Trimmer - Compatibility with Avant loaders
Model
216
218
220
220 series 2
225
313S
320S
320S+
419
420
520
R20
525LPG
R28
528
630
R35
635
640
745
750
760
A36621
-

-





6 (22)
3. Safety instructions for using the edge trimmer
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
Misuse, careless use, or using an attachment that is in poor condition, may cause
risk of serious injuries. Familiarise yourself with the controls of the loader, correct
coupling procedure, and the correct way to operate the attachment at a safe area.
Study especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment

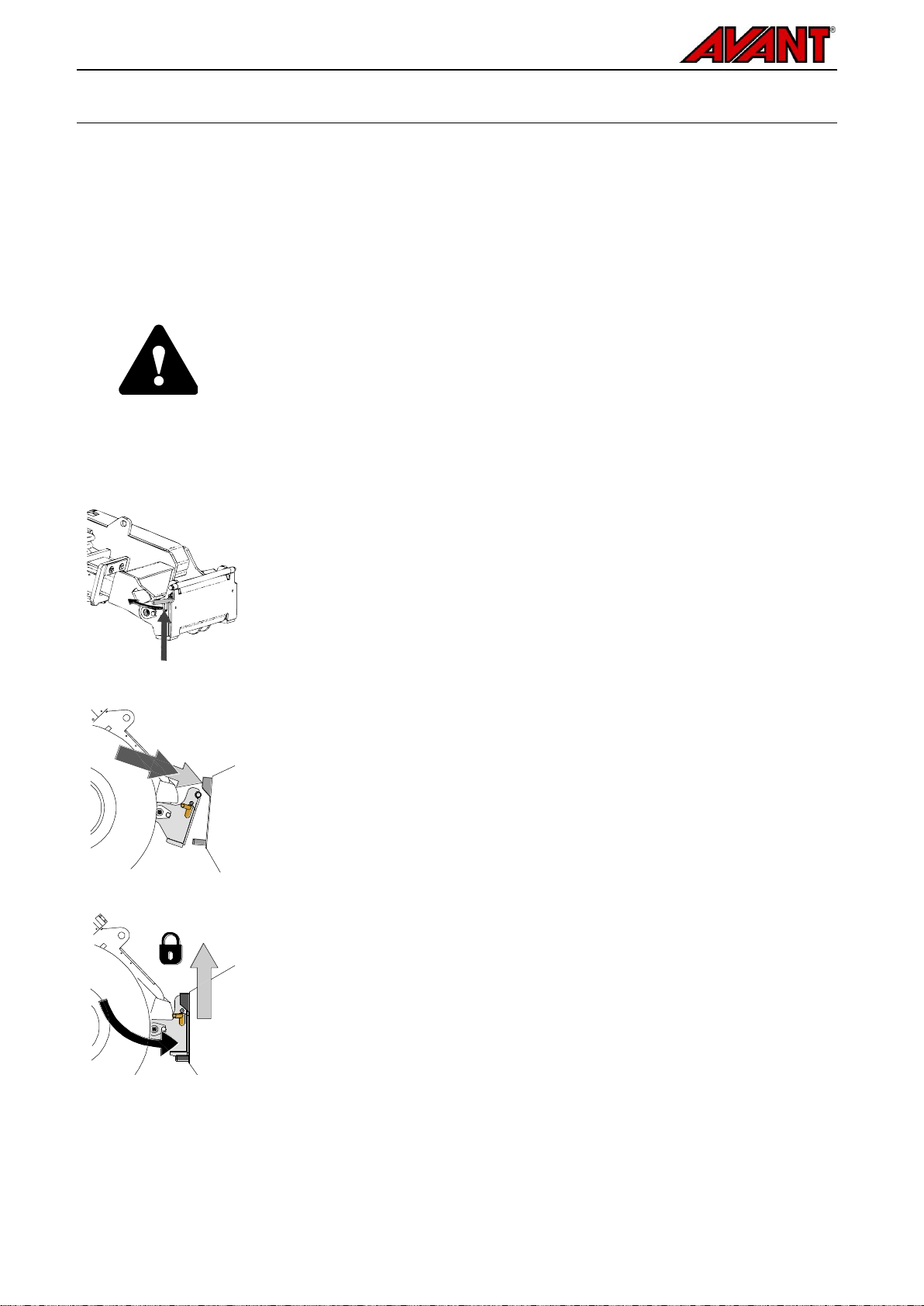

When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.
The Edge Trimmer is designed to be used by one operator at a time. Do not let
others near the danger area of the equipment when it is in use.
Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
Impact hazard - thrown objects. Do not let bystanders stand near the machine. Stop
the attachment if others get closer 5 metres from the attachment.
Hazard of entanglement - Rotating parts. Never leave the driver’s seat when the
attachment is running or if the auxiliary hydraulics control is locked on. Always keep a
safe distance between persons and machinery that may start or move. Stop the
equipment following the safe stopping procedure and lower the attachment firmly on
the ground before leaving the driver’s seat, or when other persons are present at the
working area.
Keep hands and feet away from moving components. Wearing loose clothes, such as
loose shoelaces, or long scarves, should be avoided when working with the
attachment.
Stop the attachment by following the safe stopping procedure before going near the
attachment or the loader boom.
Always transport the attachment as low and close to the machine as possible to keep
the centre of gravity low. On slippery surfaces drive slowly and deliberately. Operate
the controls of the loader slowly and calmly especially on inclined terrain.
Do not leave the driver’s seat when the loader boom is lifted. Going under a raised
attachment or loader boom is dangerous. Always remember that the boom may lower
due to loss of stability, mechanical fault, or if another person operates the controls of
the loader.
Use the attachment only for its intended use and only with original tools on the
attachment.

7 (22)
.
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.
Pay attention to the surroundings and any other persons and machines moving in the
vicinity. Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Make sure to use only an attachment that is in good condition. Do not modify the
attachment in any way that could affect its safety.
Use the attachment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Seat belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
Remember to wear proper protective clothing:
The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection
while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses when handling hydraulic components.
Safe stopping of the attachment, before going near the attachment:
Always stop the attachment following safe stopping procedure before leaving the
driver's seat. Safe stopping procedure prevents all unintentional movements of the
attachment. Note that the loader boom can move down even if the engine of the
loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.
Release residual pressure from the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

8 (22)
4. Technical specifications

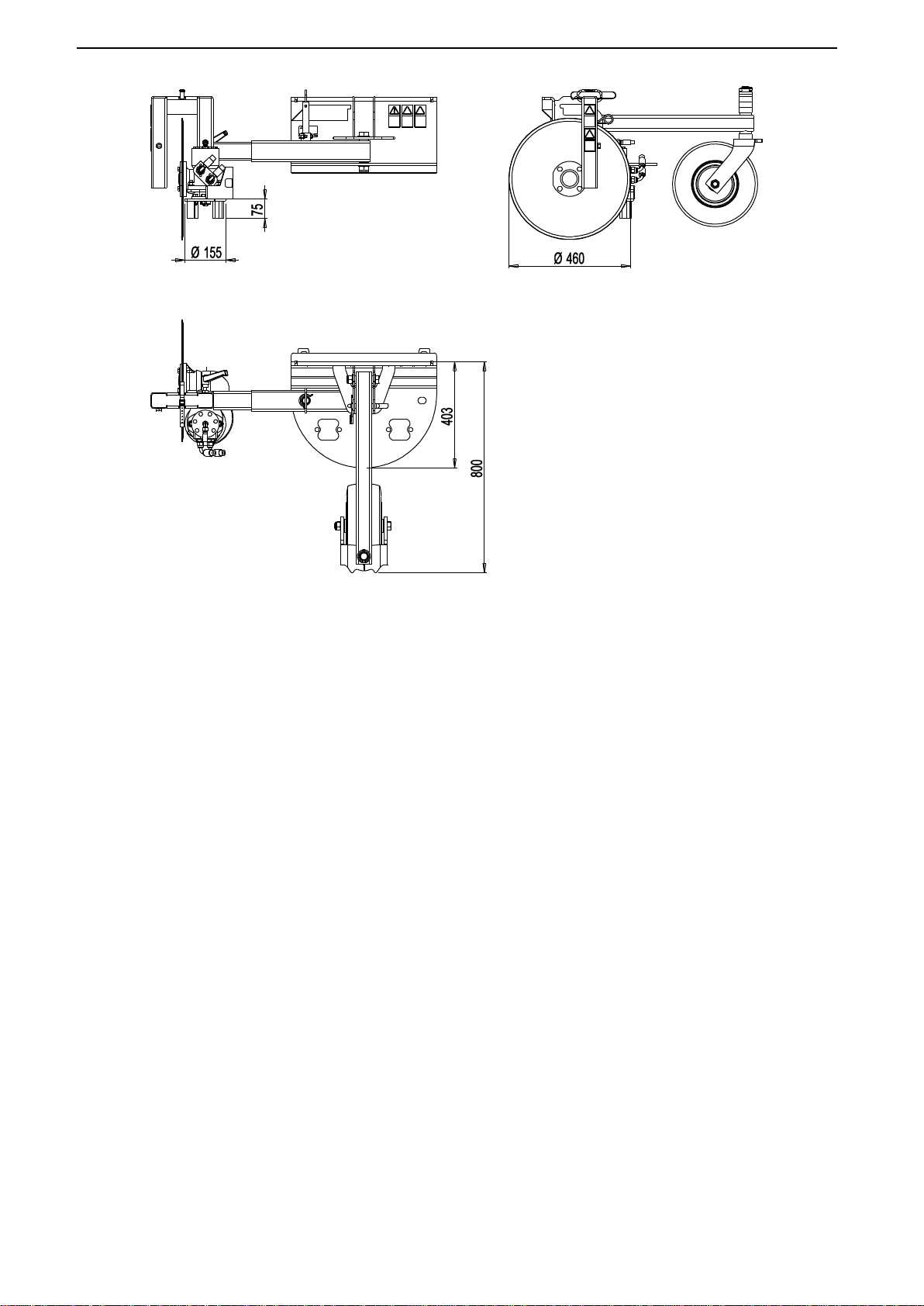

Table 2 - Edge Trimmer - Technical specifications
Product number
A36621
Cutting depth:
max 150 mm
Cutting disc diameter:
460 mm
Cultivating width:
155 mm
Minimum width in working position:
1080 mm
Weight:
80 kg
Maximum input of hydraulic energy:
35 l/min
22,5 MPa (225 bar)
Available options:
Support wheel
A36699
Suitable AVANT loaders:
See Table 1
4.1 Safety labels and main components of the attachment
Listed below are the labels and markings, which must be visible on the equipment. Replace the warning
labels, if they have become unclear or if they have detached completely. New labels are available via your
retailer or contact information provided on the cover.
The warning labels contain important safety information and they help to identify and
remember the hazards related to the equipment. Replace damaged or missing
warning labels with new ones.
A46771
A46772
A46803
A46799
A46749

9 (22)
Attachment identification plate A420014
Table 3 - Decal locations and warning messages
Decal
Warning message
1
A46771
Read instructions before use.
2
A46772
Crushing hazard - Do not go under a
raised attachment; stay away from raised
equipment.
3
A46803
Pinching and cutting hazard, keep clear
of moving parts, do not leave the
equipment running. Operate the
attachment only from the driver’s seat.
4
A46799
Beware of thrown objects; keep a safe
distance from the equipment. (2 m).
5
A46749
Cutting hazard, keep clear of sharp
cutter.
6
A420014
Attachment identification plate
Table 4 - Main components of the Edge Trimmer
1
Frame with quick coupling brackets
2
Multiconnector holder (2 holders on frame)
3
Cutting disc
4
Mixer and its cover
5
Hydraulic motor of mixer
6
Mixing depth adjustment
7
Extendable trimmer arm
8
Arm locking pin: left/right/front positions
9
Support wheel (option)
10
Support wheel pin

10 (22)
5. Assembling the attachment
Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is
mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the
attachment.
If the attachment is not locked to the loader, it may detach from the loader and cause a hazardous situation.
The loader must not be driven and the boom must never be lifted when the attachment has not been locked.
To prevent hazardous situations, always follow the coupling procedure shown below. Also remember the
safety instructions shown in this manual. The attachment is mounted to the loader as follows:
Make sure that an unlocked attachment will not move or fall over. Do not stay in the
area between the attachment and the loader. Mount the attachment only on level
surface.
Never move or lift an attachment that has not been locked.
Avant quick coupling system:
Step 1:
Lift the quick attach plate locking pins up and turn them backwards into the slot
so that they are locked in the upper position.
If your loader is equipped with a hydraulic attachment locking system, see
additional instructions about the use of the locking system from the relevant
manuals.
Ensure that the hydraulic hoses (and the electric harness, if applicable) are not
in the way during installation.
Step 2:
Turn the quick attach plate hydraulically to an obliquely forward position.
Drive the loader onto the attachment. If your loader is equipped with a
telescopic boom, you can utilise this.
Align the upper pins of the loader’s quick coupling plate so that they are under
the corresponding brackets of the attachment.
Step 3:
Lift the boom slightly –pull the boom control lever backward to raise the
attachment off the ground.
Turn the boom control lever left to turn the bottom section of the quick attach
plate onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of pins.

11 (22)

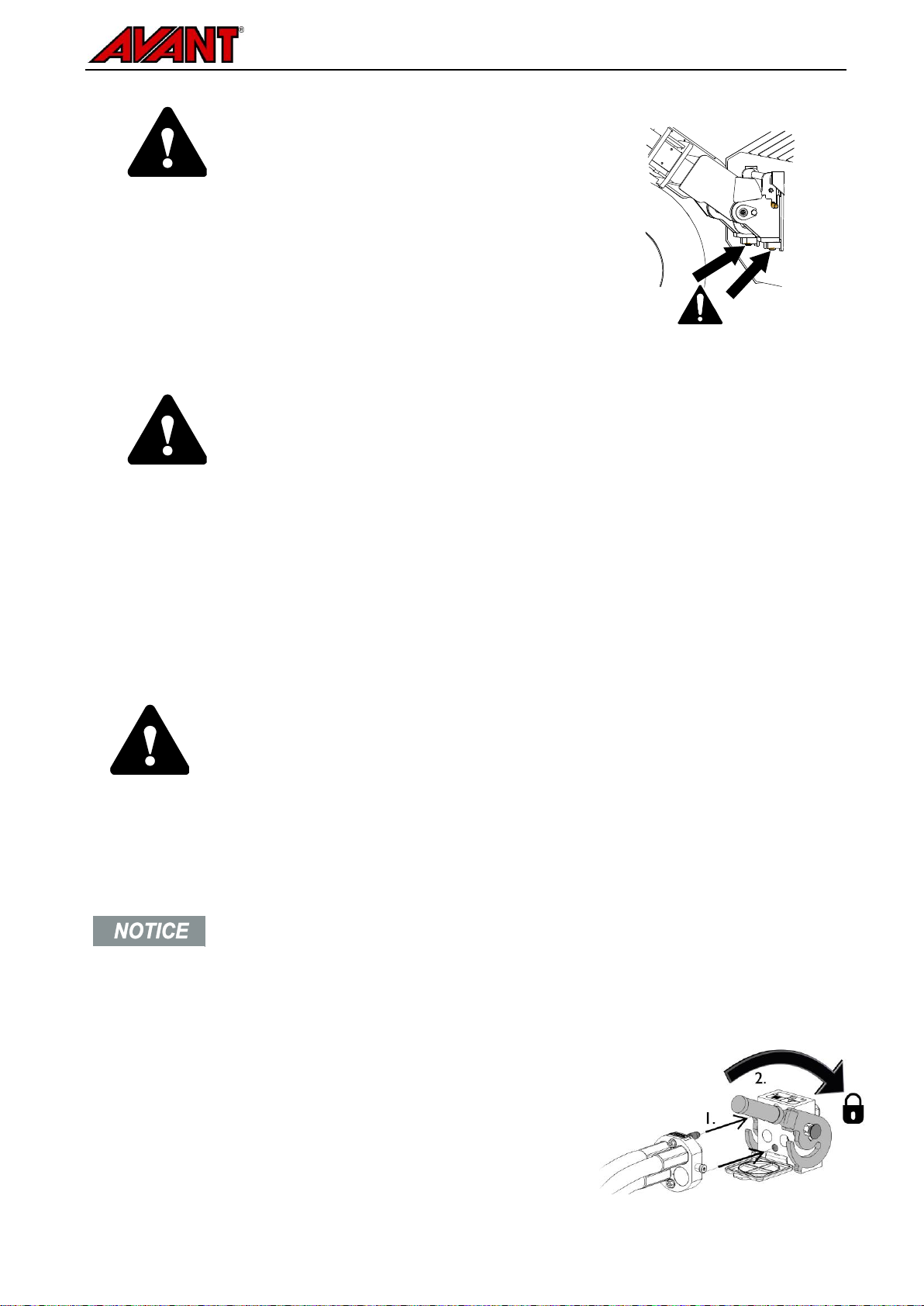

An attachment that has not been completely
locked to the loader may fall on the boom or
towards the operator, or fall under the loader
during driving, causing loss of control of the
loader. Never move or lift an attachment that
has not been locked. Before moving or lifting
the attachment, make sure that the locking
pins are in the lower position and come
through the fasteners on the attachment on
both sides.
Excessive tilting or lifting of an unlocked attachment increases the risk of tipping the
attachment over. Do not use the automatic locking of the locking pins when the
attachment is lifted more than one meter from the ground. If the locking pins do not
return to the normal position when tilting, do not tilt or raise the attachment any
more. Lower the attachment on the ground and secure the locking manually.
5.1 Connecting and disconnecting the hydraulic hoses
On the 200 series 2 and 400-700 series loaders the hydraulic hoses are connected using the multi connector
system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change
to the multi connector system, contact your Avant dealer or service point for instructions or installation
services.
Never connect or disconnect quick couplings or other hydraulic components while the
control lever of the auxiliary hydraulics control lever is locked on or if the system is
pressurized. Connecting or disconnecting the hydraulic couplings while the system is
pressurized may lead to unintended movements of the attachment, or ejection of
high-pressure fluid, which can cause serious injuries or burns. Follow safe stopping
procedure before disconnecting hydraulics.
Keep all fittings as clean as possible; use the protective caps on both the attachment and
the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never
leave the hoses hanging on the ground; place the couplings onto the holder on the
attachment.
Connecting the multi connector system:
1. Align the pins of the attachment connector with corresponding
holes of the loader connector. The multi connector will not
connect if the attachment connector is upside down.
2. Connect and lock the multi connector by turning the lever towards
the loader.

12 (22)
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure.
To disconnect the multi connector system:
Before disconnecting put the attachment down on a solid and even
surface.
1. Switch off the auxiliary hydraulics of the loader.
2. While pushing unlock button, turn the lever to disconnect the
connector.
3. After ending operation put the multi connector on its holder on the
attachment.
Conventional quick couplings
(alternative couplings for some loader models):
Before connecting or disconnecting the standard quick couplings, the
residual pressure must be released as shown below. The conventional
quick couplings will not connect, if there is pressure in the hydraulic
system.
To connect and disconnect the standard couplings, move the collar at the end of the female fitting. The hoses
should be connected so that the fitting equipped with a coloured cap is connected to the corresponding fitting
of the loader. Note that the protective caps on the loader and the attachment can be fastened to each other
during operation to reduce the accumulation of dirt. When disconnecting the standard quick couplings a small
amount of oil may drip from the couplings. Wear protective gloves and have some cloth at hand to keep the
equipment clean.
Disconnecting hydraulic hoses:
Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the
control lever of the auxiliary hydraulics to its neutral position.
When uncoupling the attachment, always disconnect the hydraulic couplings before
unlocking the quick attach plate, to prevent hose damage and any oil spills. Reinstall the
protective caps on the fittings to prevent impurities from entering the hydraulic system.

13 (22)
6. Operating the attachment
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
Always keep a safety distance of at least two metres to
other persons. Note that the attachment may throw
stones, gravel, or other objects found in the area at high
speed. Keep bystanders away.
The attachment may start unexpectedly when removing a blockage, if the hydraulic
system is pressurized. Always stop the attachment before leaving the driver’s seat. Do
not go near the attachment, if another person is operating the controls of the loader. Shut
down the loader engine and release the residual pressure first.
Beware of entanglement hazard, do not leave the driver’s seat if the attachment is
running. Keep a safe distance between the attachment and other persons, and stop the
attachment and lower it down completely whenever others are present at the operating
area.
Never perform any maintenance or adjustments if the attachment can start by accident.
Shut down the loader engine, turn off auxiliary hydraulics and lower the loader boom
before going near the attachment.
Beware of the sharp blades and risk of crushing especially during maintenance or when
removing blockages. Always stop the attachment by following the safe stopping
procedure. Note that the loader boom moves down and may be tilted even if the engine
has been stopped. Never go under a raised boom or any component of the attachment.
Keep away from the moving linkage.

14 (22)
.
6.1 Checks before use
Check that the trimmer and the cutting disc can rotate freely and that there is no string or other foreign
material around them.
Use only when all pins are locked and secured in place.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
Check the general condition of the attachment and the loader, and check for possible hydraulic oil
leaks. The attachment must not be used, if there is a fault in the hydraulic system of the loader or the
attachment. Refer to Chapter 7 for maintenance instructions.
Operate the attachment and the controls of the loader only when seated on the driver’s seat. Ensure
that the loader and the attachment are used in a safe manner and as intended. Do not allow children
to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Remember correct working methods and avoid leaving the driver’s seat unnecessarily.Practise the
use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the
particular loader model, it is recommended to practice its use without any attachments.
Check that the mixer is properly mounted on either side of the cutting disc. Ensure that
the hydraulic hoses are secured against contact with moving parts.
6.2 Transport position
When driving with the loader, keep the edge trimmer in the
position shown in adjacent figure.
Make sure the trimmer arm is locked with its locking pin.

15 (22)
.
6.3 Use
Before starting the trimmer:
Set and adjust the brush to working position. See following chapters about adjustments.
Using the trimmer:
1. Cut the surface of the soil by pushing the cutting disc against the ground. Move the loader a little in
forward or reverse to make the first cut easier.
2. Start the mixer by turning the auxiliary hydraulics control lever of the loader, or by depressing the
electric joystick buttons. As standard, the trimmer will rotate counter-clockwise when the auxiliary
hydraulics control lever is moved to its locking position (or red button of electric joystick is depressed,
if equipped).
Operate the attachment with loader engine rpm that produces auxiliary hydraulics flow within the
recommended range for the attachment.
If the trimmer is equipped with the optional support wheel, lock it to its lower position and keep in light
contact with the ground.
Always drive slowly while operating the trimmer. Adjust the drive speed according to the operating
conditions and the material being handled.
If your loader is equipped with a telescopic boom, you can utilize it for a better view to the working
area.
If the support wheel accessory is fitted to the trimmer, typically it should be set down to operating
position for easier control of the attachment. However, in some cases it might be easier to operate the
trimmer with the support wheel lifted to upper position.
The Edge Trimmer can be operated while driving forward or reversing, depending on operating
conditions.
Avoid hitting the ground hard with the cutter. If the front wheels of the loader tend to lift off
the ground, the attachment is pressed too hard against the ground. To avoid damaging
the cutter disc, operate at shallower depth, and make multiple passes, if necessary.
Avoid sharp turns while operating the trimmer. Lift the trimmer off the ground before
sharp turns.
Never leave the equipment unattended while the engine is running. Follow safe stopping
procedure.

16 (22)
.
6.4 Adjustments
The trimmer can be adjusted in many ways, as shown in the following chapters. Best way to operate the
trimmer depends on the surfaces the trimmer is operated, and the direction of travel.
During use, the attachment should be kept in near upright position.
6.4.1 Orientation
The trimmer arm can can be locked on either side, for easier use in different operating areas. For transport,
lock the arm on the middle position.
Left side
Right side
6.4.2 Side reach
The side reach can be adjusted as needed
by unlocking the same pin on the arm that
is used to lock the orientation of the arm.
Make sure to lock the pin after adjusting
the reach.
6.4.3 Mixing depth
Adjust and lock the setting according to
operating conditions.
Keep the mixer locked to prevent it from
falling from the trimmer. Tighten the locking
screw using only hands.

17 (22)
.
6.4.4 Operating without mixer
If needed, the trimmer can be used only to
cut without mixing.
To quickly move the mixer away for the
best reach of the cutting disc, the whole
assembly can be installed in rotated
position, as shown in adjacent figure.
The telescoping shaft has holes also on its
sides to make it possible to lock in this
position.
6.5 Operation with the tilt adapter
When working on slightly inclined terrains, a tilt adapter is an useful attachment. The adapter is fitted in
between the attachment and the quick coupling plate of the loader. The adapter allows the attachment to be
tilted sideways for efficient levelling or grading work. Read the instructions provided with the tilt adapter. More
information about the tilt adapter is available from your AVANT dealer or from the AVANT web pages at
www.avanttecno.com.

18 (22)
7. Maintenance and Service
The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes
regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing
hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been
lowered down completely and the attachment is lowered flat against the ground.
Make sure the attachment is properly supported during all maintenance work. Never go
under a lifted attachment. The loader boom may lower unexpectedly during maintenance
causing serious injuries even when the loader engine is not running. All maintenance and
service must be performed when the attachment has been lowered down to a safe
position.
7.1 Checking hydraulic components
Check the condition of the hydraulic hoses and components when the engine has been turned off and the
pressure has been relieved. Do not use the equipment, if you have discovered a leak in the hydraulic system
of the attachment or the loader. Leaking hydraulic fluid may penetrate skin and cause serious injuries. Seek
medical attention immediately in case hydraulic fluid penetrates the skin. Wash any part of body that has been
in contact with hydraulic oil carefully with water and soap. Hydraulic fluid is also harmful to the environment
and any leak to the environment must be prevented. Repair all leaks immediately after detecting them; a small
leak can quickly grow into a big one. Operate the attachment only with type of hydraulic oil that is accepted for
use in Avant loaders.
Never handle hydraulic components when the
hydraulic system is pressurised, since a fitting
may break or become loose and the released
oil may cause serious injuries. Do not use the
equipment, if you have discovered a fault in
the hydraulic system.
Check hoses visually for cracks or abrasions. If there are signs of leaks, to check a component, hold up a
piece of cardboard in the area where a leak is suspected. Do not use hands to search for leaks. Monitor the
wearing of the hoses and stop the use, if the surface layer of any hose has worn off. Check the routing of the
hoses; adjust the hose clamps to avoid abrasion to the hoses. The hoses have limited service life. Depending
on operating conditions all hoses must be inspected thoroughly no later than after 3 to 5 years of use, and if
required, they must be replaced with new ones.
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not
be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service
point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and
experience about hydraulic assemblies and how to perform the repairing safely.
7.2 Cleaning the attachment
Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. You may use
a pressure washer and a mild detergent. Do not use strong solvents, and do not spray directly at the hydraulic
components, or at the labels on the attachment.

19 (22)
7.3 Checking metal structures
Also the metal structures of the attachment must be inspected regularly. Check visually for damages and
inspect the quick attach brackets and their surrounding area carefully. The attachment must not be used if it is
deformed, cracked, or torn.
Welding repairs are only allowed to be carried out by professional welders. When welding, only methods and
additives suited for steel used in bucket must be used. For more information about repairs contact your
nearest service point.
7.4 Lubrication
A single lubrication point is located at the bearing of the cutting disc. Suitable lubrication interval depends
heavily on operating conditions but lubricant must be added at least after every 10 hours of use.
Clean the end of the nipple before greasing and add only a small amount of grease at a time. All lubrication
nipples are standard R1/8" nipples. Replace any damaged nipples.

20 (22)
.
8. Warranty terms
Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it
manufactures.
The warranty covers repair costs as follows:
Work costs are covered, if the repair is not performed at the factory.
The factory replaces any defective components or consumables.
The factory may reimburse the price of components purchased by the customer in special cases that have
been agreed in advance.
The warranty does not cover:
Normal maintenance work or parts and consumables required for it.
Damages caused by unusual operating conditions or ways of use, negligence, structural changes made
without the consent of Avant Tecno Oy, use of non-original parts or lack of maintenance.
Consequences of a defect, such as interruption of work or other possible additional damages.
Travel and/or freight costs caused by the repair.
