Avanti DWF18V0W User manual

DISHWASHER / LAVAPLATOS / LAVE-VAISSELLE
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Model Number
Número de modelo
Numéro de modèle
DWF18V0W
DWF18V1B
DWF18V3S
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES ANDOPERATING
INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products LLC
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

2
TABLE OF CONTENTS
Help Us Help You
3
Parts and Features
4
Before Using Your Dishwasher
4
Important Safety Instructions
5
Electrical Connection
5
Water Heater Safety
6
Before Using Your Dishwasher
6
Control Panel
7
Wash CycleDescriptions
7 - 8
How to Use Your Dishwasher
8 - 9
Overflow Protection
9
Water Cut-Off Protection
9

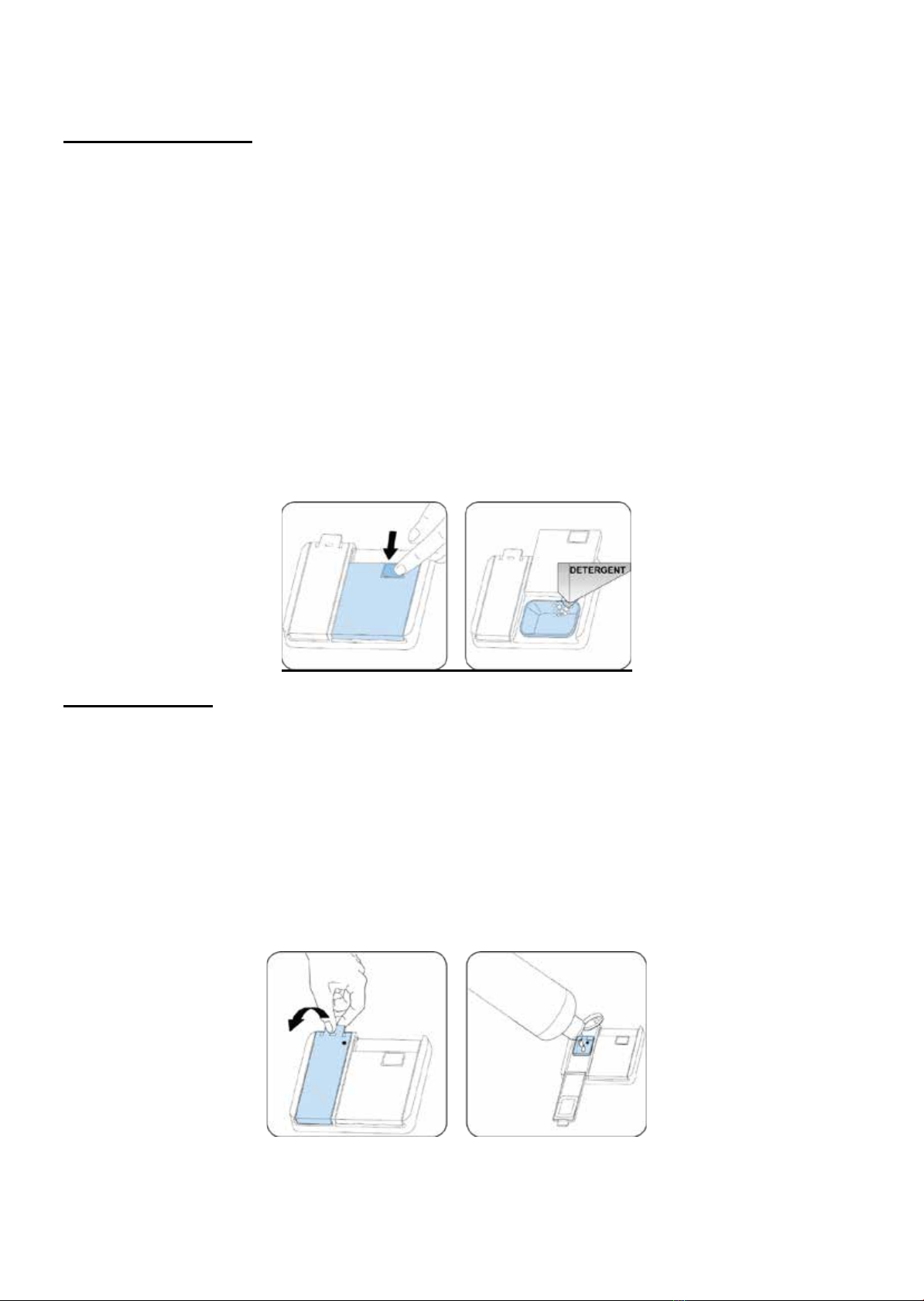

Using the Detergent Dispenser
9
Using the Rinse Aid Dispenser
10 – 11

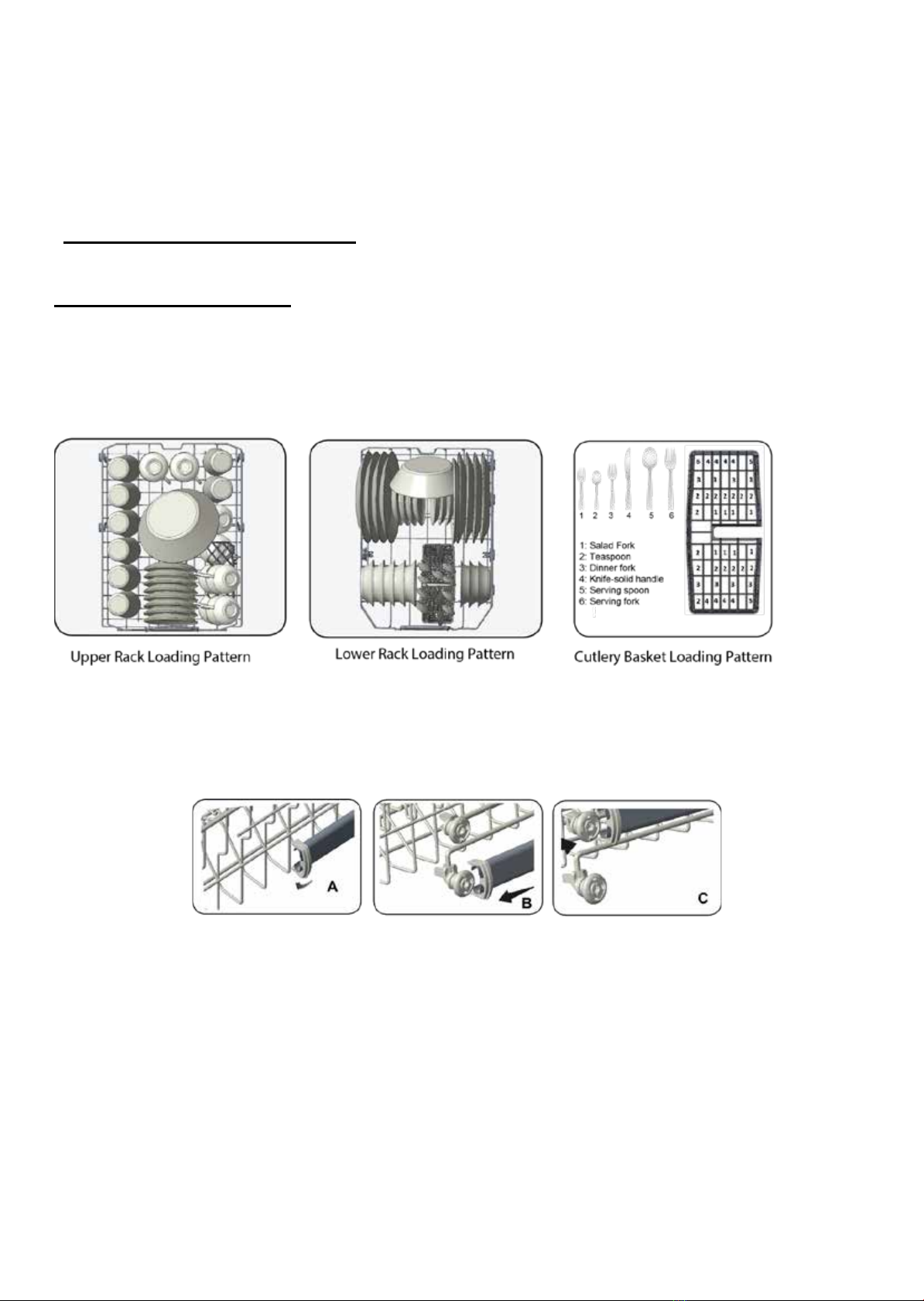

How to Efficiently Load YourDishwasher
11
Caring and Maintenance
12 - 13
Problems with your Dishwasher?
14
Troubleshooting Guide
14 - 15
Service for your Dishwasher
16
Your Avanti Products Warranty
17
Instrucciones en Español
18 –32
Instructions en Francais
33 - 48
Registration Information / RegistrationCard
Last Page

3
Read this guide carefully.
HELP US HELP YOU...
Write down the model and serialnumbers.
You'll find them on a plate located on therear
It is intended to help you operate andmaintain
your new dishwasher properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
1-800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establishthe
warranty period.
of the dishwasher.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondenceor
service calls concerning your dishwasher.
If you received a damaged dishwasher,
immediately contact the dealer (or builder)that
sold you the dishwasher.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problemsthat
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you tobe
pleased. If for some reason you are nothappy
with the service you receive, here are some
steps to follow for furtherhelp.
FIRST, contact the people who serviced your
dishwasher. Explain why you are notpleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number,and
send it to:
Customer Service
Avanti Products
P.O. Box 520604 -
Miami, Florida 33152

4
PARTS AND FEATURES
1
Upper Rack
2
Upper Spray Arm
3
Silverware / Cutlery Basket
4
Lower Rack
5
Lower Spray Arm / Filter Assembly
6
Detergent Dispenser
Rinse Aid Dispenser
7
Control Panel
Before Using Your Dishwasher
Remove the exterior and interiorpacking.
Check to be sure you have all of the following
parts: 2 Wash Racks (1 Upper / 1Lower)
4 Cup Racks
1 Silverware Basket
1 Instruction Manual
1 Installation Manual
Clean the interior surface with lukewarm water using a softcloth.

5
Important Safety Instructions
~WARNING~
To reduce the risk of fire, electrical shock, or injurywhen
using your dishwasher, follow these basicprecautions:
Read all instructions before using thedishwasher.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
dishwashers are still dangerous. . . even if they will “just sit in the garage a fewdays.”
Before you throw away your old appliance: Take off the doors. Leave the shelves in
place so that children may not easily climbinside.
Never allow children to operate, play with, or crawl insidethe dishwasher.
Never clean dishwasher parts with flammablefluids.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other dishwasher.
Plug the dishwasher into an exclusive properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord.
Any questions concerning power and or grounding should be directed toward acertified
electrician or an authorized Avanti Products servicecenter
-Save these instructions-
Electrical Connection
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinances.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied.
Never use an extension cord to connect power to theunit.
Never use a two-prong groundingadapter.
Wherea two-prong wall receptacle is encountered,contacta qualified electrician to have it replaced
with a 3-prong receptacle in accordance with applicable electricalcodes.
This dishwasher requires a standard 110/120 volts A.C.~/60hz electrical outlet with three-prong
ground.
The cord should be secured behind the dishwasher and not left exposed or dangling to prevent
accidental injury.
Connect to a grounded metal, permanent wiring system: or run an equipment grounding terminal or
lead of the appliance.
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or servicerepresentative if you are in doubt whether the appliance
is properly grounded.
Do not attempt to repair or replace any part of your dishwasher unless it is specifically
recommended in this manual. All other servicing should be referred to a qualifiedtechnician.
Tominimize the possibilityof electric shock, disconnectthis appliance form the power supplybefore
attempting any maintenance. Note: Turning the dishwasher off does not disconnect the appliance
from the power supply. We recommend having a qualified technician service yourappliance.
~
Warning
~
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products servicecenter.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly grounded. Do not modify the plug provided with the appliance, if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.

6
Water Heater Safety
Under certain conditions hydrogen may be produced in a water heater that has not been used for two
weeks or more. Hydrogen gas isexplosive.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by
turning on all hot water faucets and allow them to run for several minutes. Do this before using any
electrical appliance which is connected to the hot water system. This simple procedure will allow any
built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
WARNING
READ FOR PROPER USE
Do not abuse, sit on, or stand on the door or dish rack of thedishwasher.
Do not touch the heating element during or immediately afteruse.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturerrecommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Using detergent that
is not specifically designed for dishwashers will cause the dishwasher to fill withsuds.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher, there could still be some detergent leftinside.
The door should not be left in the open position since this could present a trippinghazard.
During installation, the power supply must not be excessively bent orflattened.
To reduce the risk of injury, do not allow children to play in or on adishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating, there is a risk of water squirtingout.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to bewashed:
1) Locate sharp items so that they are not likely to damage the doorseal;
2) Load sharp knives with the handles up to reduce the risk of cut-typeinjuries.
When using your dishwasher, you should prevent plastic items from contacting with heating
element.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
similarly qualified person in order to avoid ahazard.
Please dispose of packing materialsproperly.
Use the dishwasher only for its intendedfunction.
Remove the door when removing an old dishwasher from service or discardingit.
Do not tamper with controls.
Do not touch the heating element during or immediately afteruse.
Before Using Your Dishwasher
Remove the exterior and interiorpacking.
Check to be sure you have all of the following parts:
2 Wash Racks (1 Upper / 1Lower)
4 Cup Racks
1 Silverware Basket
1 Instruction Manual
1 Installation Manual
Clean the interior surface with lukewarm water using a softcloth.

7
CONTROL PANEL
Once the program has been selected, the appropriate indicator light will flash/blink intermittently.
Pre-Programmed Wash Program
Program Cycle Selection
Information
Running
time
(Mins)
Option
Half
Load
Option
Extra
Dry
Option
Extra
Rinse
Option
Sanitize Option Hi-Temp
Regular
Standard program for daily, regular or
typical use to completely wash a load
of normally soiled dishes. 140

8
Using Your Appliance:
SELECTING A WASH PROGRAM:
1) Press and hold the “ON/OFF”button to turn on your machine.
2) Refer to the Pre-Programmed Wash Cycles table on the previous page, to select a wash program suitable
for your needs.
3) Press the “PROGRAM SELECTOR”button until the number of the program you selected appears in the
display.
4) Press the “START / PAUSE”button to activate the wash program.
5) If you must add an item during the wash cycle, press Start/Pause button, open the door, add your item,
close the door of your appliance and press Start/Pause button to continue the activated wash program.
6) It is not recommended to open the door of your machine while the activated wash program is running. Even
so if the door is opened and not closed within approximately 4 seconds, the unit will not continue the wash
program. In this case, you must close the door and press the “START/PAUSE”button again to continue
the wash program.
CANCELLING A WASH PROGRAM:
1) Press and hold the “START/PAUSE”button for approximately 3 seconds.
2) The display will show “1”to confirm cancellation of the wash program.
Note: If the door is opened during the cancelling process, the door must be closed within 4 seconds to
continue the cancelling process.
If the door is not closed during the 4 seconds, close the door and simply press the “START/PAUSE”button
again to continue the cancelling process of the wash program.
SELECTING AN OPTIONAL WASH OPTION:
1) Select the desired Pre-Programmed Wash Program as directed above.
2) Before pressing the “START/PAUSE”BUTTON, press the “OPTIONS”button.
3) Continue to press until the indicator light of the option (Half-Load or Hi-Temp) you desire is illuminated.
4) Press Extra button in order to choose from Sanitize / Extra Rinse / Extra Dry options.
5) Close the door of your appliance and press the “START / PAUSE”button to activate the wash program.
Wash Options:
HALF LOAD:
This option allows you to save energy and wash a smaller load. This option should be used when washing
less than a full load or in the event you do not want to load the washer and run later when completely loaded.
SANITIZE:
When the Sanitize option is selected, the water temperature will be maintained at 156ºF/69ºC (maximum). The
maximum temperature may not be reached if the incoming water temperature is not adequate.
Residential dishwashers are not intended for licensed food establishments or Commercial applications.
HI-TEMP:
When the HI-Temp option is selected, the water temperature will be maintained at 140ºF/60ºC (maximum).
The maximum temperature may not be reached if the incoming water temperature is not adequate.
Residential dishwashers are not intended for licensed food establishments or Commercial applications.
EXTRA DRY:
When the EXTRA DRY option is selected, the machine changes the water temperature for each program and
the extra dry is performed.

9
EXTRA RINSE:
When the EXTRA RINSE option is selected, washing-rinsing steps will be added into the selected program so
you can ensure that your dishes will be extra clean and glossier.
DELAY:
To delay the start of a selected cycle, press the Delay Start button until the desired delay time shows in the
LED display. You can delay the start time for 1 to 19 hours. To cancel the delay start option before the set
delay period is over, simply press and hold the DELAY button for approximately 3 seconds.
1) Select the desired Pre-Programmed Wash Program as directed above.
2) Before pressing the “START/PAUSE”BUTTON, press the “DELAY”button.
3) Set the “delay”time by pressing the “DELAY”timer button. Time will increase in increments of 1 hour with
each press of the button.
4) Once the “DELAY”button is pressed the display will alternately show 1H and will also show the program
number selected within 2 seconds of the delay time.
5) Close the door of your appliance and press the “START / PAUSE”button.
Note: If you open and close the door of the machine during the delay timer mode, or there has been a
loss of electric power, the machine will continue in delay timer mode until the timer has run out and will
start the wash program as selected.
CANCELLING A DELAY TIME SET:
To cancel the delay timer function once set.
1) Press and hold the “DELAY”button for approximately 3 seconds.
2) After 3 seconds, the display will show “0h”confirming the cancellation of the delay timer program.
3) You can now select a new wash program as previously directed above.
Note: You cannot set a delay time mode once a wash program has begun.
END OF CYCLE
At the end of the wash cycle, “0” will be shown in the display.
Open the door of the machine, press and hold the “START/PAUSE” button for approximately 3 seconds to turn
the unit off.
OVERFLOW PROTECTIONS
Our Avanti dishwasher has an overfill protection device whichcouldautomaticallyshut off the inlet valve andstart
the drain pump if the water overflows. In the event of an overflow, the system display will flash “F1” and will
attempt to drain the water. If the overflow stops and the system drains the water the “F1” will disappear.
If the system cannot stop the overflow condition,turnoff themain water supplybeforecalling a servicer. If there
is water in the base pan because of an overfill or small leak, the water should be removed using a a sponge
before restarting thedishwasher.
WATER CUT OFF - WARNING
If during a wash cycle the water main is cut-off or turned off and the machine cannot take in water the display
will flash “FF”. As long as the condition or lack of water remains the display will continue to flash “FF”, once
the water is returned to the unit, it will return to normal working mode.
LOSS OF ELECTRIC POWER - WARNING
If during a wash cyle the electricity is lost or turned off or the door of the machine has been opened, the
machine cannot operate normally, the machine will return to normal working mode after 8 seconds once the
power has returned and if the internal temperature of the unit is above 113ºF.

10
DETERGENT DISPENSER
The dispenser must be refilled before the start of each wash cycle following the instructions provided in the
“Wash Cycle Table”. Your dishwasher uses less detergent and rinse aid than conventional dishwashers.
Generally, only one teaspoon of detergent is needed for a normal wash load, heavily soiled items may need
more detergent. Always add the detergent just before starting the dishwasher, otherwise it could become damp
and not dissolveproperly.
Amount of Detergent to Use
IF THE WATER IN YOUR AREA IS NOT TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF
DEPOSITS BY DETERGENT
The amount of detergent needed can vary due to differences in the water hardness of your area. To determine
the water hardness in your area, contact your local water utility or area water softening company. The harder
the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use
by small amounts until you find the correctamount.
Proper Use Of Detergent
Use only detergent specifically made for use in dishwasher. Keep your detergent fresh and dry.Don’t put
powder detergent into the dispenser until you’re ready to washdishes.
Rinse Aid Dispenser
• Your dishwasher is designed to use liquid rinse aids. The rinse-aid dispenser is located on the door next to the
detergent dispenser. Fill the rinse-aid dispenser until the maximum level (approximately 150ml of liquid rinse-
aid). Be sure not to overfill the dispenser as this will cause over-sudsing. Wipe away any spills with a damp cloth.
Keep in mind that if you have soft water, you may not need to use a rinse-aid as it may cause a white film to
develop on your dishes.
• To open the dispenser, lift up the Rinse Aid reservoir cover as shown below.
• Pour the rinse-aid into the dispenser, being careful not tooverfill.
• Replace the cover after filling.
• The rinse-aid is released during the final rinse to prevent water from forming droplets on your dishes that can
leave spots and streaks. It also improves drying by allowing the water to “sheet” off the dishes.

11
Adjusting Rinse Aid Dispenser
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid
needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in
lather of foaming and cause cloudiness or streaks on your dishes. If the water in your area is verysoft, you may
not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.
When To Refill The Rinse AidDispenser
Refill the Rinse Aid reservoir when the Rinse Aid indicator light on the control panel is illuminated.
How to load your dishwasher
For best results, follow these loading guidelines.
Recommendations : Remove any coarse residue on dishes before placing the dishes in the machine. Start the
machine with full load.
Do not overload the drawers or place dishes in the wrong basket.
WARNING: Always place sharp utensils with the sharp point down and open utensils with their openings down.
How to Use the Upper Rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and
saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and
cookware so that they do not get moved by the spray ofwater.
The upper rack can be adjusted for height by putting wheels at different height intothe rails.
Caution: Make sure that the rack is empty. Changing the height setting while the rack contains tableware could
cause the contents to dislodge, causing personal injury or damage to the tableware.
1) Release the latches on both the right and left tracks of the upper rack by turning them toward the outside
(illustration A).
2) Pull out the rack completely. (illustration B).
3) Place the rack into the track again at the desired height (illustration C).
4) Push the latches back into the correct position.
How To Use The Lower Rack
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids,
serving dishes and bowls, as shown in the figurebelow.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed topdown. Deep pots should be slanted to allow water to flowout.
The bottom rack features fold down tine rows so that larger or more pots and pans can be loaded.

12
Silverware Basket
Silverware should be placed in the silverware basket with handles at the bottom: if the rack has side baskets, the
spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upperrack.
Caring And Maintenance
To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good
appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of thedishwasher.
Protect against freezing
If your dishwasher is to be left in an unheated place during the winter, ask a service technicianto:
1. Cut off electrical power to the dishwasher. Remove fuses or tip circuitbreaker.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch thewater.)
4. Reconnect the water inlet pipe to the watervalve.
5. Remove the plastic sump cover in the tub at the bottom and use a sponge to soak up water in the rubber
boot.
Cleaning The Spray Arms
It is necessary to clean the spray arms regularly or hard water chemicals will clog the spray arm
jets and bearings. To remove the spray arm, pull the nut out by hand in an upward direction.
Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them
after rinsing them thoroughly.
Filtering System
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There
are three components of the filtering system: the coarse filter, the fine filter, and the main filter.
1. Coarse Filter
Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove
an item caught in this filter, gently turn the top of the Coarse filter in a counter-clockwise direction and liftitout.
2. Fine Filter
This filter holds soil and food residue in the sump area and prevents it from being re-deposited on the dishes
during a cycle.
3. Main Filter
Food and soil particles trapped by this filter are pulverized by a special jet onthe lower spray arm
and washed down thedrain.
Cleaning The Filter assembly
Turn the Coarse filter in a counter-clockwise direction.
1. Lift the Coarse filter (b) together with the Fine Filter(a)
2. Separate the Fine filter by lifting it out from the Course
Filter (b).
3. Lift out the out the Main filter (c).
To replace the filter assembly follow the same steps inreverse.
For best performance and results, the filter assembly must be
cleaned.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance
level of the appliance and damage dishes andutensils.
WARNIING – Never run the dishwasher without the filters in
place.

13
Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish. Some paper towels can also scratch or leave marks on the surface.
WARNING - Never use a spray cleaner to clean the door panel for it could damage the door lock and
electrical components. It is not allowed to use the abrasive agent or some paper towel because of the
risk of scratching or leaving spots on the stainless steel surface.
How To Keep You Dishwasher In Shape
After every wash
After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that
moisture and odors are not trappedinside.
No solvents or abrasive cleaningproducts
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of
the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made
specifically for dishwashers.
When you go onHoliday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and
them remove the plug from the AC socket, turn off the water supply and leave the door of the appliance
slightly ajar. This will help the seals last longer and prevent odors from forming within theappliance.
Seals
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this fromoccurring.

14
PROBLEMS WITH YOUR DISHWASHER?
You can solve many common dishwasher problems easily, saving you the cost of a possibleservice
call. Try the suggestions below to see if you can solve the problem before calling theservicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
WHAT TO DO
Dishwasher does not
operate.
The circuit breakertripped or
blown fuse.
Power supply is not turned
on.
Water pressure islow.
Replace fuse or reset circuit breaker. Remove any
other appliances sharing the same circuit with the
dishwasher
Make sure the dishwasher is turned on andthe door
is closedsecurely.
Make sure the power cord is properly connected.
Check that the water supply is connected properly and
the water is turnedon.
Drain pump doesn’t stop
Overflow
The system is designed to detect an overflow. When
it doesn’t it shuts off the circulation pump and turns
on the drainpump. See Over Flow
Noise
Some audible sounds are
normal.
Utensils are not secured in
the baskets or something
small has dropped into the
basket.
Motor hums.
Sound from soft food shredding actionand
detergent cupopening.
Ensure everything is secured in thedishwasher.
Dishwasher has not been used regularly. If youdo not
use it often, remember to set it to fill andpump out
every week, which will help keep the seal moist.
Suds in the tub
Improperdetergent.
Spilled rinse agent.
Use only the special dishwasher detergent to avoid
suds.
If this occurs, open the dishwasher and letsuds
evaporate.
Add 1 gallon of cold water to the tub. Close and latch
the dishwasher, then drain out the waterby slowly
turning the dial until a drain period is reached. Repeat
ifnecessary.
Always wipe-up rinse agent spillsimmediately.
Stained tub interior
Detergent with colorant was
Used.
Make sure that the detergent is the onewithout colorant.
Dishes are notdried
Rinse agent dispenser is
empty.
Make sure the rinse agent dispenser isfilled.
Dishes and flatware not
clean.
Improper program.
Improper rackloading.
Select a strongerprogram.
Make sure that the action for the detergent dispenser
and spray arms are not blocked by large dishware.
Cloudiness onglassware.
Combination of softwater
and too muchdetergent.
Use less detergent if you have soft water and select a
shorter cycle to wash the glassware toget them clean.
Yellow or brown film on
inside surfaces.
Tea or coffee stains.
Iron deposits in watercan
cause an overall film.
Using a solution of ½ cup bleach and 3 cupswarm
water to remove the stains byhand.
Warning
You have to wait for 20 minutes after a cycle tolet the
heating elements cool down before cleaning interior:
otherwise, burns willhappen.
You have to call a water softener company fora
special filter.

15
White film on inside surface.
Hard waterminerals
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubbergloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming orsuds.
Detergent left indispenser
cups.
Dishes block detergent
cups. Re-load the dishes properly.
Steam
Normalphenomenon
There is some steam coming through the ventby the
door latch during drying and waterdraining.
Black or gray marks on
dishes.
Aluminum utensils have
rubbed against dishes. Use a mild abrasive cleaner to eliminatethose
marks.
Water standing in the bottom of
the tub.
This is normal.
A small amount of clean water around the outlet on the
tub bottom at the back of the tub keeps the water seal
lubricated.
Water doesn’t pump outof
the tub.
Drain is clogged.
Make sure the kitchen sink is draining well. Ifthe
dishwasher drains into a disposer, run itclear.
Dishwasher leaks.
Overfill dispenser orrinse
aid spills.
Dishwasher isn’t level.
Be careful not to overfill the rinse aid dispenser. Spilled
rinse aid could cause oversudsing and lead to
overflowing. Wipe away any spills with a damp cloth.
Make sure the dishwasher islevel.
ERROR CODE WARNINGS - DESCRIPTIONS
ERROR
CODE
CONDITION
WHAT TO DO
FF
Water Inlet System Failure
Make sure the water inlet tap is open and water is flowing
Separate the inlet hose from the tap and clean the filter of the
hose. Contact service if the error continues.
F5
Pressure System Failure
Contact customer service.
F3
Continuous Water Input
Close the tap and contact customer service.
F2
Inability to Discharge Water
Water discharge hose and filters may be clogged.
Cancel the program, if error continues contact service.
F8
Heater Error
Contact customer service
F1
Overflow
Unplug the machine and close the tap, contact customer service.
FE
Faulty Electronic Card
Contact customer service
F7
Overheating
Contact customer service
F9
Diverter Position Error
Contact customer service
F6
Faulty Heater Sensor
Contact customer service
HI
High Voltage Failure
Contact customer service

16
SERVICE FOR YOUR DISHWASHER
We are proud of our customer service organization and the network of professional service technicians
that provide service on your Avanti dishwashers. With the purchase of your Avanti dishwasher, you can
have the confidence that if you ever need additional information or assistance, the Avanti Products
Customer Service team will be here for you. Just call ustoll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about ourproducts,
help is available.
Part Orders
800-220-5570 You may order parts and accessories that willbe delivered directly to your home, by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your dishwasher inside and out.

17
YOUR AVANTI PRODUCTS
WARRANTY
Staple your sales receipt here. Proof of original
purchase date is needed to obtain serviceunder
warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTY
Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of
twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the
date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless
described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti
products will, at its option, repair or replace any part of the product which proves to be defective in material or
workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either
new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct
such defects free of charge, so long as the product has been installed and operated in accordance with the written
instructions in this manual. In rental orcommercial use, the warranty period is 90 days. All Avanti appliances of3.5
cubic feet capacity or less must be brought/sent to the appliance service center for repair.
THIS SECTION APPLIES TO CLOTHES WASHERS ONLY
LIMITED FIVE YEAR WARRANTY ON PLASTIC TUB
After one year and until five years from the date of purchase, Avanti Products will furnish a replacement plastic tub,
for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of
the consumer.
LIMITED SEVEN YEAR WARRANTY ON STAINLESS STEEL TUB
After one year and until seven years from the date of purchase, Avanti Products will furnish a replacement plastic
tub, for one which is defective in material or workmanship. All labor and transportation charges are the
responsibility of theconsumer.
WARRANTY EXCLUSIONS / WHAT IS NOTCOVERED:
The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti
Products, including without limitation, one or more of thefollowing:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes,
regulations, or laws, including failure to install the product in strict conformity with local fire and building codes
and regulations.
Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand,
floods, fires, mud slides, freezing temperatures, excessivemoisture or extended exposure to humidity, lightning,
power surges, structural failures surrounding the appliance, and acts ofGod.
Incidental or consequentialdamages
Parts and labor costs for the following will not be
considered as warranty:
Door springs, and/orframes.
Inner door panels, door shelves, door rails, and/or
door supports.
Shipping and handling costs associated with the
replacement of the unit.
Repairs performed by unauthorizedservicers.
Service calls that are related to external problems,
such as abuse, misuse,inadequate electrical power,
accidents, fire, floods, or any other acts ofGod.
Failure of the product if it is used for other than it
intended purpose.
The warranty does not applyoutside the Continental
USA.
Surcharges including but not limited to, any after
hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to
remote areas.
In noeventshall Avanti Products have anyliabilityorresponsibilitywhatsoeverfordamage tosurrounding property,
includingcabinetry, floors,ceilings,andotherstructures and/or objectsaroundtheproduct. Also excluded from this
warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts;
Products on which the serial numbers have been altered, defaced or removed; service visits for customer
education,orvisits where there is nothingwrongwith the product; correctionof installation problems (you are solely
responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting
facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors,
shelving etc., as well as the resetting of breakers orfuses.
OUT OF WARRANTY PRODUCT
Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs,
pro-rates, or product replacement, once this warranty hasexpired.
Warranty – Washing Machines

18
Lea esta gu a con
atenci n.
AYUDANOS A AYUDARTE...
Anote el modelo y los n meros de serie.
Los encontrarás en una placa ubicada en la parte trasera.
Su objetivo es ayudarlo a operar y mantener
correctamente su nuevo LAVAPLATOS.
Téngalo a mano para responder a sus
preguntas.
Si no comprende algo o necesita más ayuda,
llame al:
Servicio al cliente de
Avanti 1-800-220-5570
Conserve el comprobante de la fecha de
compra original (como su comprobante de
venta) con esta guía para establecer el
período de garantía.
del LAVAPLATOS.
Escriba estos números aquí:
____________________________________
Fecha de compra
____________________________________
Número de modelo
____________________________________
Número de serie
Utilice estos números en cualquier
correspondencia o llamadas de servicio
relacionadas con su LAVAPLATOS.
Si recibió un LAVAPLATOS dañado,
comuníquese inmediatamente con el distribuidor
(o constructor) que le vendió el LAVAPLATOS.
Ahorre tiempo y dinero. Antes de llamar al
servicio técnico, consulte la Guía de solución
de problemas. Enumera las causas de los
problemas operativos menores que puede
corregir usted mismo.
SI NECESITA SERVICIO
Estamos orgullosos de nuestro servicio y
queremos que esté satisfecho. Si por alguna
razón no está satisfecho con el servicio que
recibe, aquí hay algunos pasos a seguir para
obtener más ayuda.
PRIMERO, comuníquese con las personas
que le dieron servicio a su LAVAPLATOS.
Explique por qué no está satisfecho. En la
mayoría de los casos, esto resolverá el
problema.
A CONTINUACIÓN, si aún no está satisfecho,
escriba todos los detalles, incluido su número
de teléfono, y envíelo a:
Servicio al cliente
Avanti Products
P.O. Box 520604 -
Miami, FL 33152

19
PARTES Y CARACTERISTICAS
1
Rejilla superior
2
Brazo rociador superior
3
Cesta para cubiertos / cubiertos
4
Rejilla inferior
5
Conjunto de filtro / brazo rociador
6
Dispensador de detergente
Dispensador de abrillantador
7
Panel de control
Antes de usar su LAVAPLATOS
Retire el embalaje exterior e interior.
Asegúrese de tener todas las siguientes piezas: 2
rejillas de lavado (1 superior / 1 inferior)
1 canasta de cubiertos
1 manual de instrucciones
1 manual de instalación
Limpiar la superficie interior con agua tibia con un paño suave.

20
Instrucciones de seguridad importantes
~
ADVERTENCIA
~
Para reducir el riesgo de incendio, descarga eléctrica o lesiones al
usar su lavaplatos, siga estas precauciones básicas:
Lea todas las instrucciones antes de usar el lavaplatos.
PELIGRO o ADVERTENCIA: Riesgo de atrapamiento de niños.
El atrapamiento y asfixia de niños no son problemas del pasado. Desechado o abandonadolos lavaplatos
siguen siendo peligrosos. . . incluso si "simplemente se sentarán en el garaje unos días".
Antes de desechar su antiguo electrodom stico: Quita las puertas. Deja los estantes en su lugar de
manera que los niños no puedan entrar fácilmente.
Nunca permita que los niños operen, jueguen o se arrastren dentro del lavaplatos.
Nunca limpie las piezas del lavaplatos con líquidos inflamables.
No almacene ni utilice gasolina ni ningún otro vapor o líquido inflamable cerca de este o cualquier otro
lavaplatos.
Enchufe el lavaplatos en un exclusivo tomacorriente de pared con conexión a tierra debidamente instalado.
No haga bajo cualquier circunstancia corte o quite la tercera clavija (tierra) del cable de alimentación.
Cualquier pregunta relacionada con la alimentación o la conexión a tierra debe dirigirse a un electricista
certificado o un centro de servicio autorizado de Avanti Products.
-Guarda estas instrucciones-
CONEXIÓN ELÉCTRICA
Este aparato debe estar conectado a tierra. En caso de un mal funcionamiento o avería, la
conexión a tierra reducirá el riesgo de choque eléctrico al proporcionar una ruta de menor
resistencia para la corriente eléctrica. Este aparato está equipado con un cable que tiene un
conductor de conexión a tierra del equipo y un enchufe de conexión a tierra. El enchufe debe
conectarse a un tomacorriente adecuado que esté instalado y conectado a tierra de acuerdo con
todos los códigos y ordenanzas locales.
No corte ni retire bajo ninguna circunstancia la tercera clavija de tierra del cable de alimentación
suministrado.
Nunca use un cable de extensión para conectar la energía a la
unidad. Nunca use un adaptador de tierra de dos clavijas.
Cuando se encuentre un receptáculo de pared de dos clavijas, comuníquese con un electricista
calificado para que lo reemplace por un receptáculo de 3 clavijas de acuerdo con los códigos
eléctricos aplicables.
Este lavaplatos requiere un tomacorriente estándar de 110/120 voltios CA ~ / 60 hz con tres
clavijas.
El cable debe estar asegurado detrás del lavaplatos y no debe dejarse expuesto o colgando para
evitar lesiones accidentales.
Conecte a un sistema de cableado permanente de metal con conexión a tierra: o ejecute un
terminal de conexión a tierra del equipo o metal del aparato.
La conexión incorrecta del conductor de puesta a tierra del equipo puede resultar en un riesgo de
descarga eléctrica. Consulte con un electricista calificado o un representante de servicio si tiene
dudas sobre si el electrodoméstico está correctamente conectado a tierra.
No intente reparar o reemplazar ninguna pieza de su lavaplatos a menos que sea
específicamente recomendado en este manual. Todos los demás servicios deben ser remitidos a
un técnico calificado.
Para minimizar la posibilidad de descarga eléctrica, desconecte este aparato de la fuente de
alimentación antes de intentar cualquier mantenimiento.
Nota: Apagar el lavaplatos no desconecta el aparato de la fuente de alimentación.
Recomendamos que un técnico calificado repare su aparato.
~
Advertencia
~
El uso inadecuado del enchufe con conexión a tierra puede resultar en riesgo de descarga
eléctrica. Si el cable de alimentación está dañado, haga que lo reemplace un centro de
servicio autorizado de Avanti Products.
Consulte con un electricista calificado o un representante de servicio si tiene dudas sobre si el
electrodoméstico está correctamente conectado a tierra. No modifique el enchufe provisto con
el electrodoméstico; si no encaja en el tomacorriente, haga que un electricista calificado
instale un tomacorriente adecuado.
