Avanti FF998W User manual


2
TABLE OF CONTENTS
Refrigerator Safety 3
Important Safeguides 4
Help Us Help You 5

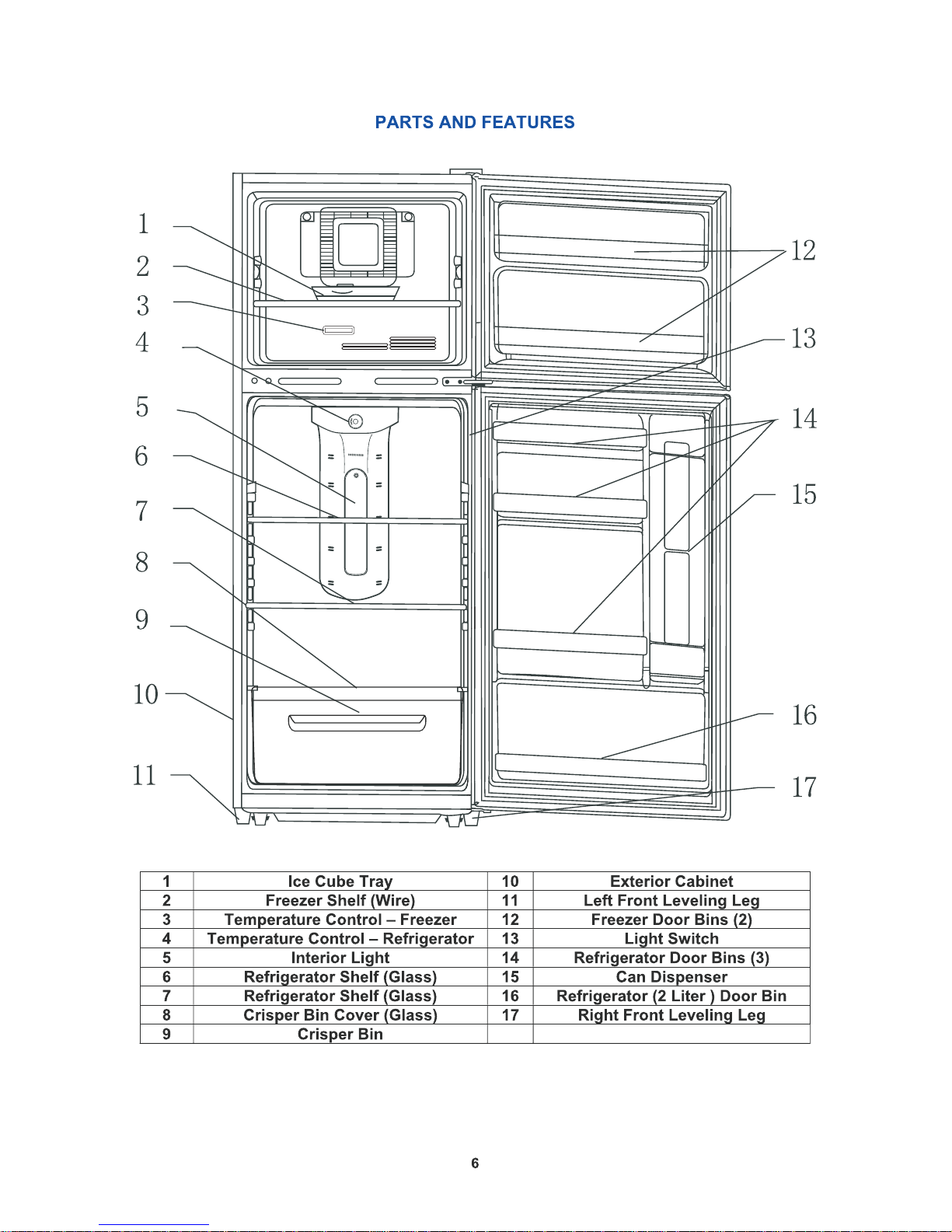

Parts and Features 6

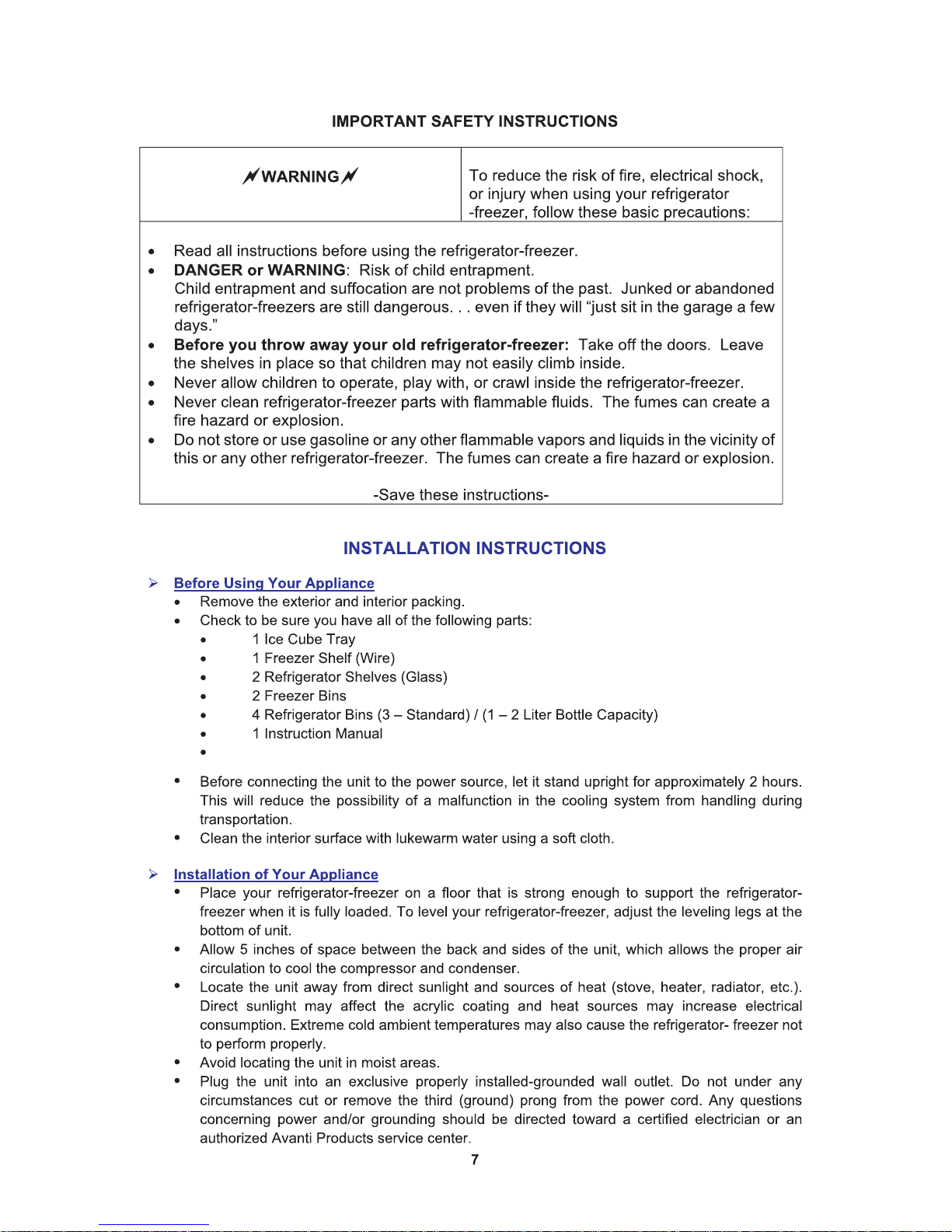

Important Safety Instructions 7
Installation Instructions 7
Before Using Your Appliance 7
Installation of Your Appliance 7
Electrical Connection 8
Reversing the Door Swing of Your Appliance 8
Operating Your Appliance 9
Temperature Control 9
Using Your Ice Cube Trays 9
Care and Maintenance 10
Cleaning Your Appliance 10
Moving Your Appliance 10
Energy Saving Tips 11
Changing the Light Bulb 11
Troubleshooting Guide 12
Service for Your Appliance 13
Wiring Diagram 13
Your Avanti Products Warranty 14

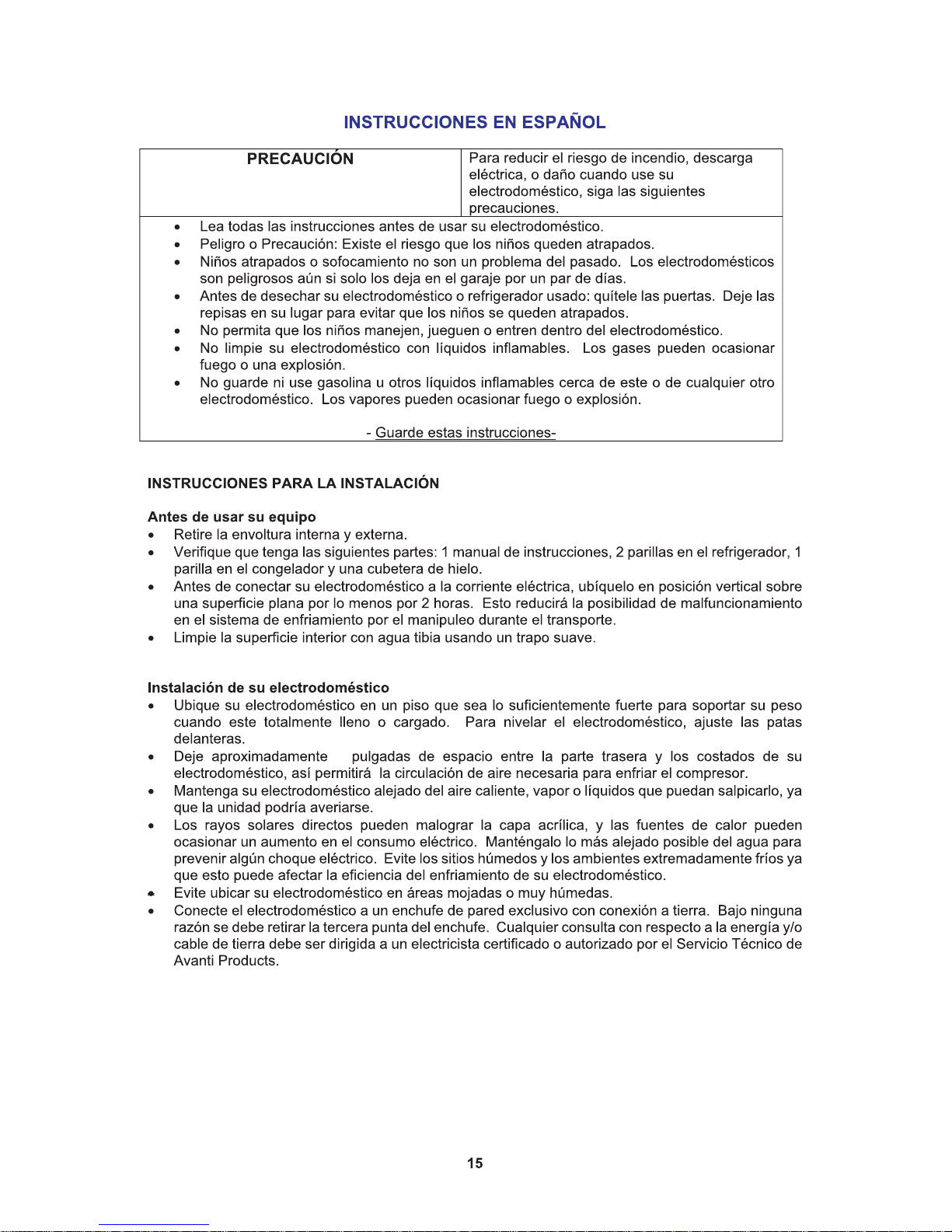

Instrucciones en Español 15-18
Registration Information and Registration Card 19

3
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read and
obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words ” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this safety
statement may result in severe personal
injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.

4
IMPORTANT SAFEGUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precautions,
including the following:
xPlug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
xIt is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
xNever clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
xBefore proceeding with cleaning and maintenance operations, make sure the power line of the unit
is disconnected.
xDo not connect or disconnect the electric plug when your hands are wet.
xUnplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
xDo not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
xUse two or more people to move and install refrigerator. Failure to do so can result in back or other
injury.
xTo ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F
(32°C). This unit must be installed in an area protected from the element, such as wind, rain, water
spray or drips.
xThe refrigerator should not be located next to ovens, grills or other sources of high heat.
xThe refrigerator must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
xDo not kink or pinch the power supply cord of refrigerator.
xThe fuse (or circuit breaker) size should be 15 amperes.
xIt is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
xAll installation must be in accordance with local plumbing code requirements.
xMake certain that the pipes are not pinched or kinked or damaged during installation.
xCheck for leaks after connection.
xNever allow children to operate, play with or crawl inside the refrigerator.
xIf you use the drainage container, you must set the drain select switch to OFF or the water can
overflow from the drainage container
xAlthough the unit has been tested at the factory, due to long-term transit and storage, the first batch
of ice cubes must be discarded.
xDo not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
xDo not use this apparatus for anything other than its intended purpose.

5
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new refrigerator-freezer properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You will find them upper right hand corner of
the outer wall on the right hand side of the unit.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your
refrigerator-freezer.
If you received a damaged refrigerator-freezer,
immediately contact the dealer (or builder) that
sold you the refrigerator-freezer.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
refrigerator-freezer. Explain why you are not
satisfied. In most cases, this will solve the
problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172
CAUTION:
THIS REFRIGERATOR-FREEZER
IS NOT DESIGNED FOR THE
STORAGE OF MEDICINE OR
OTHER MEDICAL PRODUCTS.


1 Crisper Drawer with Glass Lid

8
¾ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to
have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
¾EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least
10 amperes.
¾SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages;
it is suggested that you use a power surge protector for all electrical devices / appliances you use. The
surge protector that you select must have a surge block high enough to protect the appliance it is
connected to. If you have any questions regarding the type and size of surge protector needed contact
a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
¾Reversing the Door Swing of Your Appliance
This refrigerator-freezer has the capability of the door opening from either the left or right side. The unit
is delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
a
Warning
a
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.


10
¾Freezing Fresh Foods
xProper use of the appliance, adequately packed food, correct temperature and taking into account
hygienic precautions will substantially influence the quality of freezing the food or storing of the
frozen foods.
xThis compartment is designed for the long-term storage of frozen food.
xThe storage life of frozen foods varies and the recommended storage time should not be exceeded.
xPre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturer’s instructions for a three star frozen food storage compartment or home freezer.
xPlace frozen food into the freezer as quickly as possible after purchase. If there are instructions on
the packet, carefully follow these instructions regarding storage times.
xCarefully select food you intend to freeze, it should be of adequate quality and suitable for freezing.
xUse correct packaging and wrap it tight.
xThe packaging should be airtight and shouldn’t leak since this could cause substantial vitamin loss
and dehydration of foods.
xFoils and bags should be soft enough to tightly wrap around the foods.
xWhen preparing foods to be frozen, consider sanitary precautions.
xMark packages with following data: kind and amount of foods and the date of loading.
xIt is extremely important that the food is frozen as quickly as possible.
xIf the loading amount is too large, the quality of freezing is reduced which affects the quality of
frozen foods.
CARE AND MAINTENANCE
¾Cleaning Your Appliance
xTurn the temperature control to "OFF", unplug the unit, and remove the food and baskets.
xWash the inside with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
xWash the baskets with a mild detergent solution.
xThe outside of the unit should be cleaned with mild detergent and warm water.
xTo ensure the highest level of performance and efficiency periodic cleaning of the exterior fans and
or condenser coils is required to prevent the accumulation of dust, dirt, pet hairs, grease or other
foreign objects. Exterior fans that become clogged with foreign objects can result in the malfunction
of and/or damage to the cooling system of your unit.
xUsing a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille,
surface area of the condenser coils, as well as the fan intake and output vents.
CAUTION
Failure to unplug the refrigerator-freezer could result in electrical shock or personal injury.
¾Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
refrigerator-freezer if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your food.
¾Vacation Time
Short vacations: Leave the unit operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all food and unplug the
power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly: blocking it open if necessary

11
¾Moving Your Appliance
xRemove all the food.
xSecurely tape down all loose items inside your unit.
xTurn the leveling screws up to the base to avoid damage.
xTape the door shut.
xBe sure the unit stays in the upright position during transportation.
¾Energy Saving Tips
xThe unit should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of direct sunlight.
xLet hot foods cool to room temperature before placing them in the unit. Overloading the unit forces
the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
xBe sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the freezer.
xOrganize and label food to reduce door openings and extended searches. Remove as many items
as needed at one time, and close the door as soon as possible.
¾Replacing Your Light Bulb
NOTE:
All parts removed must be saved to do the replacement of the light bulb.
Before removing the light bulb, either turn off the appliance or disconnect the electricity leading into
the appliance at the main power supply. Failure to do so could result in electrical shock or personal
injury.
xUnplug the AC power cord from the wall.
xRemove the screw with a Phillips screwdriver.
xRemove the lamp cover.
xUnscrew the bulb.
xReplace with a 10-watt bulb that is the same shape and size.
xReplace the lamp cover and tighten screw

12
PROBLEMS WITH YOUR APPLIANCE?
You can solve many common refrigerator-freezer problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling for service.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Unit does not operate or cool. Not plugged in.
The circuit breaker tripped or there is a blown fuse.
The temperature control is set at "OFF".
Compressor turns on and off frequently. The room temperature is hotter than normal.
A large amount of food has been added to the
refrigerator - freezer.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator -freezer does not have the correct
clearances.
Vibrations. Check to assure that the refrigerator - freezer is
level.
The unit seems to make too much noise. The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
refrigerator - freezer.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The unit is not level.
The door will not close properly. The unit is not level.
The door is reversed and not properly installed.
The gasket is dirty.
The baskets are out of position.


14
YOUR AVANTI PRODUCTS
WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of purchase by the
original owner, Avanti Products will, at its
option, repair or replace any part of the
refrigerator - freezer which proves to be
defective in material or workmanship under
normal use. During this period Avanti
Products will provide all parts and labor
necessary to correct such defects free of
charge, so long as the refrigerator - freezer
has been installed and operated in
accordance with the written instructions in
this manual. Avanti Products will provide you
with a reasonably similar replacement
product that is either new or factory
refurbished. In rental or commercial use, the
warranty period is 90 days. All Avanti
appliances of 3.5 cubic feet capacity or less
must be brought/sent to the appliance service
shop for repair.
xLosses of food due to spoilage.
xIncidental or consequential damages.
xParts and labor costs for the following will
not be considered as warranty:
xEvaporator doors, door springs, and/or
frames.
xInner door panels, door shelves, door rails,
and/or door supports.
xChest freezer lid liners.
xVegetable crispers.
xLight bulbs and/or plastic housing.
xPlastic cabinet liners.
xPunctured evaporator that voids the
warranty on the complete sealed system.
xShipping and handling costs associated
with the replacement of the unit.
xRepairs performed by unauthorized
servicers.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible for
the service labor and freight charges. In rental
or commercial use, the limited compressor
warranty is one year and nine months. Cost to
move the refrigerator - freezer to the servicer’s
shop and back to the user's home, as may be
required, is the user's responsibility.
xService calls that do not involve defects in
material or workmanship such as customer
education, door reversal, or proper
installation.
xService calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents, fire,
floods, or acts of God.
xSurcharges including, but not limited to,
any after hour, weekend, or holiday service
calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas
including the State of Alaska.
xReplacement of house fuses or resetting
circuit breakers.
xFailure of the product if it is used for other
than its intended purpose.
xThis warranty does not apply outside the
Continental U.S.A.
WHAT IS NOT COVERED

5

Después muévalos hacia la posición “3”.

17
Las posiciones en ambos controles funcionan de la siguiente manera:
En el compartimiento del refrigerador,
La posición “1” Menos Frío/ La posición “MAX” más Frío
En el compartimiento del congelador,
La posición “MIN” Menos Frío/ La posición “MAX” más Frío
Una vez transcurrida 24 ó 48 horas, Usted deber reajustar los controles en ambos compartimientos
hacia temperaturas apropiadas a sus necesidades.
USO DE LA CUBETERA DE HIELO
xLlene la bandeja de cubitos de hielo con agua hasta el nivel señalado (¾ de la altura) y colóquela
en el espacio designado.
xAsegúrese que la cubetera de guardar los cubitos de hielo esté situada debajo de la bandeja.
xEspere a que se formen los cubitos de hielos.
Nota: Para obtener hielos se recomienda que Ud. espere una hora como mínimo en la posición del
congelador en temperatura (MAX).
CUIDADOS EN LOS PERIODOS DE AUSENCIA
xPara cortos períodos de ausencia (menos de 21 días) el congelador podrá quedar funcionando.
Coloque el botón de control de temperaturas en la posición mínima.
xEn períodos de ausencia más largos, se aconseja dejar el refrigerador limpio y desconectado.
xRetire todo lo que tenga adentro del refrigerador y haga el deshielo y la limpieza general. También
retire las cubeteras, limpie bien y séquelas internamente.
xDeje la puerta entreabierta para penetre el aire y así evitar la formación de olores.
Compartimiento de su congelador
xEste compartimiento está diseñado para un período largo (3 meses) de almacenamiento de
alimentos congelados.
xEl tiempo de almacenamiento de los alimentos congelados varía y se recomienda almacenarlos
solamente mientras esté vigente la fecha de expiración.
xAlimentos congelados preenvasados comercialmente deben ser almacenados de acuerdo con las
indicaciones de su fabricante.
xColoque los alimentos congelados dentro de su electrodoméstico inmediatamente después de
comprarlos. Si hay indicaciones en el envase, sígalas cuidadosamente considerando el tiempo de
almacenamiento.
CUIDADO Y MANTENIMIENTO
Limpiando su electrodoméstico
xGire el control de temperatura a “OFF”, desconecte el electrodoméstico y retire los alimentos.
xLave el interior con agua tibia y un trapo suave remojado en una solución de Bicarbonato de Sodio.
La solución consiste en 2 cucharadas del referido compuesto químico y un litro de agua.
xLave la canasta de almacenaje con un detergente suave.
xLas partes externas de su electrodoméstico deben ser limpiadas con un detergente suave y agua
tibia.
ADVERTENCIA
Asegúrese de desconectar el electrodoméstico de la corriente eléctrica. Si no lo hace, puede
ocasionar un choque eléctrico o herirse.
Si falla el suministro eléctrico
Usualmente la electricidad regresa en unas pocas horas sin afectar la temperatura de su
electrodoméstico, siempre que la puerta no se abra muy frecuentemente. Si le va a faltar electricidad
por un período de tiempo más largo, usted debe tomar los pasos apropiados para proteger sus
alimentos.

1. Usando un destornillador, remueva el tornillo (Phillips).

19
Registration Information
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following
address within 100 days from the date of purchase and receive these important benefits:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
¾Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help
you refer to this information in the event of an insurance claim such as fire or theft.
¾Promote better products:
We value your input. Your responses will help us develop products designed to best meet your
future needs.
-----------------------------------------------------(detach here)----------------------------------------------------------
Avanti Registration Form
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ƶOwn ƶRent
Did You Purchase An Additional Warranty: Your Age:
ƶExtended ƶFood Loss ƶNone ƶunder 18 ƶ18-25 ƶ26-30
Reason For Choosing This Avanti Product: ƶ31-35 ƶ36-50 ƶover 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ƶMarried ƶSingle
this product. Is This Product Used In The:
ƶPrice ƶHome ƶBusiness
ƶProduct Features How Did You Learn About This Product:
ƶAvanti Reputation ƶAdvertising ƶPersonal Demo
ƶProduct Quality ƶIn Store Demo
ƶSalesperson Recommendation ƶOther______________________________
ƶFriend/Relative Recommendation Comments____________________________
ƶWarranty _____________________________________
ƶOther_______________________ _____________________________________

20
PRINTED IN CHINA
This manual suits for next models
1
Table of contents
Other Avanti Refrigerator manuals

Avanti
Avanti FF8WR User manual

Avanti
Avanti BCA3190W User manual

Avanti
Avanti RM1730W User manual

Avanti
Avanti 322YW User manual

Avanti
Avanti BCA57SSR User manual

Avanti
Avanti FF116B0W User manual

Avanti
Avanti FF10B0W User manual

Avanti
Avanti FF7B1B User manual

Avanti
Avanti 248YW User manual

Avanti
Avanti RA730B0W User manual

Avanti
Avanti BCA184BG User manual

Avanti
Avanti CBC112Q0WG User manual

Avanti
Avanti RM4401W User manual

Avanti
Avanti RM3361B User manual

Avanti
Avanti BCA4560W-2 User manual

Avanti
Avanti RA10X0W-IS User manual

Avanti
Avanti RM17T0W User manual

Avanti
Avanti FF100 User manual

Avanti
Avanti AR52T3SB User manual

Avanti
Avanti SHP1701B User manual
