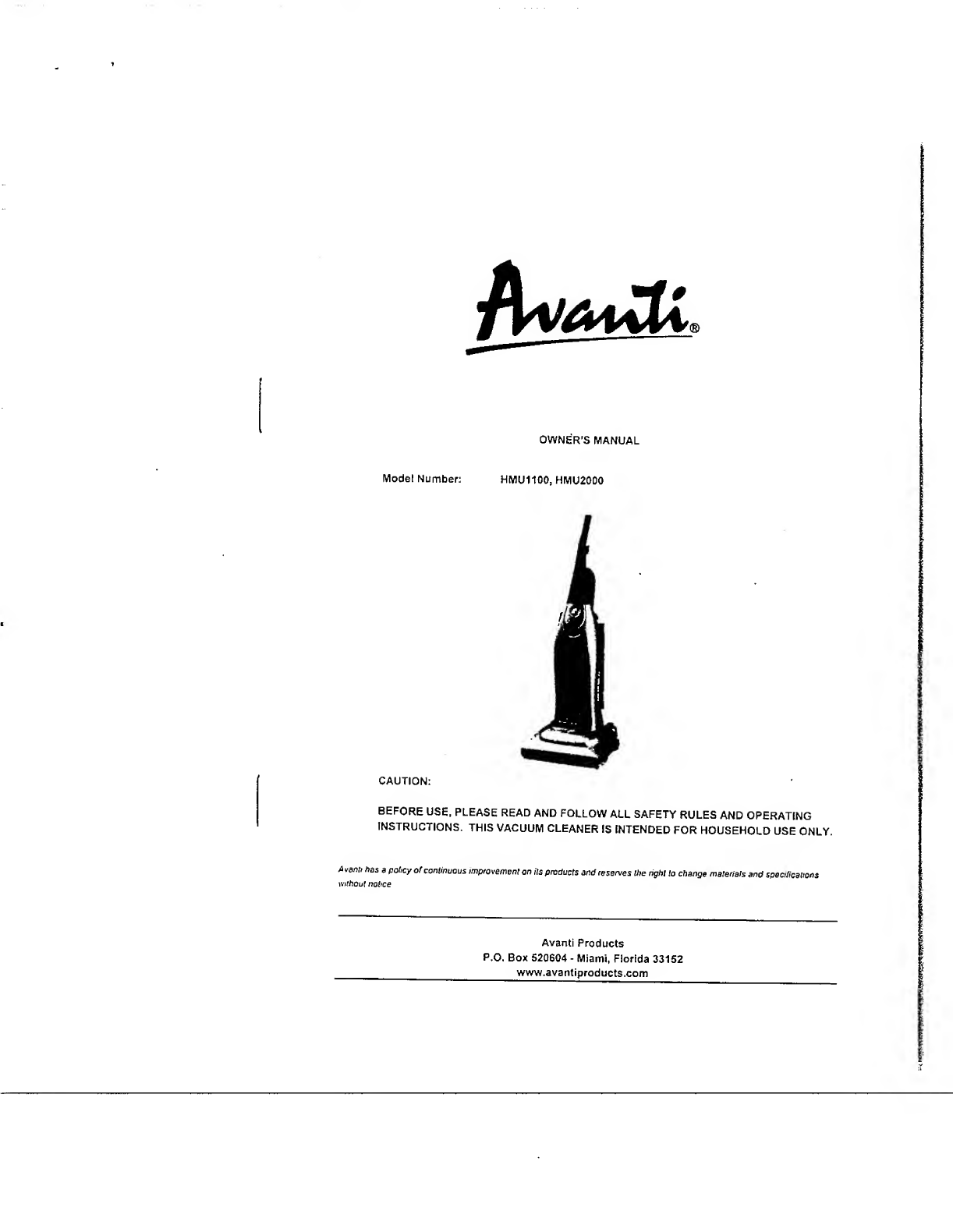

Avanti HMU1100 User manual

OWNER’S MANUAL
Model Number: HMU1100, HMU2000
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS. THIS VACUUM CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice
Avanti Products
P.O. Box 520604 - Miami, Florida 33152
_www.avantiproducts.com

Registration Information
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days
of purchase and receive these
important benefits:
> Protect your product:
We wilt keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
> Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
-(detach here)-
Avanti Registration Card
Name Model # Serial #
Address Date Purchased Store/Dealer Name
City State Zip
Area Code Phone Number
Di d You Purchase An Additional Warranty:
□ Extended 0None
R eason For. Choosing This Avanti Product:
Please indicate the most important factors
that influenced your decision to purchase
this product.
0 Price
0 Product Features
0Avanti Reputation
0Product Quality
0Salesperson Recommendation
0 Friend/Relative Recommendation
0 Warranty
QOther_
Occupation
As_Your Primary Residence. Do You:
0Own ©Rent
Your Age:
Sunder 18 018-25 026-30
031-35 036-50 0over 50
Marital Status:
0Married ESingle
Is This Product Used In The:
0Home EBusiness
How Did Yqh Learn About Th i s P roduct;
SAdvertising 0Product Features
0ln Store Demo EPersonal Demo
0Other_
Comments_

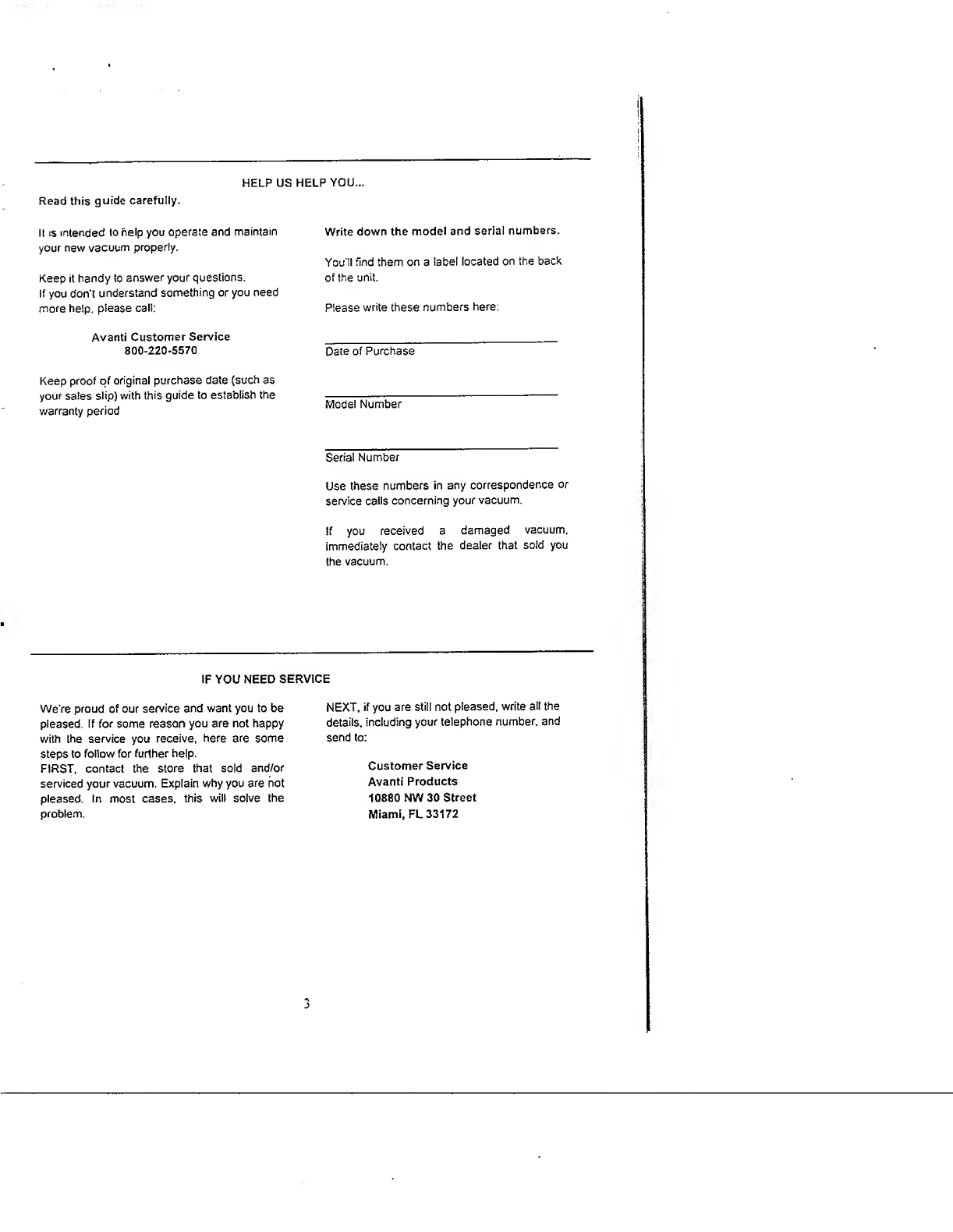

Read this guide carefully.
HELP US HELP YOU...
It is intended to help you operate and maintain
your new vacuum properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more help, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period
Write down the model and serial numbers.
You'll find them on a label located on the back
of the unit.
Please write these numbers here:
Date of Purchase
Model Number
Serial Number
Use these numbers in any correspondence or
service calls concerning your vacuum.
If you received a damaged vacuum,
immediately contact the dealer that sold you
the vacuum.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further help.
FIRST, contact the store that sold and/or
serviced your vacuum. Explain why you are not
pleased. In most cases, this will solve the
problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172

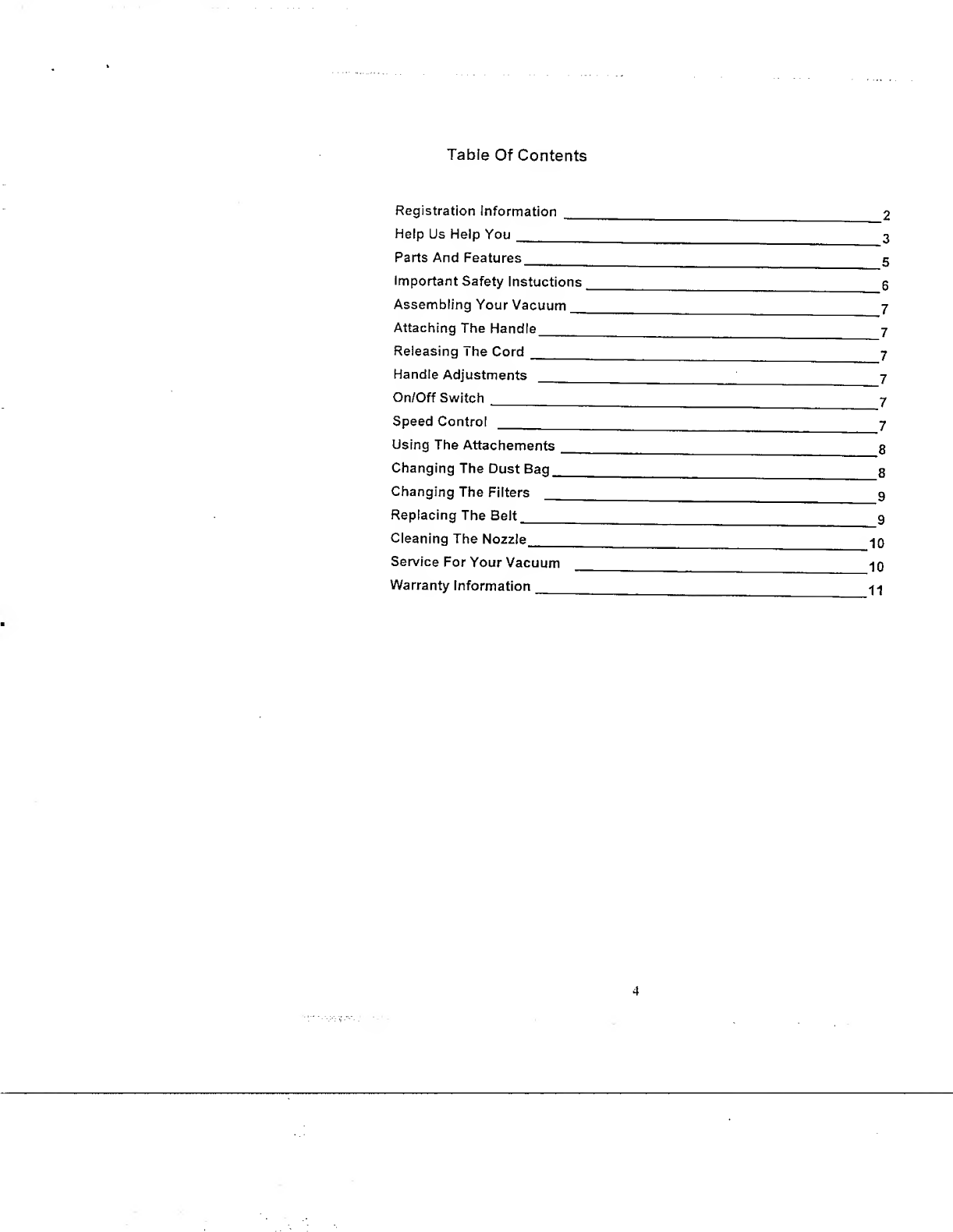

Table Of Contents
Registration information
2
Help Us Help You
3
Parts And Features
5
Important Safety Instuctions
6
Assembling Your Vacuum
7
Attaching The Handle
7
Releasing The Cord
7
Handle Adjustments
7
On/Off Switch
7
Speed Control
7
Using The Attachements
8
Changing The Dust Bag
8
Changing The Filters
9
Replacing The Belt
9

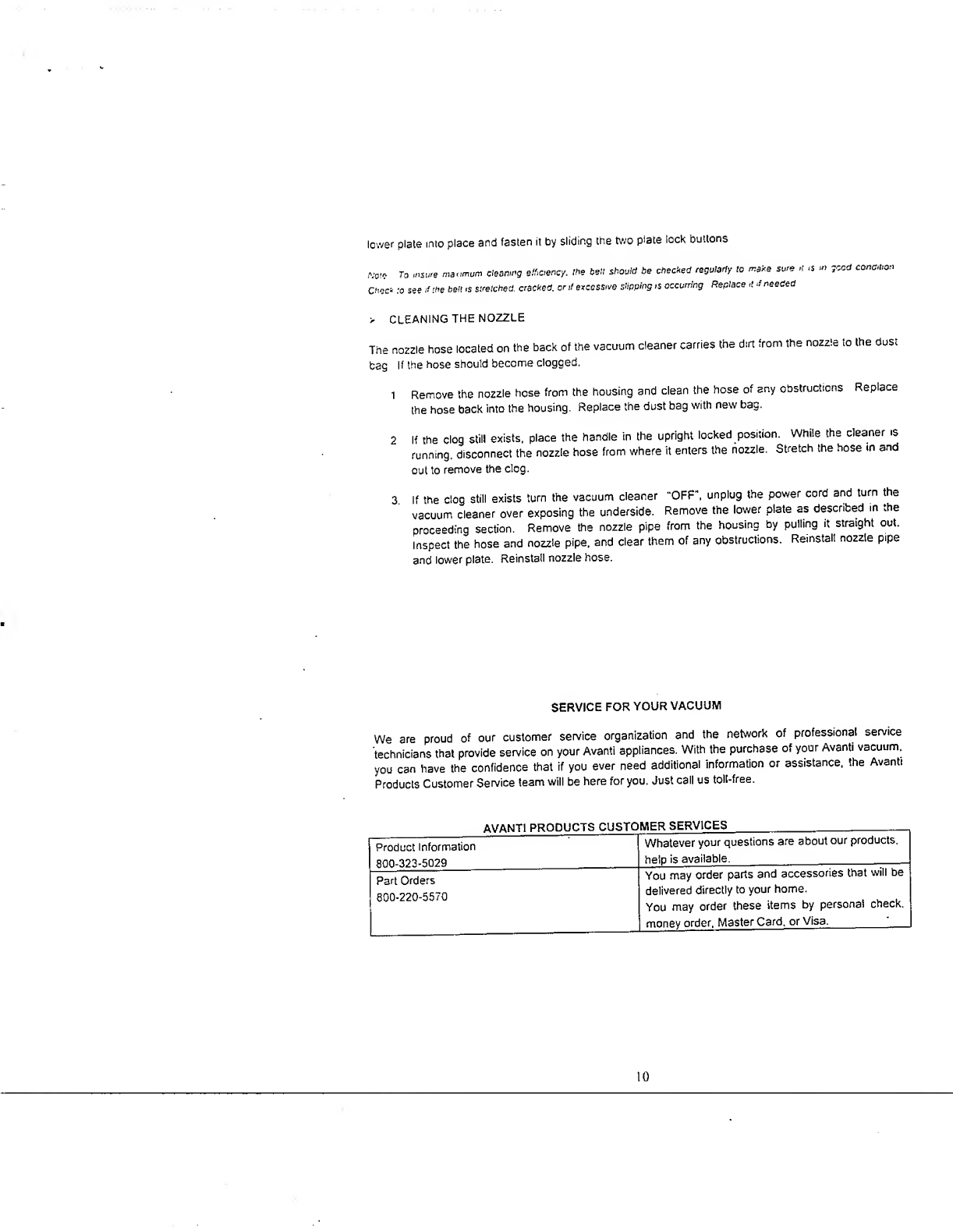

Cleaning The Nozzle
10
Service For Your Vacuum
10

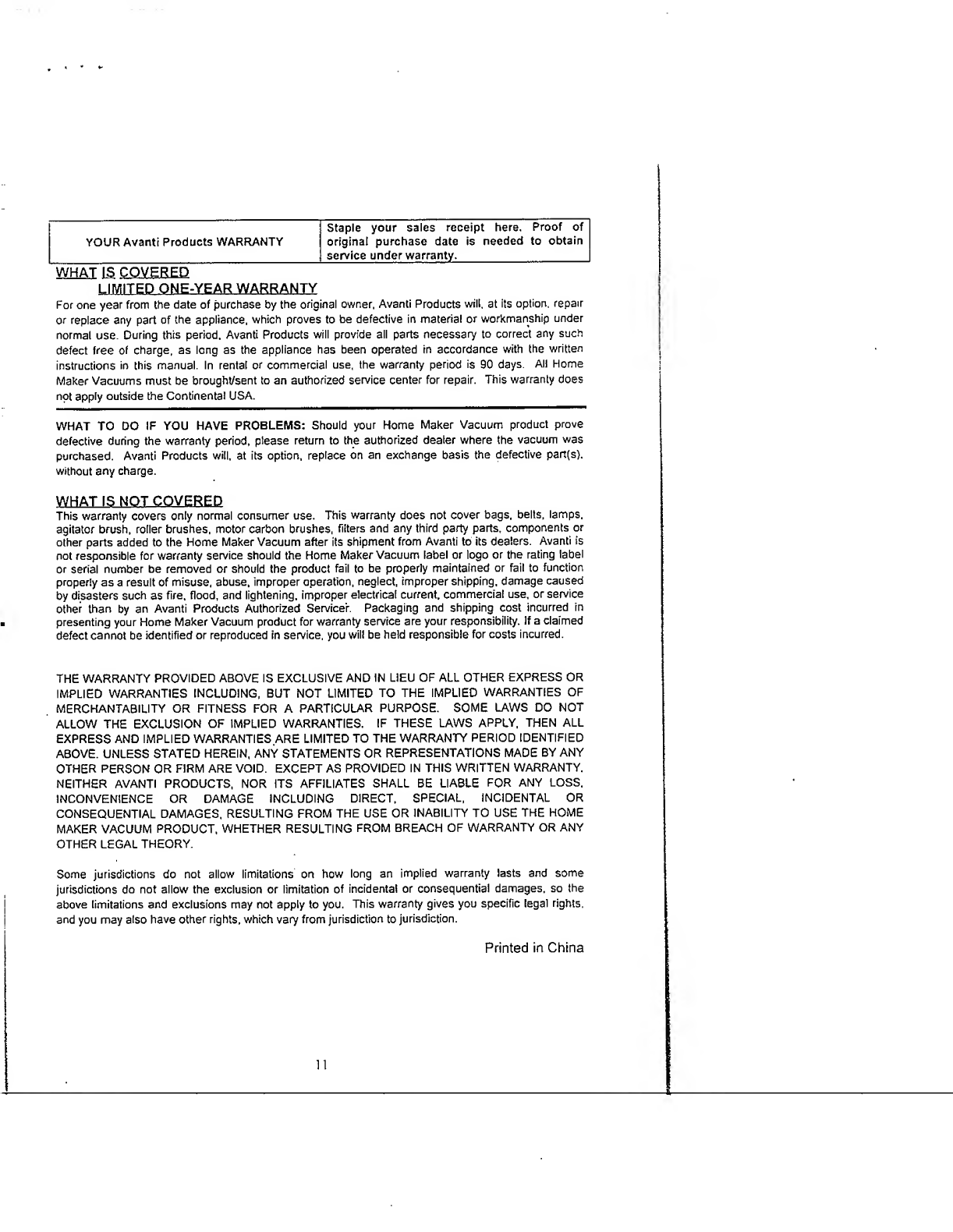

Warranty Information
11
4

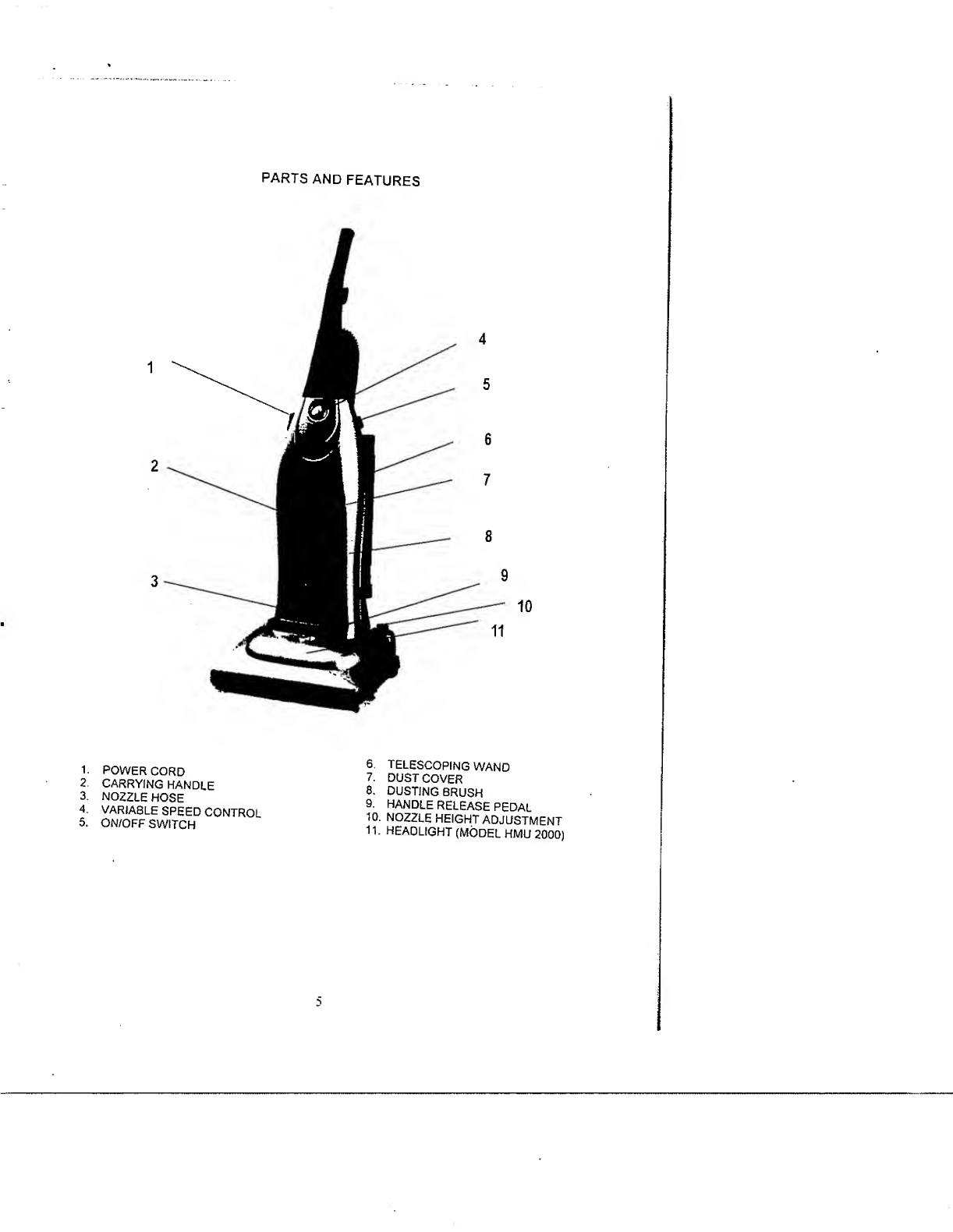

PARTS AND FEATURES
1 .
2 .
3.
4.
5.
POWER CORD
CARRYING HANDLE
NOZZLE HOSE
VARIA8LE SPEED CONTROL
ON/OFF SWITCH
10
6. TELESCOPING WAND
7. DUST COVER
8. DUSTING BRUSH
9. HANDLE RELEASE PEDAL
10. NOZZLE HEIGHT ADJUSTMEN
11. HEADLIGHT (MODEL HMU 200

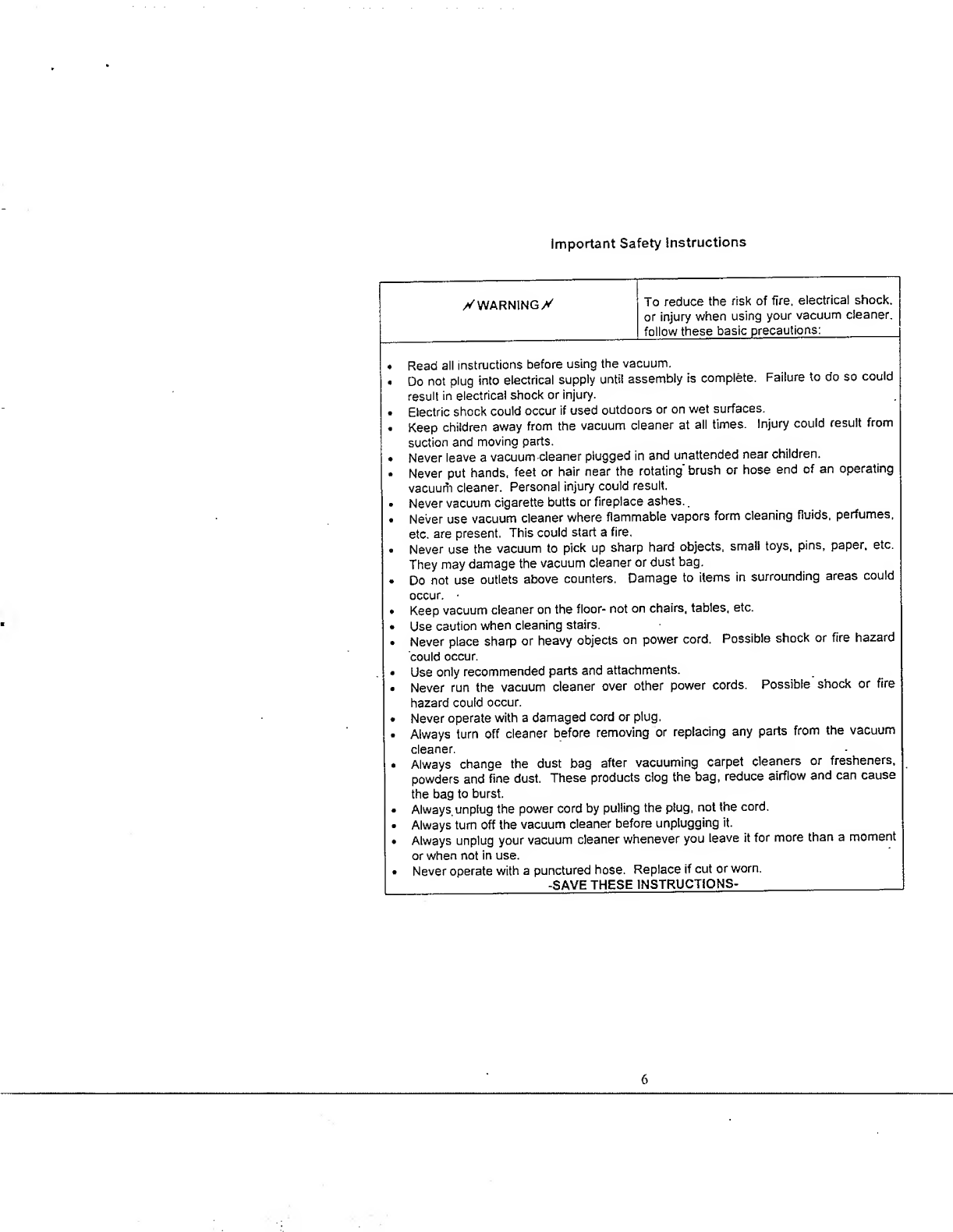

Important Safety Instructions
V WARNING X To reduce the risk of fire, electrical shock.
or injury when using your vacuum cleaner.
follow these basic precautions: _
• Read all instructions before using the vacuum.
, Do not plug into electrical supply until assembly is complete. Failure to do so could
result in electrical shock or injury.
• Electric shock could occur if used outdoors or on wet surfaces.
• Keep children away from the vacuum cleaner at all times. Injury could result from
suction and moving parts.
• Never leave a vacuum cleaner plugged in and unattended near children.
• Never put hands, feet or hair near the rotating brush or hose end of an operating
vacuum cleaner. Personal injury could result.
• Never vacuum cigarette butts or fireplace ashes..
• Never use vacuum cleaner where flammable vapors form cleaning fluids, perfumes,
etc. are present. This could start a fire.
• Never use the vacuum to pick up sharp hard objects, small toys, pins, paper, etc.
They may damage the vacuum cleaner or dust bag.
• Do not use outlets above counters. Damage to items in surrounding areas could
occur.
• Keep vacuum cleaner on the floor- not on chairs, tables, etc.
• Use caution when cleaning stairs.
• Never place sharp or heavy objects on power cord. Possible shock or fire hazard
could occur.
• Use only recommended parts and attachments.
• Never run the vacuum cleaner over other power cords. Possible shock or fire
hazard could occur.
• Never operate with a damaged cord or plug.
• Always turn off cleaner before removing or replacing any parts from the vacuum
cleaner.
• Always change the dust bag after vacuuming carpet cleaners or fresheners,
powders and fine dust. These products clog the bag, reduce airflow and can cause
the bag to burst.
• Always unplug the power cord by pulling the plug, not the cord.
• Always turn off the vacuum cleaner before unplugging it.
• Always unplug your vacuum cleaner whenever you leave it for more than a moment
or when not in use.
• Never operate with a punctured hose. Replace if cut or worn.
-SAVE THESE INSTRUCTIONS- _
6

X Warning/^
Improper use of the power cord can result in the risk of electrical shock. If the power cord
is damaged, have it replaced by an authorized Avanti Products service center.
ASSEMBLING YOUR VACUUM
> ATTACHING THE HANDLE
The vacuum cleaner's main body and handle are packed separately.
1. The handle screws have been installed for shipping purposes. Remove the
screws before inserting handle. Insert the handle as shown in the illustration.
Make sure the On/Off Switch on the handle is. in the Off position before
installing.
2. Insert the screws that you removed. Be sure the screws are tightened but
not overtightened.
3. A special clip is provided on the upper cord storage hook. This is used to
help secure the cord. Always keep the power cord under the clip to keep the
cord from being damaged.
4 Always wrap the cord around the cord storage hooks when storing.
> RELEASING THE CORD
1. The upper cord storage hook has a quick-release action. To release the
cord, rotate the hook downward and complete power cord will drop off the
hook for immediate use.
2. Return the hook to the upright position before attempting to rewind (he cord.
Do not unplug the power cord by pulling on the cord. Grasp the plug head
and pul! to unplug unit.
> HANDLE ADJUSTMENTS
The handle may be set to any position required. Just step on the button as indicated
by the illustration and lower the handle as desired.
1. Upright position. The handle locks in this position for storage. The handle
should always be in an upright position when cleaning tools are used.
2. Middle position. This position is for normal cleaning.
3. Low position. This position is used for cleaning under furniture.
&
y
' !)i
i A jC&
> ' ON/OFF SWITCH
1. To start the vacuum cleaner, push the switch on the body of the vacuum
cleaner to the ON position.
2. To stop the vacuum cleaner, return the switch on the body of the vacuum
cleaner to the OFF position.
> VARIABLE SPEED CONTROL
Plug cord into electrical outlet ensuring the voltage is correct. Switch the power switch to the On
position to turn cleaner on. Adjust the speed control knob to desired suction strength.
> USING THE ATTACHMENTS
7

1. Remove the tower end cf the nozzle hose from the cleaner by
grasping the hose at the base and pulling out.
2 The attached hose extends to make cleaning easier in every
direction.
3 Remove the telescoping wand from its storage position located
on the back of the vacuum. A second wand is located inside the
other wand Pull them apart and insert the opposite end inside
the other
„t.y
,o
&
4 A ttach one end of the extended wand to the nozzle hose and the other end to one of the
accessories.
> CHANGING THE DUST BAG
Always operate the vacuum cleaner with a genuine Home Maker type P8U20 dust bag installed
Home Maker dust bags may be ordered through any authorized Avanti dealer.
1 Puit outward on the dust cover grip located on the bottom front of the dust cover and remove
the cover. .
2. To remove the dust bag, grasp the cardboard portion of the dust bag and simple pull it out
3 Spread out the end of the new dust bag. Be careful not to tear the bag.
4. Attach the new dust bag onto the bag holder by holding the bag collar and pushing back as
illustrated.
5. The dust bag must be completely installed inside of the dust compartment for proper
operation. The dust bag should not be caught between the lower edge of the dust cover and
the rubber gasket as indicated by the arrow in the illustration.
6. Reinsert the tab located on the end of the dust cover into the groove on the dust compartment
and press the cover into place. The dust cover must be completely and correctly installed for
proper operation.
> CHANGING THE FILTERS
A secondary filter protects the motor from dirt. Before installing a new dust bag. check the filter.
8

Accumulated dirt in the dust compartment will collect on this filter and may restrict motor performance
When the filter becomes dirty, pull it from the bottom of the dust compartment and clean when
finished slide the filter back into place. It should be fully inserted under the plastic rib projections all
the way to the rear compartment wall. Put cassette with filter back in vacuum.
Mode! HMU1100
The electrostatic exhaust filter is located in a cassette inside the dust compartment body The
purpose of this filter is to remove dust and dirt from the re-circulated air. It is capable of filtering
very fine dirt particles This filter cannot be cleaned and should be replaced at least once per year
if the cleaner is used at least one hour per week.
Mode! HMU2000
The hepatype exhaust filter is located in a cassette inside the dust compartment body The
purpose of this filter is to remove dust and dirt from the re-circulated air. It is capable of filtering
very fine dirt particles. This filter cannot be cleaned and should be replaced at least once per year
if the cleaner is used at least one hour per week.
> TO ADJUST CARPET HEIGHT
Your Home Maker Upright Vacuum cleaner is designed with a low to high adjusting rug nozzle. The
height of the rug nozzle can be lowered or raised to any carpet pile height. This adjusting feature
allows the rug nozzle to float evenly over all carpet pile surfaces.
> REPLACING THE BELT
Before replacing any parts, disconnect the vacuum cleaner from the electrical outlet.
To replace the drive belt, place the handle in the low position. Then turn the vacuum cleaner over,
exposing the underside. Release the lower plate by sliding the two plate lock buttons that hold the
lower plate on. Then remove the lower plate.
Turn the unit over, remove the lower plate as described in the preceding section. Remove the top left
packing and take out the agitator assembly (just lift out), and remove the worn or broken belt from the
agitator pulley and motor drive shaft. Loop the new belt around the motor drive shaft and then loop it
around the agitator pulley. Use only a Home Maker type BU3 drive belt.
Reinstall the agitator assembly back into the housing grooves. After installing agitator turn it by hand
making sure the belt is not twisted and all rotating parts turn freely. Replace the felt packing. Use
replacement genuine belts BU3.
To Reinstall Lower Plate
Hook the front end of lower plate under the three ribs at the front end of the housing. Then, press the
9

lower plate into place and fasten it by sliding the two plate lock buttons
wo* To insure ma tmum clean, ng efficiency Hie bell should be checked regularly to make sure ,r -s « iced common
Cnee* to see ,(the belt <s stretched, cracked, or it excessive slipping >$ occurring Replace if needed
> CLEANING THE NOZZLE
The nozzle hose located on the back of the vacuum cleaner carries the din from the nozzle to the dust
bag If the hose should become clogged;
1 Remove the nozzle hose from the housing and clean the hose of any obstructions Replace
the hose back into the housing. Replace the dust bag with new bag.
2 If the clog still exists, place the handle in the upright locked position. While the cleaner is
running, disconnect the nozzle hose from where it enters the nozzle. Stretch the hose in and
out to remove the clog.
3. if the clog still exists turn the vacuum cleaner '‘OFF", unplug the power cord and turn the
vacuum cleaner over exposing the underside. Remove the lower plate as described in the
proceeding section. Remove the nozzle pipe from the housing by pulling it straight out
Inspect the hose and nozzle pipe, and clear them of any obstructions. Reinstall nozzle pipe
and lower plate. Reinstall nozzle hose.
SERVICE FOR YOUR VACUUM
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti vacuum,
you can have the confidence that if you ever need additional information or assistance, the Avanti
Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about our products,
heio is available.
Part Orders
800-220-5570
You may order parts and accessories that will be
delivered directly to your home.
You may order these items by personal check,
money order, Master Card, or Visa
10

YOUR Avanti Products WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.___
WHAT IS
LIMITED ONE-YEAR WARRANTY
For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair
or replace any part of the appliance, which proves to be defective in material or workmanship under
normal use. During this period. Avanti Products will provide all parts necessary to correct any such
defect free of charge, as tong as the appliance has been operated in accordance with the written
instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Home
Maker Vacuums must be brought/sent to an authorized service center for repair. This warranty does
not apply outside the Continental USA.
WHAT TO DO IF YOU HAVE PROBLEMS: Should your Home Maker Vacuum product prove
defective during the warranty period, please return to the authorized dealer where the vacuum was
purchased. Avanti Products will, at its option, replace on an exchange basis the defective part(s).
without any charge.
WHAT IS NOT COVERED
This warranty covers only normal consumer use. This warranty does not cover bags, belts, lamps,
agitator brush, roller brushes, motor carbon brushes, filters and any third party parts, components or
other parts added to the Home Maker Vacuum after its shipment from Avanti to its dealers. Avanti is
not responsible for warranty service should the Home Maker Vacuum label or logo or the rating label
or serial number be removed or should the product fail to be properly maintained or fail to function
properly as a result of misuse, abuse, improper operation, neglect, improper shipping, damage caused
by disasters such as fire, flood, and lightening, improper electrical current, commercial use, or service
other than by an Avanti Products Authorized Servicer. Packaging and shipping cost incurred in
presenting your Home Maker Vacuum product for warranty sen/ice are your responsibility. If a claimed
defect cannot be identified or reproduced in service, you will be held responsible for costs incurred.
THE WARRANTY PROVIDED ABOVE IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR
IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT
ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY. THEN ALL
EXPRESS AND IMPLIED WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED
ABOVE. UNLESS STATED HEREIN. ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY
OTHER PERSON OR FIRM ARE VOID. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY.
NEITHER AVANTI PRODUCTS, NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS.
INCONVENIENCE OR DAMAGE INCLUDING DIRECT. SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE HOME
MAKER VACUUM PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY
OTHER LEGAL THEORY.
Some jurisdictions do not allow limitations on how long an implied warranty lasts and some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations and exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights, which vary from jurisdiction to jurisdiction.
Printed in China
!
i
11
