Avantree OTHR-DAC02 User manual

Digital to Analog Audio Converter
OTHR-DAC02
User Manual
Product Overview
Power On
Cable Connection
TV Setting
Troubleshooting
1
1
2
4
4
·············································································································
·······························································································································
·······························································································································
················································································································
·············································································································
Optical
Input Output
DC IN Coaxial R L

1. Connect the input port to a power source (TV USB socket or power adapter) with a micro USB cable.
Product Overview
1
Power On
Coaxial IN
Optical IN
RCA OUT
AUX OUT
Coaxial
Optical
Input Output
DC IN Coaxial R L
Optical
ON
+
-
OFF
Volume VOL
ON/OFF
USB cable

2. Slide the power switch to the “ON” position - the power indicator should turn green.
1. Connect the Coaxial input port or the Optical input port on the DAC02 to your audio source’s output with the
corresponding cable.Use the input selector switch to choose the input type (coaxial or optical) .
Use with Coaxial cable
Use with Optical cable
2
Cable Connection
Coaxial
Optical
Coaxial
Optical
ON
+
-
OFF
Volume VOL
ON/OFF
USB cable
Coaxial source (DVD player or TV)
Coaxial cable
(not included)
DVD
Optical
output
USB cable
CoaxialOptical
AUX Output
CoaxialOptical
AUX Output

2. Connect your speaker/headphones to either the RCA or AUX Output port using an RCA/3.5mm audio cable
(Not Included).
Connect to headphones with AUX port
Connect to speaker with RCA port
Notes: The DAC02 can simultaneously support2 active output ports (for example to use a speaker and a headphone
at the same time). Adjust volume using the volume knob.
3
ON
+
-
OFF
Volume VOL
+
-
VOL
RCA cable
AUDIO
IN
AUDIO
IN
(not included)
3.5 mm audio cable
(not included)

4

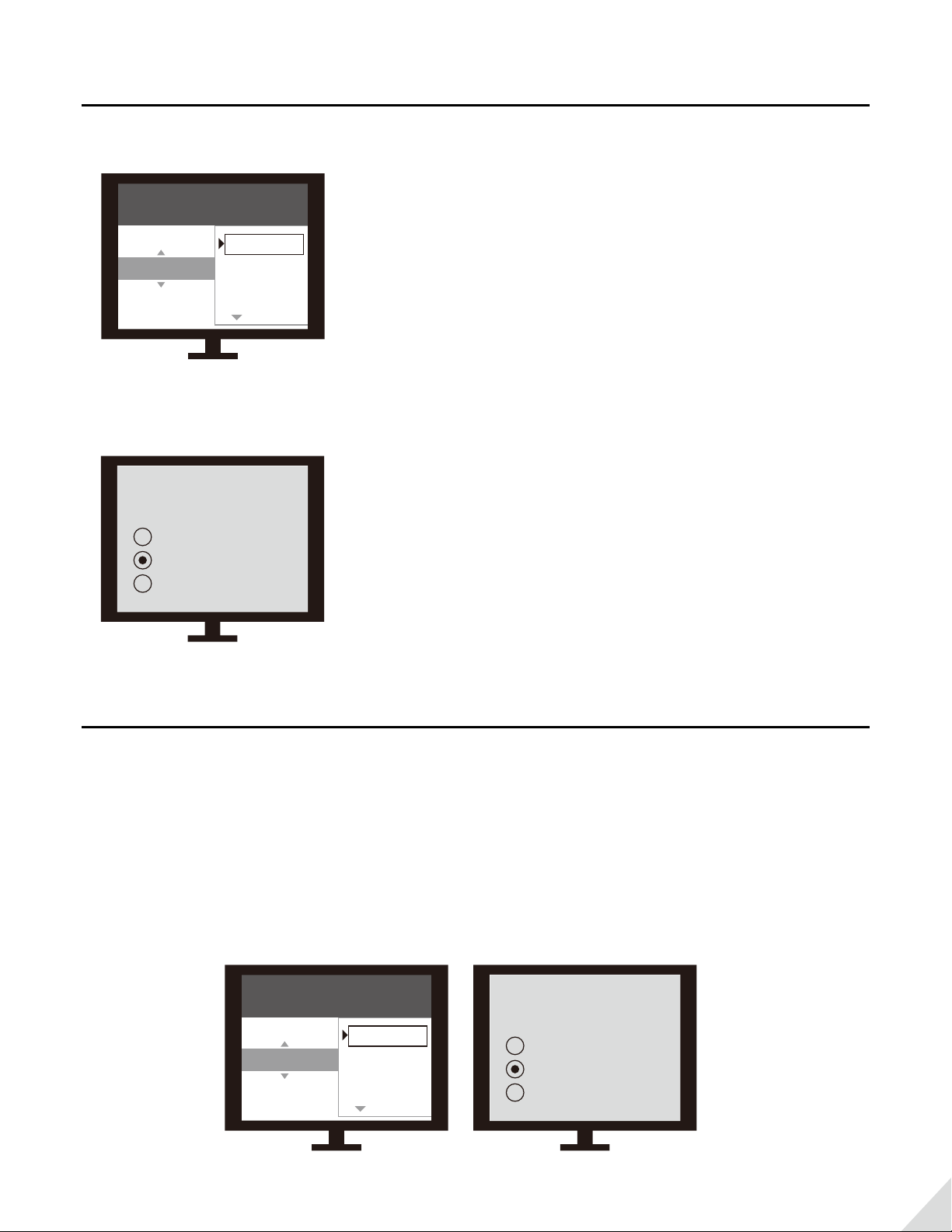

TV Setting
1. Change your TV audio format to "PCM" or "LPCM"
Troubleshooting
There’s no sound? It’s not working?
Please check the following:
1. This item doesn’t support compressed digital audio formats like Dolby or DTS, please set your TV/Blu-Ray/DVD/
CD player’s audio format to “PCM/LPCM”.
E.g. Settings | Options | Menu > Sound > Audio Format (menu depends on TV brand/model)
2. Change your TV’s audio OUTPUT setting from TV speaker to "External Speaker" or "External Speaker (optical)".
E.g. Settings | Menu | Option > Sound > Speakers > External Speaker / External Speaker (optical) (menu depends on
TV brand/model).
2. Make sure your TV audio OUTPUT setting is changed from TV speaker to "External Speaker" or "External Speaker
(optical)".
Settings
Audio Format
PCM
Dolby Digital
DTS
DTS Neo 2:5
Speakers
Internal speaker
External speaker
Headset
Speakers
Internal speaker
External speaker
Headset
Settings
Audio Format
PCM
Dolby Digital
DTS
DTS Neo 2:5

5
3. Ensure the correct input type is selected. Slide input selection switch on DAC02 to “optical” or”coaxial”.
4. The power indicator of DAC02 should be ON. If not, check that the DAC02 is connected to a USB power source and
slide the power switch to the “ON”position.
CoaxialOptical
AUX Output
ON
+
-
OFF
Volume VOL
+
-
VOL
