Introduction
Overview
This product is an HDMI 2.0 audio extractor with resolutions up to 4K@60Hz
(Chroma sub-sampling 4:4:4 8bit) and HDCP 2.2. Its digital or analog audio
output allows audio to be de-embedded from HDMI input and sent to audio
distribution system, such as AVR or Amplifier. Third-gear slide switch for audio
setting in EDID has 3 EDID (pass-through, 2.0 CH and 5.1 CH) presets for EDID
management.
By auto-detecting input signal status, it could automatically trigger CEC
command to turn on or off TV with CEC support. It can be used in any AV
application, such as homes, offices, digital entertainment centers, control
centers, conference rooms, schools and corporate training environments which
need HDMI audio extraction.
Features
HDMI 2.0 up to 4K@60Hz 4:4:4 8bit.
HDCP 2.2 compliant.
HDMI audio de-embedded out with S/PDIF (Toslink) and L/R audio (RCA).
Compact appearance, and easy to install.
Third-gear slide switch for audio setting in EDID: pass-through, 2.0 CH and
5.1 CH.
Built-in CEC controller from HDMI out.
Automatic input cable equalization and signal regeneration compensation.

3
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Package Contents
Before you start the installation of the product, please check the package
contents:
1 x 0E-HDMICONV2 Extractor
1 x DC 5V Power Adapter with US Pins
2 x Mounting Brackets (with Screws)
1 x User Manual
Panel

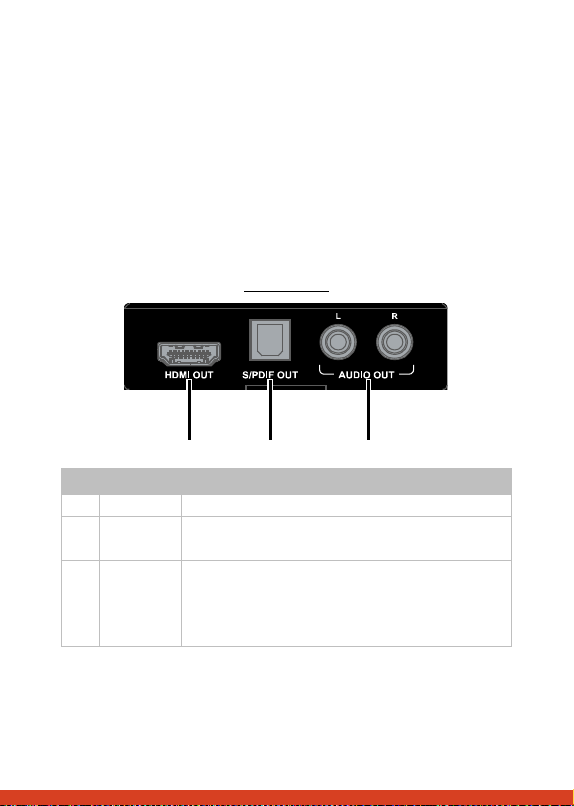

Front Panel
No.
Name
Description
1 HDMI OUT Connect to an HDMI display.
2 S/PDIF
OUT
HDMI digital audio de-embedded out, connect to an
audio distribution system such as amplifier.
3
AUDIO
OUT
(L and R)
HDMI analog audio de-embedded out, connect to L/R
channel of audio distribution system such as speaker.
Note:
2 x RCA for L/R output, supports PCM 2.0 only.
1 2 3

4
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

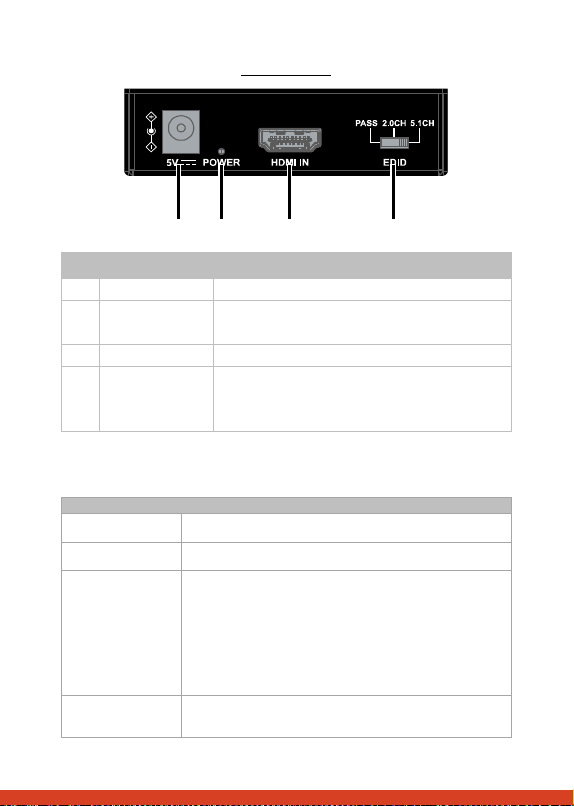

Rear Panel
No.
Name
Description
1 DC 5V Connect to the power adapter provided.
2 POWER LED
ON:
The device is powered on.
OFF:
The device is powered off.
3 HDMI IN Connect to an HDMI source.
4 EDID
Slide Switch for EDID Management.
Note
: More information, please refer to “EDID
Management” section.
Specification
Technical
Input/Output Port 1 x HDMI IN, 1 x HDMI OUT, 1 x S/PDIF OUT, 1 x AUDIO
OUT (L&R RCA Connecter), 1 x DC 5V IN
Input/Output Video
Signal Type HDMI up to 4K@60Hz 4:4:4 8 bit with HDCP 2.2
Input Resolution
Supported
VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608,
1280x10248, 1360x7688, 1366x7688, 1440x9008,
1600x9008, 1600x12008, 1680x10508, 1920x12008
SMPTE:
720x480P7,8, 720x576P6, 1280x720P6,7,8, 1920x1080P6,7,8,
3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97
Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
Output Resolution
Supported
VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608,
12 3 4

5
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Technical
1280x10248, 1360x7688, 1366x7688, 1400x10508,
1440x9008, 1600x9008, 1600x12008, 1680x10508,
1920x12008
SMPTE:
720x480P8, 720x576P6, 1280x720P6,8,
1920x1080P1,2,3,4,5,6,7,8, 3840x2160P2,3,5,6,8,
4096x2160P2,3,5,6,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97
Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
Maximum Data Rate 18Gbps
Maximum Pixel Clock
600MHz
Audio Format
SPDIF OUT:
PCM 2.0, up to Dolby Digital and DTS 5.1
AUDIO (L/R) OUT:
PCM 2.0
HDMI IN/OUT:
PCM 2.0/5.1/7.1, Dolby True HD and DTS
HD Master Audio
General
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply
DC 5V 1A
Power Consumption (Max) 2.88W
Device Dimension
(W x H x D)
8.0cm x 2.2cm x 9.0cm/3.15” x 0.87” x 3.54”
Product Weight 0.23kg/0.51lb
Transmission Distance
Cable Type
Range
Supported Video
HDMI
Input/Output: 15m/49ft 1080P@60Hz
Input: 5m/16ft
Output: 10m/33ft
4K@60Hz 4:2:0
Input/Output: 5m/16ft
4K@60Hz 4:4:4

6
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Installation and Wiring
Brackets Installation
Note:
Before installation, please ensure the device is disconnected from the
power source.
Steps to install the device in a suitable location:

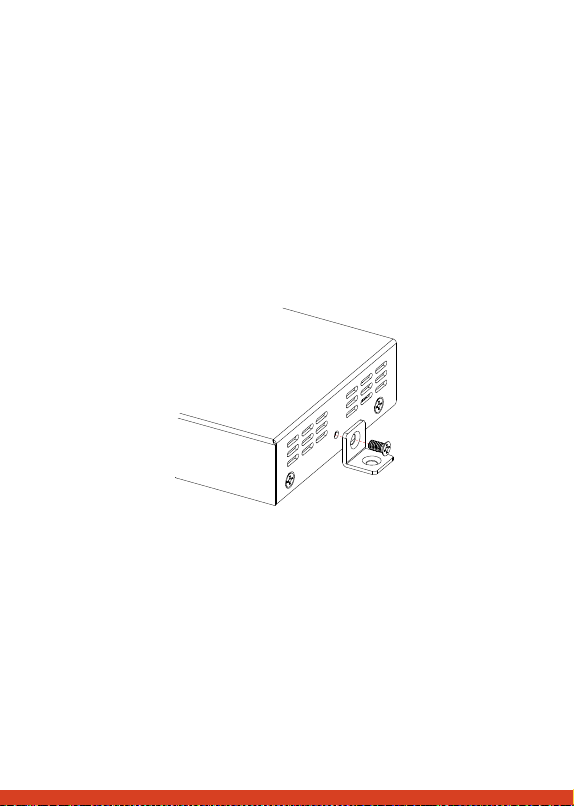

1. Attach the installation bracket to the enclosure using the screws provided
in the package separately.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps from 1 to 2 for the other side of the unit.
4. Attach the brackets to the surface you want to hold the unit against using
the screws (provided by others).
Wiring
Warnings:
Before wiring, disconnect the power from the device.
During wiring, connect and disconnect the cables gently.

7
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

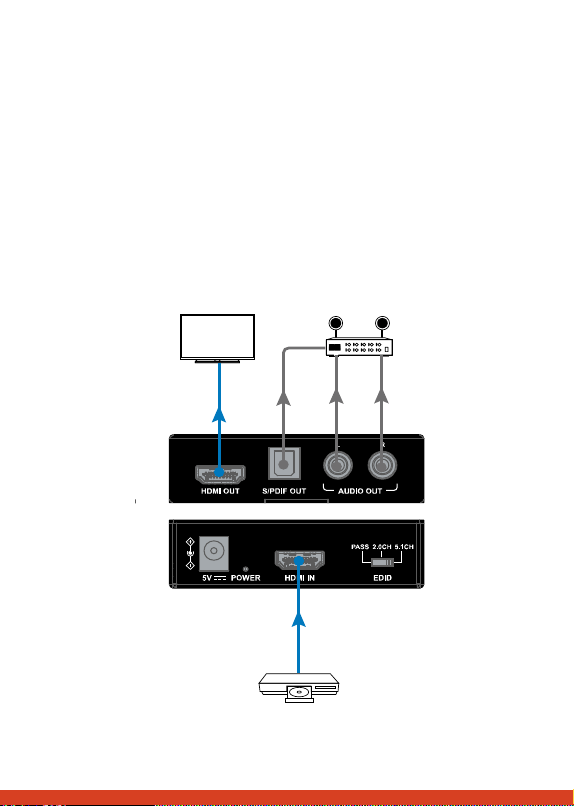

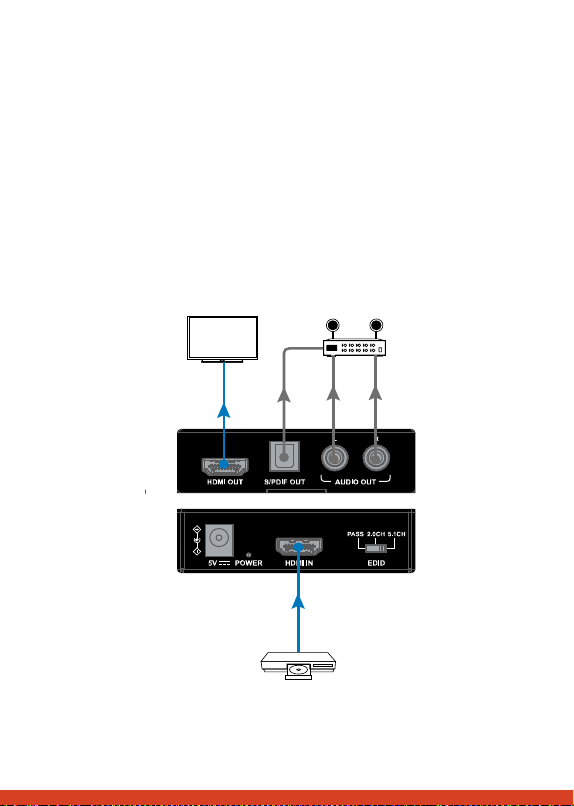

Steps for device wiring:
1. Connect an HDMI source (such as Apple TX, STB, Xbox, Media player, Blu-
ray player, etc.) to HDMI IN port.
2. Connect an HDMI display (TV, Monitor, Projector, etc.) to HDMI OUT port.
3. Connect a digital audio distribution system (such as an amplifier) to S/PDIF
OUT port.
4. Connect to an analog distribution system (such as a speaker) to AUDIO
OUT port.
Note:
Connect L port to left channel, and connect R port to right channel.
5. Connect to the power adapter provided.
6. Power on all devices.
Display
Blu-ray Player
Amplifier
HDMI OUT S/PDIF
OUT AUDIO
OUT
HDMI IN

8
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
EDID Management
EDID (Extended Display Identification Data) is a data structure provided by a
digital display to describe its capabilities to a video source.
The device features EDID management, should any device compatibility issues
occur during installation, please refer to the table below and set up the EDID
slide switch manually.
By default, the slide switch is set to “PASS” position.
Position
Descriptions
PASS (Default)
Allows EDID pass-through from the display to the source
for optimal video and audio outputs to the display.
2.0 CH
Transfers 2.0 CH EDID of device to the source for
Optimum video and 2.0 CH audio outputs to the display.
5.1 CH
Transfers 5.1 CH EDID of the device to the source for
Optimum video and 5.1 CH audio outputs to the display.
Note:
If EDID Copy fails, a fixed 1920 x 1080P@60Hz 2.0 CH would be provided
to source device.
In order to achieve a better user experience, please refer to the following
audio support descriptions and examples for EDID setting during
installation.
Examples:
1. Set the EDID switch to
PASS
(default) position——Copy EDID from HDMI
OUT.
Display’s EDID
HDMI Output
Audio
SPDIF Output
Audio
L/R Output Audio
Dolby /DTS 7.1 Dolby/DTS 7.1 No Signal No Signal
Dolby/DTS 5.1 Dolby/DTS 5.1 Dolby/DTS 5.1 No Signal
PCM 7.1 PCM 7.1 PCM 2.0 PCM 2.0
PCM 5.1 PCM 5.1 PCM 2.0 PCM 2.0
PCM 2.0 PCM 2.0 PCM 2.0 PCM 2.0
EDID

9
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
In “PASS” position, when connected to a TV with 1080P, DTS 5.1 EDID, the
device transmits the 1080P, DTS 5.1 signal to the TV, S/PDIF output audio is
DTS 5.1, while L/R output has no audio signal.
2. Set the EDID to 2.0 CH position——for 2.0 CH audio output.
Display’s EDID
SPDIF Output Audio
L/R Output Audio
Dolby/DTS 7.1
Dolby/DTS 5.1
PCM 7.1/5.1/2.0
PCM 2.0 PCM 2.0
In “2.0 CH” position, when connected to a TV with 1080P, DTS 5.1 EDID, the
device transmits the 1080P, PCM 2.0 signal to the TV, both S/PDIF and L/R
output audio are PCM 2.0.
3. Set the EDID to 5.1 CH position——for 5.1 CH audio output.
Display’s EDID
HDMI Output
Audio
SPDIF Output
Audio
L/R Output
Audio
Dolby /DTS 7.1 Dolby/DTS 5.1 Dolby/ DTS 5.1 No Signal
Dolby/DTS 5.1 Dolby/DTS 5.1 Dolby/ DTS 5.1 No Signal

10
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Limited Warranty
1. Limited Warranty
a. General
Subject to the terms and conditions of this Limited Warranty, from the date of
sale through the period of time for product categories specified in Section 1(b),
ADI warrants AVARRO branded products to be free from defects in materials
and workmanship under normal use and service, normal wear and tear excepted.
Except as required by law, this Limited Warranty is only made to Buyer and may
not be transferred to any third party.
ADI shall have no obligation under this Limited Warranty or otherwise if:
(i) The product is improperly installed, applied or maintained;
(ii) The product is installed outside of stated operating parameters, altered, or
improperly services or repaired;
(iii) Damage is caused by outside natural occurrences, such as lightning, power
surges, fire, floods, acts of nature, or the like.
(iv) Defects resulting from unauthorized modification, misuse, vandalism, or
other causes unrelated to defective materials or workmanship, or failures
related to batteries of any type used in connection with the products sold
hereunder.
ADI only warrants those products branded AVARRO and sold by ADI. Any
other products branded by third parties are warranted by the third party
manufacturer for a period as defined by the third party manufacturer, and ADI
assigns to Buyer those warranties and only those warranties extended by such
third party manufacturers or vendors for non-ADI branded products. ADI does
not itself warrant any non-ADI branded product and sells only on an as is basis
in accordance with ADI’s terms and conditions of sale.
b. Specific Warranties for product categories are as follows:
Product Categories
Warranty Period
HDMI Distribution 2 years

11
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
2. EXCLUSION OF WARRANTIES, LIMITATION OF LIABILITY
THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR
OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. TO THE FULLEST EXTENT PERMITTED BY LAW, IN NO CASE
SHALL ADI BE LIABLE TO ANYONE FOR ANY (I) CONSEQUENTIAL,
INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES ARISING OUT OF
OR RELATING IN ANY WAY TO THE PRODUCT AND.OR FOR BREACH OF
THIS OR ANY OTHER WARRANTY OR CONDITION, EXPRESS OR IMPLIED,
OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY ADI’S OWN NEGLIGENCE OR FAULT AND
EVEN IF ADI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR
DAMAGES. Any product description (whether in writing or made orally by ADI
or ADI’s agents), specifications, samples, models, bulletin, drawings, diagrams,
engineering sheets, or similar materials used in connection with the Buyer’s
order are for the sole purpose of identifying ADI’s products and shall not be
construed as an express warranty or condition. Any suggestions by ADI or
ADI’s agents regarding use, applications or suitability of the products shall not
be construed as an express warranty or condition unless confirmed to be such
in writing by ADI. ADI does not represent that the products it sells may not be
compromised or circumvented; that the products will prevent any personal injury
or property loss by burglary, robbery, fire or otherwise, or that the products will
in all cases provide adequate warning or protection. Buyer understands and
will cause its customer to understand that a properly installed and maintained
product is not insurance or guarantee that such will not cause or lead to personal
injury or property loss. CONSEQUENTLY, ADI SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON
ANY CLAIM AT ALL INCLUDING A CLAIM THAT THE PRODUCT FAILED TO
GIVE WARNING. However, if ADI is held liable whether directly or indirectly for
any loss or damage with respect to the products it sells, regardless of cause or
origin, its maximum liability shall not in any case exceed the purchase price of
the product, which shall be fixed as liquidated damages and not as a penalty

12
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
and shall be the complete and exclusive remedy against ADI.
3. Limitation on Liability to Buyer’s Customers.
Buyer agrees to limit liability to its customers to the fullest extent permitted by
law. Buyer acknowledges that ADI shall only be deemed to give consumers of
its products such statutory warranties as may be required by law and at no time
shall Buyer represent to its customers and/or users of ADI products that ADI
provides any additional warranties. By accepting the products, to the fullest
extent permitted by law, Buyer assumes all liability for, and agrees to indemnity
and hold ADI harmless against and defend ADI from, any and all suits, claims,
demands, causes of action and judgments relating to damages, whether for
personal injury or to personal property, suffered by any person, firm, corporation
or business association, including but not limited to, Buyer’s customers and/or
users of the products because of any failure of the products to detect and/or
warn of the danger for which the goods were designed or any other failure of
the products whether or not such damages are caused or contributed to by the
sold or joint concurring negligence or fault of ADI.
4. Returns
Subject to the terms and conditions listed below, during the applicable warranty
period, ADI will replace Product or provide a credit at purchase at its sole option
free of charge any defective products returned prepaid. Any obligations of ADI
to replace Limited Lifetime warranty products pursuant to this warranty which
result from defect are limited to the availability of replacement product. ADI
reserves the right to replace any such products with the then currently available
products, or provide a credit in its sole discretion. In the event Buyer has a
problem with any ADI product, please call your local ADI branch for return
instructions:
For US call 1-800-233-6261
For Canada call 877-234-7378
For Puerto Rico call 787-793-8830

13
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Be sure to have the model number and the nature of the problem available. In
the event of replacement, the return product will be credited to Buyer’s account
and a new invoice issued for the replacement item. ADI reserves the right to
issue a credit only in lieu of replacement.
If any AVARRO branded products are found to be in good working order or such
product’s inability to function properly is a result of user damage or abuse, the
product will be returned to Buyer in the same condition as received and Buyer
shall be responsible for any return freight changes.
5. Governing Law
The laws of State of New York apply to this Limited Warranty.
6. Miscellaneous
Where any term of this Limited Warranty is prohibited by such laws, it shall be
null and void, but the remainder of the Limited Warranty shall remain in full force
and effect.

14
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Introduction
Aperçu
Ce produit est un extracteur audio HDMI 2.0 avec une résolution jusqu’à 4K à
60 Hz (sous-échantillonnage de la chrominance 4:4:4 8 bits) et HDCP 2.2. Sa
sortie audio analogique ou numérique permet une extraction audio depuis
l’entrée HDMI. L’audio est ensuite envoyé à un système de distribution audio
comme un amplificateur AVR. Interrupteur coulissant à 3 niveaux pour les
réglages audio dans EDID à 3 EDID (pass-through, 2.0ch et 5.1ch) préréglés
pour la gestion EDID.
En détectant automatiquement l’état du signal d’entrée, il peut
automatiquement déclencher une commande CEC pour activer/désactiver la
télévision grâce à la prise en charge CEC. Il peut être utilisé pour toutes les
applications AV comme pour la maison, les bureaux, les solutions multimédias
numériques, les centres de contrôle, les salles de conférence, les
établissements scolaires et les environnements de formation en entreprise qui
nécessite une extraction d’audio HDMI.
Caractéristiques
HDMI 2.0 jusqu’à 4 k à 60 Hz 4:4:4 8 bits.
Compatible HDCP 2.2.
Séparation audio HDMI avec S/PDIF (Toslink) et audio G/D (RCA).
Apparence compacte et facile à installer.
Interrupteur coulissant à 3 niveaux pour les réglages audio EDID ; pass-
through, 2.0ch and 5.1ch.
Contrôleur CEC intégré pour sortie HDMI.
Égalisation du câble d’entrée et compensation de régénération de signal
automatiques.

15
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Contenu
Avant de commencer l’installation de ce produit, veuillez vérifier le contenu de
l’emballage :
1 x extracteur 0E-HDMICONV2
1 x Adaptateur électrique 5 VCC avec broches américaines
2 x supports de montage (avec vis)
1 x manuel d’utilisation
Panneau
Panneau avant
N°
Nom
La description
1 HDMI OUT Connecter à un écran HDMI.
2 S/PDIF
OUT
S
éparation audio numérique HDMI, connexion à un
système de distribution audio comme un amplificateur.
3
AUDIO
OUT
(G et D)
Séparation audio analogique HDMI, connexion à un
système de distribution audio comme un amplificateur.
Remarque : 2 x RCA pour sortie G/D, prend en charge
Pcm 2.0 uniquement.
1 2 3

16
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Panneau arrière
N°
Nom
La description
1 5 VCC Se connecter à l’adaptateur d’alimentation fourni.
2 Voyant
d’alimentation
Allumé : L’appareil est en marche.
Éteint : L’appareil est hors tension.
3 HDMI IN Connecter à une source HDMI.
4 EDID
Interrupteur coulissant pour la gestion EDID.
Remarque : Pour plus d’information, consultez la
section « Gestion EDID »
Spécifications
Caractéristiques techniques
Port d’entrée/de
sortie
1 x HDMI IN, 1 x HDMI OUT, 1 x S/PDIF OUT, 1 x AUDIO OUT
(L&R RCA Connecteur), 1 x DC 5V IN
Type de signal
d’entrée/de sortie
HDMI jusqu’au 4K à 60Hz 4:4:4 8 bit avec HDCP 2.2
Résolution d'entrée
prise en charge
VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608,
1280x10248, 1360x7688, 1366x7688, 1440x9008, 1600x9008,
1600x12008, 1680x10508, 1920x12008
SMPTE:
720x480P7,8, 720x576P6, 1280x720P6,7,8, 1920x1080P6,7,8,
3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
1 = à 23.98 Hz, 2 = à 24 Hz, 3 = à 25 Hz, 4 = à 29.97 Hz, 5 =
à 30 Hz, 6 = à 50 Hz, 7 = à 59.94 Hz, 8 = à 60 Hz;
Résolution de sortie
prise en charge
VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608,
1280x1024
8
, 1360x768
8
, 1366x768
8
, 1400x1050
8
, 1440x900
8
,
12 3 4

17
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Caractéristiques techniques
1600x9008, 1600x12008, 1680x10508, 1920x12008
SMPTE:
720x480P8, 720x576P6, 1280x720P6,8, 1920x1080P1,2,3,4,5,6,7,8,
3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
1 = à 23.98 Hz, 2 = à 24 Hz, 3 = à 25 Hz, 4 = à 29.97 Hz, 5 =
à 30 Hz, 6 = à 50 Hz, 7 = à 59.94 Hz, 8 = à 60 Hz;
Débit de données
maximal
18Gbps
Horloge de pixels
maximale
600MHz
Formats audio pris
en charge
SORTIE SPDIF : PCM 2.0, jusqu’à Dolby Digital et DTS 5.1.
SORTIE AUDIO (G/D) : PCM 2.0
SORTIE/ENTRÉE HDMI : PCM 2.0/5.1/7.1, Dolby True HD et
DTS HD Master Audio
Général
Température de service
0 à 45 °C (32 à 113 °F)
Température de stockage -20 à 70 °C (-4 à 158 °F)
Humidité
10 % à 90 % (sans condensation)
Protection DES
Modèle du corps humain :
±8 kV (décharge d’entrefer)/
±4 kV (décharge de contact)
Alimentation
DC 5V 1A
Consommation d’énergie (max.) 2,88 W
Dimensions de l’appareil
(l x H x P)
8,0 cm x 2,2 cm x 9,0 cm/3,15 po x 0,87 po x
3,54 po
Poids du produit 0,23 kg/0,51 lb
Distance de transmission
Type de câble
Portée
Vidéo prise en charge
HDMI
Entrée sortie: 15 m/49 pi
1080P à 60Hz
Entrée: 5 m/16 pi
Sortie: 10 m/33 pi
4K
à
60Hz 4:2:0
Entrée sortie: 5 m/16 pi
4K à 60Hz 4:4:4

18
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Installation et câblage
Installation des supports
Remarque : Avant l’installation, assurez-vous que l’appareil n’est pas branché à
une source d’alimentation.
Étapes de pose de l’appareil à un endroit approprié :
1. Fixer le support d’installation au bâti en utilisant les vis qui ont été
fournies séparément, dans l’ensemble.
2. Le support est fixé au bâti comme illustré.
3. Répéter les étapes 1 et 2 pour l’autre côté de l’unité.
4. Fixer les supports sur la surface qui tiendra votre unité en utilisant les vis
(fournies par d'autres).
Câblage
Avertissements :
Avant de commencer le câblage, coupez l’alimentation de l’appareil.
Durant le câblage, prenez soin lorsque vous branchez et débranchez les
câbles.

19
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Étapes pour le câblage de l’appareil :
1. Connecter une source HDMI (comme Apple TX, STB, Xbox, lecteur Media,
lecteur Blu-ray, etc.) au port d’entrée HDMI.
2. Connecter un écran HDMI (TV, moniteur, projecteur, etc.) au port de sortie
HDMI.
3. Connecter un système de distribution audio numérique (comme un
amplificateur) au port de sortie S/PDIF.
4. Connecter un système de distribution audio analogique (comme des haut-
parleurs) au port de sortie AUDIO.
Remarque : Connecter le port G au canal de gauche et le port D au canal
de droite.
Écran
Lecteur Blu-ray
Amplificateur
HDMI OUT S/PDIF
OUT AUDIO
OUT
HDMI IN
