AVBits PTN AVB-HD-LTE Series User manual

www.isupplies.com.au
AVB-HD-LTE
Powered by PTN
HDBaseT Extender Set 70m
All Rights Reserved
Version: AVB-HD-LTE_2015V1.0
User Manual

HDBaseT Extender Set 70m
AVBits
www.isupplies.com.au
Preface
Read the user manual carefully before using this product. Pictures shown in this manual
are for reference purposes only,
This manual is only for user operation and not for service or repair. This manual version
covers the model up until July 2015. Any further changes or updates of this model from
July 2015 will be followed up with an updated manual separately.
Please refer to your dealer for the latest information and updates.
All product information is valid until 7-9-2015.
Trademarks
Product AVBits and its logo are trademarks of Integration Supplies Pty. Ltd.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent of Integration Supplies Pty. Ltd.
FCC Statement
This equipment may generate or radiate radio frequency (RF) energy. If the product is
not installed and used in accordance with the instructions provided, it may cause
harmful radio interference. This product has been tested and found to comply with the
limits of a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a commercial
installation and environment.
Operation of this equipment in a residential environment may could cause interference,
in which case the user at their own expense, will be required to take whatever measures
may be necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture, will void all
warranty’s and user will be liable for any damages arising from its use.

HDBaseT Extender Set 70m
AVBits
www.isupplies.com.au

HDBaseT Extender Set 70m
AVBits
www.isupplies.com.au
SAFETY PRECAUTIONS
To insure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
!Unpack the equipment carefully and save the original box and packing material for
possible future shipment
!Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
!Do not open or dismantle equipment as electric shock or fire hazard may result.
!Using third party supplied parts (e.g. Power Supplies) not meeting the products’
specifications may cause damage, deterioration or malfunction.
!Refer all servicing to qualified service personnel.
!To prevent fire or shock hazard, do not expose the unit to moisture.
!Make sure cable is not crushed by heavy objects.
!Do not open or interfere with internal components within the device, doing so will
void warranty and may result in electric shock or other hazards.
!Install the device in a place with plenty of ventilation to avoid possible overheating.
!If a liquid spills into the device, unplug the device immediately.
!Do not twist or pull by force the ends of any connecting cable. This will cause a
malfunction.
!Do not use liquid or aerosol cleaners to clean this unit, use a damp cloth to wipe it
down, Always unplug the power to the device before cleaning.
!Unplug the power from device if not used for a long period of time.
!Place device in recycle waste bin when no longer required.

HDBaseT Extender Set 70m
AVBits
www.isupplies.com.au
Contents
1. Introduction ................................................................................................................. 1!
1.1 Introduction to AVB-HD-LTE ............................................................................. 1!
1.2 Features ............................................................................................................ 1!
1.3 Package List ...................................................................................................... 1!
2. Product Appearance ................................................................................................... 2!
2.1 AVB-HD-LTE T .................................................................................................. 2!
2.2 AVB-HD-LTE R.................................................................................................. 3!
3. System Connection..................................................................................................... 4!
3.1 Usage Precautions ............................................................................................ 4!
3.2 System Diagram ................................................................................................ 4!
3.3 Connection Procedure....................................................................................... 4!
3.4 Application ......................................................................................................... 5!
3.5 Twisted Pair Cable Connection ......................................................................... 5!
4. Specification................................................................................................................ 6!
4.1 Supported Resolution ........................................................................................ 7!

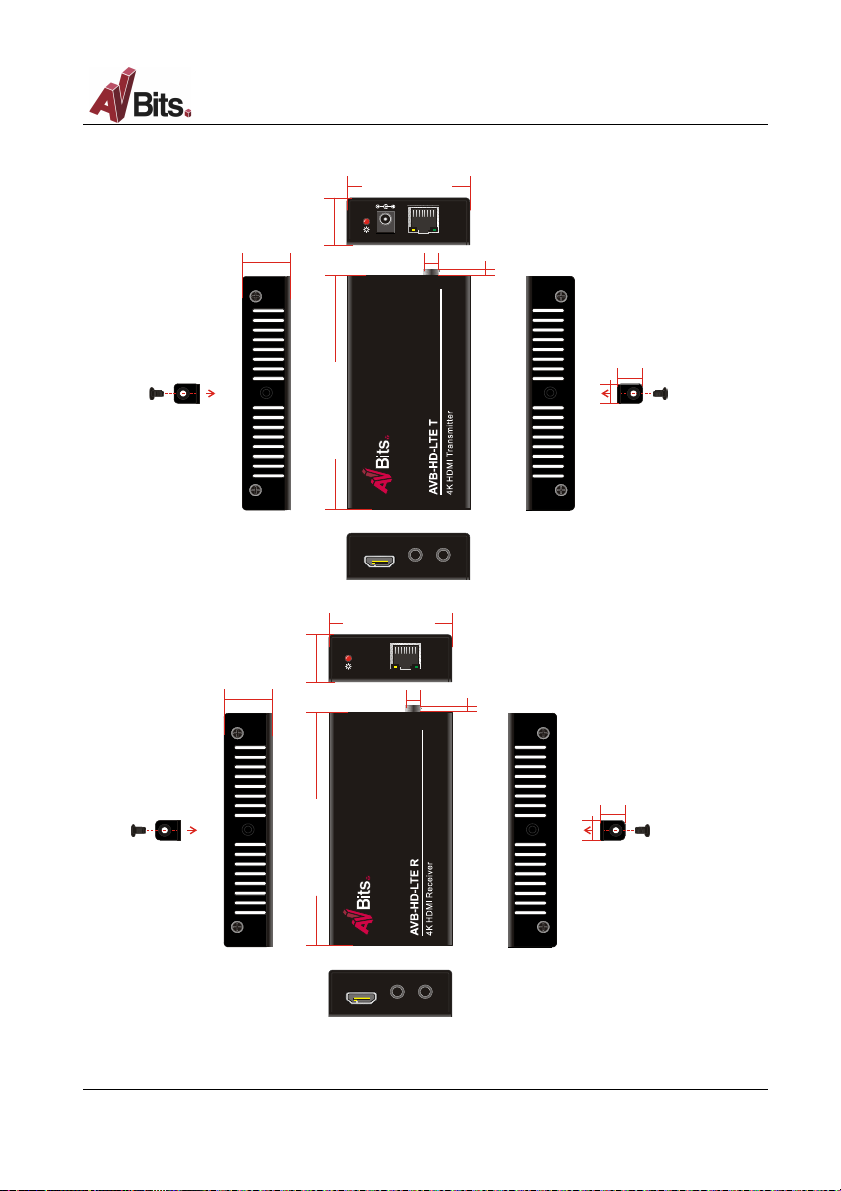

5. Panel Drawing............................................................................................................. 8!
6. Troubleshooting & Maintenance ................................................................................. 9!
7. After-sales Service.................................................................................................... 10!

HDBaseT Extender Set 70m
AVBits 1
www.isupplies.com.au
1. Introduction
1.1 Introduction to AVB-HD-LTE
The extender set consists of a transmitter and receiver pair. HDMI signals are fed into
the transmitter, and HDBaseT technology is used to transmit the signal to the receiver
up to 70 metres via a Cat6, Cat6A or Cat6A Shielded UTP cable. The receiver then
outputs the HDMI signal to a display or switching device.
Bi-directional IR is also transmitted across the Cat6,Cat6A or Cat6A Shielded UTP
cable. The extender set supports PoC, which can be used to power the receiver via
the Cat6, Cat6A or Cat6A Shielded UTP cable. This eliminates the need for power at the
receiver end.
1.2 Features
!Supports full HD: Delivers high-resolution images (1080p 3D, 4Kx2K)
!Maximum transmission distance is 70 Metres for 1080p and 40m for 4Kx2K over a
single Cat6,Cat6A or Cat6A Shielded UTP cable
!High Bandwidth: 10.2Gps.
!HDTV Compatible, use HDMI 1.4 and HDCP compliant.
!Support PoC & CEC.
!Uses HDBaseT technology for extended capability and reliability
!Bi-directional IR control
!LED indicators show working status.
Note: Using Cat6, Cat6A or Cat6A Shielded UTP cable is recommended for good
signal transmission.
1.3 Package List
"1 x AVB-HD-LTE (including TX and RX)
"4 x detachable mounting ears
"4 x screws
"8 x plastic cushions
"1 x power adapter (DC 12V 1A)
"1 x user manual
Notes:Please confirm if the product and the accessories are all included, if not, please
contact your dealer.

HDBaseT Extender Set 70m
AVBits 2
www.isupplies.com.au
2. Product Appearance
2.1 AVB-HD-LTE T
1) HDMI IN: Connect to HDMI source.
2) IR IN: Connect to an IR receiver, the IR signal received from this port can only
send out via AVB-HD-LTE R.
3) IR OUT: Connect with IR emitter; the sent IR signals are received by AVB-HD-LTE
R.
4) Power Indicator: illuminates when device is powered up
5) 12Volt DC in socket for connection of 12Volt DC Power Supply.
6) TP OUT: Connect to the TP IN socket on the AVB-HD-LTE R via Cat6, Cat6A or
Cat6A Shielded UTP cable.

HDBaseT Extender Set 70m
AVBits 3
www.isupplies.com.au
2.2
AVB-HD-LTE R
1) HDMI Out: Connect to HDMI display.
2) IR IN: Connect to an IR receiver, the IR signal received from this port can only be
send out via AVB-HD-LTE T.
3) IR OUT: Connect with IR emitter; the sent IR signals are received by AVB-HD-LTE
T.
4) Power Indicator: illuminates when device is powered up
5) TP IN: Connect to the HDBaseT port on the AVB-HD-LTE T via Cat6, Cat6A or
Cat6A Shielded UTP cable
6) Note: AVB-HD-LTE boasts 2 indicators to show real-time operation information:
Indicator
Function
Details
Green
Shows input signal
connection
Connected:
HDCP Compliant: LED Hard
on.
Not HDCP Compliant: LED
Blinking.
Disconnected: LED Off
Yellow
Indicate linking status of
the transmitter and the
receiver
Connected: LED Illuminated
Disconnected: LED Off

HDBaseT Extender Set 70m
AVBits 4
www.isupplies.com.au
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment with suitable temp and humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated for
safety.
3) All devices should be connected before power is switched on.
4) The Cat6, Cat6A or Cat6A Shielded UTP cable terminations for HDBaseT devices
should be a straight-thru TIA/EIA T568B standard.
3.2 System Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blue-ray DVD) to HDMI INport of the transmitter
with an HDMI cable.
Step2. Connect TP OUT port of the transmitter to TP IN port of the receiver through a
Cat6, Cat6A or Cat6A Shielded UTP cable.
Step3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver with
HDMI cable.
Step4. When using the bi-directional IR control, do the following:
a) Connect the IR emitter at either end to the IR OUT port on either the
transmitter or the receiver.
b) When using a powered IR receiver, connect via a 3.5 mm stereo plug to the
IR IN on either the receiver or the transmitter.
Step5. Connect with DC 12V power supply to the 12Volt DC IN socket on the
AVB-HD-LTE Tx, the AVB-HD-LTE Rx will be powered simultaneously with the
with PoC solution.
HDTV
DVD
IR Remote
CAT5e/CAT6
AVB-HD-LTE T
AVB-HD-LTE R

HDBaseT Extender Set 70m
AVBits 5
www.isupplies.com.au
3.4 Application
AVB-HD-LTE has many applications (e.g. PC’s, Monitors, Big displays, Meeting rooms,
Education, Security) etc.
3.5 Twisted Pair Cable Connection
The Cat6, Cat6A or Cat6A Shielded UTP cable terminations for HDBaseT devices
should be a straight thru TIA/EIAT568B standard. TIA/EIA T568A standard is NOT
recommended.
Note: To eliminate the risk of RFI into the signal UTP cable, the use of a Cat6A Shielded
grade cable is highly recommended. Shield MUST BE continuous from Tx to RX and
shielded metal plugs installed onto cables.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Group
4--5
2nd
Ground
3--6
2nd
Group
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

HDBaseT Extender Set 70m
AVBits 6
www.isupplies.com.au
4. Specification
Model
Spec
AVB-HD-LTE T
AVB-HD-LTE R
Input
Input Signal
1 HDMI, 1 IR
1 IR, 1 RJ-45
Input Connector
HDMI female
3.5mm mini jack
3.5mm mini jack
RJ-45
Video Signal
HDMI1.4
HDMI1.4
Audio
Digital audio, transmits
through HDMI audio
Digital audio, transmits
through HDMI audio
Output
Output
1 RJ-45, 1 IR
1 HDMI, 1 IR
Output Connector
RJ-45
3.5mm mini jack
HDMI female
3.5mm mini jack
Video signal
HDMI1.4
HDMI1.4
Transmission Mode
HDBaseT
HDBaseT
General
Resolution Range
800x600@60Hz~4K×2K
Transmission Distance
Maximum distance 230 ft. 70m @ 1080P (4Kx2K 40m)
SNR
>70dB@ 100MHz-100M
Bandwidth
10.2Gbps
THD
＜0.005%@1KHz
HDMI Standard
Support HDMI1.4, and HDCP
Impedance
75Ω
Temperature
0~ 50
Reference Humidity
10% ~ 90%
Power Supply
DC 12V, 1A
Power Consumption
9.6W
Dimension (W*H*D)
61 x 24x 120 mm
61 x 24x 120 mm
Weight
0.28Kg
0.28Kg
NOTE: All nominal levels are at ±10%.

HDBaseT Extender Set 70m
AVBits 7
www.isupplies.com.au
4.1 Supported Resolution
Format
Resolution
HDMI
480I, 480P, 576I, 576P, 720P, 1080I, 1080P, 4Kx2K, 1080P 3D
DVI
640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz,
800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz,
1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1600x1200@60Hz, 1920x1080@60Hz,
1920x1200@60Hz
Note: AVB-HD-LTE supports 4k&1080p 3D HDMI signal please make sure high quality
HDMI cables are used compliant with HDMI1.4 for reliable transmission when using this
product.

HDBaseT Extender Set 70m
AVBits 8
www.isupplies.com.au
5. Panel Drawing
AVB-HD-LTE T
AVB-HD-LTE R
HD MI I N IR I N IR O UT
DC 1 2V TP OUT
LINK HDCP
61.60 mm
24.00 mm
24.30 mm
9.97 mm
12.50 mm
120.60 mm
2.95 mm
7.21 mm
HD MI O UT IR I N IR O UT
TP IN
LINK HDCP
61.60 mm
24.00 mm
24.30 mm
9.97 mm
12.50 mm
120.60 mm
2.95 mm
7.21 mm

HDBaseT Extender Set 70m
AVBits
ww.isupplies.com.au
6. Troubleshooting & Maintenance
!No image on display:
!Ensure that the display device has been set to the correct input.
!Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
!Ensure that the Cat6, Cat6A or Cat6A Shielded UTP cable have not been
damaged, and that they have been terminated correctly. A temporary length of
Cat6, Cat6A or Cat6A Shielded UTP cable can be used for testing to ensure that
the devices are working properly.
!Ensure proper grounding of the Cat6A Shielded UTP cables
!Ensure proper grounding of the power supply.
!Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in HDBaseT transmission issues.
Please contact Technical Support at Integration Supplies Pty. Ltd. for a solution
to these issues. [e-mail]
!Colour loss or poor picture quality:
!Ensure that the HDMI cables used are of the best quality.
!Test the HDMI cables directly from a source to display and ensure they work.
!Ensure proper grounding of the power supply.
!If the static or picture quality becomes worse when connecting the video
connectors, this may be due to improper grounding.
!Check the grounding and make sure all the components are properly grounded
to a common ground. Make sure ALL equipment is on the same phase.
!Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps,
seek further Technical assistance and help by contacting [email protected]

HDBaseT Extender Set 70m
AVBits 10
www.isupplies.com.au
7. After-sales Service
If you are experiencing problems when using the device, please refer to user manual.
Any transport costs are borne by the users during the warranty period.
1) Product Limited Warranty: We warrant that our products will be free from defects
in materials and workmanship for two years, which starts from the first day the
product leaves the Integration Supplies warehouse (check the SN mark on the
product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
2) What the warranty does not cover:
!Warranty expiration.
!Factory applied serial number has been altered or removed from the product.
!Damage, deterioration or malfunction caused by:
!Normal wear and tear
!Use of supplies or parts not meeting our specifications
!No certificate or invoice as the proof of warranty.
!The product model showed on the warranty card does not match with the
model of the product for repair.
!Product has been altered or interfered with.
!Damage caused by physical force.
!Unauthorized Servicing by others.
!Any other causes which does not relate to a product defect
!Delivery, Installation, Installation Labor, or Setup of the Device or Product.
3) Technical Support:
For all product support contact: ser[email protected]
Please have the following information available:
!Product Model.
!Product Serial Number
!Detailed failure information.
!Information and details of Devices used and how they are connected etc.

HDBaseT Extender Set 70m
AVBits 11
www.isupplies.com.au
