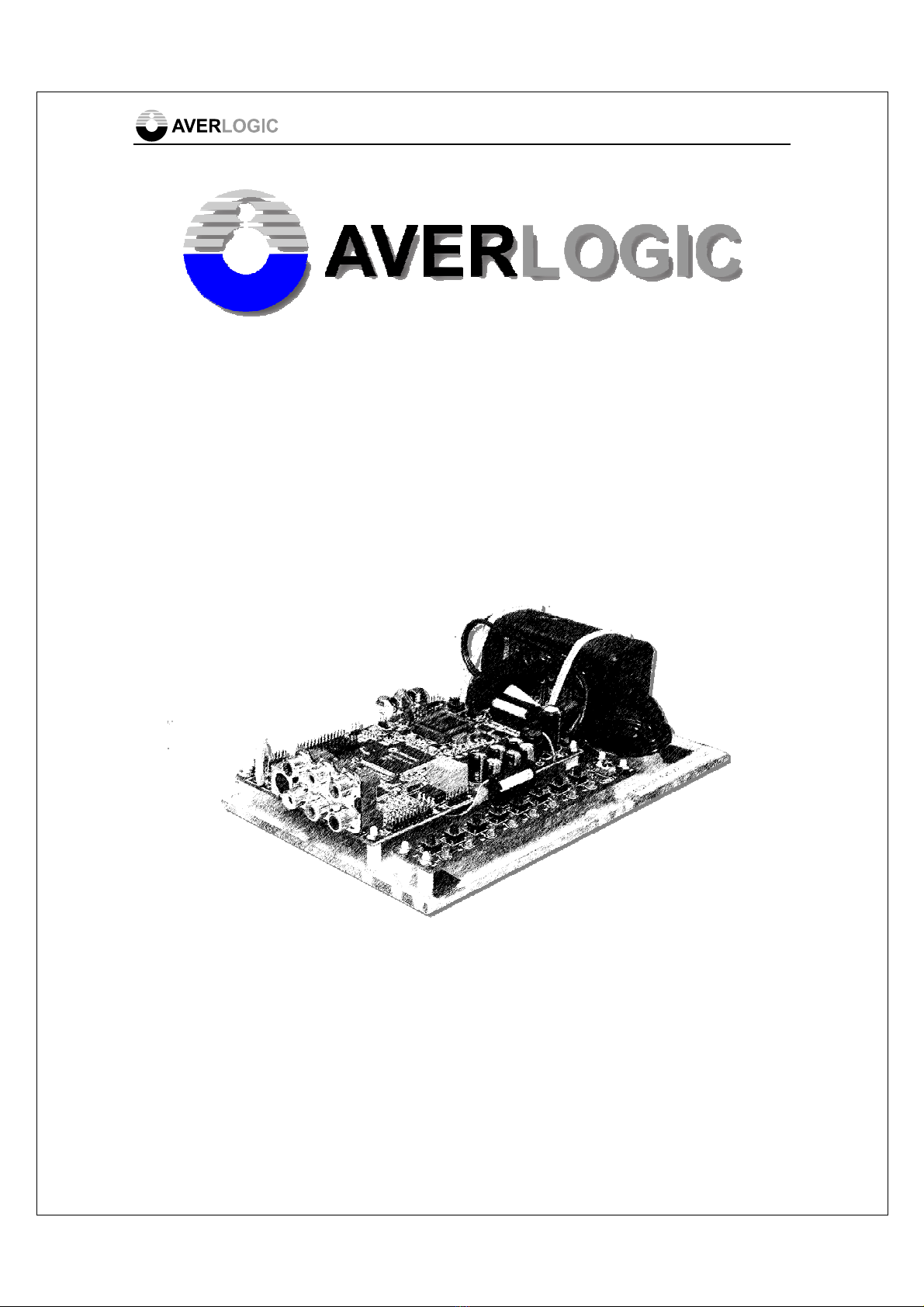

Averlogic AL37204-EVB-A2 User manual

©2008-2009 Copyright by AverLogic Technologies, Corp. AL37204-EVB-A1-User Manual-1.0-20090821
AL37204-EVB-A2
Evaluation Board
User Manual
Version 1.0
INFORMATION FURNISHED BY AVERLOGIC IS BELIEVED TO BE ACCURATE AND
RELIABLE. HOWEVER, NO RESPONSIBILITY IS ASSUMED BY AVERLOGIC FOR ITS USE,
OR FOR ANY INFRINGEMENTS OF PATENTS, OR OTHER RIGHTS OF THIRD PARTIES
THAT MAY RESULT FROM ITS USE. NO LICENSE IS GRANTED BY IMPLICATION OR
OTHERWISE UNDER ANY PATENT OR PATENT RIGHTS OF AVERLOGIC.

©2008-2009 Copyright by AverLogic Technologies, Corp. AL37204-EVB-A1-User Manual-1.0-20090821
Version and Amendments
Date Version Comments Author
03-23-2009 1.0 Public Release Ken Liu
Disclaimer
THE CONTENTS OF THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE.
AVERLOGIC TECHNOLOGIES RESERVES THE RIGHT TO MAKE CHANGES WITHOUT
FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION
OR DESIGN. AVERLOGIC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE
APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HERIN; NEITHER
DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF
OTHERS.
CUSTOMERS ARE ADVISED TO CONSULT WITH AVERLOGIC OR ITS COMMERCIAL
DISTRIBUTORS BEFORE ORDERING.

©2008-2009 Copyright by AverLogic Technologies, Corp. AL37204-EVB-A1-User Manual-1.0-20090821
Table of Contents
1 Introduction ...................................................................................................1
1.1 Product Description .......................................................................................................................... 1
1.2 Block Diagram................................................................................................................................. 2
1.3 Specifications ................................................................................................................................... 2
2 Quick Setup......................................................................................................4
3 Hardware Section.............................................................................................5
3.1 Main Board Descriptions.................................................................................................................. 5
3.2 Rear panel connectors....................................................................................................................... 6
3.3 Keypad Panel.................................................................................................................................... 7
4 System Menu....................................................................................................9
4.1 Main Menu ....................................................................................................................................... 9
4.2 System Setup .................................................................................................................................... 9
4.3 Display Setup.................................................................................................................................. 10
4.4 Auto Sequence................................................................................................................................ 10
4.5 Camera Setup.................................................................................................................................. 11
4.6 Motion Setup .................................................................................................................................. 11
4.7 Event Setup..................................................................................................................................... 12
4.8 Event Report................................................................................................................................... 12

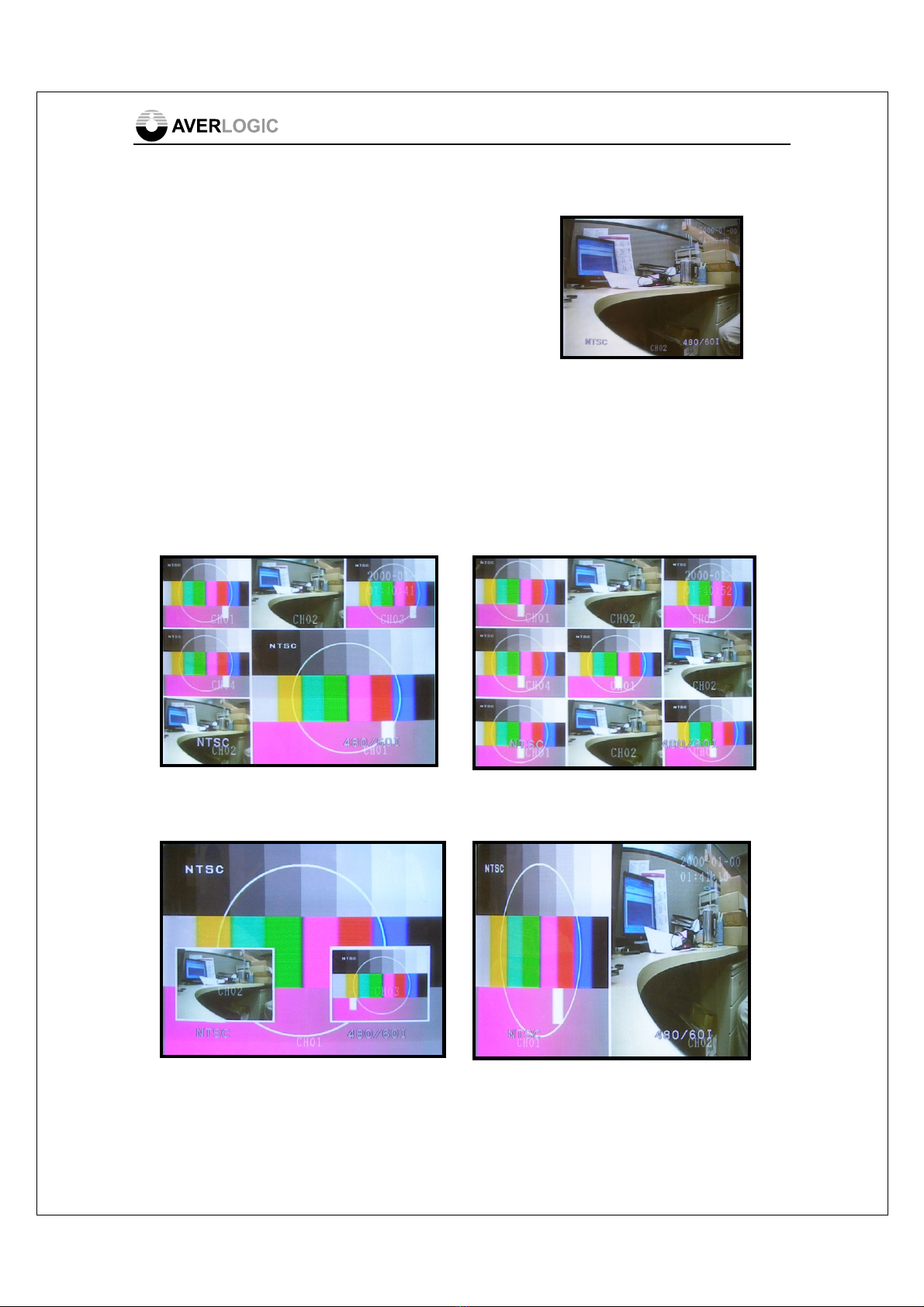

5 Display Modes................................................................................................13
6 Miscellaneous ................................................................................................14
6.1 Reset Button ................................................................................................................................... 14
6.2 Debug Mode ................................................................................................................................... 14

©2008-2009 Copyright by AverLogic Technologies, Corp. 1
1 Introduction
1.1 Product Description
The AL37204 Video Processor EVB is an evaluation product that demonstrates a
total solution for video surveillance applications using Averlogic IC chips. This EVB
product receives video streams from up to 4 cameras to be processed and shown on
a monitor in a variety of convenient display formats.
The main components include one video decoder (AL244) for processing 4 channels
of analog video inputs, one video decoder (AL240) for analog to digital conversion for
video playback input, and one video processor (AL37204). It is a low-cost, easy
solution for real-time video surveillance applications that use 4-channel video output
to TV monitors, VCRs and digital storage devices.
The AL37204 provides four analog CVBS video input connectors. It has cost-
effective, high-quality NTSC/PAL video decoding technology with adaptive comb-filter
Y/C separation processing and quad video processing. It is also equipped with BCS
(Brightness, Contrast, Saturation and Hue) control, Scale Down Function, Re-play
function, Zoom, Freeze, Internal OSD overlay, Motion Detection and PIP/POP display
capabilities for monitoring and controlling video surveillance devices.

©2008-2009 Copyright by AverLogic Technologies, Corp. 2
1.2 Block Diagram
1.3 Specifications
Video standard support
NTSC
PAL
Video Input Formats
CVBS (CH1/CH2/CH3/CH4)
Video Output
CVBS (J2/J3)
Display size :
Horizontal: 720/720 pixels (NTSC/PAL)
Vertical : 480/576 lines (NTSC/PAL)
EVB Function
Supports manual video standard selection to match various analog video
standard inputs. High quality adaptive comb-filter for Y/C separation.
Supports multi-window display modes (1/2/3/4/9/13/16).
Three embedded TV Encoders with DACS, supports NTSC and PAL
standard outputs.

©2008-2009 Copyright by AverLogic Technologies, Corp. 3
Supports manual adjustment of hue, brightness, contrast and saturation .
Supports individual channel freeze.
Supports PIP/POP function.
Supports motion detection / blind detection.
Internal OSD overlay with programmable bitmap type font for OSD display
.
Note: Please be aware that this is an Evaluation product only and not all functional
capabilities of Averlogic components are fully demonstrated by this product. Please
refer to the Averlogic website (www.averlogic.com) or contact your Averlogic
representative (see last page of this document) for more information.

©2008-2009 Copyright by AverLogic Technologies, Corp. 4

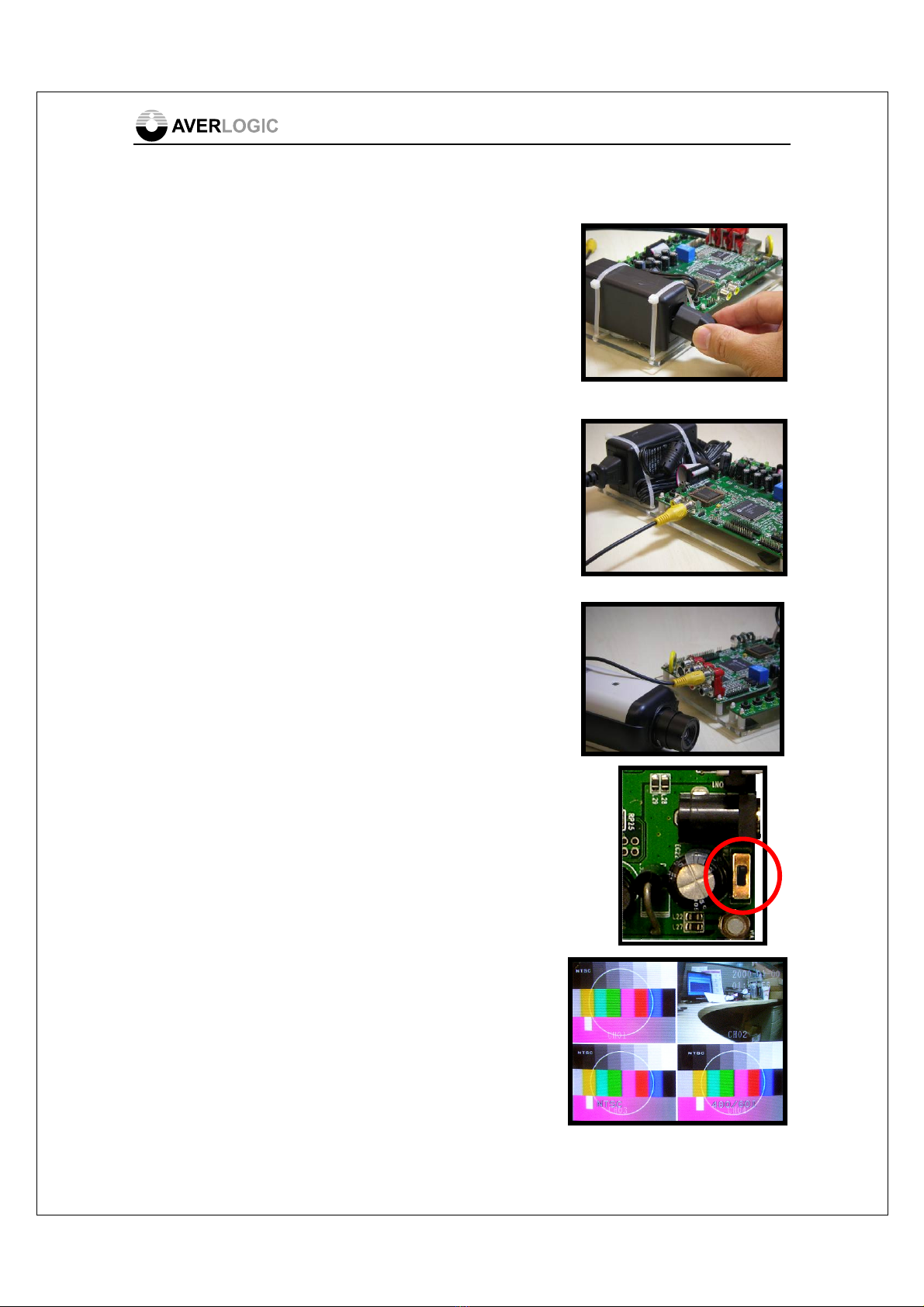

2 Quick Setup
2.1 Attach power cable
The power adapter unit itself will be attached to the
Plexiglas. Attach one end of the power cable to the
adapter and the other end to a wall socket with the
appropriate voltage.
2.2 Attach TV monitor (requires CVBS w/ RCA connector)
Attach your monitor to the J2 connector, located near
the power adapter. Turn on your monitor.
2.3 Attach camera (requires CVBS w/ RCA connector)
Attach your camera to one of the four video input
connectors on the rear panel located on the right-
most side of the panel. Turn on the camera and
begin transmitting a picture.
2.4 Turn on board power
After you turn on your camera and TV monitor, toggle the
power switch (sw2), which is located on the main board
near the power adapter connector. The green LED, D5,
will illuminate. If it does not, check the power supply
connections.
Your monitor should display the picture that your
camera is transmitting. If it is not displaying the
video, your connections may not be secure or your
camera may be setup with the wrong standard (PAL
or NTSC), for which you will need to review the
configuration section below.

©2008-2009 Copyright by AverLogic Technologies, Corp. 5
3 Hardware Section

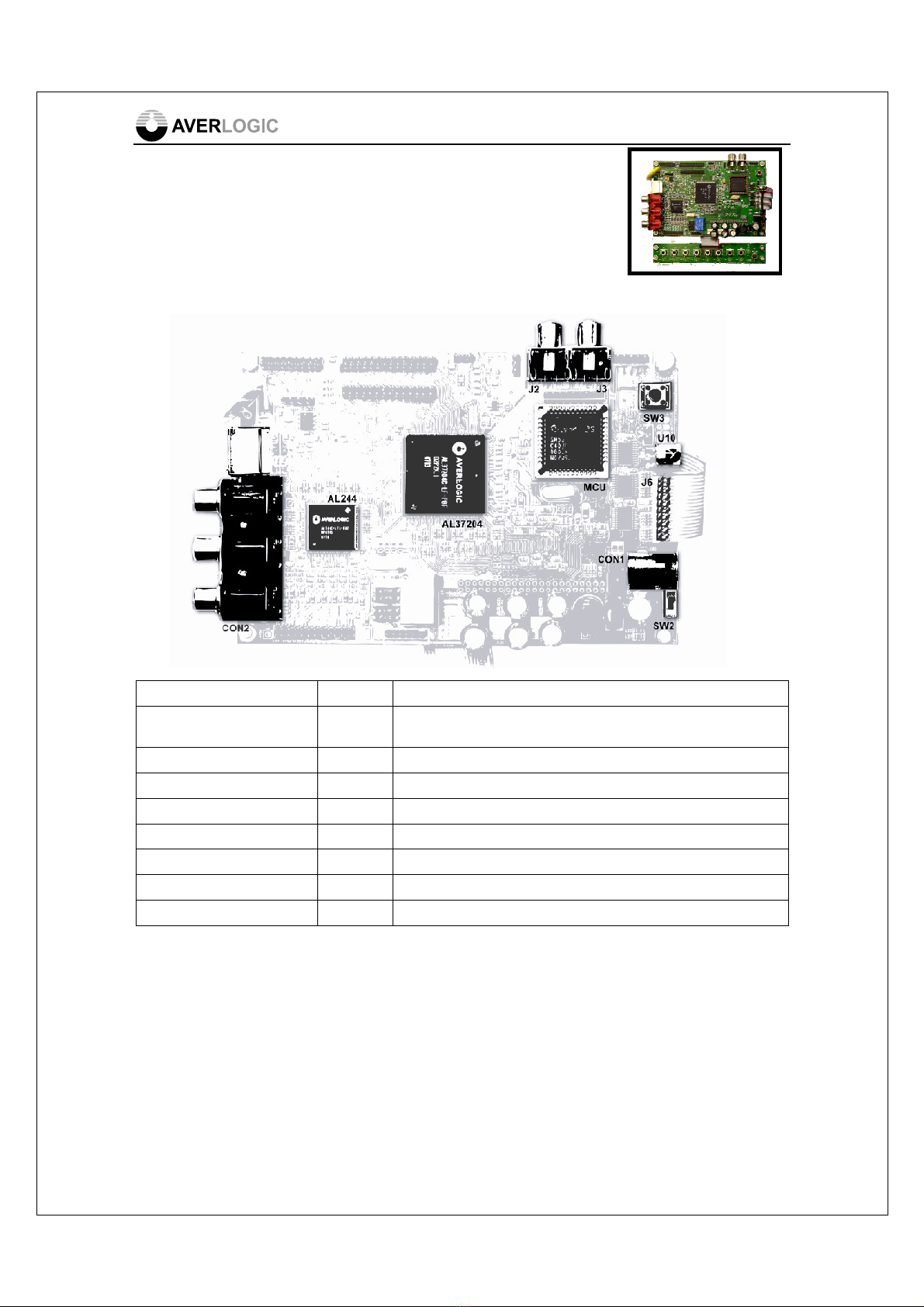

3.1 Main Board Descriptions
Connector Label Description
Power Jack CON1 12V DC power input port (current greater than 1A
recommended)
Power S/W SW2 Power switch
Reset Button SW3 Reset button
CVBS-Video Input CON2 CVBS Video signal input port
CVBS-Video Output J2 CVBS Video signal output port
CVBS-Video Output J3 CVBS Video signal output port
Keypad Connecter J6 Connector for Keypad Panel
IR Receiver U10 Receives IR signal from Remote controller
Note: There are other jumpers and connectors on this EVB board that are not described and are
either disabled or not meant for use.

©2008-2009 Copyright by AverLogic Technologies, Corp. 6

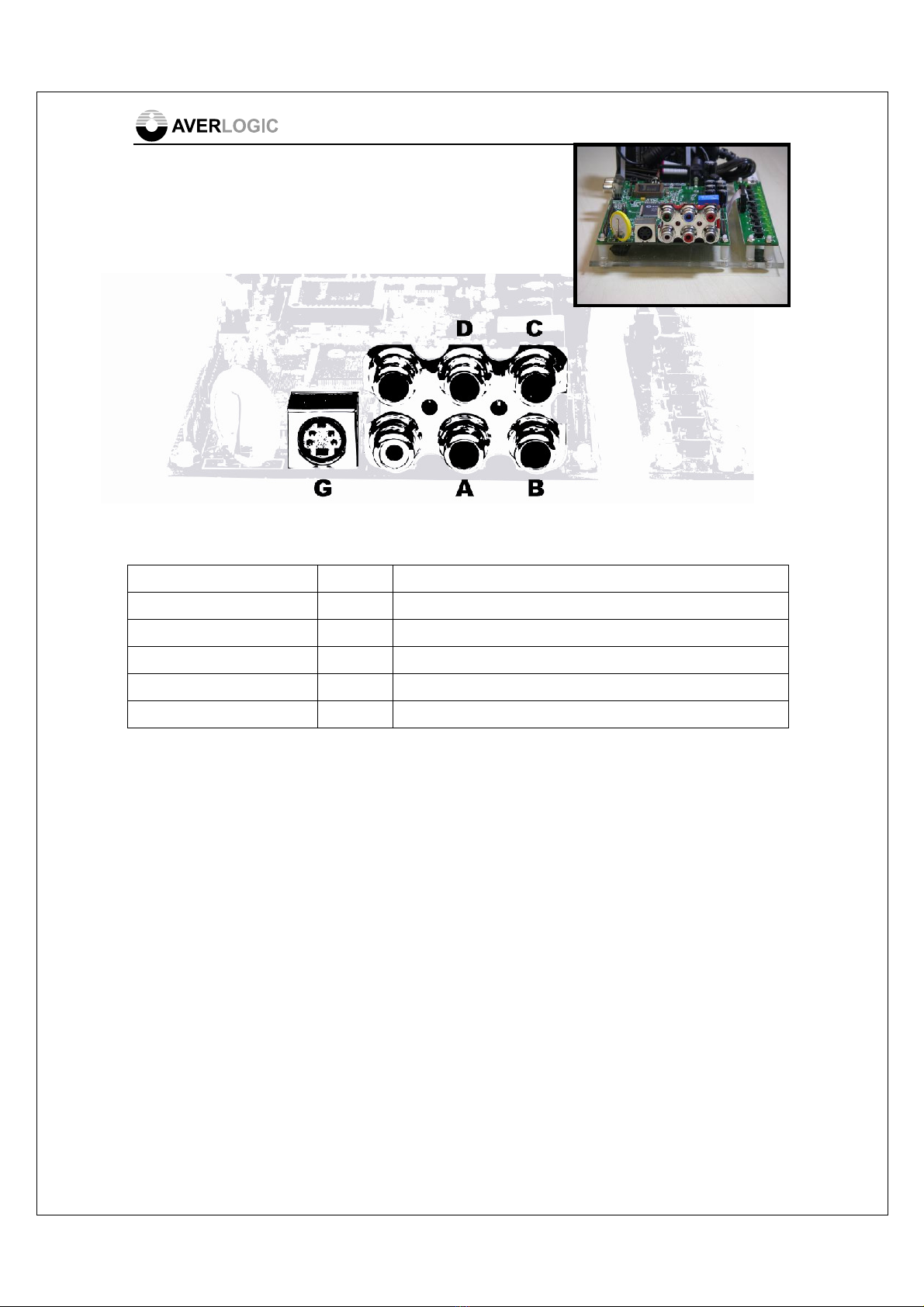

3.2 Rear panel connectors
I/O Port Descriptions (Rear I/O CON2)
Connector Label Description
CVBS 1 IN D CVBS Video signal input port 1
CVBS 2 IN C CVBS Video signal input port 2
CVBS 3 IN B CVBS Video signal input port 3
CVBS 4 IN A CVBS Video signal input port 4
S-Video IN G S-Video signal input port (reserved)
Note: There are other jumpers and connectors on this EVB board that are not described and are
either disabled or not meant for use.

©2008-2009 Copyright by AverLogic Technologies, Corp. 7

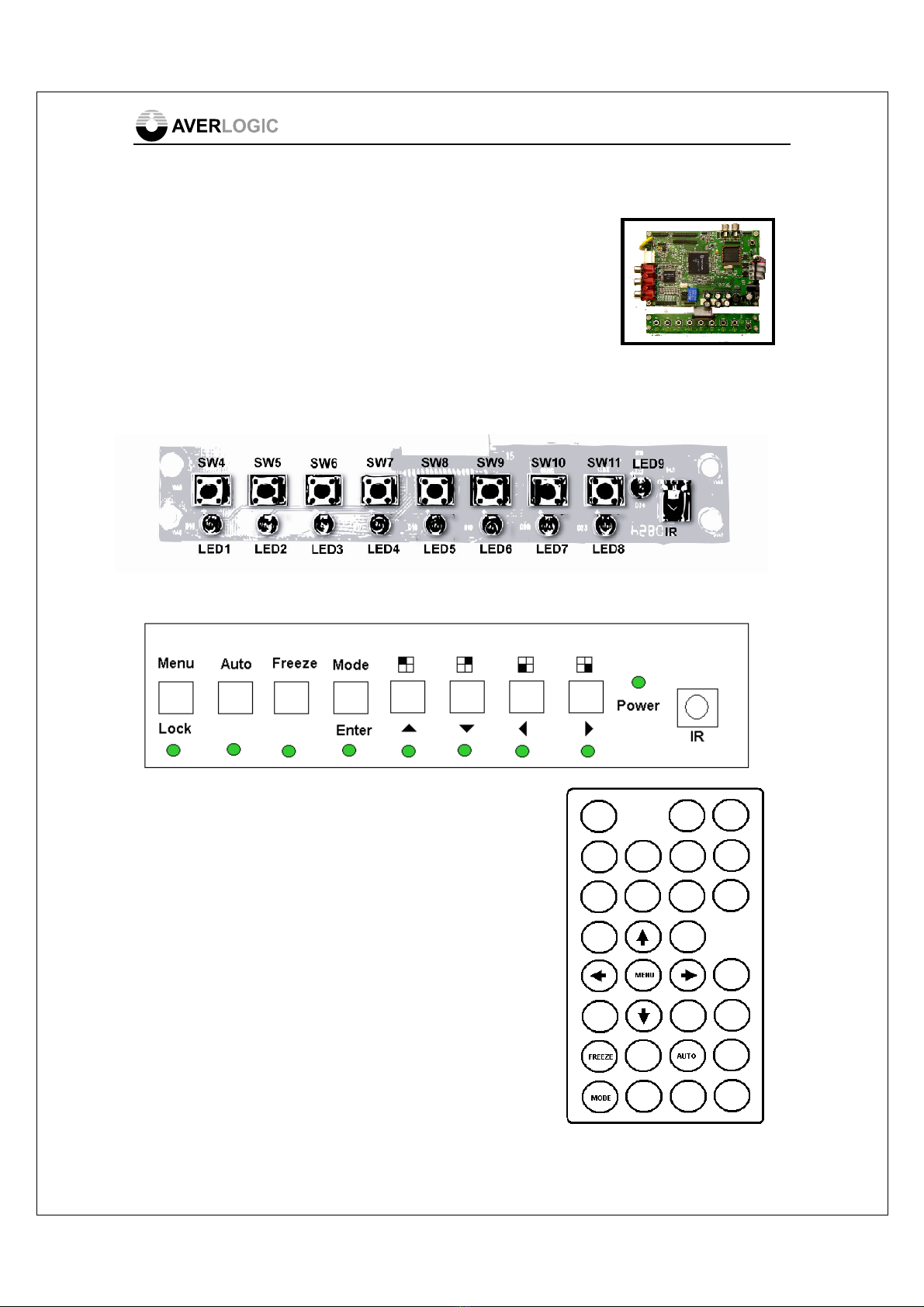

3.3 Keypad Panel
The Keypad Panel comes connected to the Main Board
with a ribbon cable. It contains 8 buttons, 9 LEDs and an
IR sensor. The LED 9 illuminates when power is supplied
to the board. The other LEDs (1-8) illuminate when the
corresponding buttons above them are depressed. The
buttons are used to manipulate the screen display and configure options
pertaining to information on the screen.
The functions on the panel buttons correspond to the diagram shown below.
A remote control is also supplied with the package
and can be used instead of pressing buttons on
the Keypad panel. The labeled remote control
buttons, located on the diagram to the right,
correspond to the buttons shown above and are
the only functional buttons used with this board.
The other buttons are disabled and non-functional.
