AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0
AL460A-EVB-A0
Evaluation Board with
HSMC Adaptor
User Manual
Version 1.0
(AL460A-7-EVB-A0 / AL460A-13-EVB-A0)
INFORMATION FURNISHED BY AVERLOGIC IS BELIEVED TO BE ACCURATE AND
RELIABLE. HOWEVER, NO RESPONSIBILITY IS ASSUMED BY AVERLOGIC FOR ITS
USE, NOR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THIRD
PARTIES THAT MAY RESULT FROM ITS USE. NO LICENSE IS GRANTED BY
IMPLICATION OR OTHERWISE UNDER ANY PATENT OR PATENT RIGHTS
OF AVERLOGIC.
Doc Number: 1-M-PAE262-0001

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 2
Amendments
Revise Date Contents Author
2010.08.13 Formal Release Version 1.0 Ray Pan
Disclaimer
THE CONTENTS OF THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE. AVERLOGIC
TECHNOLOGIES RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AVERLOGIC DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR
CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS. CUSTOMERS ARE ADVISED TO CONSULT WITH
AVERLOGIC OR ITS COMMERCIAL DISTRIBUTORS BEFORE ORDERING.

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 3
Table of Contents
1INTRODUCTION.........................................................................................4
2ADAPTOR INTERFACE.............................................................................5
2.1 ALTERA CYCLONE III INTERFACE –HSMC CONNECTOR.................................................5
2.2 AL460 EVALUATION BOARD INTERFACE –50-PIN HEADERS ..........................................7
2.3 USER CONTROL INTERFACE.........................................................................................8
3ATTACHING THE AL460 EVB...................................................................9

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 4
1 Introduction
The AL460 HSMC Adaptor (BB-AL460FSB1-EVB-D0) is designed for connecting the
AL460 module (DST-0106A-MDL-A0/A1) to an ALTERA Cyclone III FPGA board. This
configuration facilitates design verification/validation when developing or testing with the
AL460 chip.
This adaptor provides one HSMC connector for the FGPA board and two 50-pin female
headers for the AL460 module board (DST-0106A-MDL-A0/A1). The HSMC connector is a
modified version of a standard high-speed Samtec connector, which is pin-to-pin
compatible with the Cyclone III FPGA host board’s HSMC connector. The 50-pin female
headers match the two male headers on the AL460 module (DST-0106A-MDL-A0/A1).

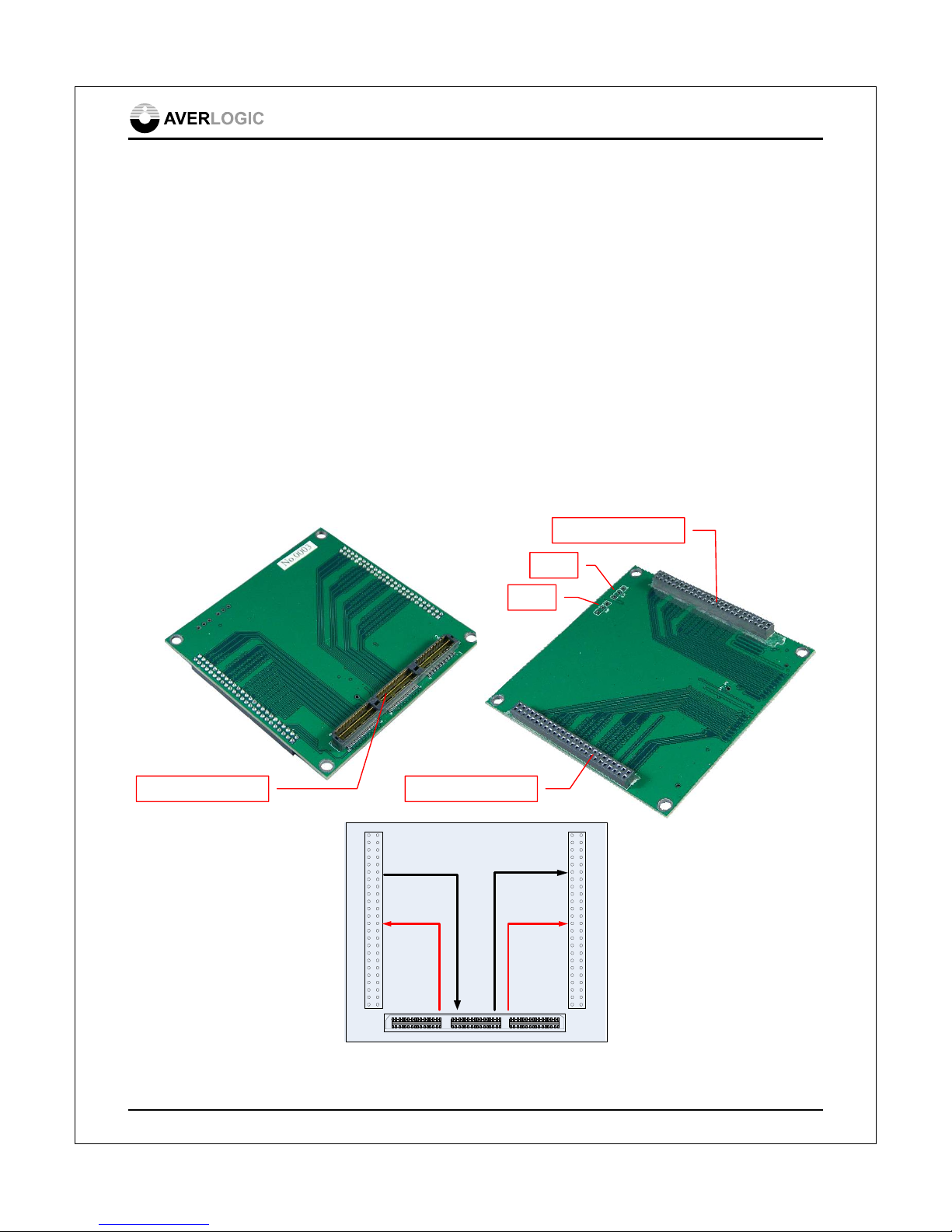

1.1 Hardware Description
Side 1
HSMC Connector
JP3
JP4
JP2 50-
p
in Header
JP1 50-
p
in Header
Side 2
50 Pins Output Header
50 Pins Input Header
ALTERA HSMC Connector
DO [31: 0] DI [31: 0]
Read Controls &
RCLK Write Controls & WCLK
Figure: AL460 HSMC Adaptor

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 5
2 Adaptor Interface
2.1 Altera Cyclone III Interface – HSMC connector
The HSMC connector reference part numbers are listed in the table directly below. The
HSMC reference label on the adaptor board is J1.
Altera-Specific Samtec Part Number Standard Samtec Part Number
ASP-122952-01 QTH-090-01-L-D-A
Table: HSMC Part Numbers
The user interface between the evaluation board and the HSMC connector is shown in the
Pin Description table below. The “HSMC I/O type” refers to the I/O capability of the Cyclone
III device from Altera.
AL460 Signal Name HSMC signal name HSMC I/O type Pin Number
AL460_RSTN HSMC_CLKOUT0 O 39
RRST HSMC_D0 Bidirectional 41
OE HSMC_D1 Bidirectional 42
REN HSMC_D2 Bidirectional 43
DO[0] HSMC_D3 Bidirectional 44
DO[1] HSMC_D4 Bidirectional 47
DO[2] HSMC_D5 Bidirectional 48
DO[3] HSMC_D6 Bidirectional 49
DO[4] HSMC_D7 Bidirectional 50
DO[5] HSMC_D8 Bidirectional 53
DO[6] HSMC_D9 Bidirectional 54
DO[7] HSMC_D10 Bidirectional 55
DO[8] HSMC_D11 Bidirectional 56
DO[9] HSMC_D12 Bidirectional 59
DO[10] HSMC_D13 Bidirectional 60
DO[11] HSMC_D14 Bidirectional 61
DO[12] HSMC_D15 Bidirectional 62
DO[13] HSMC_D16 Bidirectional 65
DO[14] HSMC_D17 Bidirectional 66
DO[15] HSMC_D18 Bidirectional 67
DO[16] HSMC_D19 Bidirectional 68
DO[17] HSMC_TX_p4 Bidirectional 71
DO[18] HSMC_RX_p4 Bidirectional 72
DO[19] HSMC_TX_n4 Bidirectional 73
DO[20] HSMC_RX_n4 Bidirectional 74
DO[21] HSMC_TX_p5 Bidirectional 77
DO[22] HSMC_RX_p5 Bidirectional 78
DO[23] HSMC_TX_n5 Bidirectional 79
DO[24] HSMC_RX_n5 Bidirectional 80
DO[25] HSMC_TX_p6 Bidirectional 83
DO[26] HSMC_RX_p6 Bidirectional 84

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 6
DO[27] HSMC_TX_n6 Bidirectional 85
DO[28] HSMC_RX_n6 Bidirectional 86
DO[29] HSMC_TX_p7 Bidirectional 89
DO[30] HSMC_RX_p7 Bidirectional 90
DO[31] HSMC_TX_n7 Bidirectional 91
RCLKO_INV HSMC_RX_n7 Bidirectional 92
RCLK HSMC_CLKOUT_p1 O 95
RCLKO_EN HSMC_CLKOUT_n1 O 97
RCLK_OUT HSMC_CLKIN_n1 I 98
RD_FRAME_SEL HSMC_TX_p8 Bidirectional 101
WRST HSMC_RX_p8 Bidirectional 102
IE HSMC_TX_n8 Bidirectional 103
WEN HSMC_RX_n8 Bidirectional 104
DI[31] HSMC_TX_p9 Bidirectional 107
DI[30] HSMC_RX_p9 Bidirectional 108
DI[29] HSMC_TX_n9 Bidirectional 109
DI[28] HSMC_RX_n9 Bidirectional 110
DI[27] HSMC_TX_p10 Bidirectional 113
DI[26] HSMC_RX_p10 Bidirectional 114
DI[25] HSMC_TX_n10 Bidirectional 115
DI[24] HSMC_RX_n10 Bidirectional 116
DI[23] HSMC_TX_p11 Bidirectional 119
DI[22] HSMC_RX_p11 Bidirectional 120
DI[21] HSMC_TX_n11 Bidirectional 121
DI[20] HSMC_RX_n11 Bidirectional 122
DI[19] HSMC_TX_p12 Bidirectional 125
DI[18] HSMC_RX_p12 Bidirectional 126
DI[17] HSMC_TX_n12 Bidirectional 127
DI[16] HSMC_RX_n12 Bidirectional 128
DI[15] HSMC_TX_p13 Bidirectional 131
DI[14] HSMC_RX_p13 Bidirectional 132
DI[13] HSMC_TX_n13 Bidirectional 133
DI[12] HSMC_RX_n13 Bidirectional 134
DI[11] HSMC_TX_p14 Bidirectional 137
DI[10] HSMC_RX_p14 Bidirectional 138
DI[9] HSMC_TX_n14 Bidirectional 139
DI[8] HSMC_RX_n14 Bidirectional 140
DI[7] HSMC_TX_p15 Bidirectional 143
DI[6] HSMC_RX_p15 Bidirectional 144
DI[5] HSMC_TX_n15 Bidirectional 145
DI[4] HSMC_RX_n15 Bidirectional 146
DI[3] HSMC_TX_p16 Bidirectional 149
DI[2] HSMC_RX_p16 Bidirectional 150
DI[1] HSMC_TX_n16 Bidirectional 151
DI[0] HSMC_RX_n16 Bidirectional 152
WCLK HSMC_CLKOUT_p2 O 155
WR_FRAME_SEL HSMC_OUT_n2 O 157
Table: HSMC Pin Description

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 7

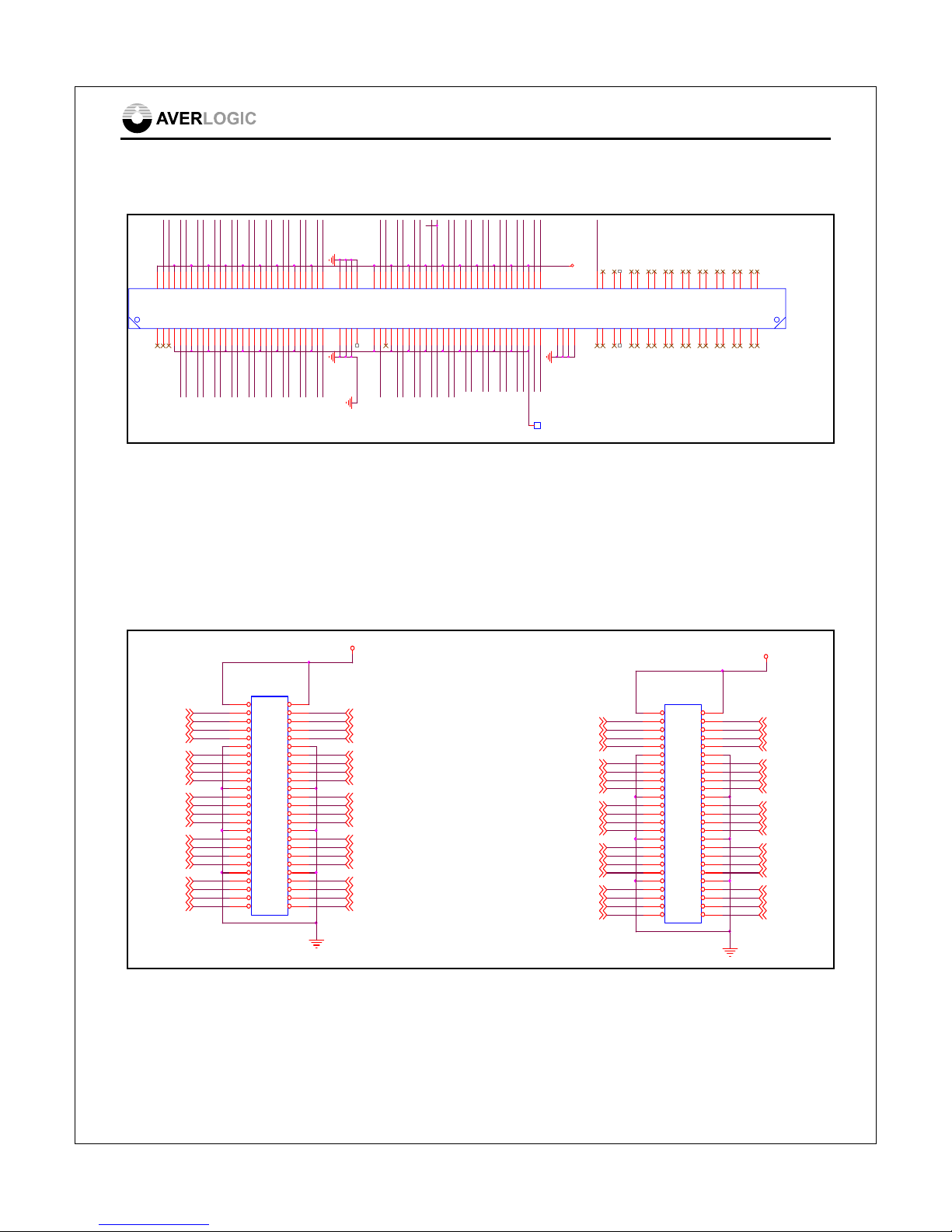

The HSMC connector pin-map for the adaptor is illustrated in the figure below.
Figure: HSMC Connector Pin-Map.
2.2 AL460 Evaluation Board Interface – 50-pin Headers
Two 25x2 female headers (2.0 mm pitch) are embedded into the adaptor and are used to
connect to the DST-0106A-MDL-A0/A1 module board. The pin-maps for the two headers are
shown in the figure below.
Figure: Two 50-Pin Header Pin-Map
DI[25]
TP1_VDD12
SIP
DI[24]
AL460_RSTN
VDD33
DI[21] DI[20] DI[17] DI[16]
D
DO[31] DO[3]
J1
QSH-090-ALTERA
11 33 55 77 99
11 11 13 13 15 15 17 17 19 19 21 21 23 23 25 25 27 27 29 29 31 31 33 33 35 35 37 37 39 39
2
24 46 68 810
10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 36 36 38 38 40 40
41 41 43 43 45 45 47 47 49 49 51 51 53 53 55 55 57 57 59 59 61 61 63 63 65 65 67 67 69 69 71 71 73 73 75 75 77 77 79 79 81 81 83 83 85 85 87 87 89 89 91 91 93 93 95 95 97 97 99 99
101 101 103 103 105 105 107 107 109 109 111 111 113 113 115 115 117 117 119 119 121 121 123 123 125 125 127 127 129 129 131 131 133 133 135 135 137 137 139 139 141 141 143 143 145 145 147 147 149 149 151 151 153 153 155 155 157 157 159 159
42
42 44 44 46 46 48 48 50 50 52 52 54 54 56 56 58 58 60 60 62 62 64 64 66 66 68 68 70 70 72 72 74 74 76 76 78 78 80 80 82 82 84 84 86 86 88 88 90 90 92 92 94 94 96 96 98 98 100
100
102
102 104 104 106 106 108 108 110 110 112 112 114 114 116 116 118 118 120 120 122 122 124 124 126 126 128 128 130 130 132 132 134 134 136 136 138 138 140 140 142 142 144 144 146 146 148 148 150 150 152 152 154 154 156 156 158 158 160 160
161
161 162 162 163 163 164 164
165
165 166 166 167 167 168 168
169 169 170 170 171 171 172 172
DO[4]
DI[5]
DO[6]
RD_FRAME_SEL DO[5] DO[7] DO[8] RCLKO_EN RCLK DO[9]
MALE SOCKET!
DO[10]
DI[11] DI[13] DO[11] DI[15] DI[19]
RCLK_OUT
DI[7] DI[9]
DO[22] DO[30] RCLKO_INV DO[28] DO[26] DO[24]
DI[3]
DI[26] DO[20] DO[18] WRST DI[30] DO[12] DI[22]
DO[21]
DI[10] DI[12] DI[14] DI[8] DI[18] DO[14]DO[13] DI[6]
RRST DO[15] DO[16]
OE
GND GND
GND
WCLK REN DO[0] WR_FRAME_SEL DO[25] DO[23] DO[21] DI[31] DO[1] DO[19] DO[17] DO[29] DO[27] DI[23] DI[27]
DO[2]
DI[1] IE
DI[4] WEN DI[2] DI[0]
DI[29] DI[28]
JP2
HEADER 25X2 2.0mm pitch
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
RD_FRAME_SEL
D
AL460_RSTN
D
JP1
HEADER 25X2 2.0mm pitch
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
IE
WR_FRAME_SEL
OE
DI[2]
DI[0]
WCLK
DI[8]
DI[6]
DI[4]
DI[12]
DI[10]
DI[16]
DI[14]
DI[18]
DI[22]
DI[20]
DI[26]
DI[24]
DI[31]DI[30]
DI[28] DI[27] DI[29]
DI[23]
DI[25]
DI[17]
DI[19]
DI[21]
DI[13]
DI[15]
DI[11]
VDD33
DI[5]
DI[7]
DI[9]
DI[1]
DI[3]
WRST
WEN
TWO_FRAME_EN
RCLK PLRTY
DO[0]
RCLKO_INV
DO[4]
DO[2]
DO[8]
DO[6]
DO[12]
DO[10]
DO[18]
DO[16]
DO[14]
DO[20]
DO[24]
DO[22]
DO[30]
DO[28]
DO[26]
DO[31]
DO[25]
DO[27]
DO[29]
DO[21]
DO[23]
DO[15]
DO[17]
DO[19]
DO[11]
DO[13]
DO[9]
VDD33
DO[3]
DO[5]
DO[7]
RCLKO_EN
DO[1]
REN
RCLK_OUT
RRST

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 8
2.3 User Control Interface
When connecting the AL460 evaluation board, the functions “Two Frame Mode” and “Polarity
Control” are configured on two 3-pin headers (JP3 & JP4 on adaptor).
Pin name I/O
type Description
PLRTY I Set the active polarity for the control signals by
jumpering pins 1,2, 3 on JP4:
Jumper 2, 3: PLRTY is active low (VD33).
Jumper 1, 2: PLRTY is active high (GND).
Control signals include WEN, REN, WRST, RRST,
IE, OE, (total of 6 signals).
Note: During memory operations, the pin must be
permanently connected to VD33 or GND. If PLRTY
level is changed during a memory operation,
memory data is not guaranteed.
TWO_FRAME_EN I Set Two Frame Mode by jumpering pins 1,2 3 on
JP3:
Jumper 1,2: “0” – Standard FIFO Mode
Jumper 3,2: “1” – Two Frame Mode
Note: These signals are internally pull-high; default is high if signals are NC.
Figure: 3-Pin Header Pin-Map
JP3
HEADER 3
1
2
3
JP4
HEADER 3
1
2
3
VDD33 VDD33
D D
PLRTYTWO_FRAME_EN

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 9

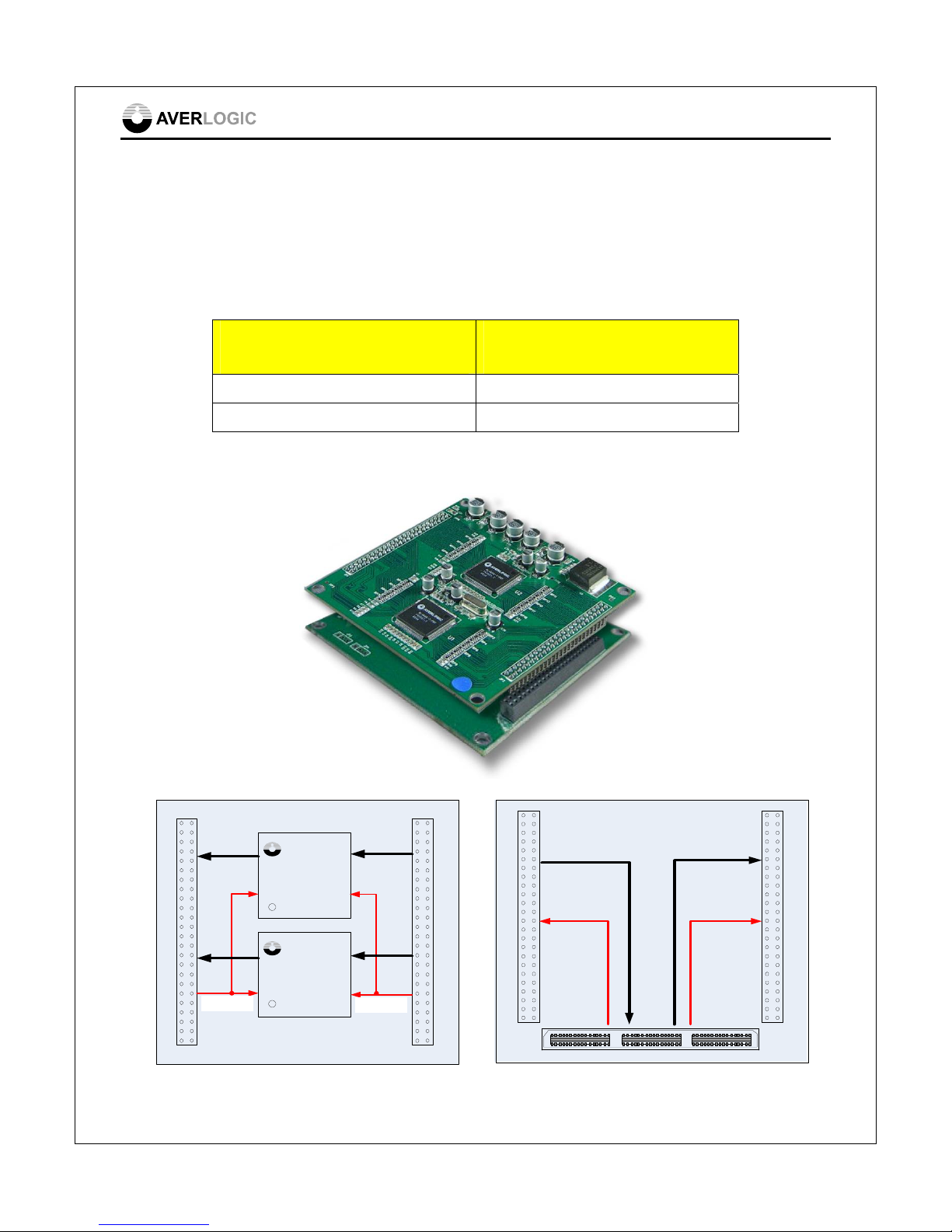

3 Attaching the AL460 EVB
The HSMC adaptor shares the same dimensions as the DST-0106A-MDL-A0/A1 (80 mm x
80 mm) and should align perfectly when connected together. Match the pins on the male
connectors (on module board) to the female connectors (on Adaptor) as follows:
AL460A HSMC Adaptor
(BB-AL460FSB1-D0) AL460A Module (DST-0106A-MDL-A0/A1)
JP1 JP2
JP2 JP1
Diagram
AL460A-7-PBF
AL460A-7-PBF
50 Pins Output Header
50 Pins Input Header
AVERLOGIC
AVERLOGIC
DO [15:0]
Read Controls &
RCLK
DO [31:16]
DI [15:0]
Write Controls &
WCLK
DI [31:16]
JP1 JP2
Figure: AL460 Module Diagram
(i.e. the JP1 connector on the Adaptor attaches to the JP2 connector on the EVB.
The JP2 connector on the Adaptor attaches to the JP1 connector on the EVB).
50 Pins Output Header
50 Pins Input Header
ALTERA HSMC Connector
DO [31: 0] DI [31: 0]
Read Controls &
RCLK Write Controls & WCLK
JP2 JP1
Figure: AL460 HSMC adaptor Board

AL460A-7&13-EVB-A0-User Manual
©2009~2010 Copyright by AverLogic Technologies, Corp. Version 1.0 10
CONTACT INFORMATION
Averlogic Technologies Corp.
E-mail: [e-mail]
URL: http://www.averlogic.com
