AVerDiGi SF1311H-DV IP Camera
User’s Manual
June 2010

FCC NOTICE (Class B)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
COPYRIGHT
© 2010 by AVerMedia INFORMATION, Inc. All right reserved.
No part of this document may be reproduced or transmitted in any form, or by any means without the prior
written permission of AVerMedia INFORMATION Inc. AVerMedia INFORMATION Inc. reserves the right to
modify its models, including their characteristics, specifications, accessories and any other information stated
herein without notice. The official printout of any information shall prevail should there be any discrepancy
between the information contained herein and the information contained in that printout. We reserve the right
to make any modification to this manual or the information contained herein at any time without notice. The
software described herein may also be governed by the terms of a separate user license agreement.
WE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD
TO THIS MANUAL, THE SOFTWARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL WE BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON
TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL,
THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
For AC adaptor to avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
[Notice]
The changes or modifications not expressly approved by the party responsible for compliance could void the
user‟s authority to operate the equipment.

Table of Contents
Overview.........................................................................................................................................1
Introduction.............................................................................................................................1
Features..................................................................................................................................1
Minimum System Requirements..............................................................................................2
Package Contents...........................................................................................................................3
Connections....................................................................................................................................4
Hardware Installation ......................................................................................................................6
Preparation.....................................................................................................................................7
Search and Set up by IPWizard II............................................................................................7
Search.............................................................................................................................7
View ................................................................................................................................8
LAN.................................................................................................................................8

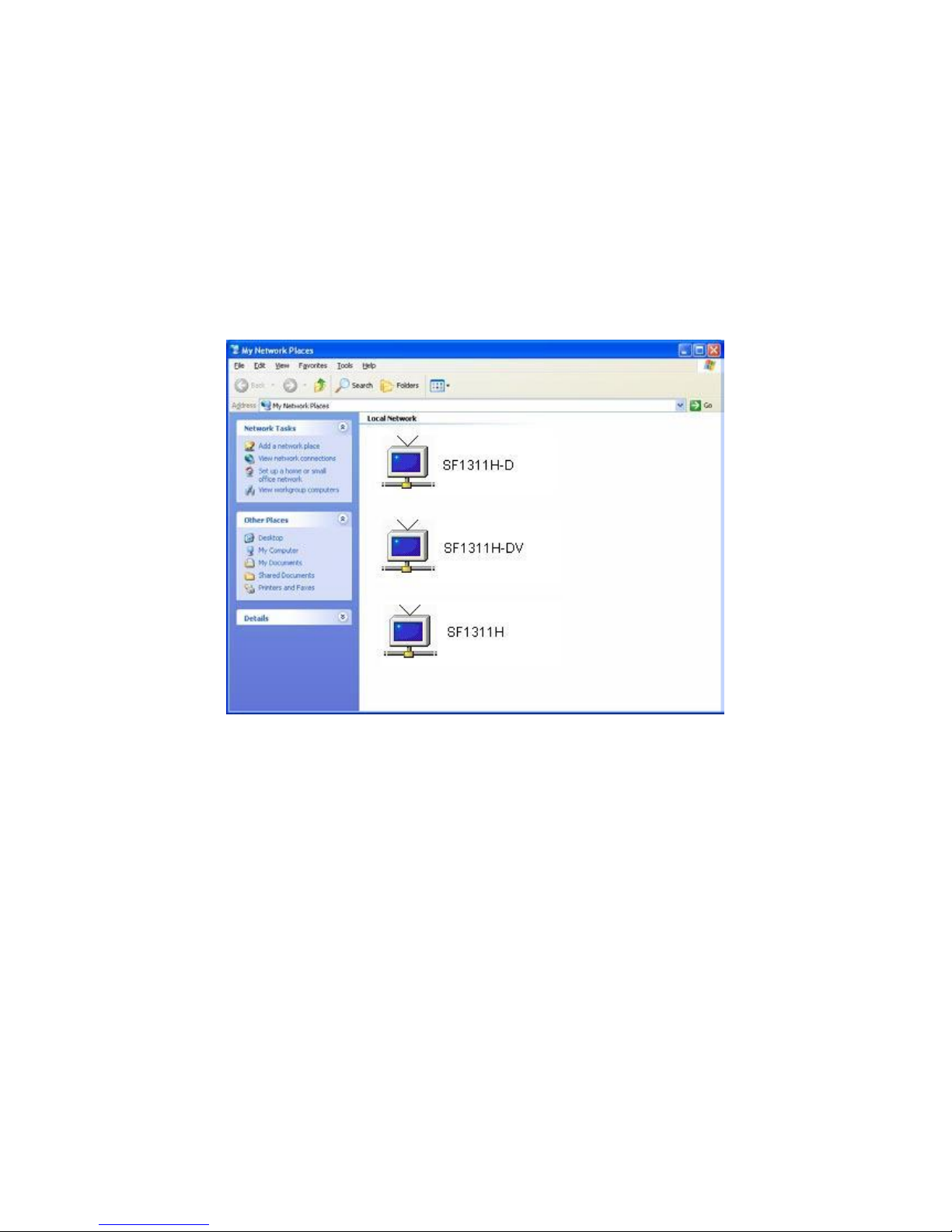

Using UPnP of Windows® XP or Vista....................................................................................10
Using Browser to Access the device for the first time ............................................................ 11
Logging as an User...............................................................................................................12
Logging as an Administrator..................................................................................................12

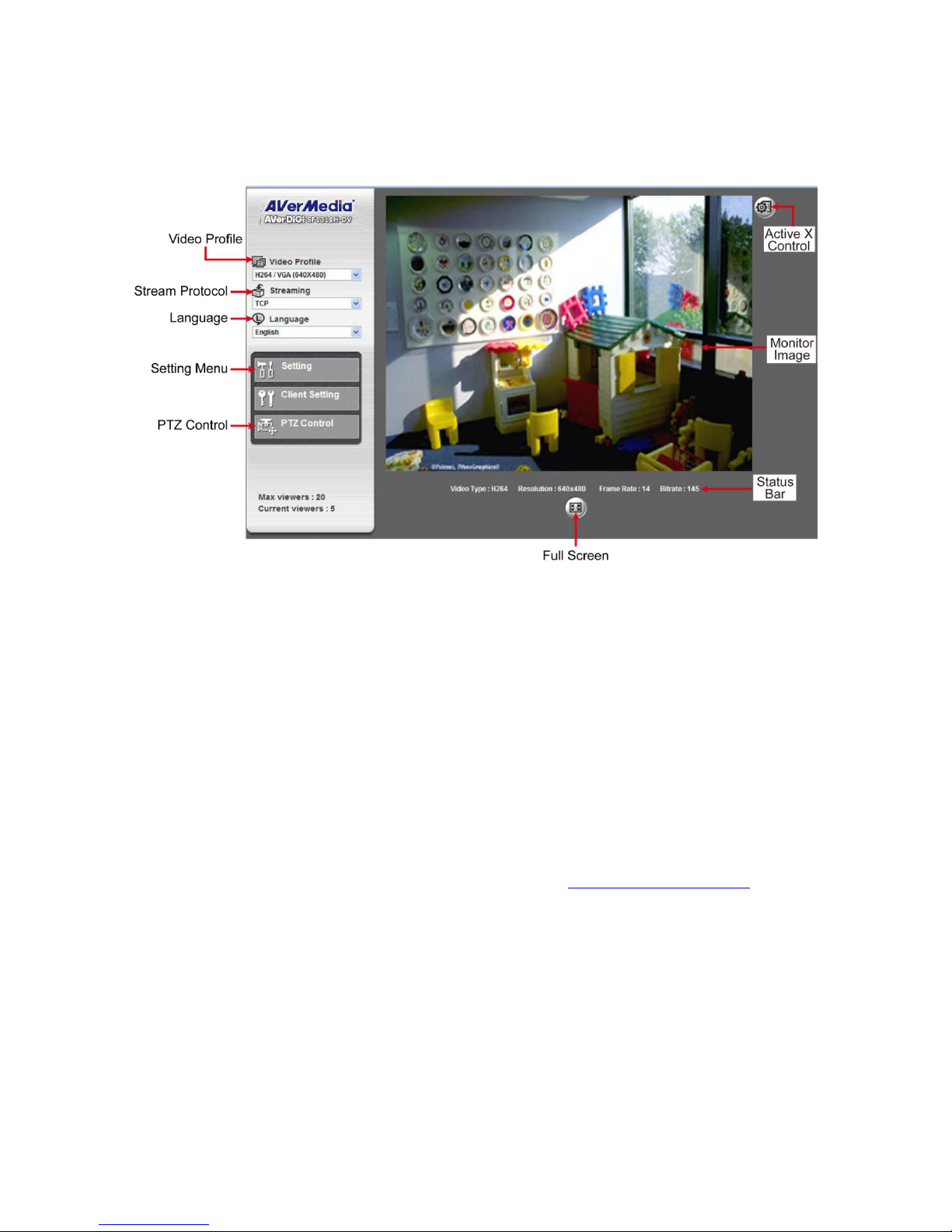

Operating the IP Camera ..............................................................................................................13
Video Profile..........................................................................................................................13
Streaming Protocol................................................................................................................13
Language..............................................................................................................................13
Setting...................................................................................................................................13

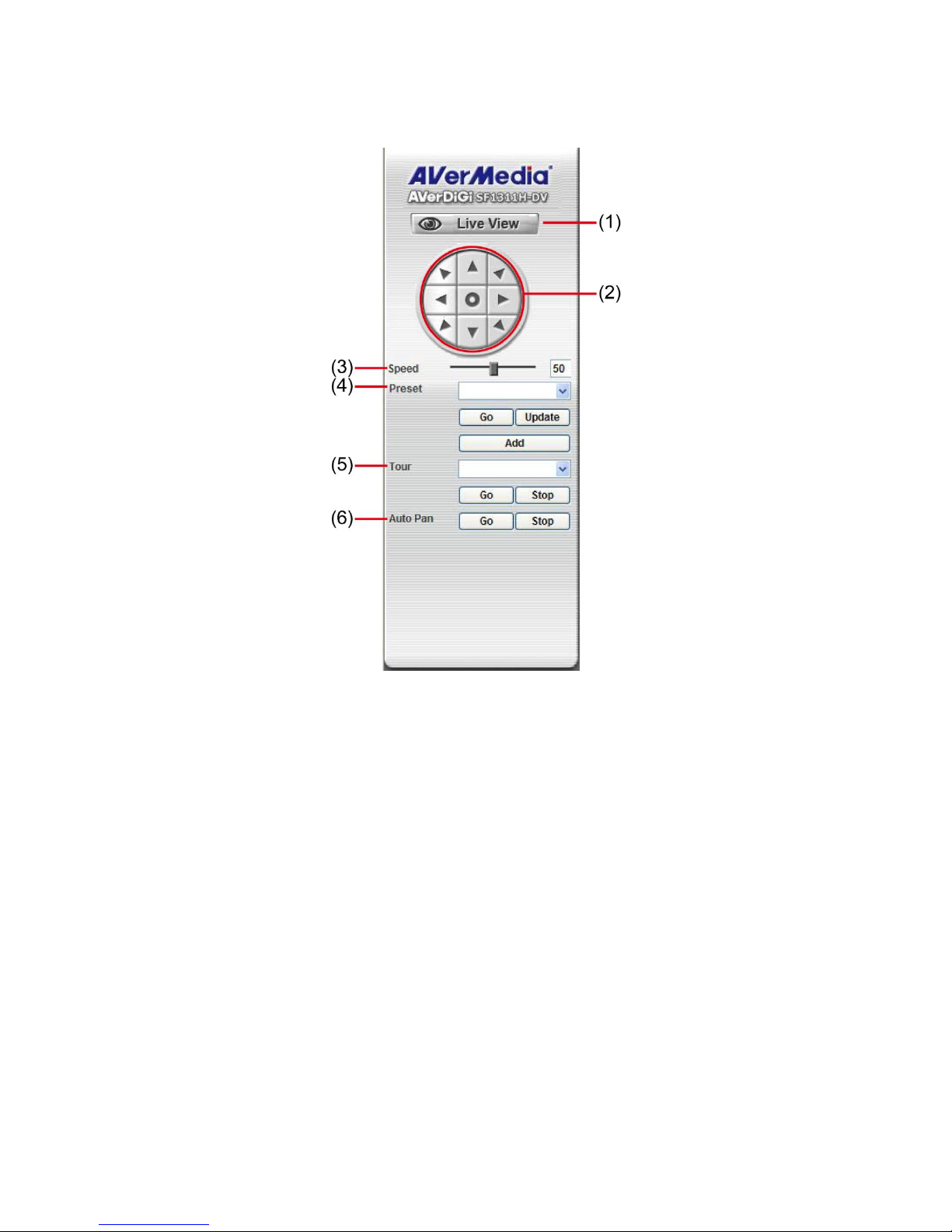

PTZ Control...........................................................................................................................14
Full Screen............................................................................................................................14
Status Bar .............................................................................................................................14
Monitor Image.......................................................................................................................15
ActiveX Control .....................................................................................................................15

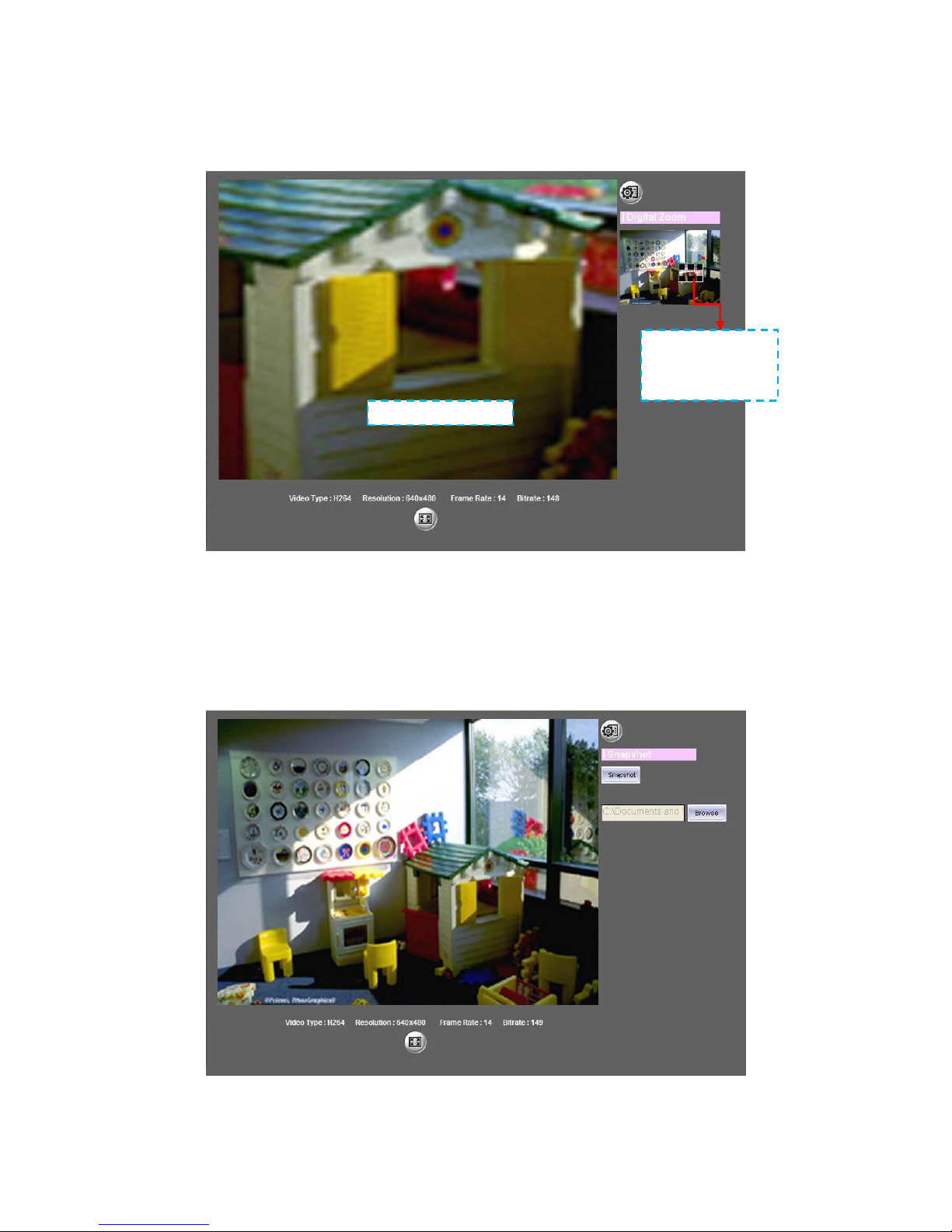

Digital Zoom..................................................................................................................16
Snapshot.......................................................................................................................16
Record...........................................................................................................................17
Volume..........................................................................................................................17
Statistics........................................................................................................................18
About.............................................................................................................................19
Administrating the Device .............................................................................................................20
System Setting......................................................................................................................20
Network: Configure Network Settings............................................................................20
Network .................................................................................................................20
DDNS service........................................................................................................22
PPPoE...................................................................................................................23
Streaming ..............................................................................................................24
UPnP.....................................................................................................................25
Bonjour Setting......................................................................................................26
IP Filter..................................................................................................................27
IP Notification.........................................................................................................27
Camera: Adjust Camera Parameters.............................................................................29
Picture ...................................................................................................................29
PTZ Setting............................................................................................................30
Preset Setting........................................................................................................31

Tour Setting ...........................................................................................................31
System: Configure and Maintain System.......................................................................32
System...................................................................................................................32
Date & Time...........................................................................................................33
Maintenance..........................................................................................................34
Video: Configure Profile.................................................................................................35
Common................................................................................................................35
Video Profile ..........................................................................................................36
Select the video profile from list to configure..........................................................36
ROI........................................................................................................................37
Audio: Audio Parameters...............................................................................................38
User: Manage User Name, Password and Login Privilege.............................................39
E-Mail: Setup E-Mail Configuration................................................................................40
Object Detection: Setup Object Detection......................................................................41
Event Server: Setup FTP/TCP/HTTP/SAMBA server.....................................................43
FTP Server ............................................................................................................43
TCP Server............................................................................................................44
HTTP Server..........................................................................................................44
SAMBA Server.......................................................................................................45
Event Schedule: Configure the Event Schedule Setting.................................................46
Record...................................................................................................................47
Appendix A: Alarm I/O Connector..................................................................................................48
Appendix B: Troubleshooting & FAQ.............................................................................................50
Appendix C: PING IPAddress.......................................................................................................54
Appendix D: Bandwidth Estimation ...............................................................................................55
Appendix E: Specifications............................................................................................................56
Appendix F: Configure Port Forwarding Manually.........................................................................58
Appendix G: DDNS Application.....................................................................................................61
Appendix H: Power Line Frequency..............................................................................................67
Appendix I: 3GPP .........................................................................................................................68
Appendix J: Enable UPnP of Windows XP....................................................................................69

1
Overview
This user‟s guide explains how to operate this camera from a computer. User should read this
manual completely and carefully before you operate the device.
Introduction
This camera is an inexpensive and fully scalable surveillance device. Because the IP cameras can
be plugged into your existing local area network (LAN), you will potentially save thousands of
dollars from unnecessary cabling.
The device is accessible via the LAN or Internet connection. Connect your device directly to a local
area network or xDSL modem, and with Microsoft®Internet Explorer you get instant, on demand
video streams. Within minutes you can set up the device to capture a video sequence to a PC. The
live video can be uploaded to a website for the world to see.
Features
Vandal proof enclosure
24pcs IR LED, over 10m IR distance
Vari-focal lens with auto iris and ICR
Easy installation with setup wizard
UPnP device discovery and NAT router transversal for easy installation
Mega-pixel resolution up to 1280x1024
Up to 11-profile encoder simultaneously
Mega-pixel or VGA mode selectable
UDP / TCP / HTTP protocols selectable
Supports video/audio multi-casting
3GPP for 3G mobile remote application
30 fps for VGA mode
15 fps for Mega-pixel mode
Digital zoom
External microphone input
Audio line out
Two-way audio
Intelligent motion detection up to 10 zones
Voice alerting while motion triggered
Image transmission using an FTP or e-mail for event
Sensor input and alarm output
RS485 interface for P/T scanner control
DDNS and PPPoE
Multi-channel control software for surveillance application
On-line firmware upgrade
IEEE 802.3af Power over Ethernet (PoE)

2
Minimum System Requirements
Microsoft Internet Explorer 6.0 or later
Microsoft Media Player 11.0 or later (to playback recorded file)
VGA Monitor resolution 1280 x 1024 or higher
Pentium-4 2.0 GHz or higher
Memory Size: 512MB or more
Windows XP, Vista, 7

3
Package Contents
User can find the following items in the package as below:
Item
Descriptions
1. SF1311H-DV
2. Screw x 4
3. L-Wrench
4. Power Adaptor(12V DC)
5. CD (User‟s Manual included)
6. Quick Guide
*If any of the above items are missing, please contact your dealer immediately.
** All specification and designs are subject to change without notice.
[Note] Using the incorrect power adaptor will cause damage and void the warranty for this product.

4
Connections
RS485 & DI/DO
Name
Cable Color
Function
12V Output
Brown/White
DC 12V (50mA maximum)
GND
Blue/White
GND
D+
Purple/White
RS485 TX +
D-
Gray
RS485 TX -
DI
Green/White
Digital signal input(sensor)
DO
Orange/White
Digital signal output (alarm)
MIC in (audio in): Connect an external microphone to the IP camera.
Line out (audio out): Connect a speaker to the IP camera. This function is for voice alerting
and two-way audio.
12V DC Jack:Connect to the power adaptor that included in the package (12VDC).
RJ45 LAN Socket: Connect to PC or Hub/Switch.
For connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port
built N-Way protocol can detect or negotiate the transmission speed of the network automatically.
Please use CAT 5 cable to connect the IP Camera to a 100Mbps Fast Ethernet network switch
or hub.
In the RJ-45 LAN socket, there are two LEDs embedded:
LAN LED (green color): This LED will be flashing while network accessing via Ethernet.
Power or Wireless LED (orange color): This LED is used to indicate whether DC power is ON or
OFF. In addition, this LED will be flashing while the wireless accessing the camera.
Factory Default Reset: This button is used to restore all factory default settings.
Restore the device:
1. Press the button down continuously.
2. Hold the button at least 5s seconds and release it. Then the device has been
RJ45
RS485 & DI/DO
12V DC in
MIC in
Line out
Factory Default
Reset

5
restored to factory default settings and reboot again.
[Note] Restoring the factory default setting will lose the all previous settings included IP address
forever. User needs to run the IPWizard II program to search the device and configure it
to let the device work properly again.

6
Hardware Installation

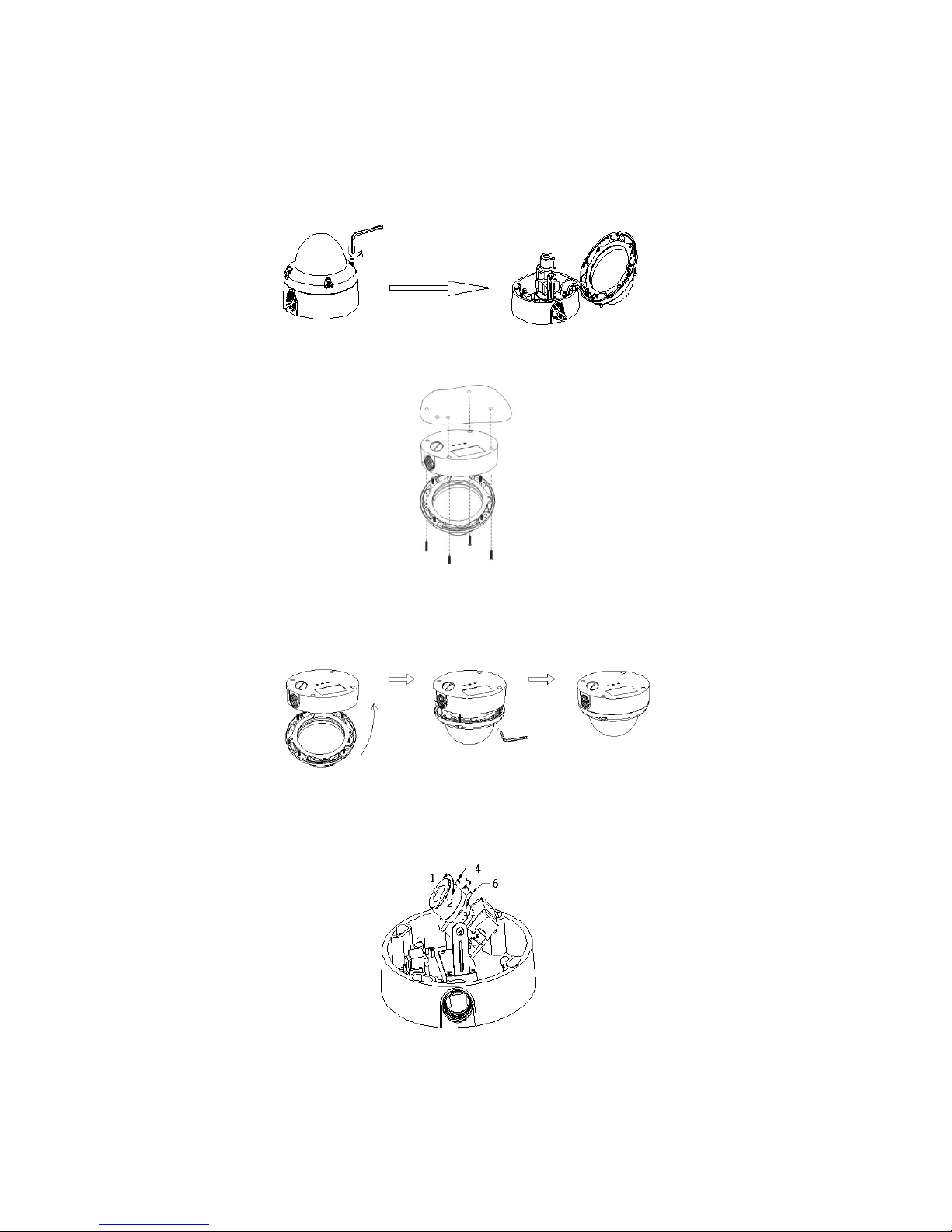

1. Use the L-wrench to loosen the tamper-resistant housing cover (with screws still attached
on the cover). The unit has a factory installed side conduit entry and one may adjust the
cables to back conduit entry according to installation requirement.
2. Set the mounting base onto the wall or ceiling and center it over the mounting hole, using four
retaining screws to secure the main body.
3. Set the proper image by moving the camera body (some model may limit the PCB board to
180°rotational adjustment) and set the focus by turning the lens to the left or right direction.
4. When the camera focus adjustment has been completed, use the L-wrench to fasten the
tamper-resistant housing to the main body.
5. Vari-Focal Dome Operation Guide: Once the picture appears on the monitor, open the cover
and adjust the lens wrench to “Near←→Far”, get the view zoom that you desire, and then
adjust the focus wrench of the lens to obtain the best picture. After adjustment, tighten both
wrenches.
6. CAT 5 cable must connect to the hub or switch, and the DC-Jack must connect to the power
source. Connect the other cables and connectors if necessary.
1. Near
2. Far
3. Wide
4. Focal Adjustment
5. Tele
6. Zoom Adjustment
