AVGear UDA2-V2 User manual

UDA2-V2
Features
▪Supports HDMI 2.0 and video
resolutions up to 4K@60Hz 4:4:4.
▪HDMI input supports HDCP 2.2 and
the outputs support HDCP Active or
HDCP Passive mode.
▪Supports video resolution down-
scaling, the 4K input can be
automatically downscaled to 1080P
output for compatibility with 1080P
display.
▪18Gbps high bandwidth.
▪Advanced EDID management:
multiple built-in EDID settings can be
selected.
▪Built-in equalizer for signal
enhancement to avoid signal
attenuation in transmission.
▪Supports CEC pass-through.
▪Provides LEDs to indicate the current
operating status.
▪Firmware upgrade by Micro-USB
port.
The UDA2-V2 HDMI 2.0 1x2 Splitter distributes one
HDMI input to two HDMI outputs. The splitter
supports HDMI video resolutions up to 4K@60Hz
4:4:4, 1080P 3D, and multichannel audio formats.
Besides passing EDID information from the display,
there are multiple built-in EDID settings which can be
selected by the 4-pin DIP switch on the front panel.

UDA2-V2
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operational instruction only,
and is not to be used in a maintenance capacity. The
functions described in this version are current as of
March, 2019. Any changes of functions and
operational parameters will be updated in future
manual versions. Please refer to your dealer for the
latest product details.
Version 1.0 19/3/19

UDA2-V2
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures in installation, use and
maintenance:
1. The system must be earthed properly. Please do not use two blade plugs
and ensure the AC power supply ranges from 100v to 240v and from 50Hz
to 60Hz.
2. Do not install the switcher in an environment where it will be exposed to
extreme hot or cold temperatures.
3. This unit will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
4. Please disconnect the unit from mains power if it will be left unused for a
long time.
5. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
6. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.

UDA2-V2
TABLE OF CONTENTS
Introduction .............................................................................................................1
Brief Introduction .........................................................................................1.1
Features ...................................................................................................... 1.2
What’s in the Box .........................................................................................1.3
Panel Description.....................................................................................................2
Front Panel ..................................................................................................2.1
Rear Panel ................................................................................................... 2.2
System Connection .................................................................................................3
Usage Precautions ......................................................................................3.1
System Diagram ...........................................................................................3.2
DIP Switch Operation...............................................................................................4
EDID Management .......................................................................................4.1
HDCP Mode .................................................................................................4.2
Video Resolution Down-scaling .............................................................................5
Firmware Upgrade ...................................................................................................6
Specifications ..........................................................................................................7

UDA2-V2
1. Introduction
1.1 Brief Introduction
The UDA2-V2 HDMI 2.0 1x2 Splitter, which can distribute one HDMI input to two
outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080P
3D, and multichannel audio formats. Besides passing EDID information from the
display, there are multiple built-in EDID settings can be selected by the 4-pin DIP
switch on the front panel. The splitter supports convenient firmware updates through
the Micro-USB port.
1.2 Features
▪Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
▪HDMI input supports HDCP 2.2 and the outputs support HDCP Active or
HDCP Passive mode.
▪Supports video resolution down-scaling, the 4K input can be automatically
downscaled to 1080P output for compatibility with 1080P display.
▪18Gbps high bandwidth.
▪Advanced EDID management: multiple built-in EDID settings can be selected.
▪Built-in equalizer for signal enhancement to avoid signal attenuation in
transmission.
▪Supports CEC pass-through.
▪Provides LEDs to indicate the current operating status.
▪Firmware upgrade by Micro-USB port.

UDA2-V2
1.3 What’s in the Box
▪1 x UDA2-V2 HDMI 2.0 1x2 Splitter
▪4 x Rubber feet
▪1 x Power Adapter (5V DC 1A)
▪1 x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

UDA2-V2
2. Panel Description

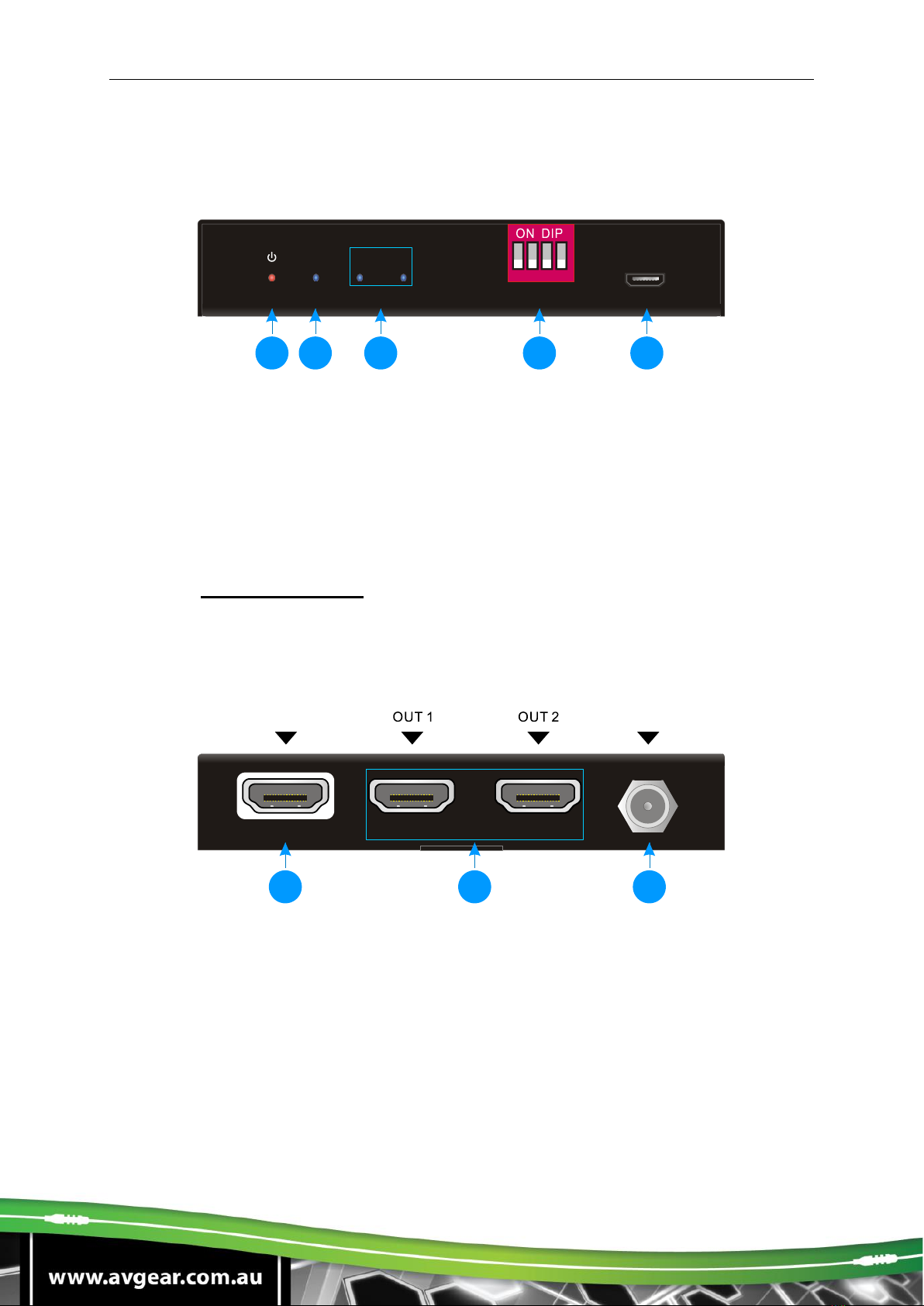

2.1 Front Panel
①POWER LED: The LED illuminates red when power is applied.
②INPUT LED: The LED illuminates blue when there is a HDMI input.
③OUTPUT LEDs: The LED illuminates blue when there is a HDMI output on the
corresponding channel.
④EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer
to the EDID Management for more details.
⑤FW: Micro-USB port for firmware upgrade.
2.2 Rear Panel
①INPUT: Type-A female HDMI input port to connect a HDMI source.
②OUTPUTS: Two type-A female HDMI output ports to connect HDMI displays.
③DC 5V: DC barrel port to connect an AC power adapter.
IN FW
1 2
1 2 3 4
EDID
ON
OFF
1
0
12345
1 2
IN
DC 5VIN
123

UDA2-V2
3. System Connection
3.1 Usage Precautions
▪The system should be installed in a clean environment with temperature and
humidity maintained to be within equipment specifications.
▪All of the power switches, plugs, sockets and power cords should be insulated
and safe.
▪All the HDMI and control devices should be connected before powering on.
3.2 System Diagram

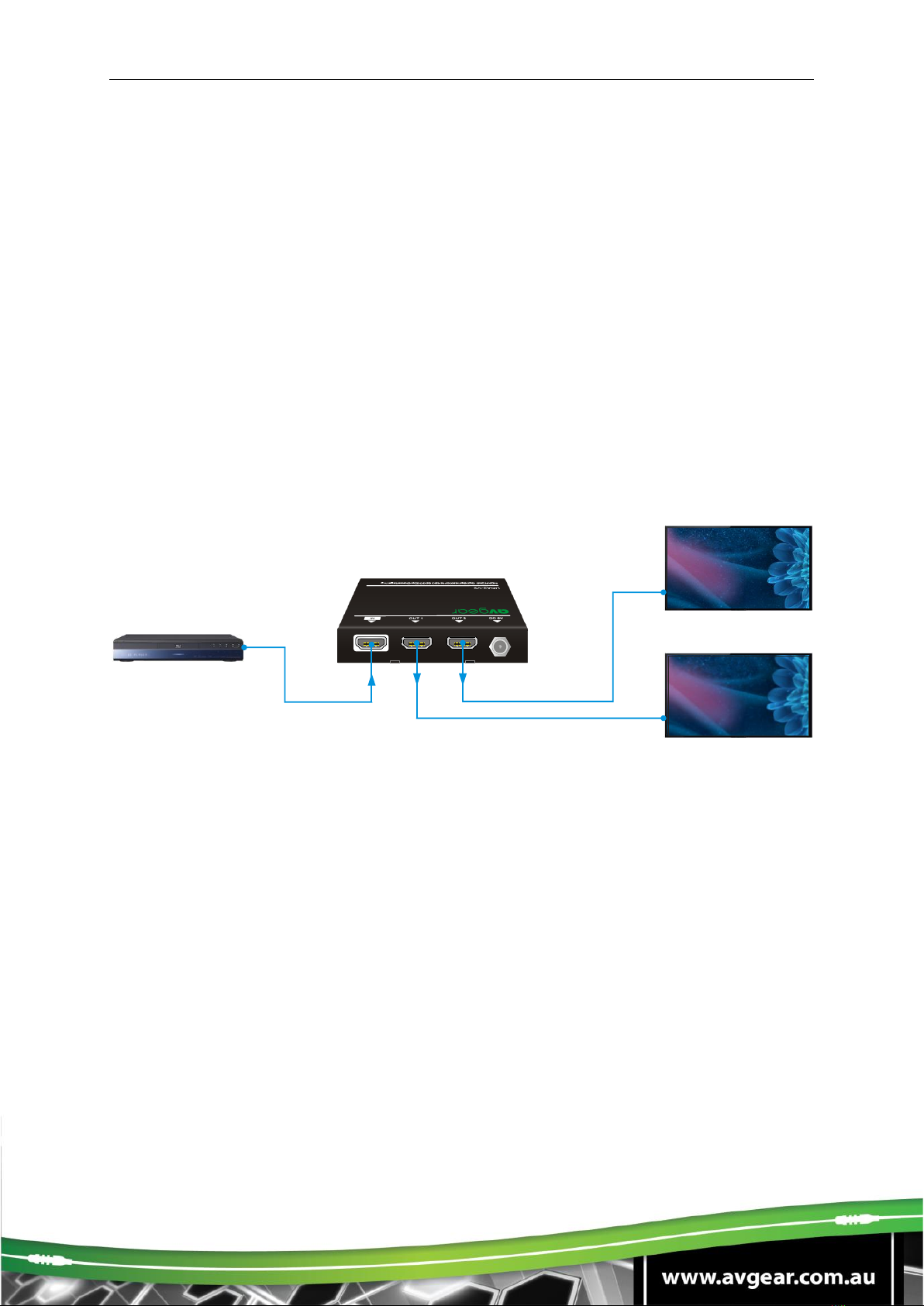

The following diagram illustrates a typical input and output connection that could be
used with the UDA2-V2.
1 2
IN
4K/60 Blu-ray
1080p Display
4K/60 Display
Down Scaling
4K@60 4:4:4 HDR
4K/60 Display

UDA2-V2
4. DIP Switch Operation
4.1 EDID Management
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. By default, the source device
obtains its EDID from the first connected display. Meanwhile, since the displays with
different capabilities are connected to the splitter, the DIP switch on the front panel
can be used to set the EDID to a fixed value to ensure the compatibility in video
resolution.
The switch represents “0” when in the lower (OFF) position, and it represents “1”
while putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.
Switch Status
Video Resolution
Audio Format
000
Obtains EDID from the first detected display starting at HDMI
output 1>2.
001
Obtains EDID from the first detected display starting at HDMI
output 2>1.
010
1080P
LPCM
011
1080P
DTS/Dolby
100
3840x2160@30Hz HDR
LPCM
101
3840x2160@30Hz HDR
DTS/Dolby
110
3840x2160@60Hz HDR
LPCM
111
3840x2160@60Hz HDR
DTS/Dolby
1 2 3 4
EDID Setting
1080p DTS/Dolby
4K/30Hz LPCM
4K/60Hz LPCM
4K/60Hz DTS/Dolby
Default
1 2 3 4
ON
OFF
1
0ON
OFF
ON
OFF
1 2 3
Priority OUT 1 > 2
ON
OFF
1 2 3
Priority OUT 2 > 1
ON
OFF
1 2 3
ON
OFF
1 2 3
1080p LPCM
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/30Hz DTS/Dolby

UDA2-V2
4.2 HDCP Mode
Put the switch 4 on the “ON” position to select HDCP Active mode, or on the “OFF”
position for HDCP Passive mode.
Switch Status
Mode
HDCP
OFF (0)
Passive
(Default)
Automatically follows the display’s HDCP version.
ON (1)
Active
Automatically removes the HDCP content of HDMI
output for broader video solution.
5. Video Resolution Down-scaling
Input
Output
#
Resolution
Refresh
Color
Space
Downscale
1080P Specs
1
3840x2160
60
4:4:4
Support
1080P@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080P@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080P@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080P@60Hz 4:2:0
5
3840x2160
30
4:2:0
Support
1080P@30Hz 4:2:0
6
3840x2160
24
4:2:0
Support
1080P@24Hz 4:2:0
7
3840x2160
60
4:2:2
Not Support
N/A
8
3840x2160
30
4:2:2
Not Support
N/A
9
3840x2160
24
4:2:2
Not Support
N/A
6. Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Connect the splitter to the PC with USB cable.
2) Power on the splitter, and then the PC will automatically detect a U-disk named
of “BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk directly.
5) If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the
firmware was upgraded successfully. If the firmware upgrade failed, please check
the file (.bin) and then follow the above procedure to operate again.
6) Remove the USB cable after firmware upgrade.

UDA2-V2
7. Specifications
Video Input
Input
(1) HDMI
Input Connector
(1) Type-A female HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
CEC
Supported
Video Output
Output
(2) HDMI
Output Connector
(2) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
CEC
Supported
Control
Control Part
(1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth
18Gbps
HDMI 2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC; Output: 5V DC 1A
Power Consumption
1.5W (Max)
Dimension (W*H*D)
96.0mm x 17.6mm x 70.4mm
Net Weight
185g
Note: Please use a high-qualified HDMI cable fully compliant with HDMI 2.0 for
reliable transmission and connection.
