AVICHE AH-C10 User manual

Medical Compressor Nebulizer
Version 1.0
Thank you for choosing AVICHE Medical Compressor Nebulizer. Please read this User
Manual carefully before use and maintenance and keep it properly for future reference.
Model: AH-C10
User Manual

1
The illustrations shown in this user manual are image drawings and
may differ slightly from the appearance of the actual product.
Table of Contents
Before Using the Device
Introduction
Intended Use
Safety Information
Know Your Unit
Operating Instructions
Preparing the Nebulizer for Use
Attaching the Air Tube
Using the Device
Care and Maintenance
Cleaning after Each Use
Daily Disinfecting
Changing the Air Filter
Caring for the Device
Troubleshooting
Troubleshooting Guide
Limited Warranty
FCC Statement
Specifications
Guidance and Manufacturer's Declaration
After-sales Service and Warranty Card
…………………………………
…………………………………………………
………………………………………………
………………………………………
……………………………………………
……………………………………
……………………
…………………………………
…………………………………………
……………………………………
………………………………
…………………………………………
…………………………………
……………………………………
……………………………………………
…………………………………
…………………………………………
……………………………………………
………………………………………………
………
……………
2
2
2
3
8
10
10
12
13
16
16
17
18
19
20
20
21
22
23
24
31

2
Introduction
Before Using the Device
Thank you for purchasing the AH-C10 Medical Compressor Nebulizer.
This product was developed for the successful treatment of asthma, allergies
and other respiratory disorders. The compressor forces air to the nebulizer.
When the air enters the nebulizer, it converts the prescribed medication into
an aerosol of microscopic droplets that can easily be inhaled.
Your AH-C10 Medical Compressor Nebulizer comes with the following
components:
·Compressor (Main Unit)
·Nebulizer Kit
·Air Tube (PVC, 150 cm)
·Air Filters (Package of 2)
·User Manual
·Adult or Child Mask (PVC)
For specific information about your own nebulizer,
CONSULT YOUR DOCTOR.
SAVE THESE INSTRUCTIONS
Intended Use
The AH-C10 Medical Compressor Nebulizer is intended to provide air to the
pneumatic nebulizer in order to aerosolize medications for inhalation by the
patient for respiratory disorders. The system is designed for use with
pediatric (defined by the prescribed medication) and adult patients in the
home, hospital, and sub-acute settings.
All warnings and cautions described in this manual should be observed.

3
Safety Information
To ensure the correct use of the product, basic safety measures should
always be followed including the warnings and cautions listed in this user
manual.
Operating the Device
For type, dose, and regime of medication follow the instructions of your
physician or licensed healthcare practitioner.
If you feel anything unusual during use, stop using the device immediately
and consult your physician.
Do not cover the compressor with a blanket, towel, or any other type of
cover during use. This could result in the compressor overheating or
malfunctioning.
Do not use the device where the device may be exposed to flammable
gas or vapors.
Do not use tap or mineral water in the nebulizer for inhaling purposes.
Clean and disinfect the nebulizer kit, mouthpiece, and optional nosepiece
or optional masks before using them for the first time after purchase.
If the device has not been used for a long period of time, clean and
disinfect the nebulizer kit, mouthpiece, and optional nosepiece or optional
masks before using them.
SAFETY SYMBOLS USED IN THIS USER MANUAL
WARNING
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user
or patient or damage to the equipment or other property.

4
Pentamidine is not an approved medication for use with this device.
Always dispose of any remaining medication in the medication cup after
each use. Use fresh medication each time you use the device.
Do not leave the device or its parts where it will be exposed to extreme
temperatures or changes in humidity, such as leaving the device in a
vehicle during warm or hot months, or where it will be exposed to direct
sunlight.
Do not use or store the device where it may be exposed to noxious fumes
or volatile substances.
Make sure that the nebulizer kit is clean before use.
Do not use in anaesthetic or ventilator breathing circuits.
Not suitable for use in the presence of flammable anesthetic mixture with
air or oxygen or nitrous oxide.
Do not operate where oxygen is being administered in a closed
environment (such as an oxygen tent).
Provide close supervision when this device is used by, on, or near infants,
children or compromised individuals.
If the device is used continuously, the service life of the device may be
shortened.
Limit use to 30 minutes at a time, and allow a 30 minutes interval before
using the device again.
When using the device, the main unit may become hot.
Do not touch the main unit for other than necessary operation such as
turning off the power while nebulizing.
Do not insert any object into the compressor.

5
Make sure the air filter is clean. If the air filter has changed color or has
been used on average for more than 60 days, replace it with a new one.
Make sure the nebulizer kit is correctly assembled, the air filter is properly
installed, and the air tube is correctly connected to the compressor and
the nebulizer kit. Air may leak from the air tube during use if not securely
connected.
Inspect the compressor (main unit) and the nebulizer parts each time
before using nebulizer kit. Make sure no parts are damaged, the nozzle
and air tube are not blocked and the compressor operates normally.
Do not use the device if the air tube is bent.
Do not block the air filter cover.
Do not alter the baffle, the nozzle in the medication cup or any part of the
nebulizer kit.
Do not add more than 8mL of medication to the medication cup.
Do not operate the device at temperatures greater than +40˚C (+104˚F).
Do not tilt the nebulizer kit so the angle of the kit is greater than 45˚.
Medication may flow into the mouth.
Do not shake the nebulizer kit while using the device.
Do not subject the compressor or any of the components to strong
shocks, such as dropping on the floor.
This device is approved for human use only.
Do not disassemble or attempt to repair the device or components.
Operate the device only as intended. Do not use the device for any other
purpose.

6
Dispose of the device, components and optional accessories according to
applicable local regulations. Unlawful disposal may cause environmental
pollution.
Use only AVICHE authorized parts and accessories. Parts and
accessories not approved for use with the device do not perform the
expected specification or it may damage the unit.
Changes or modification not approved by AVICHE will void the user
warranty.
To avoid injury to the nose mucosa, do not squeeze the optional
nosepiece into the back of the nose.
To avoid the medication residue on the face. After nebulization, be sure to
wipe the face after removing the optional masks.
When using this device, there will be some noise and vibration caused by
the pump in the compressor. There will also be some noise caused by the
emission of compressed air from the nebulizer kit. This is normal and
does not indicate a malfunction.
When sterilizing parts by boiling, make sure that the container does not
boil dry.
Do not use the device while sleeping or if drowsy.
Do not block the slit between the cap and the inhalation air inlet.
Do not connect the power cord terminal using wire or other metallic
conductors.
Do not use the compressor (main unit) or power cord while they are wet.
Do not plug or unplug the power cord into the electrical outlet with wet
hands.
Risk of Electrical Shock

7
Do not immerse the compressor (main unit) in water or other liquid.
Do not spill water or other liquids on the compressor and power cord.
These parts are not waterproof. If liquid spills on these parts, immediately
unplug the power cord and wipe off the liquid with gauze or other soft
absorbent material.
Do not use or store the device in humid locations, such as a bathroom.
Use the device within the operating temperature and humidity.
Do not operate the device with a damaged power cord or plug.
Do not use a cellular phone near the device. It may result in an
operational failure.
Do not overload power outlets. Plug the power cord into the appropriate
voltage outlet.
Do not use extension cords. Plug the power cord directly into the electrical
outlet.
Unplug the power cord from the electrical outlet after using the device.
Unplug the power cord from the electrical outlet before cleaning the
device.
Do not pull the power cord of power cord strongly.
Keep the device out of the reach of unsupervised infants and children.
The device may contain small parts that can be swallowed.
Do not leave the cleaning solution in the nebulizer parts. Rinse the
nebulizer parts with clean hot tap water after disinfecting.
Wash the nebulizer parts after each use. Dry the parts immediately after
washing.
Maintenance and Storage

8
Do not store the air tube with moisture or medication remaining in the air
tube. This could result in infection as a result of bacteria.
Store the device and the components in a clean, safe location.
Do not carry or leave the nebulizer kit with medication in the medication
cup.
Do not place or attempt to dry the device, components or any of the
nebulizer parts in a microwave oven.
Do not wrap the power cord around the compressor (main unit) and power
cord.
Components
Know Your Unit
User Manual (including Warranty Card) × 1
Air Filters Package of 2
Product Inspection Certificate × 1
Medical Compressor Nebulizer
Version 1.0
Thank you for choosing AVICHE Medical Compressor Nebulizer. Please read this User
Manual carefully before use and maintenance and keep it properly for future reference.
Model: AH-C10
User Manual
AVICHE Shandong Medical Technology Co., Ltd.
Product Name:
Model No.:
Inspection Date:
Quality Inspector:
Product
Inspection Certificate
Medical Compressor Nebulizer
AH-C10

9
Main Unit
Nebulizer Kit
Inhalation Top
Inhalation Cap Knob
Inhalation Cap
Medication Cup Mask
Air Tube Connector
Baffle
Nozzle
Ventilation
Slots
Nebulizer Kit
Holder
Power Switch
Air Tube
Connector
Air Filter Cover
(*Air Filter Inside)

10
Preparing the Nebulizer for Use
Operating Instructions
·Clean and disinfect the nebulizer kit, and optional masks before
using them for the first time after purchase.
·If the device has not been used for a long period of time, or if more
than one person uses the same device, clean and disinfect the
nebulizer kit, and optional masks before using them.
Make sure the air filter is clean. If the air filter has changed color or
has been used on average for more than 60 days, replace it with a
new one.
For directions on cleaning and disinfecting refer to page 16 - 18.
For directions on changing the air filter refer to page 18.
1Plug the power cord into the electrical outlet.
2Rotate the inhalation top
counterclockwise (A) and lift (B) to
remove the inhalation top from the
medication cup.
(A)
(B)
CAUTION
WARNING
Do not plug or unplug the power cord into the electrical outlet with wet
hands.
·Do not overload power outlets. Plug the power cord into the appro-
priate voltage outlet.
·Do not use extension cords. Plug the power cord directly into the
electrical outlet.
CAUTION
WARNING

11
NOTE: Scales on the nebulizer kit are for reference only.
The scale on the outside of the medication cup is
with no splash guard in place. Please use the scale
on your syringe or vial for accurate measurement of
medication.
3Add the correct amount of prescribed medication to the medication cup.
4Place the inhalation top on the medication cup.
Align the protrusion on the inhalation top with the indentation on the
medication cup as illustrated (A).
Turn the inhalation top clockwise until securely closed (B).
·For type, dose, and regime of medication follow the instructions of
your physician or licensed healthcare practitioner.
·Do not spill water or other liquids on the compressor and power
cord. These parts are not waterproof. If liquid spills on these
parts, immediately unplug the power cord and wipe off the liquid
with gauze or other soft absorbent material.
·Do not use tap or mineral water in the nebulizer for inhaling
purposes.
Do not add more than 8mL of medication to the
medication cup.
CAUTION
WARNING
(B)
(A)

12
Turn the inhalation cap knob to cover the inhalation
air inlet(A).
Attach the mask(B)
NOTE: 1. Amount of aerosol can be adjusted by turning
the inhalation cap knob.
2. Users can use splash guards to help adjust the particle size. For
general use, It is not necessary to add any splash guard to use.
For upperrespiratorydisease, It can use the round splash guard.
For pulmonary disease, It can use fine particle splash guard.
NOTE: Keep the nebulizer kit upright when attaching the air tube. Medication
may spill out of the medication cup.
5Attach the desired inhalation accessory.
1Twist the air tube plug slightly and push it firmly into the air tube connector
on the upper side of the compressor (A).
2Twist the air tube plug slightly and push it firmly into the air tube connector
on the bottom of the nebulizer kit (B).
USING ADULT MASK or CHILD MASK (B)
(A)
Attaching the Air Tube
·Make sure the nebulizer kit is correctly assembled, the air filter is
properly installed, and the air tube is correctly connected to the
compressor and the nebulizer kit. Air may leak from the air tube
during use if not securely connected.
·Do not use the device if the air tube is bent.
CAUTION
(A)
(B)

13

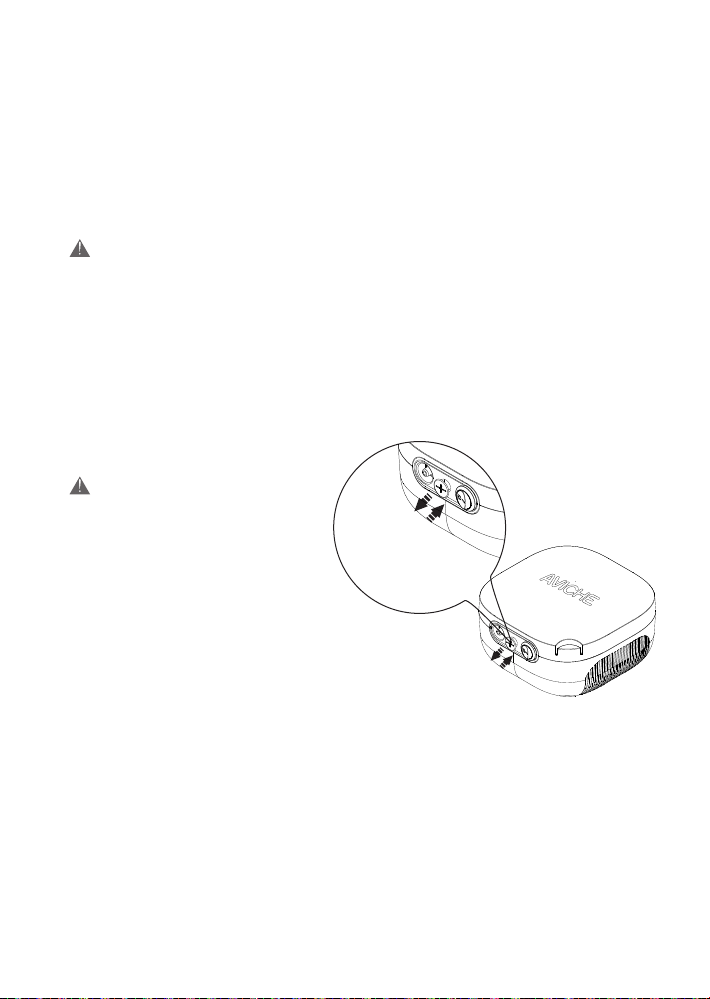

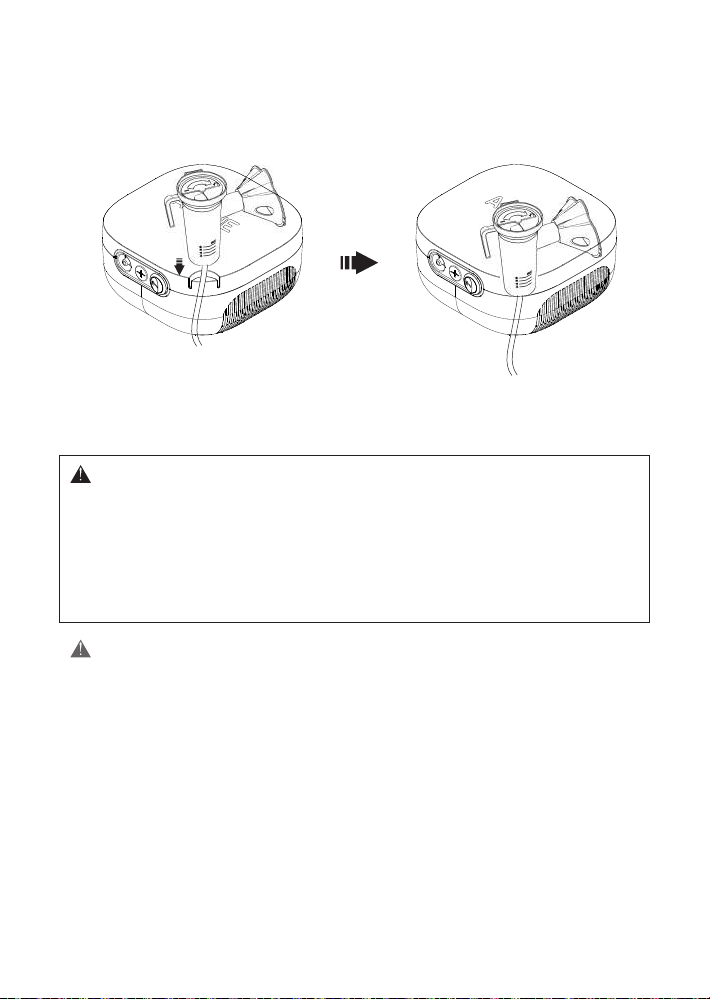

NOTE: Align the mark on the unit with the mark on the nebulizer kit as
shown.
3Use the nebulizer kit holder as a temporary holder for the nebulizer kit.
Using the Device
·Do not use the device where the device may be exposed to
flammable gas or vapors.
·Do not use or store the device in humid locations, such as a
bathroom. Use the device within the operating temperature and
humidity.
·Provide close supervision when this device is used by infants,
children or compromised individuals.
·Do not use a cellular phone near the device. It may result in an
operational failure.
·Inspect the compressor (main unit) and the nebulizer parts each
time before using the device. Make sure no parts are damaged, the
nozzle and air tube are not blocked and the compressor operates
normally.
CAUTION
WARNING

14
1Hold the nebulizer kit as illustrated on the right.
2Turn the power switch to the on ( ) position.
As the compressor starts, nebulization begins and aerosol is generated.
To stop nebulization, turn the power switch to the off ( ) position.
3Inhale medication as instructed by your physician or licensed healthcare
practitioner.
Do not cover the compressor with a blanket, towel, or any other type of
cover during use. This could result in the compressor overheating or
malfunctioning.
·Do not block the air filter cover.
·Limit use to 30 minutes at a time, and allow a 30 minutes interval
before using the device again.
·When using the device, the main unit may become hot.
·Do not touch the main unit for other than necessary operation such
as turning off the power while nebulizing.
CAUTION
WARNING
·Do not tilt the nebulizer kit so the angle of
the kit is greater than 45˚. Medication may
flow into the mouth.
·Do not shake the nebulizer kit while using
the device.
CAUTION
USING THE ADULT MASK or the CHILD MASK
Place the mask over the nose and mouth.
Pull the elastic strap over the head. Gently
pull on the strap to secure the mask over
the nose and mouth. Inhale the medication.
Exhale normally through the mask.

15
4Complete the treatment.
5Turn the power switch to the off ( ) position.
The compressor turns off and nebulization stops.
6Disconnect the air tube from the nebulizer kit. Hold the air tube plug and
gently pull down to disconnect the air tube plug from the air tube
connector on the bottom of the nebulizer kit.
For type, dose, and regime of medication, follow the instructions of
your physician or licensed healthcare practitioner.
WARNING
7Check the air tube. No condensation or moisture should remain in the air
tube.
Do not store the air tube with moisture or medication remaining in the
air tube. This could result in infection as a result of bacteria.
WARNING
If any condensation or moisture remains in the air tube, remove the moisture
from the air tube. Follow the directions below:
1. Make sure the air tube is still connected to the air tube connector on the
upper side of the compressor.
2. Press the power switch on. The compressor will start and pump air through
the air tube to expel the moisture.
3. Press the power switch again to turn the compressor off.
8Disconnect the air tube from the compressor. Hold the air tube plug and
gently pull the air tube plug off the air tube connector on the upper side of
the compressor.
9Unplug the power cord from the electrical outlet.
·Unplug the power cord from the electrical outlet after using the
device.
·Remove the power cord from the device after use.
·Do not pull the power cord of power cord strongly.
CAUTION

16
5Rinse all the parts with hot tap water.
6Hand dry or air dry in a clean environment using a soft, clean, lint-free
cloth.
7Assemble the nebulizer kit and store it in a dry bag.
Always dispose of any remaining medication in the medication cup
after each use. Use fresh medication each time you use the device.
WARNING
Cleaning after Each Use
Care and Maintenance
Following cleaning instructions after each use will prevent any remaining
medication in the bottle from drying resulting in the device not nebulizing
effectively and will help prevent infections.
1Remove the inhalation accessory (masks) from the nebulizer kit.
2Disconnect the air tube from the nebulizer kit.
3Gently twist the inhalation top clockwise and lift to separate the nebulizer
into two sections.
Wash the nebulizer parts after each use. Dry the parts immediately
after washing.
WARNING
4Discard remaining medication in the medication cup.

17
·Always wash the baffle after each use.
·Do not use a brush or pin etc., to clean the parts.
·When disinfecting the parts by boiling, be sure to boil them in plenty
of water.
·Do not boil the baffle together with other objects, other than
applicable nebulizer accessories.
·Do not use a microwave oven, dish dryer or hair dryer to dry parts.
CAUTION
Daily Disinfecting
Disinfect the nebulizer kit and particle adjusters and mask after the last
treatment of the day.
To disinfect the parts, use one of the methods described below:
A. Use a commercially available disinfectant. Follow the instructions provided
by the disinfectant manufacturer.
1. Submerge the parts in the cleansing solution for the specified period.
2. Remove the parts and discard the solution.
3. Rinse the parts with clean hot tap water, shake off excess water and allow
to air dry in a clean environment.
B. Parts may be boiled between 15 to 20 minutes. After boiling, carefully
remove the parts, shake off excess water and allow to air dry in a clean
environment.
NOTE: Do not boil air tube, air filter, air filter cover and optional masks.
Do not use an autoclave, EOG gas disinfection or low temperature
plasma sterilizer to disinfect the device.
CAUTION
Handling the Baffle
The baffle is an important part that is used to nebulize medication.
Be sure to observe the following precautions when handling it.

18
Changing the Air Filter
If the air filter has changed color or has been used on average for more than
60 days, replace it with a new one. If water or medication has spilled on the
air filter, replace with a new air filter immediately.
·Do not attempt to wash or clean the air filter. Damp air filters can
cause blockages. Do not substitute cotton or any other material for
the air filter.
·Wash the air filter cover regularly to prevent any blockage in the
cover. Do not boil. Make sure the cover is dry before inserting the
new air filter.
CAUTION
1Pull the air filter cover to remove from the back side of the compressor.
2Remove the dirty air filter.
Before inserting the new air
filter make sure the air filter
is clean and free of dust. Do
not operate the device
without the air filter. Use
only the AVICHE air filter
designed for this device.
CAUTION
3Insert a new air filter.
4Put the air filter cover back on the compressor.
