Avigilon 1.0-H3-DO1 User manual

Installation Guide
Avigilon High Definition H.264 IP Dome
Camera Models:
1.0-H3-DO1, 2.0-H3-DO1, 3.0W-H3-DO1 and 5.0-H3-DO1
920-0050A-Rev1

i
English
English
Important Safety Information
This manual provides installation and operation information and
precautions for the use of this dome camera. Incorrect installation
could cause an unexpected fault. Before installing this equipment read
this manual carefully. Please provide this manual to the owner of the
equipment for future use.
• Installation must be performed by qualified personnel only,
and must conform to all local codes.
• This product is intended to be supplied by a UL Listed
Power Unit marked “Class 2” or “LPS” or “Limited Power
Source” with output rated 12 VDC or 24 VAC, 9 W min. or
Power over Ethernet (PoE), rated 48 VDC, 9 W min.
• Any external power supply connected to this product may
only be connected to another Avigilon product of the same
model series. External power connections must be
properly insulated.
• Do not connect directly to mains power for any reason.
The Warning symbol indicates the presence of
dangerous voltage within and outside the product
enclosure that may constitute a risk of electric shock,
serious injury or death to persons if proper precautions
are not followed.
The Caution symbol alerts the user to the presence of
hazards that may cause minor or moderate injury to
persons, damage to property or damage to the product
itself if proper precautions are not followed.
Warning — Failure to observe the following instructions
may result in severe injury or death.

ii
English
English
• Do not install near any heat sources such as radiators,
heat registers, stoves, or other sources of heat.
• Do not subject the cables to excessive stress, heavy loads
or pinching.
• Do not open or disassemble the device. There are no user
serviceable parts.
• Refer all servicing to qualified personnel.
Servicing may be required when the device has been
damaged (such as from a liquid spill or fallen objects), has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Do not use strong or abrasive detergents when cleaning
the device body.
• Use only accessories recommended by Avigilon.
• Use of controls or adjustments or performance of
procedures other than those specified in this document
may result in hazardous radiation exposure.
Caution — Failure to observe the following instructions
may result in injury or damage to the dome camera.

iii
English
English
RegulatoryNotices
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B computing device pursuant to Subpart B of Part 15 of FCC
rules, which are designed to provide reasonable protection against
such interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause
interference, in which case the user at his/her own expense will be
required to take whatever measures may be required to correct the
interference.
Changes or modifications made to this equipment not expressly
approved by Avigilon Corporation or parties authorized by Avigilon
Corporation could void the user’s authority to operate this equipment.
Disposal and Recycling Information
When this product has reached the end of its useful life, please
dispose of it according to your local environmental laws and
guidelines.
European Union:
This symbol means that according to local laws and regulations your
product should be disposed of separately from household waste. When
this product reaches its end of life, take it to a collection point
designated by local authorities. Some collection points accept products
for free. The separate collection and recycling of your product at the
time of disposal will help conserve natural resources and ensure that it
is recycled in a manner that protects human health and the
environment.

iv
English
English
Other Notices
Compilation and Publication Notice
This manual has been compiled and published covering the latest
product descriptions and specifications. The contents of this manual
and the specifications of this product are subject to change without
notice. Avigilon reserves the right to make changes without notice in
the specifications and materials contained herein and shall not be
responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to
typographical and other errors relating to the publication.
Intellectual Property Notice
No license is granted by implication or otherwise under any industrial
design, industrial design rights, patent, patent rights, or copyrights of
Avigilon Corporation or its licensors. Trademarks and registered
trademarks are the property of their respective owners.

English
English
Table of Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Cover View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required Tools and Materials . . . . . . . . . . . . . . . . .4
Camera Package Contents . . . . . . . . . . . . . . . . . . .4
Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Removing the Dome Cover . . . . . . . . . . . . . .5
Mounting the Dome Camera . . . . . . . . . . . . .5
Connecting Cables . . . . . . . . . . . . . . . . . . . .7
Assigning an IP Address . . . . . . . . . . . . . . . .7
Accessing the Live Video Stream . . . . . . . . .8
Aiming the Dome Camera . . . . . . . . . . . . . . .8
Installing the Dome Cover . . . . . . . . . . . . . . .9
Focusing the Dome Camera . . . . . . . . . . . . .9
For More Information . . . . . . . . . . . . . . . . .10
Cable Connections . . . . . . . . . . . . . . . . . . . . . 11
Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . .11
Connecting to External Devices . . . . . . . . . . . . . . .12
Connecting to Microphones, Speakers
and Video Monitors . . . . . . . . . . . . . . . . . . . . . . . .13
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . 14
Reset to Factory Default Settings . . . . . . . . . 15
Setting the IP Address Through the ARP/Ping
Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 17
Limited Warranty & Technical Support . . . . 18

English
English

1
English
English
Overview
Cover View
Feature Description
Dome Cover Vandal proof dome cover constructed out
of plastic with a polycarbonate bubble.
Tamper Proof Screws TORX tamper-resistant captive screws to
fix the dome cover to the base.
Cable Entry Hole An entry hole for network, power and I/O
cables.
Tamper Proof
Screws
Dome
Cover
Cable Entry
Hole

2
English
English
Bottom View
Feature Description
Cable Entry Hole An entry hole for network, power and I/O
cables.
Mounting Holes Mounting points for the dome camera.
Cable Entry Hole
Dome Mounting Holes

3
English
English
Front View
Feature Description
Tilt Lock Thumb
Screws
Provides a locking mechanism for the image tilt
adjustment.
Pan Lock Thumb
Screws
Provides a locking mechanism for the image pan
adjustment.
Azimuth Control Provides adjustment of the image angle.
Ethernet Port Accepts an Ethernet connection to a network. Server
communication and image data transmission occurs
over this connection. Also receives power when it is
connected to a network that provides Power over
Ethernet.
Power Connector
Block
Accepts a terminal block with either AC or DC power
connection. DC input can be either polarity. Only
required when Power over Ethernet is not available.
Audio/Video
Connector
Accepts a mini-jack connector (3.5 mm). See the section
about connecting microphones and monitors for more
information.
I/O Terminals Provides connections to external input/output devices.
See the section about connecting external devices for
more information.
Connection Status
LED
Provides information about device operation. See the
section about LED indicators for more information.
Link LED Indicates if there is an active connection in the Ethernet
port.
Serial Number Tag Product serial number and part number label.
Azimuth Control
Link LED
Connection Status
LED
Ethernet Port
Power Connector Block
Audio/Video Connector
Serial Number Tag
Tilt Lock Thumb Screw
Pan Lock Thumb Screw
I/O Terminals

4
English
English
Installation
Required Tools and Materials
• Small slotted screwdriver with 5/64” or 2 mm blade width
— for connecting power when not using Power over
Ethernet.
Camera Package Contents
Ensure the package contains the following:
• Avigilon High Definition IP Dome Camera
• Terminal block
• T20 TORX tamper resistant key
• 4 screws and anchors for solid walls
• Drill template sticker
• 1/2” NPT Closure Plug
• Teflon Sealing Tape
Installation Steps
Complete the following procedures to install the dome camera.
1. Removing the Dome Cover on page 5
2. Mounting the Dome Camera on page 5
3. Connecting Cables on page 7
4. Assigning an IP Address on page 7
5. Accessing the Live Video Stream on page 8
6. Aiming the Dome Camera on page 8
7. Installing the Dome Cover on page 9
8. Focusing the Dome Camera on page 9

5
English
English
Removing the Dome Cover
Remove the dome cover by loosening the 3 tamper-proof screws that
fix the cover to the base. The tamper resistant key included with the
dome camera can be used to loosen the screws.
NOTE: Be careful not to scratch the dome bubble.
Mounting the Dome Camera

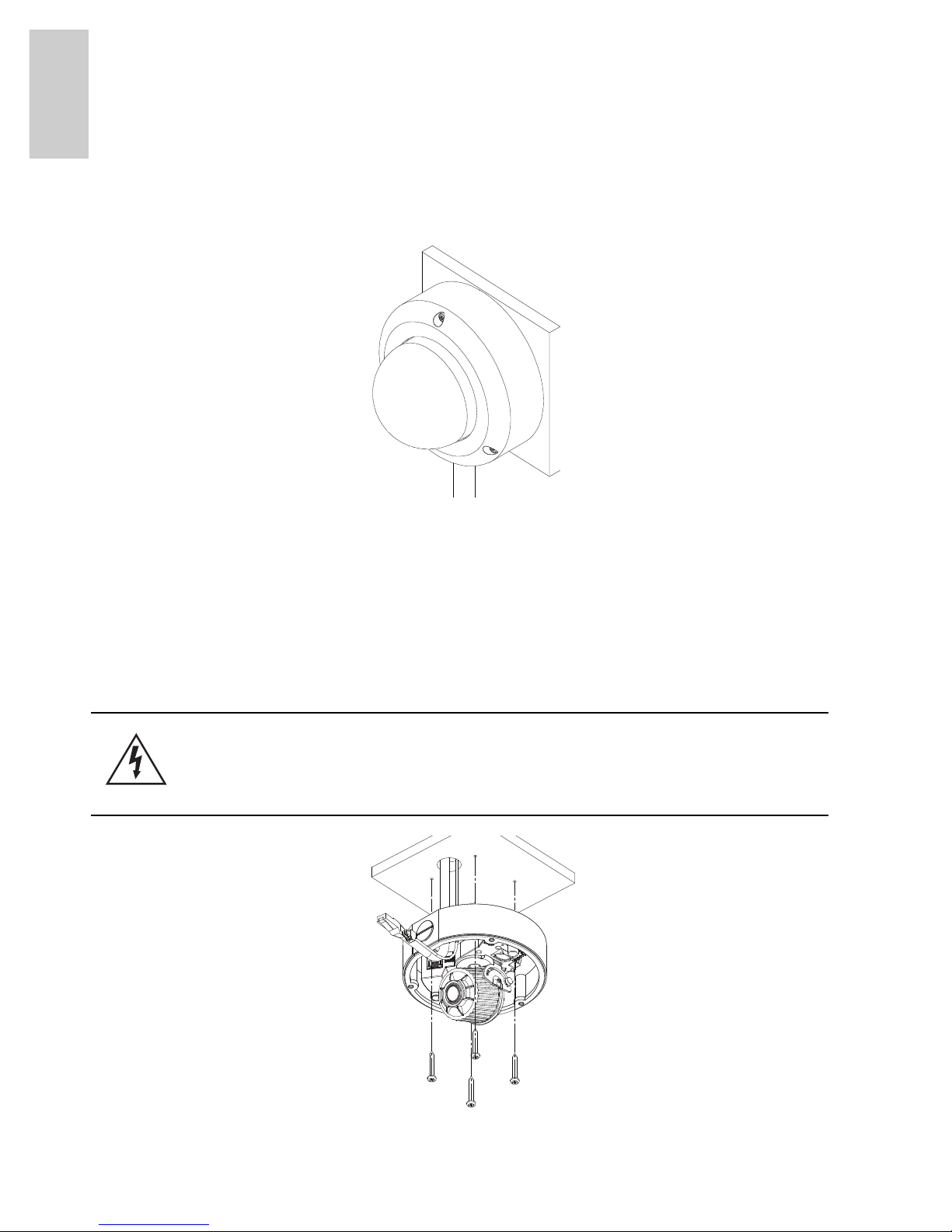

Perform the following steps to mount the dome camera to a ceiling or
wall:
1. Determine where the cables will enter the camera. The
camera has two cable entry holes: one on the side and
one on the bottom of the dome camera.
a. Use the supplied 1/2” NPT closure plug to fill the
unused cable entry hole.
b. When installing outdoors, wrap the thread of the
plug with the supplied Teflon sealing tape to create
a water tight seal.
2. Attach a conduit connector to the cable entry hole. Install
the conduit and its fitting as instructed by the
manufacturer.
NOTE: Only vandal resistant conduits should be used to protect
the cables, and be compatible with the dome camera’s
vandal resistant design.
When installing the dome camera outdoors, ensure the
conduit and its fitting are designed for outdoor use and
have a suitable IP rating. The conduit must be sealed to
ensure excessive moisture does not enter the dome and
cause condensation.
Caution — The dome camera must be mounted as
instructed below or problems with moisture may arise and
will not be covered by the dome camera warranty.

6
English
English
3. Use the drill template to drill four mounting holes in the
ceiling or wall.
The mounting pattern is compatible with 4” round outdoor
boxes or 4” octagonal junction boxes.
NOTE: When installing outdoors on a vertical surface, the cable entry
hole must face downwards.
4. Pull the cables through the conduit, then through the cable
entry hole in the dome camera.
5. Drive four screws into the mounting holes to fasten the
dome camera to the ceiling or wall.
If the mounting surface is uneven, use a silicone sealant to
create a water tight seal on the mounting holes.
Figure: Dome camera installation.
Warning — Only use UL listed mounting brackets suitable
for the mounting surface and can sustain a minimum 1.2 kg
(2.6 lbs).

7
English
English
Connecting Cables
Refer to the diagrams in the Overview section for the location of the
different connectors.
To connect the cables required for proper operation, complete the
following:
1. If there are external input or output devices that need to be
connected to the camera (for example: door contacts,
relays, etc), connect the devices to the camera I/O
Terminals.
For more information, see Connecting to External Devices.
2. If an external microphone or external video monitor needs
to be connected to the camera, connect the devices to the
camera Audio/Video Connector.
For more information, see Connecting to Microphones and
Video Monitors.
3. Connect the Ethernet Port (RJ45 connector) to a network
using an Ethernet network cable. The Link LED will turn on
once a network link has been established.
4. Connect power using one of the following methods:
• Power over Ethernet (PoE) Class 3 — If PoE is
available, the camera is automatically detected
when the network cable is connected.
• External Power — Connect an external 12 VDC or
24 VAC power source to the power connector block.
For more information, see Connecting Power.
5. Check that the Connection Status LED indicates the
correct state.
For more information, see LED Indicators.
Assigning an IP Address
The camera automatically obtains an IP address by default. Once
connected to a network, it attempts to locate and obtain an IP address
from a DHCP server. If this fails, Zero Configuration Networking

8
English
English
(Zeroconf) is used to choose an IP address. When the IP address is
set using Zeroconf, the IP address is in the 169.254.0.0/16 subnet.
The IP address settings can be changed using one of the following
methods:
• (Recommended) Avigilon Camera Installation Tool
software application.
• Camera's web browser interface:
http://<camera IP address>/
• ARP/Ping method. For more information, see Setting the
IP Address through the ARP/Ping Method.
• Network Video Management software application (for
example, Avigilon Control Center).
NOTE: The default camera username is admin and the default
password is admin.
Accessing the Live Video Stream
Live video stream can be viewed using one of the following methods:
• (Recommended) Avigilon Camera Installation Tool
software application.
• Camera's web browser interface:
http://<camera IP address>/.
• Network Video Management software application (for
example, Avigilon Control Center).
NOTE: The default camera username is admin and the default
password is admin.
Aiming the Dome Camera
1. Loosen the pan and tilt lock screws on the camera.
2. Turn the lens to the desired direction by panning and tilting
the lens.
3. Once satisfied, tighten the pan and tilt lock screws to
secure the dome camera’s position.
4. Rotate the azimuth control ring to set the image to the
correct angle.

9
English
English
5. In the Avigilon Camera Installation Tool, adjust the
camera’s Image and Display settings to achieve the
desired zoom position.
Installing the Dome Cover
To install the dome cover, complete the following steps:
1. Rotate the black shield located inside the dome bubble so
that it does not block the camera’s field of view.
2. Attach the dome cover to the base by tightening the 3
tamper-proof screws. Use the tamper resistant key
included in the dome camera package to tighten the
screws. Be careful not to scratch the dome bubble.
Focusing the Dome Camera
NOTE: Ensure this procedure is performed after the dome cover is
installed, so the focus shift caused by the dome bubble’s
refraction can be accomodated.
• In the Avigilon Camera Installation Tool, use the camera’s
Image and Display settings to focus the camera lens.
a. Click the Auto Focus button to focus the lens.
b. If the desired focus was not achieved, use the focus
near and far buttons to adjust the focus.
Caution — Do not attempt to adjust the focus and zoom on
the camera manually or the camera lens may become
damaged.

10
English
English
For More Information
Additional information about setting up and using the device is
available in the following guides:
•Avigilon Camera Installation Tool User Guide
• Avigilon Control Center Client User Guide
• Avigilon High Definition H.264 IP Camera User Guide
The manuals are available on the Avigilon website: http://avigilon.com/
support/manuals/.

11
English
English
Cable Connections
Connecting Power
NOTE: Do not perform this procedure if Power over Ethernet (POE) is
used.
If PoE is not available, the dome camera needs to be powered through
the removable power connector block. Refer to the diagrams in this
guide for the location of the power connector block.
The device can be powered from 12 VDC or 24 VAC. The power
consumption information is listed in the product specifications.
To connect power to the power connector block, complete the
following steps:
1. Remove the power connector block from the device.
2. Remove the insulation from ¼” (6 mm) of the power wires.
Do not nick or damage the wires.
3. Insert the two power wires into the two terminals on the
power connector block. The connection can be made with
either polarity.
Use a small slotted (5/64” or 2 mm blade width)
screwdriver to loosen and tighten the terminals.
4. Attach the power connector block back into the receptacle
on the device.
Warning — This product is intended to be supplied by a UL
Listed Power Unit marked “Class 2” or “LPS” or “Limited
Power Source” with output rated 12 VDC or 24 VAC, 9 W
min. or PoE rated 48 VDC, 9 W min.

12
English
English
Connecting to External Devices
External devices are connected to the camera through the I/O
terminal. The pinout for the I/O terminal is shown in the following table
and diagram.
Figure: External I/O terminal schematics and example application.
Table:External I/O Terminals
Pin Function Description
1 Ground Ground
2 Input To activate, connect the Input to the Ground
pin. To deactivate, leave disconnected or apply
between 3-15 V.
3 Output When active, Output is internally connected
with the Ground pin. Circuit is open when
inactive. Maximum load is 25 VDC, 120 mA.
Switch
Relay
