Aviom AN-16/i-m User manual

P/N 9310 1007 0001 rev 2.00
© 2009 Aviom, Inc.
User Guide
A-Net Input Module
AN-16

i i
Trademarks
Aviom, A‑Net, the A‑Net icon, Pro16, Pro64, and Virtual Data Cable are
trademarks of Aviom, Inc.
All other trademarks are the property of their respective owners.
© 2009 Aviom, Inc. All rights reserved.
Information subject to change without notice.
Notice of Rights
All rights reserved. No part of this document may be reproduced or
transmitted in any form or by any means—electronic, mechanical, photocopy,
recording, or otherwise—without written permission of Aviom, Inc.
Certifications
ETL/cETL Listed
EMC: EN 55013, EN 55020, SAA AS/NZS 1053
Conforms to: IEC 60065, EN 60065, UL 6500‑2001
Certified to: CAN/CSA E60065, KETI
RoHS Status: Pb‑free
Pb
Pb-Free

i i i
READ THIS FIRST
Important Safety Instructions
Read these instructions.1.
Keep these instructions2.
Heed all warnings.3.
Follow all instructions.4.
Do not use this apparatus near water.5.
Clean only with a dry cloth.6.
Do not block any ventilation openings. Install in accordance with the7.
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,8.
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding‑type9.
plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong are provided for your safety. If
the provided plug does not fit your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particu‑10.
larly at plugs, convenience receptacles, and the point where they exit
the apparatus.
Only use attachments/accessories specified by the manufacturer.11.
Use only with the cart, stand, tripod, bracket, or table specified by12.
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip‑over.
Unplug this apparatus during lightning storms or when unused for13.
long periods of time.
Refer all servicing to qualified personnel. Servicing is required14.
when the apparatus has been damaged in any way, such as when
the power‑supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
No on/off power switches are included in the system. The external15.
power supply should be used to control power to an Aviom device.
This power supply should remain readily operable.
The solid line over dashed line symbol (16. ) indicates that the
input voltage must be a DC voltage.
The box within a box symbol (17. ) indicates that the external power
supply is double insulated.
!

i v
TO REDUCE THE DANGER OF ELECTRICAL SHOCK DO NOT REMOVE COVERS.
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY
To reduce the risk of fire or electrical shock, do not expose this
product to rain or other types of moisture.
To avoid the hazard of electrical shock, do not handle the
power cord with wet hands.
Replace fuse with same type and rating.
Operating Temperature: 10˚C to 50˚C (50˚F to 122˚F)
Risque de choc électrique – ne pas ouvrir. Pour réduire le risque de feu ou de choc
électrique, ne pas exposer cet équipement à la pluie ou la moisissure. Pour réduire
le risque de choc électrique, ne pas retirer le couvercle. Pièces non remplaçables
par l’utilisateur. Confier la réparation à une personne qualifiée. Attention – utiliser
seulement un fusible de rechange de même type.
Cet appareil est conforme à la section 15 de la norme FCC. Son fonctionnement est
soumis aux conditions suivantes : (1) cet équipement ne doit pas causer des interférences
nocives, et (2) cet équipement doit accepter toute interférence captée incluant les
interférences pouvant causer des opérations indésirables.
Cet appareil numérique de Classe B est conforme à la norme NMB‑003 du Canada.
WARNING!
! !
CAUTION:
Using any audio system at high volume levels can cause permanent•
damage to your hearing.
Set your system volume as low as possible.•
Avoid prolonged exposure to excessive sound pressure levels.•
IMPORTANT:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from•
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Changes or modifications to the product not expressly approved by Aviom, Inc. could
void the user’s FCC authority to operate the equipment.

v
Aviom, Inc. Limited Warranty
Aviom, Inc. warrants this product against defects in materials and workmanship for a
period of one year from the date of the original retail purchase.
This warranty does not apply if the equipment has been damaged due to misuse,
abuse, accident, or problems with electrical power. The warranty also does not apply
if the product has been modified in any way, or if the product serial number has been
damaged, modified, or removed.
If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization
number. No service will be performed on any product returned without prior
authorization. Aviom, Inc. will, at its option, repair or replace the product at no charge
to you. The product must be returned during the warranty period, with transportation
charges prepaid to Aviom, Inc., 1157 Phoenixville Pike, Suite 201, West Chester, PA
19380. You must use the product’s original packing materials for shipment. Shipments
should be insured for the value of the product. Include your name, address, phone
number, description of the problem, and copy of the original bill of sale with the
shipment. The Return Authorization number should be written on the outside of the
box.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION).
AVIOM’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS
LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY
STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER SUCH PERIOD.
AVIOM, INC. DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS
LIMITED WARRANTY DOCUMENT. AVIOM, INC.’S LIABILITY IS LIMITED TO THE REPAIR
OR REPLACEMENT, AT OUR OPTION, OF ANY DEFECTIVE PRODUCT, AND SHALL IN NO
EVENT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.
SOME STATES DO NOT ALLOW EXCLUSIONS OR LIMITATION OF IMPLIED WARRANTIES
OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.

v i
Warranty Information
Please record the following information for future reference:
Your Authorized Aviom Dealer:
Name:
Address:
Phone:
Serial Numbers of Your Aviom Products:
Date of Purchase:
Your Authorized Aviom Dealer is your primary source for service and support.
The information recorded above will be helpful in communicating with your
Authorized Aviom Dealer should you need to contact Aviom Customer
Service. If you have any questions concerning the use of this unit, please
contact your Authorized Aviom Dealer first. For additional technical support,
or to find the name of the nearest Authorized Aviom Repair Station, check
the Aviom web site at www.aviom.com.
To fulfill warranty requirements, your Aviom product should be serviced
only at an authorized Aviom service center. The Aviom serial number label
must appear on the outside of the unit, or the Aviom warranty is void.
This manual and its contents are copyrighted by Aviom, Inc. All rights are
reserved by Aviom, Inc. This document may not, in whole or in part, be
copied, photocopied, reproduced, translated, or reduced to any electronic
medium or machine‑readable form without prior written consent from
Aviom, Inc.
The software and/or firmware contained within Aviom products is
copyrighted and all rights are reserved by Aviom, Inc.
Although every effort has been made to ensure the accuracy of the text
and illustrations in this manual, no guarantee is made or implied as to the
accuracy of the information contained within.

v i i iAN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Ta b l e o f Co n T e n T s
Welcome � � � � � � � � � � � � � � � � � � � � � � � � � � 1
Features � � � � � � � � � � � � � � � � � � � � � � � � � � 1
Conventions Used in this Document � � � � � � � � � � � � 1
AN‑Series . . . . . . . . . . . . . . . . . . . . 1
Using Personal Mixers . . . . . . . . . . . . . . 2
Cat‑5 Cables . . . . . . . . . . . . . . . . . . . 2
A‑Net Distributors . . . . . . . . . . . . . . . . 2
Package Contents � � � � � � � � � � � � � � � � � � � � � 3
About A-Net � � � � � � � � � � � � � � � � � � � � � � � � 3
Compatibility with Pro64� � � � � � � � � � � � � � � � � � 4
About Category 5 � � � � � � � � � � � � � � � � � � � � � 4
Cat-5 Cables � � � � � � � � � � � � � � � � � � � � � � � � 5
Cable Lengths . . . . . . . . . . . . . . . . . . . . . 5
AC Line Conditioning � � � � � � � � � � � � � � � � � � � � 7
Rack Mounting � � � � � � � � � � � � � � � � � � � � � � � 7
EtherCon Connector � � � � � � � � � � � � � � � � � � � � 8
Cleaning and Maintenance Information � � � � � � � � � � 8
Front Panel � � � � � � � � � � � � � � � � � � � � � � � � 9
Rear Panel � � � � � � � � � � � � � � � � � � � � � � � � �11
Panel Descriptions � � � � � � � � � � � � � � � � � � � � �13
AN-16/i-M Front Panel � � � � � � � � � � � � � � � � � � �13
Channel LEDs . . . . . . . . . . . . . . . . . . . . . 13
Phantom Power Switch . . . . . . . . . . . . . . . . 14
Gain Knob . . . . . . . . . . . . . . . . . . . . . . 14
Low Cut Filter (Rolloff) . . . . . . . . . . . . . . . . 14
Phase Invert Switch . . . . . . . . . . . . . . . . . . 15
The Stereo Link Switch . . . . . . . . . . . . . . . . 15
Power LED . . . . . . . . . . . . . . . . . . . . . . 16

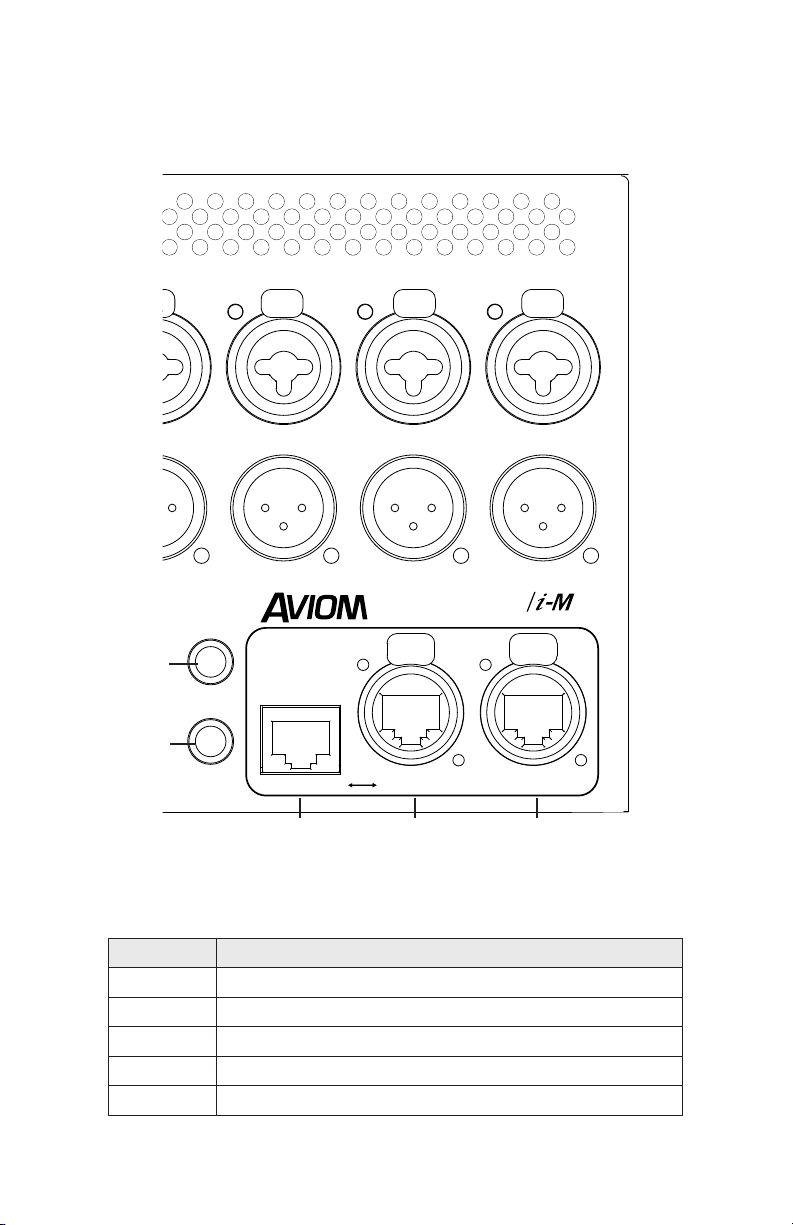

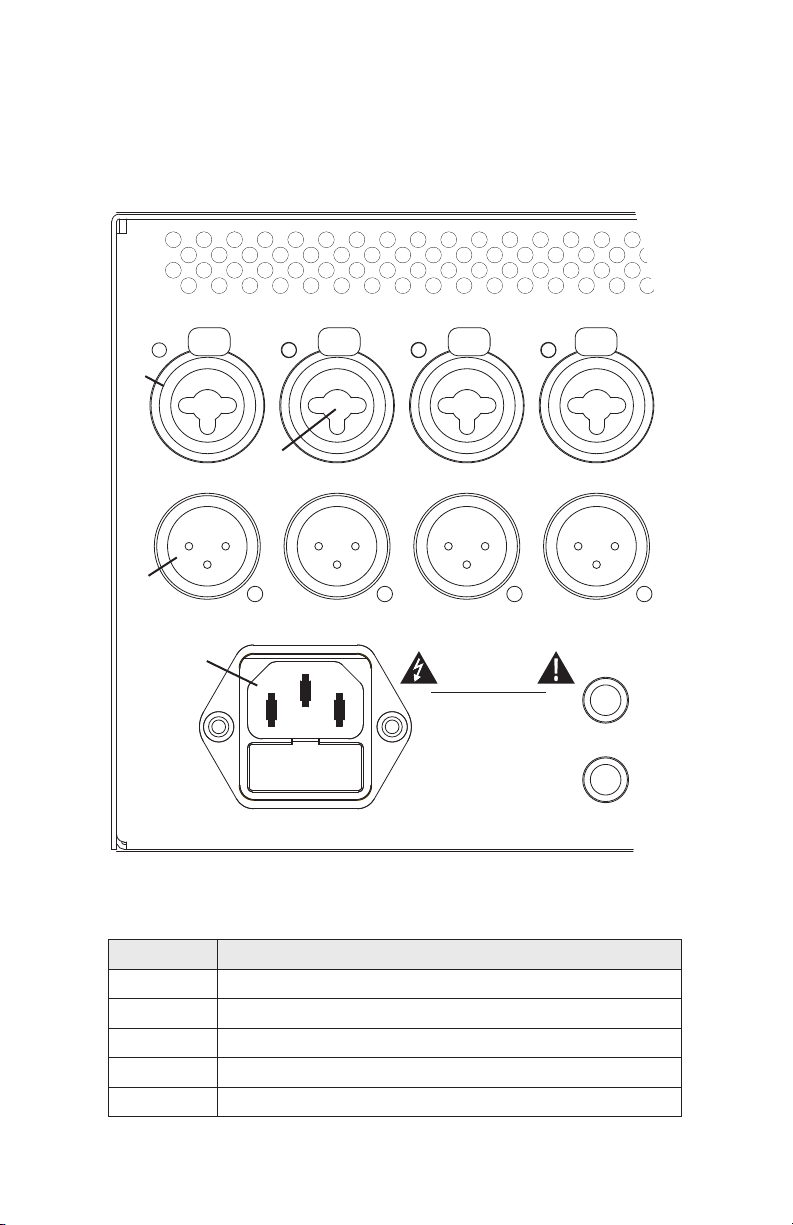

AN-16/i-M Rear Panel � � � � � � � � � � � � � � � � � � � �17
Power Connector . . . . . . . . . . . . . . . . . . . 17
Channel Input Jacks. . . . . . . . . . . . . . . . . . 18
Channel Thru Jacks . . . . . . . . . . . . . . . . . . 19
Channel Inserts . . . . . . . . . . . . . . . . . . . . 19
Direct Line Outputs . . . . . . . . . . . . . . . . . . 19
A-Net Connections � � � � � � � � � � � � � � � � � � � � 20
A‑Net Main Out . . . . . . . . . . . . . . . . . . . . 20
A‑Net Aux Out . . . . . . . . . . . . . . . . . . . . 20
A‑Net Expansion . . . . . . . . . . . . . . . . . . . 21

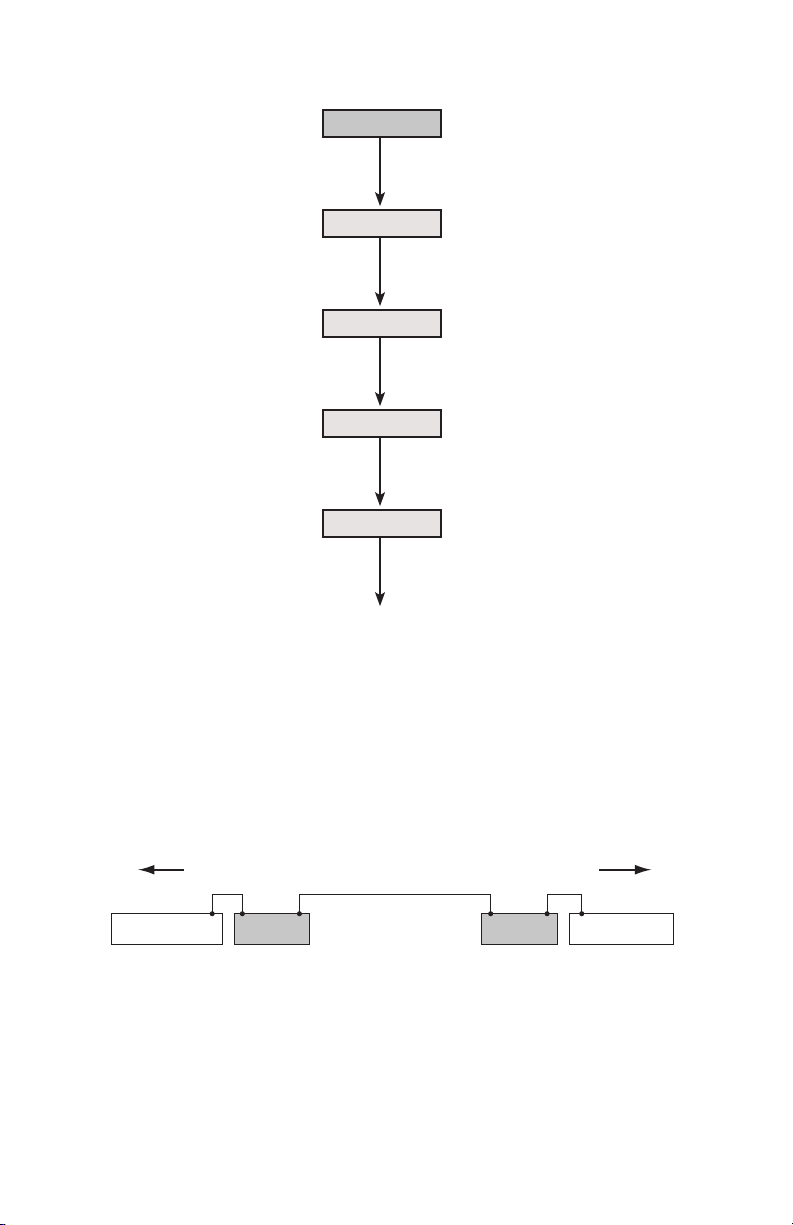

Series and Parallel Connections � � � � � � � � � � � � � �21
Connecting A‑Net Devices in Series . . . . . . . . . . 21
Parallel A‑Net Routing . . . . . . . . . . . . . . . . 22
Using an A‑Net Distributor . . . . . . . . . . . 22
Connecting an Output Module � � � � � � � � � � � � � � 23
Adding Splits . . . . . . . . . . . . . . . . . . . . . 23

i xAN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Adding Personal Mixers . . . . . . . . . . . . . . . . . 24
Extending A-Net Cable Runs � � � � � � � � � � � � � � � � 25
Audio Networks � � � � � � � � � � � � � � � � � � � � � � 26
16-Channel Systems � � � � � � � � � � � � � � � � � � � � 26
32-Channel Systems � � � � � � � � � � � � � � � � � � � � 27
A‑Net Expansion . . . . . . . . . . . . . . . . . . . . 27
32-Channel Snake � � � � � � � � � � � � � � � � � � � � � 29
16 Channels Send by 16 Channels Return . . . . . 30
Adding More Audio Outputs � � � � � � � � � � � � � � � � 32
Using an A‑Net Distributor . . . . . . . . . . . . . . . 33
64-Channel Systems � � � � � � � � � � � � � � � � � � � � 34
System Bridge . . . . . . . . . . . . . . . . . . . . . 34
Connecting the System Bridge . . . . . . . . . . . . . 35
Configuration Notes . . . . . . . . . . . . . . . . . . 36
Expanding a Network . . . . . . . . . . . . . . . . . . 37
Using Multiple System Bridges . . . . . . . . . . . . . 38
Specifications � � � � � � � � � � � � � � � � � � � � � � � 41
Block Diagram � � � � � � � � � � � � � � � � � � � � � � � 43
Dimensions � � � � � � � � � � � � � � � � � � � � � � � � 44
Warranty Registration � � � � � � � � � � � � � � � � � � � 49

1AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Welcome
Thank you for purchasing the AN-16/i-M Mic Input Module, designed
for use with the Pro16® Monitor Mixing System and audio networking
products. All Pro16 products are powered by A‑Net®, Aviom’s proprietary
data transmission protocol designed especially for the unique demands of
live streaming audio. This User Guide is designed to familiarize you with your
new product and to have your system up and running in no time.
Features
The AN‑16/i‑M Mic Input Module is part of Aviom’s Pro16® Series of products;
it can be combined with other Pro16 devices to create monitor systems,
digital snakes, and audio distribution systems for applications such as live
performance, broadcast, and recording.
AN‑16/i‑M Mic Input Module Features:
Sixteen audio channels•
Mic/line combo input jacks (XLR and TRS)•
+48 volt phantom power on each channel•
Phase Invert switch per channel•
85Hz low cut rumble filter per channel•
Channel link switches for stereo channel pairing•
Splitter provides sixteen Thru outputs•
Balanced insert points per channel•
Two parallel A‑Net outputs•
EtherCon® RJ45 connectors•
A‑Net Expansion port for 32‑channel operation•
Conventions Used in this Document
AN-Series
The AN‑16/i Input Module, AN‑16/i‑M Mic Input Module, and AN‑16/o Output
Module are referred to generically as the AN-Series of products.
When describing audio network configurations, the AN‑16/i Input Module
and most Pro16 console interface cards can be substituted anywhere the
AN‑16/i‑M Mic Input Module is used.

2AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Using Personal Mixers
It is possible to create an audio distribution and personal monitor system
using any combination of Aviom AN‑Series and Personal Mixer products,
including the A‑16II, and A‑16R.
When referring to the use of the personal mixers in a system in general, the
terms A-16II Mixer or Personal Mixer are used to describe a case where a
standard A‑16II Personal Mixer or a rack mounted A‑16R Personal Mixer (with/
without the optional A‑16CS Control Surface) can be used.
Cat-5 Cables
In most cases Cat‑5e, Cat‑6, and Cat‑6e cables can be interchanged. When
speaking about interconnections between components in a system, the
term Cat-5 is used generically to indicate the use of any of the applicable
cable types.
A-Net Distributors
The A‑16D and A‑16D Pro A‑Net Distributors are referred to generically as
A-Net Distributors.

3AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Package Contents
Check the contents of the shipping box carefully before making connections
and continuing with installation.
The contents of the AN‑16/i‑M Mic Input Module box include:
One AN‑16/i‑M Mic Input Module•
One• IEC power cable
User documentation•
Options for your system include
Cat‑5e interconnect cables•
• AN‑16SBR System Bridge
• Pro16 monitor mixing products such as the A‑16II Personal
Mixer or A‑16R rack mount Personal Mixer
AN‑16/o Output Module•
• A‑16D A‑Net Distributor
• A‑16D Pro A‑Net Distributor
Included in this document is a Warranty Registration; be sure to fill out the
form and return it to Aviom, Inc. via mail or fax as soon as possible.
About A-Net
The Pro16® version of A‑Net® is a high‑speed data transmission protocol
capable of sending and receiving high‑quality digital audio using readily
available Cat‑5 cables. A‑Net is a proprietary technology developed by
Aviom.
A‑Net is based on the physical layer of Ethernet, a Local Area Network (or
LAN) technology. This provides A‑Net with a mature and robust base on
which to build. However, it is important to note that A‑Net devices are not
compatible with Ethernet devices.
As used in the Pro16 series products, the A‑Net signal carries sixteen channels
of digital data from the AN‑16/i‑M Mic Input Module to each A‑Net device
connected to the system.

4AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
Some of the benefits of using A‑Net to transmit digital audio are:
Virtually no latency•
No ground loops•
Easy cabling using readily available components•
An unlimited number of A‑Net devices can be used in a•
system
Ease in spanning long distances between system•
components
PNo t e :While the Cat‑5e cables and connectors used on your Aviom
products look like typical computer Ethernet network connections,
do not connect computers, routers, or other home and business
networking equipment to your Aviom products.
Other options for protection of your equipment include the use of an AC
line conditioner or a battery backup system (sometimes referred to as an
uninterruptible power supply, or UPS).
Compatibility with Pro64
Many Pro16 products can be connected to a Pro64® A‑Net system with the
addition of the ASI A‑Net Systems Interface. The ASI translates Pro64 A‑Net
data into Pro16 data and separates the 64‑channel Pro64 stream into up to
four 16‑channel Pro16 outputs, depending on the Pro64 sample rate being
used.
Only Pro16 devices that have an A‑Net In port such as Personal Mixers, A‑Net
Distributors, and output modules are compatible with Pro64 and the ASI.
Pro16 input modules and console cards cannot send their data into a Pro64
network.
About Category 5
Category 5 (sometimes referred to as Cat-5) describes a commonly used type
of high performance network cabling. It is used mainly for data transmission
purposes to connect computers, modems and other devices. A standard
Category 5 patch cable consists of four twisted pairs of copper wire terminated
by RJ45 male connectors. The cable assembly is used to provide connectivity
between any two Cat‑5 female outlet jacks. A variation, called Category
5e (or Cat‑5e), uses additional twists in the cable to reduce interference in
high‑speed network applications. In general, when using long cable lengths,
select Cat‑5e cables for best performance. Use Cat-5e Unshielded Twisted
Pair (UTP) cables or better for all A-Net applications�

5AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
The RJ45 connector looks similar to the connectors found on a telephone
system, only larger. The twisting of the wire pairs helps to shield the cable
from unwanted interference from electrical fields or radio interference
(sometimes referred to as “RF”). Cat‑5 cabling supports frequencies up to 100
MHz and speeds up to 1000 Mbps.
RJ45 Jack Cat-5 Cable
Cat-5 Cables
The cables used with your Aviom system are interchangeable with any
standard Cat‑5e cables. If you need a longer cable for a particular application,
any computer store should be able to supply you with an appropriate cable.
A qualified technician should be able to build custom cables to any length
(up to the maximum of 500 feet (150 meters) between components).
For fixed or permanent installations, you have the option of running Cat‑5
cables inside walls and terminating them with readily available wall panel
connectors that include the RJ45 jack. (Solid wire is recommended for
permanent installations.)
In addition to standard Cat‑5e cables, Category 6 (Cat‑6) cables can also be
used.
PNo t e : When purchasing Category 5e cables, be sure to buy only standard
Cat‑5e UTP cables, not those sold as crossover cables. A crossover
cable is used for file transfer between two computers and is not
compatible with your Aviom equipment.
Cable Lengths
Cat‑5e cables used with your Aviom products can be up to 500 feet
(approximately 150 meters) in length between devices. The maximum cable
length specification applies to the cable connected between the AN‑16/i‑M
Mic Input Module and the first Pro16 output module (or Personal Mixer) in
your system as well as for cable runs between each additional Pro16 A‑Net
compatible device in your system.

6AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
AN-16/i Input Module
AN-16/o Output Modules
or Personal Mixers
Up to 500 feet of Cat-5e
cable can be used to
connect each system
component
Infinite number
of A‑Net
components
Your cable length performance will be affected by a number of factors
including the quality of the cables used, and the number of devices such as
cable couplers used or passive wall panel interconnections in use. Use Cat‑5e
cable for best performance wherever possible. Stranded or solid Cat‑5e cable
can be used.
When using the optional AN‑16SBR System Bridge, the cable length
specification applies to the total cable length between the two A‑Net devices
being connected with the AN‑16SBR System Bridge. This is similar to what
happens when using an inline coupler to extend cable lengths.
Pro16 Input Pro16 Output
Total A-Net cable length can be 500 feet (150 meters)
System
Bridge
A-Net Out A-Net In
System
Bridge
Pre‑made cables in a variety of lengths and colors are available at most
computer outlets. Cables can be extended by using a simple passive device
called an inline coupler to add length to existing cables (as long as you do not
exceed the specified maximum cable length). If you need a longer cable on
occasion, this is a simple solution. Note that it is possible that the maximum

7AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
cable length specification can be compromised by using inline couplers or
other passive connection devices.
AC Line Conditioning
Aviom products are digital devices and as such are sensitive to sudden spikes
and drops in the AC line voltage. Changes in the line voltage from lightning,
power outages, etc. can sometimes damage electronic equipment.
To minimize the chance of damage to your equipment from sudden changes
in the AC line voltage, you may want to plug your equipment into a power
source that has surge and spike protection. Power outlet strips are available
with built‑in surge protection circuits that may help protect your equipment.
Other options for protection of your equipment include the use of an AC
line conditioner or a battery backup system (sometimes referred to as an
uninterruptible power supply, or UPS).
Rack Mounting
The AN‑16/i‑M Mic Input Module is designed to be installed in a standard
19‑inch audio equipment rack. Each unit takes up three standard rack spaces
(19 inches wide by 5.25 inches high).
The rack ears on each side of the device are designed to support the weight
of the AN‑16/i‑M without additional hardware. Each rack ear contains holes
for two screws per side. Always support the unit with all four screws.
To rack mount Mic Input Module, position it in the equipment rack at the
desired location. Use standard rack‑mounting screws (10‑32 size) to attach
the unit to your rack hardware. Tighten all four screws firmly, but avoid
overtightening.
Aviom suggests the use of non‑metallic washers between the rack‑mounting
screws and the device’s finished surface to avoid marring the painted finish
on your Aviom products.
Always allow adequate ventilation for devices mounted in equipment racks.
Avoid placing your AN‑16/i‑M directly above or below other rack‑mounted
devices that produce high levels of heat, such as power amps.

8AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
EtherCon Connector
Some Aviom products use EtherCon® Cat‑5 connectors. The Neutrik EtherCon
connector is a dual RJ45 type connector. It can receive a standard Cat‑5e
cable or a cable fitted with the special heavy‑duty EtherCon connector.
When using a standard Cat‑5e cable, plug the cable into the center of the
jack; release the cable by pressing on the small plastic tab built into the cable
connector.
The locking EtherCon connector is similar to an XLR cable, the kind commonly
used on microphones. Insert an EtherCon equipped cable into the jack until
it clicks and locks in place. To remove the cable, press on the metal release
tab at the top of the panel‑mounted EtherCon jack and pull the connector
outward.
Cleaning and Maintenance Information
The exterior of your Aviom products should be cleaned with a dry, soft, lint‑
free cloth. For tougher dirt, you can use a cloth slightly dampened with water
or with a mild detergent.
When cleaning your Aviom products, never spray cleaners directly onto the
product surfaces. Instead, spray a small amount of the cleaning solution onto
a clean cloth first. Then use the dampened cloth to clean the product.
PNo t e : Never use solvents or abrasive cleaners on the finished surfaces of
your Aviom products.

Fu n c t i o n
1Clip LED
2‑10dB signal level LED
3Signal present LED
4+48 volt Phantom Power switch and LED
5Rotary Gain knob
685Hz Low Cut rolloff
7Phase Invert switch (polarity)
8Stereo Link switch
Front Panel
Phantom
Power +48V +48V
+6 +60 +6 +60
Gain Gain
1 2
Clip
-10dB
Signal
Stereo Link
1 2
Low Cut
Flat
85Hz 85Hz
XLR: +6 dB to +60dB
TRS: -15dB to +36dB







9AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e

Fu N c t i o N
9Power LED
10 Power switch
A-Net Input Module
15 16
+6 +60 +6 +60
Stereo Link
+48V +48V
Gain Gain
Power
15 16
AN-16
85Hz 85Hz


10AN-16 /i-M Mi c iN p u t Mo d u l e us e r Gu i d e

Fu N c t i o N
1XLR mic input
2Balanced TRS line‑level input
3Mic Thru jack, XLR
4AC power inlet, IEC
5Fuse compartment (F4AL)
Rear Panel
CAUTION
Risk of electric shock!
Do Not Open
AVIS: Risque de choc electrique!
Ne pas ouvrir
WARNING!
To reduce the risk of fire or
electric shock do not expose
this product to rain or moisture.
CAUTION: Replace
fuse with same type
fuse and rating.
250VAC~ F4AL
100-240VAC~
50/60 Hz
60W
Send Send Send
Return Return Return
16 15 14
16 15 14 13 12
16 15 14 13 12
(DC Coupled Passive Splitter)
Mic/Line
Input
Thru
XLR Pin 2 Hot





11AN -16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e

Fu N c t i o N
6Channel insert Send jack
7Channel insert Return jack
8A‑Net Expansion jack
9A‑Net Main Out jack
10 A‑Net Aux Out jack
21
4 3 2 1
4 3 2 1
A-Net
Expansion
Main Out Aux Out
A - N e t I n p u t M o d u l e
AN-16
Made In USA
Conceived, designed and manufactured by Aviom, Inc.
Send Send
Return Return



12AN-16/i-M Mi c iN p u t Mo d u l e us e r Gu i d e
