Aviosys IP Video 9100B User manual

IP Video 9100(B)
User Guide

IP VIDEO 9100 & 9100B PLUS USER MANUAL
User Guide
IP Video 9100(B)
Manual version: 2.38
Date: NOV, 2006
VER. 2.32,
- 1 -

Caution: Any changes or modifications not approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits
for FCC and CE. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in
commercial environment.
Important Notice
1. IP Video 9100(B) is for indoor use only.
2. IP Video 9100(B) is not waterproof. Therefore we will not hold any
damage responsibility if IP Video is used under raining condition.
3. Be sure to use the DC adapter that is provided by your dealer. We will
not hold any responsibly if wrong DC adapter is in use.
4. Be caution in handling IP Video 9100(B) for physical shocks may
occur serious damage.
5. If IP Video 9100(B) does not operate properly, please contact your
local dealer for after sale service. In all cases, you are prohibited to
disassemble the product. If so, we do not hold any responsibility for
mal-function nor service warranty.
- 2 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
Table of Contents
1. PRODUCT OVERVIEW...............................................................................................4
FEATURES ......................................................................................................
2.PHYSICAL DESCRIPTION.........................................................................................5
SPECIFICATION ..................................................................................................................
SYSTEM MINIMUM REQUIRNMENT .......................................................................................
3.PANEL DESCRIPTION…………………………………………………………………6
FRONT PANEL………………………………………………………………………………
BACK PANEL………………………………………………………………………………..
4. INSTALLATION………………………………………………………………………..7
PREPERATION....................................................................................................................
HARDWARE INSTALLATION .................................................................................................
SOFTWARE INSTALLATION ...............................................................................................
5. INTERNET SET UP ...................................................................................................13
LAN SET UP........................................................................................................................
INTERNET SET UP...............................................................................................................
6. FUNCTION……………………………………………………………………………..15
SIMPLE FUNCTION .............................................................................................................
VIDEO ADJUSTMENT………………………………………………………………………..
SECURITY SETTING ............................................................................................................
MOTION DETECTION FUNCTION...........................................................................................
7. OTHER FUNCTIONS………………………………………………………………….25
8. AOUTHORITY………………………………………………………………………….26
ADMINISTRATOR ................................................................................................................
NORMAL USER ...................................................................................................................
9. CAUTION....................................................................................................................27
ADDITIONAL INFORMATION : FAQ......................................................................................
VER. 2.32,
- 3 -

1. Product Overview
IP Video 9100(B) has an IP digital web server inside. With this great gadget you
can put up 4 different sources with only one set of IP, for example (live security
observing, online education, TV shows, video games and etc) make remote
locations immediately accessible through standard web browsers. IP video
9100( A) is equipped with cutting edge technology, includes 4 video in, either 1
video out (IP Video 9100) or 1 audio in ( Ip Video 9100B Plus ) , a web server, and
physical Ethernet connection. Therefore it does not need to plug in front of
computer, you can simply just plug into an internet line and start observing or
broadcasting from any where in the world.
FEATURES
IP Video 9100(B) features：
1. Embedded Web Server
2. Support 1 Video out (IP Video 9100) or 1 audio in ( Ip Video 9100B Plus )
3. With 4Video Input for Multi - video source from different area.
4. Round Robin (IP Video 9100B Plus only ) : display 4 video at same
screen – update in turns. and can record all four channel in
different file
5. Resolution - True 640x480, 352x288, 320x240, 176x144,& 160 *120
6. Video Quality - Low, High
7. Color adjustment: Brightness, Contrast, Hue, and Saturation
8. Motion Detection:
- Three-Sensitivity Level.
- E-mail the Detected Images to preset e-Mail address.
- FTP the Detected Images to preset FTP server.
9. Support Network - Fixed IP, DHCP or PPPoE , and DDNS
10. Browser by Internet - IE (internet Explore) , NETSCAPE,
Mozilla Firefox ( LINUX ).
11. Support Active X control.
12. A Linux based server
‧10/100BT LAN supported
‧Built in JPEG Decoder
‧Motion detection
‧User may setup his email address in the system, let the system
notice the user when an event occur
‧Provide some GPIOs for different application
13. Support GlobalSign – no need to lower security level.
14. Work with MSN& Yahoo Messenger, AMCAP, and WMCAP & VIDCAP
program
15. Supply Exclusive IP Service for easily find on Internet by name
16. Report IP Address every two hours
- 4 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
2.Physical Description
BOX CONTENT
IP Video 9100 package content：
 1 x IP Video 9100(B)
 1 x RJ 45 internet line
 1 x DC Power adopter (110~240V)
 2 x Composite Cable (RCA jacks)
 4 x BNC to RCA jacks
 1 x CD (a. IP Editor program b. User Manual book)
 1 x Quick Installation Guide
Minimum Requirement
 ≥300MHz Intel Pentium II and above
 Windows 98 / SE / 2000 / ME / XP, or LINUX, MAC system
 ≥64MB memory
 VGA Card：support Hi - Colors and above and direct draw
 Internet card - RJ 45 (CAT 5)
 Internet Hub / Router
 Internet : one set of IP provided by your ISP
EX: xxx.xxx.xxx.xxx
VER. 2.32,
- 5 -

3. Panel Description
Back Panel: from left to right:
1. Power On / Off
2. 4 Video Input
3. Audio input
4. Reset Button
Side Panel:
1. DC Power - 5V, 110 ~ 240.
2. Network - RJ 45
- 6 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
4. Installation
Before using IP Video 9100(B), follow bellow:
Before installation:
 Reconfirm your package content
 Prepare a Hub for Internet monitor
 Electricity 110 ~ 240 V
Hardware installation
1. Plug in IP Video 9100(B) Power 2. Plug in RJ 45 line to a HUB
3. Connect the HUB to Internet modem (ADSL/XDSL modem)
4. Connect Video source for IP Video box.
5. Turn you computer on
VER. 2.32,
- 7 -

SOFTWARE INSTALLER
Please follow the steps below to install the software.

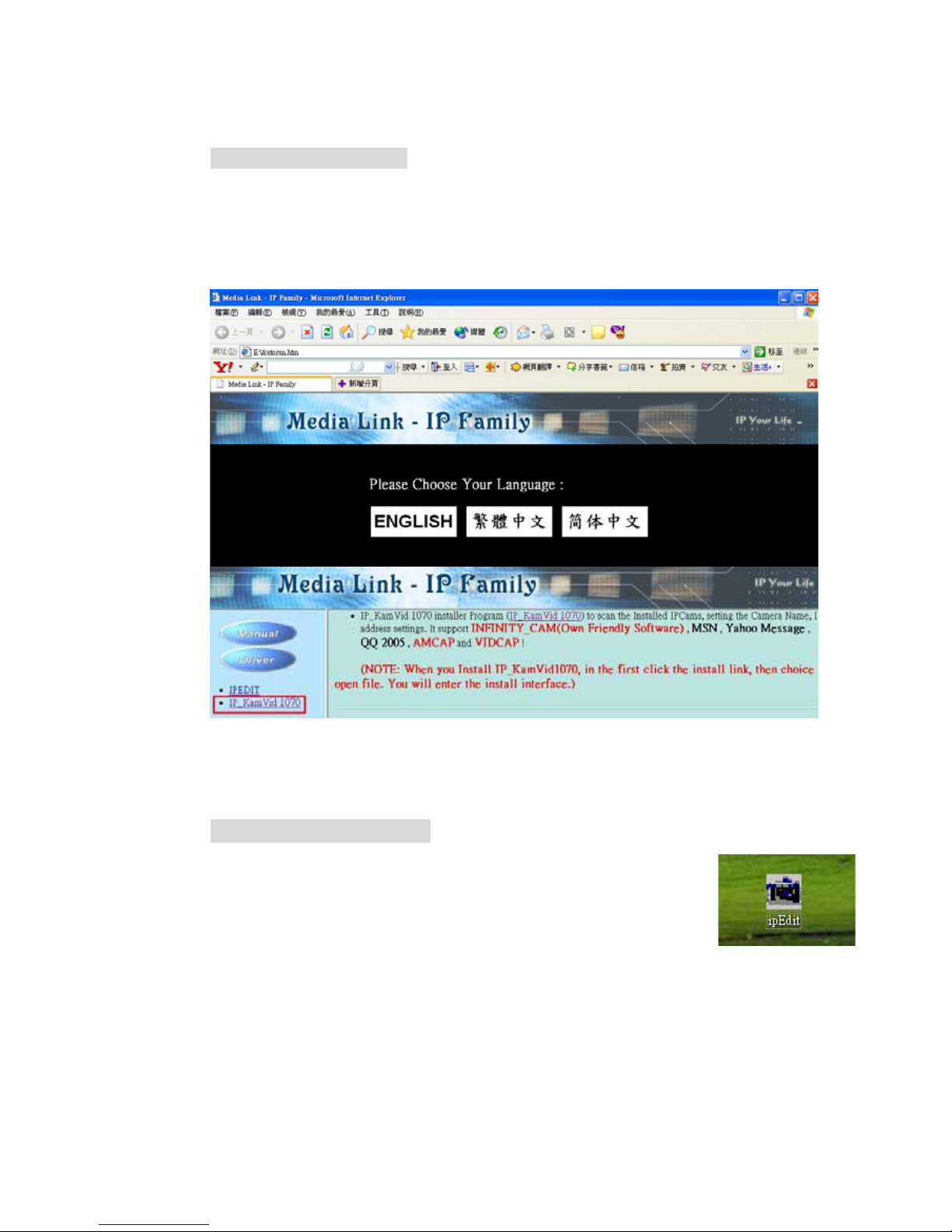

1. Insert the CD in package and windows will auto-run. If not please browser the file
Autorun.html in CD. Chose the langrage you can read.
2. Click IP KamVid 1070 in driver of CD and click OPEN top install the driver
procedure.
3. Please follow the wizard to install all the program we suggest.
4. After install , you can see the shortcut of “IPEDIT” & “INFINITY Cam” on Desktop
and in program list of start
Add IP Service in IPEDIT
Click “ipEdit.exe” . Please affirm the power of 9100B
had been turn on and the Ethernet connection of RJ45 is correct.

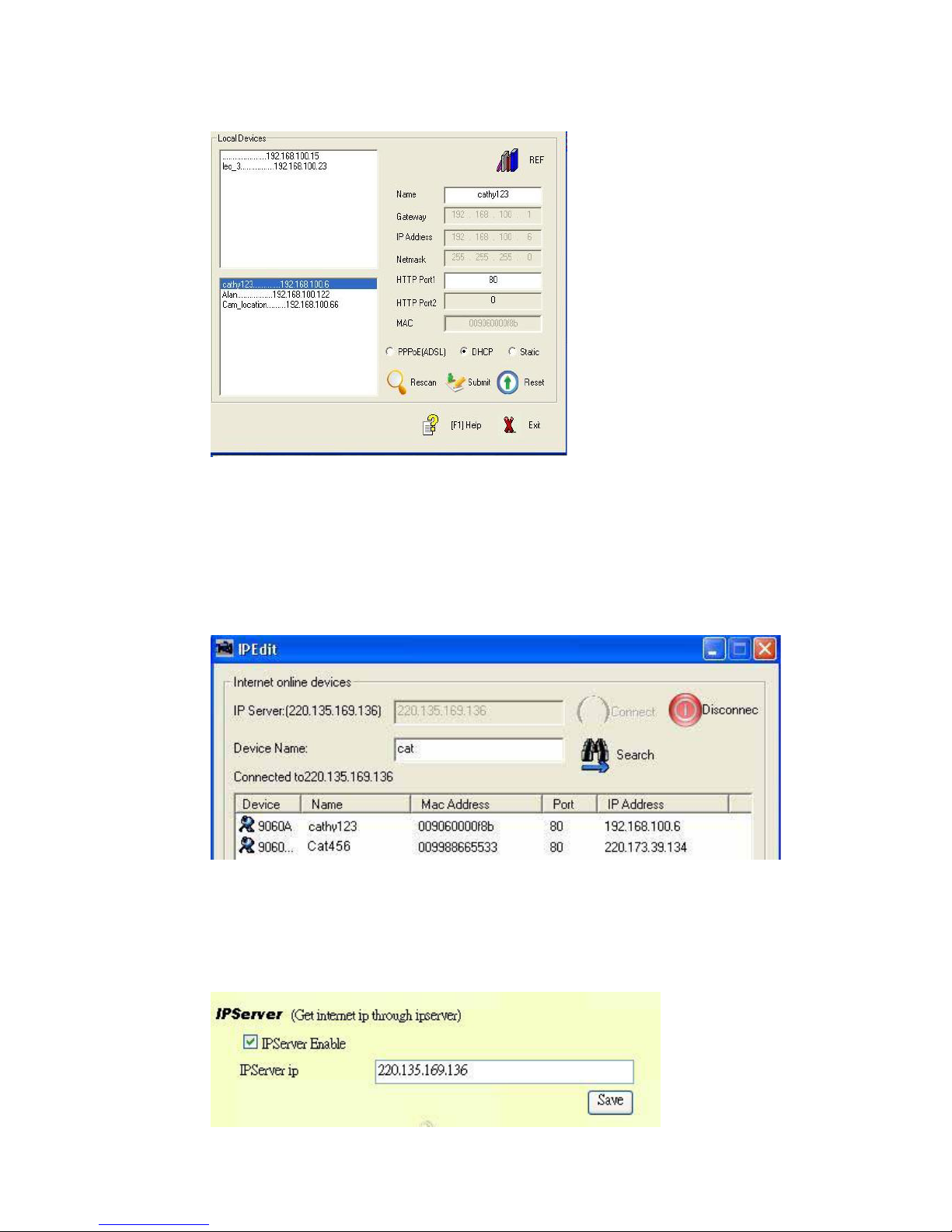

A. LOCAL Devices area:
IPEDIT will searching all IP Products 9XXX series in the same local Ethernet, the
default name of 9100B is Cam-location, and display the information as Select.
1. Double click the IP address, it will be covered by dark stripe, its name, and IP will be
displayed below. The IP address of IP Video 9100B should in the same subnet with
your PC, subnet mask, and default gateway mast same as 9100B.
For example, the IP address of 9060 is 192.168.10.9, so your computer needs to add
an IP address looks like 192.168.10.XXX to get connection to 9100B.
- 8 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
2. User can change its name (please use numbers or letter) or IP (please set in the
same subnet as your PC) in the text windows. Then click Submit after setting finish.
After about 20 seconds, the new setting will work. Click Update, the new setting of
equipment will display in text window.
B. Internet online devices:
By setting the server address in IP server of advanced setting page, user can easily to
get the IP address of IP Kamera 9100B on internet by name searching. The default IP
address of IP server is 220.135.169.136.
Step1: click “connect” green button Step2: type the keyword in “ device name
“
VER. 2.32,
- 9 -

IP_ KAM VID_ 1070
After connecting the power and RJ 45 line, following the steps below to install the
software.
Step 1: Install IP KAM by executes Setup.exe in the CD; choose setup language and
the install shield Wizard will help finish the program.
Step 2: Then you can see shortcut icon
“IP KamVid 1070 “on desktop, click this icon.
Note: Be sure that the power is turn on and the
RJ45 line is properly connected.

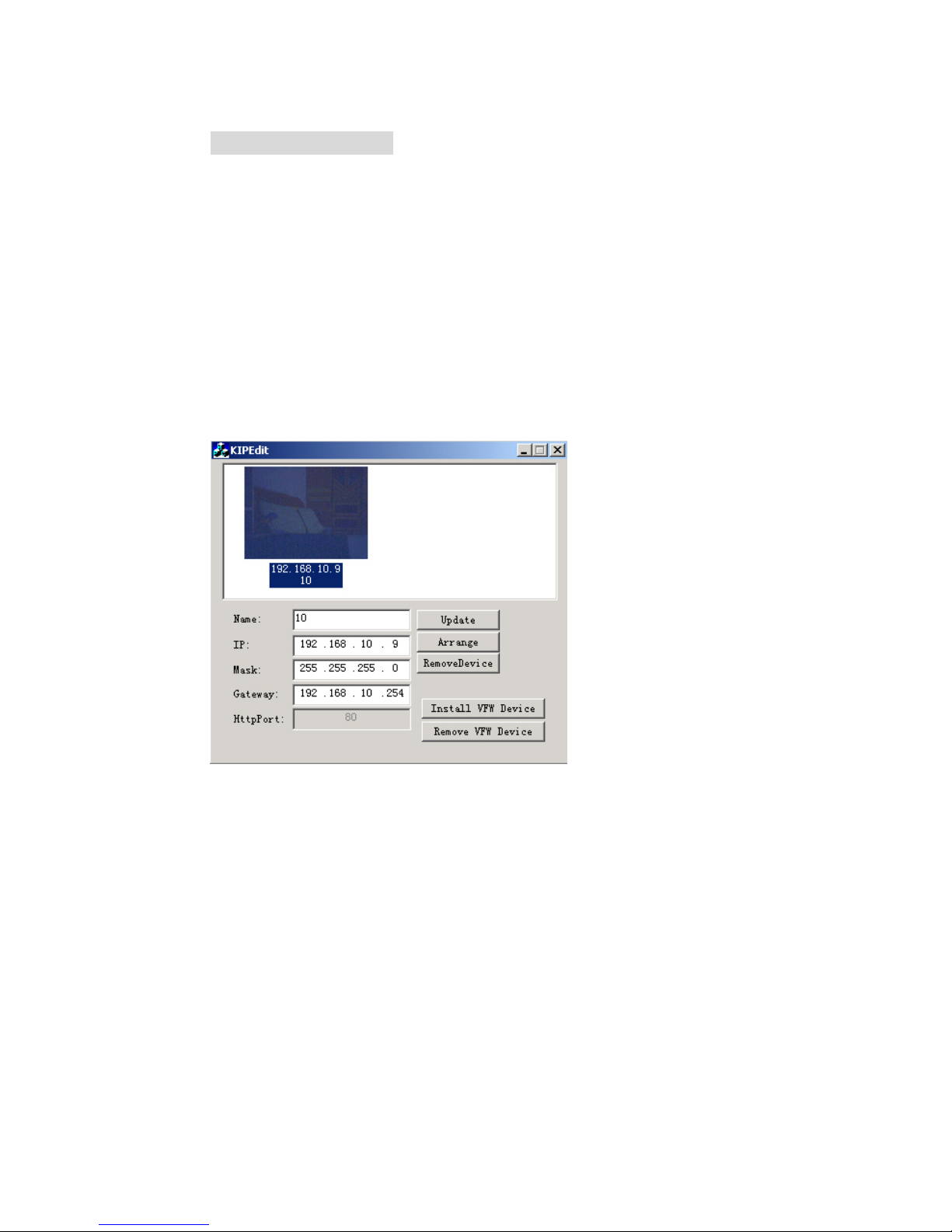

Step 3: The KIPEDIT program will detect all the active IP9000s or IP9100s in the same
local Ethernet, and display the findings in the window.
Step 4: Click the one you want to set, its name, IP will be displayed below. You can
change its name (please use numbers or letter) or IP (please set in the same subnet as
your PC) in the text windows. Then click Update. After about 20 seconds, the new
setting will work.
Default username : Administrator
Default password : 1234
* Only Administrator con setup the setting in configuration.
Step 5: Double click the picture in the window of KIPEdit or type the IP address in the
IE browser, you can open the web page of IP9000A. If you can not open the web page
of IP9000, be sure that you have installed IE 6.0 with SP1 or later version.
- 10 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
NOTE:
1. After you have installed IP 9100(B) on your PC, the IP 9100(B) was registered in
DirectX. IP9000A can be used as local camera by any software that supported DirectX,
such as MSN, Amcap, Media encoder, Yahoo Messenger as long as you not change
the directory path of ipcam’s driver.
2. For those software that only supported old VFM driver, such as Vidcap and
netmeeting, please click install VFM device, then you can get the captured images
from IP 9100(B) (you should be the administrator at the first install process)
3. For those not totally compatible with VFM, such as QQ and POPO, you should click
remove device button first, then click install VFM device, then you can get the
captured images from IP 9100(B).

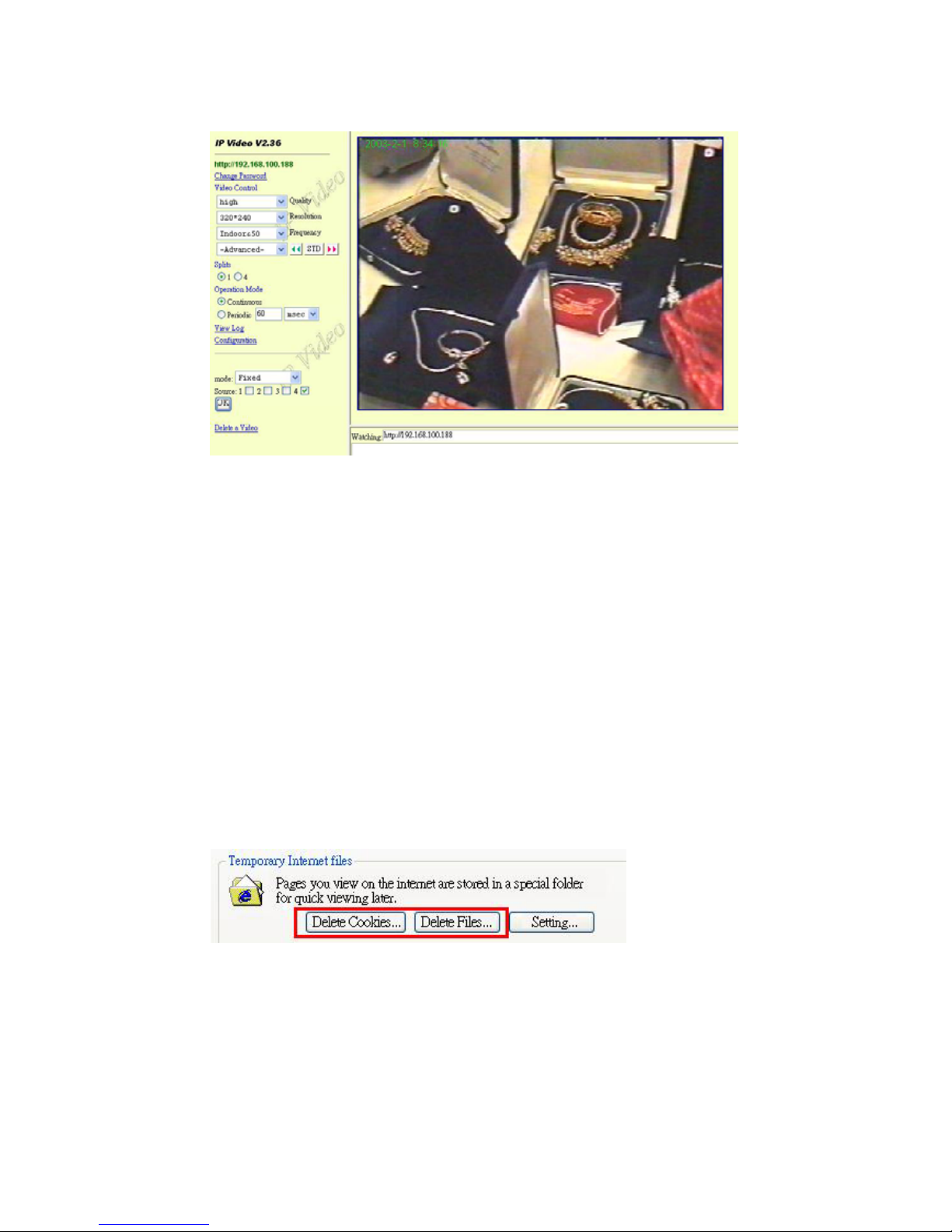

4. Note : if stay for long time as in webpage , you would be unable setting and see
message “ Cookie time out “ , please go to IE to change setting: “ Tools “ 
“ Internet operations ” , please click “ Delete Cookies “ and “Delete files “ in
“ Temporary Internet file “.
VER. 2.32,
- 11 -

Work with Yahoo /MSN Messenger
1. Work with Yahoo /MSN Messenger: We use Yahoo for instance. Select the friend
you would like to send your video. For instance, we pick up YahooHelper.
- 12 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
2. Choose Webcam then system will ask
your Internet connecting speed.
4. You can type in appointed IP address (No matter Real IP or Dynamic IP) and confirm
by click “Add” and choose if reverse the out streaming video.
We support
A. Normal B. Flip Vertical C. Flip Horizontal D. Rotate 180
VER. 2.32,
- 13 -

If the video is upside down, you can choose D to get rotate video.
And also adjust the video color ; Brightness, contrast, Hue, Saturation, Sharpness
Note
1 : for safety issue , as transfer video by Yahoo /MSN, only Administrator can do the
video streaming. You have to type the username and password.
2 : Work with Yahoo/ MSN , the streaming speed is depend on Yahoo .MSN server.
2. INFINITELY CAM : Please refer in readme file.
5.Network Set up
From our Network set up, users can view live video from any where in the world, with
just a computer.

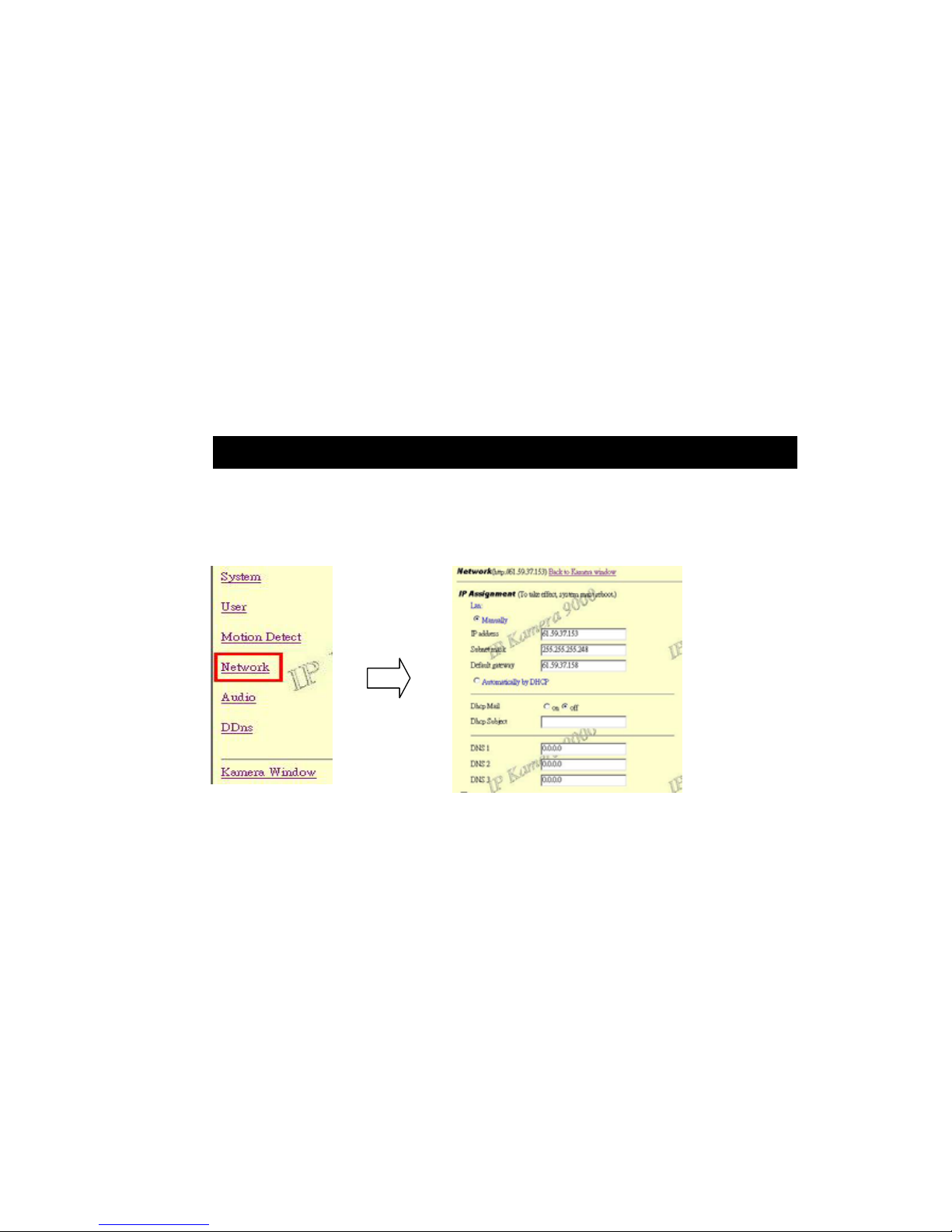

Click on Network set up: this area is authorized by administrator only.

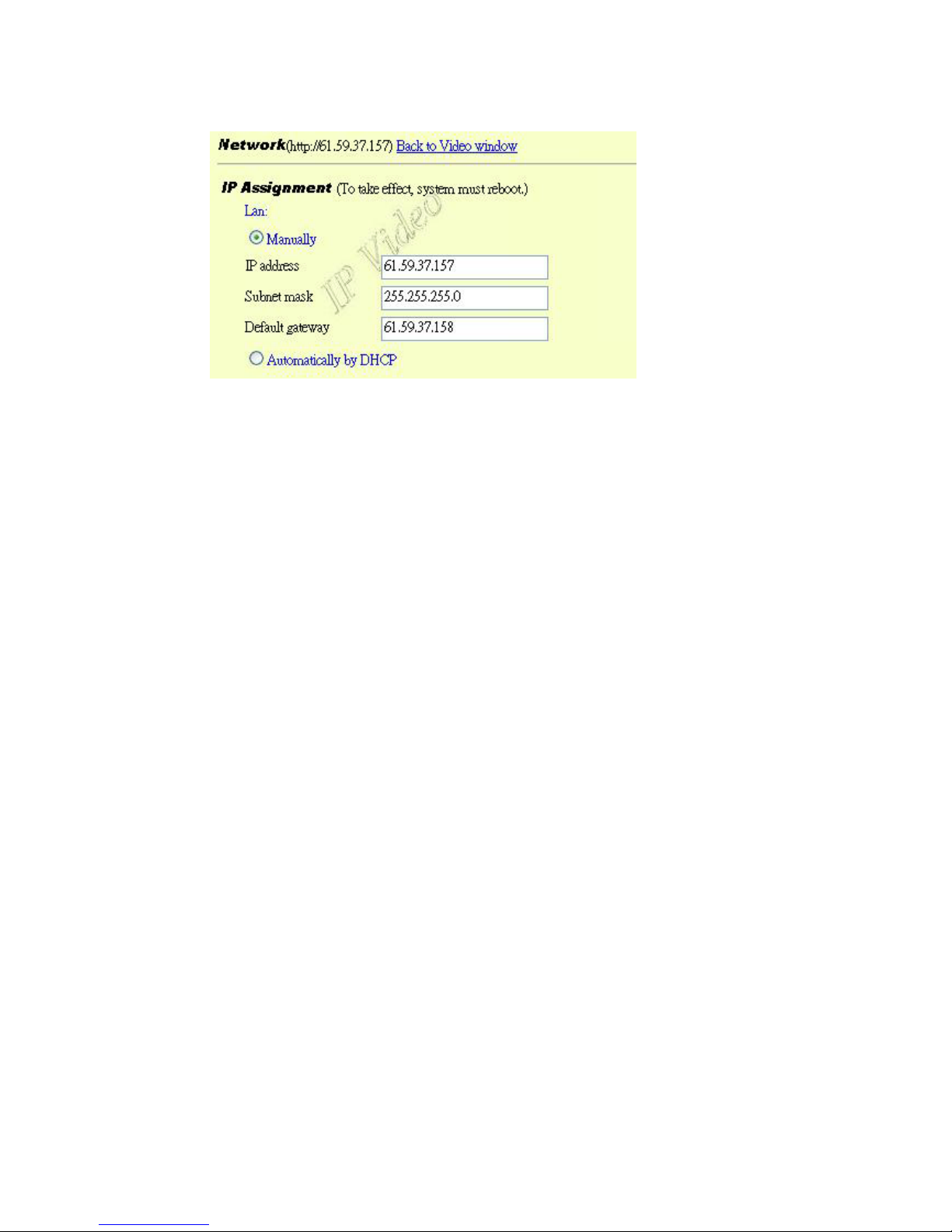

1. Still IP: Provided by ISP, with this IP you can connect this address from any
where in the world. Please refer the following illustration:
- 14 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
1-1 : Using Still IP: list your still IP address
1-2 : Choose “Reboot immediately”. Please close your browser and reboot again and
type in your IP address once again.
If using DHCP, please choose‘ Automatically by DHCP”
*And please use IP EDITOR program (Find users exact IP) that’s included in the
CD ROM
2. DHCP setup- ADSL / xDSL: ISP will provide your exact IP address, please enter
your Username and password for your provider. Please refer the following illustration:
VER. 2.32,
- 15 -

2-1 Enter your user name, password, mail server, mail name (pass word), sender
e-mail, and receiver e-mail.
2-2 Choose Save & Dial Now, by using PPPoE it can automatically dial to your ISP,
and ISP will provide exact IP address in your mail.
2-3 Turn off your browser of IP Video 9100(B) and restart
- 16 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
6. Functions
Please refer to all the function on the left side of IP Video 9100(B) AP; most of its
configuration can only be use by Administrator.
Functions:
1. IP address
2. Change Password
3. Camera Control:
Picture Quality - Low, High, Medium, Clarity& Motion
(Resolution) - 640*480,352*288,320*240,176*144
Frequency – Indoor 50, Indoor 60 & Outdoor
7. Configuration: System, User, Motion detection, Network, Channel, and DDNS
8. Right click function: Record, Snap,
3-3: Color Adjust
: Brightness Contrast, Saturation, Hue,
Sharpness
STD is Default color
4. Image (Split) - 1or 4
In 9100 A Plus - Support Round Robin – Display multi - channel in one IP
address . The select channel will display by turns.
In 9100 : you can view each channel but no round robin function.
4-1: 4 screen –
Only IP Video 9100B Plus support
“ Round Robin” function, you can
select
1- 4 channel and choose split 4, than
you can get four video in on screen
one IP address.
VER. 2.32,
- 17 -

5. Operation Mode:
Continues mode: Video will display
continues
Period – Video will refresh per millisecond or
per second. .
6. View Log – view which IP has been visiting your Live image
Note: View/Log / Camera Window
As in View Log, the video will not show on windows, to get the video back
Please click Camera Window.
7. There are Video setting in Configuration:
* System
* User
* Motion Detection
* Network
* Audio
* DDNS
Video Window: Click to go back to Application
main page.
- 18 -

IP VIDEO 9100 & 9100B PLUS USER MANUAL
7-1 Windows,
interval range for IP Video to
end picture at mini second.
Note: maximum 18 English characyters
device and
type the port number in this area.
System Setting: Setup Name , Time , show on
The Interval (MS ) means the
s
7-1-1 : Camera name, time and date setup
7-1-2 : Http Port setup : For customer with
IP Sharer device can setup the share port
Please check the setup in the IP Share
VER. 2.32,
- 19 -
