Model: AV-1362
HDMI, USB2.0&3.0 HD Video Conferencing Camera
User Manual
V1.2
(English)
Please read this user manual
thoroughly before using.
www.avipas.com

[Type here]
Preface
Thank you for using this HD Video Conferencing Camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to installation
and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to the camera:
◼Do not subject the camera to rain or moisture.
◼Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of unintended
equipment operation, contact an authorized engineer.
◼Never operate under unspecified temperature, humidity or power supply.
◼Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neuter
detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the image quality of TV in
home environment.

[Type here]
Attentions
•Electric Safety
Installation and operation must be in accord with electric safety standard.
•Caution to transport
Avoid stress, vibration or soakage during transport, storage and installation.
•Polarity of power supply
The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply plug is
shown in the drawing below.
•Careful of installation
Do not grasp the camera lens when carrying it. Don’t rotate camera lens by hand. Mechanical damage may result
from doing so.
This series product must be placed on a smooth platform or surface. It cannot be installed slantwise.
If the camera is used with TV or computer, the base can be fixed by four double-sided adhesive trays.
Don’t apply in corrosive liquid, gas or solid environment to avoid any cover (organic material) damage.
Make sure no obstacle is in the rotation range.
Never power on before installation is completed.
•Don’t disassemble discretionarily.
We are not responsible for any unauthorized modification or dismantling.
•Attention!
Specific frequencies of electromagnetic field may affect camera image!

[Type here]
Contents
1. Fast Installation.........................................................................................................................................................1
1.1 Camera Interface Illustration..........................................................................................................................1
1.2 Power On........................................................................................................................................................1
1.3 Video Output...................................................................................................................................................1
1.4 Bracket Mounting...........................................................................................................................................2
2. Product Overview.....................................................................................................................................................4
2.1 Product Introduction.......................................................................................................................................4
2.2 Main Features.................................................................................................................................................5
2.3 Technical Specifications .................................................................................................................................5
2.4 Interface Instructions......................................................................................................................................7
3. Application Instructions..........................................................................................................................................11
3.1 Video Output.................................................................................................................................................11
3.2 Remote Control.............................................................................................................................................12
3.3 Menu Settings...............................................................................................................................................15
4. Network Connection...............................................................................................................................................23
4.1 Connecting Mode..........................................................................................................................................23
4.2 IE Log In.......................................................................................................................................................26
5. Serial Communication Control...............................................................................................................................33
5.1 VISCA Protocol List.....................................................................................................................................34
5.2,Pelco-D Protocol Command List..................................................................................................................39
5.3 Pelco-P Protocol Command List...................................................................................................................39

1
1. Fast Installation
1.1 Camera Interface Illustration
Figure 1.1 AV-1362 series
1. Camera lens
2. Camera base
3. Remote Control Receiver light
4. Bottom DIP switch
5. Tripod screw hole
6. Installation Orientation Hole
7. Rotary Switch: Video format select
8. RS232 control interface (input)
9. USB3.0 interface
10. USB2.0 interface
11. Audio Input interface
12. HDMI interface
13. 10/100M Network interface
14. DC12V Input Power Supply Socket
1.2 Power On
1) Power on: connect DC12V power supply adapter with NO.15 showed in Figure1.1.
2) Initialization: power on with power indicator light on and remote control receiver light blinking. Camera head
moves from bottom left to the central bottom, and then go to HOME position (intermediate position of both
horizontal and vertical), while the camera module initializes. When remote control receiver light stops blinking,
self-check is finished.
Note: If preset 0 is set, the camera automatically moves to the preset 0 position upon powering on.
1.3 Video output
AV-1362 has 4 options for video output: LAN, HDMI, USB2.0 and USB3.0.
1) Video output from LAN.
a. Network cable connection port:AV-1362- No.14 in Figure1.1.
b. Webpage Login: open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to
enter the login page; click on the “player is not installed, please download and install!" and follow the
installation instructions for installation. Then enter the user name admin and password admin (factory default);
press Enter to enter the preview page. Users can perform PTZ control, video recording, playback,
configuration and other operations.
2) HDMI video output

2
a. HDMI video cable connection: AV-1362- No.13 in Figure1.1.
b. Connect the camera and the monitor via HDMI cable; video output is available after camera initialization.
3) USB2.0/3.0 video output
a. USB2.0/3.0 cable connection: AV-1362- No.12 in Figure1.1.
b. Connect the camera and the PC via USB cable; video output is available after camera initialization. Note: using
USB2.0 or USB3.0 port on the PC has different video format options.
1.4 Bracket Mounting
1) Bracket installation steps

3

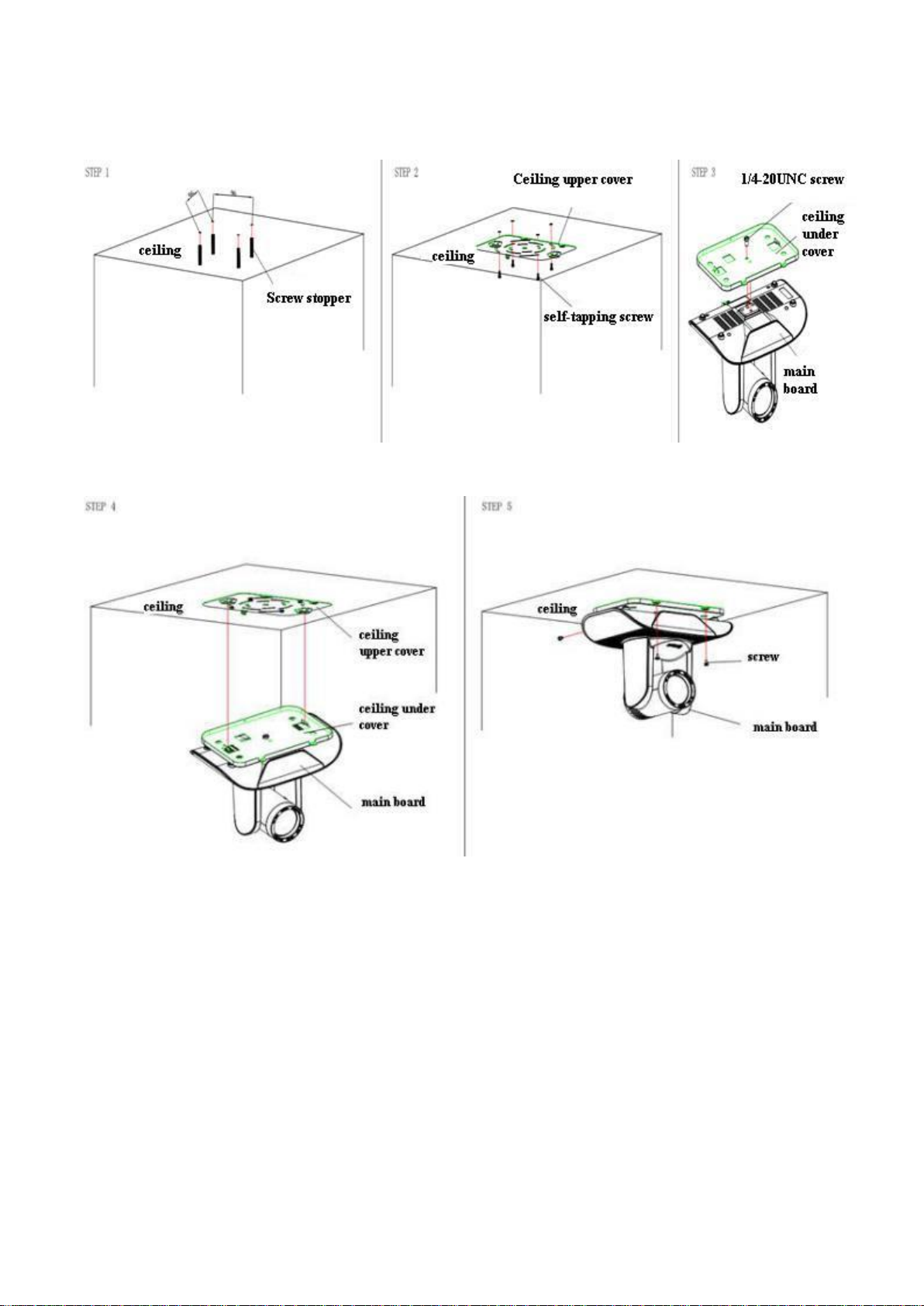

2) Upside-down installation steps

4
2. Product overview
2.1 Product introduction
2.1.1 Dimensions
Figure 2.2 AV 1362 camera dimensions
2.1.2 Accessories
When unpack, check if all the supplied accessories are included:
Model NO.
AV-1362
Accessory
Standard
Power adapter 1pc
RS232 cable 1pc
USB3.0 cable 1pc
USB2.0 cable 1pc
User manual 1pc
Warranty card 1pc
Optional
IR Remote controller 1pc

5
2.2 Main Features
2.2.1 Camera performance
This series camera offers multiple functions, high performance and various interfaces. The features include
advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and
fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even with
less than ideal bandwidth conditions.
1) Superb high-definition image: it employs 1/2.8 inch high-quality CMOS sensor. Resolution is up to 1920x1080
with frame rate up to 60 fps.
2) Leading auto-focus technology: leading auto focus algorithm contributes to fast, accurate and stable
auto-focusing.
3) Low noise and high SNR: low-noise CMOS effectively ensures a high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image
sharpness.
4) Quiet PTZ: adopts high-accuracy step driving motor mechanism, it works quietly and moves fast and smoothly
to the designated position.
5) Multi-format video outputs: support HDMI, USB2.0, USB3.0, and wired LAN interfaces.
6) Low-power sleep function: supports low-power sleep/wake up. Consumption is lower than 500mW in sleep
mode.
7) Support multiple control protocols: supports VISCA, PELCO-D, PELCO-P protocols which can also be
automatically recognized. Supports VISCA control protocol through IP port.
8) RS-232 cascade function: AV-1362 series supports RS-232 control which is convenient for installation.
9) 255 presets positions: up to 255 presets (10 presets by remoter).
10) Wide application: Tele-education, Lecture capture, Webcasting, Videoconferencing, Tele-training,
Tele-medicine, Interrogation and emergency command systems.
2.2.2 Network performance
1) Audio input interface: supports 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio
coding.
2) Multiple audio/video compression: supports H.264/H.265 video compression; AAC, MP3 and PCM audio
compression; supports compression of resolution up to 1920x1080 with frame rate up to 60 fps and 2-channel
1920x1080p with 30 fps compression.
3) Multiple network protocol: supports ONVIF, RTSP, RTMP protocols and RTMP push mode; easy to connect to
streaming media server (Wowza, FMS).
2.3 Technical Specifications
Model
AV-1362
Camera Parameter
Optical Zoom
20X, f = 4.7~94mm
Sensor
1/2.8” high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Video Format
HDMI video
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97

6
U3 video
1080P60/50/30/25; 720P60/50/30/25; 960*540P30; 640*360P30; 640*480P30;
352*288P30; 960*540P30
U3 compatible with U2
1280*720P10/15; 720*576P50; 720*480P60; 960*540P30; 640*480P30;
640*360P30; 352*288P30.
View Angle
2.9°(tele)--55.4°(wide)
Digital Zoom
10X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus
Auto/Manual
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
VideoAdjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>55dB
Input/Output Interface
Video Interfaces
HDMI, USB2.0, SUB3.0, LAN
Image Code Stream
Dual stream output
Video Compression Format
H.264, H.265
Stream format
Main stream: 1920x1080, 1280x720
Sub stream: 1920x1080, 1280x720, 640x360, 320x240, 320x180
Control Signal Interface
RS-232 in
Control Protocol
VISCA/ Pelco-D/ Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface
3.5mm Line-in Jack
Audio Compression Format
AAC/MP3/PCM Audio compression
HD IP Interface
100M IP port(100BASE-TX), support Visca protocol control through IP port
Network Protocol
RTSP/RTMP, ONVIF
Power Interface
HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation
±170°
Tilt Rotation
-30°~+90°
Pan Control Speed
0.1 -100°/sec
Tilt Control Speed
0.1-40°/sec
Preset Speed
Pan: 100°/sec, Tilt: 40°/sec
Preset Number
255 presets (10 presets by remote controller)
Other Parameter
SupplyAdapter
AC110V-AC220V to DC12V/1.5A
Input Voltage
DC12V±10%
Input Current
1A(Max)
Consumption
12W (Max)
Store Temperature
-10ºC~+60ºC
Store Humidity
20% - 95%

7
Working Temperature
-10ºC~+50ºC
Dimension
258mmX172mmX168mm
Weight
1.54KG
Remote Operation (IP)
Remote Upgrade, Reboot and Reset
Accessory
Power supply, RS232 control cable, USB cable, Remoter, Manual, Warranty card

8
2.4 Interface instruction
2.4.1 External Interface
External interface of AV-1362: rotary switch, RS232 IN, HDMI output, USB2.0 output, USB3.0 output, LAN,
DC12V power interface.
Figure 2.3 AV-1362 model external interface diagram
2.4.2 Bottom DIP Switch
AV-1362 model Bottom DIP Switch diagram shows as below in Figure 2.4.
Figure 2.4 Bottom DIP Switch diagram
Two DIP switches of AV-1362 model are set either ON or OFF to select different modes of operation as shown in
Table 2.2.
Table 2.2 DIP Switch setting
No.
SW2
SW1
Explanation
1
OFF
OFF
Software upgrade mode
2
ON
ON
Working mode
Rotary Switch
VISCA Cable
To RS232
VISCA IN
USB3.0 Interface
USB2.0 Interface
3.5mm Audio Input
HDMI Interface
Network Interface
DC 12V IN
AC Adapter
To AC Socket
Power supply cable
PC, TV or VCR
with video input

9
2.4.3 Rotary DIP Switch
Sixteen rotary DIP (0-F) interface diagram shows as below in Figure 2.5.
Sixteen video formats corresponding to the rotary DIP (0-F) shows as below in Table 2.3.
Note:AV-1362 has rotary DIP.
Figure 2.5 Rotary Dial diagram
Table 2.3 Rotary dial corresponding to the video formats
Dial-up
video format
Dial-up
video format
0
1080P60
8
720P30
1
1080P50
9
720P25
2
1080I60
A
1080P59.94
3
1080I50
B
1080I59.94
4
720P60
C
720P59.94
5
720P50
D
1080P29.97
6
1080P30
E
720P29.97
7
1080P25
F
Display the video
format set on the menu
Note:
1) After switching DIP, the user needs to restart the camera for the changes to take effect.
2) Only when the rotary dial code is turned to F is the video format displayed on the menu item.
3) If the rotary switch is set to 0-E, the video format is determined by rotary switch setting.
2.4.4 RS-232 interface
1) RS-232 interface specifications for AV-1362 model is shown as below:
Computer or keyboard to camera connections
Camera
WindowsDB-9
1.DTR
1.DCD
2.DSR
2.RXD
3.TXD
3.TXD
4.GND
4.DTR
5.RXD
5.GND
6.GND
6.DSR
7.IR OUT
7.RTS
8.NC
8.CTS
9.RI

10
2) RS-232 mini-DIN 8-pin port definition
3) RS232 (DB9) port definition
NO.
Port
Definition
1
DTR
Data Terminal Ready
2
DSR
Data Set Ready
3
TXD
Transmit Data
4
GND
System Ground
5
RXD
Receive Data
6
GND
System Ground
7
IR OUT
IR Commander Signal
8
NC
No Connection
NO.
Port
Definition
1
DCD
Data Carrier Detect
2
RXD
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator

11
3. Application Instruction
3.1 Video Output
3.1.1 Power-On Initialization Configuration
Upon connecting to the power, camera will enter initialization configuration. IR indicator light will be flashing.
When the camera returns to the HOME position (center position for P/T), and lens finish zooming in/out, the
auto-testing is complete. IR indicator light will also stop flashing. If the preset 0 is set, camera will rotate to the
preset position (No. 0) after initialization.
3.1.2 Video output
Connect the video output cable: the user can select output mode accordingly.
1) Network output: connect AV-1362 to a computer via Ethernet cable. Open the browser, and enter the
camera IP address (factory default 192.168.5.163) in the address bar. On the login page, input user name
and password (factory defaults are “admin”). It will enter the preview page, and the captured image will
show.
Note: If the user forgets your user name, password, or IP address, he can manually restore the default using the
remote-control key combination * #.
2) HDMI output: connect the monitor with the corresponding video output port, the image will show on the
monitor.
3) USB2.0/3.0 output: connect the monitor with the corresponding video output port to your PC, use the
software that recognizes a webcam, choose the right device: Cyt-FX4 for USB3.0; FHD Camera for
USD2.0.

12
3.2 Remote Control
3.2.1 Key Illustrations
1. Standby key
After 3-sec long press, the camera will enter the standby mode. Long press the key
again for 3 sec, the camera will initialize again and return back to HOME position
(Note: when power-on mode is turned on and Preset 0 is set, if there is no operation
after 12 sec, the camera will automatically rotate to the specified preset position).
2. Camera address selection
Select the specific camera which the user wants control.
3. Number key
Set or run one of the preset positions (0~9).
4.* and # key
Key combination is used to restore the default settings.
5. Focus control key
Auto focus: enter auto focus mode.
Manual focus: manually adjust the camera focus by pressing [focus +] or [focus -].
6. Zoom control key
zoom+: near lens
zoom-: far lens
7. Set or clear preset key:
Set preset: set preset key + number key (0~9).
Clear preset key: clear preset key + number key (0~9).
8. Pan/tilt control key
Press key : up
Press key : down
Press key : left
Press key: right
“HOME” key: return to the center position or enter the submenu.
9.BLC control key
Back light ON/OFF: turn on or off the back light.
10. Menu settings
Open or close the OSD menu.
Enter/exit the OSD menu or return to the previous menu.
11. Camera IR remote control address settings
【*】+【#】+【F1】: Camera Address No.1
【*】+【#】+【F2】: CameraAddress No. 2
【*】+【#】+【F3】: CameraAddress No. 3
【*】+【#】+【F4】: CameraAddress No. 4
12. Key combination functions
1) 【#】+【#】+【#】: Clear all presets
2) 【*】+【#】+【6】: Restore factory defaults
3) 【*】+【#】+【9】: Flip switch
4) 【*】+【#】+ Auto: Enter the aging mode
5) 【*】+【#】+【3】: Set menu language to Chinese
6) 【*】+【#】+【4】: Set menu language to English
7) 【*】+【#】+ Manual: Restore the default user
name, password, and IP address
8) 【#】+【#】+【0】: Switch the video format to
1080P60
9)【#】+【#】+【1】: Switch the video format to 1080P50
10)【#】+【#】+【2】: Switch the video format to 1080I60
11)【#】+【#】+【3】: Switch the video format to 1080I50
12)【#】+【#】+【4】: Switch the video format to 720P60

13
13)【#】+【#】+【5】: Switch the video format to 720P50
14) 【#】+【#】+【6】: Switch the video format to
1080P30
15)【#】+【#】+【7】: Switch the video format to 1080P25
16)【#】+【#】+【8】: Switch the video format to 720P30
17)【#】+【#】+【9】: Switch the video format to 720P25
3.2.2 Applications
When initialization is complete, the camera can receive and execute IR commands. Press the ON/OFF button on the
remote control, the indicator light will be flashing; release the button, the indicator light stops flashing. The user
can control the pan/tilt/zoom settings and run preset positions via IR remote control.
Key instructions:
1. In the instructions below, “press the key” means a click rather than a long-press. A special note will be given
if a long-press for more than 1 sec is required.
2. When a key-combination is required, do it in sequence. For example, “【*】+【#】+【F1】”means press “【*】”
first and then “【#】” and lastly press “【F1】”.
1) Camera Selection
Select the camera address which the use wants to
control.
2) Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Back to center position: press “【HOME】”
Press and hold the up/down/left/right key, the pan/tilt
will keep running, from slow to fast, until it runs to the
endpoint. The pan/tilt running stops as soon as the key is
released.
3) Zoom Control
Zoom-in: press “ZOOM “ key
Zoom-out: press “ZOOM ” key
Press and hold the key, the camera will keep zooming in
or zooming out. It stops as soon as the key is released.

14
4) Focus Control
Focus (near): press “【focus+】” key (valid only in
manual focus mode)
Focus (far): press “【focus-】key (valid only in manual
focus mode)
Auto focus: support
Manual focus: support
Press and hold the key, the action of focus will keep
adjusting. It stops as soon as the key is released.
5) BLC Settings
BLC ON/OFF: support
6) Presets Setting, Running and Clearing
1. Preset setting: to set a preset position, the user should
press “【SET PRESET】” key first and then press the
number key 0~9 to set the corresponding preset.
Note: 10 preset positions are available in total by using
the remote control.
2. Preset running: press a number key 0~9 directly to
run the corresponding preset position.
Note: action in vain if the selected preset position does
not exist.
3. Preset clearing: the user can press “【CLEAR
PRESET】” key first and then press the number key 0~9
to clear the corresponding preset.
Note: press the “【#】” key three times in succession to
clear all the presets.
7) Camera Remote ControllerAddress Settings
【*】+【#】+【F1】: Camera Address No.1
【*】+【#】+【F2】: CameraAddress No. 2
【*】+【#】+【F3】: CameraAddress No. 3
【*】+【#】+【F4】: CameraAddress No. 4

15
3.3 Menu Settings
3.3.1 Main menu
In normal working mode, press “【MENU】”key to display the menu. The user can scroll the arrow to point at or
highlight the selected item.
LANGUAGE: language setting, Chinese / English
SETUP: system setting
CAMERA OPTION: camera setting
PTZ OPTION: pan/tilt setting
VERSON: camera version setting
Restore Default: reset setting
[↑↓] Select: to select menu
[← →] Change Value: to modify parameters
[MENU] Back: press [MENU] to return
[Home] OK: press [Home] to confirm
3.3.2 System settings
Move the pointer to (Setup) in the Main Menu, click 【HOME】to enter the (System Setting) as shown below.
MENU
===============
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[↑↓]Select [←→]Change Value
[Menu]Back [Home]OK

16
PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto
Visca ADDR: VISCA=1~7; Pelco-P=1~255; Pelco-D =1~255
Baud rate: 2400/4800/9600/115200
Visca Address Fix: On/Off
3.3.3 Camera settings
Move the pointer to the (CAMERA) in the Main Menu, click 【HOME】to enter the CAMERA menu as shown
below.
EXPOSURE: enter exposure setting
CAMERA
===============
(Exposure)
(Color)
(Image)
(Focus)
(Noise Reduction)
Style default
[↑↓]Select [←→]Change Value
[Menu]Back [Home]OK
SETUP
===============
Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-PAddress 1
PELCO-DAddress 1
Baud rate 9600
[↑↓]Select [←→]Change Value
[Menu]Back
[↑↓]选择 [←→]修改
[菜单]返回
Table of contents
Other Avipas Digital Camera manuals
