Avital 4111 User manual

Model 4111
Remote Start
Owner’s Guide
© 2009 Directed Electronics, Vista, CA
G4111L 2009-07

i
© 2009 Directed Electronics. All rights reserved.
Contents
Government Regulations ................................................................................... iii
Warning! Safety first ........................................................................................ iv
What is Included ............................................................................................1
Important Information ........................................................................................1
System Maintenance .................................................................................1
Your Warranty..........................................................................................1
Using Your System ...........................................................................................2
Unlocking ................................................................................................2
Car Finder ...............................................................................................2
Ignition Controlled Door Locks....................................................................3
Remote Start.............................................................................................4
Valet Take-Over ........................................................................................5
Starter Anti-Grind Circuitry.........................................................................6
Disabling the Remote Start System ..............................................................6
Rapid Resume Logic .........................................................................................7
Programming Options........................................................................................8
Glossary of Terms..............................................................................................9
Notes ............................................................................................................10
Quick Reference Guide....................................................................................11
Limited Consumer Warranty .............................................................................13

iii
© 2009 Directed Electronics. All rights reserved.
Government Regulations
This device complies with Part 15 of FCC rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency ener-
gy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television, which can
be determined by turning the equipment OFF and ON, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that•
to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for•
help.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis; in
other words, this device must not be used if it is determined that it causes harm-
ful interference to services authorized by IC. In addition, the user of this device
must accept any radio interference that may be received, even if this interference
could affect the operation of the device.
Warning: Changes or modifications not expressly approved by the party re-
sponsible for compliance could void the user’s authority to operate this device.

iv © 2009 Directed Electronics. All rights reserved.
Warning! Safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via a command signal
from the remote control remote control. Therefore, never operate the system in an
enclosed area or partially enclosed area without ventilation (such as a garage).
When parking in an enclosed or partially enclosed area or when having the
vehicle serviced, the remote start system must be disabled using the installed
toggle switch. It is the user’s sole responsibility to properly handle and keep out
of reach from children all remote control remote controls to assure that the system
does not unintentionally remote start the vehicle. THE USER MUST INSTALL A
CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJA-
CENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING
AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE
AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the sole
responsibility of the user.
Use of this product in a manner contrary to its intended mode of operation may
result in property damage, personal injury, or death. (1) Never remotely start the
vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral safety feature of the
vehicle periodically checked, wherein the vehicle must not remotely start while
the car is in gear. This testing should be performed by an authorized Directed
dealer in accordance with the Safety Check outlined in the product installation
guide. If the vehicle starts in gear, cease remote start operation immediately and
consult with the authorized Directed dealer to fix the problem.

v
© 2009 Directed Electronics. All rights reserved.
After the remote start module has been installed, contact your authorized dealer
to have him or her test the remote start module by performing the Safety Check
outlined in the product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit has not been
properly installed. The remote start module must be removed or the installer must
properly reinstall the remote start system so that the vehicle does not start in gear.
All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERAT-
ING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY
CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AU-
THORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED
REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR
PAY FOR INSTALLATION OR REINSTALLATION COSTS.
This product is designed for fuel injected, automatic transmission ve-
hicles only. Use of this product in a standard transmission vehicle is
dangerous and contrary the product's intended use.

1
© 2009 Directed Electronics. All rights reserved.
What is Included
The control module•
An HX receiver/antenna•
One 1-button remote control (P/N 7111L)•
A push-button programming switch•
Your warranty card•
A shut-down toggle switch•
Important Information
Congratulations on the purchase of your remote start keyless entry sys-
tem. This system has been designed to provide years of trouble-free
operation. By carefully reading this owner’s guide prior to using your
system, you will maximize the use of this system and its features. Addi-
tional or replacement copies of this guide can be printed by accessing
the Directed Electronics internet website at
www.avital.com .
➢System Maintenance
The system requires no specific maintenance. Your remote is powered
by a miniature 3V lithium battery that lasts approximately one year
under normal use. When the battery weakens, the LED on the remote
will dim and operating range will be reduced.
➢Your Warranty
Your warranty card must be completely filled out and returned within
10 days of purchase. Your product warranty will not be honored if your
warranty card is not returned. Make sure that you receive the warranty
card from your dealer. You may also register online at
www.prodregister.com/directed.

2© 2009 Directed Electronics. All rights reserved.
Using Your System
➢Unlocking
Only after the vehicle is remotely started via the remote control, press
and release the remote control button for 1 second to unlock the ve-
hicle’s doors. The parking lights will flash and the horn will honk twice
to confirm unlock.
Note: Horn honk is an optional feature.
➢Car Finder
Press and hold the remote control button for 3 seconds to activate the
car finder function (parking lights flash 5 times slowly). The remote start
must not be activated for Car Finder to work.

3
© 2009 Directed Electronics. All rights reserved.

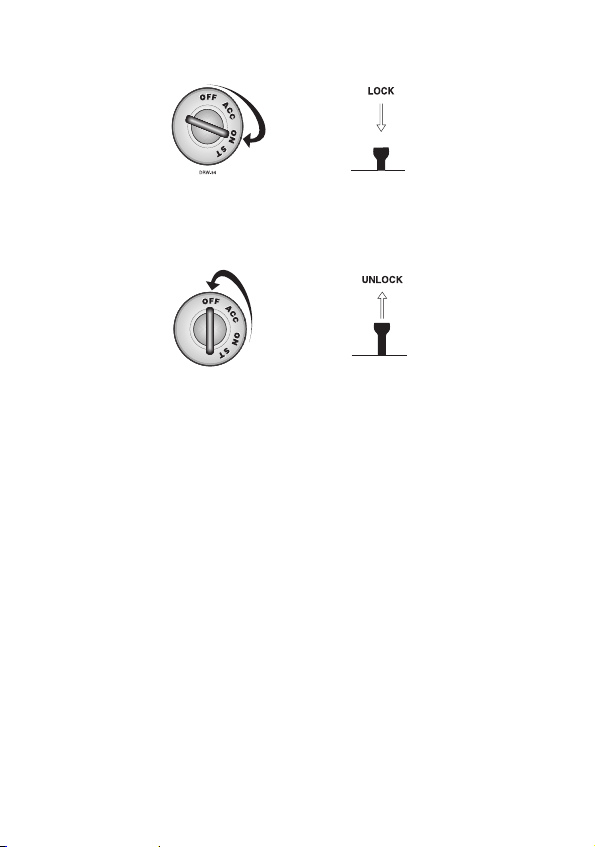

➢Ignition Controlled Door Locks
If power door locks have been connected to your system, the vehicle's doors will
lock three seconds after the ignition has been turned On and unlock when the
ignition is turned Off.
Important: In order for the ignition controlled door locks to work the
feature must be programmed On.
If the ignition is turned on when the vehicle is remote started the doors
will not lock until the remote start shuts off. To avoid being locked out
of the vehicle, do not turn the ignition on until you are ready to drive
the vehicle.

4© 2009 Directed Electronics. All rights reserved.
➢Remote Start
This feature allows you to remotely start and run your vehicle for a
programmable period of time. This makes it possible to warm up the
engine, as well as adjust the interior temperature of the vehicle with
the climate control system. If interior heating or cooling is desired, the
climate controls must be preset, and the fan blower must be set to the
desired level prior to remote starting the vehicle.
Important! (1) Never remotely start the vehicle with the
vehicle in gear, and (2) Never remotely start the vehicle
with the key in the ignition.
To remote start the vehicle:
Press and release the single button on the remote control once.1.
The parking lights flash to confirm remote start.2.
Once the vehicle has started, the parking lights come on solid. The3.
vehicle runs for the pre-programmed period of time (12, 24, or 60
minutes) or until a shutdown input is triggered. This can be set to
minute increments by your installer.
When you are ready to drive the vehicle:

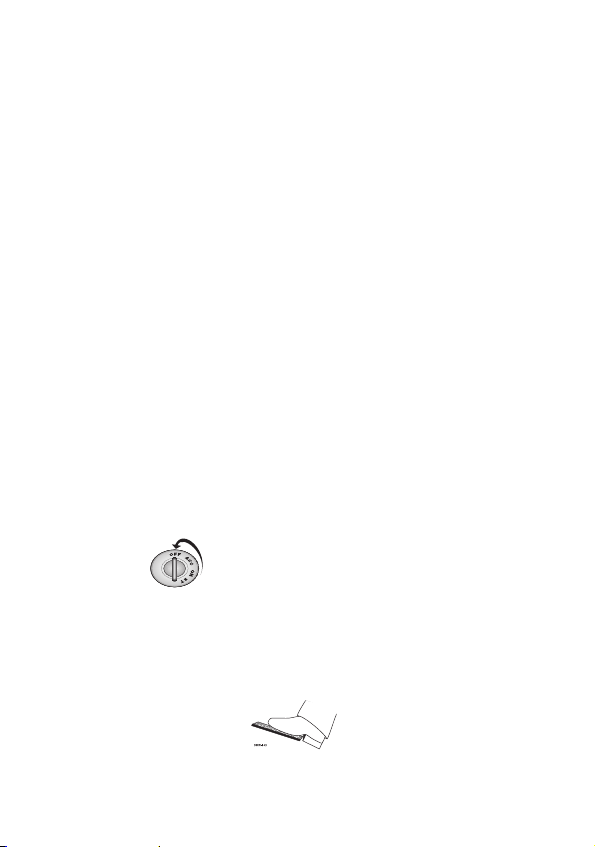

Insert the ignition key and turn it to the ON (not the START) posi-1.
tion.
Press the brake pedal. The remote start system shuts down but the2.
motor continues to run because the ignition has been turned on.
The vehicle now operates as usual.
Note: If the brake pedal is pressed before the key is in the ON position,
the engine will shut down.

5
© 2009 Directed Electronics. All rights reserved.
While the vehicle is running during remote start operation, the system
will monitor the vehicle and will automatically shut down the engine if
the system receives any of the following shut-down inputs:
Brake pedal is pressed.•
Hood is opened.•
Shutdown toggle switch is put into the ON position.•
Pre-programmed run time has elapsed.•
Remote control button is pressed and held for 3 seconds.•
➢Valet Take-Over
The Valet Take-Over feature allows the vehicle to remain running after
the key has been removed from the ignition. This feature is useful for
occasions when you wish to exit and lock the vehicle for short periods
of time, but would like to leave the motor running and the climate
controls on.
To perform Valet Take-Over:
Before turning off the engine, press and release the remote control1.
button for 1 second.
Turn the ignition key to the OFF position. (The engine will stay2.
running.)
The engine will run until the pre-programmed time elapses or a3.
shut-down input is received. (See the previous Remote Start section
for a complete list of shut-down inputs.)
Note: This feature will not work if the brake pedal is being pressed.

6© 2009 Directed Electronics. All rights reserved.
➢Starter Anti-Grind Circuitry
Whenever the vehicle is remote started, advanced anti-grind circuitry
prevents the starter from engaging, even if the key is turned to the start
position. This prevents damage to the starter motor if the key is turned to
the start position during remote start operation.
Note: Anti-grind circuitry only works when the remote start system is
operating the motor and the optional relay is installed.
➢Disabling the Remote Start System
This feature allows your system's remote start unit to be temporarily
disabled to prevent the vehicle from being remote started accidentally.
This feature is useful if the vehicle is being serviced or stored in an
enclosed area. To disable the remote start, move the shutdown toggle
switch to the OFF position. The switch can be installed in a location of
your choice. Check with your installer for recommended locations.
Location Of Shutdown Switch _________________________

7
© 2009 Directed Electronics. All rights reserved.
Rapid Resume Logic
This Directed Electronics system will store its current state to non-volatile
memory. If power is lost and then reconnected the system will recall the
stored state from memory. This means if the unit is in Locked Mode and
the battery is disconnected for any reason, such as servicing the car,
when the battery is reconnected the unit will still be in Locked Mode.
This applies to all states of the system.

8© 2009 Directed Electronics. All rights reserved.
Programming Options
Programming options control your system's normal operational set-up.
Most options do not require additional parts, but some may require
installation labor.
The following is a list of the programmable options, with the factory
settings in
bold .
12 • , 24, or 60 minute run time. Your system can be programmed
to allow the vehicle to run for 12, 24, or 60 minutes when remote
started. Can be set up to minute increments by your installer.
Parking lights flashing or•
constant . Your system can be pro-
grammed to flash or turn on the parking lights constantly during the
entire remote start operation.
Ignition switch controlled door locking on or• OFF. With this feature
on, the doors will lock 3 seconds after the ignition key is turned on,
and unlock when the key is turned off.
Important: The door lock option must be installed for this feature
to work.

9
© 2009 Directed Electronics. All rights reserved.
Glossary of Terms
Control Unit: The “brain” of your system. Usually hidden underneath
the dash area of the vehicle. It houses the microprocessor which moni-
tors your vehicle and controls all the system functions.
Remote control: A hand-held device control that operates the various
functions of your system.
LED: Indicator on your remote control when a button is pressed.

10 © 2009 Directed Electronics. All rights reserved.
Notes

11
© 2009 Directed Electronics. All rights reserved.
Quick Reference Guide
To remote start the vehicle
Press and release the remote control button for 1-second. The park-•
ing lights will turn on constant to confirm remote start operation.
To shut down remote start
Press and hold the remote control button for 3 seconds. The park-•
ing lights will turn off.
Car finder (remote start must not be active)
Press and hold the remote control button for 3-seconds. The park-•
ing lights will start to flash 5 times slowly.
To unlock the doors (remote start must be active)
Press and release the remote control button for 1second. The doors•
unlock (if connected), the vehicles horn (if connected) honks twice,
and the parking lights flash twice.
Cut along the dotted line and fold to keep in purse or wallet for a quick and easy reference.
✂
✂
