Avitech Pacific X-HDUT User manual
User Manual
Pacific X-HDUT/R
HDMI/USB/KVM/IR over Cat.5e/6 (shielded) Cable Extender
Revision 1.0.0, (July, 2013)
User Manual
ii
ABOUT THIS MANUAL
This manual contains information about using the Avitech Pacific X-HDUT/R extender. There are two chapters in
this manual.
Getting Started, introduces the features and specifications as well as external components of Pacific
X-HDUT/R.
System Configuration, discusses various setup scenarios involving connection to a Blu-ray player, remote
computer, as well as Sequoia 4H. Lastly, volume control using the hot keys is also introduced.
Throughout this manual the following conventions are used to distinguish elements of text.
provides additional hints or information that requires special attention.
identifies warnings which must be strictly followed.
Any name of a menu, command, icon or button on the screen is shown in a bold typeset. For example: On the Start
menu select Settings.
To assist us in making improvements to this user manual, we would welcome any comments and constructive
criticism. Please send all such – in writing to: sales@avitechvideo.com.
WARNING
Do not attempt to disassemble the Pacific extender module(s). Doing so may void the warranty. There are no
serviceable parts inside. Please refer all servicing to qualified personnel.
TRADEMARKS
All brand and product names are trademarks or registered trademarks of their respective companies.
COPYRIGHT
The information in this manual is subject to change without prior notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of Avitech International Corporation. Avitech International Corporation may have
patents, patent applications, trademarks, copyrights or other intellectual property rights covering the subject matter
in this document. Except as expressly written by Avitech International Corporation, the furnishing of this document
does not provide any license to patents, trademarks, copyrights or other intellectual property of Avitech International
Corporation or any of its affiliates.
TECHNICAL SUPPORT
For any questions regarding the information provided in this guide, call our technical support help line at
Contents
About This Manual.................................................................................................................... ii
Warranty.................................................................................................................................... iv
Limitation of Liability............................................................................................................... iv
Extended Warranty Options.................................................................................................... iv
Services and Repairs Outside the Warranty Period............................................................. iv
Regulatory Information ........................................................................................................... iv
Federal Communications Commission (FCC) Statement.................................................... iv
European Union CE Marking and Compliance Notices ....................................................... iv
Australia and New Zealand C-Tick Marking and Compliance Notice ................................. iv
1. Getting Started ..............................................................................................................1
1.1 Package Contents..............................................................................................................1
1.2 Product Features ...............................................................................................................2
1.3 Specifications ....................................................................................................................2
1.4 Connections to the Pacific X-HDUT/R .............................................................................3
2. System Configuration................................................................................................... 5
2.1 Getting the Pacific X-HDUT/R Ready...............................................................................5
2.1.1 Basic Setup When Connecting to a Blu-ray Player ...........................................5
2.1.2 Basic Setup When Connecting to a Remote Computer ....................................6
2.1.3 Basic Setup When Connecting to a Sequoia 4H................................................6
2.2 Volume Control When Using Headphones .....................................................................7
iii
Warranty
Avitech International Corporation (herein after referred to as “Avitech”)
warrants to the original purchaser of the products manufactured in its
facility (the “Product”), that these products will be free from defects in
material and workmanship for a period of 1 year or 15 months from the
date of shipment of the Product to the purchaser. There is a 3 month
grace period between shipping and installation.
If the Product proves to be defective during the 1 year warranty period,
the purchaser’s exclusive remedy and Avitech’s sole obligation under
this warranty is expressly limited, at Avitech’s sole option, to: (a)
repairing the defective Product without charge for parts and labor; or
(b) providing a replacement in exchange for the defective Product; or
(c) if after a reasonable time is unable to correct the defect or provide a
replacement Product in good working order, then the purchaser shall
be entitled to recover damages subject to the limitation of liability set
forth below.
Limitation of Liability
Avitech’s liability under this warranty shall not exceed the purchase
price paid for the defective product. In no event shall Avitech be liable
for any incidental, special, or consequential damages, including
without limitation, loss of profits for any breach of this warranty.
If Avitech replaces the defective Product with a replacement Product
as provided under the terms of this Warranty, in no event will the term
of the warranty on the replacement Product exceed the number of
months remaining on the warranty covering the defective Product.
Equipment manufactured by other suppliers and supplied by Avitech
carries the respective manufacturer’s warranty. Avitech assumes no
warranty responsibility either expressed or implied for equipment
manufactured by others and supplied by Avitech.
This Warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty of merchantability or
fitness for a particular purpose, all of which are expressly disclaimed.
This Hardware Warranty shall not apply to any defect, failure, or
damage: (a) caused by improper use of the Product or inadequate
maintenance and care of the Product; (b) resulting from attempts by
other than Avitech representatives to install, repair, or service the
Product; (c) caused by installation of the Product in a hostile operating
environment or connection of the Product to incompatible equipment;
or (d) caused by the modification of the Product or integration with
other products when the effect of such modification or integration
increases the time or difficulties of servicing the Product.
Any Product which fails under conditions other than those specifically
covered by the Hardware Warranty, will be repaired at the price of
parts and labor in effect at the time of repair. Such repairs are
warranted for a period of 90 days from date of reshipment to customer.
Extended Warranty Options
Avitech offers OPTIONAL Extended Warranty plans that provide
continuous coverage for the Product after the expiration of the
Warranty Period. Contact an Avitech sales representative for details
on the options that are available for the Avitech equipment.
Services and Repairs Outside the Warranty Period
Avitech makes its best offer to repair a product that is outside the
warranty period, provided the product has not reached its end of life
(EOL). The minimum charge for such repair excluding shipping and
handling is $200 (US dollars).
AVITECH INTERNATIONAL CORPORATION
●8655 154th Ave., NE Redmond, WA 98052
●TOLL FREE 1 877 AVITECH
●PHONE 1 425 885 3863
●FAX 1 425 885 4726
●http://avitechvideo.com
Regulatory Information
Marking labels located on exterior of device indicate regulations that
the model complies with. Please check the marking labels on device
and refer to the corresponding statements in this chapter. Some
notices apply to specific models only.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense. Properly
shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Avitech is not responsible for any radio or
television interference caused by using other than recommended
cables and connectors or by unauthorized changes or modifications to
this equipment. Unauthorized changes or modifications could void the
user's authority to operate the equipment. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
European Union CE Marking and Compliance Notices
Statements of Compliance
English
This product follows the provisions of the European Directive
1999/5/EC.
Dansk (Danish)
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Nederlands (Dutch)
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Suomi (Finnish)
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
Français (French)
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
Deutsch (German)
Dieses Produkt entspricht den Bestimmungen der Europäischen
Richtlinie 1999/5/EC.
Ελληνικά (Greek)
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Íslenska (Icelandic)
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italiano (Italian)
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norsk (Norwegian)
Dette produktet er i henhold til bestemmelsene i det europeiske
direktivet 1999/5/EC.
Português (Portuguese)
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Español (Spanish)
Este producto cumple con las normas del Directivo Europeo
1999/5/EC.
Svenska (Swedish)
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Australia and New Zealand C-Tick Marking and
Compliance Notice
Statement of Compliance
This product complies with Australia and New Zealand's standards for
radio interference.
iv
1. Getting Started
The Pacific X-HDU allows transmission of HDMI video/audio signal, extend keyboard/mouse, and IR
(infrared signal) over standard Cat-5e/6 (shielded*) cable. Consisting of an HDMI transmitter, the Pacific
X-HDUT (TX) and an HDMI receiver-Pacific X-HDUR (RX) that allows transmission of 1080p60 HD over
100 meters based on HDBaseT®technology. Moreover, KVM (keyboard and mouse) and IR features
can be extended as well through Pacific X-HDU. Extend application with Pacific X-HDU no matter where
the remote/monitored device is. Pacific X-HDU also supports HID (Human Interface Device) which allow
connection to a touch screen for controlling the remote device easily.
This chapter introduces the features and specifications as well as the external components of Avitech
Pacific X-HDUT/R.
Avitech recommends using a shielded twisted pair (STP) or screened fully shielded twisted pair (SFTP)
cat.5e/6 cable while using Avitech Pacific X-HDU for signal extension and KVM control.

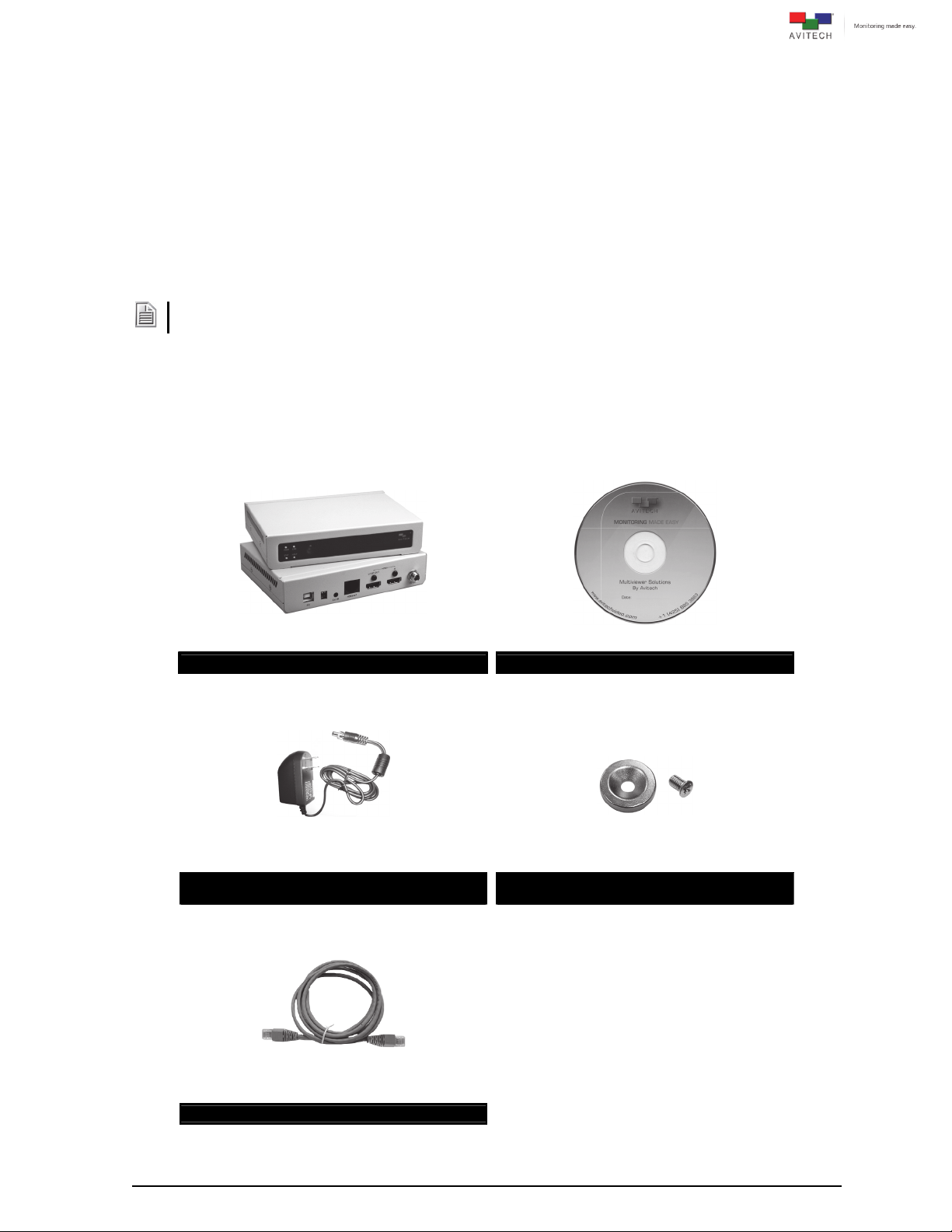

1.1 Package Contents
After unpacking the shipping carton, the following standard items can be found:
Avitech Pacific X-HDUT/R Utility Disc (software and user manual)
5VDC/3A Power Adapter
(1pc per unit)
Magnetic Foot Stand with Screws
(4pcs per unit)
5M Cat.5e Cable (SFTP)
Table 1-1 Package Contents
1
1.2 Product Features
The Pacific X-HDU is a compact and standalone device (rack-mountable) which extends the HDMI/
KVM/USB/IR transmission range up to 100m (328ft) at 1080p60 based on HDBaseT®. Use a set of
keyboard/mouse to control the remote computer or IR to remotely connect the device.
Incorporating the latest HDMI®technology, Pacific X-HDU can simultaneously support HDMI and DVI
(via optional DVI-to-HDMI adapter) output. VESA DDC, Hot-Plug Detect (HPD), and HDCP 1.3
specification are compliant as well. It is also capable of support for 10-bit deep color.
The Pacific X-HDU supports stereo audio output for monitoring (audio in PCM output). Dolby®TrueHD
and DTS-HD master audio pass-through are supported as well.
Moreover, Avitech Hook Utility* (patent pending) can be utilized with Pacific X-HDU to control the remote
computer easily. In the meantime, Pacific X-HDU is capable of working with Sequoia solo series and
Avitech Hook Utility for extending the multiviewing application.
1. Non-standard keyboards (e.g., keyboard with driver installation or programmable keyboard) are not
supported. Keyboard with USB hub feature is supported but without hub function.
2. Avitech Hook Utility currently supports the Sequoia solo series and Pacific X-HDU. When a laptop or
desktop computer is connected to Sequoia solo series or Pacific X-HDU, it can be used to simulate a
keyboard and mouse for processing remote control function (KVM feature).
3. Refer to the Avitech Hook Utility’s user manual for more details.
1.3 Specifications
Input
HDMI IN
(HDMI connector)
Automatic sensing
8/10-bit HDMI mode:
720p50, 720p60, 1080i50, 1080i60, 1080p50, 1080p60
DVI-D mode:
480p60, 576i60, 720p60, 1080i60, 1080p60
Support for most resolution listed for DVI 1.0. If any
incompatibility is detected contact Avitech Technical Support.
IR
(Infrared receiver) For accepting infrared signal from an infrared-compliant device.
HDBaseT
(RJ45 connector)
For direct pairing between Pacific X-HDUT and X-HDUR; can be
extended up to 100m (328ft).
Output
HDMI OUT
(HDMI type A)
DVI (via adapter)
LOOP OUT
(HDMI type A)
Automatic sensing:
Up to 1080p60 (based on connected display’s native resolution)
LOOP OUT and HDMI OUT resolution will be synchronized to
the lowest native resolution display.
Audio
(Headphone jack)
Analog audio for monitoring output (audio out port, not available for
Pacific X-HDUT)
Stereo
IR
(Infrared blaster) For transmitting infrared signal to infrared-compliant device.
Ext IR
(2.5 mm mini jack) Connects to Infrared Blaster extension cable.
2
Others
Extension distance 100m (1080p60), HDMI over Cat.5e/6 cable (shielded) transmission
Video bandwidth Single link 225MHz
Color depth 8-bit, 10-bit
Audio support
(pass through) Surround sound (7.1 ch), Dolby®TrueHD and DTS-HD
Supported IR
carrier frequency 30 to 56kHz
Power
Power consumption is 10W (maximum)
Power Supply:
Input (AC): 100 to 250V
Output (DC): 5V adapter
Dimension/Weight Dimension, 103×145×31mm (4.1×5.71×1.22 inch)
Weight, 230g (0.51lb)
Environment/
Safety
Temperature:
Operating: 0
C (32
F) to 40
C (104
F)
Storage: –10
C (14
F) to 50
C (122
F)
Humidity, 0 % to 80 % relative, non-condensing
Safety, FCC/CE/C-Tick/Class B
Table 1-2 Specifications
1.4 Connections to the Pacific X-HDUT/R

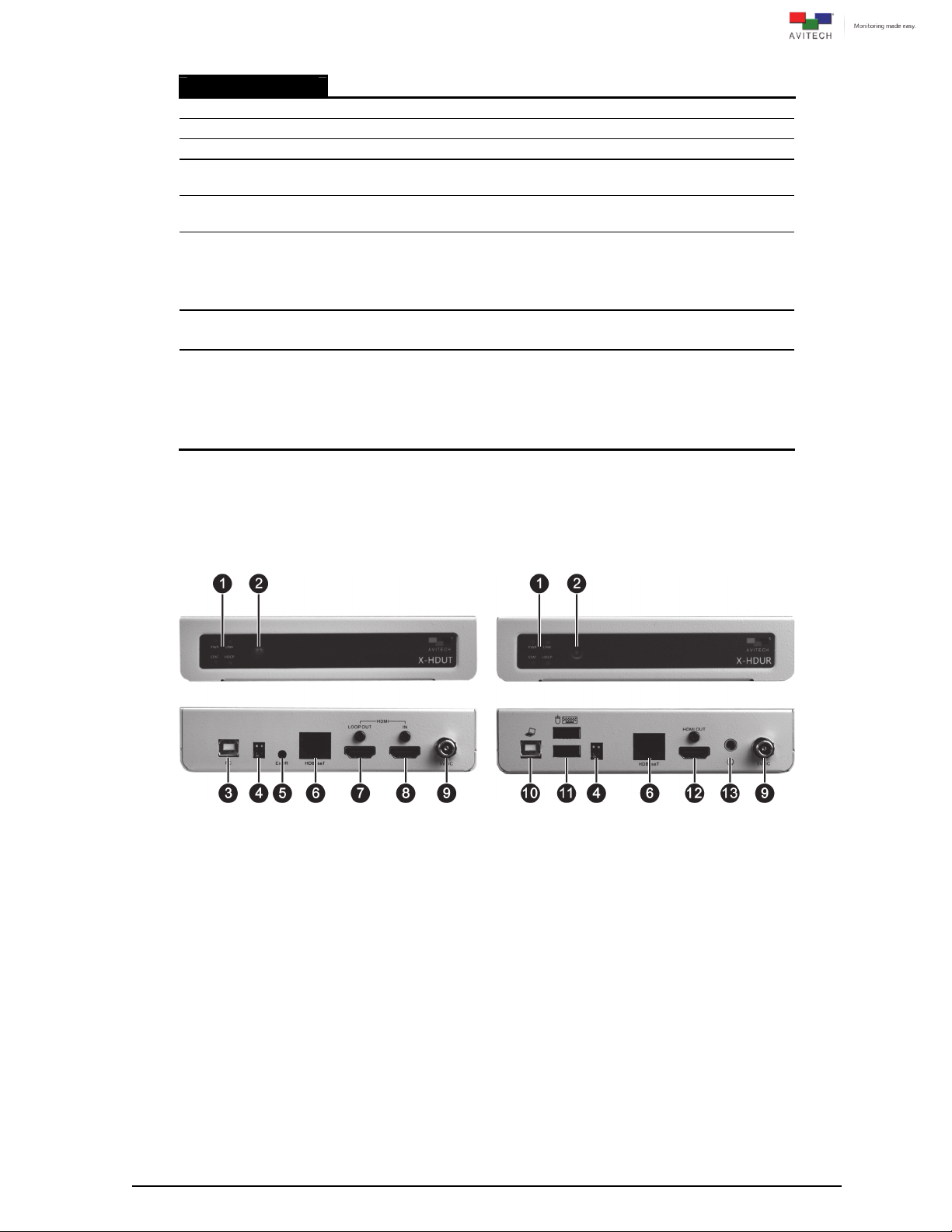

Figure 1-1 Pacific X-HDUT (left) and X-HDUR (right) Components
3
4
Front Panel
Indicators
PWR
Glows green when the Pacific X-HDU is turned ON.
LINK
Glows green when both Pacific X-HDUT and X-HDUR are
connected and turned ON.
STAT
Pacific X-HDUT
Glows green when Pacific X-HDUT is connected to a computer.
Pacific X-HDUR
Glows green when Pacific X-HDUR has detected that Pacific
X-HDUT is connected to a computer (blinks amber during
firmware upgrade).
HDCP
Glows green when source signal includes HDCP encryption. Blinks
green when HDCP encryption is not included in source signal.
IR Blaster
(Pacific X-HDUT)
Transmit infrared signal to IR-compliant device for wireless
communication (e.g., Blu-ray player).
IR Receiver
(Pacific X-HDUR)
Receives infrared signal from an IR-compliant device for wireless
communication (e.g., remote controller).
Rear Panel
Pacific X-HDUT
PC
(USB Type B)
Connects to remote computer as well as to Sequoia 4H/2H2U for more
functions.
Dip Switches For firmware upgrade or reset to factory-default setting.
Ext IR
(2.5 mm Mini Jack)
Connects to IR Blaster extension cable used in transmitting IR signal to
infrared-capable device(s).
HDBaseT
(RJ-45)
For Pacific X-HDUT and X-HDUR connection via Cat.5e/6 cable
(shielded).
HDMI LOOP
OUT
Connects to a HDMI or DVI (DVI to HDMI adapter) monitor
Audio out is available when connecting to a HDMI monitor.
HDMI IN Accepts HDMI video/audio input.
Power (DC 5V) Connects to 5VDC/3A power input.
Rear Panel
Pacific X-HDUR
USB Type B Connects to a computer (e.g., laptop or desktop) for using proprietary
Hook utility.
USB Type A Connects to a USB mouse and keyboard.
HDMI OUT Same function as the HDMI LOOP OUT port of Pacific X-HDUT.
Audio Output Connects to a headphone for audio signal output (stereo).
Table 1-3 Pacific X-HDUT/R Component Description
2. System Configuration
This chapter discusses the setup process of Pacific X-HDUT/R.
2.1 Getting the Pacific X-HDUT/R Ready
The Pacific X-HDUT can be connected to a Blu-ray player, computer, or Sequoia 2H2U/4H. Moreover
the connected computer or Sequoia 2H2U/4H can be directly controlled by a keyboard and mouse
connected to Pacific X-HDUR. Control is also available by using the proprietary Avitech Hook Utility* on
a laptop or desktop computer connected to Pacific X-HDUR.
1. Avitech recommends using a shielded twisted pair (STP) or screened fully shielded twisted pair (SFTP)
cat.5e/6 cable while using the Avitech Pacific X-HDU for signal extension and KVM control.
2. Refer to the Avitech Hook Utility’s user manual for more details.
2.1.1 Basic Setup When Connecting to a Blu-ray Player
The following figure shows a typical setup of Pacific X-HDUT (transmitter) and X-HDUR (receiver)
connected to a Blu-ray player.
1. First connect the cables, and then connect to power.
2. Make sure Pacific X-HDU has been disconnected from line voltage whenever connecting or
disconnecting other devices.
3. Remote controller is active when remote control signal is transmitted by Pacific X-HDUT’s front panel
blaster port or extended blaster cable (through Ext IR port at rear panel on Pacific X-HDUT).
Figure 2-1 Pacific X-HDU with Blu-ray Player Setup
5
2.1.2 Basic Setup When Connecting to a Remote Computer
The following figure shows a typical setup of Pacific X-HDUT (transmitter) and X-HDUR (receiver)
connected to a remote computer.
1. First connect the cables, and then connect to power.
2. Make sure Pacific X-HDU has been disconnected from line voltage whenever connecting or
disconnecting other devices.
3. User can control the remote computer (connected to Pacific X-HDUT) via keyboard/mouse connected
to Pacific X-HDUR directly or through a laptop/desktop connected to Pacific X-HDUR with Avitech
Hook Utility.
Figure 2-2 Pacific X-HDU with Computer Setup
2.1.3 Basic Setup When Connecting to a Sequoia 4H
The following figure shows a typical setup of Pacific X-HDUT (transmitter) and X-HDUR (receiver)
module connected to a Sequoia 4H.
1. First connect the cables, and then connect to power.
2. Make sure Pacific X-HDU has been disconnected from line voltage whenever connecting or
disconnecting other devices.
3. User can control remote computers (connected to Sequoia 4H which is connected to Pacific X-HDUT)
via keyboard/mouse connected to Pacific X-HDUR directly or through a laptop/desktop connected to
Pacific X-HDUR with Avitech Hook Utility.
Figure 2-3 Pacific X-HDU with Sequoia 4H
6
7
2.2 Volume Control When Using Headphones
Control the volume of connected headphone’s audio output by using a USB keyboard.
1. The audio input signal entering the HDMI IN port of Pacific X-HDUT must conform to Pulse-code
modulation (PCM) method.
2. Pulse-code modulation (PCM) is a method used to digitally represent sampled analog signals. It is
the standard form for digital audio in computers and various Blu-ray, DVD and Compact Disc formats.
The following are hot-keys for volume control on Pacific X-HDU.
Volume Control Hot-Keys
Ctrl + Shift + Alt + ↑
To increase volume.
10 levels from lowest up to highest volume, but
depending on starting level fewer than 10 levels
may be available for setting.
Ctrl + Shift + Alt + ↓
To decrease volume.
10 levels from highest up to lowest volume, but
depending on starting level fewer than 10 levels
may be available for setting.
Ctrl + Shift + Alt + 0 up to 9 Where 0 represents no volume, while 9 represents
loudest volume.
Ctrl + Shift + Alt + m Toggle between muting audio output on/off (mute).
Table 2-1 Volume Control Hot-Keys
