AvMap G6 Farmnavigator User manual

Corresponding to Software Version
2.5.xx
FARM NAVIGATION
User Manual

Your journey, Our Technology
Dear Customer,
Congratulation for choosing an AvMap Satellite Navigator.
AvMap GPS systems are made in Italy since 1994.
This User Manual is updated to the Software version
2.5.xx released in February 2010 for the AvMap G6
Farmnavigator satellite navigators:
G6 Farmnavigator
G6 Connect Farmnavigator

AvMap - 3
Index
1. Getting started 4
1.1 Content of the box 4
1.2 Device description 4
1.3 Mounting 5
2. Farmnavigator main menu 7
2.1 Fields 8
2.2 Spray boom 8
2.3 Farmnavigator settings 9
2.3.1 Working Width 9
2.3.2 Spray Boom 10
2.3.3 Guide lines 10
2.3.4 Offset 10
2.3.5 Area Unit 11
2.3.6 Minimum Speed 11
2.3.7 General settings 11
2.4 Camera 12
2.5 Volume and Brightness 12
2.6 Bluetooth 12
3. Creating and working a eld 13
3.1 Creating a eld 13
3.2 Working a eld 13
3.3 Measuring Perimeter and Area 14
3.4 Positioning obstacles / soil samples 15
3.5 Setting the Guide lines 15
3.5.1 Parallel guide lines 16
3.5.2 Contour guide lines 17
3.5.3 Tram lines 18
3.5.4 Round and Round 18
3.6 Assisted driving 18
3.7 Using the spray boom virtual control 19
4. Fields Database 22
4.1 Editing the elds 22
4.2 Exporting eld data to Google Earth 23
4.3 Printing the eld map from Google Earth 27
4.4 Importing the eld data 27
Appendix A: The Dop 29

4 - AvMap
1. Getting started
1.1 Content of the box
• G6 Farmnavigator / G6 Connect Farmnavigator
• Charger 220 V
• Car charger 12 V with cigarette lighter plug
• Waterproof External GPS receiver
• Protective rubber frame
• Holder with suction cup
• USB cable

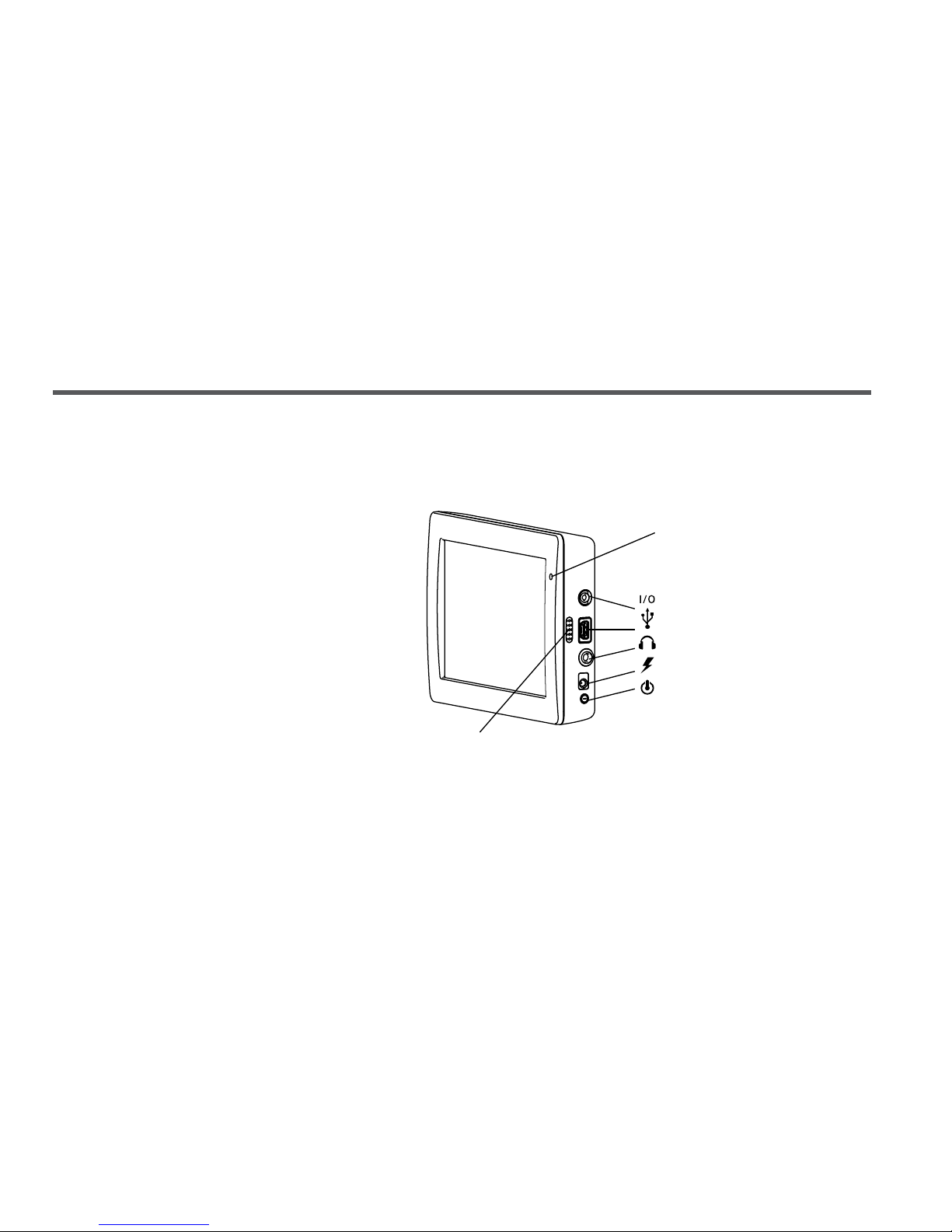

• External DVBT TV antenna * Serial Port
USB (master/slave)
Audio output
Power supply
(with CA power supply cable)
Power key
Microphone
Speakers
1.2 Device description
*Only G6 Connect Farmnavigator model

AvMap - 5
Farmnavigator
SD Slot
Connector for
magnetic support
ON -OFF
Reset
Sensor for the
automatic
brightness
control
Connector for
car charger 12 V
Magnetic
support
External GPS
antenna connector
1.3 Mounting
1. Attach the magnetic support the suction cup holder.
2. Mount the suction cup holder on the windshield of
your farm machine. Please reassure that the windshield
is free from grease and wet the suction cup to improve
the adhesion.
3. Connect the 12V power cable to the connector in the
magnetic mount, and then to the cigarette lighter plug
in your vehicle.
4. Connect the cable of the GPS antenna to the 9 pins
Connector coming out of the magnetic support. 5.
Connect the antenna cable with the screw coupling
to the GPS antenna and mount the antenna above the
steering axle. If the hood of your farm machine is not
made of magnetic material (plastic or aluminium etc.)

6 - AvMap
Farmnavigator
you can mount a metal plate or a washer on your hood
with for example hot glue.
6. Now you can put the Farmnavigator in the magnetic
mount and start working.
ATTENTION:
Never remove the SD Card while the software is running.
Even if the device has been sent to stand by mode,
software is still running in the background. Always quit
the software with the exit button in the road navigation
menu, and wait until the device returned to the start
menu. Otherwise a system error will occur which could
cause heavy data loss.

AvMap - 7

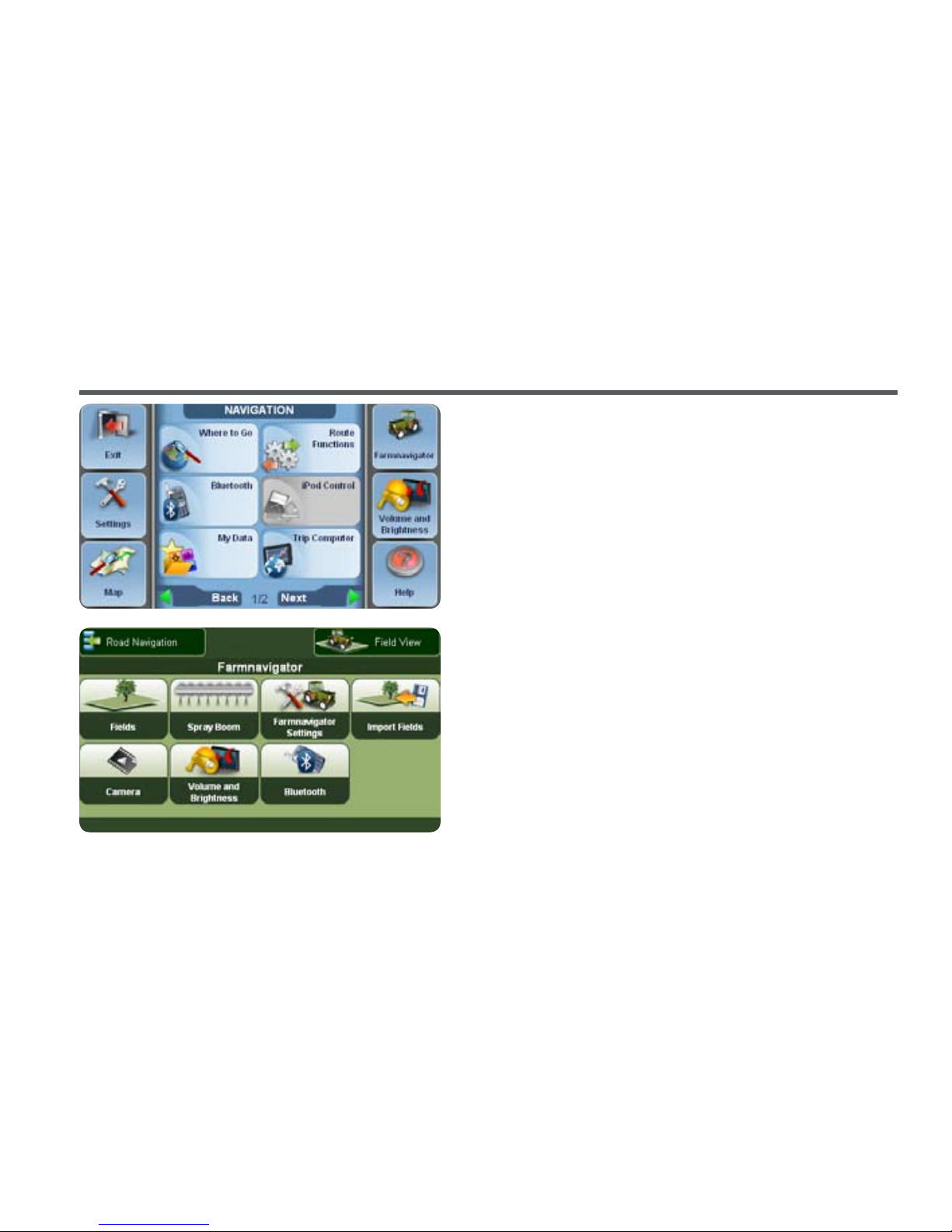

In order to use the Farmnavigator functions open the
navigation software. Open the main menu and click the
Farmnavigator button in the upper right corner.
In the Farmnavigator menu you can nd the following
buttons.
• Fields
• Spray Boom
• Settings
• Import Fields
• Camera
• Volume and brightness
• Bluetooth
In the upper bar you can nd the Field View button, that
opens the eld view, and the Road Navigation button,
that brings you back to the road navigation main menu.
From the eld view you can open the Farmnavigator
menu by clicking the button with the tractor icon in the
bottom left corner of the screen.
2. Farmnavigator main menu

8 - AvMap
Farmnavigator

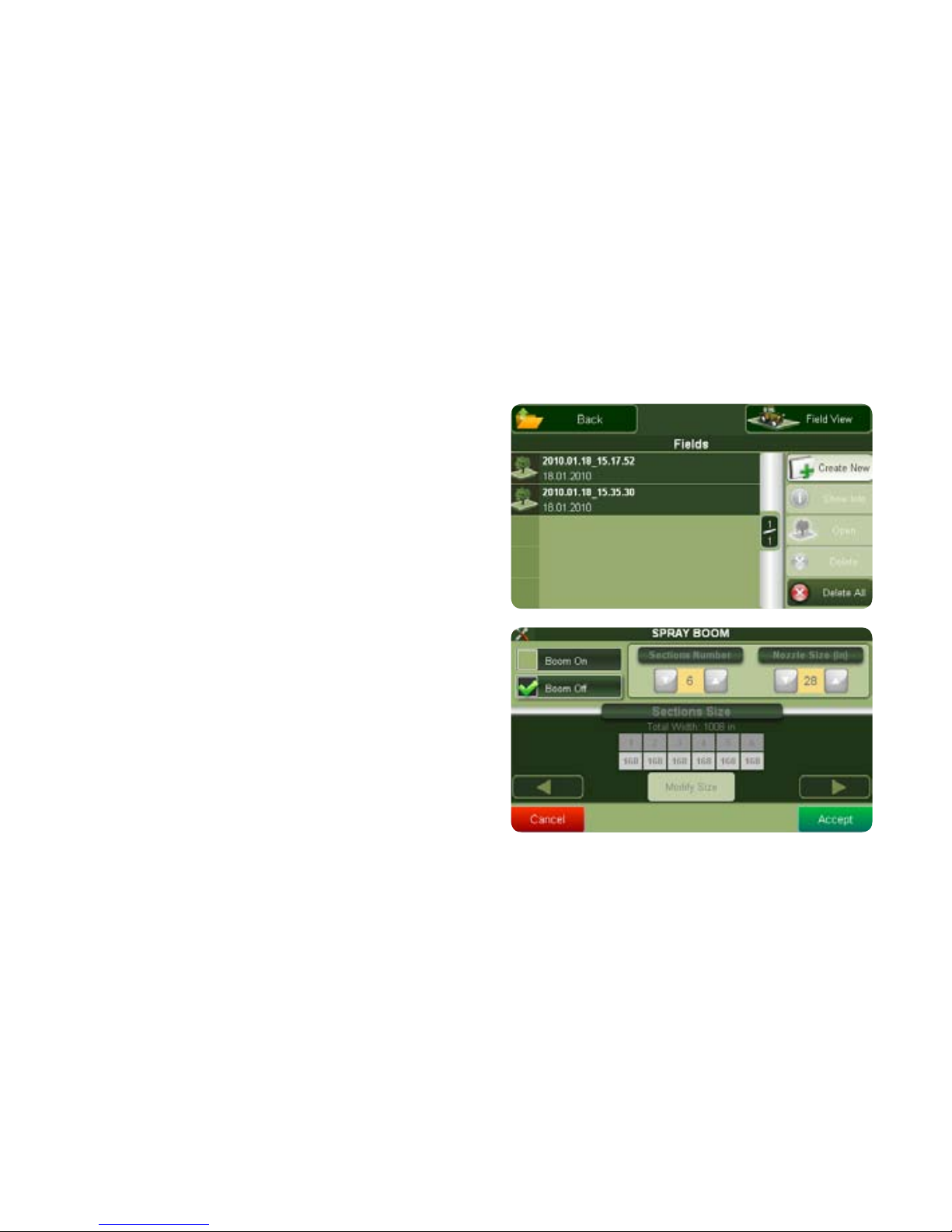

2.1 Fields
In the main menu press the Fields button to enter the
elds’ database, which contains detailed information for
each eld. Here you can create a new eld or open a
saved eld, to continue a previously started work. To go
back to the main menu, press the Back button in the
upper left corner.
2.2 Spray boom
This button opens the setting page for the spray boom
virtual control. You can set here the length of your spray
boom bar, the exact number of segments, the number of
nozzles and the distance between them. The spray boom
virtual control function can be used to control sprayers
but also other machines such as Spreaders and Planters
that work in a similar way. You can nd the Spray Boom
button also in the Settings menu.

AvMap - 9
Farmnavigator
2.3 Farmnavigator settings
Use this button to change the Farmnavigator settings. In this
screen you can adjust the functions of the Farmnavigator
to your Farm-machine and to its attachments.
The settings include:
• Working width
• Spray Boom
• Guiding lines
• Offset
• Area unit
• Minimum speed
• General settings
To go back to the main menu, press the Back button in
the upper left corner.
2.3.1 Working Width
Here you can set the working width of your farm machine.
This value is used to calculate the distance between

10 - AvMap
Farmnavigator
the guiding lines. Attention: If the virtual spray boom
commander is activated its settings will be used for the
calculation.
2.3.2 Spray Boom
The Spray Boom button can be also found in the
Farmnavigator main menu (par. 2.2). Read Par. 3.7 on
how to use the spray boom virtual control.
2.3.3 Guide lines
Here you can select from four different types of navigation
(par. 3.5).
2.3.4 Offset
This setting allows you to move the position of your GPS
receiver virtually forward and backwards (to the position
of your sprayer), to have more accuracy in work.

AvMap - 11
Farmnavigator
2.3.5 Area Unit
Here you can select the Unit of Measurement:
Hectare = (km/h, m, cm,)
Acre = (imperial, mph, Foot, Inch)
2.3.6 Minimum Speed
Set here the minimum speed for recording GPS positions.
As the GPS can move a bit around while standing still, a
setting of 0.5 MPH minimum speed is suggested to avoid
recording these oscillations which false the real GPS
position.

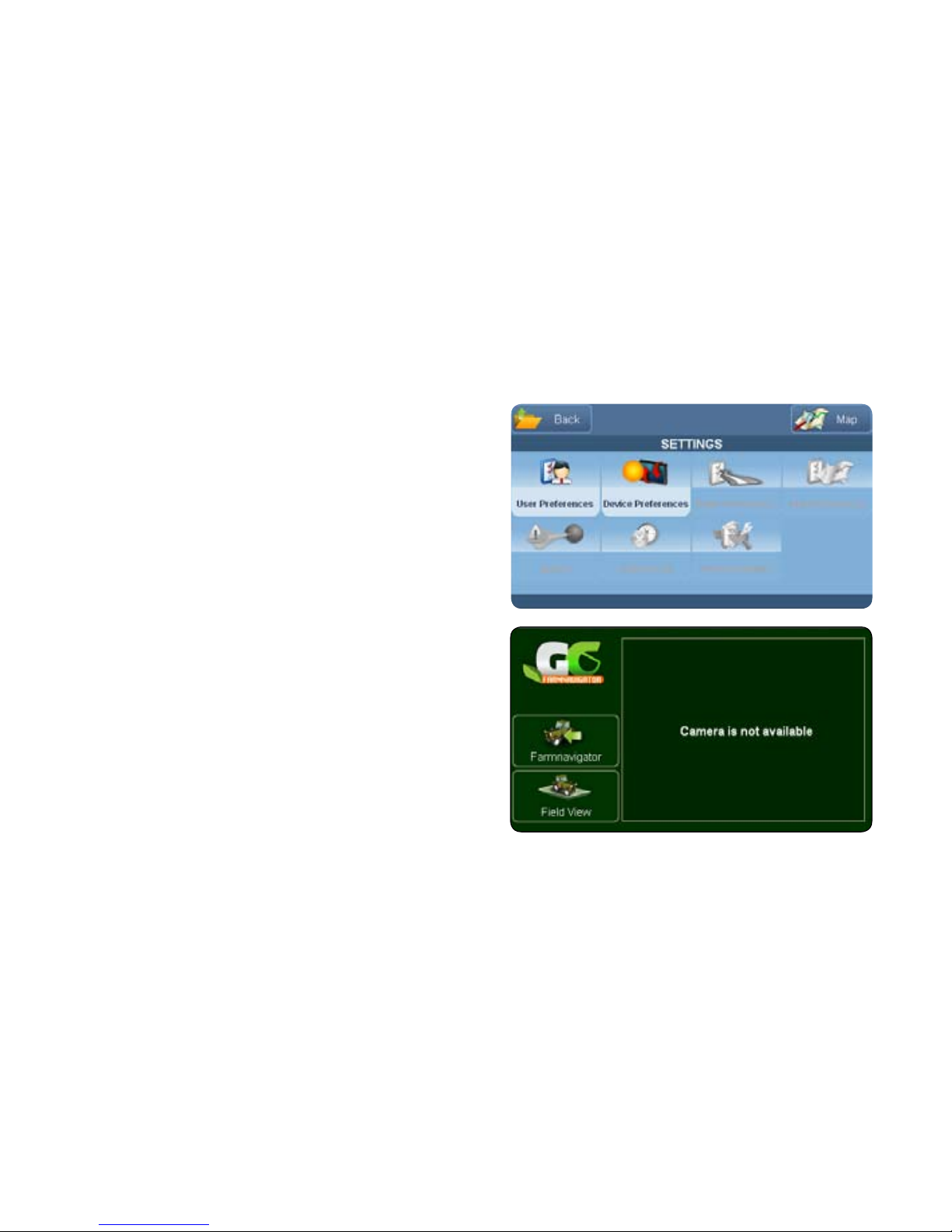

2.3.7 General settings
In this menu the basic settings of the device, like
language or display settings can be changed. For more
info about device general settings, please read the full
road navigation manual.

12 - AvMap
Farmnavigator
2.4 Camera
Click this Button to display the pictures from the rear view
camera. On the left you can nd two buttons.
Field View: Click this button to switch to the eld view screen.
Farmnavigator: Use this button to go back to the farm
navigation main menu.
2.5 Volume and Brightness
You can adjust here the brightness of the display and
the volume of vocal instructions and acoustic signals, by
pressing the left and right arrows. Press Accept to conrm
and to go back to the main menu.
2.6 Bluetooth
The Farmnavigator also offers a hand-free calls function
for Bluetooth phones. Please read the full road navigation
menu to get instructions on how to pair your mobile
phone with the Farmnavigator.

AvMap - 13

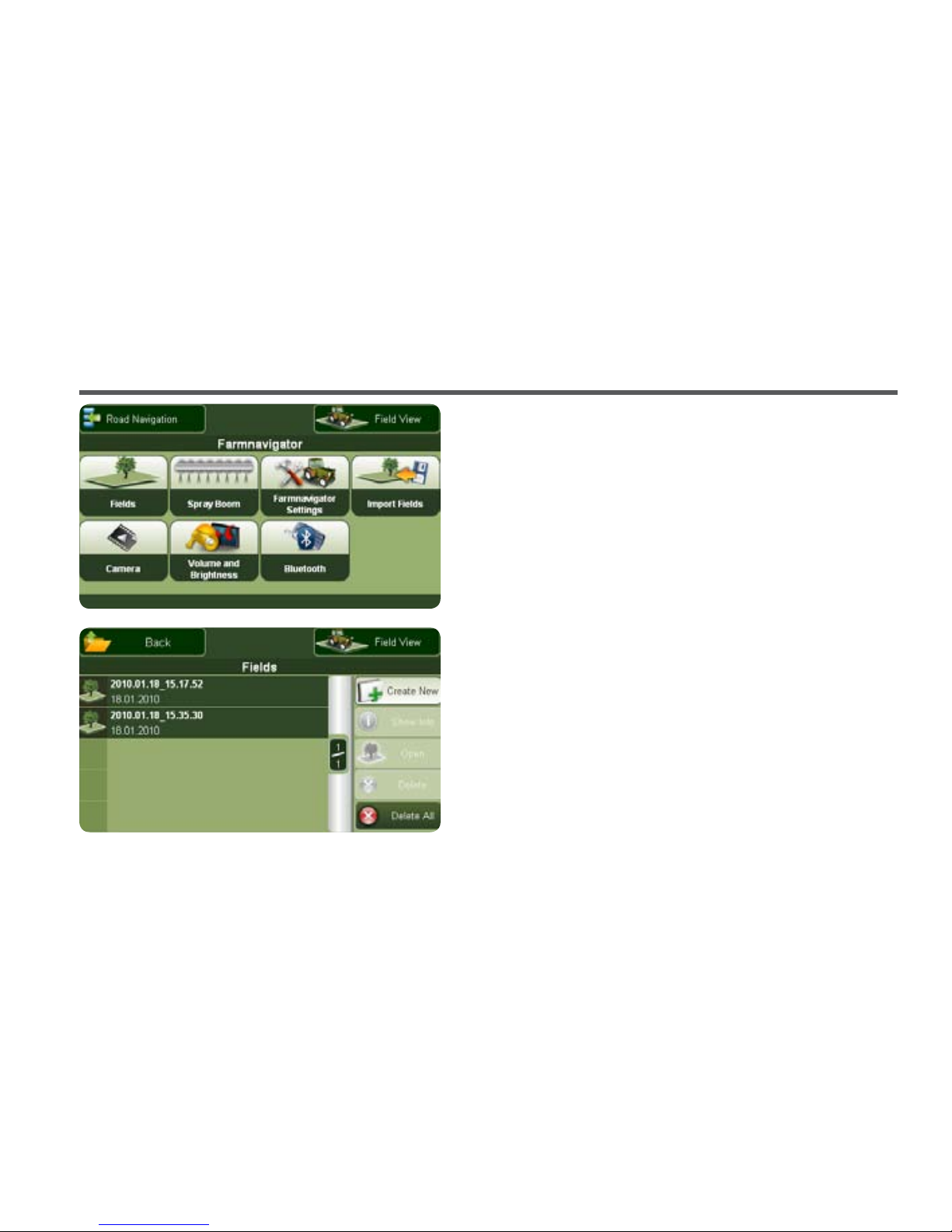

3.1 Creating a eld
Open the Farmnavigator Main Menu and click the Field
button. A list of all saved elds appears. At rst use the
table is empty. To create a new eld press the button
Create New. The eld view will be opened.
3.2 Working a eld
Before starting a work on a eld, or before starting
the measurement of the eld, it is important to set
the working width (the width of the machine you are
using),
1. Go back to the Farmnavigator main menu
2. Press the Farmnavigator Settings button
3. Press the Working Width button
4. Use the left and right arrows to set the desired width
5. Press Accept to conrm
Please read par. 2.3 for the other settings.
3. Creating and working a eld

14 - AvMap
Farmnavigator
Press Field view. Press the Start Work button in the
bottom bar to start recording the data (worked area,
speed, perimeter and area) that will be saved in the
Fields Database.
To stop the recording of the worked area click stop in the
down left corner. You can start working on this eld again
at any time with a click on start or when you reopen the
eld in the elds’ database.

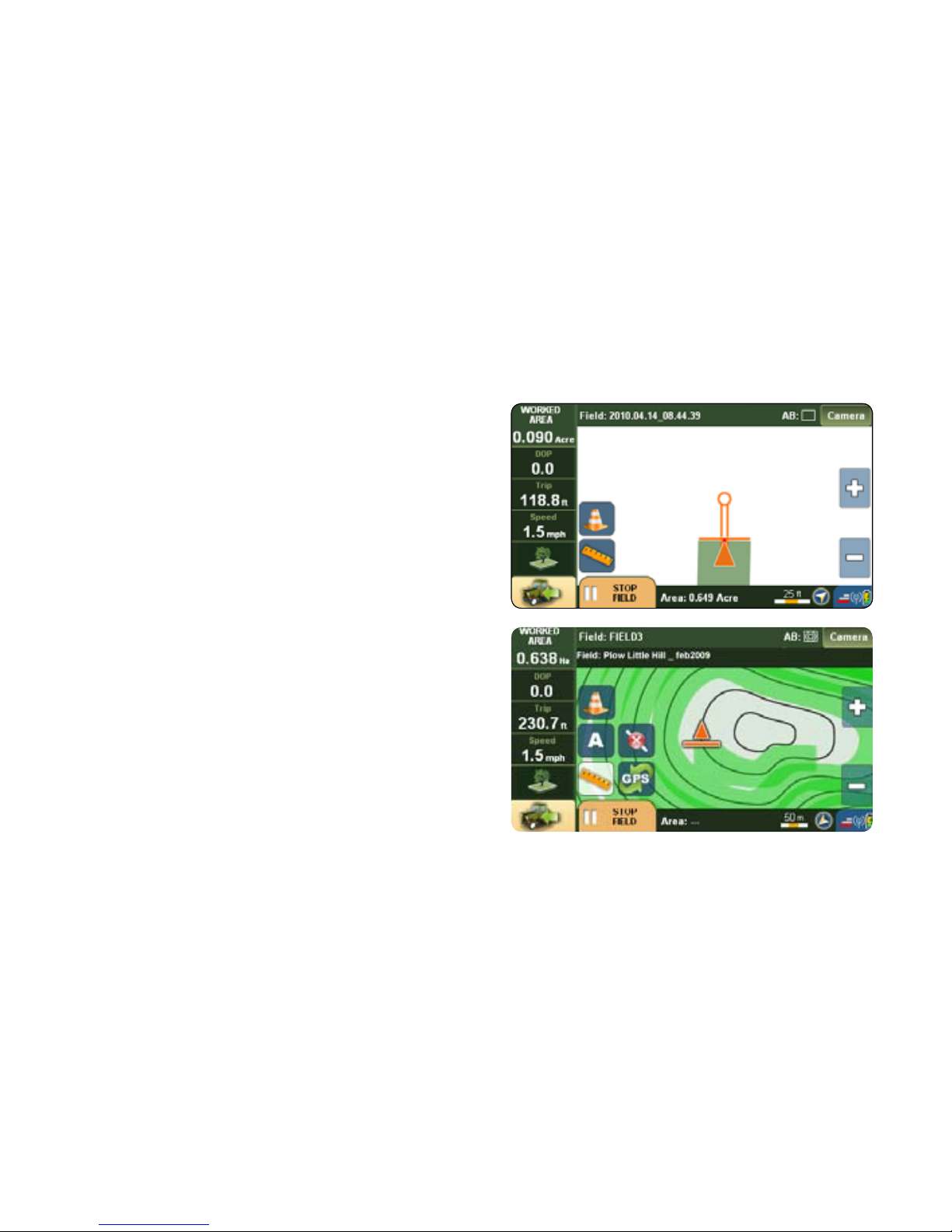

3.3 Measuring Perimeter and Area
The rst operation you can do is to measure the eld
by driving along the perimeter of the eld. Drive some
meters at rst. Then click the measure button (with
the ruler icon). The boundary now is recorded from the
starting point (red arrow). Now drive around the eld
until you have reached the starting point, and then click
the measure button again. The Field limits are now saved
and the area is calculated. This information is stored in

AvMap - 15
Farmnavigator
the elds’ database.
3.4 Positioning obstacles / soil samples
You can record the positions of soil samples or obstacles,
like trees or holes.
To save a position, go as near as you can to the relevant
object and click the obstacle button (with the orange
cone icon). The positions of obstacles and soil samples
are now saved in the elds’ database and are shown on
the map with an orange cone icon and a progressive
number.
3.5 Setting the Guide lines
Once you have created the eld, you can go on with your
work using the Assisted-Driving function (a.k.a parallel
guidance).
The recording of eld perimeter and the reference line
can be done in one step.

16 - AvMap
Farmnavigator
In order to get driving assistance, you need to set the
guide lines.
1. Open the farm navigation main menu
2. Press the Settings button
3. Press Guide lines.
4. Choose among 4 different types of guide lines pressing
the desired option:
• Parallel
• Contour
• Tram lines
• Round and Round
5. Conrm by pressing the Accept button
6. Press Field view in the upper right corner
3.5.1 Parallel guide lines
Parallel guide lines are ideal for elds with straight
boundaries. When driving the rst reference line, set
the point A at the beginning of the track by pressing the

AvMap - 17
Farmnavigator
A button. The starting point is shown on the map as an
orange square with an ‘A’ on it. Once the point A is set,
the B button will appear. When you reach the headlands
set the point B by pressing the B button. The point B is
displayed on the Map just like Point A. These two points
are used to draw the reference straight line and the
corresponding parallel lines at a distance previously set
as working width.
3.5.2 Contour guide lines
Contour guide lines are used for elds with curved
boundaries. Drive the rst reference line setting the
point A, and then, just before you reach the headlands,
setting the point B. The Farmnavigator will record
each position and draw the exact driven line and the
corresponding parallel lines at the distance previously
set as working width or virtual spray boom width.
3.5.3 Tram lines

18 - AvMap
Farmnavigator
This Option is used to work in elds where tram lines
already have been made (e.g. vineyards). In this mode
Farmnavigator does not guide you but it shows the worked
area and allows using the spray boom virtual control.
3.5.4 Round and Round
Setting the round and round guiding lines you can create
concentric lines starting from the eld’s perimeter
up to the centre. Press A, then start driving along the
perimeter and press B when you have completed it: the
software will draw concentric lines up to the centre of
the eld.
3.6 Assisted driving
After the Guiding lines have been set, the navigation aid
is displayed above the Map. The navigation aid shows
with two directional arrows in which direction the
steering has to be corrected to drive on the calculated

AvMap - 19
Farmnavigator
guiding line. The deviation from vehicle position to
guiding line is shown between the directional arrows in
m and cm to allow very accurate corrections. On the
left side there are four boxes showing: worked area, trip
(distance covered), speed and DOP (precision of GPS).
For info about the DOP, read appendix A. Once the
work is done, press the Stop Work button. The worked
area (highlighted in green) is saved in the eld page in
the Fields Database. You can then open the eld and
continue the work.
3.7 Using the spray boom virtual control
Farmnavigator includes a virtual control of the spray
booms. This function can be used to control sprayers
but also other machines such as spreaders and planters
that work in a similar way. When spreading chemicals
on a eld it is very important to control the treated
area and to avoid treating twice the same portion of

20 - AvMap
Farmnavigator
terrain. Farmnavigator software will draw your sprayer,
reproducing the exact number of sections and nozzles,
and it will support you to switch the different sections
on and off.
To activate this function press the Spray Boom button in
the main menu and then press the Boom On button.
ATTENTION when the spray boom virtual control is
activated, its settings are used to calculate the working
width, ignoring the width set in the Working Width page
(par. 2.3.1).
Now you can set the number of sections and the width of
each Nozzle using the arrow Buttons.
The Sections are displayed by numbered squares. You can
select each section and change its width by clicking the
modify size button. Use the arrows to adjust the number
of booms and conrm with OK to save the settings and
