AvonSynth AVS-VCO-1 User manual

The AVS-VCO-1
Voltage
Controlled
Oscillator
User Guide
Thank you for purchasing from AvonSynth
Congratulations on your purchase of a brand new AvonSynth AVS-VCO-1
Voltage Controlled Oscillator Eurorack Module. We trust that it will both
serve and inspire you as you create beautiful music with it for years to come.
In order to get the most out of your module, please ensure that you read
this User Guide in its entirety so that you fully understand all of its
functionality, and that you follow all necessary safety directions during use.
Included in the Box
Page 1 of 4

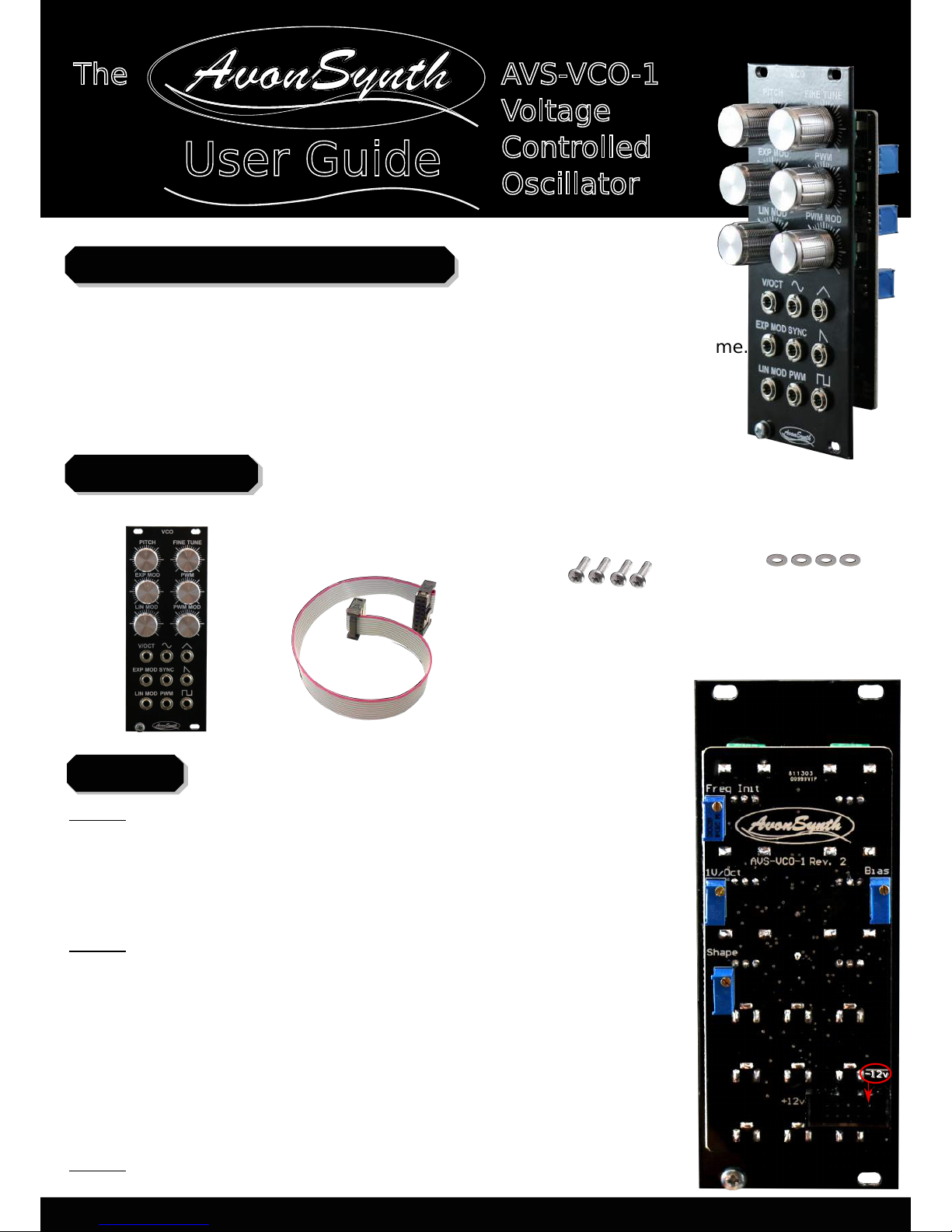

1 x VCO Module 1 x 10 pin to 16 pin
flat-cable power cord
4 x M3 Mounting Screws
4 x Nylon Washers
Installation
Step 1: Power your system off. Place the module in your Eurorack-
compatible rack in any convenient position. Affix the module to your
rails using the included mounting screws and nylon washers.
Neglecting to use these washers may result in unnecessary marking
of the unit.
Step 2: Triple check the polarity of the power connector before
connecting the power cord to your power supply. Ensure that the -12v
line marked on the back of the module connects to the same end of
the flat-cable that also connects to the -12v line on your power supply.
While AvonSynth modules use shrouded connectors that make this
process safer and more reliable, some systems do not conform to this
polarity standard, so careful checking is always necessary.
Connecting the module with incorrect polarity can result in damage
done to the module which cannot be covered by warranty.
Step 3: Power up your system and start patching!
www.AvonSynth.com
4 x Nylon Washers
Step 1: Power your system off. Place the module in your Eurorack-
compatible rack in any convenient position. Affix the module to your
rails using the included mounting screws and nylon washers.
Neglecting to use these washers may result in unnecessary marking
of the unit.
Step 2: Triple check the polarity of the power connector before
connecting the power cord to your power supply. Ensure that the -12v
line marked on the back of the module connects to the same end of
the flat-cable that also connects to the -12v line on your power supply.
While AvonSynth modules use shrouded connectors that make this
process safer and more reliable, some systems do not conform to this
polarity standard, so careful checking is always necessary.
Connecting the module with incorrect polarity can result in damage
done to the module which cannot be covered by warranty.
Step 3: Power up your system and start patching!
Congratulations on your purchase of a brand new AvonSynth AVS-VCO-1
Voltage Controlled Oscillator Eurorack Module. We trust that it will both
serve and inspire you as you create beautiful music with it for years to come.
In order to get the most out of your module, please ensure that you read
this User Guide in its entirety so that you fully understand all of its
functionality, and that you follow all necessary safety directions during use.

The AVS-VCO-1
Voltage
Controlled
Oscillator
User Guide
Features & Specifications
Fully Analogue, saw-core Voltage Controlled Oscillator
10 HP wide (50.5mm), 20mm deep
1v/Oct response, wide range, great tracking over 8 octaves
Current consumption: +12V 25ma, -12V 25ma
Temperature compensated
Simultaneous sine, triangle, sawtooth, and pulse wave outputs
Knob and attenuated CV-controlled Pulse-width modulation
Separate coarse and fine pitch adjustment
Separate attenuated exponential and linear pitch modulation
Sync input
Page 2 of 4
www.AvonSynth.com
Description of Functionality

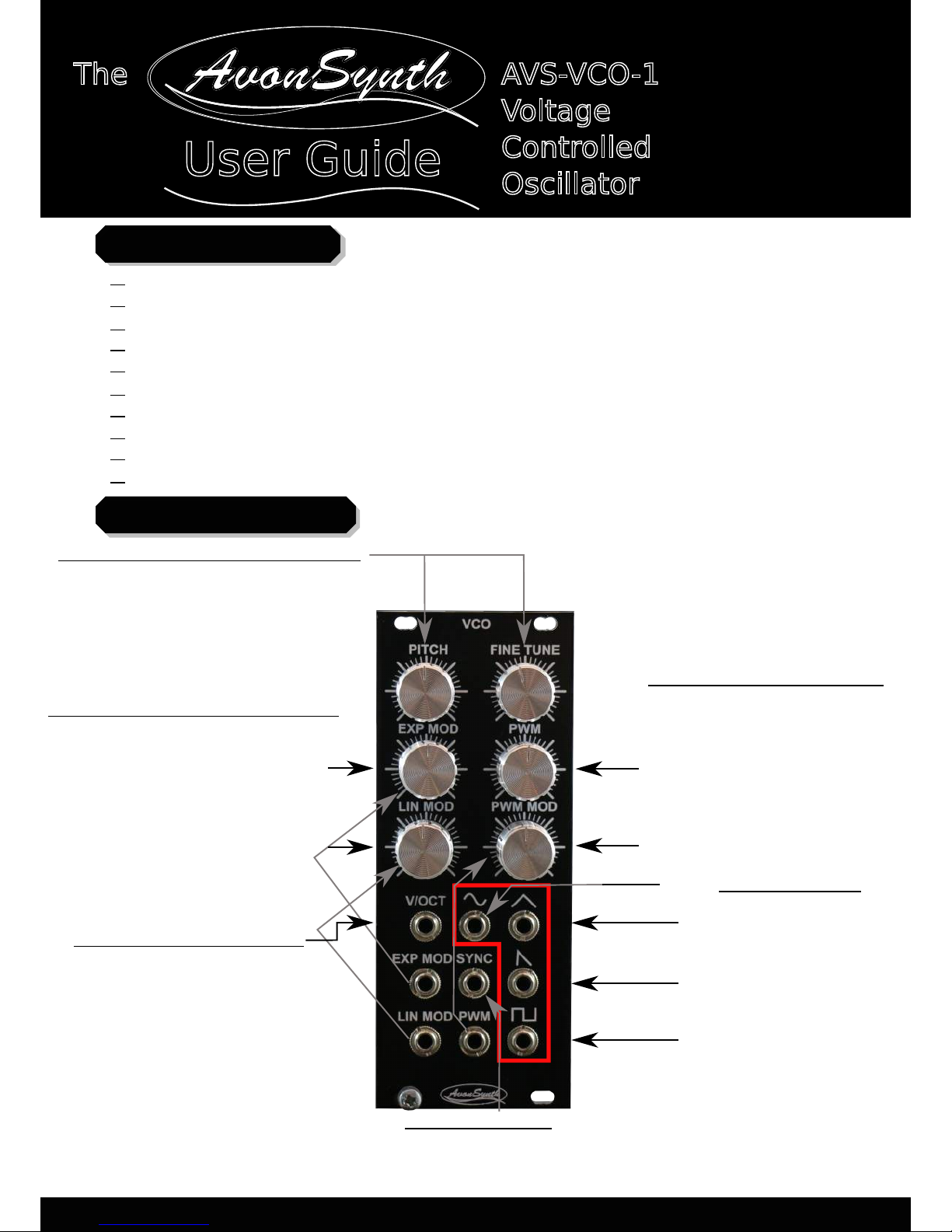

Both of these knobs control the VCO's
pitch pre-modulation. The main Pitch
knob spans beyond the entire audio
range from approximately 16Hz to 25kHz,
while the Fine Tune knob spans just a
few semitones. Pulse-Width Modulation controls the
width of the waveform present at
the Pulse output. The PWM knob
sets the starting Pulse-Width, and
a CV at the PWM input modulates
this value. The PWM Mod knob
is an attenuator that adjusts the
amount of Pulse-Width Modulation.
Coarse and Fine Pitch Controls
Pulse-Width Modulation
A CV present at the exponential and
linear modulation inputs will alter the
pitch of the VCO, and the amount of
modulation can be adjusted with
these knobs. Exponential
modulation is often used with tonal
music and vibrato, and linear
modulation is more commonly
used in audio-rate FM style patching.
Pitch Modulation Attenuators
Input for the standard 1v/Oct scaled
CVs output by many keyboards,
sequencers, and other gear.
1 Volt per Octave Input
Triangle
Sawtooth
Pulse
Sine
Four simultaneous oscillator
outputs with Sine, Triangle,
Sawtooth, and Pulse wave
shapes. Mix and match
these different waves to
create a variety of
different timbres.
Audio Outputs
Oscillator Sync
By sending another oscillator's output to this Sync input, each zero crossing of the
source oscillator will cause this VCO's core to reset. By auditioning the audio output
from this VCO and modulating the source VCO, an interesting special effect is achieved.

The AVS-VCO-1
Voltage
Controlled
Oscillator
User Guide
WaveformDiagrams
Page 3 of 4
www.AvonSynth.com
Waveform
Bias
Initial
Frequency
Pitch
Tracking
Waveform
Shape
0v
Triangle Output
+5v
-5v
0v
Sine Output
+5v
-5v
0v
Square Output
+5v
-5v
Sawtooth Output
0v
+5v
-5v
Your new AVS-VCO-1 Voltage Controlled Oscillator was expertly
calibrated by hand for great 1v-per-octave tracking over a large
frequency range. However, over time it is possible that the
calibration could drift, or accidental movement of the calibration
trimmers could decrease the precision of the tracking. Multiturn
trimmer potentiometers are used in this module for increased
accuracy in calibration and can be turned using a small flat-head
screwdriver or other suitable implement.
The Bias trimmer centers the Sawtooth wave symmetrically around ground.
Since all of the outputs are derived from the sawtooth core of the oscillator,
this affects the output of all waves and the Bias trimmer should be set
first when calibrating. The Waveform Shape trimmer adjusts the symmetry
of the triangle waveform, and since the sine wave is derived from the
triangle wave, this also doubles as an adjustment of the shape of the sine.
The Freq Init (Initial Frequency) trimpot is used to set the
frequency range of the Pitch knob. This is generally set so that
at the pitch knob's minimum value, the output frequency is just
below the audible range. The 1v/Oct trimmer is responsible for
setting the shape of the exponential relationship between the
input CVs and the oscillator's output frequency. Calibration is
carried out by monitoring an output, and feeding the 1v/Oct
input precise control voltages in 1v increments. Adjust this
trimmer until each 1v increment results in a doubling of the
frequency of the output signal.
Recalibrating this module requires the use of accurate
multimeters, frequency counters, and precise control voltage
generators. If you are not able to carry out recalibration yourself,
the engineers at AvonSynth will be happy to recalibrate your
module for you free of charge during the warranty period.
Calibration Trimpots
Waveform Diagrams
Calibration Trimpots

The AVS-VCO-1
Voltage
Controlled
Oscillator
User Guide
Warranty & Support
Page 4 of 4
www.AvonSynth.com
Safety Precautions
Please use this module in accordance with the following safety guidelines in order to
maximize the life of the module and ensure warranty from AvonSynth.
This product is covered by AvonSynth's warranty for one year from the manufacturing date.
Within this timeframe, any manufacturing defect will be repaired or replaced by AvonSynth.
Damage caused to the product due to not following the safety precautions above,
unauthorized modification of the hardware, or misuse such as subjecting the unit to reverse
or excessive voltages will void this warranty.
If you have any concerns about your AvonSynth hardware, please get in touch via
[e-mail] to discuss any issues. We will do our best to assist you in getting your
hardware operating correctly, and if necessary, we will provide an RMA (Return Merchandise
Authorization) to send back the unit for inspection. Any postal costs incurred in this process
will be the responsibility of the customer. Please do not send back merchandise before
receiving this authorization.
o
o
Keep water and other conductive liquids and materials away from this module.
It is not water proof, or even water resistant. Exposure to these can cause
short-circuits that can render the equipment unusable.
Be sure to keep this equipment in an environment with an ambient
temperature above -20 C and below +50 C. Excessively hot or cold
temperatures can be damaging to the electronic circuits used.
Modules with exposed circuit-boards are delicate. Take the utmost care when
handling and transporting this equipment, making sure not to subject it to
excessive forces. Ensure that the module is installed correctly while being
transported and that the original packing materials are used when sending
the module anywhere by post.
