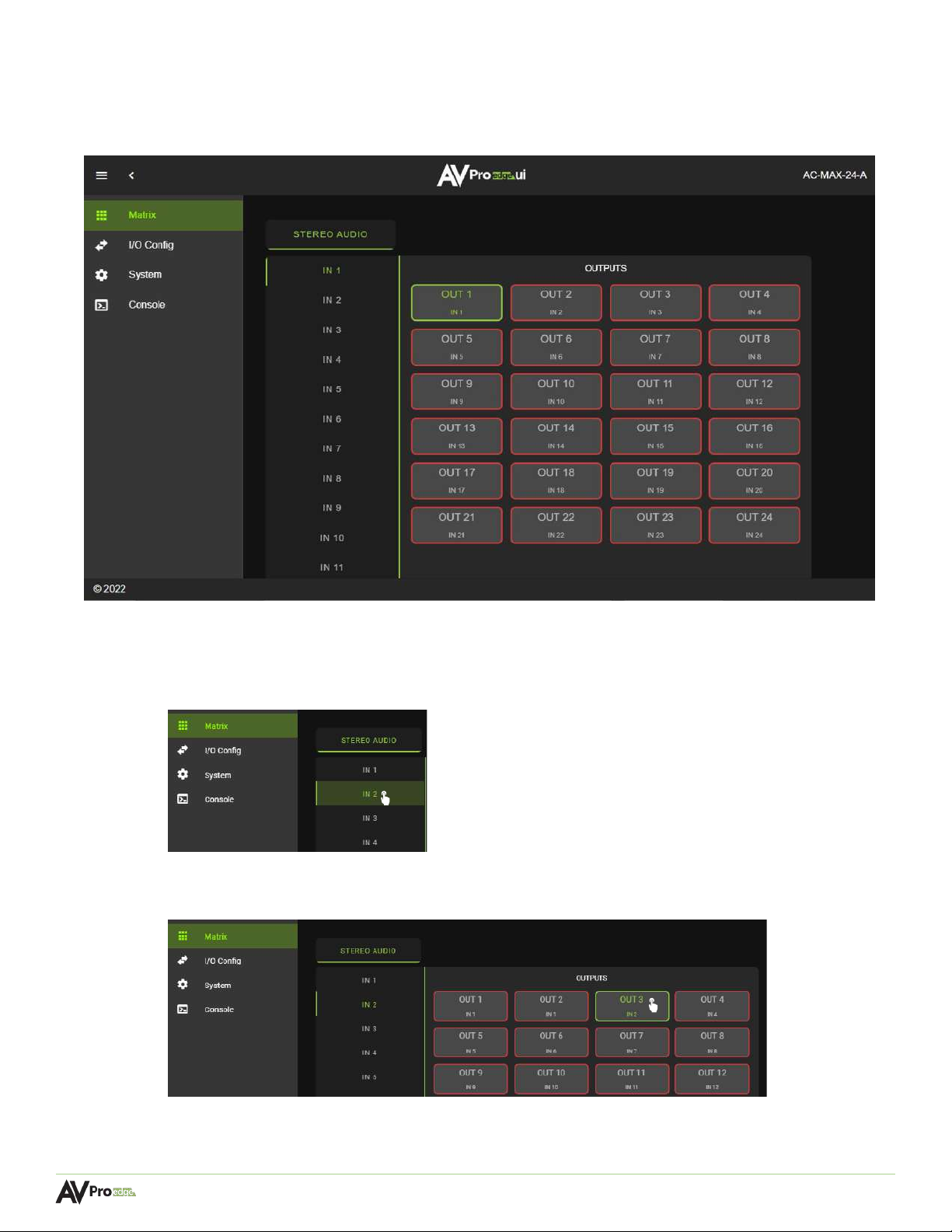

The AC-MAX-24 is a 24 I/O 2U rack-mountable audio matrix featuring dual RCA, TOSLINK, and Digital Coaxial
ports, as well as 2 AEX inputs and 2 AEX outputs, allowing users to return audio from decentralized sources
(such as a vinyl player) or extend audio out to a remote zone (such as a guest house or room with a local
soundbar).
The diagram below shows the basic application of the AC-MAX-24. The audio path can either come from the
audio sources directly or from remote audio sources via the AC-AEX-KIT as shown below.
Compatible Devices
AC-AEX-KIT
The AVPro Edge AC-AEX-KIT is a pair of PoC (Power over Cable) powered transmitter (AC-AEX-T) and
receiver (AC-AEX-R) modules that extend 2-channel analog and digital audio signals over standard
category cable via AVPro Edge’s exclusive AEX technology. The AC-AEX-KIT is ideal for sending and
receiving audio signals to/from decentralized devices to/from a centrally located audio distribution
system such as the AC-MAX-24.
AC-MAX-24
AC-AEX-T
AC-AEX-R
(sold separately)
IMPORTANT:
Each AEX port on the AC-MAX-24 must be paired with an AC-AEX-T or AC-AEX-R for complete operation.

Page 7of 33
AC-MAX-24 USER MANUAL
PRODUCT OVERVIEW
Box Contents
(1x) AC-MAX-24 Stereo Audio Matrix
(2x) 2U Rack Mounting Brackets (pre-attached)
(1x) 3-Pin Terminal Block Connector
(4x) Mounting Feet
(4x) Mounting Feet Screws
(1x) Ground Wire
(1x) AC Power Cord
Technical Specifications
Audio
Frequency Response
20-20 kHz
Analog Input Voltage
0.8 VRMS, 2.3 Vp-p
Analog Output Voltage
1.5 VRMS, 4.4 Vp-p
Digital
2 Channel PCM
Supported Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176, 192
Latency
≤60 milliseconds
Mute
Available on all outputs

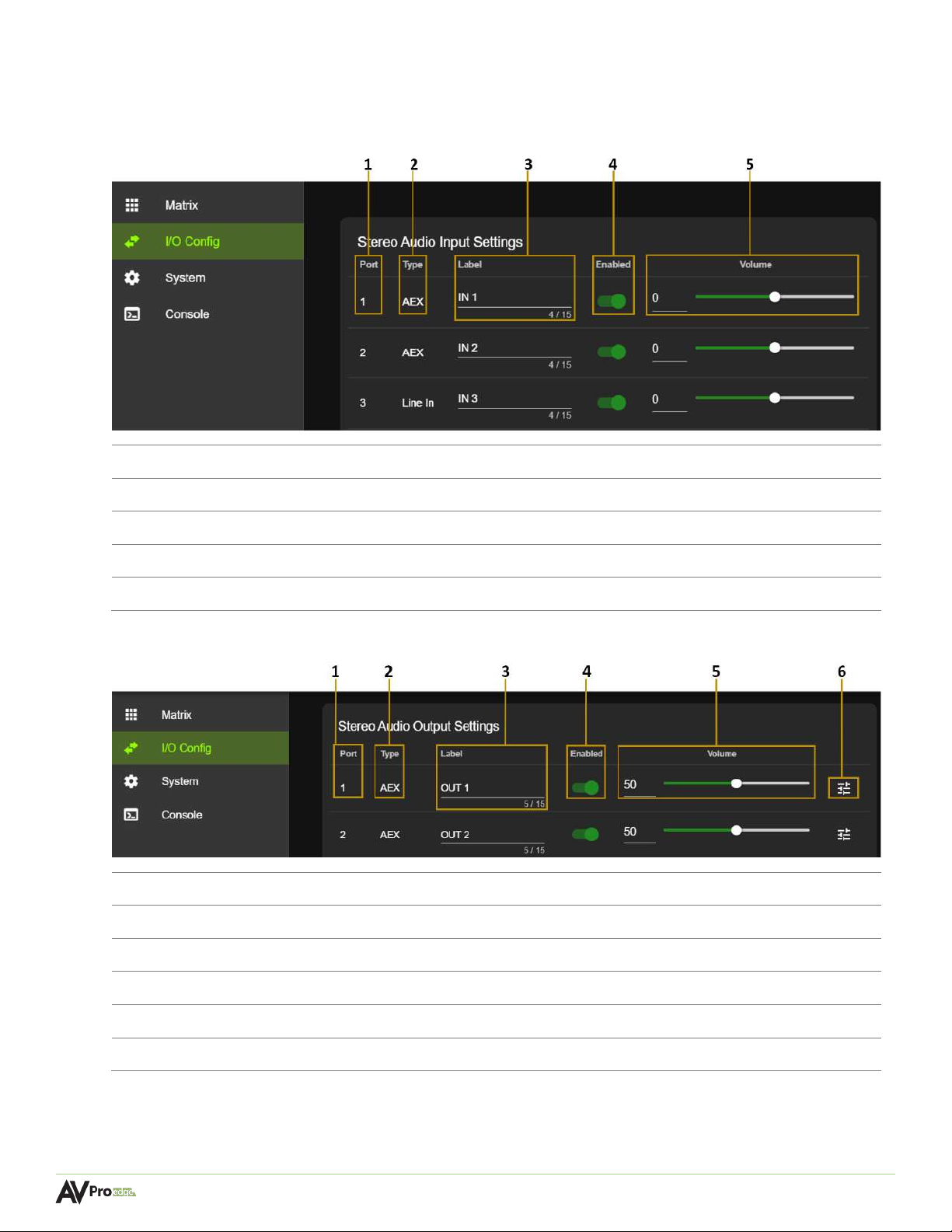

Audio Inputs
AEX Audio
2
RCA
20
Digital TOSLINK
2
Digital Coaxial
2

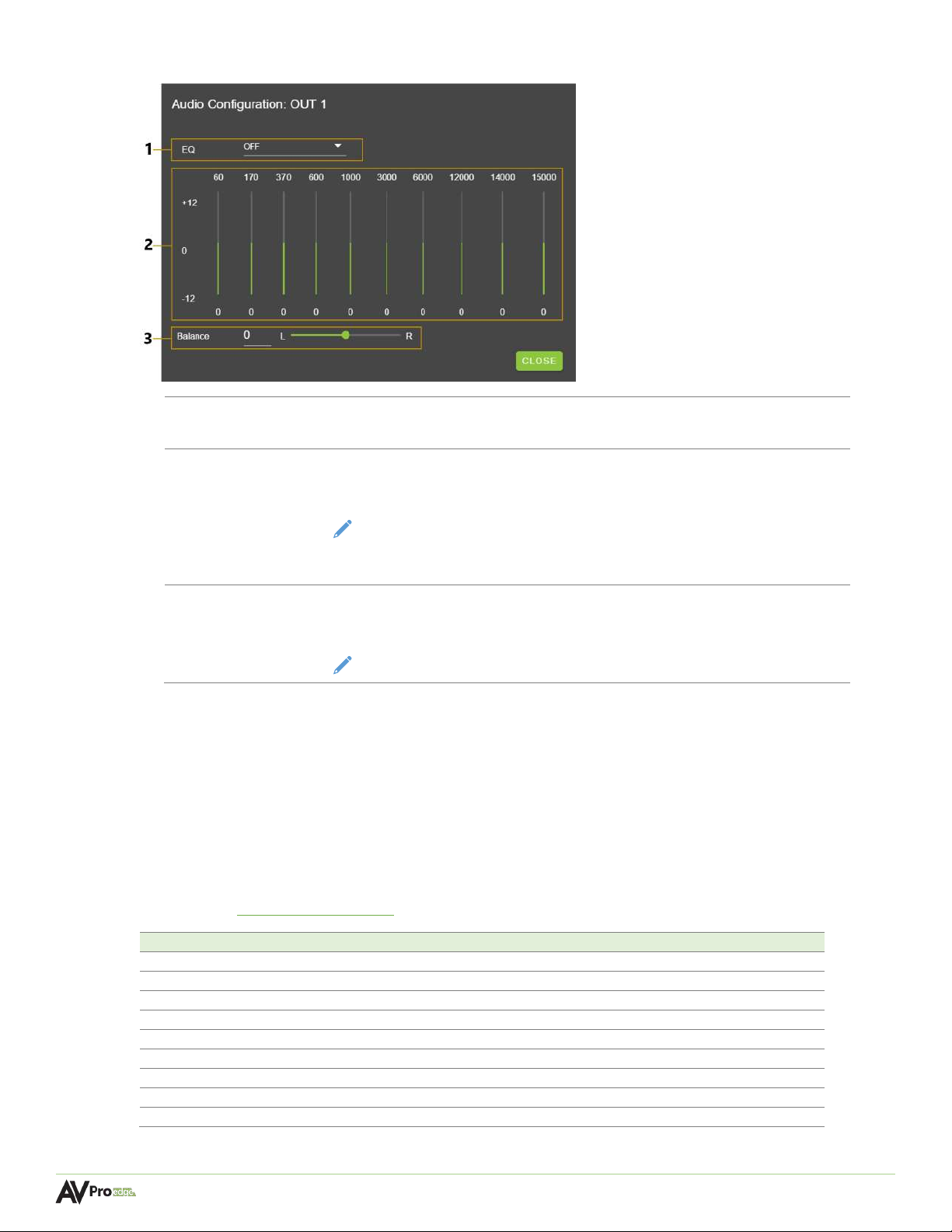

Audio Outputs
AEX Audio
2
RCA
22
Control
Interfaces
RS-232, IP/LAN
Additional Connections
In-System Programming
USB Type C
12V DC Trigger Output
4
Power
Total Power Consumption
50 Watts Maximum
AC Power
100-240 VAC
Dimensions
Height x Width x Depth
(Standalone Unit)
Millimeters: 88 x 440 x 234.95
Inches: 3.5 x 17.5 x 9.25
Height x Width x Depth
(Packaged Unit)
Millimeters: 172 x 578 x 375
Inches: 6.75 x 22.75 x 15
Weight
(Standalone Unit)
8.7 lbs (3.95 kg)
Weight
(Packaged Unit)
11.9 lbs (5.4 kg)
Rack Space
2U
*Specifications are subject to change without notice. Mass and dimensions are approximate.

Page 8of 33
AC-MAX-24 USER MANUAL
Front and Rear Panel Overview
Front Panel

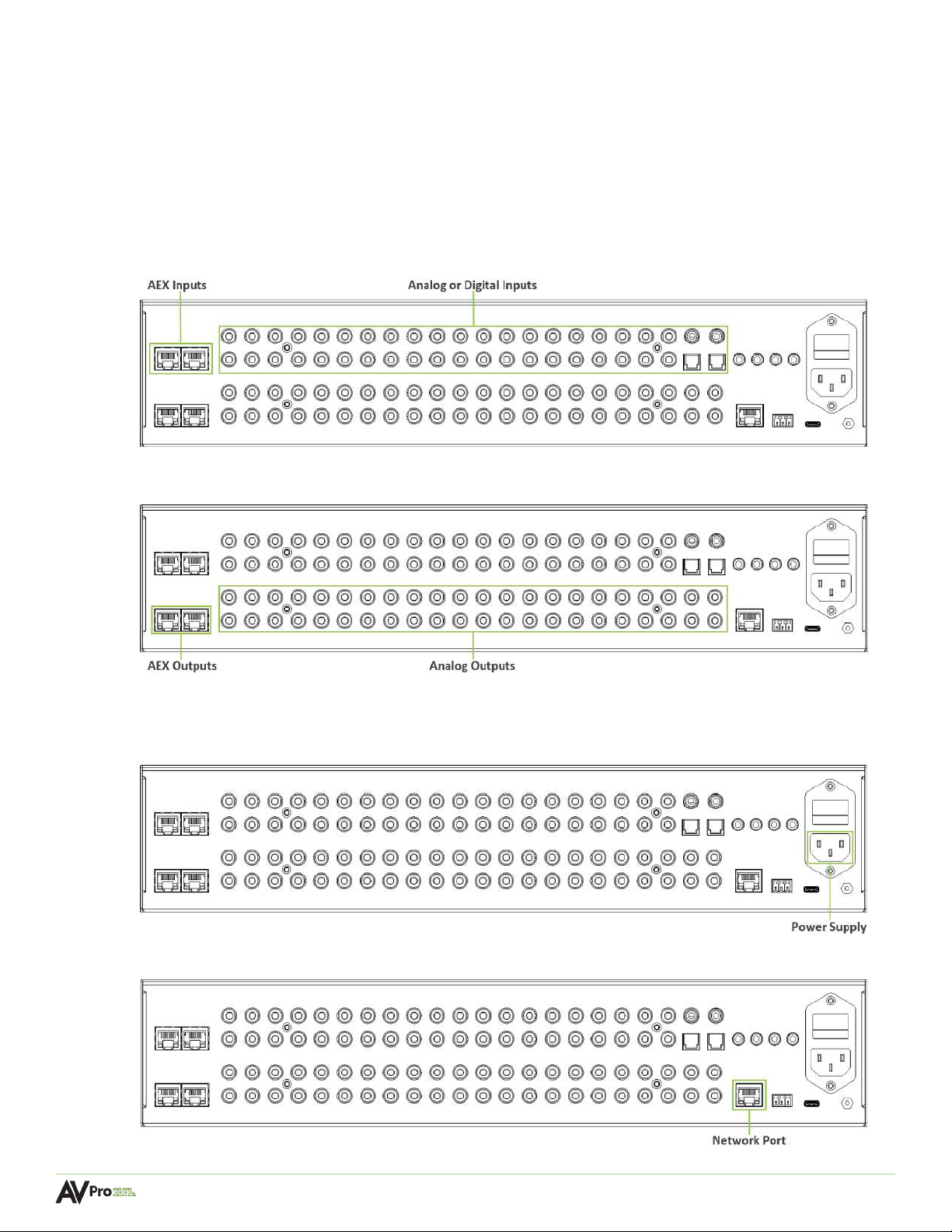

Rear Panel
1
AEX INPUTS (1-2)
•
(2x) 8-pin RJ-45 female connector
•Long-range audio extension input ports for connecting AC-AEX-KIT
•Power over Cable (PoC)
•Unshielded Twisted Pair (UTP): up to 100 meters (328 ft)
•Shielded Twisted Pair (STP): up to 130 meters (426 ft)
2
ANALOG AUDIO INPUTS
(3-22)
•
(20x) Stereo RCA line-level analog audio input ports
3
DIGITAL AUDIO INPUTS
(23-24)
•
(2x) Digital Coaxial audio input ports
•(2x) Digital Optical (TOSLINK) audio input ports
4
12V TRIGGER OUT
•(4x) 3.5mm output ports
5
AC POWER INLET
•Main AC power for the AC-MAX-24
6
AEX OUTPUTS (1-2)
•
(2x) 8-pin RJ-45 female connector
•Long-range audio extension input ports for connecting AC-AEX-KIT
•Power over Cable (PoC)
•Unshielded Twisted Pair (UTP): up to 100 meters (328 ft)
•Shielded Twisted Pair (STP) up to 130 meters (426 ft)
7
ANALOG AUDIO
OUTPUTS (3-24)
•
(22x) Stereo RCA analog audio output ports
8

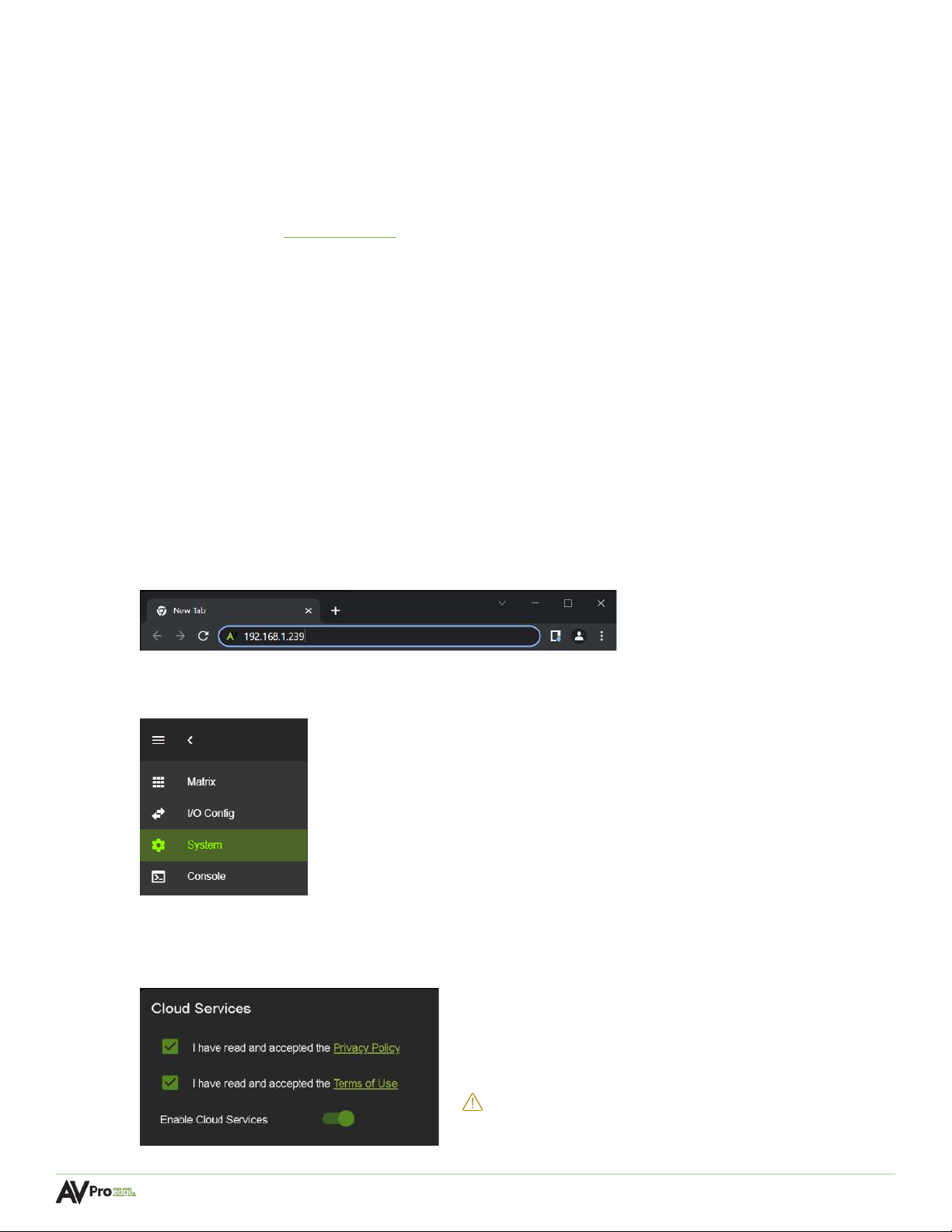

LAN
•
8-pin RJ-45 female connector
•Connect to the LAN, router, or third-party control system

Page 9of 33
AC-MAX-24 USER MANUAL
9

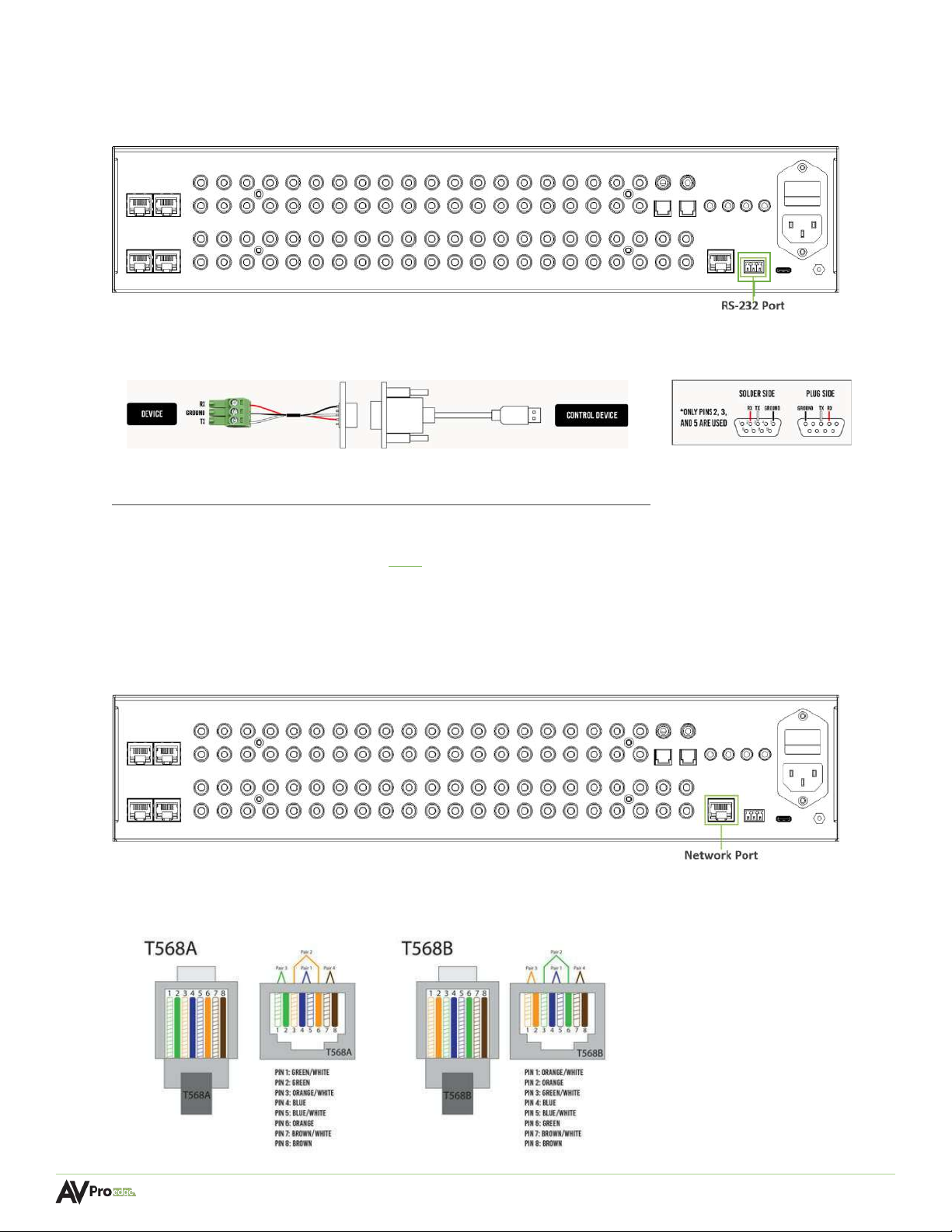

RS232 CONTROL
•3-pin terminal block connector port
10

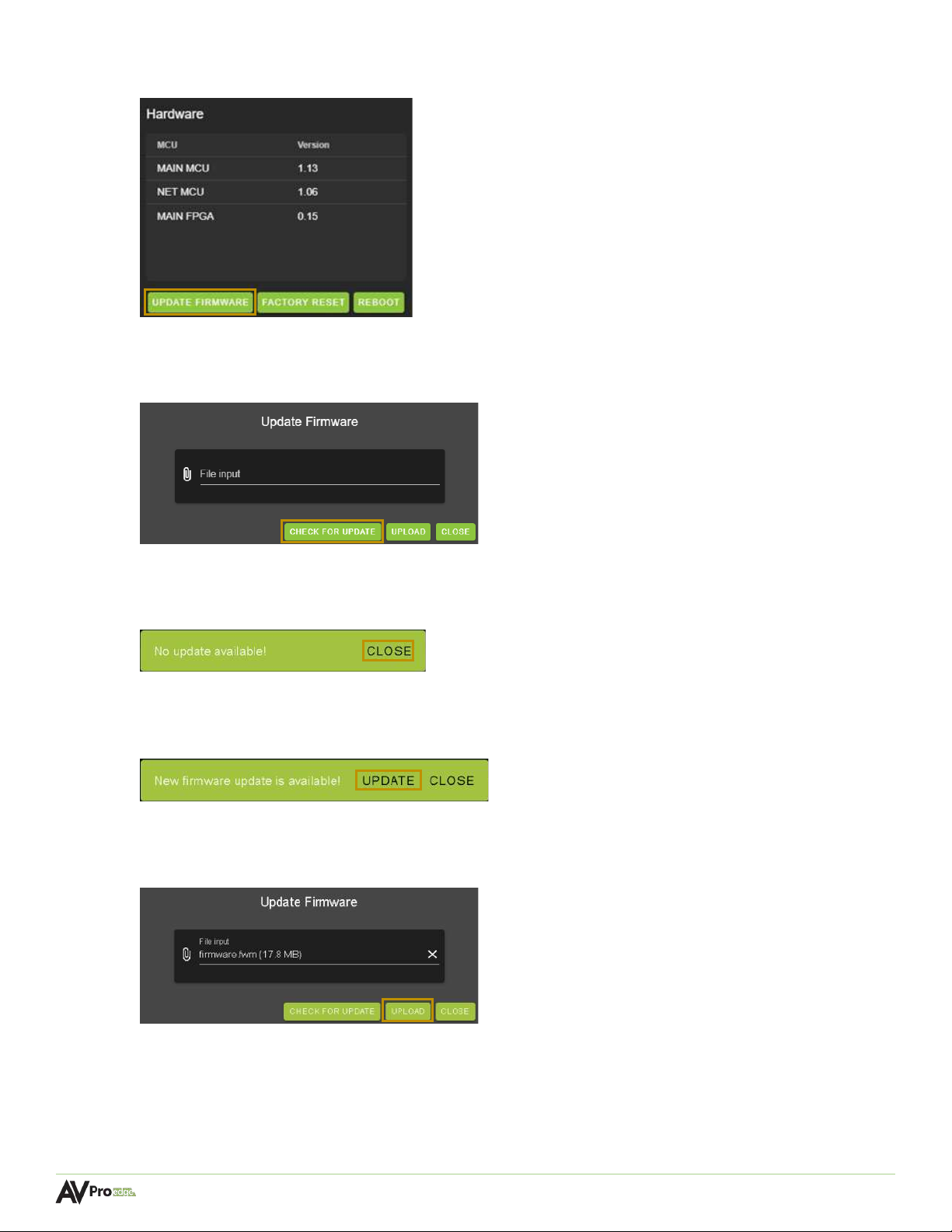

ISP / CTL USB TYPE-C
•Proprietary service port for AVPro Edge technical assistance
11
GND
•
Ground screw
•Connect with the provided ground wire to the conducting parts

Page 10 of 33
AC-MAX-24 USER MANUAL
INSTALLATION
Rack Mounts

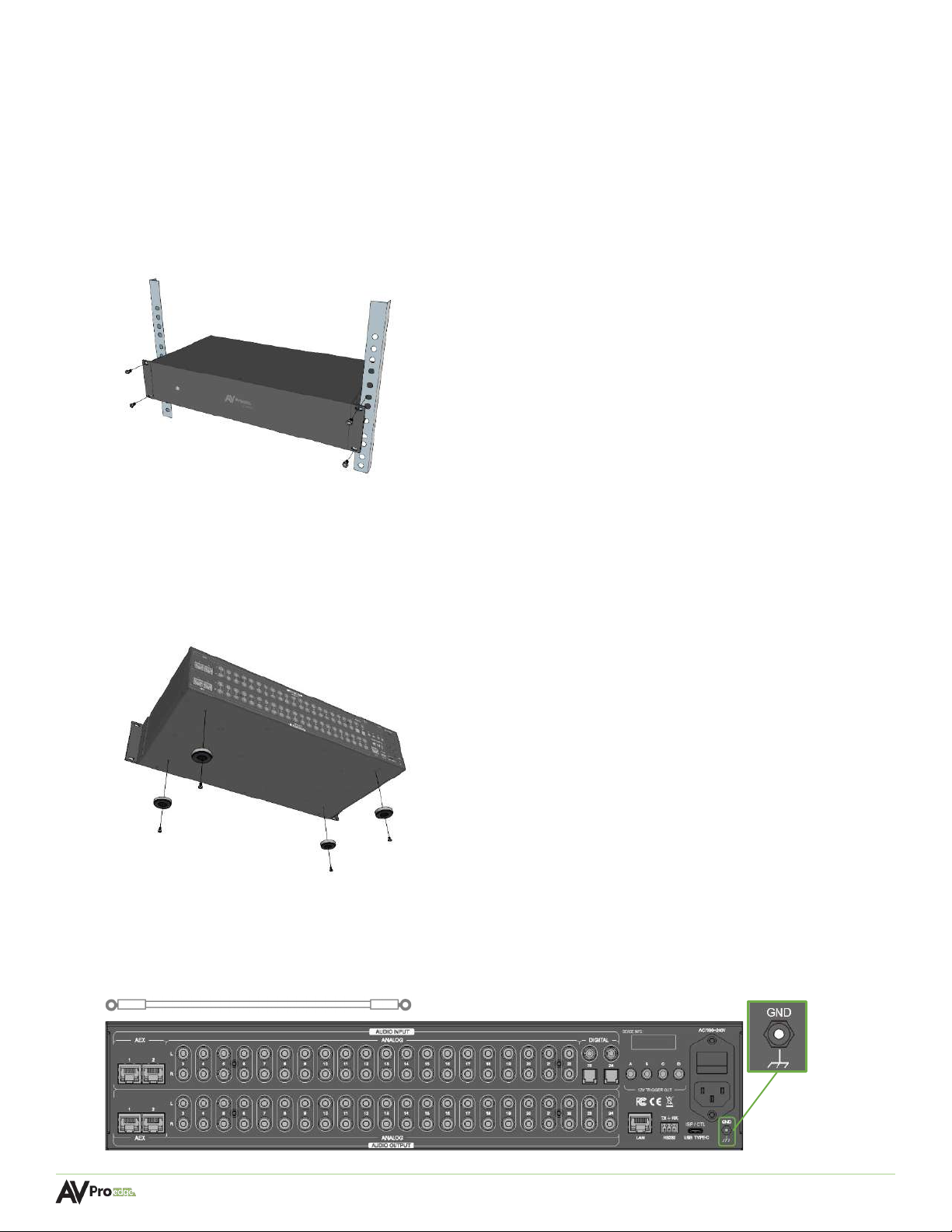

The AC-MAX-24 can be mounted in a 2U rack-style enclosure and is compatible with all standard 19-inch
rack mounts. The (2x) mounting brackets are pre-assembled to the unit for quick installation.
1Align the holes on the mounting brackets with the holes on both sides of the rack.
2Attach the mounting brackets to the rack with rack screws (not included).
Mounting Feet Assembly
The (4x) mounting feet can be assembled to the unit with the (4x) provided mounting screws.
1Align the holes on the mounting feet with the holes underneath the unit.
2Attach the mounting feet to the unit with the provided screws.
Grounding Cable
Use a screwdriver to attach the yellow ground cable to the pre-installed screw on the back of the unit, then
attach the other end to a suitable grounded object.
