AVstumpfl Wings Engine Stage User manual

WINGS ENGINE STAGE
User Guide

WingsEngineStage


EnglishVersion

ii
TableofContents
Introduction................................................................................................1
Operatingconditionsandtechnicaldata............................................................3
TechnicalDataofWingsEngineStage....................................................................4
FrontandRearViewsandports...................................................................5
WingsEngineQuickStart.............................................................................8
WingsEngineDesktop...............................................................................10
Displayingtestimages...............................................................................13
Soundinterface.........................................................................................16
DisplaySettings.........................................................................................19
LoadingandsavingEDIDforoutputs..........................................................21
Touchscreencalibration‐Touchside.........................................................24
Shortcuts...................................................................................................26
WingsSettings...........................................................................................29
Settings‐UsefulPrograms.........................................................................32
Settings‐Administrator.............................................................................34
UsingauEyecamera..................................................................................35
DefiningEDIDforlivevideoinputs.............................................................37
WingsEngineBackupManager..................................................................38
StartingtheBackupManager...............................................................................38
Creatinganewsnapshot......................................................................................39
Selectingasnapshot.............................................................................................40
Changingthesnapshotnameordescription........................................................40
Freezingasnapshot(disallowingmodifications)..................................................41

Table of Contents
iii
Lockingasnapshot...............................................................................................41
Deletingasnapshot..............................................................................................42
BackupManagerAdministration..........................................................................42
TeamViewerSupportModule..............................................................................44
Troubleshooting.......................................................................................45
DocumentationStatus...............................................................................46
AVStumpflcontacts..................................................................................47


1
Introduction

WingsEnginesbyAVStumpflconstitutehigh‐performance,high‐reliabilityhardware
formultidisplayshows.Theyincorporateourexperienceandthatofourusers.They
arebasedonWindows7Embeddedandhavebeenprovidedwithselectedcompo‐
nentsthatensureoptimalconfiguration.AllWingsEnginesaredistinguishedbythe
followingfeatures:
OperatingsystemandshowdataonSSDguaranteehighestperformanceandre‐
liability.
High‐performancegraphicscardwithtwoorfourdisplayoutputs(DUALor
QUAD),additionaloutputforcontrolmonitor
Aspecialdesktopallowsfastaccesstothemostimportantfunctions.SeeWings
EngineDesktop.
Generationoftestimagesonalloutputsfacilitatesalignmentofvideoprojectors
ordisplays.SeeDisplayingtestpictures.
ThesupportmoduleTeamViewerallowsremoteaccessforremotemaintenance
andtroubleshooting.
Theconfigurationisprotected,i.e.youareabletomakechangesbutthede‐
finedconfigurationcanberestoredatanytimeusingtheBackupManager.Cer‐
tainlyyoucanalsosaveandloadyourownconfigurationsforparticularapplica‐
tions.Configurationscanalsobe"frozen",i.e.youcanmakechangesbutthede‐
finedconfigurationsisrestoredagainafterarestart.SeealsoWingsEngineBa‐
ckupManager.

Therearethreedifferentmodelswithtwoorfourdisplayoutputseach:
WingsEnginePlay...thebasemodelforshowsandinstallations
WingsEngineInstall...asabove,butwithlivevideoinput
WingsEngineStage...thetopmodelforhighestdemandswithregardtoper‐
formanceandsturdyness.

Wings Engine Play/Install
2
Note:Pleasenotethatthedualmodelscannotbeextendedbymeansofexternal
dongles.
Detailedinformationonthefeaturesofthevariousmodelscanbefoundinatablein
theWingsAVSuiteHelppages.




3
Operatingconditionsandtechnicaldata
Inordertoguaranteeproperoperationmakesurethatthefollowingoperatingcondi‐
tionsprevailfortheWingsEngine.
Importantnote:Whenyoureceiveyourserver,placeitintheenvironmentwhereyou
willinstallit.Leavetheserverinitsshippingcrateatitsfinaldestinationfor12hours
anddonotconnectittothepowersupply!Thisrestingperiodpreventsthermalshock
andcondensation.
Ambienttemperature
Anambienttemperaturerangeof21°C(69.8°F)to23°C(73.4°F)isoptimalforserver
reliability.At22°C(71.6°F)itiseasytomaintainasaferelativehumiditylevel.Operat‐
inginthistemperaturerangeprovidesabufferiftheenvironmentalsupportsystems
fail.
RelativeHumidity
Ambientrelativehumiditylevelsbetween45%and50%arethemostsuitablefordata
processingoperationsinorderto
Preventcorrosion
Provideanoperatingtimebufferintheeventofenvironmentalcontrolsystem
failure.
Helpavoidfailurescausedbytheintermittentinterferencefromstaticdischarg‐
esthatoccurwhenrelativehumidityistoolow.
AirflowConsiderations
Ensureunobstructedairflowthroughthechassis
Ensurethatairentersatthefrontoftheserverhousingandexitsattheback.
Ensurethatventilationopenings,suchascabinetdoors,forboththeinletand
exhaustoftheserverprovideminimumopenareaof460cm²(71.3in²)each.
Takecaretopreventrecirculationofexhaustairwithinarackorcabinet.
Managecablestominimizeinterferingwiththeserverexhaustvent.

Wings Engine Play/Install
4
TechnicalDataofWingsEngineStage



5
FrontandRearViewsandports



1. USB2.0interface
2. USB3.0interfaces
3. Airintakewithillumination;changesuponsystemstartandindicatesthestatus‐
esofWingsVioso.
4. Touchdisplay(1280x800)forsystemoperation;theimagesignalisalsoapplied
tothemonitoroutputallowingalargermonitorwithupto1920x1200pixelsto
beconnected.
5. Switchforactivatinganddeactivatingthesystem.Resetthesystembypressing
thebuttonfor5seconds.



Wings Engine Play/Install
6

1. DisplayoutputsAtoDasDVI‐D(WingsEngineStageDUALonlyhastwooutputs
AandB)
2. BalancedaudiooutputsMAIN1‐2intheformofXLR‐msockets
3. DigitalS/P‐DIFaudiooutputMAIN1‐2asCinchsocket
4. UnbalancedaudiooutputLINE1‐2asstereojack
5. HeadphoneoutputPHONES1‐2asstereojack
6. MicrophoneinputMIC1asXLR‐f‐socket;Attention:beforeyouconnectdy‐
namicmicrophonesmakesurephantompowerissoftware‐disabled.SeeSound
interfaceofWingsEngineStage.
7. LivevideoinputsDVIIN1and2;bothanaloganddigitalsignalscanbeapplied
8. BalancedaudioinputsLINE1‐2asstereojacks(sleeve=ground,ring=minus,tip
=plus)
9. Livevideoinputs3G‐SDI1and2
10. SerialinterfaceRS232
11. Framelock0and1asidenticalsocketsforthesynchronizationofseveralWings
EngineStageunits;tobeusedasInandOut;Note:NoLANconnectionsmustbe
pluggedintotheseRJ45socketsasthismaycausedamage.


Front and Rear Views of Wings Engine Stage
7
12. Genlockinputforsynchronizationwithanoverridingtimeclock.
13. Socket(II)formainsconnectionof100to264VoltACand47to63Hz
14. Two‐steppowerswitchforpowersupplyviapowerCONsocket(I)orIECsocket
(II);switchisilluminatedwhenon.
15. powerCONoutputformainssupplyofotherdevices;mindthetotalpowercon‐
sumptionofmax.16A(max.of3WingsEngines)!
16. powerCONinput(I)formainssupplywithoptionallyavailablepowerCONcable.
17. eSATAinterfaceforconnectionofexternalharddisks;Note:onlyforconnection
withthedevicesoff;hotpluggingnotguaranteed!Wecannotbeheldrespon‐
sibleforanydamage!
18. FireWire400interface
19. USB2.0interfaces
20. LANconnection
21. DVI‐Dconnectorforcontrolmonitor;thesignalofthefronttouchdisplayisap‐
plied.Max.resolution1920x1200pixelsand60Hz.



8

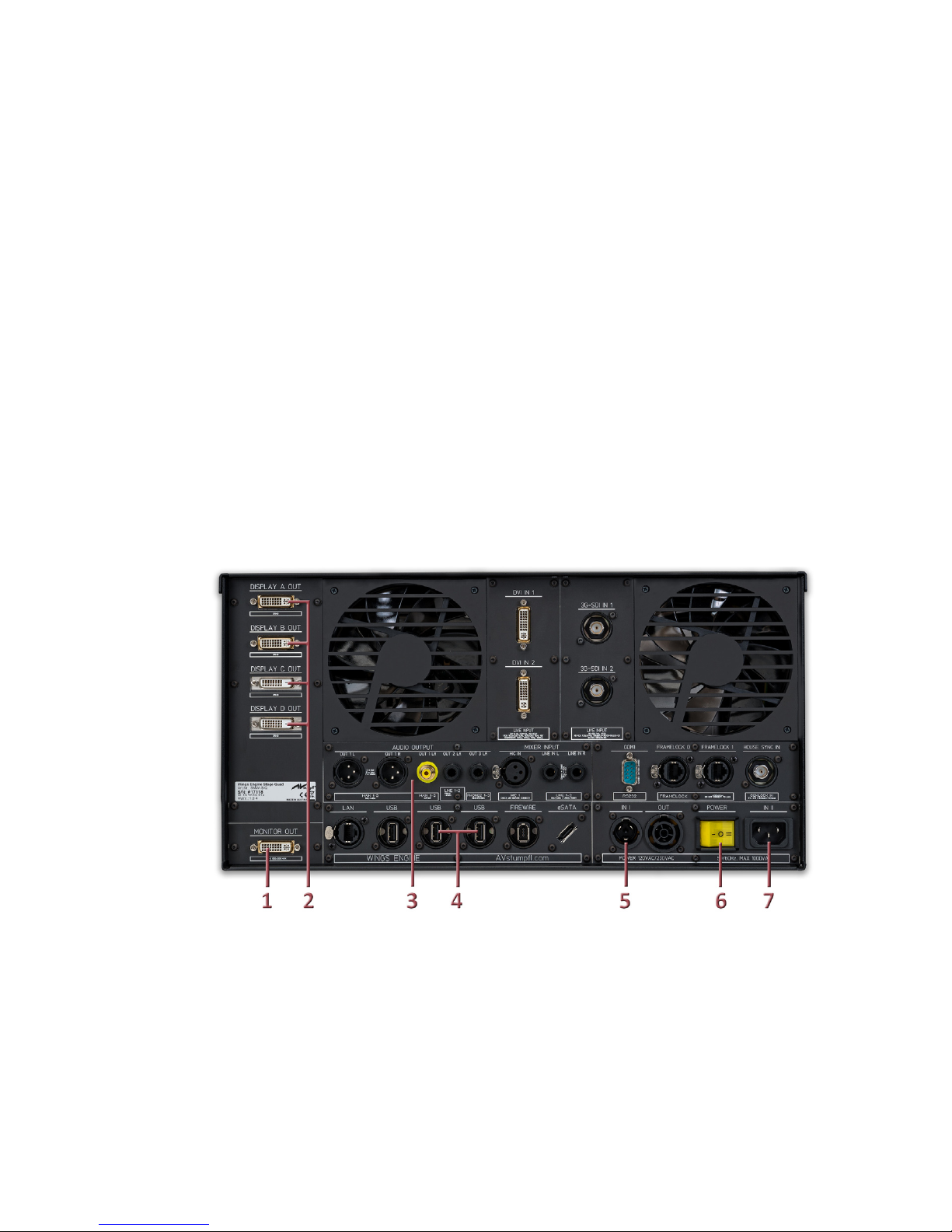

WingsEngineQuickStart
TheWingsEngineispre‐installedandpre‐configuredandallowsveryquickstarting.
1. UsingthepowercableortheoptionallyavailablepowerCONcable,hookupthe
WingsEnginepowersupply(7or5)withthemainssupply.
2. ConnectkeyboardandmousetotheUSBports(4)atthefrontorback.
3. ConnectthecontrolmonitorsordisplaysfortheshowtoDISPLAYAtoDOUT(2)
and,optionally,anadditionalcontrolmonitortoMONITOROUT(1).
4. ConnectyouraudiosystemtoportMAIN1‐2orLINE1‐2(3).
5. Usingswitch(6)switchthepowersupplyunittoIIwhenyouareusingthe
standardcableandtoIwhenyouareusingapowerCONcable.




Wings Engine Stage Quick Start
9

6. StarttheWingsEngineviapushbutton(8).Followingthisthedesktopwillbe
displayed.
7. WithWingsViosobeingthecentralpresentationtool,clicktheiconstostartthe
correspondingapplications.AfterstartingupWingsyoucancreateamultidis‐
playprojectanddesignashow.SeeCreatingamultidisplayshowviaonecom‐
puterinthehelptopics.
IfWingsVisosistostartupautomaticallyafterstartingtheWingsEn‐
gineclick  followedbyclickingWingsViosoandplacea
checkmarknexttoStartWingsonSystemStartup.Therearevariousoptionsfor
loadingandstartingcertainshows.SeeGlobalOptions‐Programstartinthe
helptopics.
8. BasicalignmentofthevideoprojectorsispossibleviatheWingsEnginetestim‐
agegeneratorbyclicking‐onthedesktop.SeealsoDisplaying
testimages.






10
WingsEngineDesktop
WingsEnginesfeaturesaclearlystructuredandfunctionaldesktopthatcomprises
buttonsforthemostimportantfunctions.


UsethethreelargeiconsWingsTouch,WingsViosoandWingsAviotostartthe
WingsAVSuiteapplicationswiththesamenames.Ifwindowsareopenandcoverup
thelargeiconsyoucanstarttheapplicationsviathesmalliconsinthebottomright
cornerofthetaskbarorusethefollowingshortcuts:
WingsTouch Windowskey+T
WingsViosoWindowskey+W
WingsAvioManagerWindowskey+M
Avio‐Servicemenu Windowskey+S
WingsEngineSettings Windowskey+Ctrl
AudioSettings Windowskey+A
GraphicssettingsWindowskey+G
NVidiaManagerWindowskey+N

Wings Engine Desktop
11
Desktop Windowskey+D
Centermouseondesktop Windowskey+O
FileExplorer Windowskey+E
MozillaFirefox Windowskey+F
PocketcalculatorWindowskey+C
MousingovertheHelpsymbolonthedesktopdisplaysalistof
shortcuts.

Theotherbuttonshavethefollowingfunctions:
?...openstheWingsEnginemanualasPDF.Mousingoverthissymboldisplaysa
listofshortcuts.
AvioService...openstheAvioServicemenu.SeeWingsAvioServiceinthe
WingsViosohelptopics.
Explorer...opensWindowsExplorer.
Alignment...showsatestimagewhichcanbeconfiguredinaccordancewith
yourrequirements.SeealsoDisplayingtestimages.
Settings...offersshortcutsforallthemostimportantdialogsandtheWingsop‐
tionsformasterandslavemodeandforTaskmanager,RestartandShutdown.
SeeSettings‐ShortcutsandSettings‐WingsVioso.
EjectUSBDevices...forsafelyremovingexternaldrives.Afterclickingthebut‐
tonalistofexternaldrivesisdisplayedthatcanberemovedbyclickingEject.


Wings Engine Play/Install
12
NetworkCards...specifiestheMediaEngine'sIPaddressandthesubnetmaskif
thereisanetworkconnection.
ClicktochangetheIPaddressandthesubnetmask.




13

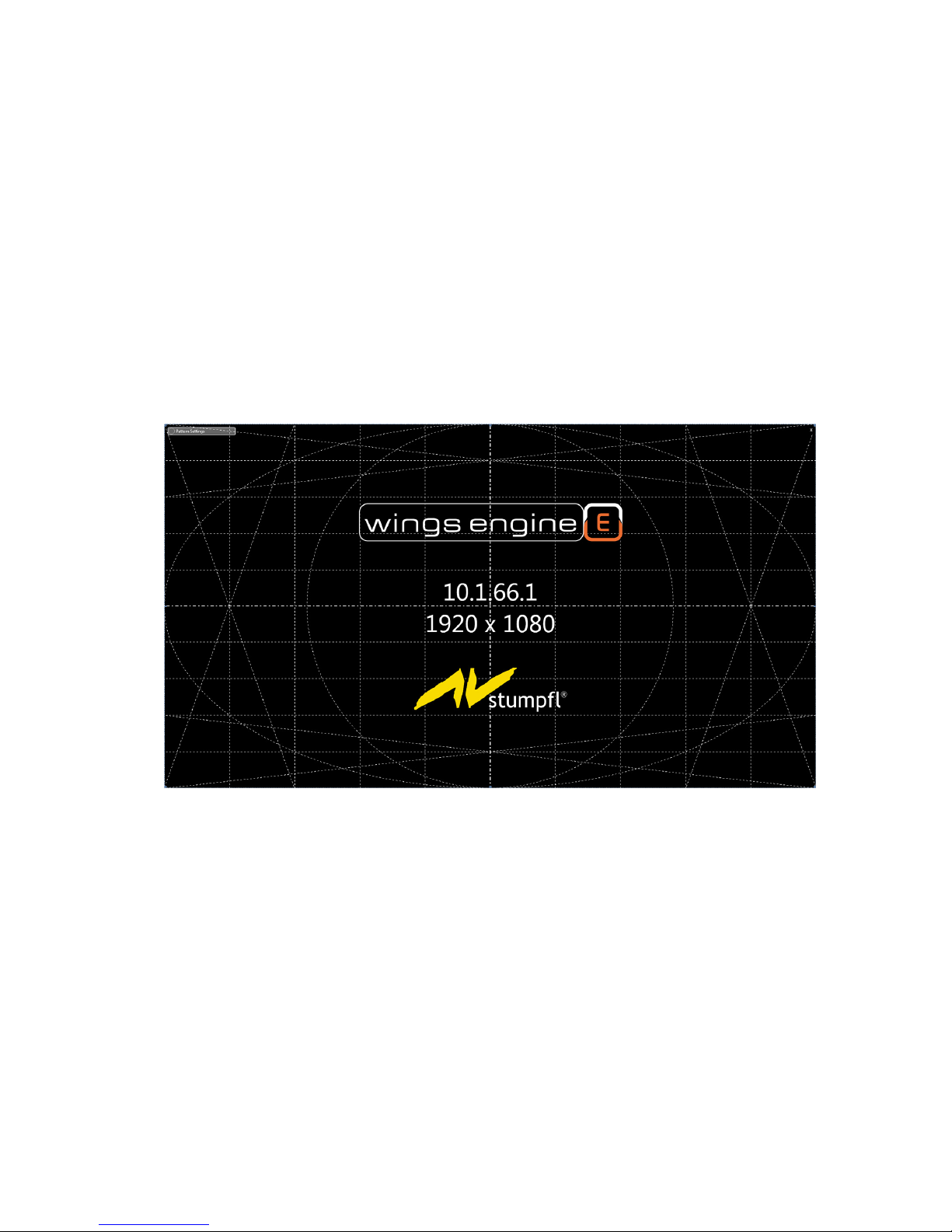

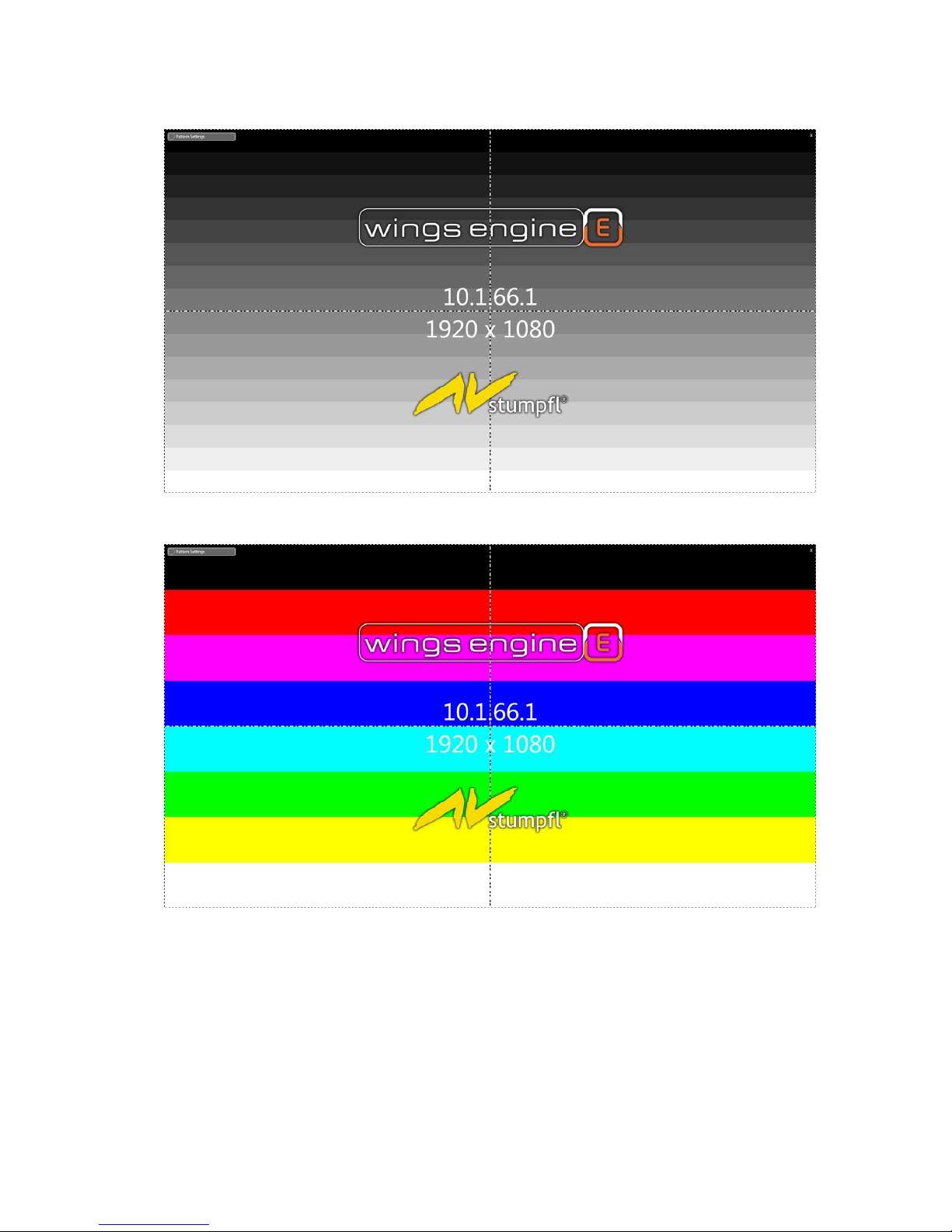

Displayingtestimages
TheWingsEnginefeaturesatestimagegeneratorwhichallowsvarioustestimagesat
suitableresolutiontobedisplayedatalloutputswithoutrequiringWingsVioso.Thisis
howthetestimagegeneratorcanbeused:
1. Ontheleftdesktopsideclick,followingwhichatestimagewill
bedisplayed.
2. Inordertosetupthetestimageinaccordancewithyourrequirementsclick
buttonPatternSettingsatthetop,followingwhichanotherdialogpopsup:

3. Thisdialogallowsconfigurationofthetestimageasfollows:
Choicebetweenblackorwhitegridlines
DrawLines...producesagridwiththespecifiedgriddivision.Thegriddi‐
visioncanoptionallybeenteredinlines(numberoflines)orinpixels(dis‐
tancebetweenthelinesinpixels).


Wings Engine Play/Install
14
DrawCenterCircle...producesacentercircle.
DrawFullEllipse...producesanellipsewhichtouchestheedgesofthe
image.
DrawCrosses...producesdiagonallinesintheoverlapareasspecifiedbe‐
low.Entriescanoptionallybemadein%orinpixels.
DrawBackground...producesgrayscaleorcolorstripesintheback‐
ground.

Belowyouwillfindafewexamples:

Gridwithellipseandcircleaswellasdiagonalsintheoverlapareasontheleft
andright.

Sound interface of Wings Engine Stage
15

Grayscalewithsimplestgrid

Primaryandsecondarycolors,aswellaswhiteandblackstripes
4. Toterminatethetestimagegeneratorclickthesmallcrossatthetoprightcor‐
nerorpresstheEsckey.


