Avtech R2DSPOT60 User manual

User Manual
R2DSPOT60
60W MiniMoving Head Spot

1.1 Unpacking
1.2 Safety Instructions
Carefully unpack the carton, check the contents to ensure that all parts are present,
and have been received in good condition. Contact your supplier immediately and
retain packing material for inspection if any part is missing or damaged.
1. INTRODUCTION
■1 x R2DSPOT60
■1 x Power Cord
■1 x User Manual
▪The product is for indoor use only.
▪Always turn off, unplug power and allow fixture to cool before servicing.
▪Ensure that fixture is properly grounded.
▪Please keep this User Guide for future consultation.
▪Always make sure that you are connecting to the proper voltage and that the line
voltage you are connecting to is not higher than that stated on decal or rear panel of
the fixture.
▪Always disconnect from power before servicing or replacing fuse.
▪Make sure power cord is never crimped or damaged.
!
Warning!!! To reduce the risk of fire, electric shock, or injury to persons,
follow these important safety instructions:
The following items are included in the box:
Caution!
Avaid looking directly into the LED light beam at a close distance!
1
Thank you for selecting this product. Equipped with one 60W high power white LED,
this LED Moving Head is extremely bright. It offers DMX, Auto, Sound, Master/Slave.
Ideal for small clubs, bars, parties, etc. To optimize the performance of this product,
please read the user manual carefully before use.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old
appliances contain and reduce the impact on human health and the
environment, ensure that this product is recycled at the end of its life.
4. Specifications
Source: 1 x 60W white LED
Beam angle: 13°
Power consumption: 80W Max.
Power supply: 100~240V, 50-60Hz
Dimensions: 195 x 145 x 280 mm
Weight: 4.5 kg
6

The Moving Head is fully operational in any mounting position, hanging upside-down,
side mounted, or set on a flat llevel surface, etc.
1.3 Features
1.4 Product overview
2. SETUP
2.1 Mounting
▪LED Spot moving head
▪1 color wheel: 7 colors + white, rainbow
▪1 Gobo wheel: 5 gobos + open, shaking
▪1 3-facet prism
▪Motorized focus
▪4 working modes: DMX, Auto, Sound, Master/Slave
▪DMX modes: 5/15 channels
▪Pan : 540° Tilt: 270°
▪Reverse Pan/Tilt movement
▪0-100% linear dimmer
▪1-25 fps strobe
▪4-button LED display
2
IMPORTANT!!! Safety cables must always be used when unit is celling or truss
mounted. The safety cable must be capable of holding 10 times the weight of the
fixture.
The fixture is designed to work on AC 90-240V 50-60Hz. All units must be powered
directly from a switched circuit. This unit cannot be run on a rheostat or dimmer
circuit even if used solely for a 0% to 100% switching.
2.3 AC Power
WARNING!!! All fixtures must be connected to circuits with a
suitable Earth Ground.

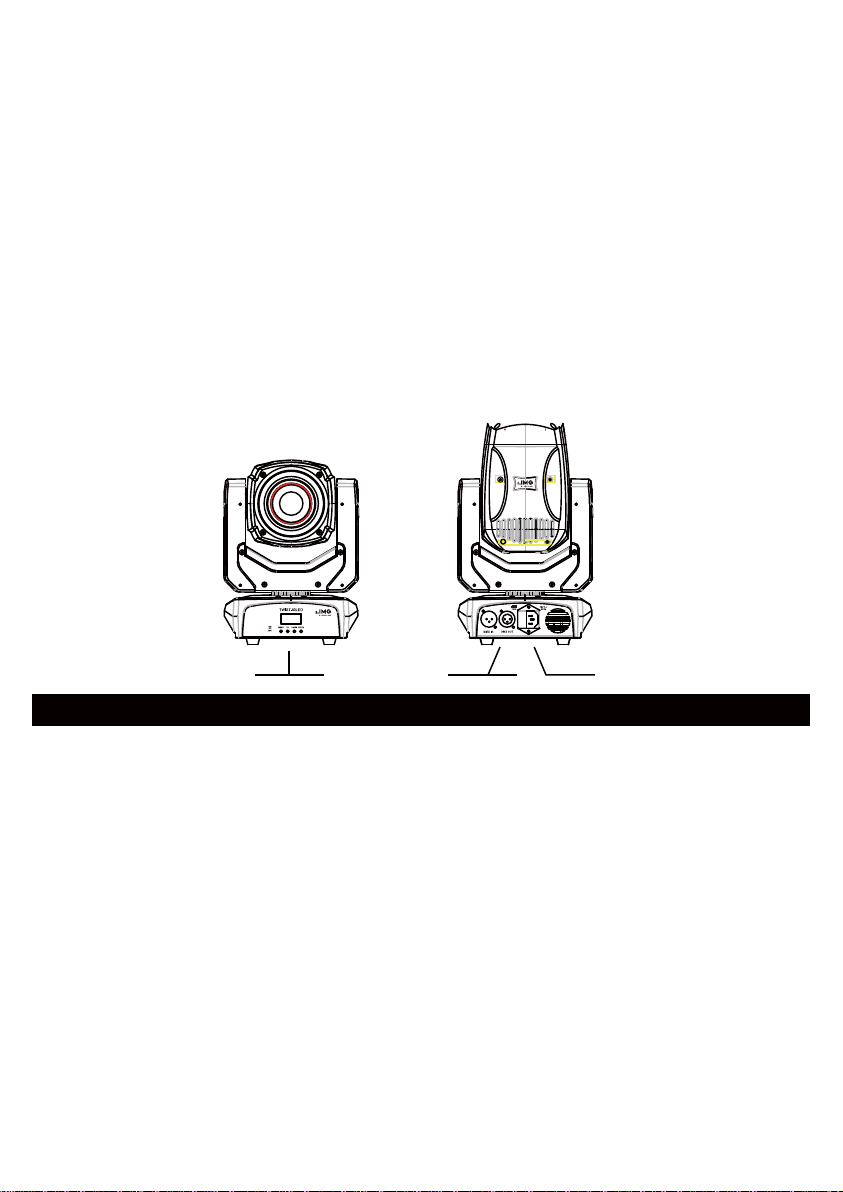

Control Panel Fuse/Power In DMX In/Out
5
000-009 No funcon
010-129 Forward Gobo rotaon from fast to slow
130-134 No rotaon
135-255 Backward Gobo rotaon from slow to fast
11 000-255 Focus 0 - 100%
000-007 No funcon
008-127 Prism on
000-007 No funcon
008-047 Auto program 1
048-087 Auto program 2
088-127 Auto program 3
128-167 Auto program 4
168-207 Auto program 5
208-247 Auto program 6
248-255 Color & Gobo run to Sound
000-007 No funcon
008-032 X/Y auto run 1
033-058 X/Y auto run 2
059-084 X/Y auto run 3
085-110 X/Y auto run 4
111-136 X/Y auto run 5
137-162 X/Y auto run 6
163-188 X/Y auto run 7
189-240 X/Y auto run 8
241-255 X/Y auto run to sound
51-100 6S for High speed mode
151-200 6S for Low speed mode
251-255 6S to RESET the fixture
10
12
133
4
5
15
14
128-192 Gobo rotang CW from fast to slow
193-255 Gobo rotang CCW from slow to fast
(For fade movement effect)

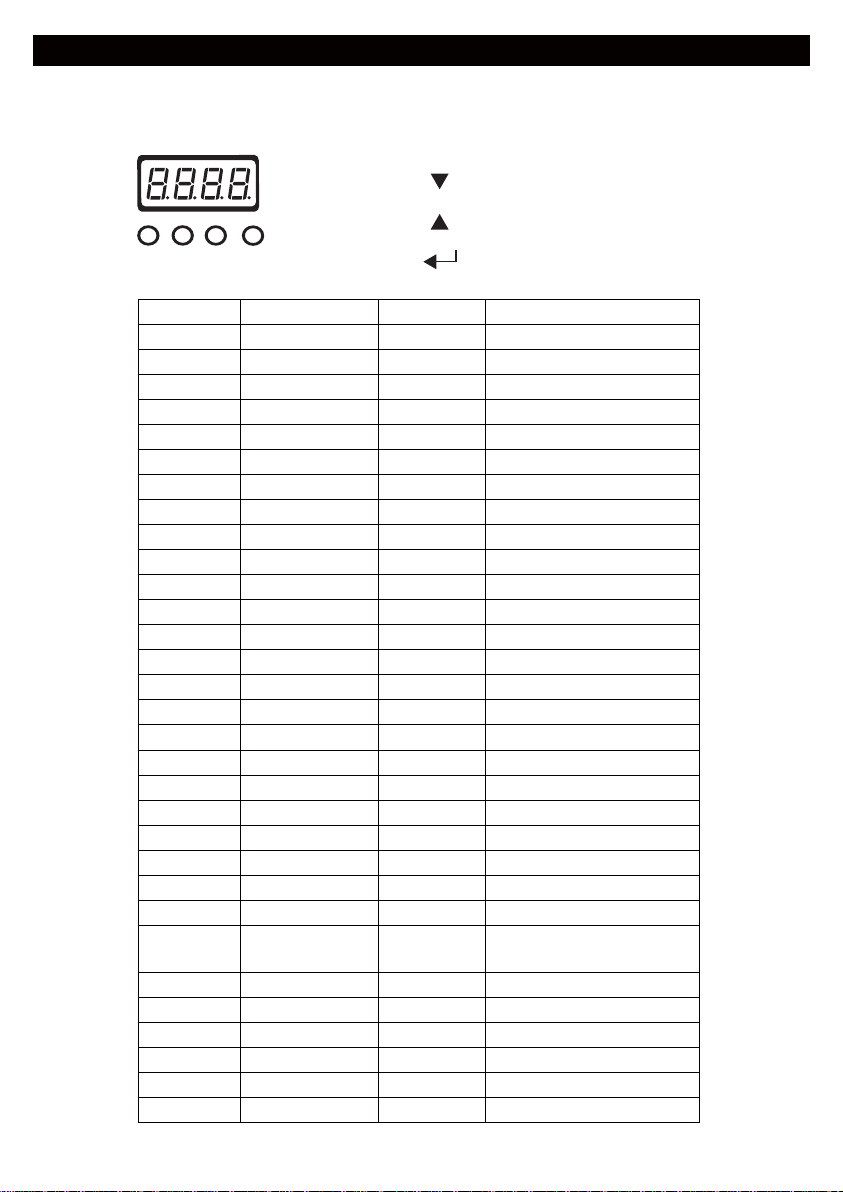

3.1 Menu Map
3. OPERATION INSTRUCTIONS
3
Scroll through the main menu or exit from the
current sub-menu
the currently selected menu or confirm the current
function value Scroll
through the menu list or decrease the value of the
current function value Scroll
through the menu list or increase the value of the
current function
MENU DOWN UP ENTER
MENU
DOWN
ENTER
UP
1 Addr DMX Address 001-512
2 ChMd DMX Mode .=CH10 10CH DMX mode
.=CH15 15CH DMX mode
3 SPMd Speed Mode .=Low Low speed mode
.=High High speed mode
4 SLMd Run Mode .=Master
.=Slave
5 SHMd Internal Program .=001 Show mode
.=002
.=003
.=004
.=005
.=006
.=007
.=008
6 Soun Sound Control .=OFF Sound Activation mode
.=ON
7 PAN X Reverse .=OFF
.=ON
8 TIL Y Reverse .=OFF
.=ON
9 dISP Display Reverse .=OFF
.=ON
10 rFAC Reset Default .=OFF
.=ON
11 Ad t Home Position
Setting Delt
Clear PAN and TILT Home
Position(3s)
P(PAN) .=0-120
t(TILT) .=0-120
C(Color) .=0-120
g(Gobo) .=0-120
F(Focus) .=0-120
12 rST Reset Motor
4
3.2 DMX Channels
5Ch 15Ch DMX Value Funcon
1 1 000 - 255 Pan
2 000-255 Pan Fine
2 3 000 - 255 Tilt
4000-255Tilt Fine
5 000 - 255 XY Speed from fast to slow
6 000-255 Dimmer 0-100%
000-004 Strobe closed
005-250 Strobe from slow to fast
251-255 Strobe open
000-013 White (Open)
014-031 Color1
032-049 Color2
050-067 Color3
068-085 Color4
086-103 Color5
104-121 Color6
122-130 Color7
131-139 White (Open)
140-195 Forward color wheel rotang from fast to slow
196-199 Color wheel rotang stop
200-255 Backward color wheel rotang from slow to fast
000-008 Open(White)
009-033 Gobo1
034-058 Gobo2
059-083 Gobo3
084-108 Gobo4
109-133 Gobo5
134-194 Gobo rainbow CW from fast to slow
Gobo rainbow CcW from slow to fast 225-255
9
7
8

3.1 Menu Map
3. OPERATION INSTRUCTIONS
3
Scroll through the main menu or exit from the
current sub-menu
the currently selected menu or confirm the current
function value Scroll
through the menu list or decrease the value of the
current function value Scroll
through the menu list or increase the value of the
current function
MENU DOWN UP ENTER
MENU
DOWN
ENTER
UP
1 Addr DMX Address 001-512
2 ChMd DMX Mode .=CH10 10CH DMX mode
.=CH15 15CH DMX mode
3 SPMd Speed Mode .=Low Low speed mode
.=High High speed mode
4 SLMd Run Mode .=Master
.=Slave
5 SHMd Internal Program .=001 Show mode
.=002
.=003
.=004
.=005
.=006
.=007
.=008
6 Soun Sound Control .=OFF Sound Activation mode
.=ON
7 PAN X Reverse .=OFF
.=ON
8 TIL Y Reverse .=OFF
.=ON
9 dISP Display Reverse .=OFF
.=ON
10 rFAC Reset Default .=OFF
.=ON
11 Ad t Home Position
Setting Delt
Clear PAN and TILT Home
Position(3s)
P(PAN) .=0-120
t(TILT) .=0-120
C(Color) .=0-120
g(Gobo) .=0-120
F(Focus) .=0-120
12 rST Reset Motor
4
3.2 DMX Channels
5Ch 15Ch DMX Value Funcon
1 1 000 - 255 Pan
2 000-255 Pan Fine
2 3 000 - 255 Tilt
4000-255Tilt Fine
5 000 - 255 XY Speed from fast to slow
6 000-255 Dimmer 0-100%
000-004 Strobe closed
005-250 Strobe from slow to fast
251-255 Strobe open
000-013 White (Open)
014-031 Color1
032-049 Color2
050-067 Color3
068-085 Color4
086-103 Color5
104-121 Color6
122-130 Color7
131-139 White (Open)
140-195 Forward color wheel rotang from fast to slow
196-199 Color wheel rotang stop
200-255 Backward color wheel rotang from slow to fast
000-008 Open(White)
009-033 Gobo1
034-058 Gobo2
059-083 Gobo3
084-108 Gobo4
109-133 Gobo5
134-194 Gobo rainbow CW from fast to slow
Gobo rainbow CcW from slow to fast 225-255
9
7
8

The Moving Head is fully operational in any mounting position, hanging upside-down,
side mounted, or set on a flat llevel surface, etc.
1.3 Features
1.4 Product overview
2. SETUP
2.1 Mounting
▪LED Spot moving head
▪1 color wheel: 7 colors + white, rainbow
▪1 Gobo wheel: 5 gobos + open, shaking
▪1 3-facet prism
▪Motorized focus
▪4 working modes: DMX, Auto, Sound, Master/Slave
▪DMX modes: 5/15 channels
▪Pan : 540° Tilt: 270°
▪Reverse Pan/Tilt movement
▪0-100% linear dimmer
▪1-25 fps strobe
▪4-button LED display
2
IMPORTANT!!! Safety cables must always be used when unit is celling or truss
mounted. The safety cable must be capable of holding 10 times the weight of the
fixture.
The fixture is designed to work on AC 90-240V 50-60Hz. All units must be powered
directly from a switched circuit. This unit cannot be run on a rheostat or dimmer
circuit even if used solely for a 0% to 100% switching.
2.3 AC Power
WARNING!!! All fixtures must be connected to circuits with a
suitable Earth Ground.
Control Panel Fuse/Power In DMX In/Out
5
000-009 No funcon
010-129 Forward Gobo rotaon from fast to slow
130-134 No rotaon
135-255 Backward Gobo rotaon from slow to fast
11 000-255 Focus 0 - 100%
000-007 No funcon
008-127 Prism on
000-007 No funcon
008-047 Auto program 1
048-087 Auto program 2
088-127 Auto program 3
128-167 Auto program 4
168-207 Auto program 5
208-247 Auto program 6
248-255 Color & Gobo run to Sound
000-007 No funcon
008-032 X/Y auto run 1
033-058 X/Y auto run 2
059-084 X/Y auto run 3
085-110 X/Y auto run 4
111-136 X/Y auto run 5
137-162 X/Y auto run 6
163-188 X/Y auto run 7
189-240 X/Y auto run 8
241-255 X/Y auto run to sound
51-100 6S for High speed mode
151-200 6S for Low speed mode
251-255 6S to RESET the fixture
10
12
133
4
5
15
14
128-192 Gobo rotang CW from fast to slow
193-255 Gobo rotang CCW from slow to fast
(For fade movement effect)

1.1 Unpacking
1.2 Safety Instructions
Carefully unpack the carton, check the contents to ensure that all parts are present,
and have been received in good condition. Contact your supplier immediately and
retain packing material for inspection if any part is missing or damaged.
1. INTRODUCTION
■1 x MOVING SPOT 60
■1 x Power Cord
■1 x User Manual
▪The product is for indoor use only.
▪Always turn off, unplug power and allow fixture to cool before servicing.
▪Ensure that fixture is properly grounded.
▪Please keep this User Guide for future consultation.
▪Always make sure that you are connecting to the proper voltage and that the line
voltage you are connecting to is not higher than that stated on decal or rear panel of
the fixture.
▪Always disconnect from power before servicing or replacing fuse.
▪Make sure power cord is never crimped or damaged.
!
Warning!!! To reduce the risk of fire, electric shock, or injury to persons,
follow these important safety instructions:
The following items are included in the box:
Caution!
Avaid looking directly into the LED light beam at a close distance!
1
Thank you for selecting this product. Equipped with one 60W high power white LED,
this LED Moving Head is extremely bright. It offers DMX, Auto, Sound, Master/Slave.
Ideal for small clubs, bars, parties, etc. To optimize the performance of this product,
please read the user manual carefully before use.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old
appliances contain and reduce the impact on human health and the
environment, ensure that this product is recycled at the end of its life.
4. Specifications
Source: 1 x 60W white LED
Beam angle: 13°
Power consumption: 80W Max.
Power supply: 100~240V, 50-60Hz
Dimensions: 195 x 145 x 280 mm
Weight: 4.5 kg
6

MOVING SPOT 60
LED Spot Moving Head
User Manual
