Avvio C192069 User manual

PRODUCT CODE: C192069
Operator’s Manual
20 VOLTS CORDLESS INFLATOR

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions
listed below may result in electric shock, fire, or serious personal injury. !
WARNING:
When using electric appliances, basic precautions should always be followed,
including the following: !
WARNING:
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Keep bystanders, children, and visitors away while operating an inflator. Distractions can
cause you to lose control.
Operate inflator in an open area at least 18 away from any wall or object that could restrict
the flow of fresh air to ventilation openings.
ELECTRICAL SAFETY
To reduce the risk of electrical shock, do not put inflator in water or other liquid. Do not
place or store appliance where it can fall or
2. This appliance is not intended for use by persons (including children) with reduced
physical, sensory and mental capabilities, and lack of experience and knowledge, unless
they have been given supervision and instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
be pulled into a
Use this product only with approved batteries and chargers.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating an inflator.
Do not use inflator while tired or under the influence of drugs, alcohol, or medication. A moment
of inattention while operating inflator may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewellery. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught
in moving parts.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enable better control of the inflator in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard
hat, or hearing protection must be used for appropriate conditions.
Eye protection is required to guard against fasteners that may have come loose and debris
which could cause severe eye injury.
Do not disassemble the inflator.
Do not operate inflator near flammable liquids or in gaseous or explosive atmospheres.
Internal sparks may ignite fumes.
Do not store your inflator in a damp or wet location. Do not store in locations where the
temperature is less than 10°C or more than 37.7°C. Do not store in outside sheds or in vehicles.
INFLATOR USE AND CARE
Check hoses for weak or worn condition before each use, making certain all connections
are secure. Do not use if is found. Purchase a new hose or notify an
authorised service center for examination or repair.
Release all pressures within the system slowly. Dust and debris may be harmful.
Do not use inflator if switch does not turn it on or off. An inflator that cannot be controlled
with the switch is dangerous and must be repaired.
making any adjustments, changing accessories, or storing the
inflator. Such preventive safety measures reduce the risk of starting
2

IMPORTANT SAFETY INSTRUCTIONS
SAFETY PRECAUTIONS FOR INFLATOR
Store idle inflators out of reach of children and other untrained persons.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition
that may affect the inflator’s operation. If damaged, have the inflator serviced before using.
Use only accessories that are recommended by the manufacturer for your model. Accessories
that may be suitable for one inflator may create a risk of injury when used on another.
Keep the inflator and its handle dry, clean and free from oil and grease. Always use a clean cloth
when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to
clean your inflator.
Never point any inflator toward yourself or others.
Do not exceed the pressure rating of any component in the system.
Protect material lines and air lines from damage or puncture. Keep hose and power cord away
from sharp objects, chemical spills, oil, solvents, and wet floors.
SERVICE
Inflator service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel may result in a risk of injury.
When servicing an inflator, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorised parts or failure to follow Maintenance
instructions may create a risk of shock or injury.
Know your inflator. Read operator’s manual carefully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric
shock, fire, or serious injury.
Risk of bursting. Do not operate inflator to result in output pressure greater than marked maximum
pressure of item to be inflated. Do not use at pressure greater than 6.8 Bar.
To reduce the risk of electric shock, do not expose to rain. Store indoors.
Inspect unit for cracks, pin holes, or other imperfections that could cause inflator to become
unsafe. Never cut or drill holes in the inflator.
Make sure the hose is free of obstructions or snags. Entangled or snarled hoses can cause loss
of balance or footing and may become damaged.
Use the inflator only for its intended use. Do not alter or modify the unit.
Always be aware that misuse and improper handling of this inflator can cause injury to
yourself and others.
Never leave an inflator unattended with the air hose attached to the item being inflated.
Do not continue to use an inflator or hose that leaks air or does not function properly.
Always disconnect the air supply and power supply before making adjustments, servicing, or
when not in use.
Do not attempt to pull or carry the inflator by the hoses.
Always follow all safety rules recommended by the manufacturer of your inflator, in addition
to all safety rules for the inflator. Following this rule will reduce the risk of serious personal injury.
Household use only.
Do not use inflator as a breathing device.
3

SAFETY PRECAUTIONS FOR INFLATOR
SPECIFICATIONS
Never direct a jet of compressed air toward people or animals. Take care not to blow dust and
dirt towards yourself or others.
Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will
reduce the risk of serious personal injury.
Do not use this inflator to spray chemicals. Your lungs can be damaged by inhaling toxic fumes.
Check damaged parts. Before further use of the inflator or air tool, a guard or other part that is
damaged should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment of moving parts, binding of moving parts, breakage of
parts, and any other conditions that may affect its operation. A guard or other part that is damaged
should be properly repaired or replaced by an authorised service center.
Inspect tool cords periodically and, if damaged, have repaired at your nearest Authorised
Service Center. Constantly stay aware of cord location.
Risk of bursting. Carefully monitor objects during inflation.
To reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation.
The pressure on the inflator is for reference only and is therefore not binding for exact values.
Never leave the inflator unattended during .
Allow pump to cool for five (5) minutes after each five (5) minutes of continuous use. Never
block the inflating or deflating outlets while operating.
Save these instructions. Refer to them frequently and use them to instruct others who may
use this inflator.
• Great for Car/RV/SUV Tires and small inflatables
• Digital pressure gauge automatically shuts off at desired pressure
• Cordless design for convenience
• Comes with nozzle accessories
• Operate from 20V Battery (included)
•1 Nozzle
• 1 Ball Needle,
•1 20V Li-ion Battery
• 1 harger
• 1 harger tand
INCLUDES:
4

FUNCTIONAL DESCRIPTION
B
F
I
H
G
C
E
A
D
Rubber-covered handle
Air hose
Air chuck
Digital pressure gauge
Hose storage area
Battery
Start switch
Self- ocking switch
LED-light
5

OPERATION
!
WARNING:
!
WARNING:
!
WARNING:
Do not allow familiarity with this product to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to
do so could result in serious injury.
Do not use any attachments or accessories not recommended by the manufacturer of this
tool.
Do not leave items to be inflated unattended while inflator is in use. These items can burst
and could cause serious injury. !
WARNING:
!
BATTERY PACK
WARNING:
The battery is not fully charged. Before first use, the battery pack requires 5-7 hours charging time
to be fully charged. Subsequent recharging needs 3-5 hours for the battery to be fully charged.
Always switch to a fresh battery when tool performance begins to diminish. Severe heat is most
destructive to a battery; the more heat generated, the faster the battery loses power.
Never over-discharge a battery by using the tool even after tool performance has decreased.
Do not attempt to discharge a tool’s battery by continuing to pull on the tool trigger. When tool
performance begins to diminish, stop the tool and recharge the battery for optimal performance.
Always have drill rotation switch in neutral/lock position when removing or inserting battery to avoid
unintentional starting.
To remove battery pack from the tool, press the lock spring buttons and pull out.
To insert, simply push pack in until lock spring clicks.
The battery charger consists of two parts:
witching adapter/240 volt plug with a low-voltage lead
harging stand
To recharge battery, the switching adapter/plug low-voltage lead to the charging stand.
Insert the switching adapter/plug into a 240V household current receptacle.
The end of the battery pack has positive and negative terminal markings on it. Align these with the identical
markings on the top of the charging stand and insert pack into base ( ack will not insert properly if
reversed)
The green light is the charge indicator. When the charger is connected to AC household current, the green
light .
The green light is the power indicator. When the battery is properly inserted into the charger and charging,
the red light .
Normal charging time is 3 to 5 hours. The charger will charge the battery at the normal rate until charging is
complete. The red light will turn off once charging is complete. After the battery is fully charged according to
the charging time provided in the instructions, remove the battery pack from the charging stand
immediately. Battery temperature will cool to normal.
When charging more than one battery pack, allow 15 minutes between charges.
After many charge/discharge cycles, your battery will lose its ability to hold a charge. It should then be
replaced. Dispose of batteries at an appropriate waste disposal facility. Do not throw batteries away in
common trash receptacles.
1.
6

OPERATION
NOTICE:
WARNING:
Battery tools are always in operating condition. Always remove battery pack from your tool
when you are assembling parts, making adjustments, cleaning, or when not in use. Removing
battery pack will prevent accidental starting that could cause serious personal injury.
TO INSTALL/REMOVE BATTERY PACK
To install:
Place the battery pack in the tool lign the rib on the battery pack with groove in the battery port.
Make sure the latches on the battery pack snap in place and the battery pack is secured in the tool
before .
To remove:
Depress the latches in the front of the battery pack to release and remove it from the tool.
AIR HOSE AND ACCESSORY STORAGE
When the inflator is not in use, press the hose into the storage area on top of the tool.
When not in use, adaptors and needles provided with the inflator can be placed in the storage area
of the tool.
LED WORKING LIGHT
When working, the LED light on the base of the tool is on
START SWITCH AND SELF-LOCKING SWITCH
When start switch, push self-locking switch up, which will lock the switch in the “ON”
position. This guarantees the safety for the user and of the tool.
After reaching the desired pressure, press the Start switch. The self-locking switch will spring down.
USING THE INFLATOR
See Figure 1
Install the battery pack.
Position air chuck clamp in the unlock position perpendicular to the air hose.
Place the air chuck on the valve stem.
Push the air chuck down so that the threaded section of the valve stem is inside the air chuck. Clamp
the end of the air chuck down onto the valve stem by pressing air chuck clamp down until it stops or is
parallel with the air hose.
WARNING:
APPLICATIONS
You may use this inflator for the purpose listed below: Inflating items such as motorcycle,
car, and bicycle tires.
NOTE: The inflator is not designed for commercial applications.
NOTICE:
The inflator is not designed for continuous use. For every five minutes of , five
minutes of cool down time are required.
Since the pressure gauge is not calibrated and is not binding for exact values, tire pressure
must be checked using a reliable measuring device before driving a vehicle tires inflated
with . Driving with improperly inflated tires could result in serious injury.
The inflator is capable of inflating to 6.8 Bar. To avoid overinflation, carefully follow
instructions on items to be inflated. To avoid product damage, never exceed
recommended pressures.
7
!
!
!
!
!

OPERATION
WARNING: Improperly attached hoses or accessories can become detached under
pressure and cause serious injury. Possible air leaks can cause faulty pressure
readings. Make sure all connections are tightly secured.
If self-locking swi ch is up, turn it down .
Press “ON/Unit” button to read the current tire pressure on the gauge. Press “ON/Unit” button
again to select tire pressure measurement unit from PSI, KPA, BAR, KG/CM.
Press the “+” or“-” button to adjust the preset tire pressure to the required tire pressure.
hold the or button down to adjust working pressure quickly, (set value runs up or down faster)
press the “+”or ”-” button briefly to adjust the pre-set working pressure in small steps by 0.05
BAR & KG/CM, or by 1 PSI, 5KPA.
8. Press the On/Off trigger switch to start inflating.
When the pressure reaches the pre-set pressure value, the device will stop inflating.
NOTE: To reset the tire pressure measurement unit, press "ON/Unit" to reselect after setting
preset pressure value.
NOTE: Digital gauge records the preset measurement unit and value of last time operation
NOTE: After the air pump reaches the preset pressure value, the digital gauge will go off after
30 seconds, and the device will shut down automatically.
NOTE: Maximum PSI for this unit is 100PSI.
!
Always leave the hose free of obstructions when the tool is not in use. Overheating could
occur if the hose is blocked.
ACCESSORIES
The supplied accessories perform a variety of functions. The tapered can be used on
smaller pinch valves to inflate small items like children’s toys, which usually require the user
to inflate them by blowing air into them. The sport needle can be used to inflate any
type of sports ball or any other item that requires an inflation needle.
NOTE: When inflating items of 10 PSI or less, inflate in short bursts and check after each burst
with a calibrated measuring device to determine accurate pressure.
:
Insert needle into ball valve and inflate.
Remove needle after inflation.
NOTE: Pressure required for most sports balls is too low for accurate reading on tool gauge.
NOTICE:

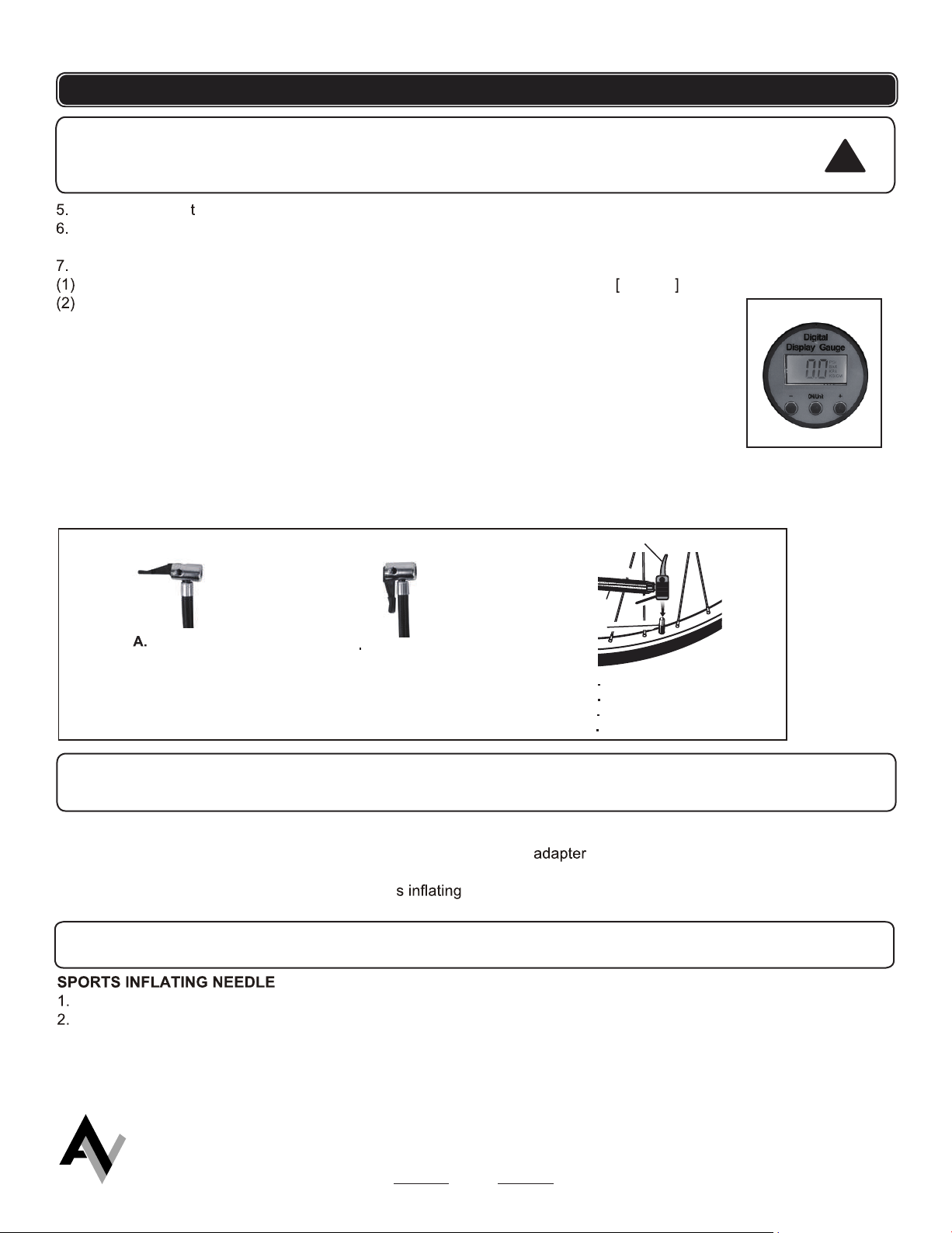

Fig.1
Airchuck clamp
in unlocked
position
BAirchuck clamp in
locked position
C Valvestem
DAir chuck
EAirhose
FAir chuck clamp
C
D
E
F
8

MAINTENANCE
!
let brake fluids, gasoline, products, penetrating oils, etc., come in
contact with plastic parts. Chemicals can damage, weaken or destroy plastic which can result
in serious personal injury.
Keep the tool clean using a soft damp (not wet) cloth.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to
remove dirt, dust, oil, grease, etc.
To maintain the best performance of your rechargeable battery, protect it from overheating, both
from overcharging and during storage. Charge the battery for 7 hours before the first time use.
9
PARTS LIST
NO DESCRIPTION
1
2
3
4
5
6
7
9
10
11
Left housing
Absorber
Digital gauge
Air pump assembly
Microswitch
Trigger
Spring
8Motor
Torsional spring
Fan
Self-locking switch
NO DESCRIPTION
12
13
15
16
17
18
19
20
21
Right housing
Screw
14 Screw
LED cover
Red wire 1
LED light
Red wire 2
Black wire
Battery clip assembly
Battery Pack

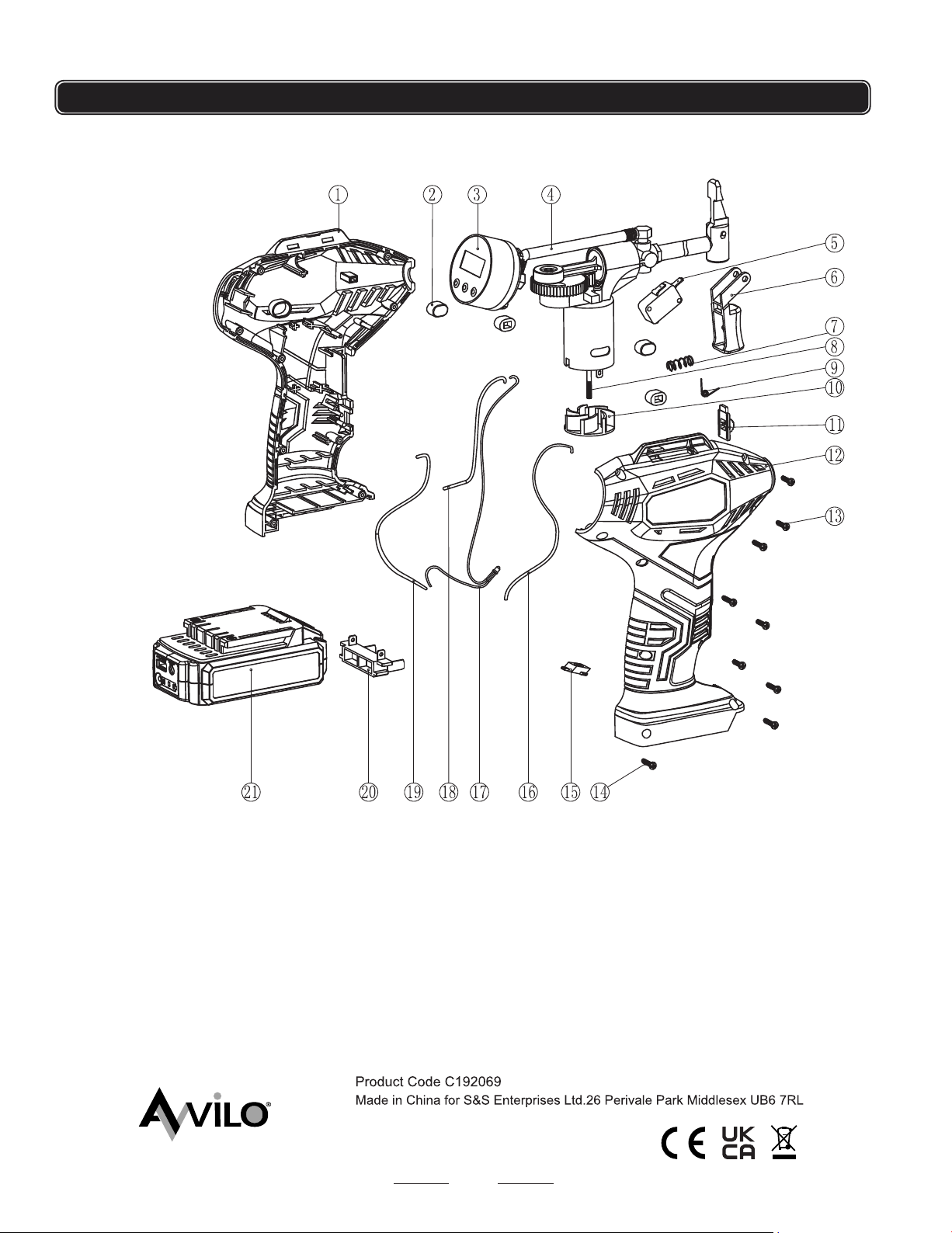

SCHEMATIC DRAWING
10
