Powermatic 50-6" Datasheet

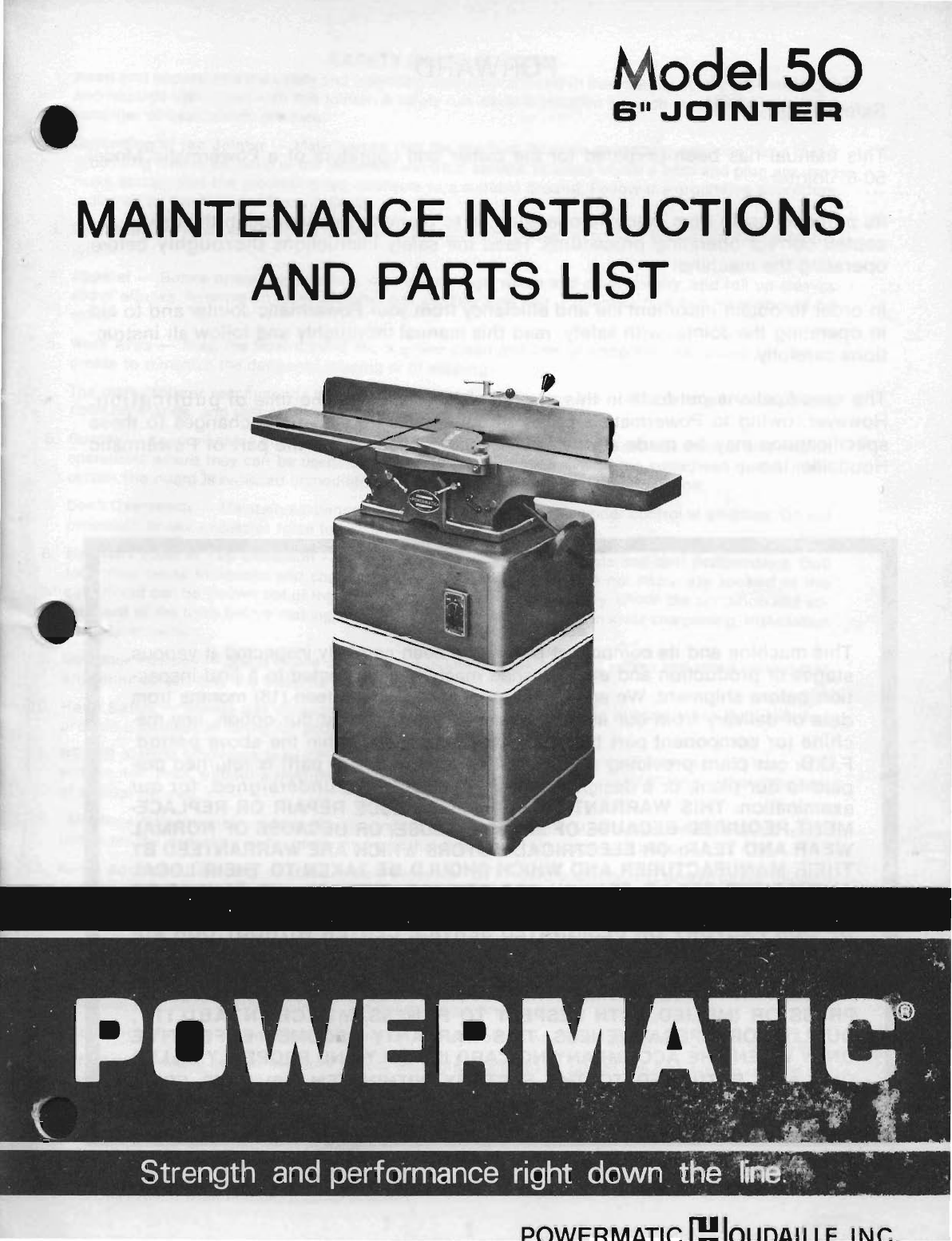

Model 50
BII .JOINTER
MAINTENANCE INSTRUCTIONS
AND PARTS LIST
POWERMATIC r!!IOUDAlllE.INC .

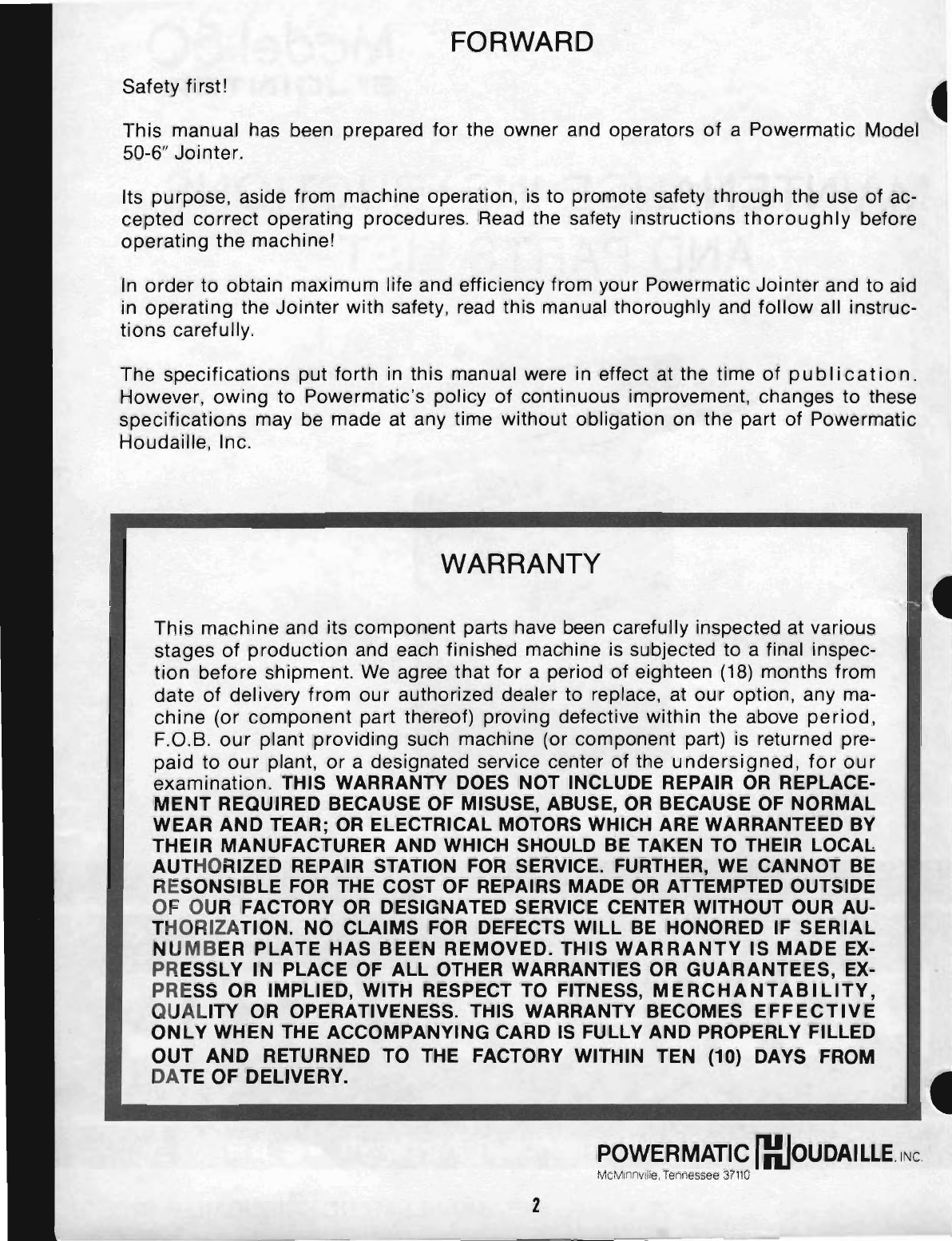

FORWARD
Safety first!
This manual has been prepared for the owner and operators of a Powermatic Model
50-6" Jointer.
Its purpose, aside from machine operation,
is to promote safety through the use of ac-
cepted correct operating procedures. Read the safety instructions
thoroughly before
operating the machine!
In order to obtain maximum life and efficiency from your Powermatic Jointer and to aid
in operating the Jointer with safety, read this manual thoroughly and follow all instruc-
tions carefully.
The specifications put forth
in this manual were in effect at the time of publication.
However, owing to Powermatic's policy of continuous improvement, changes to these
specifications may
be made at any time without obligation on the part of Powermatic
Houdaille, Inc.
WARRANTY
This machine and its component parts have been carefully inspected at various
stages of production and each finished machine is subjected to a final inspec-
tion before shipment. We agree that for a period of eighteen (18) months from
date of delivery from our authorized dealer to replace, at our option, any ma-
chine (or component part thereof) proving defective within the above period,
F.O.B. our plant providing such machine (or component part) is returned pre-
paid to our plant, or a designated service center of the undersigned, for our
examination. THIS WARRANTY DOES NOT INCLUDE REPAIR OR REPLACE-
MENT REQUIRED BECAUSE OF MISUSE, ABUSE, OR BECAUSE OF NORMAL
WEAR AND TEAR;
OR ELECTRICAL MOTORS WHICH ARE WARRANTEED BY
THEIR MANUFACTURER AND WHICH SHOULD BE TAKEN TO THEIR LOCAL
AUTHORIZED REPAIR STATION
FOR SERVICE. FURTHER, WE CANNOT BE
RESONSIBLE FOR THE COST OF REPAIRS MADE OR ATTEMPTED OUTSIDE
OF OUR FACTORY
OR DESIGNATED SERVICE CENTER WITHOUT OUR AU-
THORIZATION. NO CLAIMS FOR DEFECTS WILL
BE HONORED IF SERIAL
NUMBER PLATE HAS BEEN REMOVED. THIS WARRANTY IS MADE EX-
PRESSLY IN PLACE OF ALL OTHER WARRANTIES OR GUARANTEES, EX-
PRESS OR IMPLIED, WITH RESPECT TO FITNESS, MERCHANTABILITY,
QUALITY OR OPERATIVENESS. THIS WARRANTY BECOMES EFFECTIVE
ONLY WHEN THE ACCOMPANYING CARD IS FULLY AND PROPERLY FILLED
OUT AND RETURNED TO THE FACTORY WITHIN TEN (10) DAYS FROM
DATE OF DELIVERY.
POWERMATIC rKJOUDAILLE "N c.
McMinnville , Tennessee 37110
2
4

SAFETY INSTRUCTIONS
1. Read and understand the safety and operating instructions found in this manual. Know the limitatio"ns
and hazards associated
with this jointer . A safety rule decal is installed on each m. achine to serve as a
minder of basic safety practice.
rounding of the Jointer -Make certain that the machine frame is electrically grounded and that a
grounding lead is included in the incoming electrical service. In cases where a cord and plug are used
make
certain that the grounding lug connects to a suitable ground . Follow the grounding procedure
indicated by the National Electric Code.
3. Eye Safety -Wear an approved safety shield, goggles or .glasses to protect eyes when operating the
jointer.
4. Apparel -Before operating machine , remove tie, rings, watch and other jewelry, and roll up sleeves
above
elbows . Remove all loose clothing and confine long hair . Protective type foot wear should be
worn .
5. Work Area -Keep the floor around the machine clean and free of scrap material, sawdust, oil or
grease to minimize the danger of tripping or of slipping.
The
manufacturer recommends the use of anti-skid floor strips on the floor area where the operator
normally stands, and that each machine work area be marked off.
6. Guards -Keep
machine guards in place, make certain they are operable, and use them at all times on
operations where they can be used. On operations requiring removal of the cutterhead guard, make
certain the guard is replaced immediately following the completion of that operation .
7. Don't Overreach -Maintain a balanced stance and keep your body under control at all times . Do not
overreach or use excessive force to perform any operation .
8. Maintain Tools
in Top Condition -Keep tools sharp and clean for safe and best performance . Dull
tools may cause kickbacks and chatter . Broken tools or tools that are not securely locked in the
cutterhead can be thrown out of the jointer causing severe or fatal injury. Check the condition and ad-
ent of the tools before making any cuts. Follow the instructions on knife sharpening, installation
adjustments.
9. Operator Position -Stand to one side and out of line of the cutterhead knives and make certain that
any other person near the machine does the same.
Hand Safety -Always use an approved push block or push stick when jointing stock that does not
provide a distance of safety for your hands.
NEVER surface stock less than 12 " long x 3" wide x 1" thick or edge stock less than 12" long x 3"
wide x 1/4 " thick without a hold down push block . NEVER joint stock under 6" long without the use
of special fixtures .
112. Machine Adjustments -Make all adjustments with the power off. Make certain that the fence is ad-
justed for the operation to be performed and that it is locked for angle and location.
13 . Avoid Accidental Starting -Make certain switch is "OFF" before connecting power to the jointer.
14. Careless Acts -Give the work you are doing and the cutterhead your undivided attention . Looking
around , carrying on a conversation and "horse play" are careless acts that can result in serious injury .
15. Job Completion -If the operator leaves the machine area for any reason the jointer should be turned
"OFF" and the cutterhead should come to a complete stop before his departure. In addition, if the op-
eration is complete clean up the jointer and the work area. NEVER clean the jointer with it "ON" and
never use
the hands to clear sawdust and debris, use a brush.
16. Disconnect Machine - Before performing any service or maintenance and when changing blades.
7. Work Area -
Make certain the work area is well lighted and that a proper exhaust system is used to
minimize dust.
lacement Parts -Use only Powermatic or factory authorized replacement parts and accessories,
rwise, the jointer warranty and guarantee will be null and void.
9. Misuse -Do
not use this Powermatic Jointer for other than its intended use. If used for other pur-
poses, Powermatic disclaims any real or implied warranty and holds itself harmless for any injury
which may result from fhat use. 3

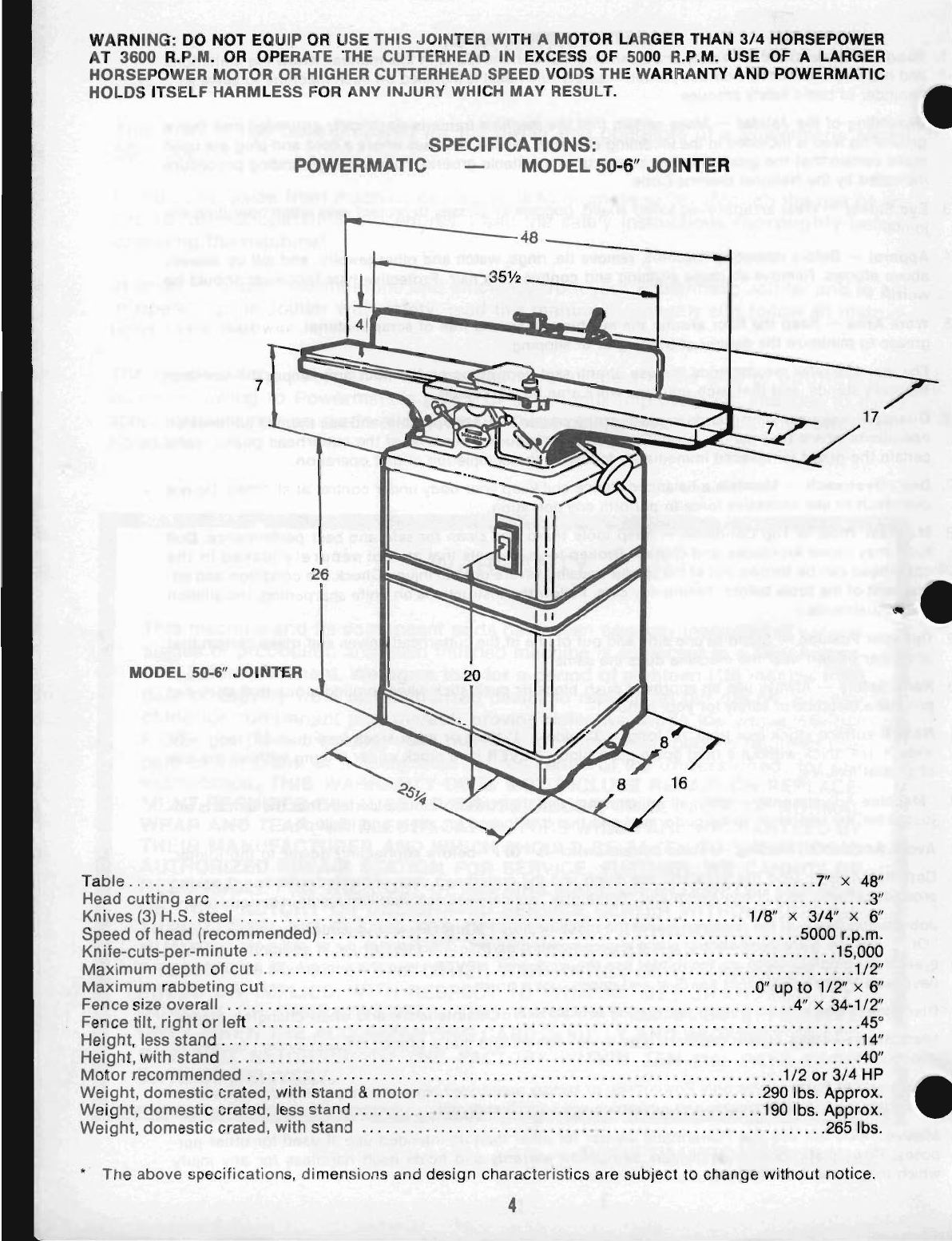

WARNING: DO NOT EQUIP OR USE THIS JOINTER WITH A MOTOR LARGER THAN 3/4 HORSEPOWER
AT 3600 R.P.M. OR OPERATE THE CUTTERHEAD IN EXCESS OF 5000 R.P.M. USE OF A LARGER
HORSEPOWER MOTOR
OR HIGHER CUTTERHEAD SPEED VOIDS THE WARRANTY AND POWERMATIC
HOLDS ITSELF HARMLESS FOR ANY INJURY WHICH
MAY RESULT.
SPECIFICATIONS:
POWERMATIC MODEL 50-6" JOINTER
7
MODEL 50-6" JOINTER
,------48
-----.I
35V2
~----..-..1
Table ....................................................................................... 7" X 48"
Head cutting arc
....................................................................... ............ 3"
Knives
(3) H.S. steel ....................................................... .' ........ 1/8" X 3/4" x 6"
Speed
of head (recommended) ............................................................. 5000 r.p.m.
Knife-cuts-per-minute
......................................................... .... ......... .... 15,000
Maximum depth
of cut .................................................. .. .......... ............ . 1/2"
Maximum rabbeting cut .... . ..... .. ............................... . ................... 0" up to 1/2" X 6"
Fence size overall
............................... . ....................................... .4" X 34-1/2"
Fence tilt, right or left ................................................................ .... . ....... .45°
Height, less stand ..
............ . ........ .. ........................................................ 14"
Height, with stand
..................................................................... . .......... 40"
Motor recommended ................................ ... ................................ . 1/2 or 314 HP
Weight, domestic crated, with stand & motor . .......................................... 290 Ibs. Approx.
Weight, domestic crated, less stand
...................................................• 190 Ibs. Approx.
Weight,
domestic crated, with stand ......................................................... .. 265Ibs.
• The above specifications, dimensions and design characteristics are subject to change without notice.
4

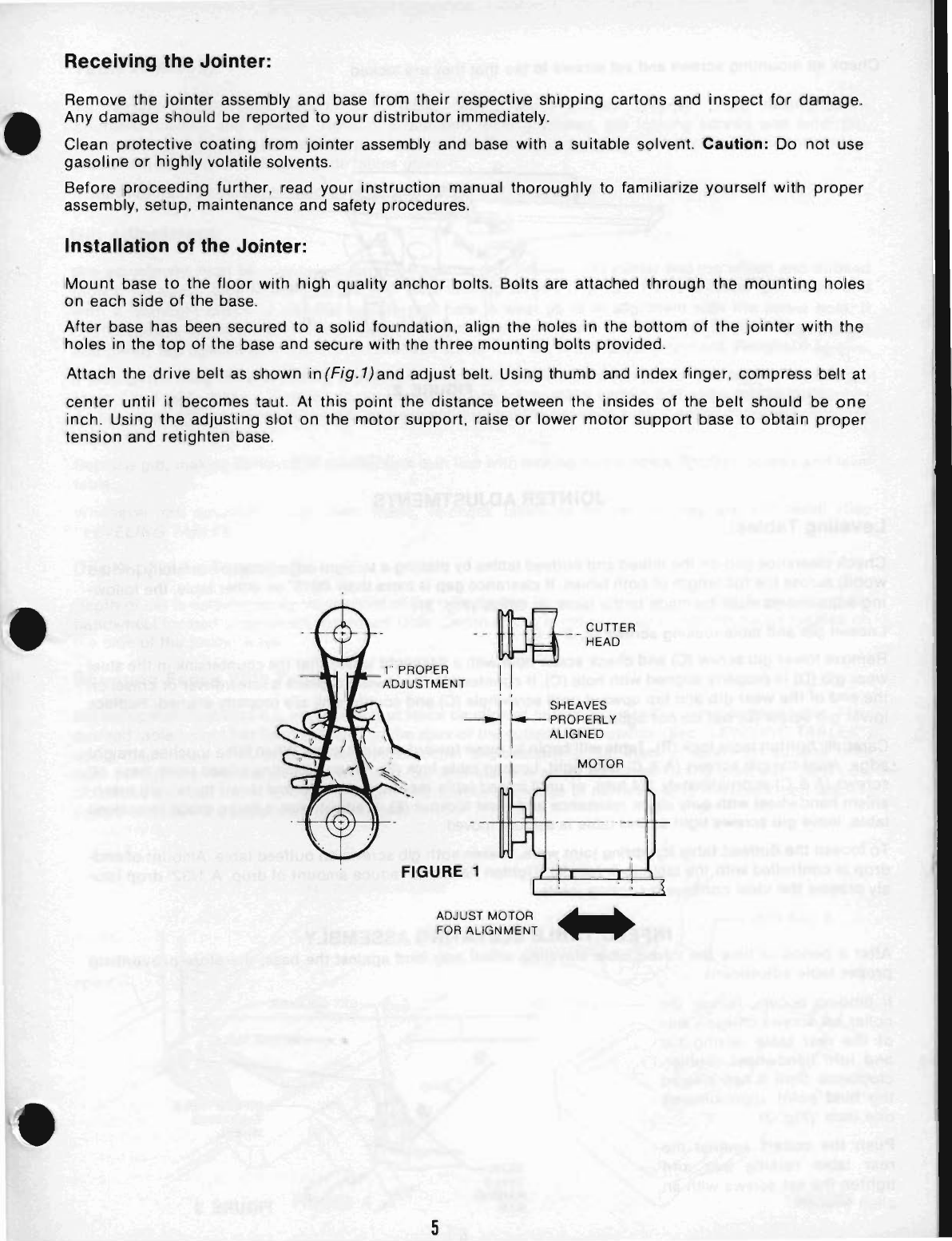

Receiving the Jointer:
Remove the jointer assembly and base from their respective shipping cartons . ~nd inspect for damage .
Any damage should be reported to your distributor immediately.
Clean
protective coating from jointer assembly and base with a suitable solvent. Caution: Do not use
gasoline or highly volatile solvents.
Before proceeding further , read your instruction manual thoroughly to familiarize yourself with proper
assembly, setup , maintenance and safety procedures.
Installation of the Jointer:
Mount base to the floor with high quality anchor bolts. Bolts are attached through the mounting holes
on each side of the base.
After base has been secured to a solid foundation, align the holes in the bottom of the jointer with the
holes in the top of the base and secure with the three mounting bolts provided.
Attach the drive belt as shown in (Fig. 1) and adjust belt. Using thumb and index finger, compress belt at
center until it becomes taut. At this point the distance between the insides of the belt should be one
inch. Using the adjusting slot on the motor support, raise or lower motor support base to obtain proper
tension and retighten base.
_ _ ~ __ CUTTER
~ HEAD
II
---l
r-
SHEAVES
PROPERLY
ALIGNED
II MOTOR
. -- - I--
FIGURE 1 I
ADJU ST MOT OR
FOR ALIGNMENT
5
...

Check all mounting screws and set screws to see that they are locked.
FIGURE 2
JOINTER ADJUSTMENTS
Leveling Tables:
Check clearance gap on the infeed and outfeed tables by placing a straight edge (steel or carefully jointed
wood) across the full length of both tables. If clearance gap is more than .0015" on either table, the follow-
ing adjustments must be made to the table, or tables (Fig. 2).
Loosen gib and table locking screws (A, B & C).
Remove lower gib screw (C) and check screw hole with a flashlight to see that the countersink in the steel
wear gib (D) is properly aligned with hole (C). If countersink is not visible, place a screwdriver or chisel on
the end of the wear gib and tap upward until screwhole (C) and countersink are properly aligned. Replace
lower gib screw (C) but do not tighten.
Carefully
tighten table lock (8). Table will begin to move toward straight edge. When table touches straight
edge, reset
the gib screws (A & C) until tight. Loosen table lock (8). When adjusting infeed table, back off
screws (A & C) approximately 1/4 turn, or until infeed table may be moved up and down by raising mech-
anism handwheel with only slight resistance and reset locknut (E). If adjustment is being made to outfeed
table, leave
gib screws tight as this table is seldom moved.
To loosen
the outfeed table for spring joint work, loosen both gib screws on outfeed table. Amount of end-
drop is controlled with the table lock handle. Tighten handle to reduce amount of drop . A 1/32" drop usu-
aly creates
the ideal concave for spring joints.
INFEED TABLE ELEVATING ASSEMBLY
After a period of time the infeed table elevating wheel may bind against the base, therefore preventing
proper table adjustment.
If
binding occurs, loosen the
collar set screws on each side
of the rear table raising bar
'and
turn handwheel. counter-
clockwise until it has cleared
the
bind point approximately
one inch (Fig. 3) .
Push the collars against the
rear table
raising bar and
tighten the set screws with an
allen wrench.
REAR --/'---"...
TABLE
RAISING
BAR
6
SET COLLARS
-INFEED TABLE
...... ~~~ INFEED TABLE
ELEVATING
WHEEL
FIGURE 3

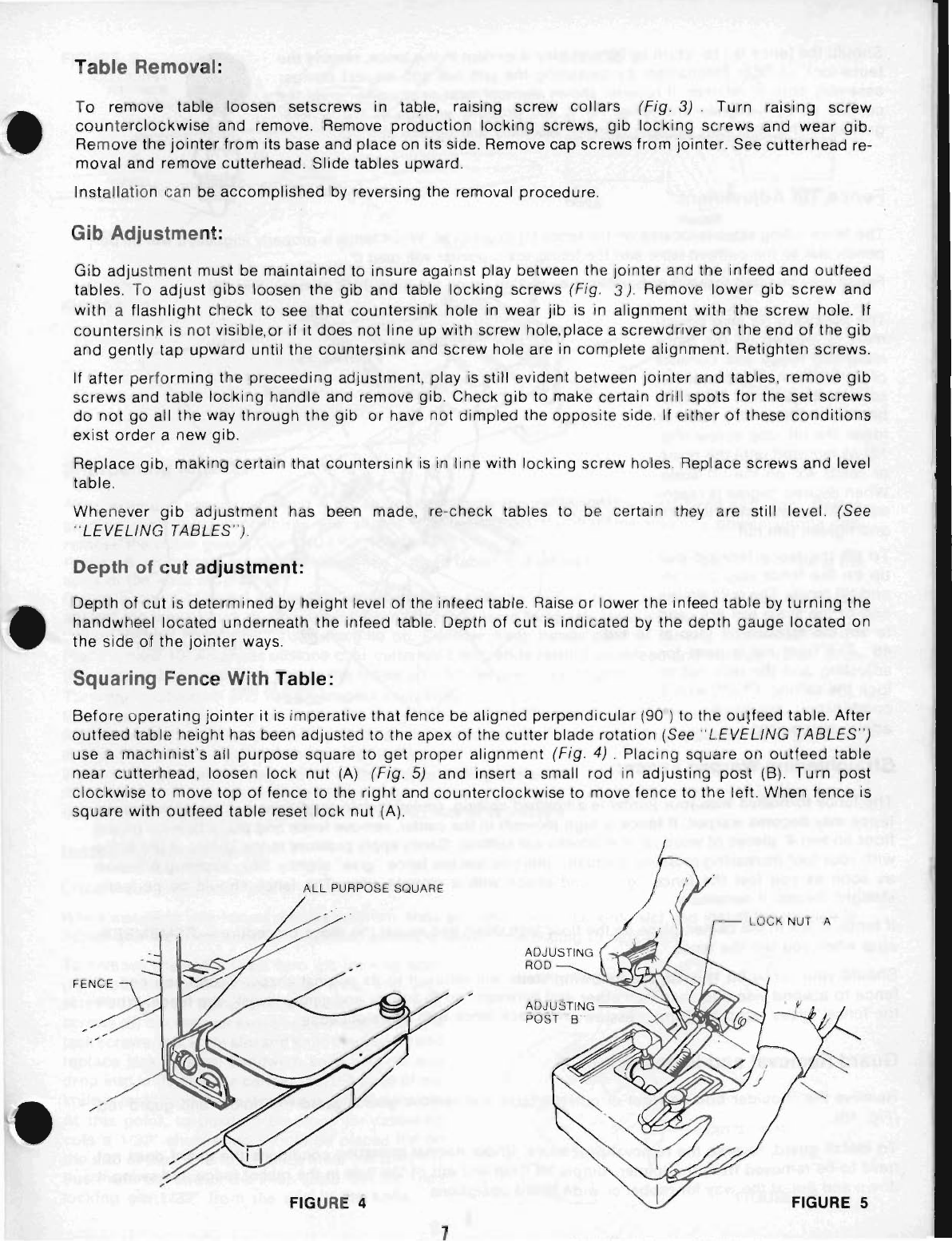

Table Removal:
To remove table loosen setscrews in taqle, raising screw collars (Fig. 3) . Turn raising screw
counterclockwise and remove. Remove production locking screws, gib locking screws and wear gib.
Remove the jointer from its base and place on its side. Remove cap screws from jointer. See cutterhead re-
moval and remove cutterhead. Slide tables upward.
Installation can be accomplished by reversing the removal procedure .
Gib Adjustment:
Gib adjustment must be maintained to insure against play between the jointer and the infeed and outfeed
tables . To adjust gibs loosen the gib and table locking screws (Fig. 3) . Remove lower gib screw and
with a flashlight check to see that countersink hole in wear jib is in alignment with the screw hole. If
countersink is not visible, or if it does not line up with screw hole,place a screwdriver on the end of the gib
and gently tap upward until the countersink and screw hole are in complete alignment. Retighten screws .
If
after performing the preceeding adjustment, play is still evident between jointer and tables, remove gib
screws and table locking handle and remove gib. Check gib to make certain drill spots for the set screws
do not go all the way through the gib or have not dimpled the opposite side. If either of these conditions
exist order a new gib .
Replace gib , making certain that countersink is in line with locking screw holes. Replace screws and level
table .
Whenever gib adjustment has been made, re-check tables to be certain they are still level. (See
" LEVELING TABLES" ).
Depth of cut adjustment:
Depth of cut is determined by height level of the infeed table. Raise or lower the infeed table by turning the
handwheel located underneath the infeed table. Depth of cut is indicated by the depth gauge located on
the side of the jointer ways.
Squaring Fence With Table:
Before operating jointer it is imperative that fence be aligned perpendicular (90°) to the outfeed table . After
outfeed table height has been adjusted to the apex of the cutter blade rotation (See " LEVELING TABLES")
use a machinist's all purpose square to get proper alignment (Fig . 4) . Placing square on ouUeed table
near cutterhead, loosen lock nut (A) (Fig . 5) and insert a small rod in adjusting post (B). Turn post
clockwise to move top of fence to the right and counterclockwise to move fence to the left . When fence is
square with outfeed table reset lock nut (A).
ALL PURPOSE SQUARE
LOCK NUT · A
FIGURE 4 FIGURE 5
7

Should the fence fail to return to 90 °and play is evident in the fence, remove the
fence - lock plunger mechanism by loosening the jam nut and inspect plunger
assembly conical retainer. If retainer shows signs of wear or scarring, grind the
conical portion slightly until (Fig. 14) it will properly engage in the annular
groove in the stop rod. Replace plunger assembly and tighten jam nut.
Fence Tilt Adjustment: FIGURE
14
GRIND
SLIGHTLY
The fence tilting scale is located on the fence tilt degree rod. When fence is properly aligned, it will be per-
pendicular to the outfeed table and the tilting scale pointer will read 0°
Fence may be tilted
forward or backward by pulling up on the fence-lock plunger (Fig. 15)
The backward tilt stop adjust-
ment is located on the fence
mounting hinge and consists
of a 5/16 " x 1" squarehead
screw with jam nut. To adjust
backward tilt to 45°, raise or
lower the tilt stop screw (Fig.
15) as required until the point-
er reads 45° on the tilt scale.
When desired degree is reach-
ed
hold screw with wrench
and tighten jam nut .
To tilt the fence forward pull
up on th~ fence stop plunger
and tilt fence. The nuts on the
end of the scale rod are used
to set the forward tilt stop at
45°. The front nut is used for
adjusting and the rear nut to
lock the setting . Check with a.
combination square and re -
adjust as required .
FENCE STOP
PLUNGER----~~~~!r~
ADJUSTMENT
NUT
LOCK NUT
Straightening Warped Fence:
FIGURE 15
BACKWARD TILT FENCE
STOP ADJUSTMENT
The fence furnished with your jointer is a finished casting. Under certain conditions it is possible that the
fence may become warped. If fence is high (bowed) in the center, remove fence and place face up on the
floor on two 4" pieces of wood (2" x 4" blocks will suffice). Gently apply pressure to the center of the fence
with your foot increasing pressure gradually until you feel the fence "give" slightly . Stop applying pressure
as soon as you feel the fence "give" and check with a straight edge. The fence should be perfectly
straight. Repeat if necessary.
If fence is low in the center , place on the floor face down and repeat the above procedure -REMEMBER,
stop when you feel the fence "give"
Should your fence be twisted, the following steps will return it to its original shape. Clamp one end of
fence to a wood vise and sandwich other end between two 2" boards and gently " twist " the fence. When
the fence "gives" stop applying pressure and check fence with a straight edge.
Guard Removal and Installation:
Remove the shoulder bolt on front of outfeed table and remove guard, guard rod holder and guard rod
(Fig.
16).
To install guard , reverse the removal procedure . Under normal operating conditions the guard does not
have to be removed from the jointer , simply lift it up and out of the hole in the rabbet ledge and swing it
down and out of the way for rabbet or wide board operations.
8

FIGURE 8
ROD
H
OL DER
WA S HER ----'
SHOULDER
BOLT
FIGURE 10

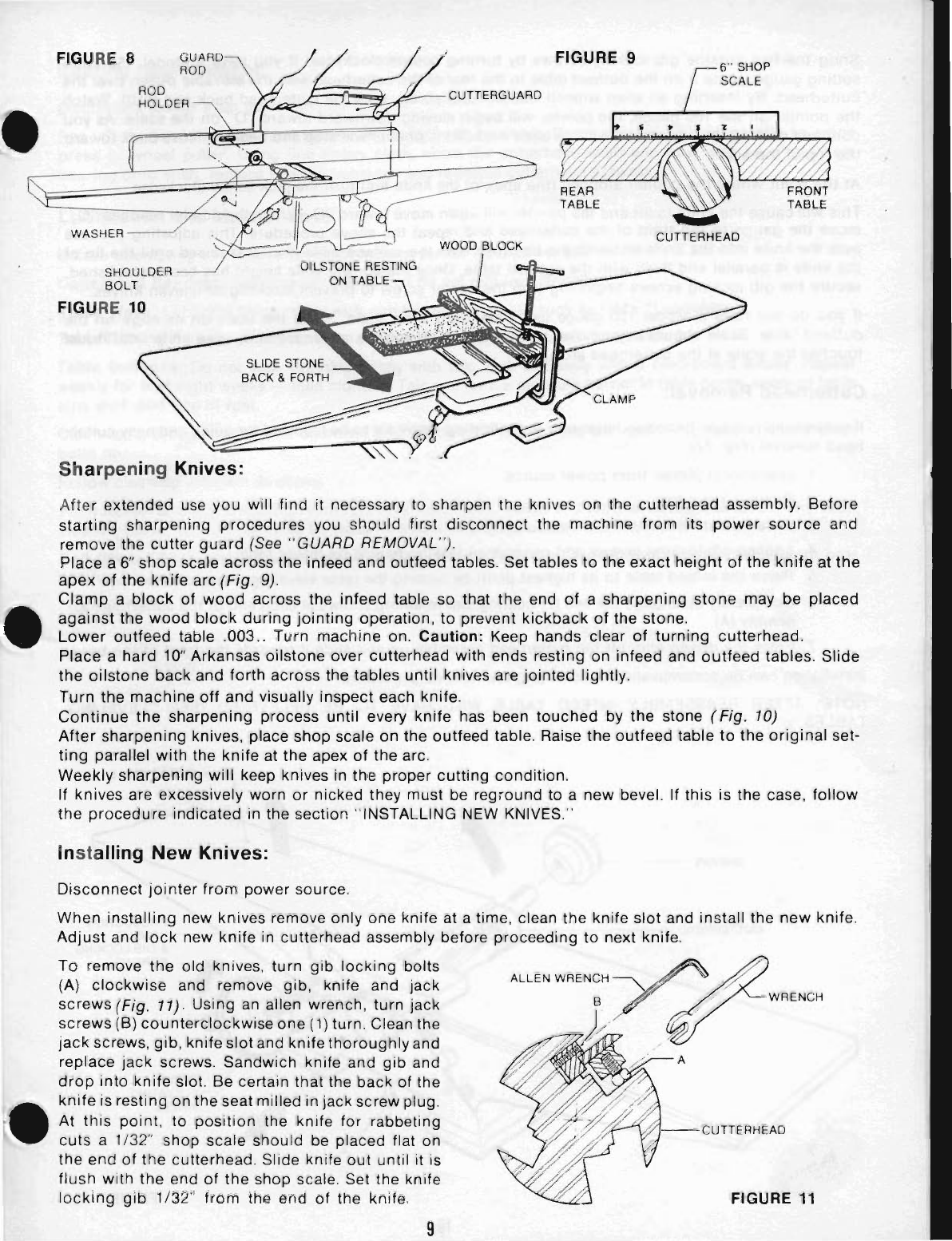

Sharpening Knives:
FIGURE 9
~./-=--:J.r::~~F -- CUTTERGUARD
.......
CUTTERHEAD
After extended use you will find it necessary to sharpen the knives on the cutterhead assembly. Before
starting sharpening procedures you should first disconnect the machine from its power source and
remove the cutter
guard (See "GUARD REMOVAL").
Place a 6" shop scale across the infeed and outfeed tables. Set tables to the exact height of the knife at the
apex of the knife arc (Fig. 9).
Clamp a block of wood across the infeed table so that the end of a sharpening stone may be placed
against the wood block during jointing operation, to prevent kickback of the stone.
Lower outfeed table .003.. Turn machine on. Caution: Keep hands clear of turning cutterhead.
Place a hard
10 " Arkansas oilstone over cutterhead with ends resting on infeed and outfeed tables . Slide
the
oilstone back and forth across the tables until knives are jointed lightly .
Turn the machine off and visually inspect each knife.
Continue the sharpening process until every knife has been touched by the stone (Fig . 10)
After sharpening knives, place shop scale on the outfeed table. Raise the outfeed table to the original set-
ting parallel with the knife at the apex of the arc.
Weekly sharpening will keep knives in
the proper cutting condition .
If knives are excessively worn
or nicked they rTlust be reground to a new bevel. If this is the case, follow
the procedure indicated in the section "INSTALLING NEW KNIVES ."
Installing New Knives:
Disconnect jointer from power source.
When
installing new knives remove only one knife at a time, clean the knife slot and install the new knife.
Adjust and lock new knife in cutterhead assembly before proceeding to next knife.
To remove
the old knives, turn gib locking bolts
(A) clockwise and remove gib , knife and jack
screws (Fig. 11) .
Us ing an allen wrench, turn jack
screws (B)
counterclockwise one (1) turn. Clean the
jack screws, gib, knife slotand knife thoroughly and
replace
jack screws. Sandwich knife and gib and
drop into knife slot. Be certain that the back of the
knife is resting on the seat milled in jack screw plug.
At
this point . to position the knife for rabbeting
cuts a 1/32 " shop scale should be placed flat on
the end
of the cutterhead. Slide knife out until it is
flush with the end
of the shop scale. Set the knife
locking gib 1/ 32 " from the end of the knife.
9
ALLEN WRENCH~~r
B / A WRENCH
~ . / ~ .
A
FIGURE 11

Snug the two outside gib locking screws by turning counterclockwise. If you have a Model 150 knife
setting gauge, place it on the outfeed table to the rear of the cutterhead with the movable platen over the
cutterhead . By inserting an allen wrench into the jack screw, rock the cutterhead back and forth. Watch
the pointer on the 150 gauge, the pointer will begin moving downward toward "0" on the scale. As you
continue rocking the cutterhead with an allen wrench the pointer will stop and begin to move back toward
the top of the scale.
At the point where the pointer stopped (the apex of the knife arc) turn the jack screw clockwise.
This will cause the knife to lift and the pointer will again move toward "0 ." When the pointer reaches "0,"
move the gauge to the front of the cutterhead and repeat the above procedure. This adjusting process
puts the knife into the knife slot with the tip lower than the outfeed table. then it is raised until the tip of
the knife is parallal and flush with the outfeed table . Once the correct knife height has been established,
secure the gib locking screws beginning with the center screw to prevent buckling or uneven knives.
If you do not have a Model 150 gauge use a standard shop scale. Stand the scale on its edge on the
outfeed table . Scale should extend over the cutterhead. Using the above method. raise knife until it just
touches the scale at the cutterhead arc apex.
Cutterhead Removal:
If cutterhead removal becomes necessary the following steps are to be followed for quick and easy cutter-
head removal (Fig. 12).
1.
Disconnect jointer from power source .
2. Remove drive belt.
3.
Loosen and remove the cutterhead sheave.
4.
Loosen gib locking screws and production locking handle on infeed table.
5. Raise the
infeed table to its highest point by turning the table elevating wheel clockwise .
~ . Completely disengage the two (2) bearing cap retaining screws at each end of the cutterhead as-
sembly (A) .
1. From the driven end. lift the cutterhead assf!mbly up and slide it towards the front of the base.
Installation can be accomplished by reversing the removal procedure.
NOTE: AFTER REASSEMBLY INFEED TABLE WILL HAVE
TO BE RELEVELED (SEE "LEVELING
TABLES "),
SHEAVE-----@
CUTTERHEAD --------T
,
10
PRODUCTION
r---'~-- HANDLE
"
& GIS LOCKING
SCREWS
FIGURE 12

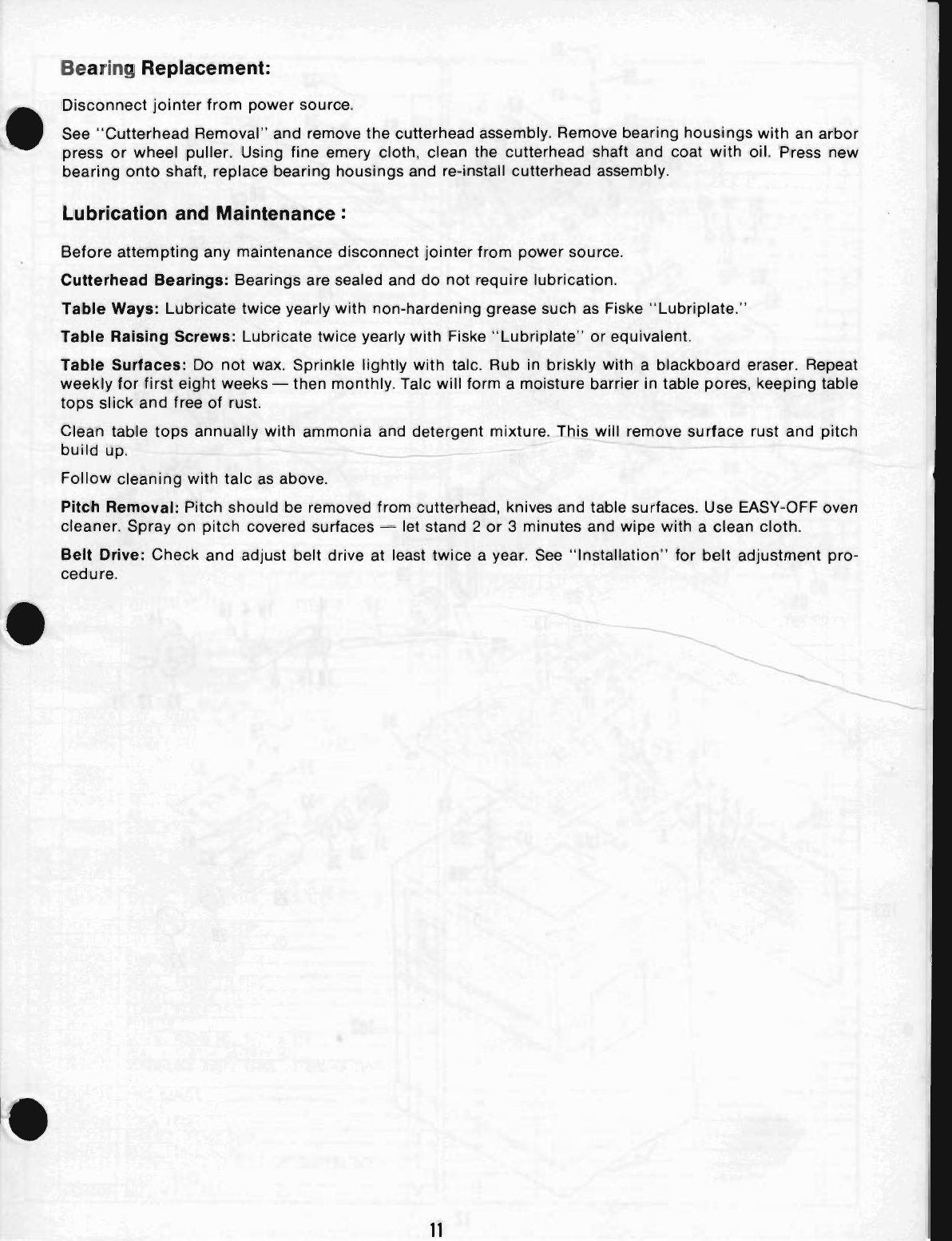

Bearing Replacement:
Disconnect jointer from power source.
See "Cutterhead Removal" and remove the cutterhead assembly. Remove bearing housings
with an arbor
press or wheel puller. Using fine emery cloth, clean the cutterhead shaft and coat with oil. Press new
bearing
onto shaft, replace bearing housings and re-install cutterhead assembly.
Lubrication and Maintenance:
Before attempting any maintenance disconnect jointer from power source.
Cutterhead Bearings: Bearings are sealed and do not require lubrication.
Table Ways: Lubricate twice yearly with non-hardening grease such as Fiske "Lubriplate."
Table Raising Screws: Lubricate twice yearly with Fiske "Lubriplate " or equivalent.
Table Surfaces: Do not wax. Sprinkle lightly with talc. Rub in briskly with a blackboard eraser. Repeat
weekly for first eight weeks -then monthly . Talc will form a moisture barrier in table pores, keeping table
tops slick and free of rust.
Clean table
tops annually with ammonia and detergent mixture. T
build up.
Follow cleaning with talc as above.
Pitch Removal: Pitch should be removed from cutterhead, knives and table surfaces. Use EASY-OFF oven
cleaner . Spray on pitch covered surfaces -let stand 2 or 3 minutes and wipe with a clean cloth.
Belt Drive: Check and adjust belt drive at least twice a year. See " Installation" for belt adjustment pro-
cedure.
11

,..,...........33
61 ~ ,
\ ,34
, 59
83
23
. ~: 17 4
IOIl!""". , i ~19 4 18
1} -"J 74
. 1819 6 --- ~
78 73 72 71
17(\
~ T /' 82
32 T~~
.J,~>
. 93
81
~ ...... '-ff."""
29
-"- r?)
28 Y
27
12

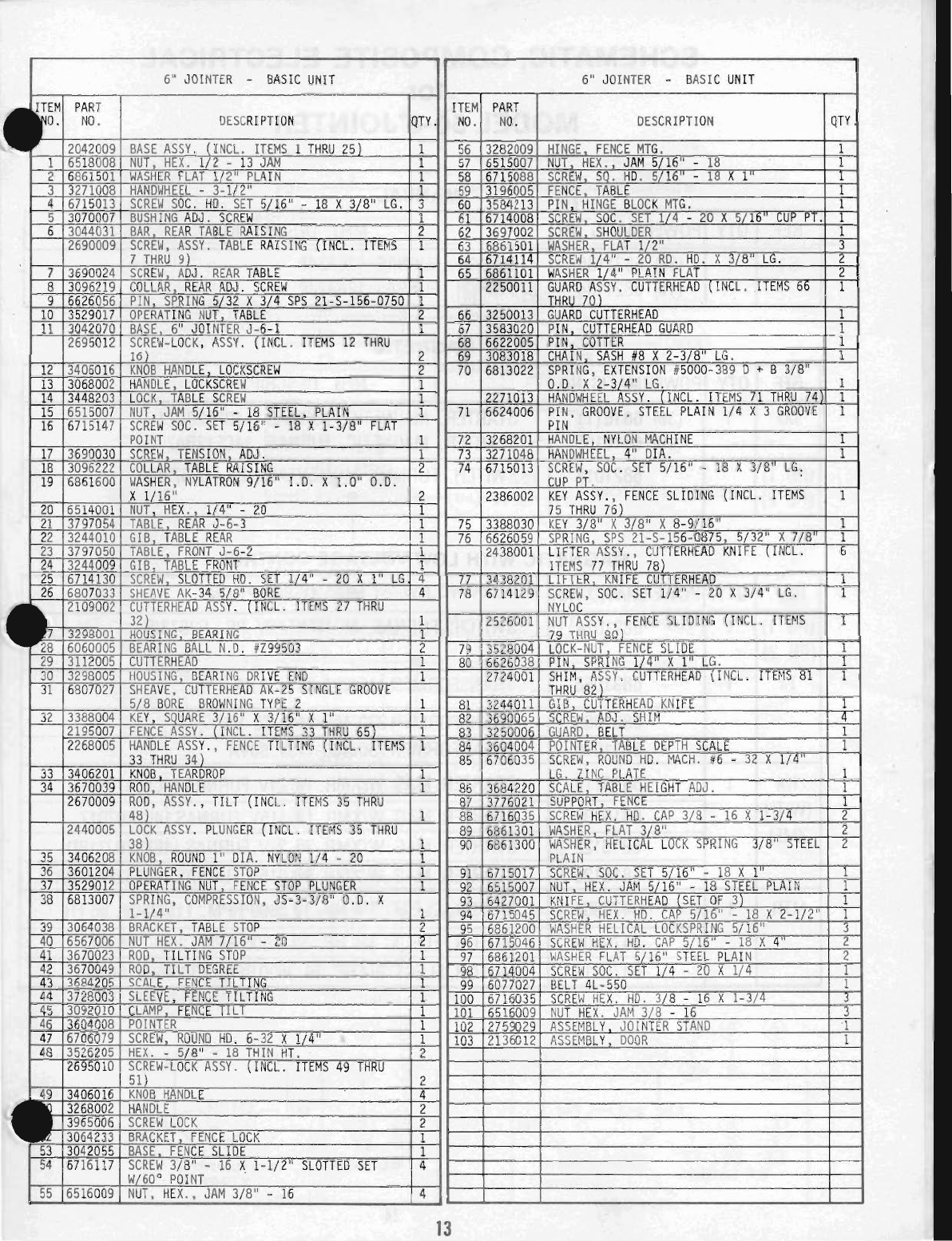

6" JOINTER - BASIC UNIT
_'
PART
NO. DESCRIPTION
2042009 BASE ASSY (INCL ITEMS 1 THRU 25)
16518008 NUT HEX 1/2 - 13 JAM
2 1686150 WASHER FI.AT 1/2 PLAIN
3 3271008 HANDWH :EI - 3-1/2"
4 .6715013 SCREW ;OC HD . SET 5/16" -18 X 3/8" LG
_5 3070007 BUSH N( ADJ SCREW 1
6
3044031 BAR RI:AR TABLE RAISING 2
2690009 ;C~~~U ~~SY TABLE RAISING~ ITEMS 1
7
3690024 SCREW ADJ REAR TABLE
8 3096219 COLLAR REAR ADJ SCREW
9 5626056 P:N SPRING 5/3: X 3/4 SPS 21-S-156-0 '50
10 3529017 OPERAT :NG NUT rABU
11 3042070 BASE 6" JOINTEI J:6-.1
~695012 i~~EW-LOCK, ASS' 1INCL lTIMS12THRlf 2
12 3406016 KNOB HANOI .OCKSCREW
2
13 3068002 HANDLE U :K~ :REW
1
1~3448203 LOCK TAB I :REW
1
15 6515007 NUT JAM 'If - 18 STEEL PLAIN
16 6715147 ~6~~~ SOC SET 5/16" - 18 xT=-378" FCAT 1
17 3690030 SCREW TENSION ADJ 1
18 3096222 CC_LAR TABLE RlITsTNG 2
19 ' 6861600WA~~i~ NYLATRON 9/16" 1.0 X 1.0" O.U
2
~a I ti5UOO Nt HE 1/4" - 20
1
179705
1
3LE ~R J-6-3
1
121 fA REAR
17 3LE JNT J- )-2 1
121 rA FRON
;7 SC REW ITTED 0 SET 1/4' - 20 X 1" LG 4
16 16807033 SHEAVE AK-34 5/ t"-BORE 4
~
_ 2109002 CU1TERHEAD ASSY (INCL ITEMS 27 THRU 1
'7 98 )U~ :ARI NG 1
060 :AF B.L N 0 #Z99503 2
29 l2 IT rlEA 1
30 9810! H)U~ :; :ARING DRIVE END 1
31 6807027 ~~~A~6RECU~~6~~i~~ ~~p~52SINGLE GROOVE 1
32 3388004 KEY, SQUARE 3/16" X 3/16" X 1" 1
2J95007 FENCE ASSY (INCL ITEMS 33 THRU 65) 1
2268005 ~AN~~~I A~~i" FENCE TILTTNG \TNCL ITEMS 1
33 340620 K JBEARDROP 1
34 3670039 R 0 H!INDLE 1
12670009 :8~ A~;SY., TILT (INCL ITEMSj5~ 1
12440005 ~~CK ASSY PLUNGER {I NCL Tl'EMS35 I HRU 1
ROUN 1" 0 A NYLON 1/4 - 20 1
~GER F :NCE S' OP 1
~A"ING JUT F NCE STOP PLUNGER 1
161 1-1;~~ CO IPRESS ON JS-3-3/8" 0,0 X 1
39 13064038 BRACKE' TABLE STOP 2
40 16567006 NL HEX JAM 7/16" - 20 ~
41 3670023 ROD TlL TING STOP 1
42 13670049 ROO TILT DEGREE 1
43 3684205 SCALE FENCE TILING 1
44 3728003 Sl.EEVE FENCE TI .T I NG
45 .30920 LAMP FENCE TI L
_46 .3604001 PC: NTER
47670607' SCREW ROUND-TiD. 6-32 X 1/4"
48 3526205 H! - 5/8" - 18 THIN HT
2695010 ~11 ;>W. ')rJ( ASSY (INCL ITEMS 49 THRU
2
\
•
34060:.6 KNOB HANDLE
3268002 HANDLE
, 3965006 SCREW LOCK
3064233 BRACKE' FENCE LOCK
4
2
53 3042055 BASE FENCE SLIDE
54 6716117 ~7~6~ ~~~~T 16 X 1·1/2" SLOTTED SET
4
55 16516009 NU', HEX , JAM 3/8' 16
4
13
ITEM PART
NO. NO.
56 3282009
57 6515007
58 6715088
59 3196005
60 3584213
61 6714008
62 3697002
63 6861501
64 6714114
65 6861101
2250011
66 3250013
67 3583020
68 6622005
69 3083018
70 6813022
2271013
71 6624006
72 3268201
73 3271048
74 6715013
2386002
75 3388030
76 6626059
2438001
77 3438201
78 6714129
2526001
79 3528004
80 6626038
2724001
81 3244011
82 3690065
83 3250006
84 3604004
85 6706035
86 3684220
87 3776021
88 6716035
89 6861301
90 6861300
91 6715017
92 6515007
93 6427001
94 6715045
95 6861200
96 6715046
97 6861201
98 6714004
99 6077027
100 6716035
101 6516009
102 2759029
103 2136012
6" JOINTER - BASIC UNIT
OESCR I PTI ON QTY
HINGE FENCE MTG. 1
NUT HEX. JAM 5/16" - 18 1
SCREW 50-. HO. 5110" - 18 XII
FENCE TABLE 1
PIN HINGE BLOCK MTG. 1
SCREW SOC. SET 1/4 - 20 X 5/16 CUP PI. 1
SCREW SHOULDER 1
WASHER FLAT 1/2" 3
SCREW 1/4' - 20 RD. HD. X 37B' L~. 2
WASHER 1/4" PLAIN FLAT 2
~~~~D 7~~SY, CUTTERHEAD\ I NCL. 1TEMS 66 1
GUARD CUTTERHEAD
PIN CUTTERHEAO GUARD
PIN COTTER
CHAIN SASH #8 X 2-3/8 LG.
SPRING, E~~E~SION #5000-389 0 + B 3/8"
0.0. X 2-3/4 LG .
HANDWHEEL ASSY. (INCL. ITEMS 71 THRU 74
PIN, GROOVE, STEEL PLAIN 1/4 X 3 GROOVE
PIN
HANDLE NYLON MACHINE
HANDWHEEl, 4" DIA.
SCREW, SOC. SET 5/16" - 18 X 3/SIT LG.
CUP PT. '
KEY ASSY. '.,FENCE SLIDING (INCL. ITEMS
75 THRU 761
KEY 3/8" X 3/8" X 8-9/16'
SPRING SPS 21-5-156-0875 5/32 X 7/8
LIFTER ASSY., C~rrERHEAD KNIFE (INCL.
ITEMS 77 THRU 78)
LIFTER KNIFE CUTTERHEAD
SCREW, SOC. SET 1/4" - 20 X 3/4" LG.
NYLOC
NUT ASSY",,FENCE SLIDING (INCL. ITEMS
79 THRU 80)
LOCK-NUT FENCE SLIDE
PIN SPRING 1/4" X l' LG.
SHIM, ASSY. CUTTERHEAD (INCL. IW'S 81
THRU 82)
GIB CUTTERHEAD KNIFE
SCREW ADJ. SHIM
GUARD BELT
POINTER TABLE DEPTH SCALE
SCREW, ROUND HD. MACH. #6 - 32 X 1/4'
LG, ZINC PLATE
SCALE TABLE HEIGHT ADJ.
SUPPORT FENCE
SCREW HEX. HD. CAP 3/8 - 16 X 1-3/4
WASHER FLAT 3/8"
WASHER, HELICAL LOCK SPRING 3/8" STEEL
PLAIN
SCREW SOC. SET 5/16" - 18 X lor
NUT HEX. JAM 5/16" - 18 STEEL PLAIN
KNIFE CUTTERHEAD (SET OF 3)
SCREW HEX. HD. CAP 5/16" - 18 X 2-1/2 '
WASHER HELICAL LOCKSPRING 5/16"
SCREW HEX. HD. CAP 5/16" - 18 X 4"
WASHER FLAT 5/16" STEEL PLAIN
SCREW SOC. SET 1/4 - 20 X 1/4
BELT 4L-550
SCREW HEX. HD. 3/8 - 16 X 1-31"f
NUT HEX. JAM 3/8 - 16
ASSEMBLY JOINTER STAND
ASSEMBLY DOOR
1
6
J
4
2
2
2
1
2
3
3
1

REF.
QTY.
S1 1
REF.
QTY.
M1 1
(PB 1)
(PB 2)
REF.
QTY.
(PB 1)
1
(PB 2)
T1 1
1M
1
(WITH
XMF)
MTR . 1

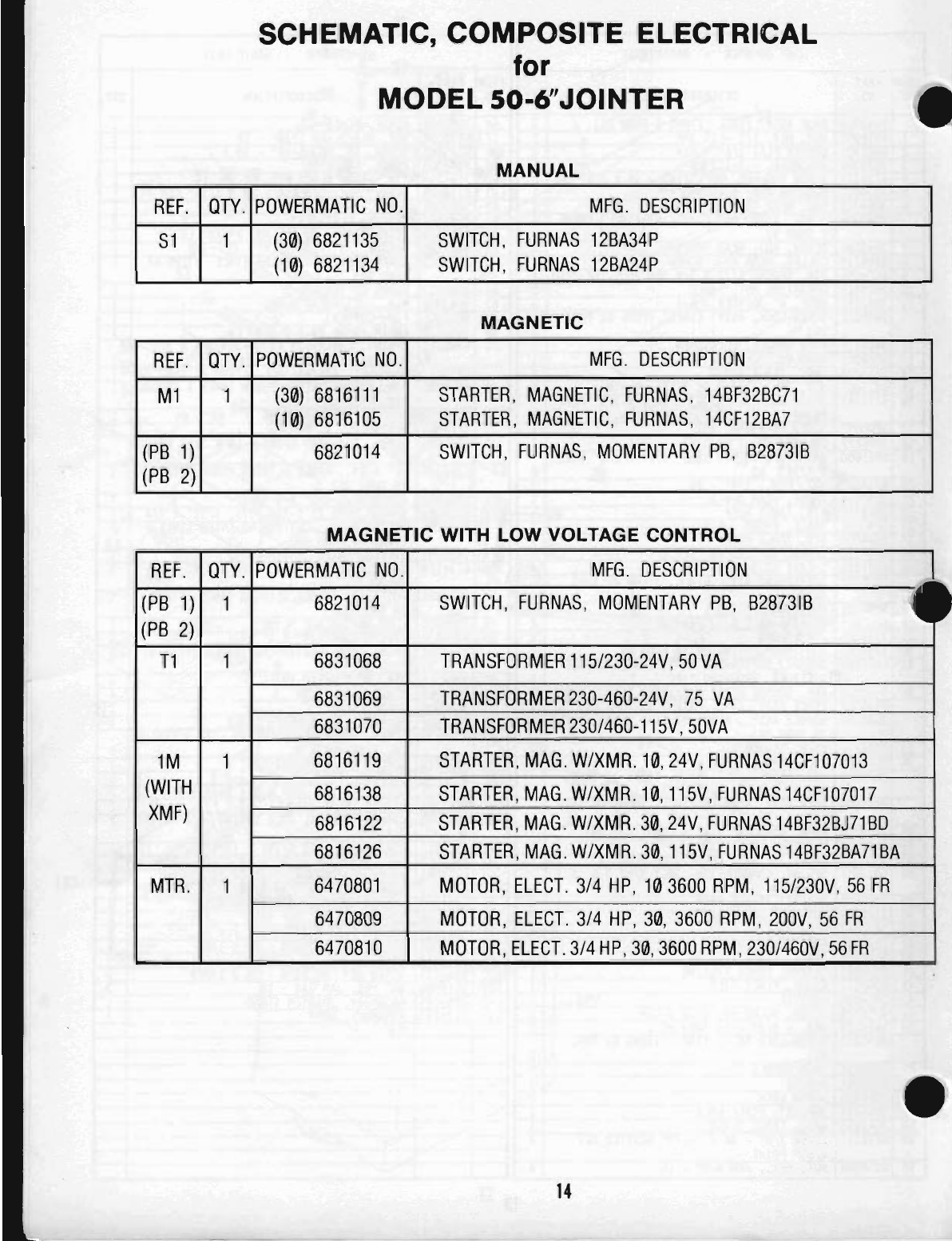

SCHEMATIC, COMPOSITE ELECTRICAL
for
MODEL 50-6"JOINTER
MANUAL
POWERMATIC NO.
MFG. DESCRIPTION
(30) 6821135
SWITCH, FURNAS 12BA34P
(10) 6821134 SWITCH, FURNAS 12BA24P
MAGNETIC
POWERMATIC NO.
MFG. DESCRIPTION
(30) 6816111 STARTER, MAGNETIC, FURNAS, 14BF32BC71
(10) 6816105 STARTER, MAGNETIC, FURNAS , 14CF12BA7
6821014 SWITCH, FURNAS, MOMENTARY PB, B28731B
MAGNETIC WITH LOW VOLTAGE CONTROL
POWERMATIC NO.
MFG. DESCRIPTION
6821014 SWITCH, FURNAS , MOMENTARY PB, B28731B
6831068
TRANSFORMER 115/230-24V, 50 VA
6831069
TRANSFORMER 230-460-24V, 75 VA
6831070 TRANSFORMER 230/460-115V, 50VA
6816119 STARTER, MAG. W/XMR. 10, 24V, FURNAS 14CF107013
6816138
STARTER, MAG. W/XMR. 10, 115V, FURNAS 14CF107017
6816122
STARTER, MAG . W/XMR. 30, 24V, FURNAS 14BF32BJ71BD
6816126 STARTER, MAG. W/XMR. 30, 115V, FURNAS 14BF32BA71BA
6470801 MOTOR, ELECT. 3/4 HP, 103600 RPM, 115/230V, 56 FR
6470809
MOTOR, ELECT. 3/4 HP, 30, 3600 RPM, 200V, 56 FR
6470810
MOTOR, ELECT. 3/4 HP, 30, 3600 RPM, 230/460V, 56 FR
14
•

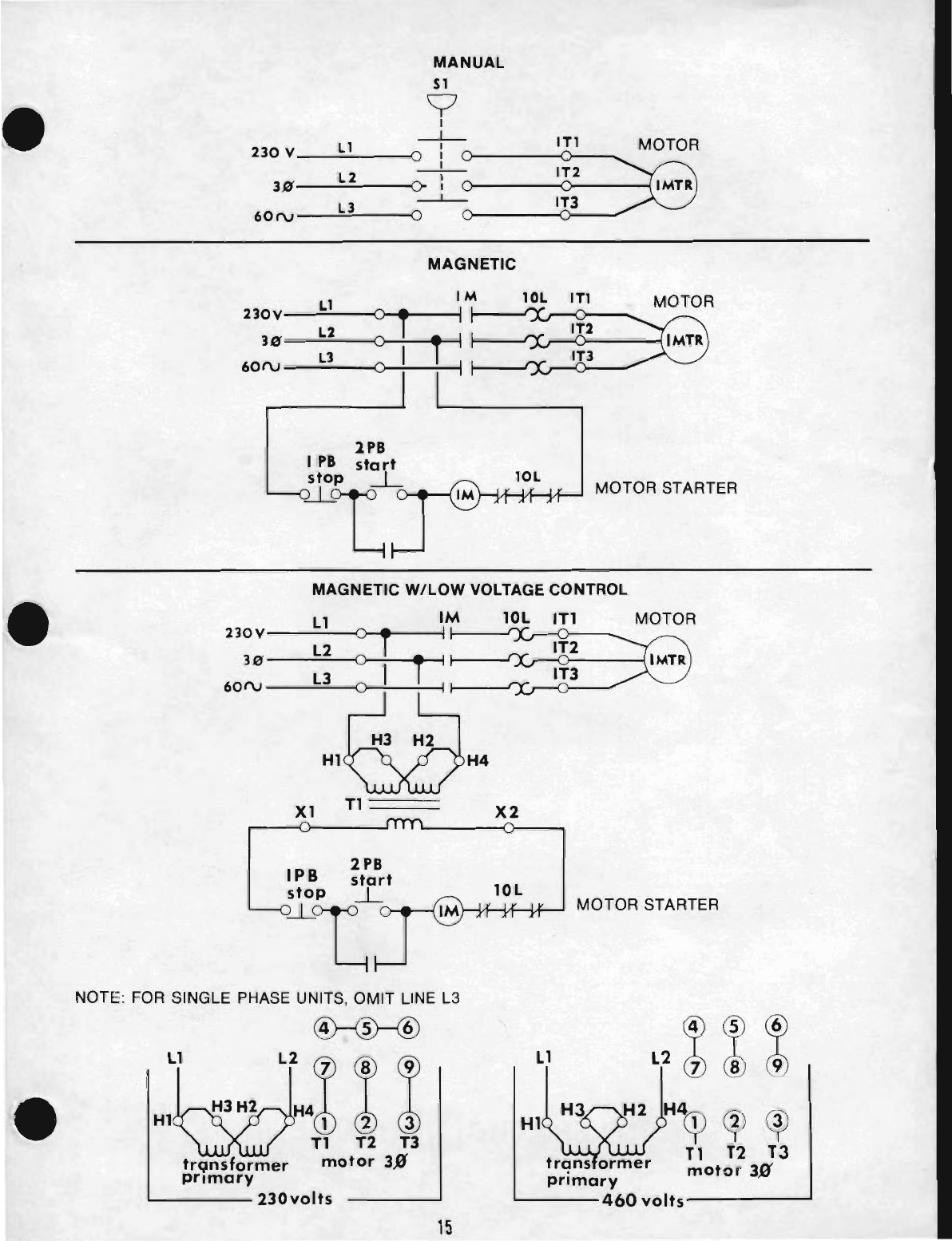

MANUAL
51
9
I
-----1-
:93
230 V
L1
I
0 1
~
1
30' L2 I 01
I
1~i"'MTR
60t'\J
L3
0
MAGNETIC
L1
10L IT1 MOTOR
230V
0 3C?8
3.0'
L2 0
60t'\J
L3
0
ITl
lPB
I PB start
~t~
MOTOR STARTER
MAGNETIC W/LOW VOLTAGE CONTROL
::~_= -=_= -=:=~:=-:_= -::>- ..... -r---tr:1- __ 13=)8
Hl
Xl
2PB
IPB start
~gr~
NOTE: FOR SINGLE PHASE UNITS, OMIT LINE L3
Ll
Hl
®--®-®
L2 cr CfJ cr
H4ct @@
Tl T2 Tl
trQnsformer motor ll1
primary
L- ____ 230 volts
15
H4
X2
MOTOR STARTER
L1
Hl Htp ~ ~
T1 T2 T3
primary
motor 3..0'
"----- 460 volts ----- .....

POWERMATIC fllJOUDAILLE , INC .
McMi nnv i lle ,Tennessee 37110
