In-Wall Bluetooth Speakers
Model AVX-BT6IW • AVX-BT8IW
INSTALLATION MANUAL

• Drywall Saw
• Utility Knife
• Level
• Wire Strippers
• Phillips Screwdriver
• Drill
• Masking Tape
• Pencil
• Fiberglass Push Rods
• Rubber Gloves
• Measuring Tape
• Cold Beverage....
Tools Needed for Installation
You're ready!
LET’S DO THIS!
GRAB YOUR TOOLS
1 2 3 4 5 6 7 8 9 10

TEST THE SOUND SYSTEM
BEFORE THE INSTALLATION
WARNING
Installation Instructions
Plan Speaker Wire Installation
NOTE: SOUND QUALITY OF THESE SPEAKERS
WILL BE VERY DIFFERENT OUT OF THE WALL
VS. HOW THEY SOUND INSTALLED WHEN
THEY ARE INSTALLED IN THE WALL. SOUND
QUALITY WILL BE NOTICEABLY IMPROVED
ONCE THESE SPEAKERS ARE INSTALLED IN
THE WALL. PLEASE CONSULT AV EXPRESS IF
YOU HAVE ANY QUESTIONS.
Add Plants,
artwork, area rugs
too if you like....
Optimal Performance Setup
Bluetooth streaming source location should be iden-
tified before installing speakers in the wall. You may
need to adjust your ideal streaming location based
on multiple factors such as your application and the
distance from the speakers to your straming device.
For more information consult AV-Express.

Determine Stereo Speaker Placement
8’ - 10’
8’ - 10’
8’ - 10’
Center of Reference
LR
Choose Your Speaker Placement
Location Carefully. Given the nature of
in-wall speakers, once they’re installed
they can not be adjusted. Optimal
placement of the in-wall speakers must
be determined BEFORE you start the
actual installation.
38” - 42”
Check for any obstruction
MUSIC
STREAMING

STEP 1
TEMPLATE
Use Cut-Out Template for the Speakers
Find studs with the
stud finder.
*Insert favorite stud
joke here...
Use the cut-out
template. Tape the
template to the wall
where you want the
speaker and trace an
outline with a pencil.
Use a level to make
sure the template is
properly aligned and
straight.
NOTE: Before drilling
or cutting into wall
ensure there are no
obstructions.

STEP 2
1/2”
EXPLORATION
HOLE
Jab Saw /
Drywall Saw
1/2” HOLES
DRILLED
IN SPEAKER
TEMPLATE
CORNERS
Drill a 1/2" hole in the four corners of the template.
Using a manual drywall saw or razor blade, cut around
all four edges of the cut-out and remove the piece of
drywall.
Measure and cut the speaker openings
TEMPLATE

Route speaker cables
ENSURE
SNAKE AND
SPEAKER WIRE
ARE SECURELY
TAPED
TOGETHER
SPEAKER WIRE
Running wires behind baseboards: Remove the baseboards
and cut a channel into the bottom of the drywall or plaster for
the wires and then reinstall the baseboards.
SNAKE
STEP 3
(Fish tape or fish rod
may be required)

STEP 4
Install the speakers
Test the area to make sure that the in-wall speaker will
fit perfectly. Carefully push the speaker into the hole
until it is in place. Make sure the dogleg clamps hold
the in-wall speaker in place. Tighten the screws with
the screwdriver.

Turn on the system and
test the speakers for
awesome sound!
Admire your work!
Turn on the system and test the speakers for
sound. (Don’t turn it on at full volume)
No Stairway!
Test the whole system
STEP 5
AC/DC Adapter
(Connect to only one
speaker, this is the
power source)
Wall Outlet

Part Number
Working voltage
Music Power
Signal to noise ratio
Channel: Stereo
Operating frequency
AVX-BT6IW
15V/2.4A
40W
80dB
L R
2.4GHZ
SPECS:
Paint the speaker grill covers to match the room décor
or not!
Install speaker grill covers
STEP 6
Part Number
Working voltage
Music Power
Signal to noise ratio
Channel: Stereo
Operating frequency
AVX-BT8IW
20V/2.4A
80W
80dB
L R
2.4GHZ

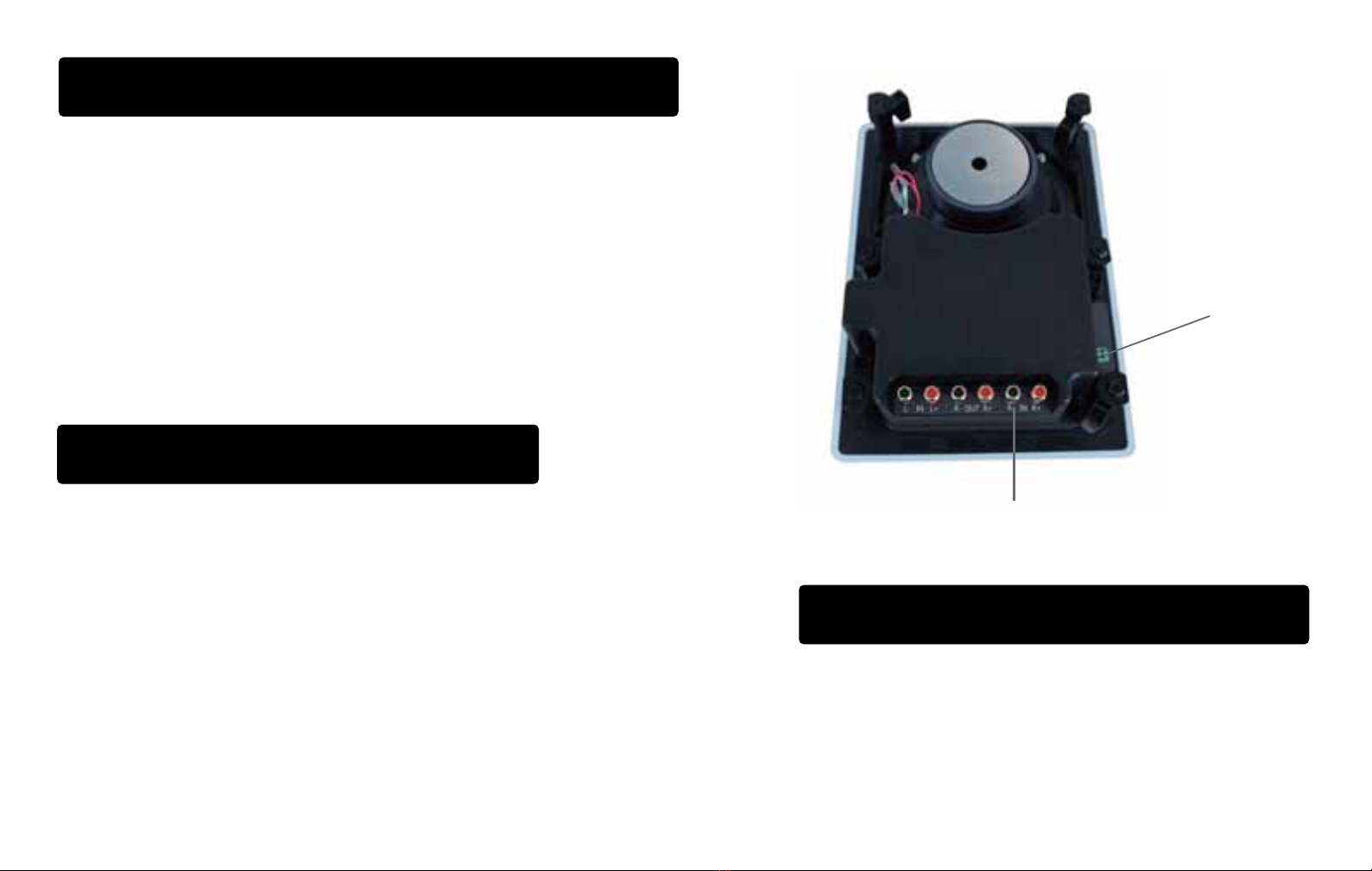

Bluetooth Speaker Operation
POWER SOURCE Connection
Tweeter Volume
Low Voltage/
Power Source
Connection
1.) Connect Low Voltage harness to included wall plate.
2.) Plug in wall plate to 110V standard wall outlet.
3.) Connect Bluetooth streaming device.
1.) Connect speaker wire to ‘+’ and ‘-‘ output on powered speaker.
2.) Connect speaker wire to ‘+’ and ‘-‘ input on passive speaker
ensuring polarity is the same on both speakers (IE: red to red and
black to black).
Note: If you wish to use multiple sources, these speakers can be
used as a passive speaker set and connected to a receiver instead
of using the built in amplifier. This negates the need to connect
these speakers to a wall outlet if you choose to wire them this way.
Please contact AV Express if you have additional questions on this.
1.) 0 db setting. This will allow the tweeter to play at the maximum
volume / db level. High frequencies will be the loudest on this setting.
2.) -3 db setting. This reduces the high frequency volume noticeably.
Ideal for mixed use rooms.
3.) -6 db setting. This reduces the high frequency volume considerably.
Ideal for rooms that are excessively “bright” or acoustically “louder”.
Speaker Wire Connection(s)

The Technical Support Center at AVX is Available
Between the Hours of 9:00 AM - 5:00 PM EST,
Monday through Friday, Excluding Holidays.
AVX • 6781 Hopkins Rd. Mentor, OH 44060
[e-mail]
[phone]
WARNING
TEST THE SOUND SYSTEM
BEFORE THE INSTALLATION
Tweeter
Attenuation
Switch
/RESET Button
Briefly press
play/pause
Long press to exit
Bluetooth
Operation INSTRUCTIONS
1.) Powering On: When the device is switched on, the LED will flash
twice.
2.) Speaker is on and standby: Red LED will flash slowly.
3.) Enable Bluetooth on your streaming device and search for device
“AVX-BT6IW” for 6.5 inch models or ”AVX-BT8IW” for those with 8
inch models.
4.) To Play music: press the Play / Reset Button. Blue LED will flash
slowly.
5.) To Pause music: press the Play / Reset Button. Blue LED will
remain on while paused.
6.) To disconnect from Bluetooth: press the Play / Reset Button for
more than two seconds. LED will change color from Blue (connected)
to Red (disconnected).
