Award AFEIND151 User manual

OPERATING AND INSTALLATION
INSTRUCTIONS OF INDUCTION
FREESTANDING
OVEN
YE66I5002E19D2
AFEIND151

Dear Customer,
We take offering quality products more than your expectation as
a goal, offers you the products produced in modern facilities
carefully and particularly tested for quality.
This manual is prepared in order to help you to use your
appliance that is manufactured by the most recent technology,
with confidence and maximum efficiency.
Before using your appliance, carefully read this guide that
includes the basic information for right and safe installation,
maintenance and use and contact to the nearest Authorized
Service for mounting of your product.

CONTENTS :
1. PRESENTATION AND SIZES OF PRODUCT
2. WARNINGS
3. INSTALLATION AND PREPARATIONS FOR USE
4. USE OF YOUR OVEN
5. CLEANING AND MAINTENANCE
6.
7. SERVICE AND TRANSPORT
USE OF YOUR WARMER DRAWER

MODEL SIZE(cm)
60 x 60 x 85

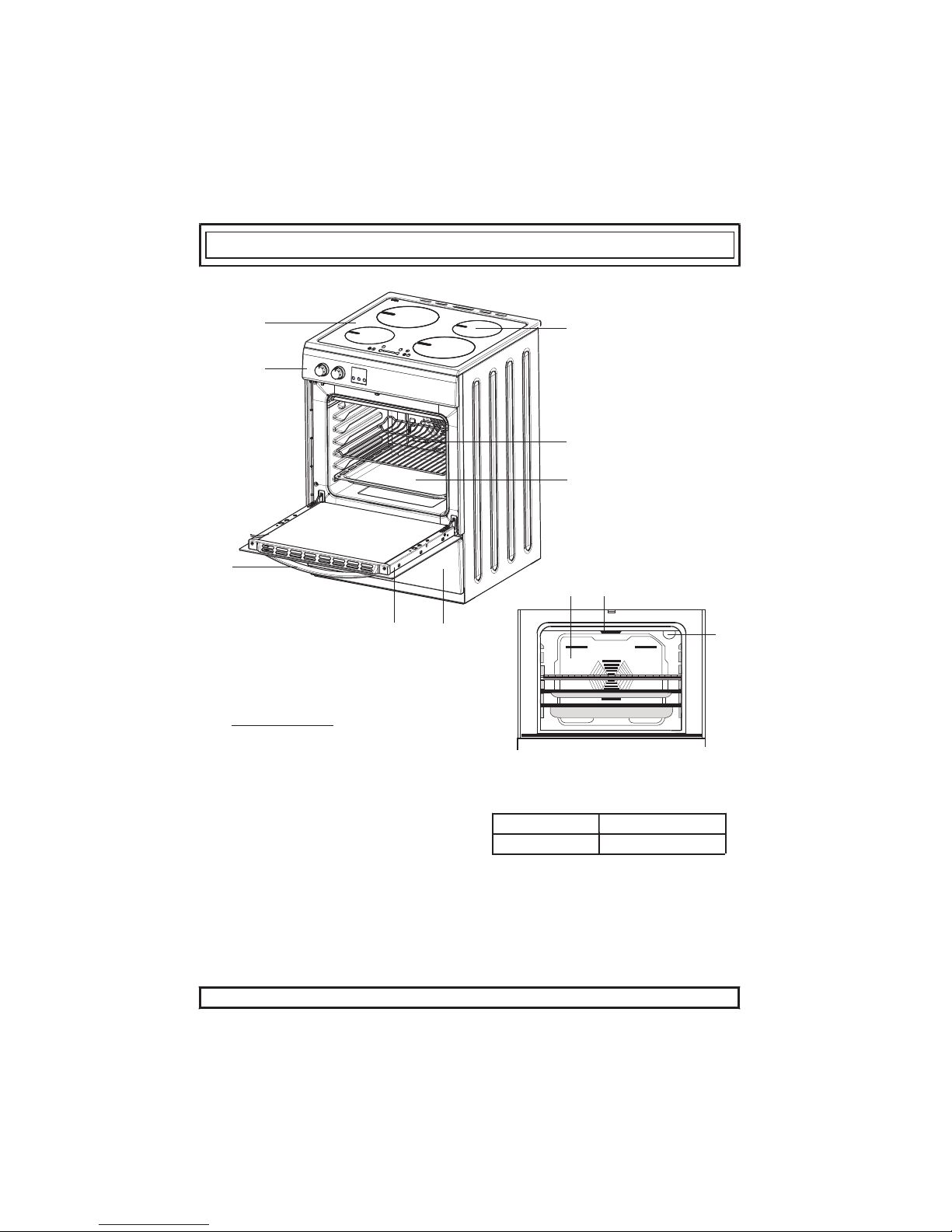

PART 1 : PRESENTATION AND SIZES OF PRODUCT
Part of List:
1-Cooktop
2-Control panel
3-Oven Door Handle
4-Drawer cover
5-Oven Door
6-Oven Tray
7-Wire Grid
8-Front Resistance
9-Fan Store
10-Oven Lamp
11-Induction zone
4
5
6
7
11
8
10
9
1
2
3
YE66I

PART 2 : WARNINGS
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE,
AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY
NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO
THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame e.g.
with a lid or a fire blanket.
- WARNING: Danger of fire: do not store items on
the cooking surfaces.

- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- For induction hobs, metallic objects such as
knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
- For induction hobs, after use, switch off the hob
element by its control and do not rely on the pan
detector.
- For hobs incorporating a lid, any spillage should
be removed from the lid before opening. And also
the hob surface should be allowed to cool before
closing the lid.
- The appliance is not intended to be operated by
means of an external timer or separate remote-
control system.
- WARNING: In order to prevent tipping of the
appliance, the stabilizing brackets must be
installed.(For detail information please read the
anti-tilting kit set guide.)
- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
- During use, handles held for short periods in
normal use can get hot.

- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the
surface, which may result in shattering of the
glass or damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
- CAUTION: Accessible parts may be hot when
the cooking or grilling is in use. Young children
should be kept away.
• Your appliance is produced in accordance with all applicable local and international standards and
regulations.
• Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter
or modify the specifications of the appliance in any way.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure
or electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.
• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such
as for non-domestic use or in a commercial environment or room heating.
• Do not try to lift or move the appliance by pulling the door handle.
• All possible security measures have been taken to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.
• Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
prevent a hazard.
• While the oven door is open, do not let children climb on the door or sit on it.

Installation Warnings
• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement and installation by
unauthorized people.
• When you unpack the appliance, make sure that it is not damaged during transportation. In case of
any defect; do not use the appliance and contact a qualified service agent immediately. As the
materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children,
they should be collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow
etc.
• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.
During usage
• When you first run your oven a certain smell will emanate from the insulation materials and the
heater elements. For this reason, before using your oven, run it empty at maximum temperature for
45 minutes. At the same time you need to properly ventilate the environment in which the product is
installed.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step
back to avoid the hot steam coming out of the oven. There may be a risk of burns.
• Do not put flammable or combustible materials, in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or
frypan with its cover in order to choke the flame that has occured in this case and turn the cooker off.
• Always position pans over the centre of the cooking zone, and turn the handles to a safe position
so they cannot be knocked or grabbed.
• If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also
when you do not use the appliance, keep the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
• The trays incline when pulled out. Be careful not to let hot liquid spill over.
• When the door or drawer of the oven is open, do not leave anything on it. You may unbalance
your appliance or break the cover.
• Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into
the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.
During cleaning and maintenance
• Always turn the appliance off before operations such as cleaning or maintenance. You can do it
after plugging the appliance off or turning the main switches off.
• Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED
SERVICE AGENTS IN CASE OF NEED.

3. 1 INSTALLATION OF OVEN
There are some factors that must be paid attention to while installing your oven.
Surely pay attention to our below suggestions in order to be able to prevent any
problems and/or dangerous situations that may occur later.
It can be placed close to other furniture on condition that in the area where the oven
is set up, the furniture’s height must not exceed the height of the cooker panel.
Pay attention not to place it near the refrigerator, there must be no flammable or
in flammable materials such as curtain, waterproof cloth etc. that will begin to burn
quickly, while selecting place for oven.
It is required there must be at least 2 cm blank space between the back cover of
oven and wall for air circulation.
The furniture close to oven must be manufactured resistant to heat more than
50 C° of the room temperature.
If the kitchen furniture are higher than the pan which the oven’s cookers are on,
it must be at least 11 cm away from the oven’s side.
The minimum heights from the oven’s pan and wall cupboards and paddle boxes
with fan over the oven, are shown as below. Thus, the paddle box must be at
minimum 650 mm height from the cooker pan.
If there is no paddle box, this height must not be less than 700 mm.
This appliance must only be installed directly on the floor and not on a base.
3.INSTALLATION

The appliance is provided for fixed connection to the power supply. The connection
of the appliance to an electrical source must be done by authorized technician.

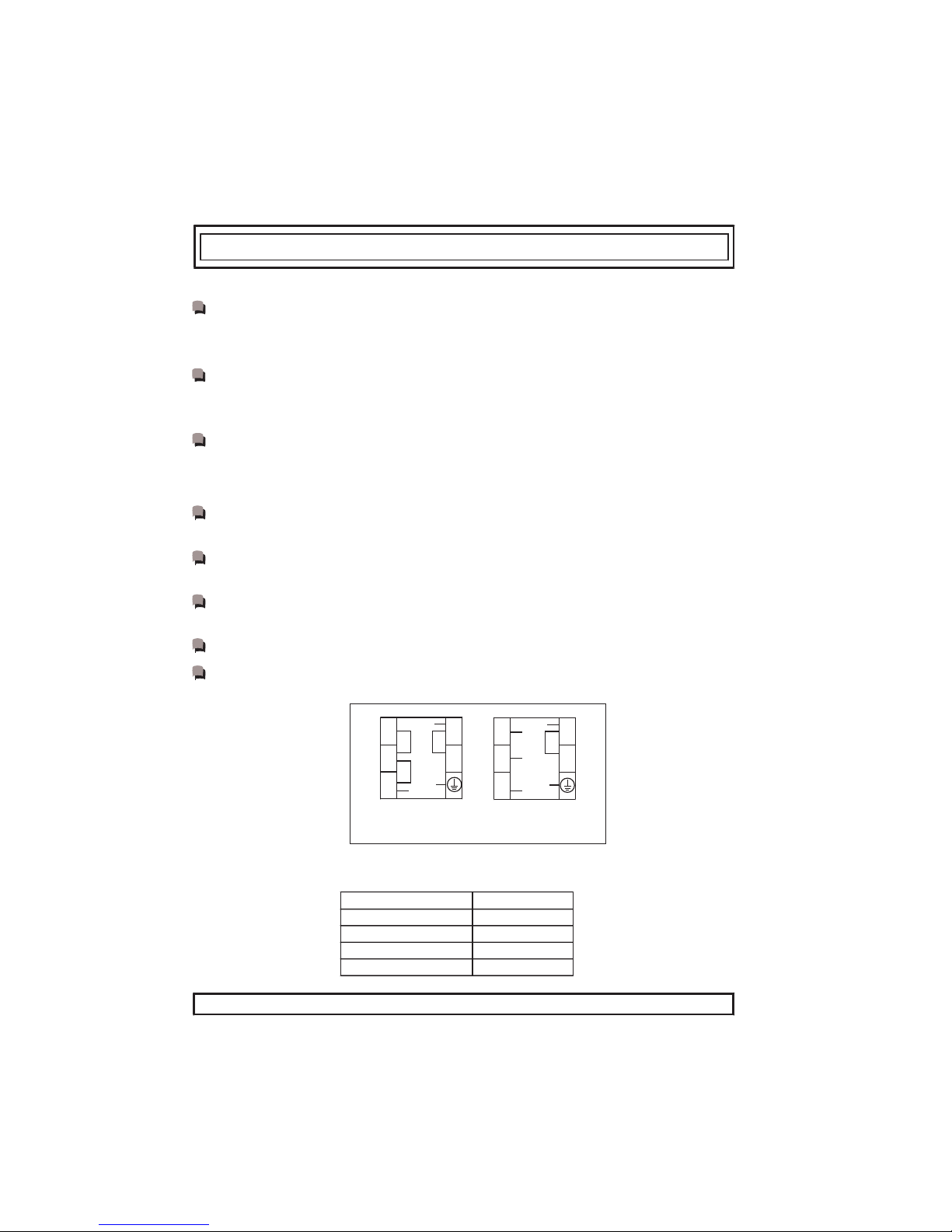

3.2 ELECTRIC CONNECTION AND SECURITY
During the electric connection, surely follow the instructions below.
The earthing cable must be connected to the terminal. You have to ensure the
cable with insulation to be connected to the power source during the connection of
cable. If there is not any appropriate earthed electric outlet in accordance with
regulations in the place where the appliance will be installed, immediately contact to
our authorized service.
The earthed electric outlet must be close to the appliance. Do not use the
extension cord.
The supply cable must not touch the hot surface of the product.
In case the supply cable is damaged, surely contact to Qualified Service. The
cable must be changed by the authorized service.
The wrong electric connection may damage your appliance. Such damage is not
in guarantee extent.
The appliance is adjusted as appropriate for 220-240 Volts and 380-415V 3N Volts
of electricity. If the network electricity is different than this informed value, immediately
contact our authorized service.
The electric cable must not touch to the hot parts of appliance .The electric cable
must not touch the back part of the appliance. Otherwise the electric cable
of appliance may be damaged, which
may cause short circuit.
The producer firm declares that it has no responsibility against any kind of damages
and losses that emanate from the following security norms.
Provide a means of disconnection from the supply having an air gap contact
separation of at least 3mm in all active (phase) conductors. Such means of disconnection
shall be incorporated in the fixed wiring according to the wiring rules.
For fixed connection, use the H05VV, H05V2V2 or H05RR type supply cord.
For fixed connection, use 3x2,5mm2 or 3x4mm2 sized cable according to appliances
power and terminal box label.
Some appliances can be equipped with special plug (Perilex or Norplug). If it is
necessary, change it with the same specified spare part.
Use 16A/400V 5 pin for perilex plug and 25A/250V for Norplug.
These plugs can be used only in some countries.
the
cable

Its outside surfaces heat while your appliance operates. The interior surfaces of
oven, components that ensures the heat and steam that goes out are quite hot. Even
if the appliance is turned off, these parts hold its heat for a specific time. Do not touch
onto the hot surfaces. Keep children away.
Do not leave the cooker while cooking with solid or liquid oils. There may be flaming
up on condition of extreme heating. Never pour water to the flames occuring from oil.
Cover the saucepan or frypan with its cover in order to choke the flame that was
occured in this case and turn the cooker off.
The oven and heat adjustment switches must be adjusted and oven’s clock must
be programmed for cooking in your oven. Otherwise the oven does not operate.
Do not leave anything on it when the door or drawer of oven is open. You may
unbalance your appliance or break the cover.
Do not put heavy things or flammable, burnable goods (nylon, plastic bag, paper,
cloth etc.) into the lower drawer.
Plug it off when you do not use the appliance.
Protect your appliance against atmospheric effects. Do not leave it to effects
such as sun, rain, snow, powder etc.
3
2
1L
N4
5
PE
L2
L3
3
2
1L
N4
5
PE
Your appliance is produced in accordance with the related security instructions
connected with electrical appliance. The maintenance and repair works must be
made by the authorized service technician who is trained by the producer firm.
The installation and repair works without following rules may endanger you.
3. 3 GENERAL WARNINGS AND MEASURES
4.1 GENERAL APPEARENCE AND TECHNICAL FEATURES OF YOUR OVEN
LOWER HEATER
UPPER HEATER
TURBO HEATER
GRILL
1100 WATT
1200 WATT
1400 WATT
2000 WATT
3 x 4 mm
3 x 4 mm
3 x 4 mm
² 220V~
² 230V~
² 240V~
5 x 1.5 mm
5 x 1.5 mm
5 x 1.5 mm
² 380V 3N
² 400V 3N~
² 415V 3N~
~

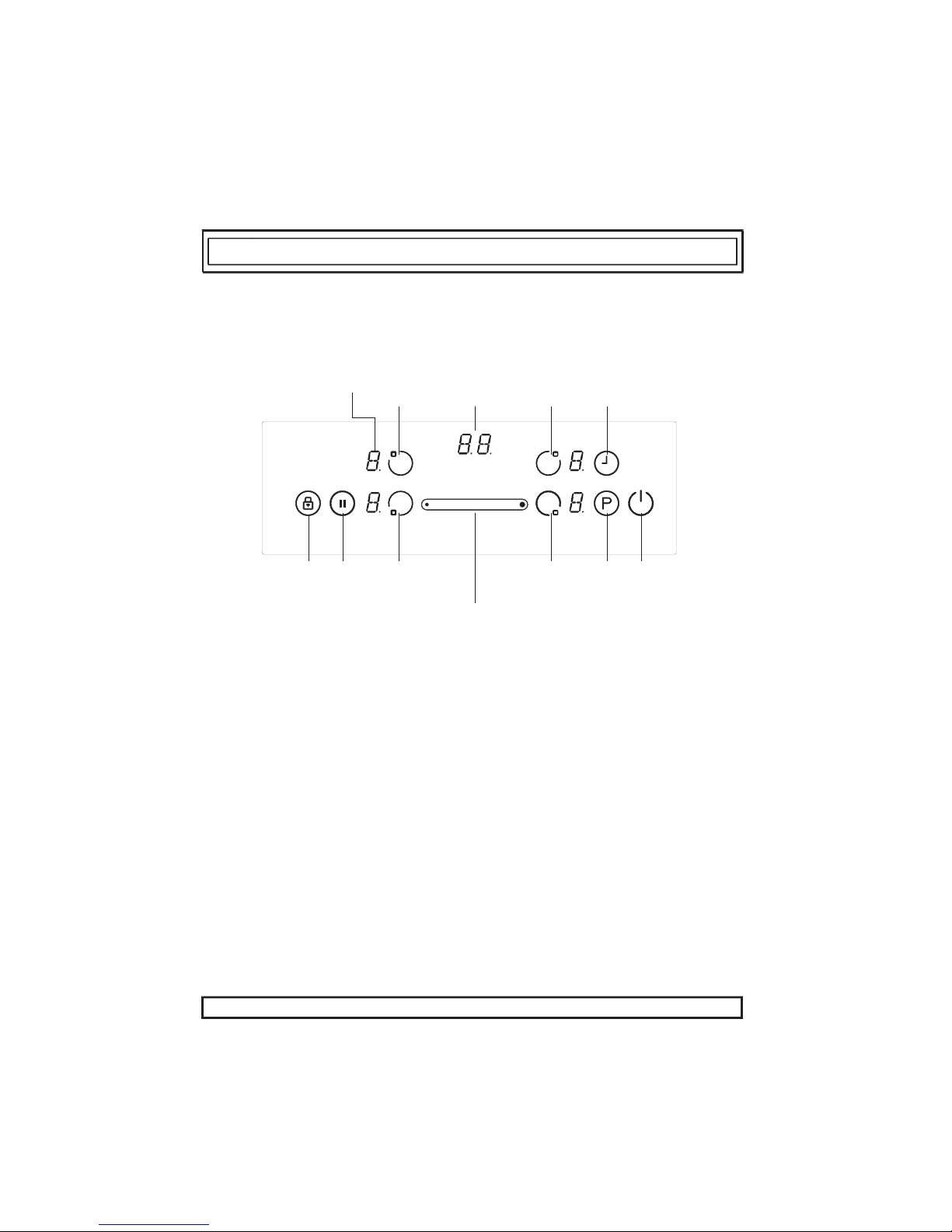

4.2 CONTROL PANEL FOR INDUCTION HOB
Upper left
heater selection
Lower Right
heater selection
Boost
Lower left
heater selection
Key Lock
Indicator
On/Off
Smart
Pause
Upper Right
heater selection Timer
Sliding Buttons
Heater
Display Timer
Display

OPERATION OF THE APPLIANCE
Use the induction cooking zones with suitable cookware.
After mains voltage is applied, all displays come on for a moment. When this time is over, the hob
is in the stand-by mode and it is ready for operation.
The hob is controlled with electronic sensors which are operated by touching the related sensors.
Each sensor activation is followed by a sound signal (buzzer).
Switching the appliance on:
Switch the hob on by touching ON/OFF key . All heater displays show a static "0" and the
bottom right dots blink. (If no cooking-zone is selected within 20 seconds, the hob will automatically
turn off.)
Switching the appliance off:
Switch the hob off at any time by touching .
ON/OFF key has always priority in the switch off function.
Switching the cooking-zones on:
Touch the heater selection key you wish to cook on. There is a static dot indication on the selected
heater display and the blinking dot on all other displays extinguish.
For the selected heater, you can set the heat level by touching the Sliding Buttons.
The element is now ready to cook on. For quickest boil times, select desired cooking level and
then touch the P key to activate Boost function.
Switching the cooking-zones off:
Select the element you want to switch off by pressing the heater selection key. Using
Sliding Buttons turn the temperature down to "0". (Also using the right and left of the slider buttons
simultaneously turns the temperature to "0")."
If the cooking zone is hot, "H" will be displayed instead of "0".

Switching all cooking-zones off:
To turn all the cooking zones off at once, touch the key.
In the stand-by mode, an "H" appears on all cooking zones which are hot.
Residual heat indicator:
Residual heat indicator indicates that the glass ceramic has a dangerous touch temperature
in the circumference of a cooking zone.
After switching off the cooking zone, the respective display shows "H" until the assigned
cooking zone temperature is in an uncritical level.
Smart Pause
Smart Pause, when activated, reduces the power of all burners that have been switched on.
If you then deactivate the Smart Pause, the heaters will automatically return to the previous
level.
If the Smart Pause is not de-activated, the cooktop will turn off after 30 minutes.
Touch ( ) to activate Smart Pause. The power for the activated heater(s) will reduce to
level 1 and “II” will appear at all displays.
Touch ( ) again to deactivate Smart Pause. “II” will disappear and the heaters will now
run at the level previously set.

Safety switch off function:
Every cooking zone will be switched off after a defined maximum operation time if the heat
setting is not modified. Every change in the cooking zone puts back the maximum operation time to
the initial value of the operating time limitation. The maximum operation time depends on the
selected temperature level.
Child Lock:
After switching on the control, the child lock function can be activated. To activate the child lock,
simultaneously operate the right and the left of the slider button and then operate the right of the
slider button again. "L" meaning LOCKED will appear in all heater displays and the control can not
be changed. (If a cooking zone is in the hot condition, "L" and "H" will be displayed in alternation.)
The hob will remain in a locked condition until it gets unlocked, even if the control has been
switched off and on.
To deactivate the child lock, first switch on the hob. Simultaneously operate the right and the left of
the slider button and then operate left of slider button again. "L" will disappear in the display and
the hob will be switched off.
Key Lock
Key lock functionality is for locking and set the appliance into a save mode during operation. It is
only possible to switch the appliance off.
The lock function is active, if the Key Lock button is pressed at least 2 sec. This operation is
acknowledged by a buzzer. After successful operation of more than 2 sec, the Key Lock Indicator
flashes and the heater is locked.
Heat setting Safety switch off after
1 - 2
3 - 4
5
6 - 9
6 Hours
5 Hours
4 Hours
1,5 Hours

When the timer has run down, a signal sounds and the timer display shows "00" statically, the
assigned cooking zone timer LED blinks. The programmed cooking zone will be switched off and the
"H" will be displayed if the cooking zone is hot.
The sound signal and the blinking of the timer LED will be stopped automatically after 2 minutes
and/or by operating any key.
Buzzer :
While the hob is in operation, the following activities will be signalled by means of a buzzer:
· Normal key activation with a short sound signal
· Continuous operation of keys over a longer period of time (10 seconds) with a longer,
intermittent sound signal.
Boost Function :
A cooking zone has to be selected, cooking level set to „desired cooking level" and P(Boost) key
has to be pressed again.
Boost-Function can be activated if the induction module accepts the setting on this cooking zone If
Boost Function is active a „P" is displayed on the corresponding display.
Activating the booster can exceed the maximum power and the integrated power management will
be activated .
The neccessary power reduction is shown by blinking of the correpsonding cooking zone display.
Blinking is active for 3 sec. and allows further adaptations of the settings before power reduction.

HINTS AND TIPS
Cookware
· Use thick, flat, smooth bottomed cookware that are the same diameter as the element. This will help
reduce cooking times.
· Cookware made of steel, enamelled steel, cast iron and stainless steel (if appropriately labelled by
the manufacturer) will give you the best results.
· Cookware made of enamelled steel or aluminium or copper bottoms can cause a metallic residue to
remain on the hob. If left, this becomes difficult to remove. Clean the hob after every use.
· Cookware is suitable for induction if a magnet sticks to the bottom of the cookware.
· Cookware must be placed centrally on the cooking zone.
· When using certain pans, you may get various noises from the pans, this is due to the design of the
pans and does not effect the performance or safety of the hob.
Energy saving
· Induction cooking zones adapt automatically to the size of the cookware bottom up to a certain limit.
However the magnetic part of the cookware bottom must have a minimum diameter depending upon
the size of the cooking zone.
· Place the cookware on the cooking zone before it is switched on.If it is switched on before putting
any cookware, the cooking zone will not operate and the control display shows.
· Use a lid to reduce cooking time.
· When liquid comes to the boil, reduce the temperature setting.
· Minimise the amount of liquid or fat to reduce cooking times.
· Select the proper temperature setting for the cooking applications.
INCORRECT
CORRECT INCORRECT

Examples of cooking applications
The information given in the following table is for guidance only.
Cleaning tips
· Do not use abrasive pads, corrosive cleaners, aerosol cleaners or sharp objects to clean the
surfaces of the hob.
· To remove burnt food, soak it off with a damp cloth and washing-up liquid.
· You may use a scraper for cleaning food or residues. Sticky foods must be cleaned immediately
when they spill, before the glass has cooled down.
· Be careful not to scratch the silicon adhesive placed on the edges of the glass whilst using a
scraper.
· The scraper has a razor, therefore, it must be kept away from children.
· Use special ceramic hob cleaner on the hob while it is warm to touch. Rinse and wipe dry with a
clean cloth or paper towel.
Settings Use for
0
1 - 3
4 - 5
6 -7
8
9
P
Element off
Delicate warming
Gentle simmering, slow warming
Reheating and rapid simmering
Boiling, saute and searing
Maximum heat
Boost function

4.4 USE OF OVEN PART
Time Adjustment:
The time must be adjusted before starting to use the oven.
Following the power supply to the oven, the symbol (A) and the
three “0” on the screen will begin to flash. Press the (+) and (-)
keys simultaneously. The symbol will appear on the screen.
Also, the dot in the middle of the screen will begin to flash. Using
the (+) and (-) buttons, adjust the day's time while this dot is
flashing. After the adjustment, it should be expected that the dot
will be lit continuously.
Following the power supply to the oven, when the symbol (A)
and the three “0” on the screen begin to flash, the oven can not
be operated using the control buttons. When the (+) and (-)
buttons are pressed simultaneously for time adjustment,
the symbol will appear on the screen. When this symbol
appears on the screen, you can manually operate the oven
part. As the adjusted time will be reset in the event of a power
failure, time adjustment operation willl have to performed again.
-+
MODE
A
4.4.1 Use of digital timer

Audible Warning Time Adjustment:
The time must be adjusted before starting to use the oven.
Following the power supply to the oven, the symbol (A) and the
three “0” on the screen will begin to flash. Press the (+) and (-)
keys simultaneously.
The symbol will appear on the screen. Also, the dot in the
middle of the screen will begin to flash. Using the (+) and (-)
keys, adjust the day’s time while this dot is flashing. After the
adjustment, it should be expected that the dot will be lit
continuously. This function can be used to recieve audible
warning at the completion of the adjusted time period.
Press the MODE key in the middle. The symbol will flash on
the screen. Also three “0”s will appear. Adjust the desired time
period for the warning by using (+) and (-) keys while
the symbol is flashing. Some time after the completion of the
adjustment, the symbol will begin to light continuously. When
the symbol begins to light continuously, the audible warning
time adjustment is done.
The audible warning time can be set to a time between the
time range of 0 and 23.59.
When the set time is up, the timer gives an audible warning and
the symbol begins to flash on the screen. Pressing any key
will stop the audible warning and the symbol disappears on
the screen.
Audible Warning time adjustment is for warning purposes
only. The oven will not be activated at this function.
Semi - Automatic Time Adjustment According to Cooking
Period:
This function is used to cook in the desired time range. The
foods to be cooked are put into the oven. The oven is adjusted
to the desired cooking function. The oven thermostat is
adjusted to the desired degree depending on the dish to be
cooked. Keep pressing on the MODE button until you see “stop”
on the timer screen. When you see “stop” on the timer screen,
the symbol (A) will begin to flash. Adjusted the cooking period
for the food you wish to cook, by
-+
MODE
A
-+
MODE
Adu r
