Axel OXYGEN 3000 User manual

USER MANUAL
axeltechnology.com
(Rev. 1.2 - ENG)

2
INTRODUCTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
SUMMARY
1INTRODUCTION 5
2GENERAL DESCRIPTION 6
3SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA
13
3.1 PREFACE 14
3.2 SAFETY WARNINGS 15
3.3 CONSIGNES DE SÉCURITÉ IMPORTANTES 18
3.4 ISTRUZIONI IMPORTANTI PER LA SICUREZZA 21
3.5 WICHTIGE SICHERHEITSHINWEISE 24
3.6 INSTRUCCIONES IMPORTANTES DE SEGURIDAD 27
4UNPACKING AND INSPECTION 30
5FIRST INSTALLATION RECOMMENDATIONS 31
5.1 POWER SUPPLY CABLE 31
5.2 PROTECTION AGAINST LIGHTNING 31
6OXYGEN 3000 INSTALLATION NOTE AND FIRST STEP
32
7WEEE DIRECTIVE –INFORMATIVA RAEE 34
8WARRANTY 36
9SURFACE 37
9.1.1 INPUT LED METER 38
9.1.2 OUTPUT LED METER 39
9.1.3 CONTROL INPUT CHANNEL 41
9.1.3A SET BUTTON 42
9.1.3B CHB BUTTON 43
9.1.3C GAIN 44
9.1.3D F1 BUTTON 45
9.1.3E EQ BUTTON 46
9.1.3F PGM/SUB/AUX-1/AUX-2 BUTTONS 48
9.1.3G FADER 49
9.1.3H FADER LED BAR 50
9.1.3L ON/START BUTTON 51
9.1.3M PFL BUTTON 53
9.1.4 DISPLAY 7’’ TFT AND CONTROL BUTTONS 55
9.1.4A COLOR DISPLAY 7’’ - 800X480 RESOLUTION 55
9.1.4B BUTTONS FOR THE MENU NAVIGATION 57
9.1.4C ENCODER FOR THE MENU NAVIGATION 58
9.1.5 SPECIAL FUNCTION BUTTONS 59
9.1.5A OUTPUT BUTTON 59
9.1.5B METER BUTTON 60
9.1.6 MONITOR SECTION 62
9.1.6A CONTROL ROOM –SPEAKERS SOURCES & LEVEL –
CUT FUNCTION 62
9.1.6B CONTROL ROOM –HEADPHONES SOURCES & LEVEL 65
9.1.6C STUDIO - SPEAKERS 68
9.1.6D STUDIO –HEADPHONES SOURCES & LEVELS 70
9.1.6E TALK BACK –FROM CONTROL ROOM TO THE
STUDIO 72
9.1.7 TALK BOX CONNECTIONS AND FUNCTIONING 73
9.1.8 GPIO CONNECTIONS 75
9.1.9 TELEPHONE MODULE –CONNECTIONS WITH THE
INTERNAL HYBRID MODULE 76
9.1.10 TELCO MODULE - EXTERNAL TELEPHONE HYBRID
CONNECTIONS 77

3
INTRODUCTION |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
9.1.11 BLUETOOTH 78
9.1.12 CONNECTIVITY FEATURES 79
9.1.12.1 SELECTABLE SOURCES 79
9.1.12.2 PHONE STATES –MIC1: “PRIVATE” FEATURE FOR
THE COMMUNICATION TO
TELCO/TELEPHONE/BLUETOOTH PHONECALL 79
9.1.12.3 MIC5 INPUT: TELCO INPUT 83
9.1.12.4 CONDENSER MIC MANAGEMENT, +48V
PHANTOM SUPPLY AND SINGLE SECTIONING 83
9.1.13 OXYGEN 3000 & MR. LIGHT –ONAIR LAMP
CONNECTION 84
10 MENÙ MIXER 85
10.1 HOME PAGE 85
10.2 AUDIO/INPUTS/INPUT TYPE/SELECTED INPUT 86
10.2.1 AUDIO/INPUTS/INPUT TYPE/SELECTED INPUT/NAME
87
10.2.2 AUDIO/INPUTS/INPUT TYPE/SELECTED INPUT/GAIN
89
10.2.3 AUDIO/INPUTS/INPUT TYPE/SELECTED INPUT/BAL-
PAN 90
10.3 AUDIO/OUTPUTS/ANALOG(DIGITAL)/SELECTED OUTPUT
91
10.3.1 AUDIO/OUTPUTS/ANALOG(DIGITAL)/SELECTED
OUTPUT/SOURCE 92
10.3.2 AUDIO/OUTPUTS/ANALOG(DIGITAL)/SELECTED
OUTPUT/GAIN 92
10.3.3 AUDIO/OUTPUTS/ANALOLG(DIGITAL)/SELECTED
OUTPUT/MODE 93
10.4 AUDIO/OUTPUTS/MONITOR/MONITOR
TYPE(SPEAKER/HEADPHONES)/(CONTROL
ROOM/STUDIO/GUESTS) 94
10.4.1 AUDIO/OUTPUTS/MONITOR/MONITOR
TYPE(SPEAKER/HEADPHONES)/(CONTROL
ROOM/STUDIO/GUESTS)/CUT SOURCE 95
10.5 AUDIO/SETTINGS 96
10.5.1 AUDIO/SEETINGS/VJPRO 97
10.6 GENERAL/COMMUNICATIONS 98
10.6.1 GENERAL/COMMUNICATIONS/TCP-IP 98
10.6.2 GENERAL SET./COMMUNICATIONS/TIME&DATE100
10.6.2.1 GENERAL
SET./COMMUNICATIONS/TIME&DATE/DATE 101
10.6.2.2 GENERAL
SET./COMMUNICATIONS/TIME&DATE/TIME 102
10.6.2.3 GENERAL
SET./COMMUNICATIONS/TIME&DATE/TIME ZONE 103
10.6.2.4 GENERAL SET./COMMUNICAT./TIME&DATE/NTP
SERVER 104
10.7 GENERAL/LIGHT & DISPLAY 105
10.7.1 GENERAL/LIGHT & DISPLAY/LED METER 106
10.7.2 GENERAL/LIGHT & DISPLAY/DISPLAY 106
10.8 FIRMWARE 107

4
INTRODUCTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
10.8.1 FIRMWARE/VERSION 108
10.8.2 FIRMWARE/REBOOT 108
11 MIXER FIRMWARE UPGRADE 109
12 WEEE DIRECTIVE –INFORMATIVA RAEE 113
13 WARRANTY 115
DECLARATION OF CONFORMITY 116
DICHIARAZIONE DI CONFORMITA' 117

5
INTRODUCTION |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
1INTRODUCTION

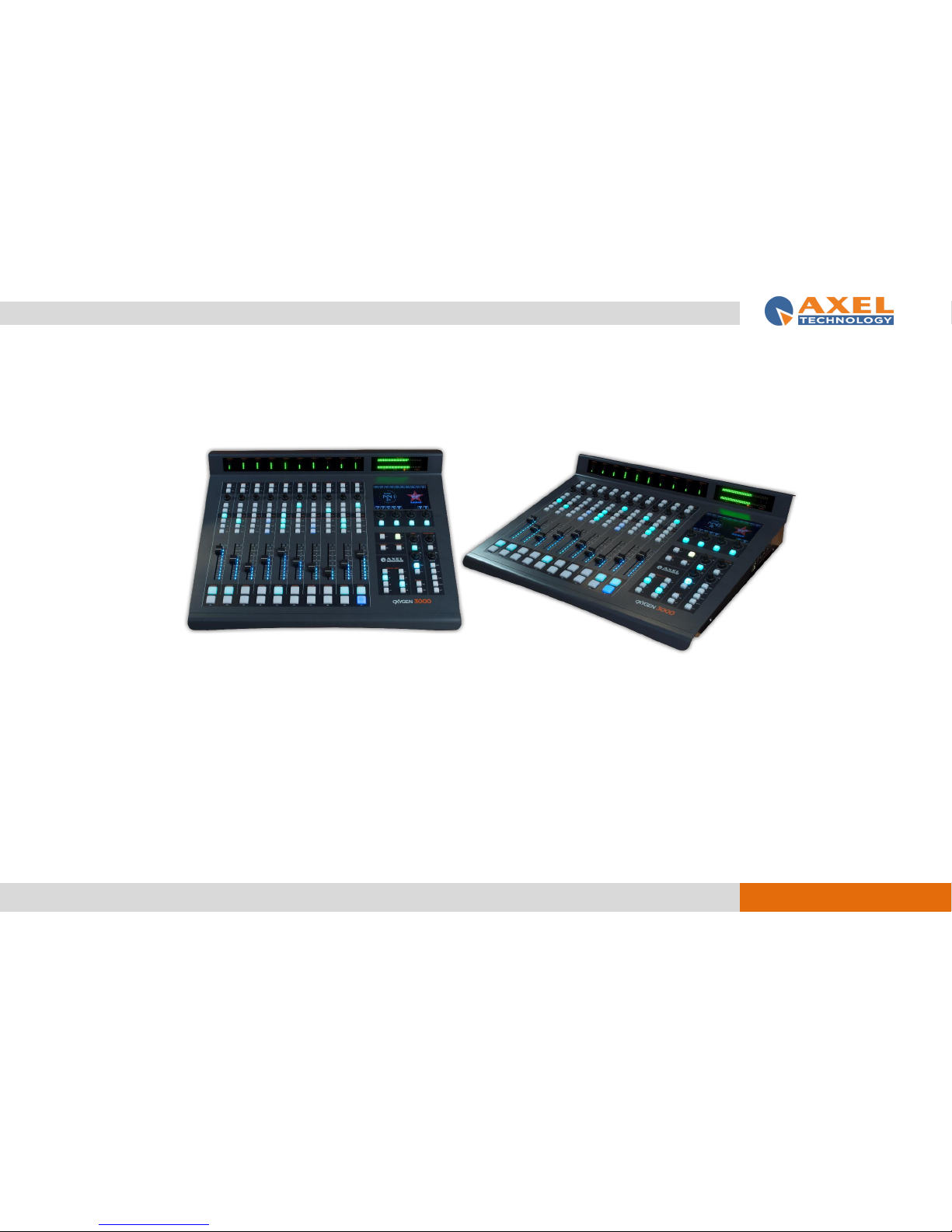

Oxygen 3000 is the new concept digital console and defines a new standard in the broadcast market.
Characterized by an elegant design and compact size, Oxygen 3000 has been designed for both On Air and Production studios.
Oxygen 3000 is based on digital technology with DSP audio processing to deliver high-end quality, latest features and flexibility with ease of use.
Oxygen 3000 is the number 1 of the category at the best quality/price ratio.
Oxygen 3000 is a powerful and compact unit featuring 10 faders, meters for each single channel, built-in 7” display for settings, wide range of connectivity and accessories in a rugged
and classy steel chassis. Easy and realiable as the analogue mixing consoles,
Oxygen 3000 adds the value of the digital engine that grants a near 0 latency (< 0,7 ms I/O ) and plenty of advanced functions as the the internal routing signal, customizable preset
and easy recall, user defined smart keys, analog and digital I/O.

6
GENERAL DESCRIPTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
2GENERAL DESCRIPTION
MIXER DIMENSIONS

7
GENERAL DESCRIPTION |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG

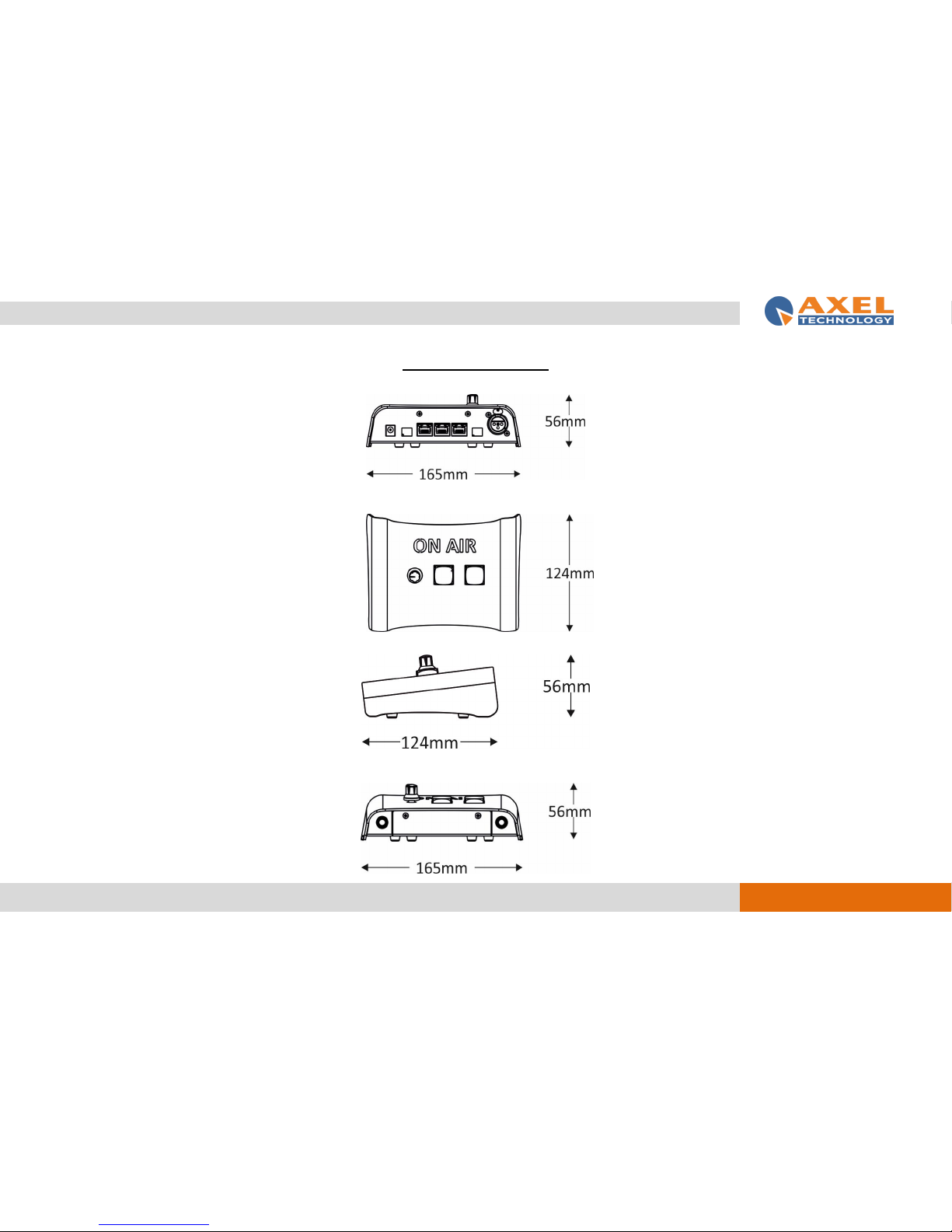

TALK BOX DIMENSIONS

8
GENERAL DESCRIPTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
CUTTING TEMPLATE
MIXER HOLE
CONNECTORS HOLE
630mm
492mm
60mm

9
GENERAL DESCRIPTION |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
INPUT CONNECTIONS
1. Aux-In
Stereo Input - Mini Jack 3.5mm - Ubalanced Audio Connection
2. Streaming Input
Stereo/Mono Input- RJ45 - Internet Connections
3. USB-1, USB-2
2 Audio Card Stereo Input- USB-TypeB - PC Connections
4. PLAYER-1, PLAYER-2
Internal MP3/WAV Player - USB-Storage (max 32GB)
5. Digital-In
AESEBU Stereo Input - XLR Female - Balanced Digital Connection (110Ω)
6. Line-4, Line 5, Line-6, Line-7(this is the EXT input for TUNER)
4 Stereo Input - PIN RCA - Ubalanced Audio Connection
7. Bluetooth
Bluetooth Stereo/Mono Input - Wireless –Smartphone
8. Line-1, Line-2, Line-3
3 Stereo Input / 6 Mono - XLR Female - Balanced Audio Connection (50KΩ)
9. Telephone
Analog Telephone Line - RJ11 - PSTN Interface
10. Telco/Mic-5
Mono/Mic Input - XLR Female - Balanced Audio Connection (50KΩ). It works as
a LINE input. To use it as a normal MIC you have to amplify the MIC of +16 dB.
11. Mic-1, Mic-2, Mic-3, Mic-4
4 Mic Input - XLR Female - Balanced Audio Connection (1K2Ω)
12. TBox-2, TBox-3, TBox-4, TBox-5
4 TalkBox Input - RJ45 (SFTP Cable) - Balanced Audio (Mic2/3/4/5 Input)

10
GENERAL DESCRIPTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
OUTPUT CONNECTIONS
1. Headphones C-Room and Headphones Studio
Stereo Output - Jack 6.3mm - Ubalanced Audio Connection (nominali 32Ω)
2. Streaming Output
Stereo/Mono Output- RJ45 - Internet Connections
3. USB-1, USB-2
2 USB Audio Card - USB-TypeB - PC Connections
4. Digital Out
AESEBU Stereo Output - XLR Male - Balanced Digital Connection (110Ω)
5. REC-1, REC-2, SPK C-ROOM, SPK STUDIO
4 Stereo Output - PIN RCA - Unbalanced Audio Connection
6. Bluetooth
Bluetooth Stereo/Mono Output - Wireless –Smartphone
7. PGM, SUB, AUX-1, AUX-2
4 Stereo Output - XLR Male - Balanced Audio Connection (47Ω)
8. Telephone
Analog Telephone Line - RJ11 - PSTN Interface
9. Telco
Mono Output - XLR Male - Balanced Audio Connection (47Ω)
10. HDP-STUDIO, HDP-GUEST
TalkBox Output - RJ45 (SFTP Cable)- Balanced Audio (Studio & Guest
Headphone)

11
GENERAL DESCRIPTION |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
COMMUNICATION CONNECTIONS
1. HDMI Output
Standard HDMI Female Connector - External Monitor
2. Ethernet
RJ45 Female Connector - Remote control
3. USB-1, USB-2
USB Type A Female Connectors - External USB Devices
4. GPIO-2
SUB-D 9p Female - 2 GPI + 2 GPO
5. GPIO-1
SUB-D 9p Female - 2 GPI + 2 GPO
6. Tel Set
RJ11 (PSTN Interface)
7. TBox-HDP-STUDIO, TBox-HDP-GUEST
2 RJ45 (SFTP Cable) - n° 1 GPO Connection
8. TBox-MIC-2, TBox-MIC-3, TBox-MIC-4, TBox-MIC-5
4 RJ45 (SFTP Cable) - n° 2 GPI Connections + n° 1 GPO Connection

12
GENERAL DESCRIPTION | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
TALK BOX CONNECTIONS
1. Power Supply
12VDC 1A
2. Studio Light
Screw Connector - (12VDC output)
3. HDP Output
RJ45 Connectors (SFTP) - (Passive Loop Output)
4. HDP Input
RJ45 Connectors (SFTP)
5. TalkBox Connection
RJ45 Connectors (SFTP) - (Passive Loop Output)
6. Mic Light
Screw Connector - (12VDC output)
7. Mic Input
XLR Female Connector
8. HDP-1-TBox
Jack 6.3mm Female Connector - (Min. Imp. 32Ω)
9. HDP-2-TBox
Jack 6.3mm Female Connector - (Min. Imp. 32Ω)

13
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
3SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA
SAFETY WARNINGS
CONSIGNES DE SÉCURITÉ IMPORTANTES
ISTRUZIONI IMPORTANTI PER LA SICUREZZA
WICHTIGE SICHERHEITSHINWEISE
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
(Rel. 1.6)

14
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
3.1 PREFACE
For your safety and to prevent the warranty from being accidentally invalidated, please
read carefully all the texts marked with the Warning Symbols
The information contained in this manual is subject to change without notice and does not constitute a commitment by the seller.
The manufacturer will not be liable for any loss or damage resulting from the use of information or any errors contained in this manual or resulting
from any erroneous operation or hardware failure contained in the product.
It is recommended that any repair and maintenance of the product be carried out by the manufacturer or its authorized agents. The manufacturer
assumes no responsibility for any loss or damage caused by service, maintenance, or repair by unauthorized personnel.

15
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
3.2 SAFETY WARNINGS
The installation and servicing instructions in this manual are for use by qualified personnel only.
-
Read All Instructions. All safety and operating instructions must be read before operating the
product. They also must be retained for future reference, as it contains a number of useful
hints for determining the best combination of equipment settings for Yr particular
application.
-
Heed All Warnings. All warnings on the product and those listed in the operating instructions
must be adhered to.
-
Heat. This product must be situated away from any heat sources such as radiators or other
products (including power amplifiers or transmitters) that produce heat.
-
Power Sources. This product must be operated from the type of power source indicated on
the marking label and in the installation instructions. If you are not sure of the type of power
supplied to your facility, consult your local power company. Make sure the AC main voltage
corresponds to that indicated in the technical specifications. If a different voltage (ex.
110/115 VAC) is available, open the equipment closure and set the voltage switch on the main
supply circuit, located behind the AC socket
-
Power Cord Protection. Power supply cords must be routed so that they are not likely to be
walked on nor pinched by items placed upon or against them. Pay particular attention to the

16
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
cords at AC wall plugs and convenience receptacles, and at the point where the cord plugs
into the product
-
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
-
Lightning. For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the AC wall outlet and the
audio connections. This will prevent damage to the product due to lightning and power line
surges
-
Installation. Configuration and installation should only be carried out by a competent
installation engineer
-
Cabling. Using high quality wires, well protected. Make sure the cable integrity.

17
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
This symbol alerts you to the presence of dangerous voltage inside the closure –
voltage which may be sufficient to constitute a risk of shock. Do not perform any
servicing other than that contained in the operating instructions. Refer all servicing
to qualified personnel
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Do not change the voltage setting or replace the mains fuse without first turning
the unit off and unplugging the mains cord
Make sure the AC main voltage corresponds to that indicated in the technical
specifications.
THIS APPARATUS MUST BE EARTHED !
To avoid risk of fire use the correct value fuse, as indicated on the label stuck on
the right side of the unit.
This apparatus uses a single pole mains switch and does therefore not separate
the unit completely from the mains power. To completely separate from mains
power (f.i. in the event of danger) unplug mains power cord. As the MAINS plug is
the disconnect device, the disconnect device shall remain readily operable.

18
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
3.3 CONSIGNES DE SÉCURITÉ IMPORTANTES
-
Lire ces consignes
-
Conserver ces consignes
-
Observer tous les avertissements
-
Suivre toutes les consignes
-
Ne pas utiliser cet appareil à proximité de l’eau
-
Ne pas obstruer les ouvertures de ventilation. Installer en respectant les consignes du
fabricant
-
Ne pas installer à proximité d'une source de chaleur telle qu'un radiateur, une bouche de
chaleur, un poêle ou d'autres appareils (dont les amplificateurs) produisant de la chaleur.
-
Ne pas annuler la sécurité de la fiche de terre, la troisième branche est destinée à la
sécurité. Si la fiche fournie ne s'adapte pas à la prise électrique, demander à un électricien
de remplacer la prise hors normes.
-
Protéger le cordon d'alimentation afin que personne ne marche dessus et que rien ne le
pince, en particulier aux fiches, aux prises de courant et au point de sortie de l’appareil

19
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA |OXYGEN 3000 · User Manual · ENG
OXYGEN 3000 - User Manual · ENG
-
Utiliser uniquement les accessoires spécifiés par le fabricant
-
Utiliser uniquement avec un chariot, un support ou une table spécifié par le fabricant ou
vendu avec l’appareil. Si un chariot est utilisé, déplacer l’ensemble chariot–appareil avec
précaution afin de ne pas le renverser, ce qui pourrait entraîner des blessures
-
Débrancher l’appareil pendant les orages ou quand il ne sera pas utilisé pendant
longtemps.
-
Confier toute réparation à du personnel qualifié. Des réparations sont nécessaires si
l’appareil est endommagé d’une façon quelconque, par exemple: cordon ou prise
d’alimentation endommagé, liquide renversé ou objet tombé à l’intérieur de l’appareil,
exposition de l’appareil à la pluie ou à l’humidité, appareil qui ne marche pas normalement
ou que l’on a fait tomber.
-
NE PAS exposer cet appareil aux égouttures et aux éclaboussements. Ne pas poser des
objets contenant de l'eau, comme des vases, sur l'appareil

20
SAFETY WARNINGS/ISTRUZIONI PER LA SICUREZZA | OXYGEN 3000 · User Manaual · ENG
OXYGEN 3000 User Manual · ENG
Ce symbole indique la présence d'une tension dangereuse dans l'appareil
constituant un risque de choc électrique.
Ce symbole indique que la documentation fournie avec l'appareil contient des
instructions d'utilisation et d'entretien importantes.
Avant de modifier le commutateur de changement de tension ou replacer le fusible
il faut débrancher l’appareil de la prise électrique. Pendant son usage, l’appareil doit
etre branchee à la prise de terre
Utiliser le fusible principal AC avec le valeur qui est indiquée sur l'étiquette collée
sur le coffret.
Assurez-vous que la tension principale AC correspond à celle indiquée dans les
spécifications techniques.
L’interrupteur d’alimentation interrompt un pôle du réseau d’alimentation excepté
le conducteur de terre de protection. En cas de danger, debrancher le cordon
d'alimentation. Parce que la prise du réseau de alimentation est utilisée comme
dispositif de déconnexion, ce dispositif doit demeuré aisément accessible
