3
Contents
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 44
FEATURES ............................................................................................................. 46
MAIN FEATURES ................................................................................................... 46
FEATURES & FUNCTION .......................................................................................... 48
CONNECTIONS ...................................................................................................... 50
BASIC CONNECTION .............................................................................................. 51
MIDI CONTROLLER CONNCTION ............................................................................... 52
PART NAMES AND FUNCTIONS ................................................................................. 54
TOP PANEL .......................................................................................................... 54
REAR PANEL .........................................................................................................64
FRONT PANEL ...................................................................................................... 65
DISPLAY SECTION ................................................................................................. 66
UTILITY MENU ........................................................................................................ 68
LINK UP TWO P70MKIlS ............................................................................................70
OPERATIONS ......................................................................................................... 71
VOXOA TUNEBOX SOFTWARE ................................................................................... 78
MIDI MAP .............................................................................................................. 81
SPECIFICATIONS .................................................................................................... 84
MCU-300KMA (082412).indd 章節2:3MCU-300KMA (082412).indd 章節2:3 2012/8/24 下午 05:38:432012/8/24 下午 05:38:43

44
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to the presence
of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
CAUTION : To reduce the risk of electric shock, do not remove any cover. No user-
serviceable parts inside. Refer servicing to qualified service personnel only.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the literature accompanying this appliance.
WARNING
CAUTION
MCU-300KMA (082412).indd 章節2:44MCU-300KMA (082412).indd 章節2:44 2012/8/24 下午 05:40:492012/8/24 下午 05:40:49

45
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
17. All warnings on the appliance and in the operating instructions should be adhered to.
18. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
19 .Power Sources - This product should be operated only from the type of power source indicated on the rating label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer the operating instructions.
20. Grounding or Polarization - This product may be equipped with a polarized alternation-current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
21. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the cord in correspondence of plugs, convenience receptacles,
and the point where they exit from the appliance.
22. For AC line powered units - Before returning repaired unit to user, use an ohm-meter to measure from both AC plug blades to
all exposed metallic parts. The resistance should be more than 100,000 ohms.
23. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period
of time.
24. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
25. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power-supply cord
or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance
has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or E. The appliance has been dropped, or the enclosure damaged.
26. Servicing - The user should not attempt any service to the appliance beyond that that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
27. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
28. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
29. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
MCU-300KMA (082412).indd 章節2:45MCU-300KMA (082412).indd 章節2:45 2012/8/24 下午 05:40:502012/8/24 下午 05:40:50

46
ENGLISH
- MAIN FEATURES
MP3 Playback
The P70MKII can read, display and play MP3 files written to CD-Rs providing DJs with the ability to store more
music on a single media or for extended playback time. Files can be searched for easily either manually, or by
scanning or using a number of file search functions including File search and File/Folder search. Additionally MP3
ID3 tag information can be viewed on the display.
External USB Device Support
In this digital era, USB devices become the most convenient for music collection. P70MKII can support external
USB mass storage devices. Connect an MP3 player, thumb drive and large hard drives for easy access to small or
extensive MP3/WAV libraries up to 999 folders and each folder 999 files.
VOXOA TUNEBOX Software
Free download the VOXOA TUNEBOX software makes reading and searching files much quicker and easier. The
VOXOA TUNEBOX can scan all of music files in your USB mass storage devices and then create database files to
locate the files in your music library.

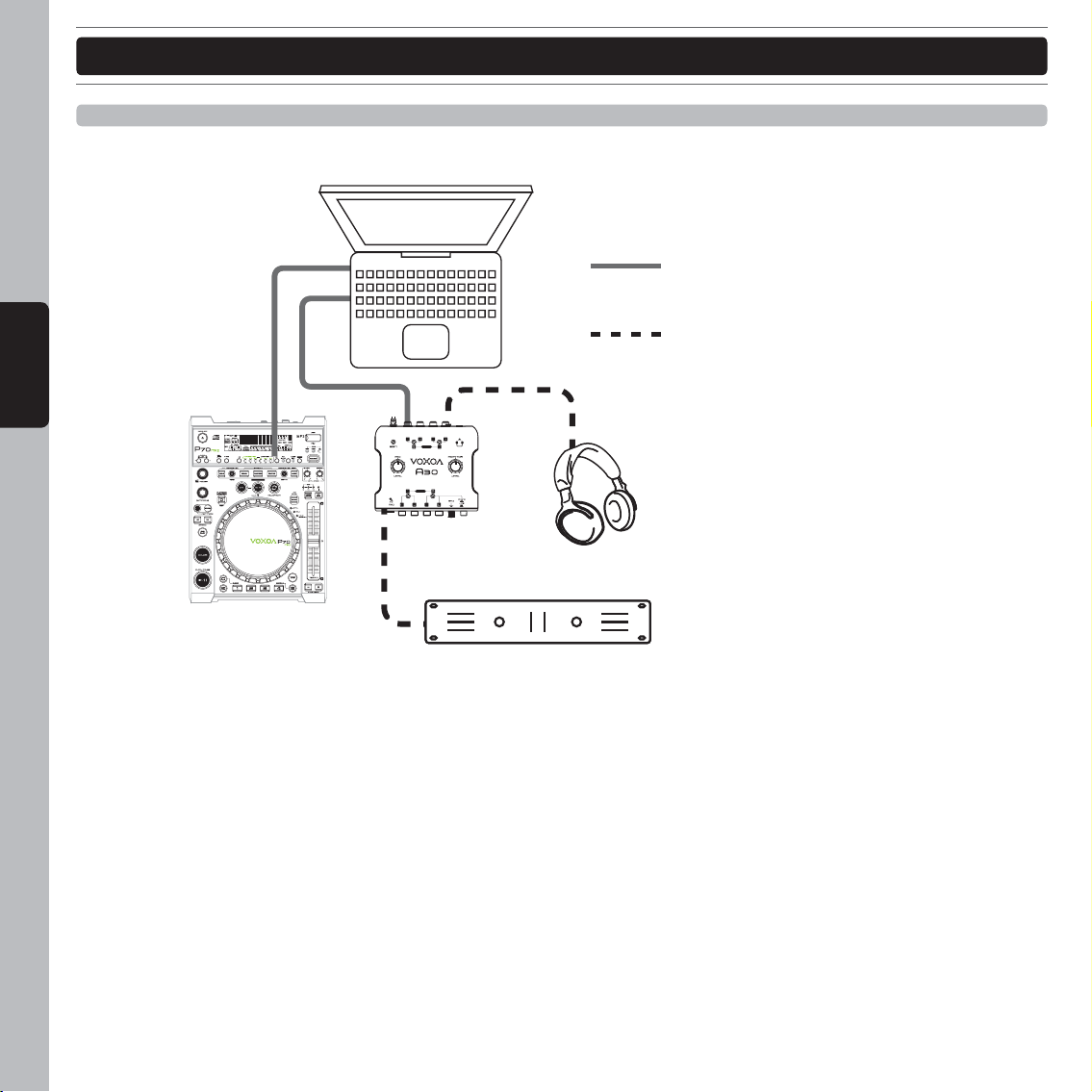

MIDI Interface Controller (PC/MAC)
In this new era of DJing, more and more DJs utilize computer and DJ software for their performances. In order
to satisfy DJs requirement, the P70MKII is also designed to interface and control a variety of popular DJ software
applications that support USB MIDI interface. DJs can assign virtually every button on the control panel to trigger
functions of various DJ software programs. Moreover, The A/B deck switch design can expand one play deck
control to two deck control.
Memo Points with 4 Trigger Pads
Every track can be saved 4 memo points for Hot Cues and Loops. With 2000 memo points on-board, the
P70MKII can store your Hot Cues and Loops on any audio CD/MP3 track and recall them at a later time when
that track is cued in CD drive. For your USB device, the memo points are unlimited. It is all depend on your USB
memory capacity. This memo function can be used like a mini sampler for vocals, stabs, or breaks, adding that
touch of creativity to any DJ set.
4 Independent 5 sec. Sample Bank
The innovative design for P70MKII with on-board sampler function can provide DJs more creative and fun during
performance. The sampler mode can be activated by pressing the Samper button. The player will play sample
from the internal memory banks simultaneously with the playback. For every sample bank, 5-second sample can
be saved and played back. Moreover, when the sample is playing, you can adjust the pitch and volume for the
sample through the jog wheel.
Effects
The P70MKII supplies the DJ with three different types of on-board effects to enhance creativity and performance.
Including ECHO, FLANGER, and FILTER. Moreover, DJs can independently adjust effect’s parameters Time and
Depth via the jog wheel.
FEATURES
MCU-300KMA (082412).indd 章節2:46MCU-300KMA (082412).indd 章節2:46 2012/8/24 下午 05:40:512012/8/24 下午 05:40:51

47
ENGLISH
Multi-functional Touch Sensitive Jog Wheel
The Jog Wheel is constructed with a superb high-resolution and touch sensitivity to accurately reproduce the
vinyl emulation scratching movements made by the hand. The Jog Wheel also can perform other vital functions
such as, pitch bending, scanning, frame searching, parameters control for effects and pitch/volume control for
sampling.
Lighting Ring
The lighting ring is disposed around the jog wheel for showing information of the music playing now. Although, the
jog wheel can not spin like traditional turntable, the lighting ring visual indicator can help DJs to realize the music
playing current point and direction. There are 9 different adjustable display modes for the lighting ring.
Vinyl Speed Start/Break Adjust
To perfectly emulate Vinyl turntable,P70MKII has two separate control knobs for adjusting Start and Break timing.
As you turn on and turn off the traditional turntable.
A.C.P. Active Cue Point
Innovative design for the P70MKII makes DJs have ability to control up to five cues including one normal cue and
four hot cues. DJs can use this cues to generate creative perform. The Active Cue Point (A.C.P.) is visual indicator
located in the 12 o’clock position of the jog wheel to help DJs to find the cue point and scratching. Every time DJs
active a cue from one of the cues, the start point of cue instantly shift to the 12 o’clock position. The cue always
began from the 12 o’clock position and the lighting ring can indicate a blue light on the position. DJs are provided
an intuitive reminder and convenient operation on the vision and the operational control.
Real-time Cutting and Extending Loop Function
You can easy adjust the loop length by half length or double length increments. Every time you can cut the loop in
half to 1/64 loop length or double the loop to 16X loop length.
Auto Beat Loop
According to the track’s BPM (Beat Per Minute), you just need to set loop-in point. This function automatically set
s loop-out point and perform loop play. Moreover, from 1/64 bar to 16 bars there are 11 different loop lengths you
can choose and change loop length instantly to create fantastic effect.
Next Track Function
This unique function allows DJs to select the next track during playback, without interruption the currently playing
track. It is benefit for DJs to make a smooth and perfect mixing.

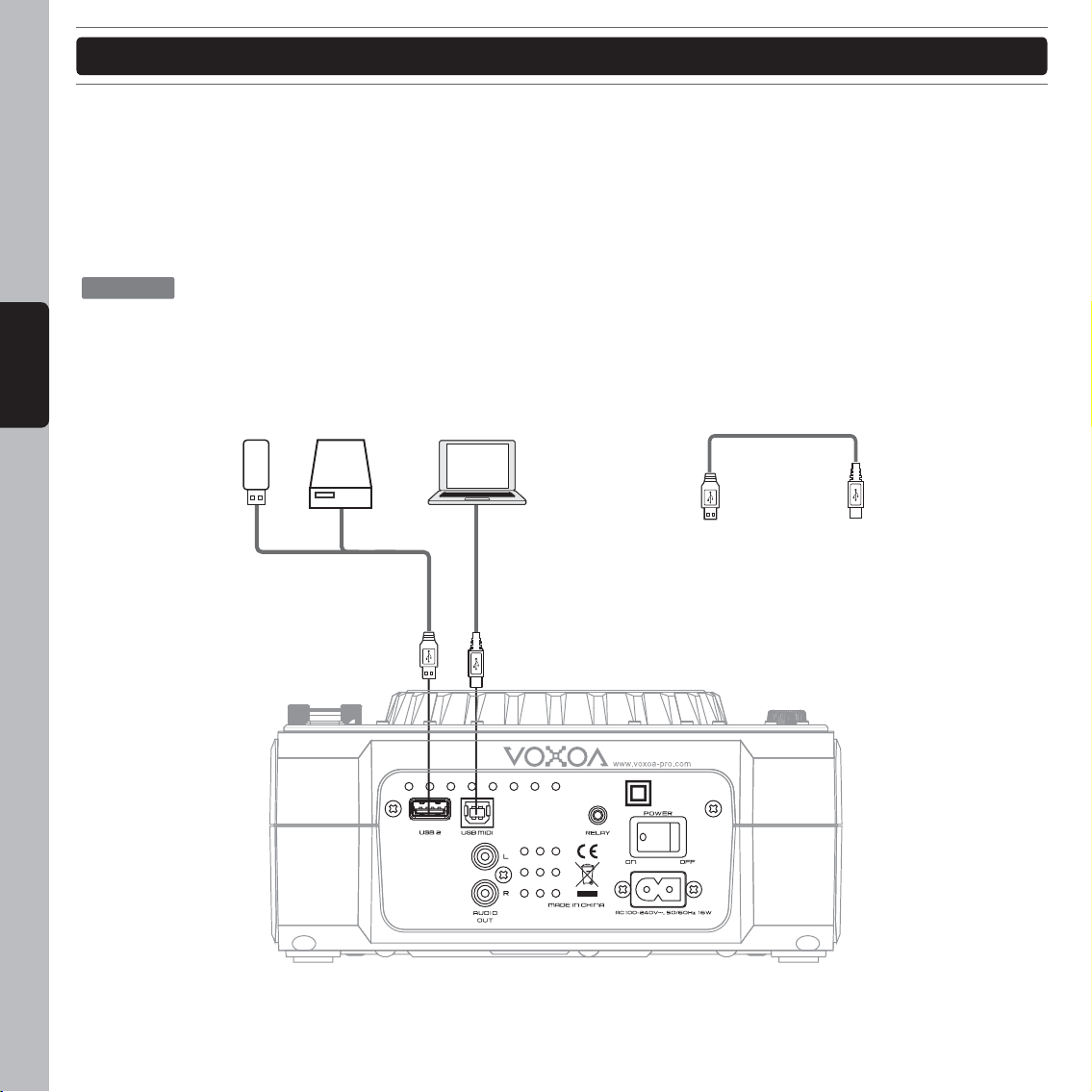

Link Up Several P70MKIIs
With VOXOA’s new technology “LINK UP” you can link up several P70MKIIs via USB cable to share a single
external USB mass storage device from just one player. DJs don’t need to have several USB storage devices for
different players and can easy manage your music resource from one storage device.
Disc Slot-in Loading Mechanism
The Slot-In, quick loading and fast data reading mechanism offers a variety of audio CD/MP3 disc support: CD,
CD-R and CD-RW is also supported.
FEATURES
MCU-300KMA (082412).indd 章節2:47MCU-300KMA (082412).indd 章節2:47 2012/8/24 下午 05:40:512012/8/24 下午 05:40:51

48
ENGLISH
FEATURES
- FEATURES & FUNCTIONS
Player
• Reliable Anti-Shock playback with buffer memory
• Disc Slot-in loading mechanism
• Link up Multi-players players
• Automatic and manual tap beat counter
Media Types
• Support for CD / MP3 / WAV playback
•2 USB sockets for external USB device support
•All control elements are MIDI compatible
• A, B deck switchable MIDI setup
• ID3 TAG
Playback
•Instant start via 1 bit technology (8 fold)
• Next Track pre-selection track function
• Instant playback from cue point
• Fader start to control playback on fader move
• Relay play function
• Single and Continuous play modes
• Vinyl emulation with adjustable Start /Brake Speed
• Reverse play mode for special effects
• Cue Play function can back to cue and play instantly
Data Search
• Track and folder searching system
• Search/Scan via large jog wheel
• Frame search for precisely searching
• VOXOA TUNEBOX software for fast searching USB mass storage device
•Onboard file and folder browsing
Cues/Loops
• Innovate A.C.P. Active Cue Point indicator system
• Auto cue function cues track to start of music
• Seamless loop function / reloop function
• Loop out point real-time adjustment
• 4 independent hot cues/loops banks with real-time adjustment
• Auto Loop function with 11 selectable bar lengths
MCU-300KMA (082412).indd 章節2:48MCU-300KMA (082412).indd 章節2:48 2012/8/24 下午 05:40:512012/8/24 下午 05:40:51

49
ENGLISH
FEATURES
• Real-time cutting and extending loop function
• Every track can save 4 hot cues/loops up to 2000 for CD and unlimited for USB drive
• 4 independent 5 second samples with pitch and volume adjustable
Pitch Control
• Adjustable pitch range ±6%, ±10%, ±16% and ±100%
• High quality 100 mm long pitch fader
• Micro pitch with a resolution up to 0.02%
• Pitch bend up to +/- 100%
• Key Lock allow a track’s tempo to be changed without affecting the original key of the track
Jog Wheel
• Touch sensitive jog wheel for scratching
• Jog wheel lighting ring provides instantaneous visual feedback
• Jog Wheel illumination with 9 different modes
• Multifunctional jog wheel for frame Vinyl, pitch bend, sample adjustment and effects adjustment
• 3 modes for jog wheel: Normal CDJ, Scratch, Auto Cue Scratch
• Auto Cue Scratch mode – touch wheel return-to-cue function
Effects
• 3 superb beat synchronized DSP digital effects
• Build-in Effects: Echo, Flanger, Filter
• Effect parameters Time and Depth adjustable via Jog Wheel
• Beat select/bank button
Display
• Especially bright dot-matrix VFD display for all functions
• Large extra bright display for all important functions
• Display playing address
• Elapsed/remain time display
• Displays text for ID3 tags and folder names for easy navigation
• Text display for navigating folders on MP3 CDs and USB flash drives
Output
• Digital S/PDIF output
• Headphones output with volume control
• Analog RCA outputs
MCU-300KMA (082412).indd 章節2:49MCU-300KMA (082412).indd 章節2:49 2012/8/24 下午 05:40:522012/8/24 下午 05:40:52

50
ENGLISH
CONNECTIONS
1. Before making or changing connections, switch off the power and disconnect the power cord from the AC outlet.
2. Quality cables make a big difference in fidelity and punch. Use high-quality, audio cables.
3. Do not use excessively long cables. Be sure plugs and jacks are securely fastened. Loose connections cause
hum, noise, or intermittence that could damage your speakers.
4. Connect the RCA pin cords to the inputs on your mixer.
CAUTION : Be sure to use the supplied control cord. Using another type of cable may result in damage.
Connecting to a Computer
Support computer operating systems include Windows Vista, Window XP, and MAC OS X or later.
Computer
USB
Type A USB
Type B
USB Storage Devices
MCU-300KMA (082412).indd 章節2:50MCU-300KMA (082412).indd 章節2:50 2012/8/24 下午 05:40:522012/8/24 下午 05:40:52

51
ENGLISH
CONNECTIONS
3.5mm
RCA
Mixer
MCU-300KMA (082412).indd 章節2:51MCU-300KMA (082412).indd 章節2:51 2012/8/24 下午 05:40:542012/8/24 下午 05:40:54

52
ENGLISH
CONNECTIONS
MIDI Controller Connection
Headphones
MIDI Controller
Deck A / B
USB Audio
Interface
󲓹󲔧󲔠󲔩󲔠󲔒󲓱󲔒󲔄󲔁󲓺
Amplifier
USB Connection
Analog Audio Connection
Computer
MCU-300KMA (082412).indd 章節2:52MCU-300KMA (082412).indd 章節2:52 2012/8/24 下午 05:40:582012/8/24 下午 05:40:58

53
ENGLISH
CONNECTIONS
MIDI Controller Connection
MIDI Controller
Deck B
MIDI Controller
Deck A
Computer
Headphones
MIDI Controller
Deck B
MIDI Controller
Deck A
Computer
Amplifier USB Connection
Analog Audio Connection
Mixer with
Audio Interface
󲓹󲔧󲔠󲔩󲔠󲔒󲓱󲔞󲔇󲔁󲓺
Mixer without
Audio Interface
󲓹󲔧󲔠󲔩󲔠󲔒󲓱󲔞󲔂󲔁󲓺
Amplifier
(VOXOAA30)
USB Audio
Interface
MCU-300KMA (082412).indd 章節2:53MCU-300KMA (082412).indd 章節2:53 2012/8/24 下午 05:41:012012/8/24 下午 05:41:01

54
ENGLISH
PART NAMES AND FUNCTIONS
TOP PANEL
1 2
3
9
20
21
1112 10131415
16
17
18
19
22
23
6
5
7
8
4
26
2524
MCU-300KMA (082412).indd 章節2:54MCU-300KMA (082412).indd 章節2:54 2012/8/24 下午 05:41:102012/8/24 下午 05:41:10

55
ENGLISH
PART NAMES AND FUNCTIONS
1. Disc eject button
Pressing this button will eject the CD. The eject function will only when the unit is in cue or pause mode, this is to
prevent accidentally ejecting the disc when in play mode.
2. USB port
The port use to connect a USB memory device.
CAUTION : Please turn on the P70MKII before you plug USB stolage device.
3. Source select button
Use this button to switch between the four media modes – CD/USB1/USB2/MIDI. When turning on the P70MKII
will automatically be in CD mode.
NOTE : Hold the SOURCE SELECT button for 2 sec. to enter MIDI mode.
4. Vinyl speed adjust start dial
When in the VINYL and A.Cue Scratch mode, this Start Dial determines the acceleration speed until full playback
speed is reached when the jog dial is backspin or the Play/Pause button is pressed. When the Start Dial is rotated
counterclockwise, play accelerates to full speed quickly; when the dial is rotated clockwise, play accelerates more
slowly before reaching full speed.
5. Vinyl speed adjust brake dial
When in the VINYL and A.Cue Scratch mode, this Break Dial determines the deceleration speed until play
stops when the jog wheel is touched or the Play/Pause button is pressed. When the Break Dial is rotated
counterclockwise, play stops quickly. When the dial is rotated clockwise, play decelerates more slowly before
coming to a stop.
6. Tempo range indicators
Indicates the pitch range in percent as selected by Tempo control range selector button 7.
34
3130
35
42 43 44 45
2928 32 33
27
36 40 4137 38 39
46
MCU-300KMA (082412).indd 章節2:55MCU-300KMA (082412).indd 章節2:55 2012/8/24 下午 05:41:122012/8/24 下午 05:41:12

56
ENGLISH
PART NAMES AND FUNCTIONS
7. Tempo control range selector button
Each time this button is pressed, the tempo adjust slider’s variable range alternates between ±6%, ±10%,
±16%, and 100%.
8. Key lock button
This function allows the tempo or BPM of the music to be altered without affecting the musical key. While this
button is illuminated, the key will be locked at zero.
9. Tempo adjust slider
This slider is used to adjust the playback pitch percentage.
10. Pitch bend +/- button
The desired pitch decrease or increase when button is pressing and returns to the original pitch when the button
is released.
11. TAP /Auto BPM button
Tap along with the music to enter manual BPM values for use with FX & Auto Loop. This is generally used to
manually calculate BPMs when the Auto BPM function is unable to lock onto a consistent beat. You must tap at
least four times in order for a calculation to occur, and the calculation will only be as accurate as your tapping.
NOTE : Using this button will disengage the Auto BPM function. To return to Auto BPM, simply hold
down the Tap button until the display reads A.BPM in the display screen.
12. Sample button
Press this button, then press the desired BANK button to set the sample loop mode (LED is on). When sample
mode is set, then sampler will mix the music together. And press the SAMPLE button again to set the sample
single mode (LED is flash). Press the SAMPLE button again to cancel sample function.
13. Bank pads 1,2,3,4
These buttons are used to store either four cue points or four samples. Each Bank Button can store either a
sample or a cue point. For Hot Cue the illumination is Orange. For Loops the illumination is Blue.
NOTE : While the Pad is flashing, you can modify the saved data in this pad.
14. Hot Cues/Loops record and recall button
This button can be used in couple of ways:
1) Press this button to activate the record mode, the button LED will glow when active. After the record mode
is activated, press your desired bank button
13
to store your Hot-cue point or playing loop. The bank pad can
also be overwritten in the same way.
2) To store your loops and hot-cue points saved in the BANKS to the system memory for next time. Press the
REC button for 1 second and the button flashes.
NOTE : RECALL MEMORY: The Player can store 2000 programmed cue points in CDs and 4
programmed cue points per track in the USB device. These setting may be recalled at any
time, even when an audio source has been removed and loaded at a later time.
MCU-300KMA (082412).indd 章節2:56MCU-300KMA (082412).indd 章節2:56 2012/8/24 下午 05:41:142012/8/24 下午 05:41:14

57
ENGLISH
PART NAMES AND FUNCTIONS
To recall the bank memory with USB device and CD/MP3
Approach 1 : Turn the TRACK knob
22
to select the track which with the BANKS and “Load Cues?” will be
indicated on the display screen, press MIDI PLAYER A (Y)
27
to load or press MIDI PLAYER B (N)
27
to quit the recall function.
NOTE : You can recall the bank memory anytime you like. Just press SHIFT
34
and REC button
14
to recall
stored cues and loops. However, the playback will be interrupted.
Approach 2 : Press the REC button
14
, the button is lighted up, and turns the TRACK knob
22
to select the
TRACK with BANKS that you would like to recall.
15. Clear button
Clears cue points and loops stored in the Bank PADS. Press CLEAR button, the button is lighted up, and then
select the BANK buttons (1~ 4) you would like to clear. Press the button again to quit the clear function.
16. PLAY/PAUSE button
Each press of the button to change from play to pause or from pause to play.
17. CUE button
A Cue Point is self-defined starting point, usually at the beginning of a beat. Pressing the cue button during
playback immediately pause playback and returns the tracks to the last set cue point. By pressing and holding
the Cue Button you will return to Play mode until you release the button again. The player will then returns to the
Cue Point and go into Pause mode.
18. CUE PLAY button
Press the button to return to cue point and playing immediately. You can also tap the button to create a BOP
effect
19. Search buttons
This search button allows you to quickly scan backwards through a track. This search button allows you
to quickly scan forwards through a track.
MCU-300KMA (082412).indd 章節2:57MCU-300KMA (082412).indd 章節2:57 2012/8/24 下午 05:41:152012/8/24 下午 05:41:15

58
ENGLISH
PART NAMES AND FUNCTIONS
20. Next Track button
This function allows you to select the next track during playback, without interrupting the currently playing track.
Step 1 : Press this button to turn the next track mode on.
Step 2 : To select the next track you want to play from CD or current USB folder. You can use the Track knob
22
to search the track.
Step 3 : Press the Enter button
21
to search your desired track.
Step 4 : The display screen will show “next track” found. Once searching is completed and the standby mode is
set, the Next Track Button flashes.
Step 5 : Press the Enter Button
21
to start next track playback. When the Enter button is pressed, playback of
current track stops and playback of the next track starts.
NOTE : When the Next Track button is pressed again while the next track mode is on, the next track
mode is turned off.
21. Enter button
This button has two functions.
1) To active next track playback .
2) Press this to enter the “Utility” setup menu.
22. Track knob
This knob has three functions.
1) The knob is used to select a track. Turning track knob will forward/backward skip to next track.
2) Holding down and turning track knob will rapidly forward/backward skip through the tracks by 10 tracks per
click.
3) Press track knob to switch file name/title (ID3)/artist (ID3)/Album (ID3)/Genre (ID3) on the display screen.
23. Folder search knob
If an CD/MP3 or USB driver is divided into folders, change directly into these folders use the Folder Search
Knob. Turn the knob to search the desired folder.
24. Jog wheel
This touch-sensitive wheel has multiple functions:
1) Frame Search - The jog wheel will act as a frame search control when the track in the pause or cue mode
(without vinyl mode engaged), allowing you to set a point.
2) Pitch Bend - During CDJ mode playback, the wheel also works as a pitch bend during playback, similar to
a “push” or a “drag” on a turntable. Turning the wheel clockwise will increase the pitch percentage up to
100%, and turning the wheel counterclockwise will decrease the pitch percentage down to -100%. The pitch
bend will be determined on how long you turn the jog wheel continuously.
MCU-300KMA (082412).indd 章節2:58MCU-300KMA (082412).indd 章節2:58 2012/8/24 下午 05:41:192012/8/24 下午 05:41:19

59
ENGLISH
PART NAMES AND FUNCTIONS
3) Vinyl Simulation - When in VINYL mode, the top platter acts just like a vinyl turntable, moving the playback
position forward or back in response to your movements. The outer jog wheel still performs the pitch bend
function
4) LOOP IN/OUT Adjustment - The jog wheel can be used to adjust the LOOP IN or LOOP OUT point. For
detail information please refer to “Operation Section”
5) Effects & Samples Parameter Adjustment - The jog wheel can be used with pressing the X Parameter (Time)
36
button or Y Parameter (Depth)
40
button to set effects and samples parameter adjustment.
25. Jog wheel indicator
There are several varied modes can be adjusted for Jog Wheel Indicator.
Step 1 : To select Jog Wheel Indicator you desired by press the Enter button
21
to enter Utility menu, and turn
FOLDER knob
23
to search “1 JOG MODE” menu.
Step 2 : Turn the TRACK knob
22
to select the MODEs you want to adjust.
MODE 1 - The indicator will show the playing point indicator around the ring. You can adjust the setting value
range 1 of smallest indicator to 23 of full circle indicator. Press SHIFT button
34
and turn the TRACK
konb
22
to adjust the indicator number.
MODE 2 - It is a reverse mode of MODE 1
MODE 3 - The indicator will indicate the playing point opposite (on->off / off->on) when the Jog Wheel is
touched. You can adjust the setting value range 1 of smallest indicator off to 23 of full circle off.
MODE 4 - The indicator will show the playing point indicator around the ring and flash to the playing level in both
sides. You can adjust the setting value range 1 of smallest playing point indicator to 23 of full circle
indicator.
MODE 5 - The indicator will flash according to the BPM.
MODE 6 - It will always on. You can adjust the setting brightness range 1 to 100.
MODE 7 - The indicator will flash related to the setting speed. You can adjust the setting speed range 1 of fast
flash to 100 of slow flash.
MODE 8 - The indicator will show the playing point similar to trail effect.
MODE 9 - The indicator will light when the Jog Wheel is touched.
Step 3 : Press the Enter button
21
again to exit Utility menu and save the changes.
26. Active Cue point (A.C.P.) indicator
Every time you active one of the cue points, the P70MKII will reset the cue point to the 12 o’clock position. The
position as a reference point called Active Cue Point can help you to simulate vinly-like scratching.
The indicator provides a reminding function. When you operate the P70, the music keeps playing and the time
displaying now is away from the Active Cue Point. In order to assist you to access the Active Cue Point, the
reminding function is designed. While accessing the Active Cue Point, the indicator is lighting up with Blue color.
MCU-300KMA (082412).indd 章節2:59MCU-300KMA (082412).indd 章節2:59 2012/8/24 下午 05:41:202012/8/24 下午 05:41:20

60
ENGLISH
PART NAMES AND FUNCTIONS
27. MIDI A/B / Recall Cues yes or no buttons
Under the MIDI mode, press this button to switch Deck A/B. Under recall cues mode, Y(Yes) for recall the cues
and N (No) for quit recall mode.
28. SGL/CTN switch button
This function allows you to switch single track play or continuous track play (all tracks in order).
SGL = Single → The current title is played; the player goes into pause mode.
CTN = Continue →The entire CD or folder will be played continually.
29. Time display mode switch button
The button will switch the time display mode in the Time Mode Indicator between ELAPSED playing time and
Track REMAINING time and entire andio CD TOTAL REMAINING time.
30. Minus button and Cut loop button
Moves the Time Division Indicator
31
to the left. During loop playback, press the button. The loop playing time is
cut in half each time the button is pressed. The loop can be cuted to 1/64 orignal loop length.
31. Time division indicator
Indicates the time division used by the FX Sync (in beats) and Loop Set (in bars).
FX Beat SYNC (Yellow LED ) - This is used to select the delay time of an effect to the beat of music. The beat
delay ratios are 1/4, 1/2, 3/4, 1/1, 2/1, and 4/1.
LOOP SET (Red LED) - When the loop set function is activated, select the loop length of 1/64, 1/32, 1/16, 1/8,
1/4, 1/2, 1, 2, 4, 8, 16 (1 bar = 4 beat) at which you would like to start your desired loop.
32. Plus button and Extend loop button
Moves the Time Division Indicator
31
to the right. During loop playback, press the button. The loop playing time
is doubled each time the button is pressed. The loop can be extended to 16X orignal loop length.
33. FX Sync & Auto Loop set switch button
Use this button to switch time division for FX SYNC (Yellow LED) or LOOP SET(Red LED).
34.Shift button
Hold the SHIFT button enables to call up a second function.
MIDI Shift Function : When in MIDI mode a second MIDI command can be carried out by using the Shift
Button. Further details regarding this function can be found in the chapter MIDI MAP.
MCU-300KMA (082412).indd 章節2:60MCU-300KMA (082412).indd 章節2:60 2012/8/24 下午 05:41:242012/8/24 下午 05:41:24

61
ENGLISH
PART NAMES AND FUNCTIONS
35. Hold button
This button allows you to set and lock any new parameters you set to the effects. Otherwise, the effect
parameters always return to the original value. This button will glow when the hold function is activated.
36. X Parameter (Time) button
This button is used to adjust the parameter time value. You can push the X parameter (Time) button, LED on,
and turn the JOG WHEEL to adjust the parameter time value. During hold function is selected the auto beat
sync will be turned off.
37. ECHO effect
This button is used to activate and deactivate the echo effect. The echo effect adds an echo to your output
signal.
38. FLANGER effect
This button is used to activate and deactivate the flanger effect. The flanger effect distorts the output signal
and creates an effect similar to the frequency phasing in and out of each other. This frequently applied effect is
similar to the Phase effect, but slightly more harmonious, emphasizes the upper pitch more and is reminiscent of
a flying aircraft. Your device synchronizes the effects automatically with the current BPM value. Use the FX Beat
Sync Plus button
32
and Minus button
30
to precisely set the frequency.
To manually change the beat frequency of the effect, press the X Parameter (Time) Button
36
and regulate the
frequency value with the Jog Wheel (from0-9990 mSec.). To influence the intensity of the effect, press the Y
Parameter (Depth) Button
40
and set the volume with the Jog Wheel (from 0-255).
39. FILTER effect
This button is used to activate and deactivate the filter effect. The filter effect tweaks the original sound to add
different tonal definition.
The player synchronizes the effects automatically for the current BPM value. Use the FX Beat Sync Plus button
32
and Minus button
30
to precisely adjust the frequency to match the beat.
To manually change the beat frequency of the effect, press the X Parameter (Time) Button
36
and regulate
the frequency mean of the Jog Wheel (von 0-9990 mSec.). To influence the intensity of the effect, press the Y
Parameter Button
40
and adjust the volume with the Jog Wheel (from 0-255).
MCU-300KMA (082412).indd 章節2:61MCU-300KMA (082412).indd 章節2:61 2012/8/24 下午 05:41:262012/8/24 下午 05:41:26
