Axio MET AX-DT200 User manual

AX-DT200
1. Product overview
1.Humidity and temperature sensor window
2.Battery compartment
3.Function button
4.LCD
5.USB port
6.Protection cap

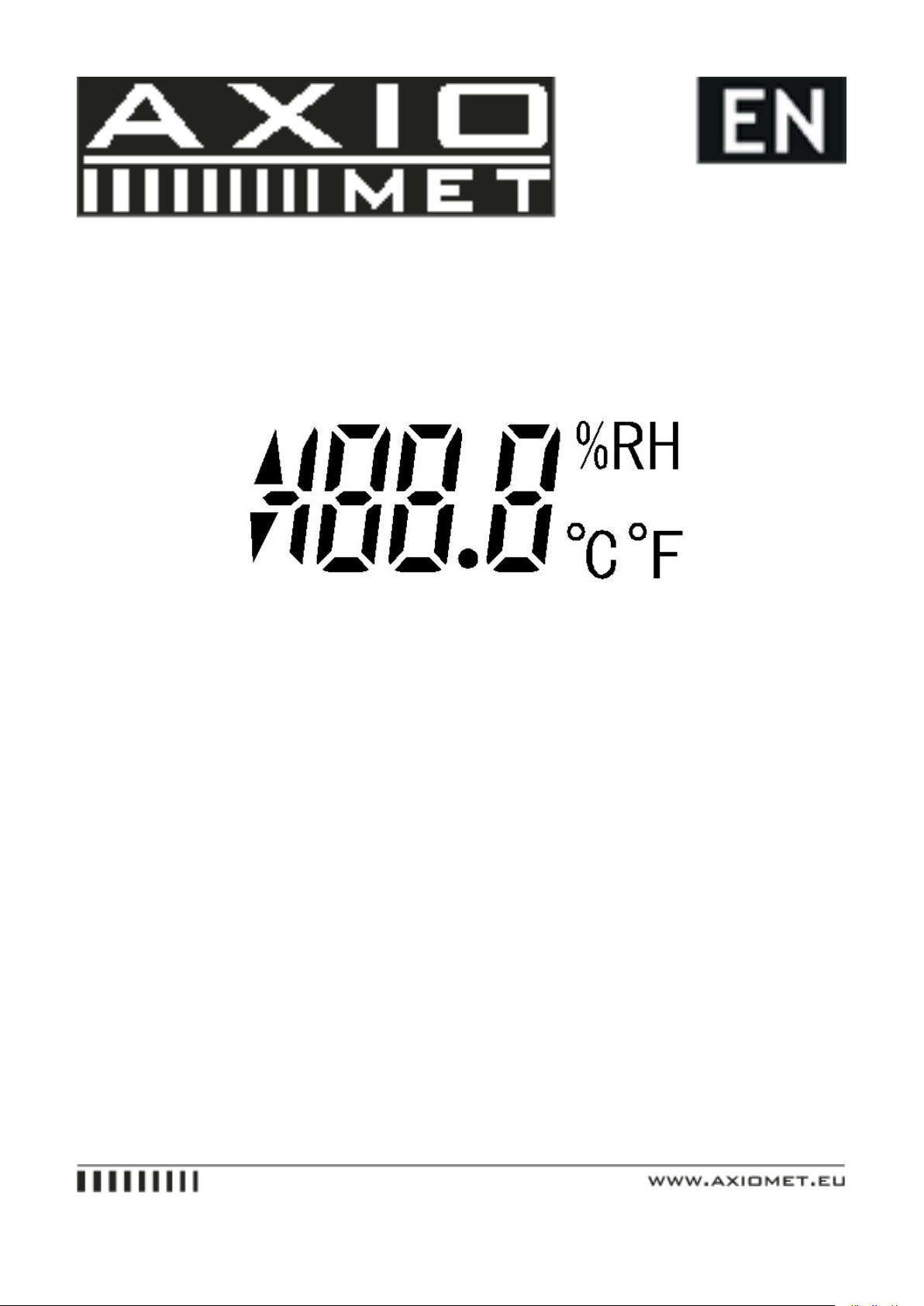

2. Display
▲ indicates the reading is higher than the upper limit set;
▼ indicates the reading is lower than the lower limit set ;
%RH humidity units
°C temperature units, °C
°F temperature units, °F
<SCREEN>:readings are displayed here
The device status displays are as following:
Log: indicates the logger is in recording mode
―――: indicates the logger is in standby mode, in this mode, the device can only display current ambient
temperature and humidity without recording them
FUL: indicates the logger’s memory is full, recording stopped automatically; current ambient temperature and
humidity can be displayed
CON:Means the software setting isn’t successful. Please plug the device to computer for setting;
3. Function button
This device has only one function button, its main function is as follows:
• Press MODE to turn on the LCD when it is off.
• When the LCD is on, press this button to switch the status of °C, °F, humidity temperature in centigrade(press
again to get Fahrenheit reading), humidity and the recording status.
• Hold the Mode for 3 seconds, activate or stop the temperature and humidity collecting function

4. Instructions
4.1. Battery Installation
Uses DC3.6V lithium battery. Please follow the steps below to power on the logger for the first time. Press the
reed of the battery compartment jacket using a screwdriver, and pull off the jacket; pull out the plastic flake set
over the positive pole, then put back the compartment jacket to finish the process.
NOTE: If the battery is removed during recording, you should reset using the software, otherwise the device is
under standby status. Press the MODE to come to work interface, the LCD shows “CON”, the data is saved;
When you operate the device with the unit plug into the USB port, it is powered by the computer, in that case,
you can remove the battery; But if the device is plug out from the computer, you must install the battery and
reset the software;
4.2. Software install
Please install the included CD software. The software manual with the detailed installation steps is inside the
CD.
4.3. Activate / stop the device
After finish installing the software, plug the logger in the USB port of the PC, set up the parameters according
to the software manual. Then click “Setup” to activate the logger. After this, hold the MODE for 3s to stop the
device, with the display shows “— — —”.
4.4. Collect and Record Data
AX-DT200 has an internal EEPROM memory. Users are allowed to set up recording rate using the included
software; the logger will collect and record temperature/humidity data automatically. Press the button to check
current ambient humidity, temperature and recording status. When recording status is displayed, “Log” means
the logger is recording data; “FUL” means the memory is full, recording is stopped; “-----” means the logger is
not activated, activate the recording mode from the software interface.
4.5. Export Data
Data collected by AX-DT200 can be download to the computer using the included software, and saved as a
*.txt file. This file will list all the data recorded in the logger memory for further analysis. For detailed steps,
please refer to the software manual.

4.6. Operation notes
Keep the device away from vibration source and high power EMF places. The ambient temperature should be
stable. To avoid damages to the instrument, do not use it near following places: EMF places(Electromagnetic
fields: such as arc welders, induction heaters), High temperature objects, Static environment
5. Safety instructions
• Please read this manual thoroughly prior to any operation.
• Do not remove any labels from the instrument.
• Avoid violent shock and dropping.
• Keep away from direct sunlight, hot/cold source and places with intense airflow.
• Do not place the unit together with corrosive gases or objects.
• Do not clean the device with chemical liquid and stiff cloth.
• Do not operate the tool with the presence of flammable/explosive gases.
• Keep the device away from vibration source and high power EMF places. The ambient temperature should
be stable.
• Remove the battery when storing the tool for an extended period of time to prevent the deteriorative battery
from damaging the device.
6. Technical specifications
Product name: USB Humidity and Temperature Data Logger
Model: AX-DT200
Display Means: LCD display 3,5 digit
Material: ABS engineering plastic housing, safe and reliable
Temperature: range: -20°C~70°C(-4°F~158°F), resolution: 0.1°C, precision: ±0.3°C
Humidity: range 0-100%RH, resolution: 0.1%RH, precision ±2%RH (10-90%RH);±3%RH (0-
10%RH�90-100%RH).
Date interface: USB 1.0/2.0
Software: Included
Power supply: DC3.6V/1200mAh lithium battery(1/2AA)
Working current: <0.5mA

Recommended usage environment: In places with standard atmospheric pressure and no high
power EMF
Operating temperature: -20°C~70°C(-4°F~158°F)
Working humidity: 0-100%RH non-condensing
Storage Condition: -20°C~70°C(-4°F~158°F),≤85%(w/o batteries)
Size: 132×28×31(mm)
Weight: About 52g(Stand included and battery not included)
