Axis AX-1219 User manual

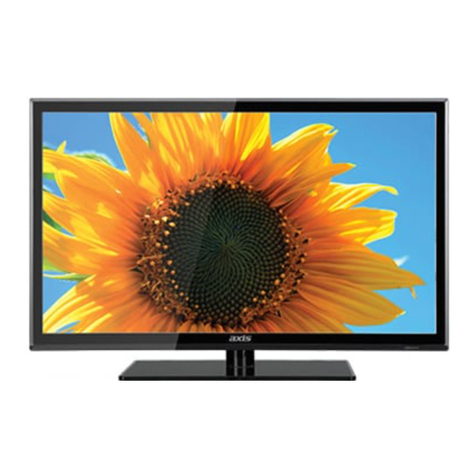

47cm LED TV
with Built-in DVD Player
Model: AX-1219
“More information https://www.caravansplus.com.au"

Contents
Important safety instructions 4
Usage conditions and restrictions 4
Electrical safety, power cord and plug 5
Position 5
Cleaning and maintenance 5
Accessories 7
Connections and functions 8
Remote control 9
Wall mounting instructions 13
Basic installation 14
First time installation 17
Installing The Batteries 18
Using the Remote Control 18
Selecting an Input Source 19
Operating The Menu 20
Channel Menu 20
Auto Tuning 20
ATV Manual Tuning 21
DTV Manual Tuning 22
Program Edit 22
Operating The Menu (DTV) 23
Picture menu 23
Sound menu 24
Time menu 25
Lock menu 26
Setup menu 27
Operating The Menu (ATV) 29
Component / HDMI / AV 30
Media (Multimedia) Menu 31
Photo menu 31
“More information https://www.caravansplus.com.au"

Contents
Music menu 32
Movie menu 33
USB Multimedia Playback Format 34
PVR (Personal Video Recorder) 35
EPG (Electronic Program Guide) 38
DVD Function 39
System setup 39
Audio setup 40
Preferenace page 41
42
FAQs 43
“More information https://www.caravansplus.com.au"

4
Important Safety Instructions
1MFBTFSead this manual thoroughlybefore rst use and keep it in asafe placefor future reference,
along with the warranty card, purchase receipt and carton. The safety precautions enclosed
herein reducethe risk of re, electric shockand injurywhen correctlyadhered to.
Usageconditions and restrictions
Toprevent any injuries, the following safety precautions shouldbe observed in the
installation, use, servicing and maintenanceof equipment. Before operating this equipment,
please read this manual completely, and keep it nearby for future reference.
t5BLFOPUJDFPGBMMUIFXBSOJOHT
t%POPUVTFUIJT57OFBSXBUFS
t$MFBOPOMZXJUIBESZDMPUI
t%POPUCMPDLBOZPGUIFWFOUJMBUJPOPQFOJOHT
t*OTUBMMJOBDDPSEBODFXJUIUIFNBOVGBDUVSFSTJOTUSVDUJPOT
t%POPUJOTUBMMOFBSBOZIFBUTPVSDFTTVDIBTSBEJBUPSTIFBUSFHJTUFSTTUPWFTPSPUIFS57T
(including ampliers) that produceheat.
t%POPUBMUFSUIFHSPVOEJOHUZQFQMVHQSPWJEFEXJUIUIF57"HSPVOEJOHUZQFQMVHIBTUXP
blades and athird grounding prong. The third prong is provided for your safety. When the
provided plug does not tinto your outlet, consultan electrician for replacement of the
obsoleteoutlet.
t1SPUFDUUIFQPXFSDPSEGSPNCFJOHXBMLFEPOPSQJODIFEQBSUJDVMBSMZBUQMVHTDPOWFOJFODF
receptacles, and the point where they exit from the TV.
t0OMZVTFUIFBUUBDINFOUTBDDFTTPSJFTTQFDJöFECZUIFNBOVGBDUVSFS
tUse onlywith acart, stand, tripod, bracket, or tablespecied by the manufacturer, or sold
with the TV.
t6OQMVHUIJT57EVSJOHMJHIUOJOHTUPSNTPSXIFOVOVTFEGPSMPOHQFSJPETPGUJNF
t5IFBQQMJBODFJTOPUJOUFOEFEGPSVTFCZQFSTPOTJODMVEJOHDIJMESFOXJUISFEVDFEQIZTJDBM
sensory or mental capabilities,or lackof experienceand knowledge, unless they have been
given supervision or instruction concerning use of the applianceby aperson responsible
for their safety.
t:PVOHDIJMESFOTIPVMECFTVQFSWJTFEUPFOTVSFUIFZEPOPUQMBZXJUIUIFBQQMJBODF
t3FGFSBMMTFSWJDJOHUPRVBMJöFETFSWJDFQFSTPOOFM4FSWJDJOHJTSFRVJSFEXIFOUIF57IBTCFFO
damaged in any way, suchas power supplycordor plug is damaged, liquid has been spilled
or objects have fallen into the TV, the TVhas been exposed to rain or moisture, does not
operate normally, or has been dropped.
NOTE: The TVmust not be exposed to dripping or splashing and no objects lled with
liquids,suchas vases, shall be placed on the TV.
“More information https://www.caravansplus.com.au"

5
Important Safety Instructions
Position
t If atelevision is not positioned in asucientlystablelocation, it can be potentially
hazardous due to falling. Many injuries, particularlyto children, can be avoided by taking
simpleprecautions suchas:
t Securelyattaching the TVto Bwall mount CSBDLFUfastened on the wall.
t Onlyusing furniture that can safelysupport the television.
t Ensuring the television is not overhanging the edge of the supporting furniture.
t Educating children about the dangers of climbing on furnitureto reachthe TVcontrols.
t Not standing the TVon cloth or other materialsplaced between the television and
supporting furniture.
t Not placing the television on tall furniture (for example, cupboards or bookcases)
without anchoring both the furnitureand the television to asuitablesupport.
t When deciding on where to put the TVset, make sure the placeis:
t Well ventilated.
t Away from damp and cold.
t Protected from overheating and away from directsunlight.
t Away from moisture drips or splashes.
t Protected from excessive dust.
t Do not install this equipment in aconned spacesuchas abookcase or similar unit.
t Do not put any objects lled with liquids, suchas vases,on top of the TVset.
t Do not placeany naked ame sources, suchas lighted candles, on top of the TVset.
Cleaning and maintenance
t Dust the TVset by wiping the screen and cabinet with asoft, clean cloth.
t Do not applyexcessive forceto the screen when cleaning.
t Do not clean the screen with water or chemical cleaners as this may damage the LCD
screen surface.
Electrical safety, power cord and plug
t Before installing this TVset, make sure your outlet voltage corresponds to the voltage
stated on the appliancerating label.
t Toreducethe risk of re or electric shock, do not expose this applianceto rain or moisture.
t Do not overload the power cord or power outlet.
t Do not let the cord hang over the edge of atableor counter, or touchany hot surface.
t Do not allow anything to rest on or roll over the power cord and signal cable.
t Protectthe power cord and signal cablefrom being trampled.
t Do not expose the power cord and signal cableto moisture.
“More information https://www.caravansplus.com.au"

6
Important Safety Instructions
t Do not dismantlethis productby yourself, as this may cause damage. There are no user-
serviceableparts contained in the TVset.
t If your TVset has been damaged, contactthe after sales support line for adviceor take
it to alocal servicecentre or for inspection or repair. Noliability can be accepted for any
damage caused by non-compliancewith these instructions or any other improper use or
mishandling of appliance.
t Do not applyexcessive forceto the screen when cleaning.
t Do not clean the screen with water or chemical cleaners as this may damage the LCD
screen surface.
TVwith Class 1 construction shall be connected to amain socket outlet with aprotective
earthing connection.
WARNING:
TO PREVENTDAMAGEWHICH MAY RESULT IN FIREOR AN ELECTRICSHOCK HAZARD, DO
NOTEXPOSETHIS APPLIANCE TO RAIN OR MOISTURE.
$"65*0/4tToreducethe risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
tAny changes or modications not expresslyapproved by the party responsible
GPSDPNQMJBODFDPVMEWPJEUIFVTFSTBVUIPSJUZUPPQFSBUFUIFFRVJQNFOU
This symbol indicates that dangerous voltageconstituting arisk of
electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the documentation accompanying this unit.
CAUTION:TO PREVENTTHERISK OF ELECTRIC
SHOCK, DO NOTREMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
“More information https://www.caravansplus.com.au"

7
Accessories
The conguration of the components may look dierent from the following
illustration.
795$',2
86%
302'( 602'(
,1)2 '9'6(783
(3*
 
Car adaptor
“More information https://www.caravansplus.com.au"

8
Connections and functions
Front View
BackView & ConUrol Connection
1.Press “STANDBY” button to turn standby
2.Press“SOURCE” to select the input source.
3.Press “MENU”to bring up the main menu
on the screen.
4.Press “CH+” or “CH-”to scan through channels.
5.Press ‘VOL+” or “VOL-”to increase or decrease
the volume.
8.POWER INDICATOR:Shows red in standby mode,
shows blue when your TV is switched on.
9.REMOTE SENSOR:Infrared sensor for the
remote control
89
6.Press ” “ button to play/pause the program in DVD mode.
7.Press ” “ button to eject the program in DVD mode.
1.DC IN: power input
2.USB:Connect to portable USB device
3.HDMI:Connect the HDMI output jack of DVD
4.YPbPr(Component) output jack of DVD
5.PC AUDIO:Connect the Audio output jack of PC
6.VGA:Connect the PC-RGB output jack of PC
9.VIDEO:Connect the VIDEO output jack of DVD
10.R/L:Connect the R/L audio output jack of DVD
11.RF:Connect the antenna
7.Coax: Connect the SPDIF receiver
8.HEADPHONE:Connect the earphone
“More information https://www.caravansplus.com.au"

9
Remote ControlRemote Control
STANDBY:
SOURCE: Press to cycle through the input source.
PMODE: Select picture mode.
SMODE: Select sound mode.
AUDIO:
SLEEP: Sets the TV sleep time.
MUTE: Press to mute the sound.Press again or press V+ to
un-mute the TV.
0-9:TV channel number select.
:Return to the previous channel viewed.
FAV: Display your favourite channel list.
MENU:Brings up the main menu to the screen.
EXIT: Press to close the on-screen display.
*/'0:Press to display the source and channel
information.
/ / / /OK ENTER:Allows you to move, select and setup
the OSD options.
VOL+/-:Volume up/down.
CH+/-: Channel up/down.
TV MODE
“More information https://www.caravansplus.com.au"

10
Remote Control
NUMBERBUTTONS:Press 0-9 to select a teletext page.
TEXT: Press to switch between TV and Teletext mode.
COLOUR BUTTONS:Select 4 preferred teletext pages.
HOLD: Freeze the current page.
REVEAL: Reveal or hide the hidden words.
SIZE: Change the picture size.
SUBTITLE: Displays subtitles.
INDEX:Request indexpage when indexis valid.
* Teletext or Austext is no longer available, nor is
there any plan for a replacement teletext service
in Australia.For more information, please visit
the websites of the Australian channel providers.
However, one teletext option,“closed captions”, is
still working on most Australian television channels.
This service allows you to activate subtitles while
watching normal television programs that provide it.
TELETEXT MODE*
TV/RADIO
USB
P.MODE S.MODE
INFO DVD SETUP
EPG
10 10+
“More information https://www.caravansplus.com.au"

11
Remote Control
NUMBERBUTTONS:Press 0-9 to select a teletext page.
FAV: Display your favourite channel list.
MENU:Brings up the main menu to the screen.
I/'0:Press to display the source and channel
information.
/ / / /OK ENTER:Allows you to move, select and setup
the OSD options.
CH+/-: Channel up/down.
COLOUR BUTTONS:Used in a few sub menus.
SUBTITLE: Displays subtitles.
:PLAY/PAUSE in TIMESHIFT and MEDIA mode.
:Stop in MEDIA mode or exit the REC or TIMESHIFT
mode.
/ :Fast backward and forward in MEDIA mode.
/ :Jump to previous and the next track in MEDIA
mode.
SIZE: Change the picture format.
EPG:Launched the EPG (Electronic Program Guide).
MEDIA: Press to select MEDIA mode.
TV/RADIO:Select TV or RADIO modes.
DTV MODE
“More information https://www.caravansplus.com.au"

12
Remote Control
:Press to eject the disk
NUMBERBUTTONS:Press 0-9 to select a teletext page.
DISPLAY:Press to display the DVD information of DVD.
D.SETUP: Used for selecting programs.It may also be
used to execute commands.
/ / / /OK ENTER:Allows you to move, select and setup
the OSD options.
GOTO: Press to access the GOTO menu.
A-B: This button enables you to repeat a selected section
from the disc.
REPEAT: Press REPEAT to cycle through the repeat play
options.
SUBTITLE: Displays subtitles.
TITLE: When DVD is playing, brings up the Title Menu.
ZOOM: In play state, press ZOOM, the player will zoom in
the picture PODF.
D.MENU:DVD disc menu.Access to menu
AUDIO:AUDIO selection buttons in DVD mode.
:PLAY/PAUSE in DVD mode.
:DVD Stop
/ :Fast backward and forward key
/ :Jump to previous and the next track/chapter.
DVD MODE
795$',2
86%
302'( 602'(
,1)2 '9' 6(783
(3*
 
“More information https://www.caravansplus.com.au"

13
Wall MountingInstructions
Attach the stand
Remove the stand
5PBUUBDIUIFTUBOEQMBDFUIFTUBOEPOUIFOFDLPGUIF57SPUBUFUIFTUBOE
BTTIPXOCFMPX
To remove the stand, remove the screws in the circled area and the neck will
come o.
Mounting specication:
100mm x100mm using screw size M4
(not supplied), length of screw should
not exceed 8mm.
Please note: the 8mm length of screw
refers to how deep the screw can go
inside the mounting holes.When you
are buying screws, you should add the
original 8mm to the thickness of your
mounting plate in order to get the total
screw length.
The screws in the package are for securing the TV stand only. If you are
mounting the TV please consult a qualied installer for further instructions
on bracket support and wall support.
“More information https://www.caravansplus.com.au"

14
Basic Installation
Antenna Connection
AV Connection
To ensure good picture and sound, a TV antenna system needs to be connected.The
antenna system as shown can be sourced from TV equipment stores, which will provide
service for the correct installation and connection.After installation, insert the 75-OHM
antenna plug into the antenna jack (RF) as shown.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV INjacks in the
set using an AV Cable (Yellow [video], White and Red [left & right audio]).Select the AV
input source using the SOURCE button on the remote control.
AV Cable
TV
“More information https://www.caravansplus.com.au"

15
Component (YPbPr)Connection
VGA (PC)Connection
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set.The picture
quality is improved compared to connecting a regular VCR to the AV input.Connect the
Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jack colours:Y is green, Pb is blue, Pr is red, Audio left is white and Audio right
is red, Select Component input source using the SOURCE button on the remote control.
Connect the VGA output of the PC to the VGA jack on the set.Connect the AUDIO
output of the PC to the PC AUDIO jack on the set.Select the PC input source using the
SOURCE button on the remote control.
“More information https://www.caravansplus.com.au"

16
HDMIConnection
MEDIA (USB)Connection
Power Cord Connection
HDMI is a digital connection for sending both Video & Sound signals
through the one cable.HDMI supports 1080p Video and Multi-channel
Digital Audio.Select HDMI 1 or HDMI 2 input source using the SOURCE
button on the remote control
Connect portable USB storage device for use with PVR function.Select USB
input source using the SOURCE or MEDIA buttons on the remote control.
-Connect the power cord and AC adaptor correctly as shown.
-Press the STANDBY switch of your TV to switch the unit on.The power
indicator on the front panel lights up in blue.
Adaptor
Optional 3.5mm stereo
plug to RCA cable adaptor
for audio AUX-OUT
“More information https://www.caravansplus.com.au"

17
First Time Installation
will be displayed on the screen.
-Use the buttons to select the country and then use the OK
button to go to the next page.
-Use the buttons to select the language and then use OK
button to start searching for all the ATV/DTV programs in your area.This
may take a few minutes.
“More information https://www.caravansplus.com.au"

18
Installingthe batteries
1.Open the cover at the back of the remote control unit completely.
2.Insert two 1.5V AAA batteries, ensuring the polarities (+ / -) of the batteries are
correctly aligned and the batteries are properly pushed
into place so they can power the remote control unit.
3.ReplaDe the battery cover.
Precautions when usingbatteries
• Do not use old and new batteries together.
• Do not use dierent types of battery (for example, Manganese and Alkaline batteries)
together.
• Note that there are chargeable and non-chargeable batteries.Do not attempt to
charge non-chargeable batteries.
• Remove the batteries from the remote control unit if you do not intend to use the unit
for a long time.
• When disposing used batteries, follow any guidelines for recycling and disposal of
batteries that apply in your local area.
The remote control should be operated within 20 feet (5m) and 30° to the left or the
right of the IR receiver at the front of the LCD TV.
Using the remote control
“More information https://www.caravansplus.com.au"

19
You can select an input signal source by pressing the SOURCE button on the your
remote control or control panel of your TV.The on screen display menu shows the
diagram below on the screen, and you can either press the SOURCE button on the
control panel or the arrows buttons on your remote control to choose an input signal
source.
You can choose from the following input sources if you have your audio and video
devices connected to your TV.
When you switch on this TV for the rst time, you need to select the language and
the country to auto search for all the DTV programs in your area.
• Press SOURCE button to display the input source list.
• Press button to select the input source you want to watch
• Press OK / button to enter the input source.
• Press EXIT button to quit.
On Screen Display when you change the volume
1.When you press the VOL+ to increase the volume and VOL-to reduce the volume, the
diagram below shows on your screen for 15 seconds.
2.The MUTE symbol will show on one of your screen corners when you press the MUTE
button1ress the MUTE button again and the symbol will disappear.
3.You can put the sound on again either by pressing the MUTE button or the VOL+
button.The diagram below shows you the sound level in the volume indicator.
Selecting an Input Source
OK
DVD
“More information https://www.caravansplus.com.au"

20
Operatingthe Menus
lortnocetomerehtnonottubUNEMehtsserP.1.The on-screen menu will appear on
the screen.
2.Use the left and right navigation keys to select your main option.
The main menu items, from left to right, are:
Channel Picture Sound Time Lock Setup
Channel menu
1.Press button to select the option that you want to adjust in the CHANNEL menu.
2.Press OK button to adjust.
3.MENU button to save and return back to the
previous menu.
Auto Tuning
Press button to select Auto Tuning, then press OK button to start auto search,
OK
“More information https://www.caravansplus.com.au"
