Axminster Craft AC37E User manual

AC37E
1HP Extractor
Code 105111
Original Instructions
AT&M: 30/10/2018
BOOK REF : 105572

Main Heading
2
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230V Machines 04
Specific Safety for Dust Extractors 05
Specification 06
Assembly 06-07-08
Illustration and Parts Description 09
Wall Mounting 10-11
Maintenance 12
Exploded Diagrams/Lists 13-14
Wiring Diagram 15

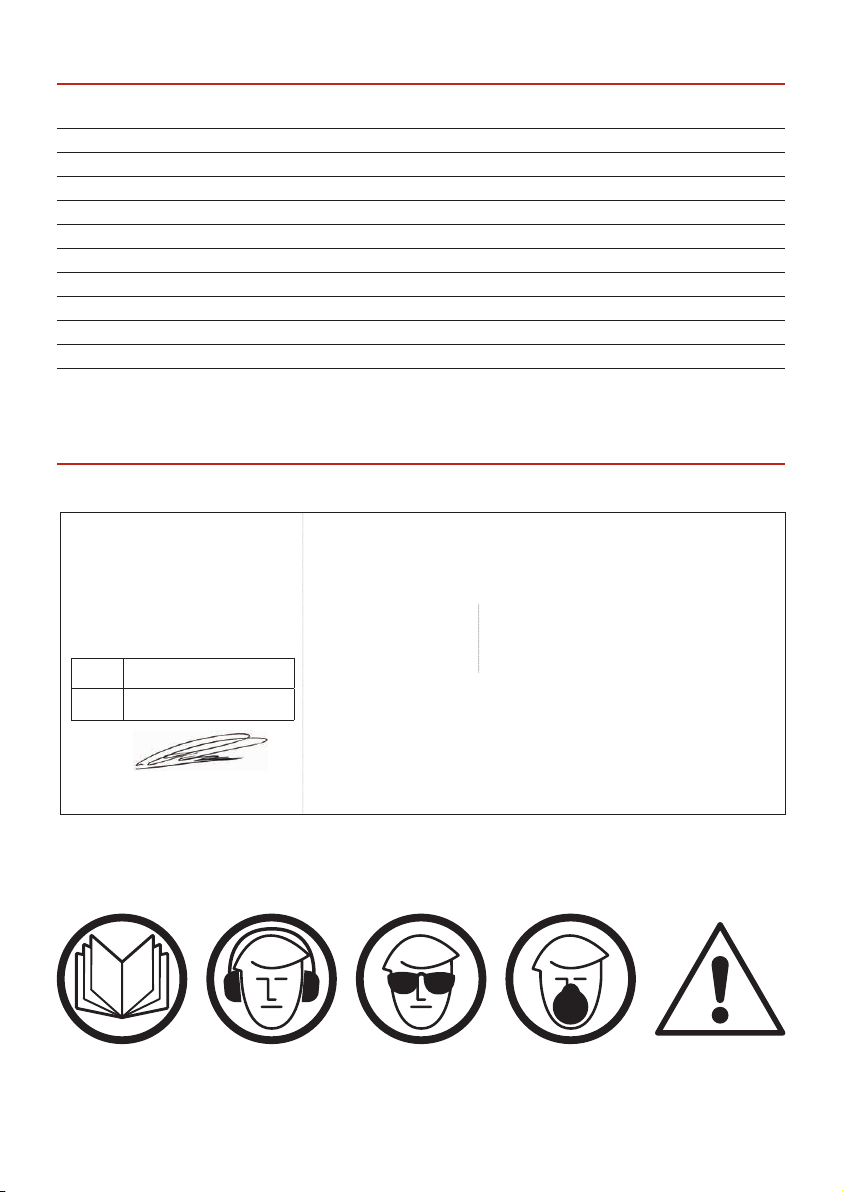

EU Declaration of Conformity
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Motor gets hot
Dust mask
should be worn
The symbols below advise the correct safety procedures when using this machine.
Cert No: FM230
Axminster Tools & Machinery Ltd
Axminster Devon
EX13 5PH UK
axminster.co.uk
Type Extractor
Model AC37E and conforms to the machinery example for which the
EC Type-Examination Certificate No AM 50352798
has been issued by Laizhou Planet Machinery Co., Ltd.
at:Yutai West Street Laizhou,Shandong 261400 China
and complies with the relevant essential health and safety requirements.
2006/42/EC
06/42/EC - Annex I/05.2006
EN 62233:2008
EN 60335-2-69:2012
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN 60335-1:2012+A11
Signed
Andrew Parkhouse
Operations Director Date: 08/08/2016

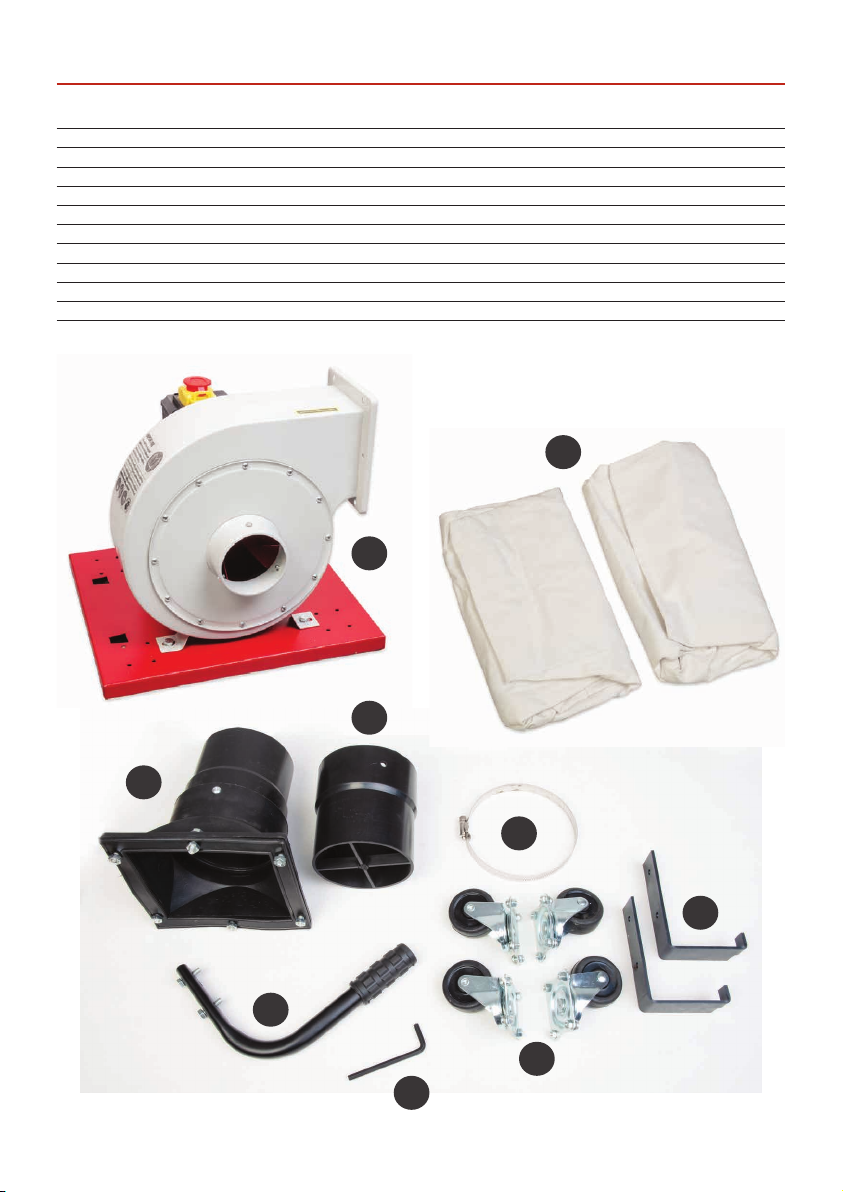

What’s Included
3
Quantity Item Part Model Number
AC37E
1 Dust Extractor A
2 Dust Bag B
1 Outlet Duct and Gasket C
1 Inlet Grill D
1 Large Clip E
1 Handle F
4 Castor Wheels with Fixings G
2 Wall Mounted Hook Brackets H
1 Hex Key I
A
B
C
D
E
F
I
G
H

General Instructions for 230V Machines
4
The following will enable you to observe good
working practices, keep yourself and fellow workers
safe and maintain your tools and equipment in good
working order.
Mains Powered Tools
•Tools are supplied with an attached 13 Amp plug.
•Inspect the cable and plug to ensure that neither
are damaged.Repair if necessary by a suitably
qualified person.
•Do not use when or where it is liable to get wet.
Workplace
•Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
•Keep machine clean.
WARNING!! KEEP TOOLS AND
EQUIPMENT OUT OF REACH OF
YOUNG CHILDREN.
KEEP WORK AREA AS
UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS.
•Leave machine unplugged until work is about to
commence.
•Always disconnect by pulling on the plug body
and not the cable.
•Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the
correct speed and function set.
•Ensure you are comfortable before you start work,
balanced,not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to
prevent it being caught up in the rotating parts of
the machine.
•Consideration should be given to the removal
of rings and wristwatches.
•Consideration should also be given to non-slip
footwear etc.
•If another person is to use the machine, ensure they
are suitably qualified to use it.
•Do not use the machine if you are tired or distracted.
•Do not use this machine within the designated
safety areas of flammable liquid stores or in areas
where there may be volatile gases.
•Check cutters are correct type and size,are
undamaged and are kept clean and sharp.This will
maintain their operating performance and lessen
the loading on the machine.
• OBSERVE…. make sure you know what is
happening around you and USE YOUR COMMON
SENSE.

Specific Safety for Dust Extractors
5
DO NOT use this machine as a vacuum cleaner, try to
keep the waste medium to wood by-products.
DO NOT uplift workshop floor debris (stones, nails,
screws, paper etc., etc). Be aware that wood dust is an
explosive medium.
DO NOT allow any ‘naked light’ source to occur
anywhere near the machine.This includes cigarettes,
matches, etc, and do not place the machine near
any unprotected light bulbs, that could possibly get
broken.
The suction force is generated by a high speed fan
unit.This has the potential to amputate fingers, grab
loose clothing (ties etc.,) and‘bat’large chips etc, at
high speeds. Keep all guarding in place,and if access
to the fan becomes necessary (due to blockage etc.,)
disconnect the machine from the mains supply
and ensure the fan has come to a complete stop
before putting your hands anywhere near it.
If you are not using‘clear’ extraction hose, periodically
remove the hose to check that the inlet to the
machine is not getting restricted.The safety guard
grill of the inlet duct can be particularly irksome
in this way, as long strand shavings etc.,can wrap
around the grill fret.
KEEP the particle filter clean.The machine relies on
its ability to ‘blow’ air through the filter to generate
good suction. If the particle filter starts to clog this
reduces the air flow and the machine becomes less
efficient.
The particle filter can be cleaned by using an ‘M’ class
vacuum cleaner clean the inside of the filter.
BE AWARE that in dry air periods or areas the
movement of the air through the machine can
generate static electric fields.These are not normally
a problem as the machine is bonded together via its
construction and the whole is earthed back through
the electrical supply.Problems can occur, however
with isolated items such as stands or hosing that are
insulated from the ground (standing on rubber feet,
suspended in the air etc). If possible, try to connect
everything together electrically to eliminate static
shocks. Use the integral metal coil in flexible hosing
to connect the units together.
Try to route the power cable and the hosing away
from busy walkways.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS. KEEP THE WORK
AREA AS UNCLUTTERED AS IS
PRACTICAL,THIS INCLUDES
PERSONNEL AS WELL AS
MATERIAL.
WARNING! KEEP TOOLS AND
EQUIPMENT OUT OF THE REACH
OF YOUNG CHILDREN.
ONLY USE DUST EXTRACTION
BAGS WITH THIS MACHINE NOT
DOMESTIC WASTE BAGS!

Specification
6
Code 105111
Model AC37E
Rating Craft
Power 230V 50Hz 750W 1ph
Air Flow 850 m³/hr @ 100mm
Filtration 30 micron
Sound Power Level 70 dB(A) (1.5 dB)
Hose Diameter 100mm
Bag Capacity 37 litre
Overall L x W x H 1,100 x 380 x 415mm
Weight 22kg
Assembly
Having unpacked your machine and all its
components, please check against the ‘What’s
Included on page 3. If any parts are missing please
contact our technical sales department on 0800
371822. Having unpacked the machine and checked
it over please recycle any unwanted packaging in a
responsible manner.
Please assemble the extractor as follows:-

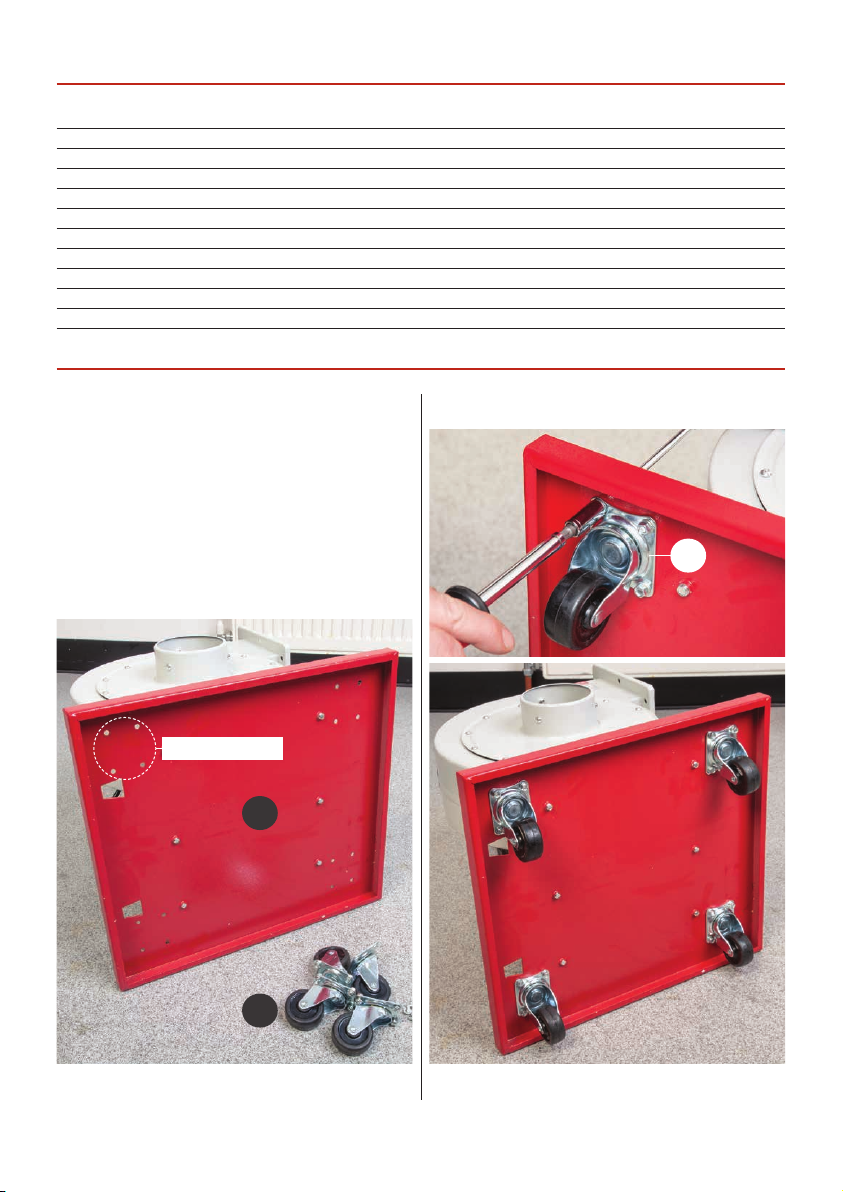

Step 1
• Locate the dust extractor (A) and castor wheels (G).
A
G
Step 2
• Mount the four, castor wheels (G) to each corner of
the extractors base plate assembly (A).
G
Mounting holes

Assembly
7
Step 3
• Locate the outlet duct and gasket (C) assembly and
remove the bolts nuts and washers.
Step 4
• Position the rubber gasket onto the fan’s outlet housing
and secure the outlet duct assembly (C) over the housing
using the bolts nuts and washers you removed earlier.
Step 5
• Remove the two thread bolts on the handle (F).Line
up the holes with the pre-drilled holes to the rear of
the fan housing and secure in position with the two
bolts.
Step 6
• Locate the inlet grill (D) and remove the three
Phillips screws from around the inlet duct.
Continues Over...
C
C
F
D
Gasket
Phillips screw

Assembly
8
Step 7
• Introduce the inlet duct (D) over the inlet fan
housing. Line up the holes and replace the Phillips
screws to secure it in position.
D
Step 8
• Locate one dust bag (B) and the large clip (E).
B
E
Step 9
• Open up the dust bag and introduce the large
clip (E) over the bag’s opening. Insert the dust bag
(B) over the outlet duct (C) tighten the large clip to
secure the dust bag in position. Clear all tools away.
WARNING! KEEP TOOLS AND
EQUIPMENT OUT OF THE REACH
OF YOUNG CHILDREN.
CONNECT THE EXTRACTOR TO
MAINS SUPPLY.
Open the switch shroud on the extractor and
press the ‘GREEN’ button to switch on. Check that
everything is working correctly then switch off the
extractor by pressing the ‘RED’button. Disconnect
the machine from the mains supply.
B
E

Illustration and Parts Description
9
Emergency Stop
Press down to stop the machine
NVR Switch ON/OFF buttons Cutout slots for wall
mounted hook brackets (H)
ON
OFF
Handle
Dust bag
Inlet duct
Motor
Access plate
Fan housing
NVR Control
switch
Base plate
Wall mounting slots

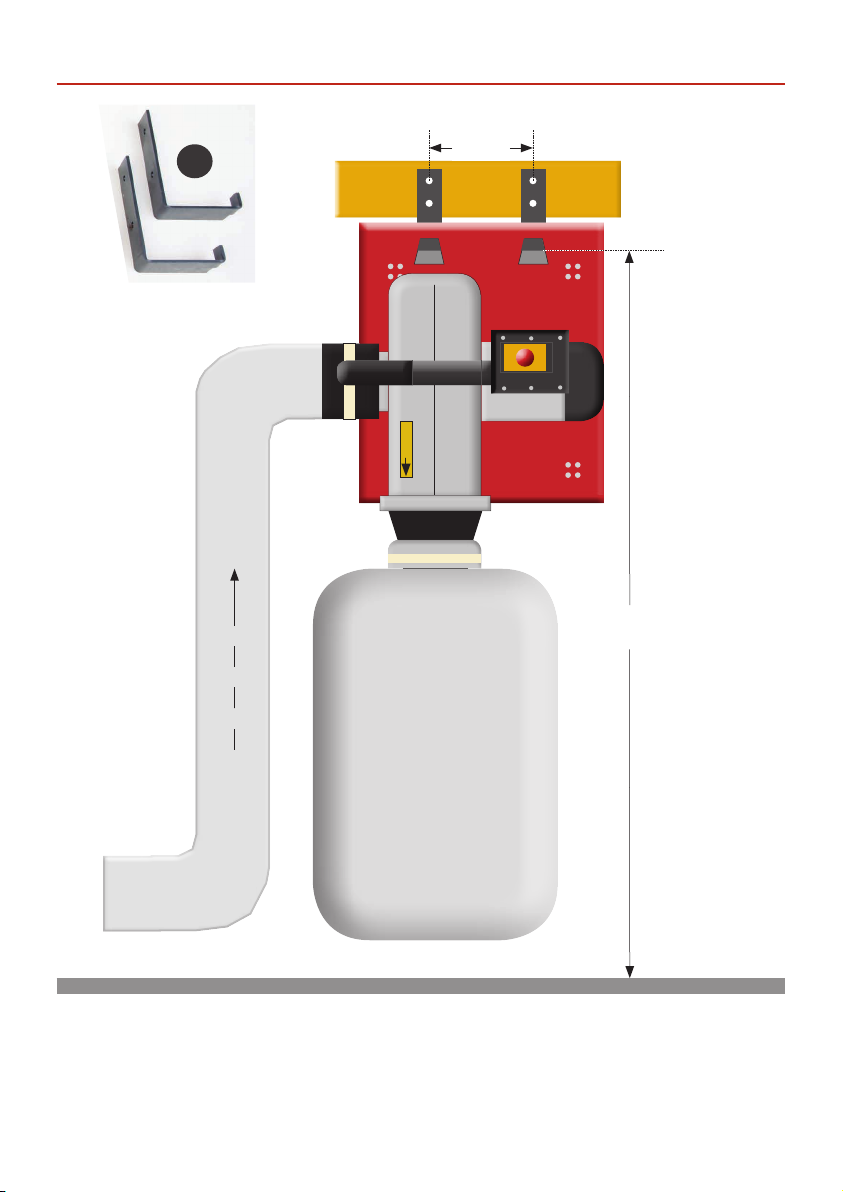

Wall Mounting
10

Wall Mounting
11
Floor
172mm
1,100mm
H
Wall hook brackets
Inlet hose
Locate the wall mounting brackets (H) and fasten to
the wall, using wall plugs and screws. The position
of the wall brackets needs to be 172mm (centre
to centre) with the ‘hook’ of the brackets at least
1,100mm above the floor.
ROTATION

Maintenance
12
• Check the inlet and outlet duct and remove any
accumulated sawdust.
• Check the inlet hoses for splits and cracks; repair as
necessary.
• Check the dust collection bag for wear and tear,
especially around the neck of the retaining clip. If
wear or fraying is occurring, replace the bag.
• Check the motor for dust,sawdust, shavings etc,
build up.If this has occurred, clean with a ‘M’ class
vacuum cleaner.
DISCONNECT THE EXTRACTOR
FROM THE MAINS SUPPLY BEFORE
CONTINUING.
ALWAYS WEAR A DUST MASK
AND EYE PROTECTION WHEN
CLEANING THE EXTRACTOR.
Daily
Weekly
• Empty the collection bag before it overflows; wear a
dust mask whilst removing and emptying the bag.

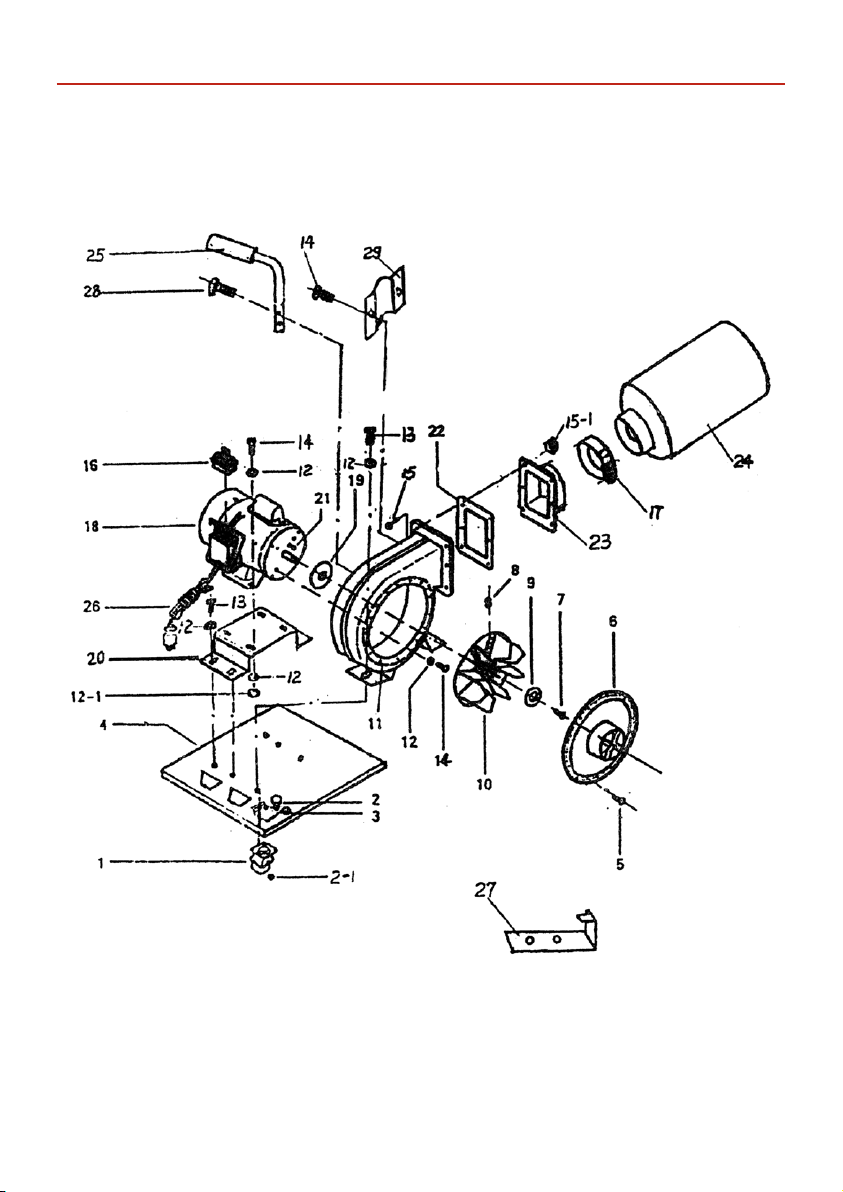

Exploded Diagrams/Lists
13

Exploded Diagrams/Lists
14
PART NO DESCRIPTION SIZE QTY
1 CASTER 4
2 SCREW PAN. HEAD. M6X16 16
2-1 NUT M6 16
3SPRING WASHER ø6 16
4 BASE PLATE 1
5 SCREW PAN. HEAD. M5X10 12
6 INLET COVER 1
7 SCREW HEX.SOCKET. HEAD. M6 X
20L(L.H.)
1
8 SET SCREW SOCKET. HEAD. M8X10 2
9 WASHER 1
10 TURBO FAN 1
11 FAN HOUSING 1
12 WASHER ø8 18
12-1 NUT M8 6
13 SCREW HEX. HEAD. M8X10 6
14 SCREW HEX. HEAD. M8X15’ 12
15 SCREW HEX. HEAD. M6X15 6
15-1 NUT M6 6
16 NVR 𝛟SWITCH 1
17 CLAMP 1
18 MOTOR 1
19 PACKING 1
20 COLUMN & MOTOR PLATE 1
21 KEY 5X5X30 1
22 GASKET 1
23 OUTLET DUCT 1
24 DUST BAG 1
25 HANDLE 1
26 POWER CORD 1
27 HOOK BRACKETS 2
28 SCREW HEX. HEAD. M6X25 2
29 BRACKET 1

Wiring Diagram
15

Axminster Tools & Machinery Ltd
Axminster Devon EX13 5PH
axminster.co.uk
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
EU Countries Only
The Axminster guarantee is available on
Craft,Trade, Engineer, Air Tools & CNC Technology Series machines
Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
For more information visit axminster.co.uk/3years
