Axon MICRELEC CS2600 User manual

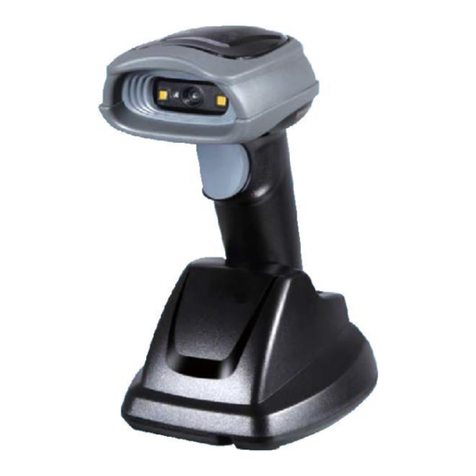

CS2600 Handheld Image Scanner
User Manual
Version: CS2600_UM_EN_V2.1.0

2
Notice
Ensure that the optional DC adapter works at +5 VDC, especially for the RS-232 interface
cable.
1. All software, including firmware, furnished to the user is on a licensed basis.
2. The right is reserved to make changes to any software or product to improve reliability, function, or
design.
3. The material in this manual is subject to change without notice.
4. A standard packing includes a scanner, a USB cable and a quick guide. Accessories include a stand,
a RS-232 cable, and a 5 VDC adaptor.

3
Contents
Contents.................................................................................................................................................... 3
1 Specifications........................................................................................................................................ 5
1-1 Technical specifications.................................................................................................................... 5
1-2 Default setting for each barcode...................................................................................................... 6
2 Get started.............................................................................................................................................. 7
2-1 Dimensions....................................................................................................................................... 7
2-2 Parts of the scanner......................................................................................................................... 8
2-3 Cable connector pin-outs descriptions............................................................................................. 9
2-4 Installation and uninstallation of cable........................................................................................... 10
2-4-1 Installation - USB..................................................................................................................... 10
2-4-2 Installation - RS-232................................................................................................................ 10
2-4-3 Uninstallation of cable..............................................................................................................11
2-5 Assembling the stand......................................................................................................................11
2-6 Auto-detection................................................................................................................................. 12
3 Programming....................................................................................................................................... 13
3-1 Example 1: Single-parameter setting by scanning 1D barcodes................................................... 13
3-2 Example 2: Multiple-parameter setting by scanning a QR code barcode ..................................... 14
3-3 Operate the scanner by receiving command via UART.................................................................15
3-4 Interface selection.......................................................................................................................... 16
3-5 RS-232 interface............................................................................................................................. 17
3-6 USB interface ................................................................................................................................. 20
3-7 Scan mode & some global settings................................................................................................ 23
3-8 Indication........................................................................................................................................ 29
3-9 Decode illumination and decode aiming pattern............................................................................ 30
3-10 Other settings............................................................................................................................... 32
Note 1 : The instruction of calibrating the aimer in vertical centering direction................................ 34
Note 2 : Scan barcode or send command to enter upgrade mode.................................................. 35
3-11 UPC-A........................................................................................................................................... 36
3-12 UPC-E........................................................................................................................................... 38
3-13 UPC-E1......................................................................................................................................... 40
3-14 EAN-13 (ISBN/ISSN).................................................................................................................... 42
3-15 EAN-8........................................................................................................................................... 44
3-16 Code 39 (Code 32, Trioptic Code 39).......................................................................................... 46
3-17 Interleaved 2 of 5.......................................................................................................................... 49
3-18 Industrial 2 of 5 (Discrete 2 of 5).................................................................................................. 51
3-19 Matrix 2 of 5.................................................................................................................................. 52
3-20 Codabar........................................................................................................................................ 53
3-21 Code 128...................................................................................................................................... 55
3-22 UCC/EAN 128 .............................................................................................................................. 57
3-23 ISBT 128....................................................................................................................................... 59
3-24 Code 93........................................................................................................................................ 60
3-25 Code 11 ........................................................................................................................................ 61
3-26 MSI/Plessey.................................................................................................................................. 63
3-27 UK/Plessey................................................................................................................................... 65
3-28 China Post.................................................................................................................................... 66
3-29 GS1 DataBar (GS1 DataBar Truncated)...................................................................................... 67
3-30 GS1 DataBar Limited ................................................................................................................... 68
3-31 GS1 DataBar Expanded............................................................................................................... 69
3-32 PDF417......................................................................................................................................... 70
3-33 MicroPDF417 Code...................................................................................................................... 71
3-34 QR Code....................................................................................................................................... 72
3-35 MicroQR Code.............................................................................................................................. 73
3-36 Data Matrix................................................................................................................................... 74
3-37 Han Xin Code............................................................................................................................... 75
3-38 Aztec Code................................................................................................................................... 76
3-39 G1-G6 & C1-C3 & FN1 substitution string setting ....................................................................... 77
3-40 G1-G4 string position & Code ID position.................................................................................... 82

4
3-41 String transmission....................................................................................................................... 83
4 Maintenance......................................................................................................................................... 86
5 Barcode representing non-printable character ............................................................................... 87
6 ASCII Table........................................................................................................................................... 88
7 Test barcode ........................................................................................................................................ 89
8 Return default parameters & list firmware version ......................................................................... 92
9 Configuration alphanumeric entry barcode..................................................................................... 93

5
1 Specifications
1-1 Technical specifications
Dimensions
Height × Width × Depth：90 mm × 62.8 mm × 153 mm
Weight
132 g, without cable
Cable
Straight 2.0 m
Connector Type
RJ-45 phone jack connector
Case Material
PC+TPU
Exit Window
Material
Tempered glass
Indicator
Beeper, LED
Interface Supported
RS-232, USB Keyboard, USB virtual COM
Operating Mode
Hand-held, Auto-detection
Programming
Method
Manual (reading special barcode)
Firmware Upgrade
Online
Input Voltage
5 ±0.25 VDC
Current
Standby: 160 mA , Scanning: 300 mA (Max:480 mA)
Image Size
1280 × 800 pixels
Light Source
Illumination : 5000 K , white LED
Aiming: 525 nm peak wavelength, green LED
Imager Field of View
Horizontal: 41°, vertical: 28°
Scanning Angle
±70°, ±75°, 360° (skew, pitch, roll)
Print Contrast
20% minimum reflective difference
Decoding Capability
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code
39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5),
Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11
(USD-8), MSI/Plessey, UK/Plessey, China Post, GS1 DataBar (formerly RSS) variants
2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code, MicroPDF417
Minimum Resolution
HD：1D（Code 39）： 3mil
SR：1D（Code 128）： 4mil
Decoding Depth
High Density Series Standard Range Series
3 mil Code39 (3 chars)
25 mm –50 mm /
4 mil Code39 (9 chars)
10 mm –90 mm 30 mm –90 mm
5 mil Code39 (3 chars)
5 mm –115 mm 20 mm –120 mm
13 mil UPC (6 chars)
0 mm –250 mm 0 mm –280 mm
20 mil Code39 (1 char)
15 mm –340 mm 15 mm –430 mm
6.7 mil PDF417 (20 chars)
10 mm –100 mm 15 mm –120 mm
10 mil QR (20 chars)
0 mm –155 mm 0 mm –165 mm
10 mil DM (20 chars)
0 mm –160 mm 0 mm –165 mm
20 mil QR (20 chars)
0 mm –270 mm 0 mm –340 mm
Temperature
-10° to 50°C (14° to 122°F), operating; -20° to 70°C (-4° to 158°F), storage
Humidity
5% to 95% (non-condensing)
Safety
Photobiological Safety: EN62471
EMC: EN55032, EN55024
RF Immunity: IEC61000-4-3, 10 V/m
Immunity: 0~100,000 lux
Sealing: IP52
Drop Resistance: Withstands multiple 2.0 m drops to concrete

6
1-2 Default setting for each barcode
Code type
Read
enable
Check digit
verification
Check digit
transmissi
on
Min. code
length
Proprietary
code ID
AIM
code ID
UPC-A
√
√
√
(12)2
A
]Em
UPC-E
√
√
√
(8)2
D
]Em
UPC-E1
-
√
√
(8)2
D
]Em
EAN-13
√
√
√
(13)2
A
]Em
EAN-8
√
√
√
(8)2
C
]Em
ISBN (Bookland EAN)
√
√
√
(13)2
B
]Em
Code 39
√
-
-
1
M
]Am
Interleaved 2 of 5
√
-
-
6
I
]Im
Industrial 2 of 5
-
-
-
4
H
]Im
Matrix 2 of 5
√
-
-
6
X
]Im
Codabar
√
-
-
4
N
]Fm
Code 128
√
√
-
1
K
]Cm
UCC/EAN 128
√
√
-
1
K
]Cm
ISBT 128
√
√
-
1
K
]Cm
Code 93
√
√
-
1
L
]Gm
Code 11
-
√
-
4
V
-
MSI/Plessey
-
-
-
4
O
]Mm
UK/Plessey
-
√
-
1
U
]Mm
China Post
√
-
-
(11)2
T
]Im
GS1 DataBar
√
-
-
(16)2
R
]em
GS1 DataBar
Truncated3
√
-
-
(16)2
R
]em
GS1 DataBar Limited
√
-
-
(16)2
R
]em
GS1 DataBar Expanded
√
-
-
1
R
]em
PDF417
√
-
-
-
p
]Lm
MicroPDF417
p
]Lm
DataMatrix
√
-
-
-
d
]dm
QR code
√
-
-
-
q
]Qm
MicroQR Code
-
-
-
-
q
]Qm
Han Xin Code
-
-
-
-
h
]Xm
Aztec Code
-
-
-
-
a
]zm
Note:1The settings for ISBN/ISSN and EAN-13 must be the same except the code ID.
2Fixed-length barcodes.
3The settings for GS1 DataBar Truncated and GS1 DataBar must be the same.

7
2 Get started
2-1 Dimensions

8
2-2 Parts of the scanner
Figure 2-1
①LED
②Beeper
③Scan window
④Trigger
⑤Release-hole of the cable
⑥Cable interface port

9
2-3 Cable connector pin-outs descriptions
The scanner provides a RJ-45 cable connector.
Figure 2-2 Cable connector interface pin-outs
The pin-outs descriptions in Table 2-1 apply to the cable connector on the scanner and are for reference
only. Table 2-1 Cable connector pin-outs descriptions
Pin
RS232
USB
1
Power (+5V)
Power (+5V)
2
Reserved
Reserved
3
Ground
Ground
4
+3.3V
( for interface auto selection purpose)
Ground
(for interface auto selection purpose)
5
TxD
Reserved
6
RxD
Reserved
7
Reserved
Reserved
8
Reserved
Reserved
9
CTS
D-
10
RTS
D+
Note: Voltage level of all RS232 Pin-outs (RxD, TxD, CTS and RTS) is 0V for logic low and 3.3V for logic
high.

10
2-4 Installation and uninstallation of cable
Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for
any improper connections. Go through all steps again.
2-4-1 Installation - USB
The scanner attaches directly to a USB host, and is powered by it. No additional power supply is
required.
1. Refer to Figure 2-3, connect the USB interface cable to the bottom of the scanner.
2. Plug the seriesA connector in the USB host, or an available port of the terminal.
3. Windows will automatically detect the USB device.
Figure 2-3
2-4-2 Installation - RS-232
1. Connect the RS-232 interface cable to the bottom of the scanner.
2. Connect the other end of the interface cable to the serial port on the host. Tighten the two screws to
secure the connector to the port.
3. If the host does not have power supply (on PIN 9), connect the external power supply (DC adapter)
to the RS-232 cable.
Figure 2-4
