Axxess OESWC-LAN29H User manual

© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
1-800-221-0932 axxessinterface.com
INSTALLATION INSTRUCTIONS FOR PART OESWC-LAN29H
The OESWC-LAN29H is to be used with either the OESWC-STK
or OESWC-RF. Please refer to instructions provided with
OESWC-STK or OESWC-RF for mounting instructions.
OESWC-LAN29H
07-UP GMLAN29 HARNESS FOR OE RF/STK

RF
Wiring the OESWC interface
1. Connect the red wire to 12 volt accessory
2. Connect the Black wire to ground (you may use the same ground that you
use for the aftermarket radio)

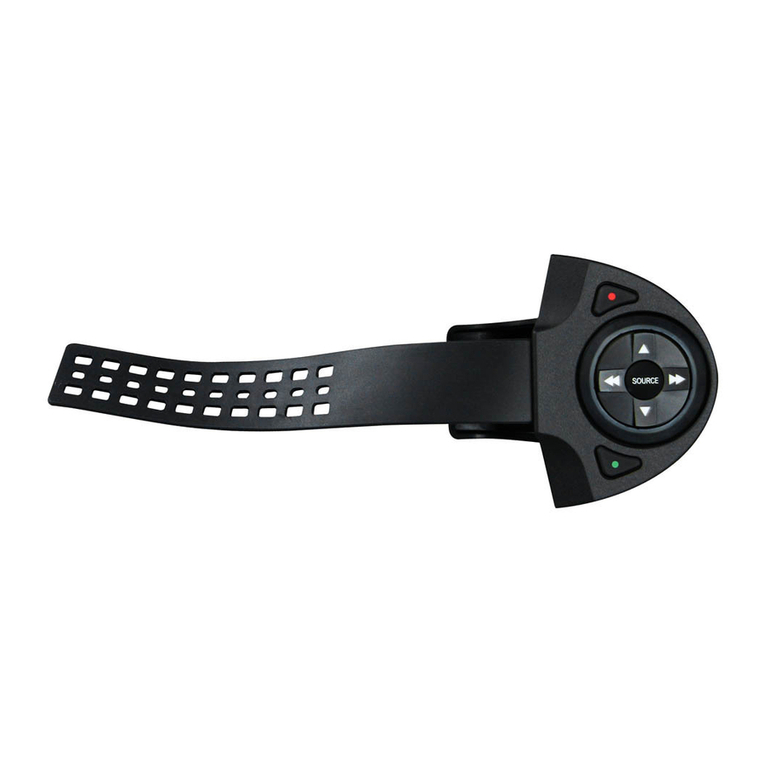

Setting up the OESWC transmitter
1. Press the Red and Green buttons simultaneously for 5 seconds, and then
press volume up for two seconds. This will orientate your button direction.
2. Turn on the ignition and press volume up on the OESWC transmitter. This
will “marry“ the transmitter to the interface.
NOTE: If you are replacing a transmitter you must turn on the ignition and within
the rst 10 seconds press and hold the source button for ten seconds. This will
“marry the new transmitter.
Programming the OESWC TRANSMITTER
1. Complete connections to the factory radio
* If this is the rst time the OESWC TRANSMITTER is being installed in a vehicle:
2. Turn the ignition on; the led will start ashing rapidly which means the
OESWC interface is looking for the vehicle. Go to step 4.
Or
* If the OESWC TRANSMITTER was installed in a vehicle before:
2. Turn the ignition on, the led will ash once.
3. Hold down the reset button for more then 2 seconds but less then 10
seconds, the led will start ashing rapidly
4. After a couple of seconds the led should stop ashing and not light up for 2
seconds.
1

5. This is the end of the auto detection stage. If the OESWC TRANSMITTER
detected the vehicles radio successfully the led will light up solid red.
6. Make sure the steering wheel control buttons function correctly in the vehicle
and enjoy your radio.
So what if the led does not light up solid red?
Check out troubleshooting section below.
Troubleshooting the Auto Detect Mode
So you tried the auto detect feature and at the end the led did not stay on solid
red, it started ashing. That means the OESWC TRANSMITTER did not detect
the vehicles radio. Follow these couple steps to determine what happened:
First some basic steps:
1. Verify that you have 12 volt accessory and a good ground to the OESWC
interface.
2. Verify that the battery is good on the OESWC transmitter.
3. Refer to the “Setting up the OESWC transmitter” section of this manual and
repeat those steps.
2

STALK
Wiring of ASWCSTALK and interface
1. Connect the BLACK wires of the ASWCSTALK and the BLACK wire of the
interface to ground. You may use the same ground point that is used for the radio.
2. Connect the GREEN/ORANGE and BLACK/GREEN wires of the
ASWCSTALK to the corresponding wires on the interface.
3. Connect the RED wire to 12 volt accessory
4. Tap off all other unused wires on the interface.
Programming the ASWCSTALK
* If this is the rst time the ASWCSTALK is being installed:
1. Turn the ignition on; the led will start ashing rapidly which means the
interface is looking for the ASWCSTALK and the radio. Go to step 3.
OR
* If the ASWCSTALK was installed before:
1. Turn the ignition on, the led will ash slowly
2. Hold down the reset button for more then 2 seconds but less then 10
seconds, the led will start ashing rapidly
3. The ASWCSTALK INTERFACE will automatically nd the ASWCSTALK and radio.
4. After a couple of seconds the led should stop ashing and not light up for 2
seconds. At this point do not push any buttons.
5. After the 2 seconds there will be a series of 7 ashes, some short and
some long.
6. The led will pause for another 2 seconds then ash up to 10 times.
7. This is the end of the auto detection stage. If the ASWCSTALK interface
detected the vehicle and the radio successfully the led will light up solid red.
8. Make sure the steering wheel control buttons function correctly in the vehicle
and enjoy your radio.
3

If the ASWCSTALK is mounted on the right side of the steering column follow the
instructions below. (Auto-detect must be done rst)
1. Turn the ignition on
2. Press the MODE on the ASWCSTALK for 10 seconds
3. Then press volume up for 2 seconds
4. The ASWCSTALK is now congured for the right side
Troubleshooting the Auto Detect Mode
So you tried the auto detect feature and at the end the led did not stay on solid
red, it started ashing, or the steering wheel controls did not function properly.
That means the interface did not detect the ASWCSTALK or the proper radio.
Follow these steps to determine what happened:
First some basic tips:
1. Verify that you have 12 volt accessory and a good ground to the
ASWCSTALK and interface.
Once all the information above has been veried and correct, you will need to
put the interface back into auto-detect mode. Follow the instructions from “If the
ASWCSTALK was installed before” section above, however this time take notice
of the led ashes in steps 5 and 6.
4

1. Volume up
2. Volume down
3. Seek up
4. Seek down
5. Mode (source)
1. Volume up
2. Volume down
3. Seek up
4. Seek down
5. Mode (source)
5
1
2
3
4
5
1
2
3
4
5

NOTES

REV. 2/4/11
1-800-221-0932 axxessinterface.com
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
INSTALLATION INSTRUCTIONS FOR PART OESWC-LAN29H
