AZ e-lite AZPOSE XL-25S User manual

AZPOSE XL-S
LED Sensor Floodlight
Installation Guide
XL-10S-765/830/840XL-25S-765/830/840

Contents
Product Information......................................................................p.1
Specications...................................................................................p.1
Specications summary...............................................................p.2
Detection Range.............................................................................p.2
Outline Drawing (XL-10S)............................................................p.3
Outline Drawing (XL-25S)............................................................p.4
Set Up Instructions ........................................................................p.5
Cascade Networking Application.............................................p.6
Permanent Light Function (4 Hrs) ............................................p.7
Dial Function....................................................................................p.7
Motion Sensor Range Dial...........................................................p.8
Principle.............................................................................................p.9
Safety warnings...............................................................................p.9
Installation ........................................................................................p.9
Functions...........................................................................................p.10
Reach setting/adjustment...........................................................p.11
Permanent light function............................................................p.11
Accessories .......................................................................................p.11
Declaration of conformity ...........................................................p.12
Functional warranty ......................................................................p.12

Floodlight XLS
1
Installation Guide
The XL-10S/XL-25S is a motion sensor controlled
LED oodlight for various indoor/outdoor
applications such as illumination of walkway, car
porch, garden, low usage area, etc. The XL-10S/
XL-25S can be programmed to operate during low
light level.
1. General
Operating Input Voltage 220 – 240 Vac, 50 - 60Hz
Power Consumption 30W (XL-10S-765); 65W (XL-25S-765)
Power Factor >0.8
Cascading Load Capacity 800W max
Operating Temperature 0 to 40 °C
Storage Temperature -40 to 80 °C
Operating Humidity >90% (RH)
IP Rating IP54
Weight 1.74Kg (XL-10S-765/830/840) / 2.4Kg (XL-25S-765/830/840)
Product Information
Specications
The XL-10S/XL-25S has an ingress protection
rating of IP54, which makes it suitable for both
indoor and outdoor applications.
This specications dene the characteristic of XL-10S/XL-25S LED Floodlight:
3. Motion / Ambient Sensor
Motion Sensor Range Adjustable up to 12m (mounted height = 2.5m - 3m)
Motion Sensor Angle 360 deg
Ambient Sensor Light Level Detection Adjustable 2 – 2000 lux
Programmable ON Time 5sec / 10sec / 30 sec / 1 min / 5 mins / 10 mins / 15mins
Permanent ON Function 4 Hours
2. LED Light Source
Type Of LED OSRAM Oslon SSL LED
Nos Of LEDs 10 LEDs (XL-10S-765/830/840) / 25 LEDs (XL-25S-765/830/840)
Luminous Flux (Typical) 1300lm (XL-10S-765/830/840) / 2800lm (XL-25S-765/830/840)
Color Temperature 6500K (XL-10S-765, XL-25S-765) / 3000K (XL-10S-830, XL-
25S-830) / 4000K (XL-10S-840, XL-25S-840)
Color Rendering Index >70
Light Beam Angle 80 deg
Horizontal / Vertical Tilt Angle +/-90 deg / +/-100 deg

Installation Guide 2
The motion sensor is able to achieve
a maximum range of 12m, when
mounted at a height of 2.5m - 3m.
Detection Range
Specications summary
XL-10S-765/830/840 XL-25S-765/830/840
Operating Input Voltage 220 – 240 Vac, 50 - 60Hz
Lumen 1300 lm 2800 lm
Colour Temp. daylight(765) / warm white (830) / cool white (840)
CRI >70
No. of LEDs 10 25
Power Consumption 30W 65W
Dimension(mm) HxWxD 223 x 212 x 211 304 x 214 x 211
Lifespan 35,000 hours
Enclosure IP Rating IP 54
Horizontal / Vertical Tilt Angle +/-90° / +/-100°
Motion Sensor Angle 360°
Detection Range adjustable up to 12m
Ambient Sensor Light Level Detection adjustable 2-2000 lux
Notes: All specications subject to change without prior notice
maximum range up to 12m
2.5m - 3m

Floodlight XLS
3
Installation Guide

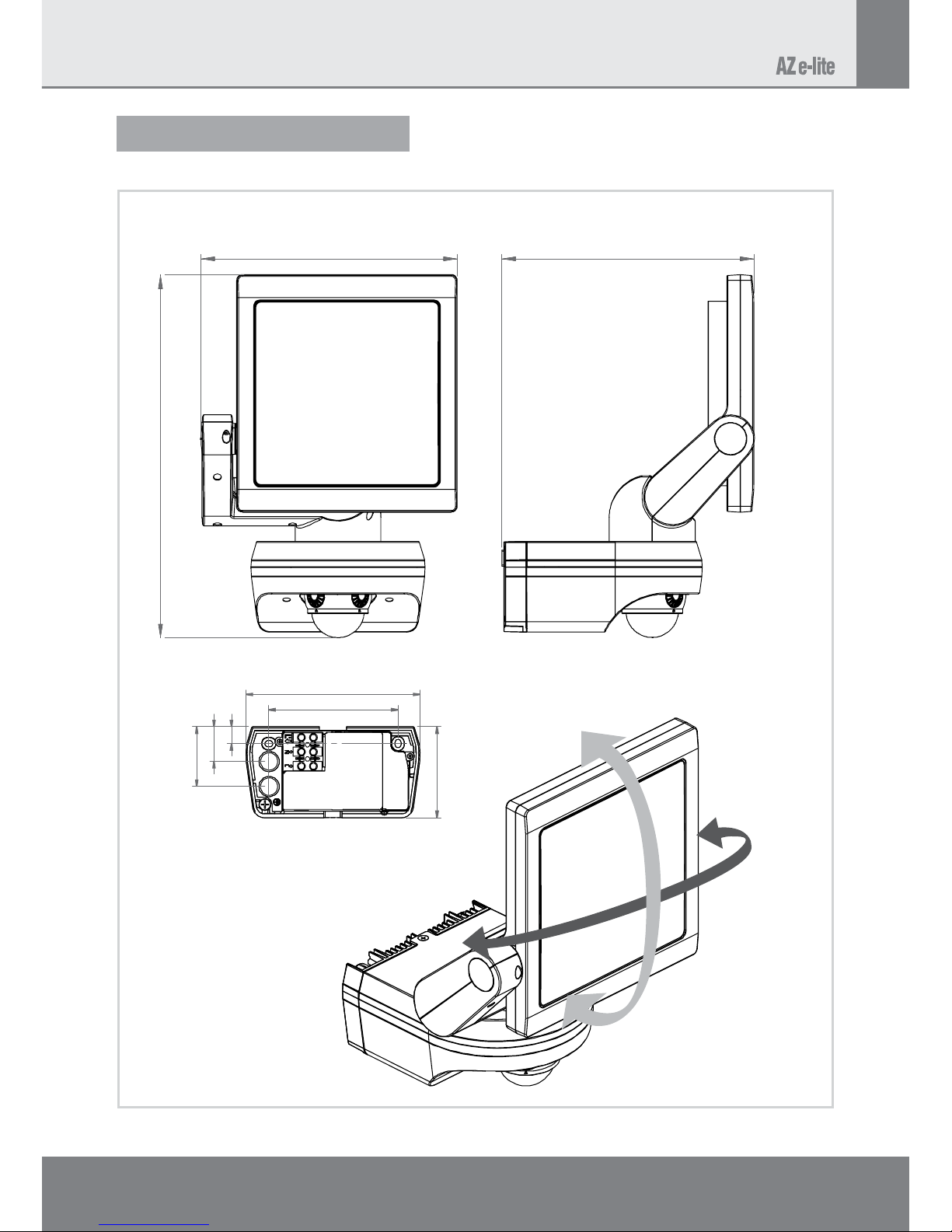

Outline Drawing (XL-10S)
108
29
146
76
50
14
212
211
223
+/- 90 deg
+/- 100 deg

Installation Guide 4
Outline Drawing (XL-25S)
214 211
108
29
146
76
50
14
304
+/- 90 deg
+/- 100 deg

Floodlight XLS
5
Installation Guide
Disconnect the power supply before installing the
oodlight. The unit is to be wall mounted with four
screws.
Separate the base of the
oodlight by removing
the 2 screws.
After the wiring is completed,
secure the oodlight to
its base with the 2 screws.
Set Up Instructions
Mark the position of the 2
mounting holes with pencil
before drilling.
Drill the two 6mm screw heads onto the
wall, and secure the base of the oodlight
with the two longer screws.
The mains supply lead is a
3-core cable.
L = Live and N = Neutral.
Make sure the conductors
are connected to the correct
terminals.
6mm

Installation Guide 6
The AZPOSE sensor
oodlights are
installed at the porch
of the house.
The sensor is triggered
when a person comes
within the determined
range of detection.
The oodlights, which
are interconnected in the
cascade network setting,
will be switched on.
The XL-10S/XL-25S can be
wired up to control other
electrical devices
The XL-10S/XL-25S can also be
wired up with more XL-10S/XL-
25S oodlights to expand the
motion sensor detection zone.
If any of the XL-10S/XL-25S
detects a motion, it will switch
ON its LED and inform the rest
of the XL-10S/XL-25S to switch
ON their respective LED.
Cascade Networking Application

Floodlight XLS
7
Installation Guide
Ambient Dial
ON TIME Dial
Motion Sensor
Range Dial
Assuming the XL-10S/XL-25S is powered on
and in normal operation:
Switch OFF and ON the main AC switch
in rapid succession (Interval between
0.5 - 1 sec). The XL-10S/XL-25S will go to
permanent ON for 4 hrs. After 4 hrs, the
XL-10S/XL-25S will resume back to normal
operation.
Switch OFF the main AC
switch and wait for 5 sec.
Switch ON the main AC
switch.
If the XL-10S/XL-25S is installed with a main AC switch, the XL-10S/XL-25S
LED can be forced to switch ON for 4hrs.
Permanent Light Function (4 Hrs)

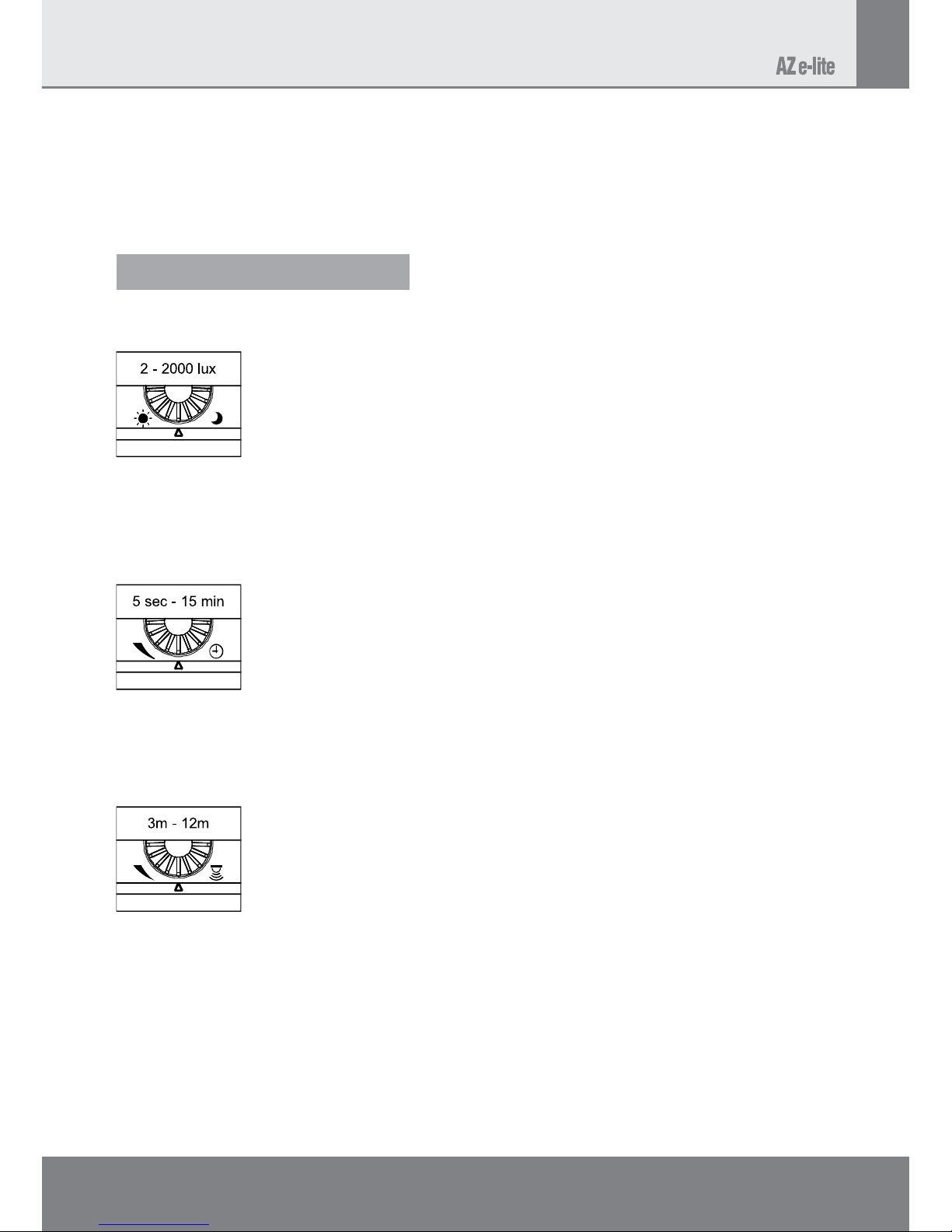

Dial Function
76
21 29
14
146
180
Activating 4hrs Permanent ON mode:
De-Activating 4hrs Permanent ON mode:
normal
normal
ON
OFF
5 sec
x1 4 hours
4 hours
