Azooga 10 in 1 User manual

1
User Manual
for Azooga 10 in 1 Multi-game table

2
Assembly Manual

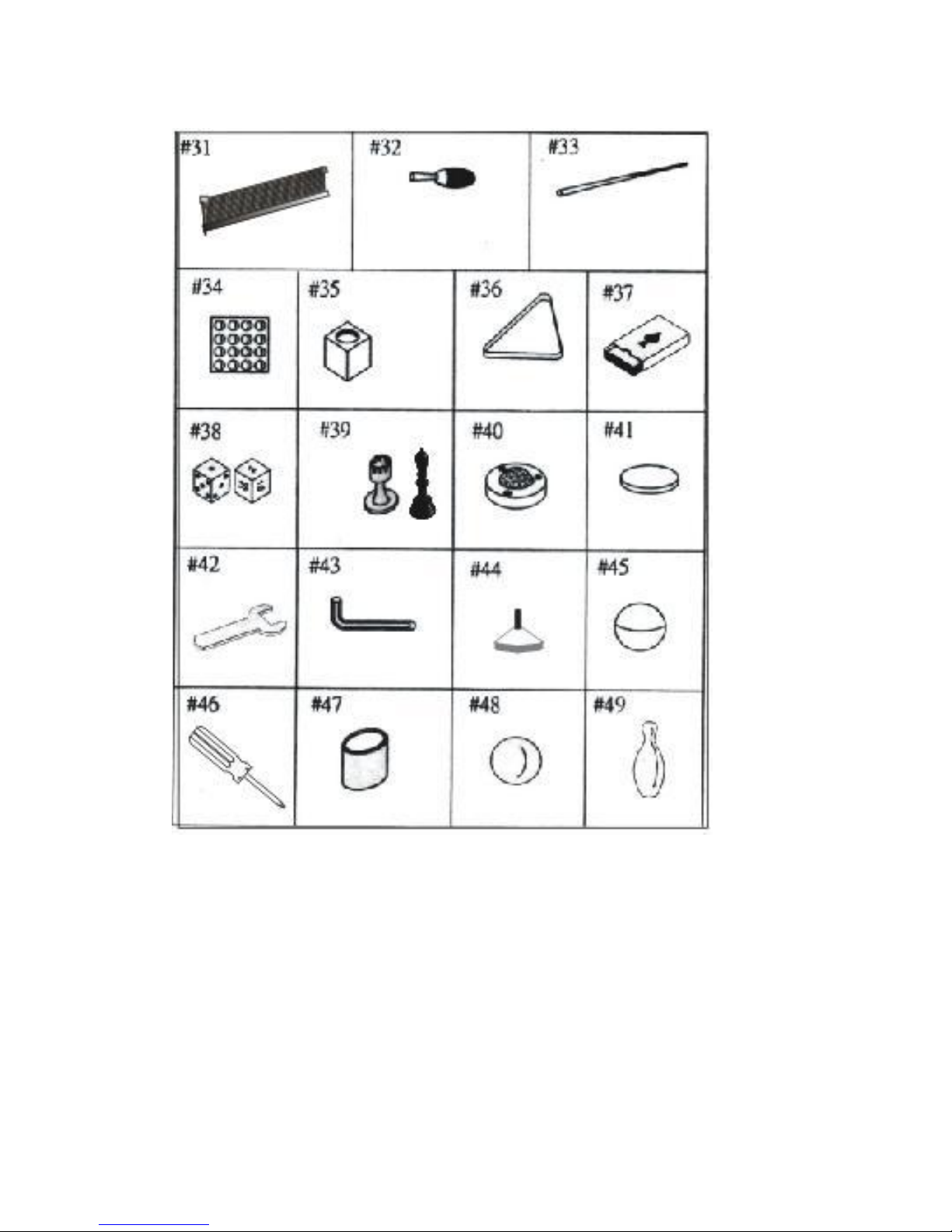

Parts
Pool, foosball/table soccer, table tennis, chess, checkers, shuffle board,
backgammon, bowling, deck of cards and dice all together compose the 10 in
1 multi-game table.
Using the parts list，please check and confirm all of the parts are complete
before assembling.
WARNING:
CHOKING HAZARD—Small parts.
Not for children under 5 yrs.
Directions
A. Begin with the assembly of the pool table.
1. Remove all of the pieces from the packaging. Separate and
identify pieces.
2. For the pool table assembly, you will need 16 screws with full thread
(#23), 16 washers (#24), four legs (#18) and the pool table top (#25).
3. Place the pool table top (#25) on the
ground facing downwards.
4. Insert one of the leg pieces (#18) into the corner slot of the pool

3
table top. Attach the leg to the pool table top by using four screws
with full thread (#23) and four washers (#24). Two screws and
washers are to be inserted into two precut holes on each side of the
leg.
5. Repeat step four for to attach the remaining three legs.
6. Install four levelers (#44) into precut hole on the bottom of each leg.
7. Turn the table right side up, so that the pool surface is facing
upwards.
8. Assembly of the pool table is complete.
B. Assembly of other games (with the exception of
table tennis and table soccer. See below.)
1. Other games are assembled by placing the appropriate game
surface on the pool table top.
2. The games fit best if they are placed on the pool table surface in the
following order:
a.Put the air hockey and table tennis surface (#26) onto the top
of the pool table surface. For storage, place the air hockey
side of this surface facing upwards.
b.Then place the surface for checkers, chess, bowling, shuffle
board, backgammon, cards and dice (#38) on top of the air
hockey table surface. Place the side that coordinates with
the game chosen to be played facing upwards.
c. Place the table soccer box on top of the air hockey table
surface.
C. Table tennis assembly
1. Place the air hockey and table tennis
surface (#26) on the pool table surface
with the green table tennis side facing

4
upward.
2. Put the table tennis net in place by inserting two small metal rods
(#20) into the precut holes on each side of the table tennis surface.
Attach the net (#31) onto each of the metal rods.
D. Table soccer/ foosball table assembly.
1. For assembly of the table soccer table, you will need the following
pieces:
a.Table soccer playing field surface (#3)
b.2 Table soccer field box side panels (#1)
c. 2 Table soccer field box goal panels (#2)
d.8 screws with full thread (#23)
e.8 washers (#24)
f. 8 metal player figurine rods (#4-7)
g.11 red player figurines (#21)
h.11 blue player figurines (#21)
i. 8 handle pieces (#8)
j. 8 metal rod end caps (#9)
k. 16 foam stoppers (#16)
l. 32 plastic washers (#17)
m. 26 small metal screws (#22)
n.4 plastic goalie rod stoppers (19)
o.4 threaded screws (#13)
p.2 wood support beams (#12)
2. Begin by constructing your table soccer
field box. Locate two end goal panels.
Connect a goal panel to the one of the
side panels by using two screws with full
thread, and two washers. Repeat on
the opposite end of the side panel with the second goal panel.
3. Slide the soccer playing field surface
into the connected three sides of the

5
box.
4. Connect the final side panel to the
table soccer field box by using two
screws with full thread and two
washers on each end. Turn your
newly constructed soccer field box
upside down and insert two
supporting beams. (#12) Connect the
supporting beams to the box using 2
long screws (#13) and 4 washers
(#14).
5. Place four screw caps (#15) on the ends of the
long screws. This will complete your table
soccer field box. Place the box on top of the
pool table structure.
6. Once the table soccer field box is created, locate 8 metal player
rods. Identify the different metal rods by looking at the precut
holes punched in each of the rods. Each rod will have holes placed
in it for the attachment of the figurines, plus a hole punched in the
end to indicate where the handle is to be placed. Your 8 total rods
should be distributed as follows:
a.4 rods with three holes for figurine and stopper attachment,
plus one handle indicator hole on the end.
b.2 rods with two holes for figurine attachment, plus one handle
indicator hole on the end.
c. 2 rods with five holes for figurine attachment, plus one handle
indicator hole on the end.
7. Place each of the eight handles onto the eight
metal rods, Handles should be placed on the
end of the rod with an indicator hole
approximately two inches from the end.
8. Begin at one end of the table soccer field box with a precut slot that
is nearest one of the goals. Slide the metal rods into the table
soccer field box. Place the rods into the box staring at the goal
nearest to you in the following order (use the diagram below for

6
assistance):
a.Three figurine hole rod, handle on the right side
b.Two figurine hole rod, handle on the right side
c. Three figurine hole rod, handle on the left side
d.Five figurine hole rod, handle on the right side
e.Five figurine hole rod, handle on the left side
f. Three figurine hole rod, handle on the right side
g.Two figurine hole rod, handle on the left side
h.Three figurine hole rod, handle on the left side
9. Once the rods are in place, we will begin placing the figurines on
each of the rods. Locate the goalie rod, or the rod next to the goal
that you began the rod insertion process with (three figurine hole rod,
handle on the right side.).
10.Slide the rod partially back out of the table soccer field box by pulling
the end with the handle until the opposite end of the rod is resting in
the center of the field.
Completed Bumper Group
11.Create a bumper group by sliding one rubber washer, one foam
stopper and another rubber washer onto the rod. Push these three
pieces together to make the bumper group. This group will
eventually be placed directly on the outside of the goalie rod stopper.
12.After the bumper group is in place, slide one goalie rod stopper, one

7
red figurine and another goalie
rod stopper onto the rod.
13.Create a second bumper group
by sliding one rubber washer, one
foam bumper and another rubber
washer onto the rod and pushing
these three pieces together.
Goalie Rod Stopper and
Bumper Group
14.Once these pieces are placed on the rod, you may again slide the
rod through the remaining hole in the side of the table soccer field
box.
15.Slide the first bumper group far to the right, so that it is positioned on
the rod, to the right of all of the precut holes.
16.In the furthest hole to your right, attach the goalie rod stopper by
using one of the threaded screws.
17.Attach the red figurine to the center hole using a small metal screw.
18.Attach the remaining goalie rod stopper in the third hole using
another of the threaded screws.
19.Slide both bumper groups so that they are
positioned on the rod directly next to the
goalie rod stoppers, on the outside of each
stopper.
( Bumper Group Placement see photo to
the right)
20.Place an end cap on the unfinished end of the goalie rod.
21.Locate the next rod, (Two figurine hole rod, handle on the right side.)
Slide this rod partially back out of the table soccer field box by
pulling the handle until the opposite end is resting in the center of the
field.
22.Create a bumper group by sliding one rubber washer, one foam

8
bumper and another rubber washer onto the rod. Push these three
pieces together to make the bumper group.
23.Next slide two red figurines onto this rod.
24.Create a second bumper group by sliding one rubber washer, one
foam bumper and another rubber washer onto the rod and pushing
these three pieces together.
25.Once these pieces are placed on the rod, you may slide the rod back
through the remaining hole in the side of the
table soccer field box.
26.Slide the first bumper group far to the right, so
that it is positioned on the rod to the right of all
of the precut holes.
27.Attach the red figurines to the two precut holes
in the rod using two small metal screws.
Bumper Group
Placement
28.Slide both bumper groups so that they are positioned on the rod
directly next to the figurine, on the outside of each figurine. (see
photo to the right)
29.Place an end cap on the unfinished end of the rod.
30.Locate the next rod, (Three figurine hole rod, handle on the left side.)
Slide this rod partially back out of the table soccer field box by
pulling the handle until the opposite end is resting in the center of the
field.
31.Create a bumper group by sliding one rubber washer, one foam
bumper and another rubber washer onto the rod. Push these three
pieces together to make the bumper group.
32.Next slide three blue figurines onto this rod.

9
33.Create a second bumper group by sliding one rubber washer, one
foam bumper and another rubber washer onto the rod and pushing
these three pieces together.
34.Once these pieces are placed on the rod, you may slide the rod back
through the remaining hole in the side of the table soccer field box.
35.Slide the first bumper group far to the left, so that it is positioned on
the rod to the left of all of the precut holes.
36.Attach the blue figurines to the three
precut holes in the rod using three
small metal screws.
37.Slide both bumper groups so that
they are positioned on the rod
directly next to the outside figurines.
Bumper groups should be outside of
all of the figurines on both the right
and the left side. (see photo to the
right) Bumper Group Placement
38.Place an end cap on the unfinished end of the rod.
39.
40.Locate the next rod, (Five figurine hole rod, handle on the right side.)
Slide this rod partially back out of the table soccer field box by
pulling the handle until the opposite end is resting in the center of the
field.
41.Create a bumper group by sliding one rubber washer, one foam
bumper and another rubber washer onto the rod. Push these three
pieces together to make the bumper group.
42.Next slide five red figurines onto this rod.
43.Create a second bumper group by sliding one rubber washer, one
foam bumper and another rubber washer onto the rod and pushing
these three pieces together.
44.Once these pieces are placed on the rod, you may slide the rod back
through the remaining hole in the side of the table soccer field box.
45.Slide the first bumper group far to the right, so that it is positioned on

10
the rod to the right of all of the precut holes.
46.Attach the red figurines to the five precut holes in the rod using five
small metal screws.
47.Slide both bumper groups so that they are positioned on the rod
directly next to the outside figurines as done with other rods.
Bumper groups should be outside of all of the figurines on both the
right and the left side.
48.Place an end cap on the unfinished end of the rod.
49.Now you have completed half of your table soccer table. Go to the
opposite end of the table and repeat steps 8 though 46, only this
time use the opposite color scheme.
50.Place one scorer (#11)- on the top of each end goalie panel, insert
one screw (#10)on each end of scorer.
51.Your completed table should resemble the picture shown below.

11
Parts List
No.
Name
Unit
Quantity
1
Side panel
piece
2
2
Goal panel
piece
2
3
Play field surface
piece
1
4
Rod for 5 player
piece
2
5
Rod for 3 player
piece
2
6
Rod for 2 player
piece
2
7
Rod for 1 player
piece
2
8
Handle
piece
8
9
End cap for rod
piece
8
10
Screw for scorers
piece
2
11
Scorer
piece
2
12
Wood support beam
piece
2
13
Long screw
piece
2
14
Washer for long screw
piece
4
15
Screw cap
piece
4
16
Form stopper
piece
16
17
Rubber washer
piece
32
18
Pool table leg
piece
4
19
Goalie rod stopper
piece
4
20
Rod for table tennis
piece
2
21
Player
piece
22
22
Small screws for player
piece
26
23
Full thread screws
piece
24
24
Washer
piece
24
25
Pool table frame
set
1
26
Board for air hockey
piece
1
27
Board for multi-games
piece
1
28
Soccer ball
piece
3
29
Striker
piece
2
30
Puck
piece
2
31
Net for table tennis
piece
1
32
Bat
piece
2
33
Cue
piece
2
34
Pool table ball
set
1
35
Chalk
piece
2
36
Triangle
piece
1
37
Black Jack
set
1
38
Dice
set
1
39
Chess
set
1
40
Shuffle board
set
6

12
41
Five in row
set
1
42
Spanner
piece
2
43
Spanner with inner hexagon
piece
1
44
Leveler
piece
4
45
Table tennis ball
piece
2
46
Screw driver
piece
2
47
Dice cup
piece
1
48
Bowling ball
piece
1
49
Bowling bottle
piece
6
Graphics for assembly parts

13

14
