Azoteq AZBAT48100B User manual

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 1 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Lithium-Iron Phosphate Battery
AZBAT48100B
Product Manual
This product manual provides further detail on the AZBAT48100B LiFePO4 battery. Please
familiarise yourself with the operating instructions in this document before operating the battery.
Table of Contents
LITHIUM-IRON PHOSPHATE BATTERY ........................................................................................................ 1
AZBAT48100B.................................................................................................................................................. 1
PRODUCT MANUAL ........................................................................................................................................ 1
REVISION HISTORY................................................................................................................................. 2
DISCLAIMER ............................................................................................................................................ 2
OVERVIEW................................................................................................................................................ 2
PRODUCT INFORMATION....................................................................................................................... 3
PRODUCTION DIMENSIONS.............................................................................................................3
PARAMETERS................................................................................................................................4
BATTERY INTERFACE.....................................................................................................................5
COMMUNICATION PORT DEFINITIONS ..............................................................................................8
INSTALLATION ........................................................................................................................................ 9
HARDWARE REQUIRED...................................................................................................................9
INSTALLATION LOCATION................................................................................................................9
INSTALLATION ...............................................................................................................................9
PARALLEL CONNECTION.............................................................................................................. 11
PRECAUTIONS....................................................................................................................................... 14
STORAGE .................................................................................................................................. 14
SAFETY ..................................................................................................................................... 14
Before use ....................................................................................................................................14
During use ....................................................................................................................................14
Other.............................................................................................................................................15
EMERGENCY CONDITIONS.................................................................................................................. 15
LEAKING CELLS.......................................................................................................................... 15
FIRE.......................................................................................................................................... 15
OTHER ...................................................................................................................................... 15

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 2 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Revision History
Version
Release date
Change Notes
1.00
15 January 2021
Initial release
Disclaimer
This product manual provides further detail on the AZBAT48100B LiFePO4 battery. Please read the
operating instructions in this document before using the battery. Also familiarise yourself with the
warranty conditions of this product to ensure it is operated within stipulated requirements.
Please download the battery registration documents from the Azoteq website (www.azoteq.com)
and return it to us to activate your warranty.
Overview
The AZBAT48100B incorporates 30x 3.2V (15S2P configuration); 50Ah Lithium-Iron Phosphate
(LiFePO4) cells with a 1C charge and discharge rating. The battery incorporates a battery
management system (BMS) which provides the following functionality:
•Protection
oOver discharge
oOver charge
oShort circuit
oOver and under temperature
oImpulse voltage
•Control
oCharge and discharge current
oCell balancing
•Communication
oCANBUS communication port to interface with the inverter.
oMODBUS ports for parallel connections between batteries and for firmware updates
as well as battery monitoring.
The BMS has been tested with leading inverters, including SunSynk, Victron and GoodWe and has
been IEC 62619 certified.
The battery is mounted in a durable 5U steel casing and fits in a standard 19-inch rack. The battery
has 2x M8 terminal connections on the front for a sturdy connection to the battery cables.

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 3 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Product Information
Production dimensions

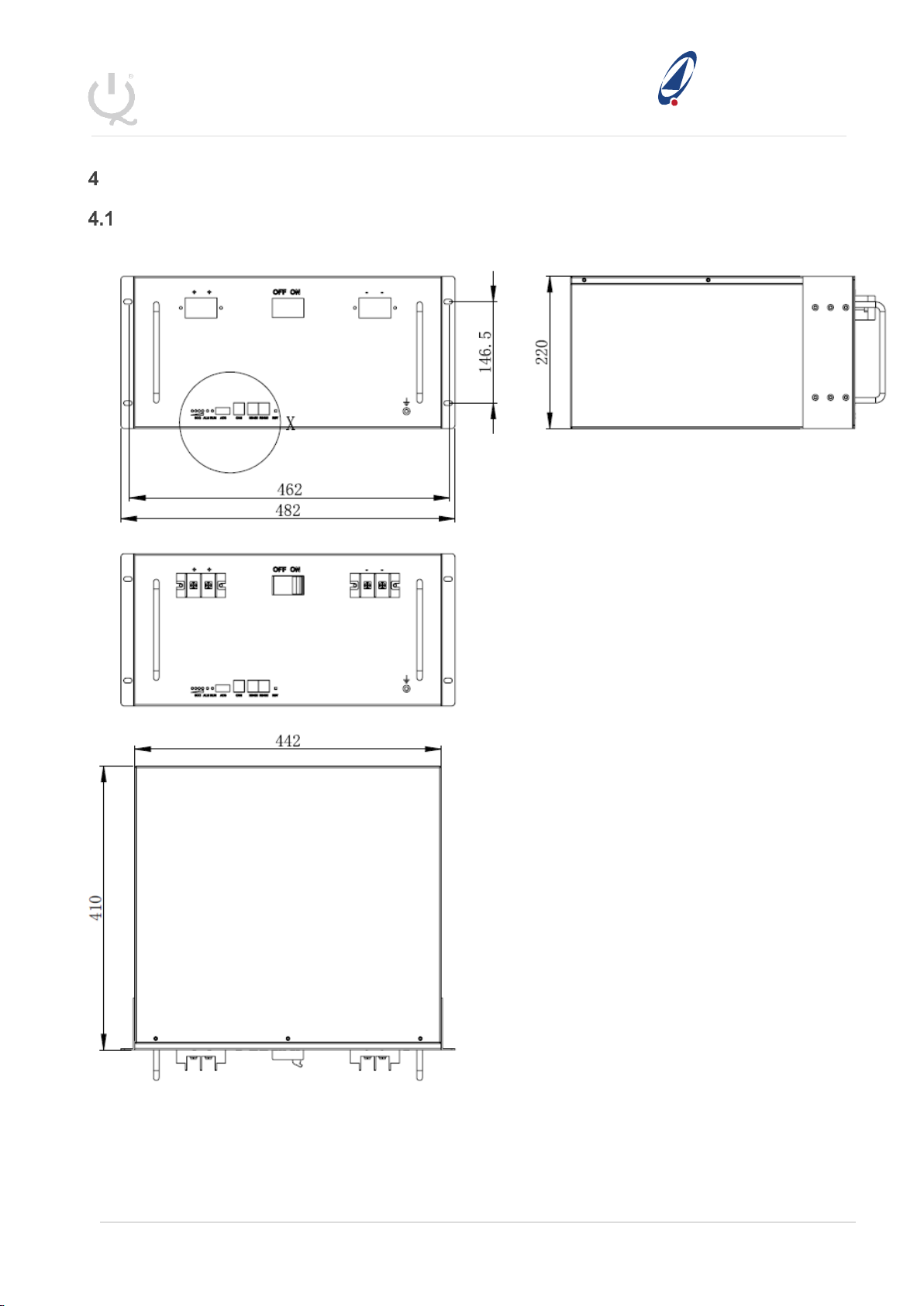

Figure 1: AZBAT48100B physical dimensions

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 4 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Parameters
Table 1: AZBAT48100B electrical and environmental parameters
GENERAL
Model
AZBAT48100B
Battery Type
LiFePO4
Nominal Voltage
48V
Nominal Current
100Ah
Nominal Capacity
4.8kW
@ 100% DoD
Cycle life @ 80% DoD*
5 000
@ 25°C
Cycle life @ 50% DoD*
9 000
@ 25°C
Recommended DoD
80%
Operating Temperature
0-40°C
Dimensions [mm]
482(W) x 410(L) x 220(H)
Weight
48kg
IP Rating
20
Storage conditions
0°C to 45°C (less than 6 months)
0°C to 25°C (12 months)
25-85% relative
humidity
CHARGE AND
DISCHARGE
Charge Voltage
54.8V
Float / Sustain Voltage
54V
Standard Charge
30A (0.3C)
Maximum Charge
50A (0.5C)
BMS protection for
higher charge current
Standard discharge
50A (0.5C)
Maximum Discharge
95A (0.95C)
BMS
Communication interface
CANBUS and MODBUS
Parallel
Up to 15 batteries
Protection - short
Short circuit current
600A
Short circuit protection delay
100µs
Short circuit recovery condition
Automatic
Protection - voltage
Low voltage alarm
40.5V
Low voltage shutdown
37.V
Low voltage release / restart
40.5V
Low voltage alarm light
15%
SOC low (output voltage
disabled)
8%
Protection - discharge
Over discharge cut-off current
110A
Over discharge cut-off current
delay
10s
Over discharge recovery
condition
Automatic
Protection - temperature
Charging over temperature
55°C
Recovery of overcharge
temperature
50°C
Charging under temperature
0°C

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 5 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Re-charge under temperature
recovery
5°C
Discharge over temperature
60°C
Discharge over temperature
recovery
55°C
Discharge under temperature
-20°C
Discharge under temperature
recovery
-15°C
Environmental over temperature
protection
70°C
Environmental temperature
recovery
60°C
Environmental under temperature
-20°C
Environmental under temperature
recovery
-15°C
Power over temperature
protection
100°C
Power over temperature recovery
85°C
Balance
Current
≤200mA
Voltage
>3.35, voltage
difference 50mV
SWITCH
Breaker model
DC125A
CERTIFICATION
IEC 62619
UN38.3
Battery interface
This section details the front panel interface of the battery.

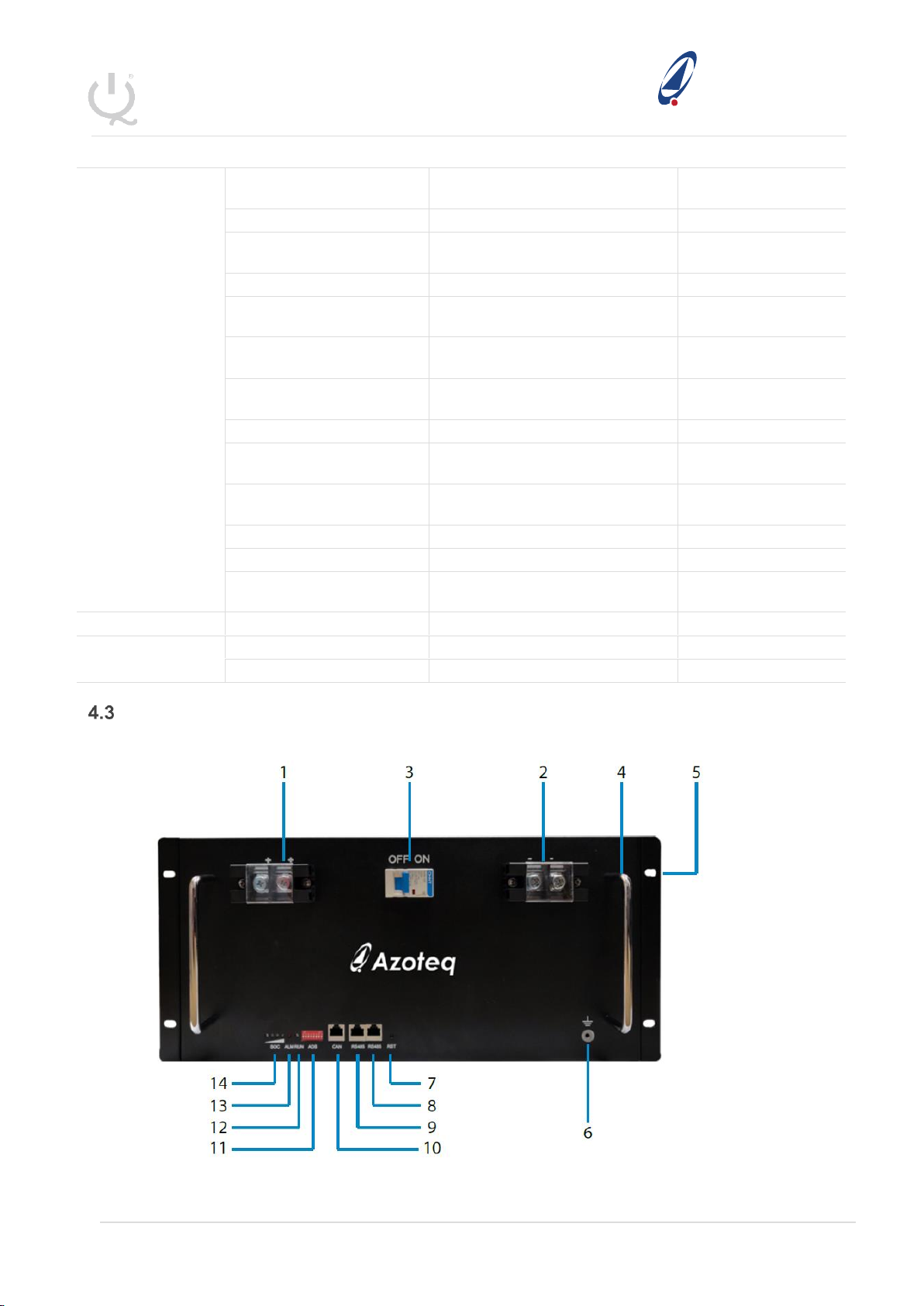

Figure 2: AZBAT48100B front panel interface

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 6 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Table 2 describes the front panel functional interface.
Table 2: AZBAT48100B Interface description
Index
Interface
Description
1
Positive battery
terminals
The battery has two positive M8 terminals. The one terminal can be
used to connect to the inverter while the other terminal can be used to
connect to a parallel battery.
2
Negative battery
terminals
The battery has two negative M8 terminals. The one terminal can be
used to connect to the inverter while the other terminal can be used to
connect to a parallel battery.
3
Breaker switch
Switches power to the battery terminals ON and OFF.
4
Handle
Handle for lifting and moving the battery.
5
Mounting hole
4x holes located on the front sides of the battery for mounting to a 19-
inch rack.
6
Earth connection
Use this to connect the battery to EARTH as per local wiring
regulations.
7
Reset
Switches the battery management system (BMS) ON and OFF. The
BMS needs to be turned on initially. Please refer to Table 3 for the LED
indicator definitions.
•Switching ON: This is done with a short press and release of the
switch, after which the green RUN LED will start to flicker green.
•Switching OFF: Pressing and holding the switch for 3 seconds will
switch the BMS off. The SOC LEDs will switch off sequentially and
the RUN light will switch off.
8-9
RS485 port
There are 2x RJ45 MODBUS (RS485) ports on the battery. Use the
MODBUS port to connect the BMS of the battery to a parallel battery.
Some inverters also use MODBUS to interface with the battery. Please
refer to Table 4 for the pin assignment.
10
CANBUS port
The RJ45 CANBUS port provides communication between the inverter
and the BMS of the battery.
11
Address
Used to set the battery address when the batteries are used in parallel.
•The DIP switches need to be in the OFF position when using a
single battery.
•The DIP switches need to be setup to a unique address when being
used in parallel. Please refer to 5.4 for further detail.
12-13
RUN / ALM lights
Please refer to Table 3 for a detailed overview for these indication lights.
•RUN (green):
•ALARM (red)
14
SOC
These lights indicate the state-of-charge (SOC) i.e. the capacity of the
battery.
•4 LED’s (100% - 75%)
•3 LED’s (74% - 50%)
•2 LED’s (49% - 25%)
•1 LED (<25%)

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 7 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Figure 3: LED indicator lights and communication port
The figure above illustrates the LED indicator lights on the front panel. There are 4x green state of
charge (SOC) indicator lights, a red ALARM light, and a green RUN light. Table 3 defines the
indicator LED functions based on the different battery states.
Table 3: AZBAT48100B LED indicator description
BATTERY
STATE
RUNNING STATE
RUN
ALM
SOC
DESCRIPTION
GREEN
RED
GREEN
GREEN
GREEN
GREEN
●
●
●
●
●
●
SHUT DOWN
SLEEP
OFF
OFF
OFF
OFF
OFF
OFF
ALL OFF
STANDBY
NORMAL
FLASH
1
OFF
OFF
OFF
OFF
OFF
STANDBY STATUS
CHARGE
NORMAL
ON
OFF
BASED ON CAPACITY
HIGHEST CAPACITY
SOC LED
FLASH 2, OTHER LED's
ON
ALARM
ON
FLASH
2
BASED ON CAPACITY
HIGHEST CAPACITY
SOC LED
FLASH 2, OTHER LED's
ON
OVER VOLTAGE
FLASH
1
OFF
OFF
OFF
OFF
OFF
STOP CHARGING
TEMPERATURE /
OVER CURRENT
FLASH
1
FLASH
1
OFF
OFF
OFF
OFF
STOP CHARGING
DISCHARGE
NORMAL
FLASH
3
OFF
BASED ON CAPACITY
HIGHEST CAPACITY
SOC LED
FLASH 2, OTHER LED's
ON
TEMPERATURE /
OVER CURRENT/
SHORT CIRCUIT
OFF
ON
OFF
OFF
OFF
OFF
STOP CHARGING AND
ENTERS SLEEP STATE
IF NOT CHARGED IN 48
HOURS
UNDER VOLTAGE
OFF
OFF
OFF
OFF
OFF
OFF
STOP DISCHARGING

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 8 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Note the flashing frequency:
•FLASH 1: ON for 0.25s; OFF for 3.75s
•FALSH 2: ON for 0.5s; OFF for 0.5s
•FLASH 3: ON for 0.5s; OFF for 1.5s
Communication port definitions
The battery has a two RJ45 MODBUS (RS485) communication ports and one RJ45 CANBUS port.
Please refer to the tables below for the port definitions.
Figure 4: RJ45 network cable pin reference (refer to Table 4)
A standard 8P8C 1:1 network cable can be used for both the CANBUS and the MODBUS
connections between the batteries.
Table 4: AZBAT48100B MODBUS and CANBUS port pin assignment
No.
RS485
CAN
1
RS485B / TRX-
2
RS485A / TRX+
3
GND
4
CAN-H
5
CAN-L
6
GND
7
RS485A / TRX+
8
RS485B / TRX-

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 9 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Installation
Please read the installation manual of the inverter in conjunction with this installation manual. All
wiring, cable sizing and installation requirements must be in regulation with the specified installation
requirements as governed by the relevant authority in the country of installation. Please ensure that
a qualified installer familiar with the installation requirements is used for the installation. The
installation details must be sent to Azoteq for the warranty to apply. Please download and complete
the warranty document from the Azoteq website (https://www.azoteq.com/products/powersense/).
Hardware required
The following items are required to install the battery. Please note these items are not included with
the battery.
1. Positive (red) and Negative (black) power cables with M8 lugs on the battery side and M6 on
the inverter side.
a. Recommended cable thickness:
i. ≥35mm2for 5kW installations
ii. ≥50mm2for 8kW installations
2. CANBUS communication cable (usually supplied with the inverter).
3. Parallel communication cable when using multiple batteries.
4. Ground cable and screw (M5) to earth the battery to the installation.
5. DC overcurrent protection (fuse) and isolator for additional protection and compliance.
6. It is recommended to install the batteries in a 19-inch rack mount cabinet.
a. A cabinet with a fan will help circulate air to keep the batteries cool.
b. The screws to fix the battery to the cabinet is provided with the battery.
Installation location
Please note the requirements for the installation location:
1. The area needs to be dry.
2. Relative humidity < 85%.
3. Minimal dust.
4. Ambient temperature between 0-40°C, ideally ~25°C.
a. Frequent exposure to high temperatures will shorten the life of the battery.
5. No flammable or explosive materials may be near the batteries.
Installation
1. Make sure the breaker switch on the battery is in the OFF position.
2. Install the battery inside the cabinet and secure it to the cabinet with the 4x mounting holes
on the front sides.
a. Please make sure the cabinet can support the weight of the battery / batteries.
3. Connect the earth cable from the battery/batteries to the installation.
4. Connect the power cables between the batteries (when using multiple batteries).

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 10 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
a. Red and black cables as depicted in Figure 5.
b. Please ensure the power cables are properly torqued to minimum 10N.m for the M8
terminal.
5. Connect the cables to the inverter via the DC fuse and breaker.
a. Please ensure the polarity of the connection between the inverter and the batteries
are correct.
6. Connect the RS485 cables between the batteries when using multiple batteries.
a. As depicted by the yellow connections in Figure 5.
7. Connect the CANBUS cable between the master battery and the inverter.
a. As depicted by the blue connection in Figure 5.
8. Setup the DIP switches on the batteries for parallel use.
a. Please refer to section 5.4 for more detail on the DIP switch settings.
Figure 5: AZBAT48100B installed inside a battery cabinet with 3 batteries connected in parallel.

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 11 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
9. Once the above has been done, please verify all the connections to ensure everything is
as specified.
10. Follow the instructions as specified inthe installer manual before switching the batteries ON.
11. When ready to switch the battery ON, flip the DC break switch to the ON position.
12. Press and release the RESET switch on each of the batteries for the BMS to switch ON as
the batteries are shipped in its SLEEP state.
a. The green RUN LED will start flashing if everything is working.
b. Refer to Table 3 for the LED indicator description.
13. The inverter should automatically detect the BMS settings via the CANBUS connection once
connected.
14. Verify that the battery is communicating with the BMS by checking the charging and
discharging parameters on the inverter. The charge and discharge current values on the
inverter should match the values as in Table 5. These values should update automatically on
the inverter. The battery voltage, charge-and-discharge current, SOC value and battery
temperature will be sent through to the inverter. Please refer to figure 6 for parameters
displayed on a SunSynk inverter with the AZBAT48100 batteries.
Figure 6: Inverter charge and discharge information received from the battery BMS.
The figure on the left displays the charge and discharge information for an installation using 1 battery.
The figure on the right displays the information when 2 batteries are connected in parallel. These
values should match that as referenced in Table 5 for the number of batteries connected in parallel.
Parallel connection
When using more than one battery, the first battery will be the MASTER and the other batteries will
be SLAVES. The CANBUS connection from the inverter will be connected to the MASTER battery.
The RS485 cable/s will link the parallel SLAVE batteries to the MASTER battery. The DIP switch
(address) of the MASTER and the SLAVES need to be configured. Please refer to the following table
for the DIP switch settings:

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 12 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Table 5: Address (DIP switch) configuration
# OF
BATTERIES
ADDRESS SETTING
CHARGE
CURRENT
DISCHARGE
CURRENT
1
MASTER
45A
95A
2
MASTER
55A
105A
SLAVE 1
3
MASTER
82.5A
157.5A
SLAVE 1
SLAVE 2
4
MASTER
110A
210A
SLAVE 1

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 13 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
SLAVE 2
SLAVE 3
The BMS needs to be reset with the RESET switch if adjusting the ADDRESS on the DIP switches.
Do not stack thebatteries directly ontop of each other when usingmultiple batteries in parallel. Each
battery should be installed on a mounting plate to allow air circulation.
Please refer to Appendix A for an expanded list of address settings.
Table 6: Charge and Discharge current values
# of Parallel
Charge Current
Discharge Current
1
45
95
2
55
105
3
82.5
157.5
4
110
210
5
137.5
262.5
6
165
315
7
192.5
367.5
8
220
420
9
247.5
472.5
10
275
525
11
302.5
577.5
12
330
630
13
357.5
682.5
14
385
735
15
412.5
787.5
16
440
840

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 14 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Precautions
Storage
1. If the battery is stored for more than 3 months, it should be stored under environmentally
controlled conditions:
a. Ambient temperature: 25 ±3°C
b. Humidity: 25-85% RH
c. Air pressure: 86kPa-106kPa
2. Do not store the battery in direct sunlight.
3. The battery should be charged and discharged every 6 months.
4. Battery storage SOC should be ~50%
Safety
Before use
1. Inspect the battery to ensure that it is not damaged. If damaged, please inform the supplier.
2. Ensure that the installation is done by a qualified installer.
3. The installation needs to be done in compliance with the specified regulatory standards as
required by governmental and local authorities.
4. Make sure the breaker of the battery is in the OFF position.
5. Ensure that the inverter is not powered from AC mains while connecting the battery.
6. It is advised to use suitable protection between the battery and the inverter.
7. Make sure the polarity (positive and negative) connections between the batteries (parallel
use) and between the master/main battery and the inverter is correct.
8. The batteries cannot be used in series as the BMS is designed for a 48V battery system.
9. The battery/batteries need to be connected to earth and the earth resistance needs to be
less than 1Ω.
10. Verify that the inverter parameters match that of the battery.
11. The battery should be kept away from heat, fire and water.
12. Double check all connections before switching the breaker switch to the ON position.
During use
1. In the event of altering or moving the installation, make sure that the breaker switch is in the
OFF position. It is also recommended to switch the BMS OFF by press and holding the
RESET switch down for a few seconds.
2. Do not use this battery with that of another supplier or a different type of battery.
3. Do not use the batteries with a faulty or incompatible inverter.

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 15 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Other
1. Do not open the battery, disassemble, or attempt to repair it as this will void the warranty.
2. Do not remove or tamper with the QC sticker or any other labels on the battery as this will
void the warranty.
3. Take precaution to prevent the battery terminals shorting due to unforeseen events.
4. The batteries should not be subjected to mechanical shock or vibration.
5. Batteries should be recharged within 12 hours after being fully discharged.
6. The supplier does not take any responsibility for direct or indirect damages caused by
incorrect use or negligence. Please refer to the terms and conditions of sale and the warranty
document.
Emergency conditions
Please refer the material safety datasheet (MSDS) for the batteries on the Azoteq website.
Leaking cells
1. In the event of a cell leaking liquid or gas, take caution to prevent any contact with the skin
and eyes and inhaling the gas.
a. Inhalation: Evacuate the contaminated area immediately and seek medical attention.
b. Contact skin: Wash the affected area thoroughly with soap and water and seek
medical attention.
c. Contact with eyes: Rinse your eyes properly with water and seek medical attention.
Fire
2. In the unlikely event of a fire, a dry chemical type extinguisher such as CO2 extinguisher will
work effectively. Do not use water to extinguish the fire.
Other
3. Wet batteries
a. If the batteries are wet, please switch the battery OFF immediately.
b. Please contact the supplier for further technical support.
4. Damaged batteries
a. If the batteries seem to be physically damaged, please do not switch them ON.
b. Damaged batteries can be dangerous and need to be handled with care.
c. Please contact the supplier for further technical support.

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 16 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Appendix A: Expanded DIP Settings

Copyright © Azoteq (Pty) Ltd 2021.
AZBAT48100B Product Manual
Page 17 of 17
All Rights Reserved.
Revision 1.00
February 2021
Azoteq
PowerSense®Series
Visit www.azoteq.com
for a list of distributors and worldwide representation.
USA
Asia
South Africa
Physical
Address
6507 Jester Blvd
Bldg 5, suite 510G
Austin
TX 78750
USA
Rm 1227, Glittery City
Shennan Rd
Futian District
Shenzhen, 518033
China
1 Bergsig Avenue
Paarl
7646
South Africa
Postal
Address
6507 Jester Blvd
Bldg 5, suite 510G
Austin
TX 78750
USA
Rm 1227, Glittery City
Shennan Rd
Futian District
Shenzhen, 518033
China
PO Box 3534
Paarl
7620
South Africa
Tel
[phone]
[phone]
ext 808
[phone]
Fax
[phone]
[phone]
Email
[email protected]
[email protected]
[email protected]
The following patents relate to the device or usage of the device: US 6,249,089; US 6,952,084; US 6,984,900; US 7,084,526; US
7,084,531; US 8,395,395; US 8,531,120; US 8,659,306; US 8,823,273; US 9,209,803; US 9,360,510; US 9,496,793; US 9,709,614;
EP 2,351,220; EP 2,559,164; EP 2,748,927; EP 2,846,465; HK 1,157,080; SA 2001/2151; SA 2006/05363; SA 2014/01541; SA
2015/023634; SA 2017/02224;
AirButton®, Azoteq®, Crystal Driver, IQ Switch®, ProxSense®, ProxFusion®, LightSense™, SwipeSwitch™, and the logo are
trademarks of Azoteq.
The information in this Datasheet is believed to be accurate at the time of publication. Azoteq uses reasonable effort to maintain the
information up-to-date and accurate, but does not warrant the accuracy, completeness or reliability of the information contained herein.
All content and information are provided on an “as is” basis only, without any representations or warranties, express or implied, of any
kind, including representations about the suitability of these products or information for any purpose. Azoteq disclaims all warranties
and conditions with regard to these products and information, including but not limited to all implied warranties and conditions of
merchantability, fitness for a particular purpose, title and non-infringement of any third party intellectual property rights. Azoteq assumes
no liability for any damages or injury arising from any use of the information or the product or caused by, without limitation, failure of
performance, error, omission, interruption, defect, delay in operation or transmission, even if Azoteq has been advised of the possibility
of such damages. The applications mentioned herein are used solely for the purpose of illustration and Azoteq makes no warranty or
representation that such applications will be suitable without further modification, nor recommends the use of its products for application
that may present a risk to human life due to malfunction or otherwise. Azoteq products are not authorized for use as critical components
in life support devices or systems. No licenses to patents are granted, implicitly, express or implied, by estoppel or otherwise, under
any intellectual property rights. In the event that any of the abovementioned limitations or exclusions does not apply, it is agreed that
Azoteq’s total liability for all losses, damages and causes of action (in contract, tort (including without limitation, negligence) or
otherwise) will not exceed the amount already paid by the customer for the products. Azoteq reserves the right to alter its products, to
make corrections, deletions, modifications, enhancements, improvements and other changes to the content and information, its
products, programs and services at any time or to move or discontinue any contents, products, programs or services without prior
notification. For the most up-to-date information and binding Terms and Conditions please refer to www.azoteq.com.
www.azoteq.com/patents-trademarks/
[email protected]
